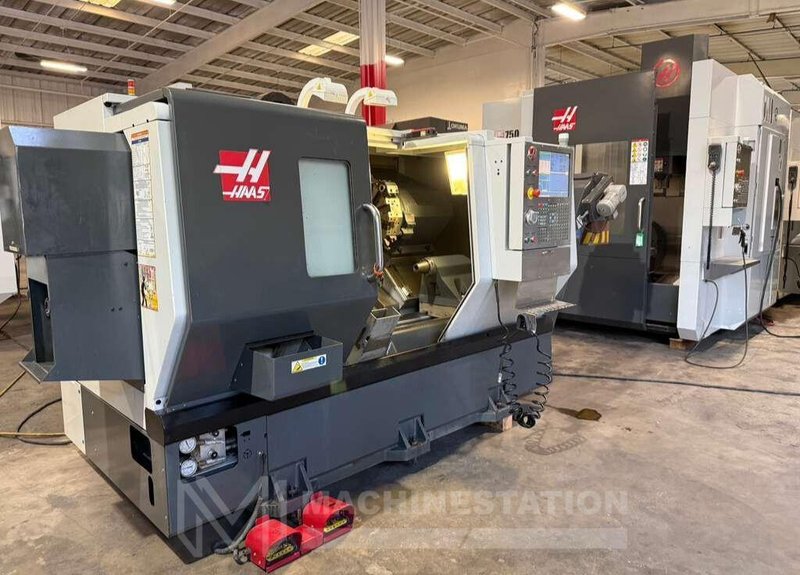

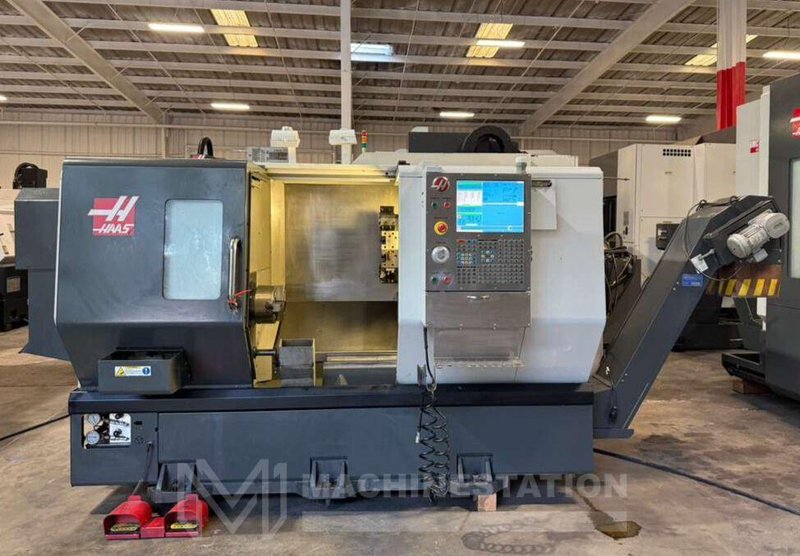

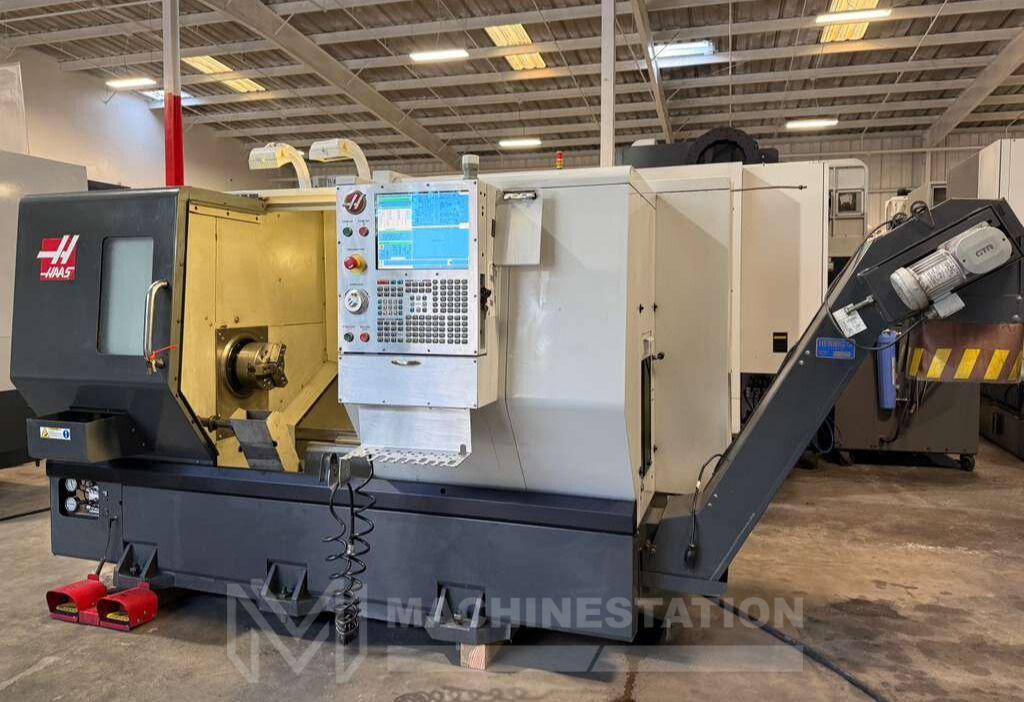

Haas ST-20 CNC Turning Center – 8″ Chuck, Tailstock Lathe

Haas ST-20 CNC Turning Center – 8″ Chuck, Tailstock Lathe

Name: Haas ST-20 CNC Turning Center – 8″ Chuck, Tailstock Lathe
Brand: HAAS
SKU: 113531
Availability: PreOrder

Brand

HAAS

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Make:	Haas
Model:	ST20
Year:	2013 (Sold & Installed 2014)
Condition:	Used – Good

Equipped With:

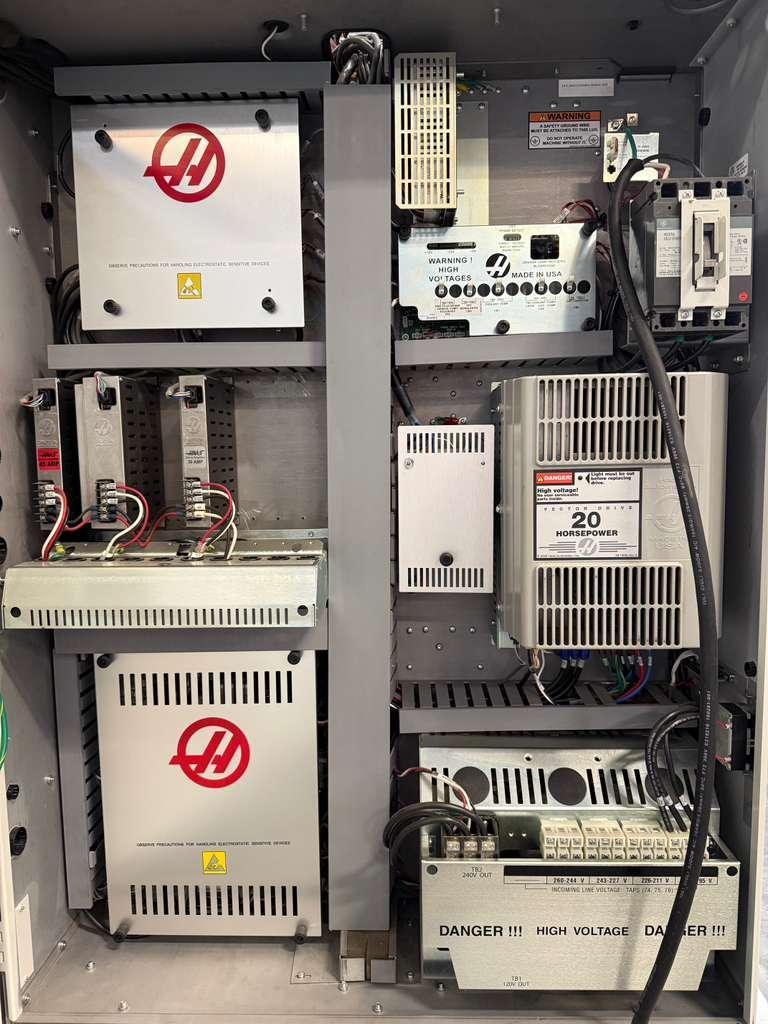

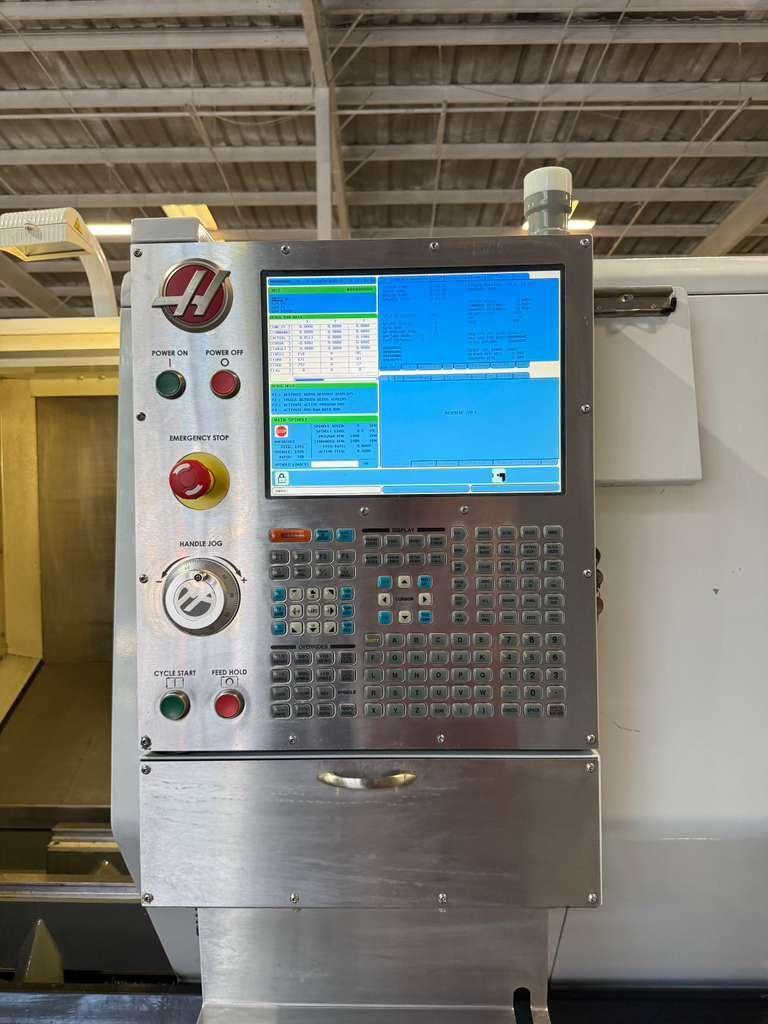

Haas CNC Control

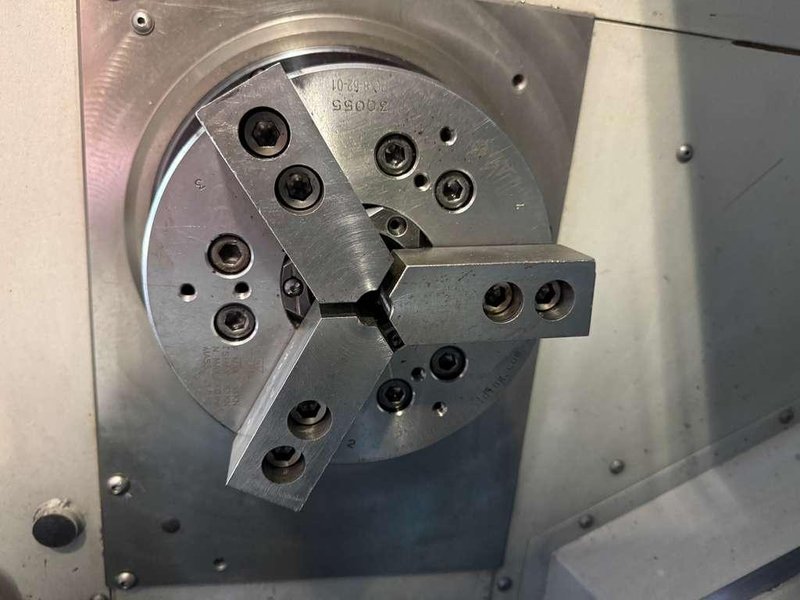

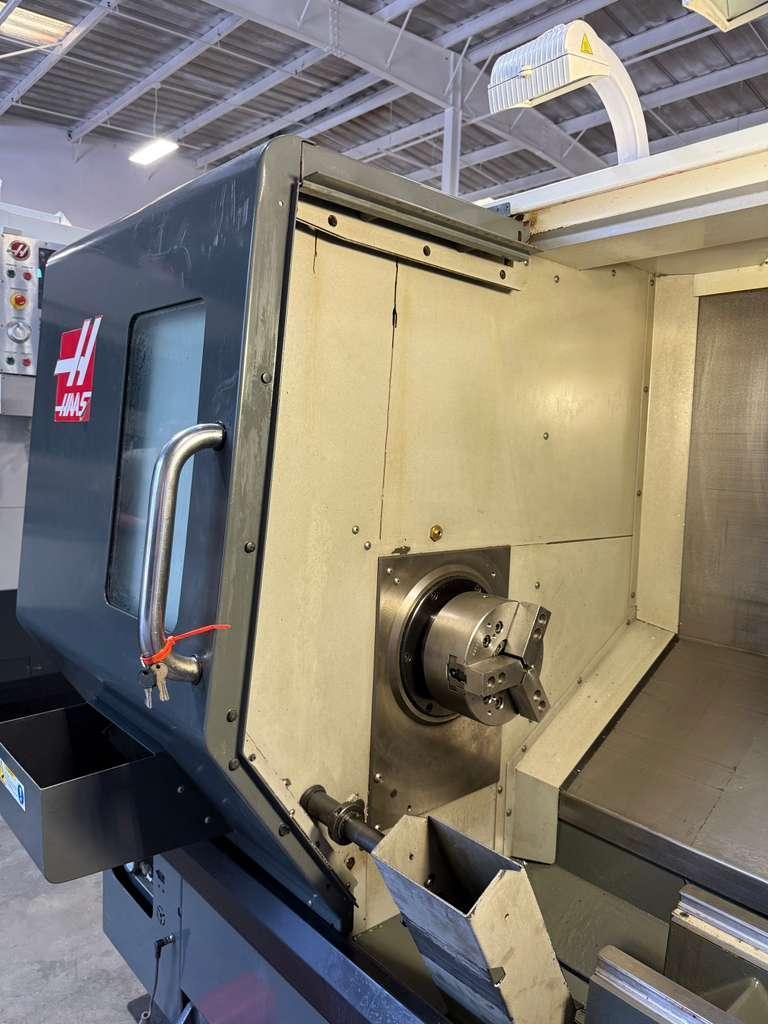

8” 3-Jaw Hydraulic Chuck
A2-6 Spindle Nose

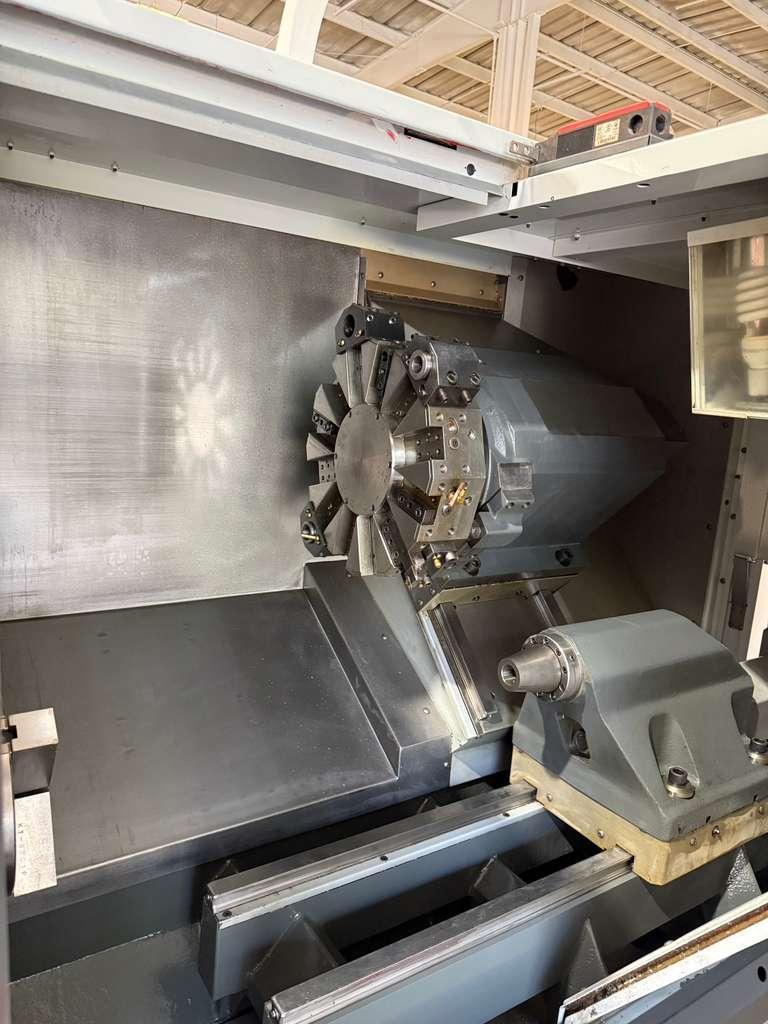

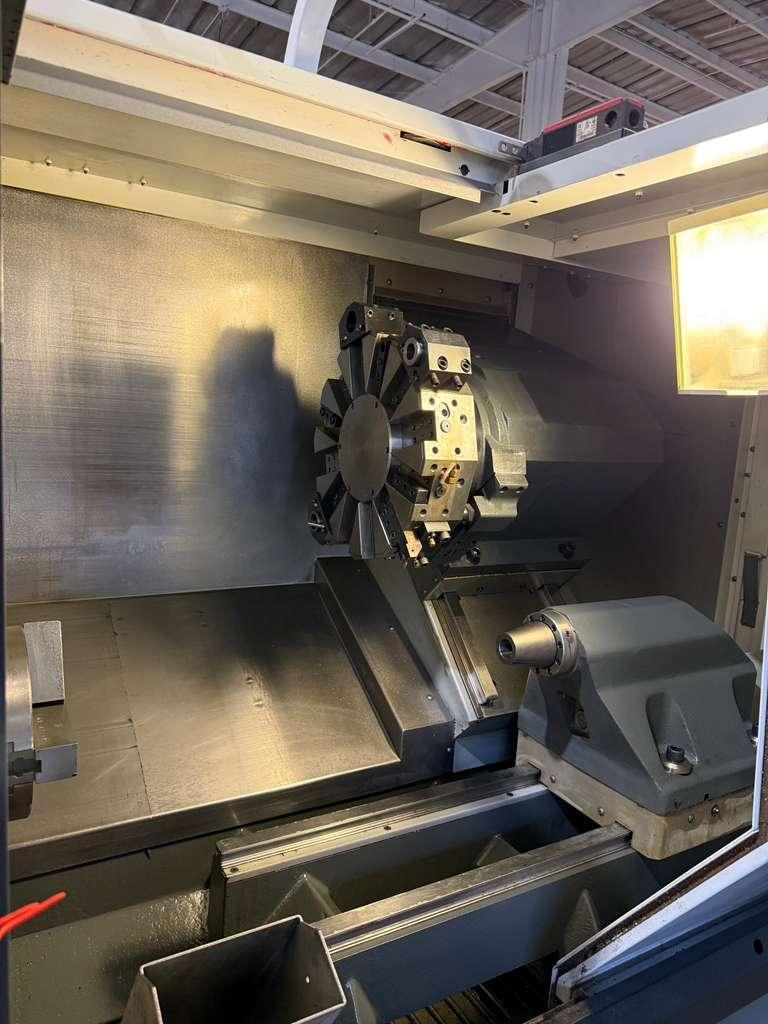

12 Station Automatic Turret
Rigid Tapping
Coolant Tank with Pump
Programmable Hydraulic Tailstock (Upgraded $8,695 value Included) – Excellent For Longer Parts

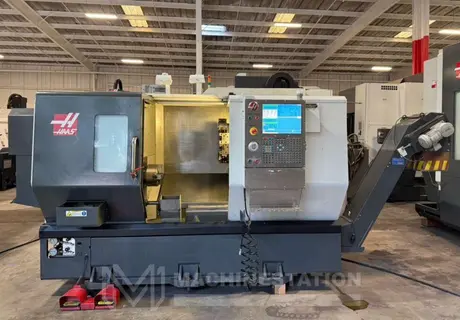

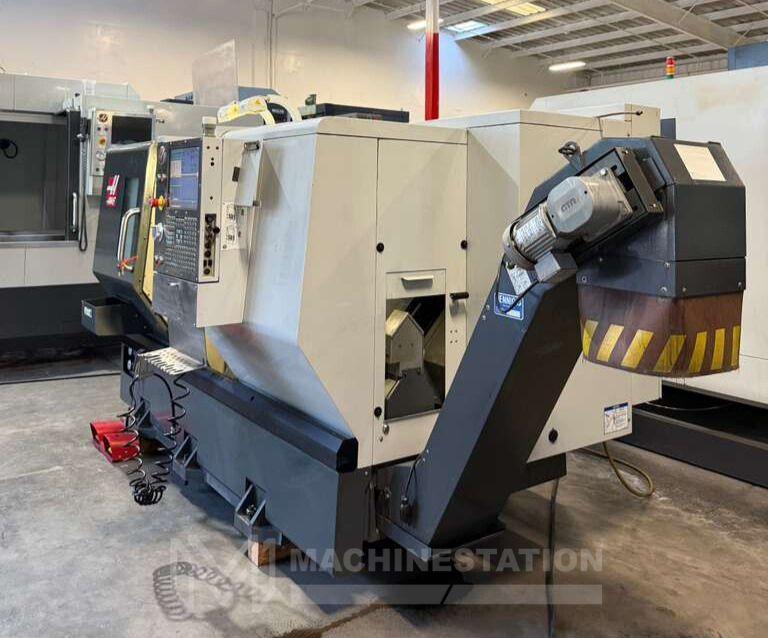

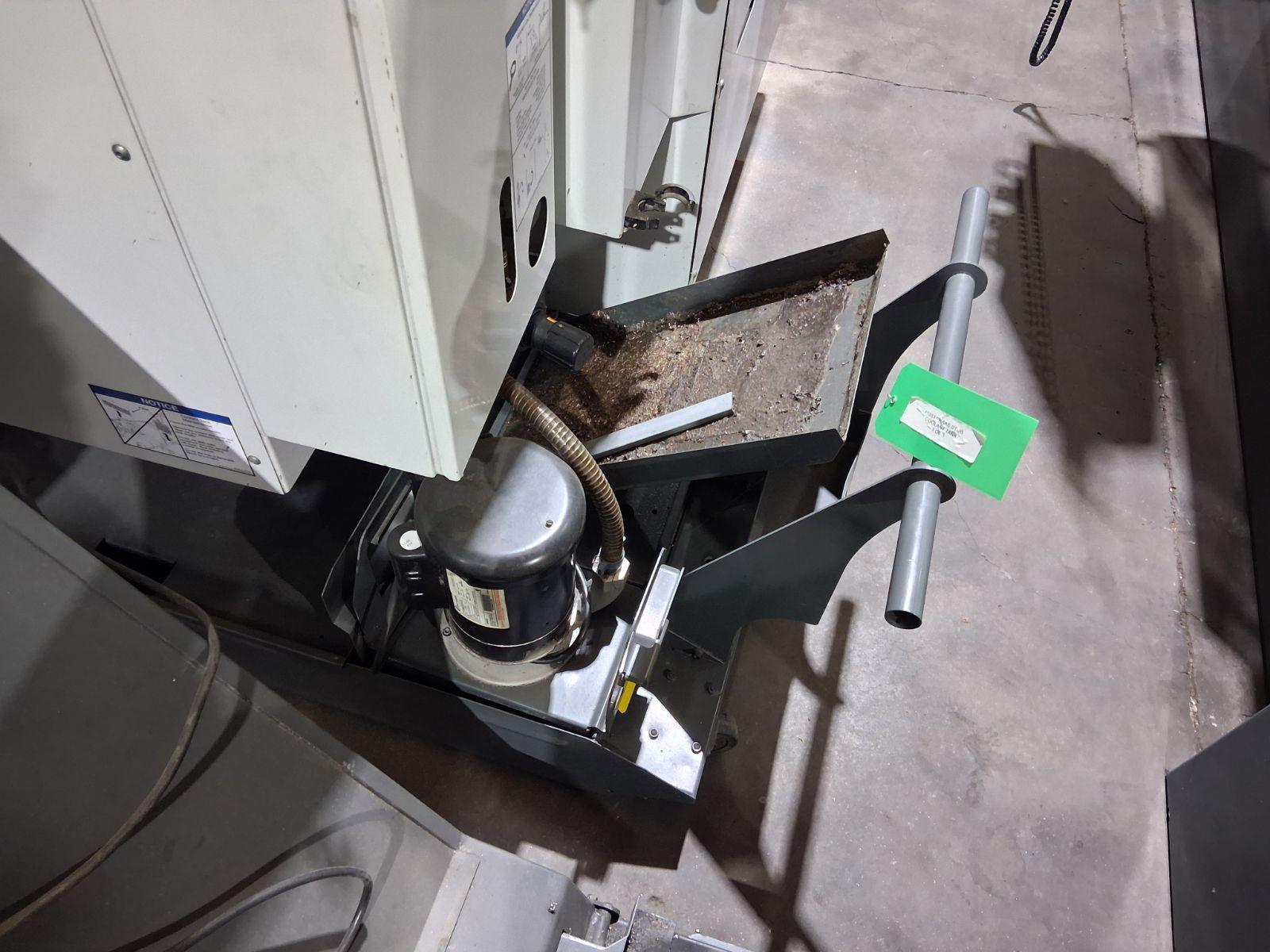

Belt Type Chip Conveyor (Upgraded $6,195 value Included) – For Efficient Chip Removal
Foot Switches

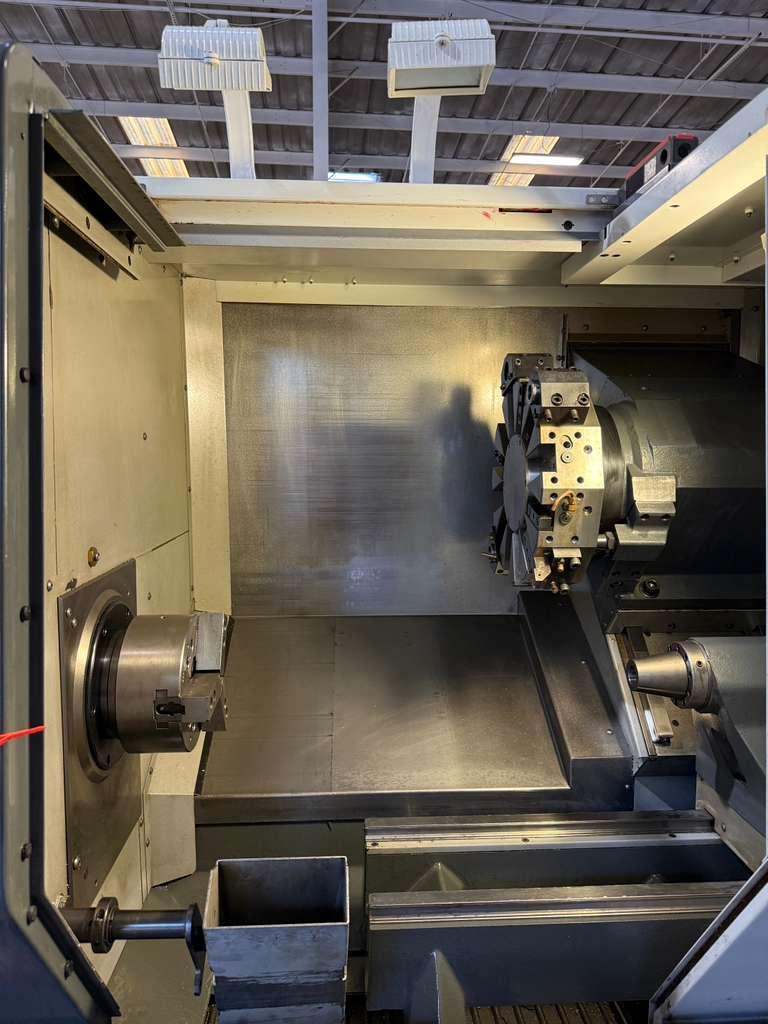

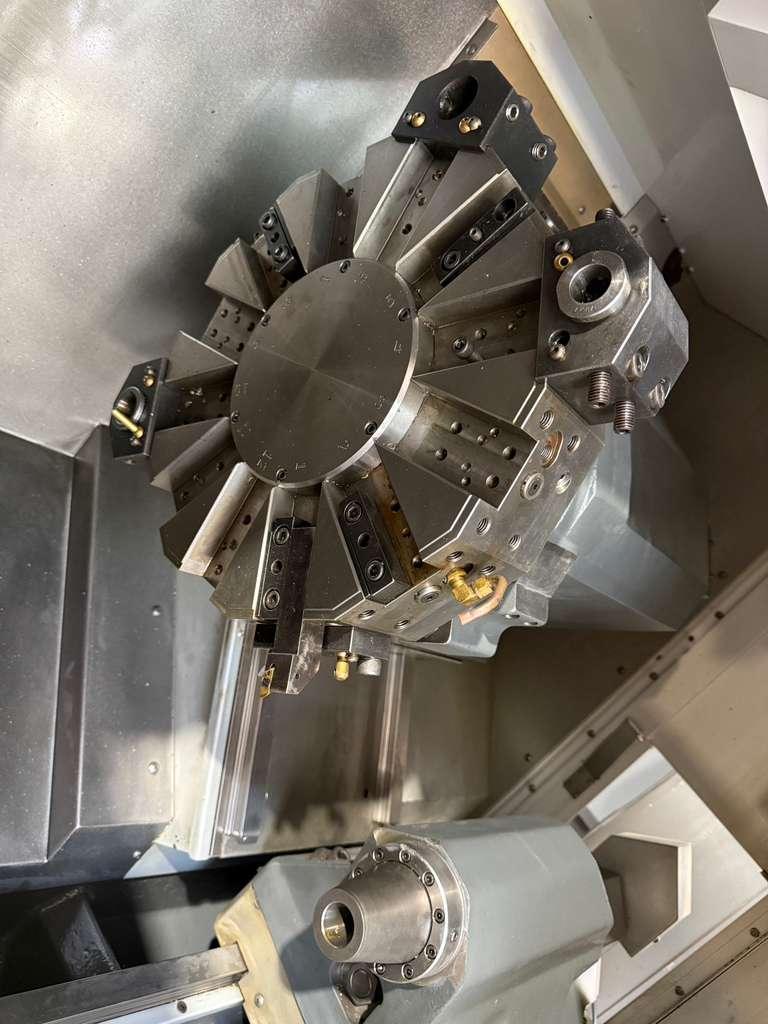

(3) Boring Tool Holders are Mounted on Turret (As shown in the images)

Capacity:
Max Turning Diameter : 13.0″
Max Swing Over Bed : 21.0″
Max Turning Length: 22.5″
Max Bar Capacity : 2.00″

Travels:
X Axis Travel : 8.4″
Z Axis Travel : 22.5″

Feedrate:
Rapid Traverse X Axis: 945 IPM
Rapid Traverse Z Axis: 945 IPM

Spindle:
Spindle Nose: A2-6
Spindle Bore: 2.5″
Spindle Speed: 4000 RPM
Spindle Motor: 20 HP

Turret:
Turret Capacity: 12 Stations
Turret Index Time: 1 Second
Turret Type: Bolt On Tool Turret

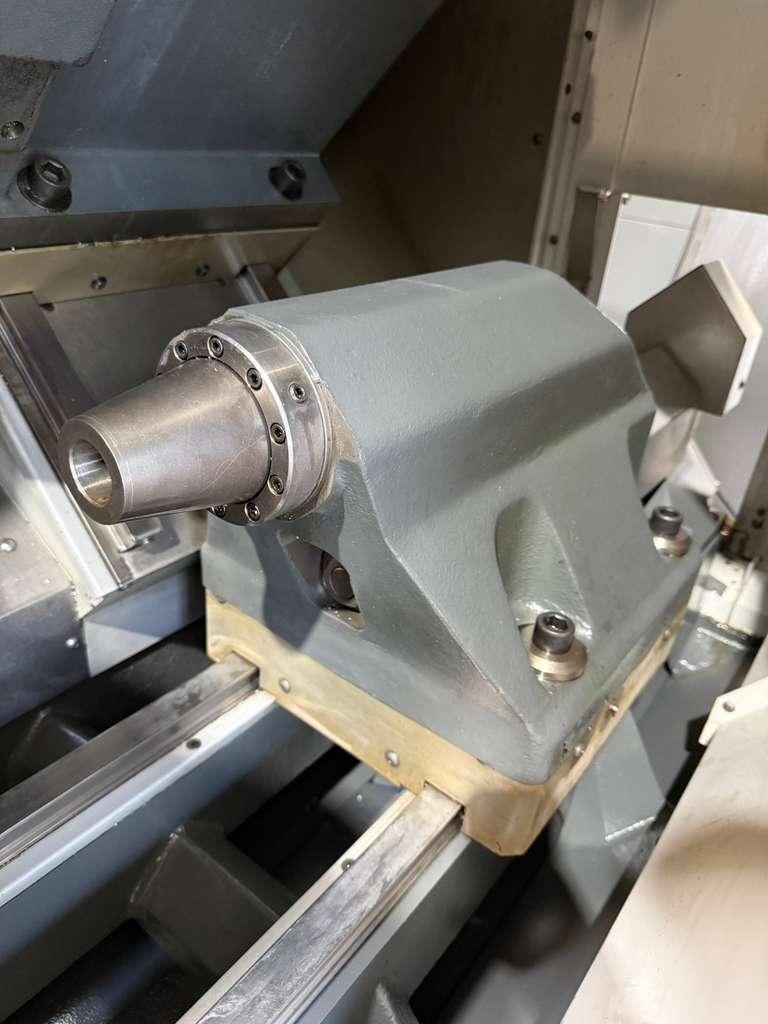

Tailstock:
Tailstock Taper: MT-4
Tailstock Quill Dia.: 2.6″
Tailstock Quill Travel: 3.1″

General:
Air Requirement: 4 scfm @ 100 psi

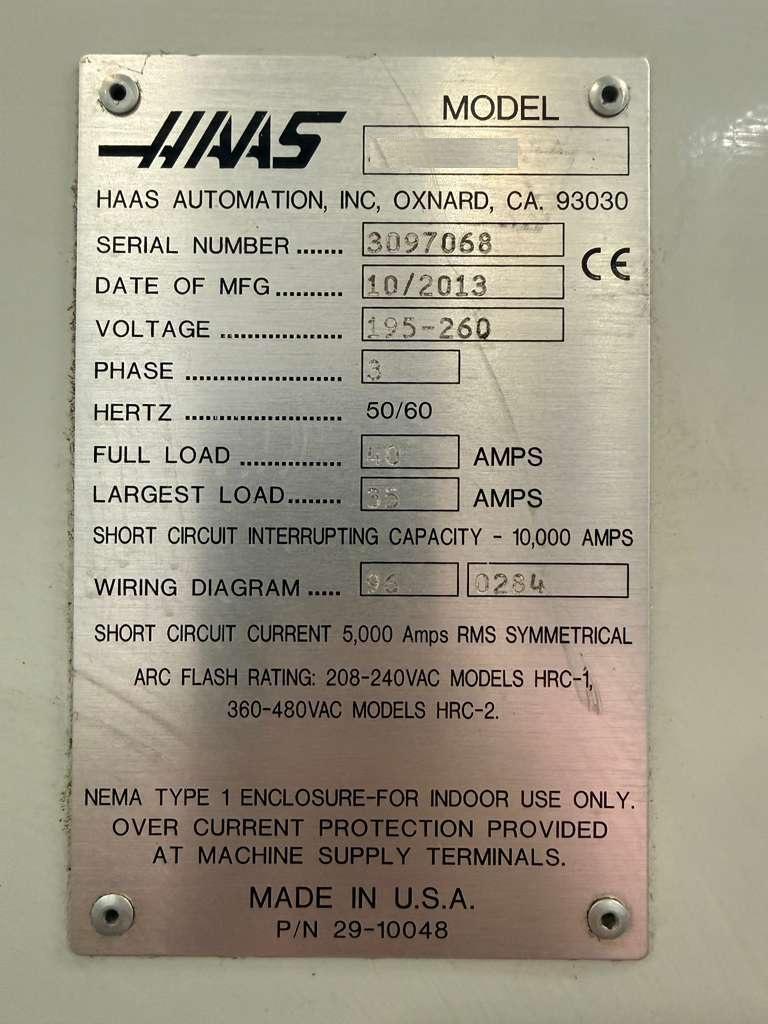

Power Source: AC 220v / 3-Phase / 60 Hz
Machine Dimensions: 142.5″ x 90″ x 92″ High
Machine Weight: 8820 lbs Approx.
