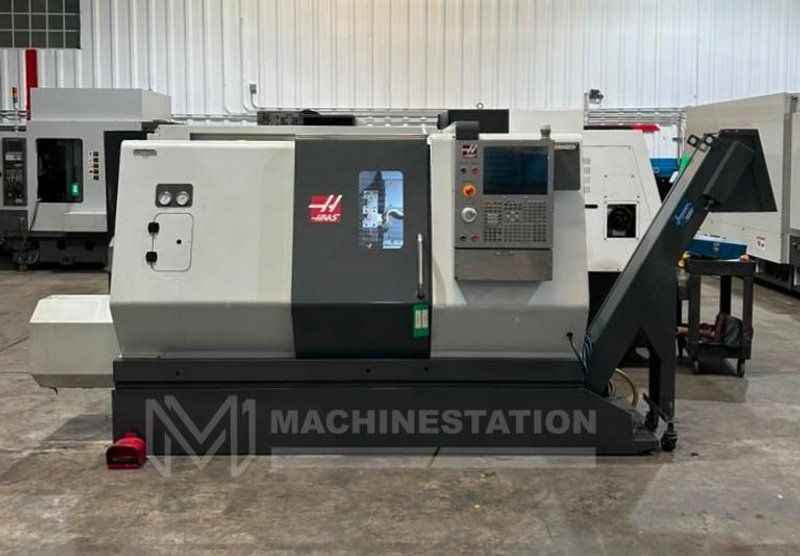

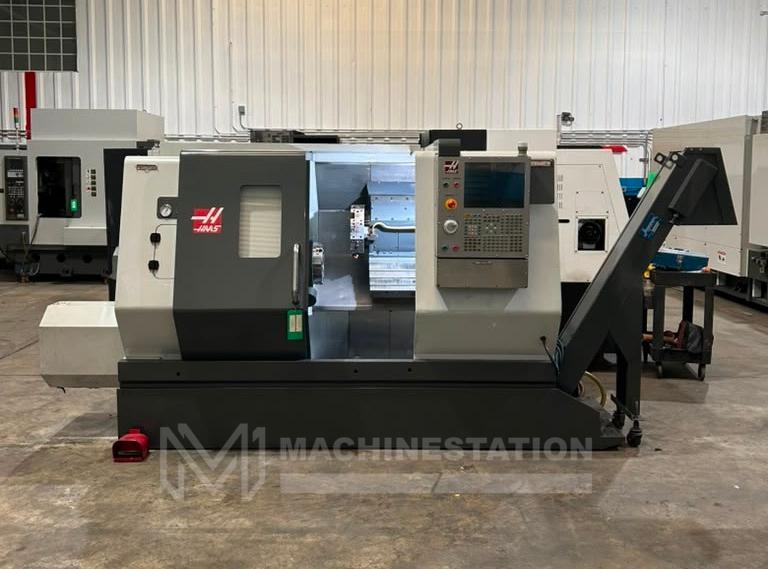

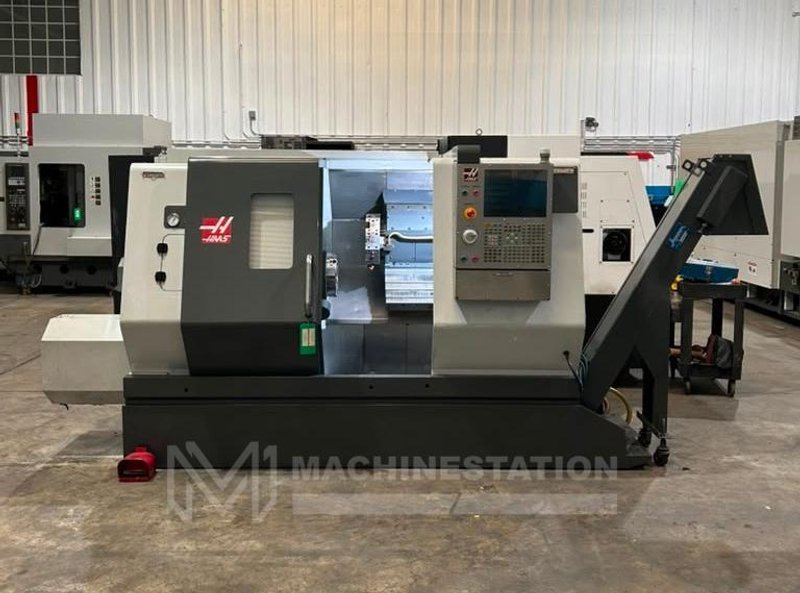

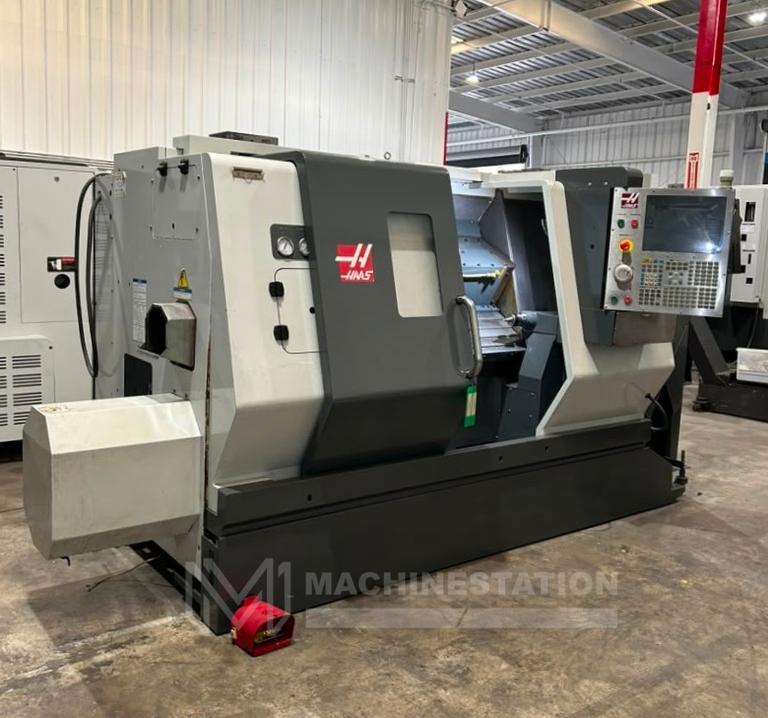

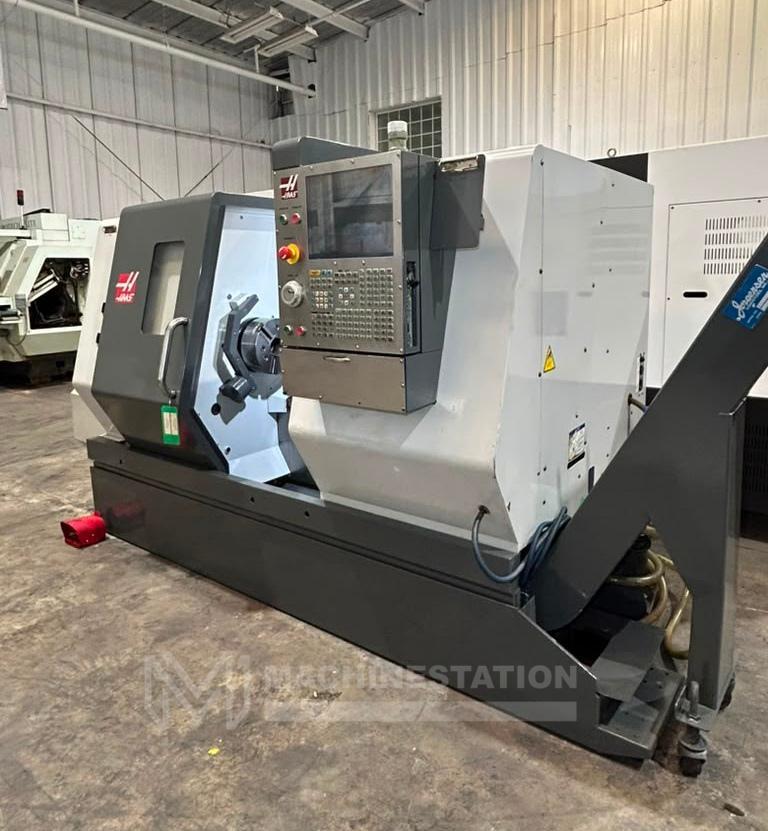

Haas SL-20TB CNC Turning Center – 10″ Chuck Lathe

Brand
HAAS
Category
Lathes & Turning Machines
Type
Turning Centers
Model
SL-20TB
Stock #
113554
Year
Not specified
Condition
Not specified

Location

Not specified

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Make: Haas
Model: SL-20TB
Year: 2008
Equipped With:

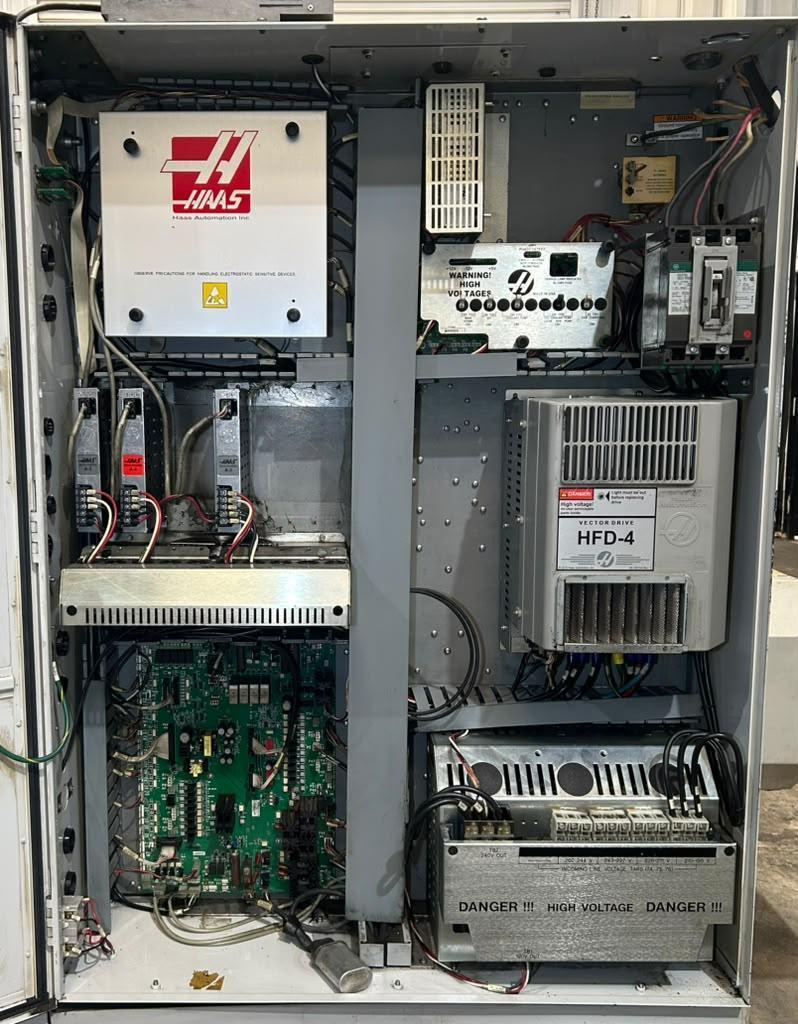

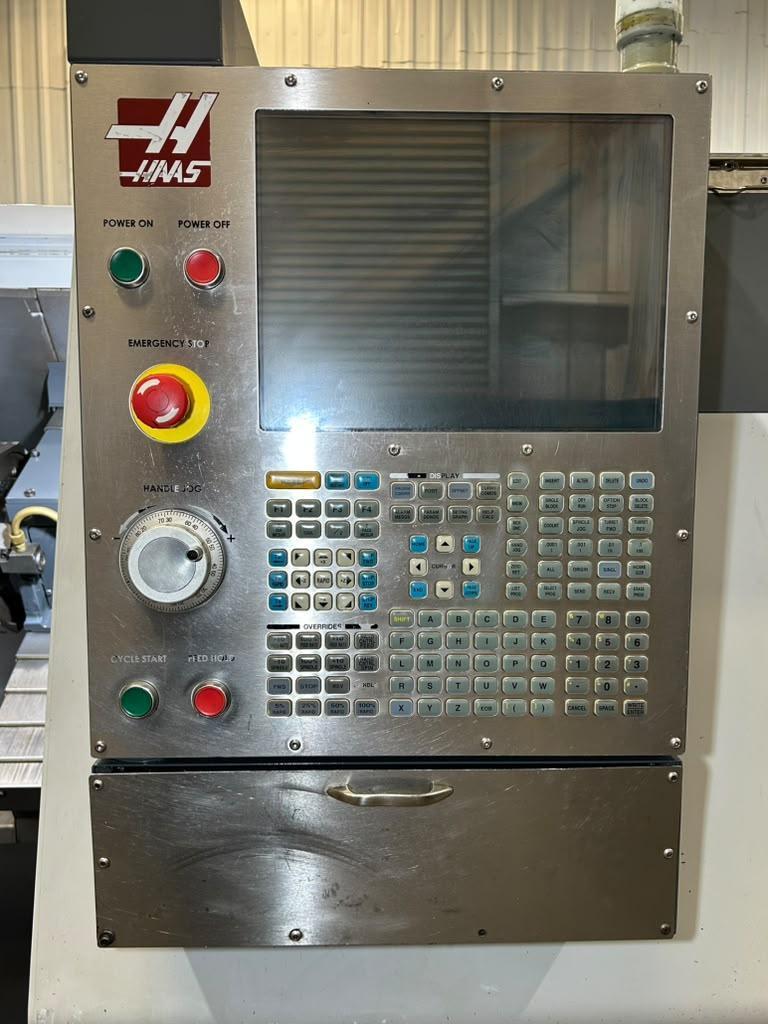

Haas CNC Control

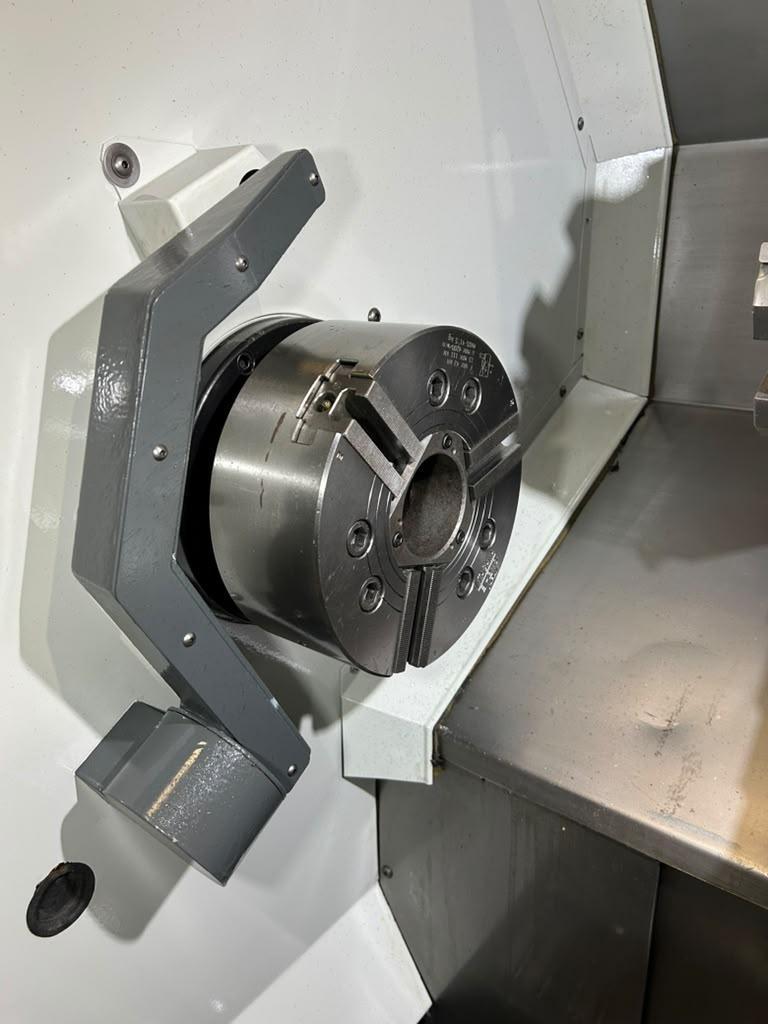

10 inch 3-Jaw Kitagawa B-210 Hydraulic Chuck
A2-6 Spindle with 3.0 inch Bore

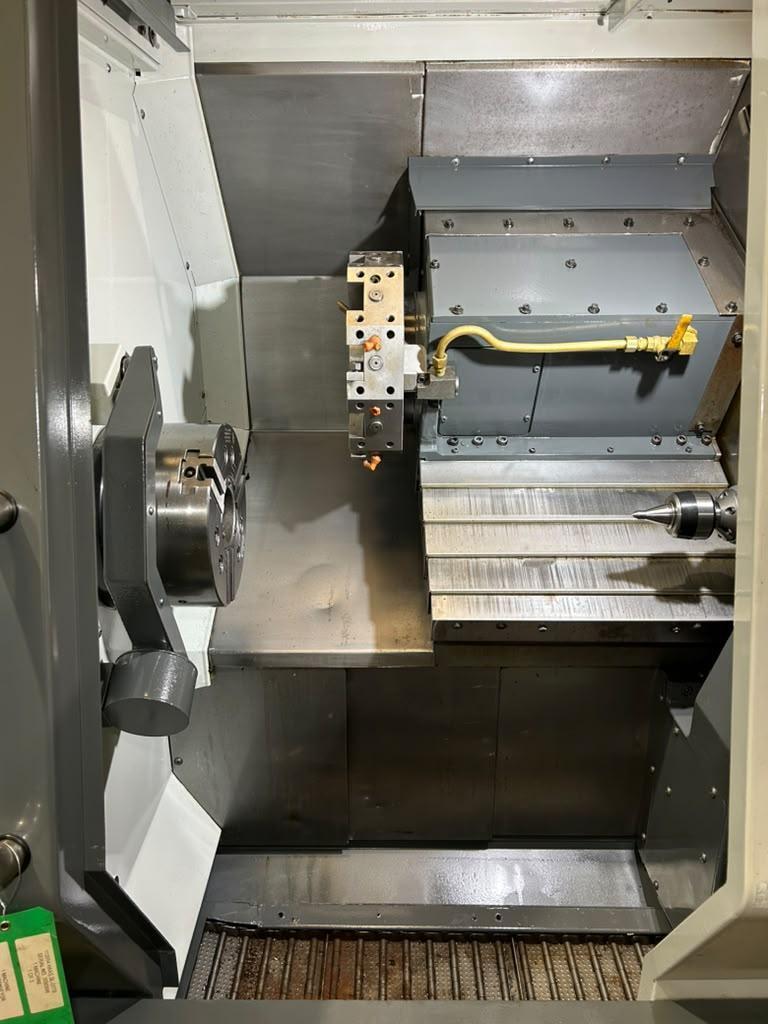

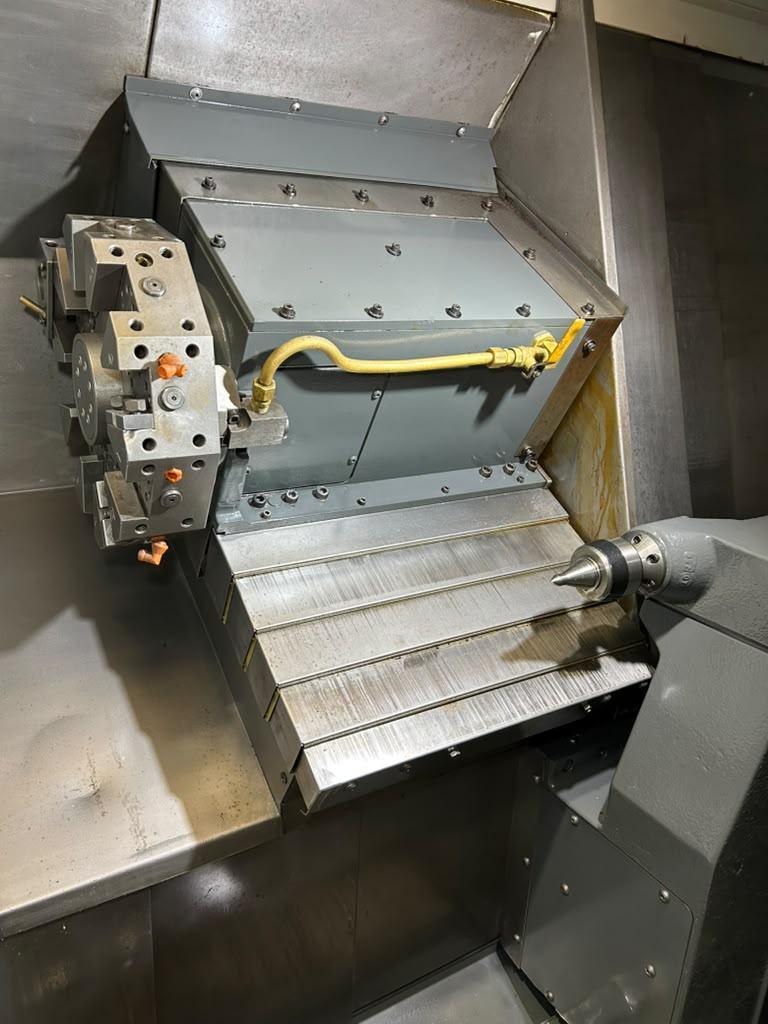

10 Station Automatic Turret
Tool Presetter
Tailstock
Coolant Tank

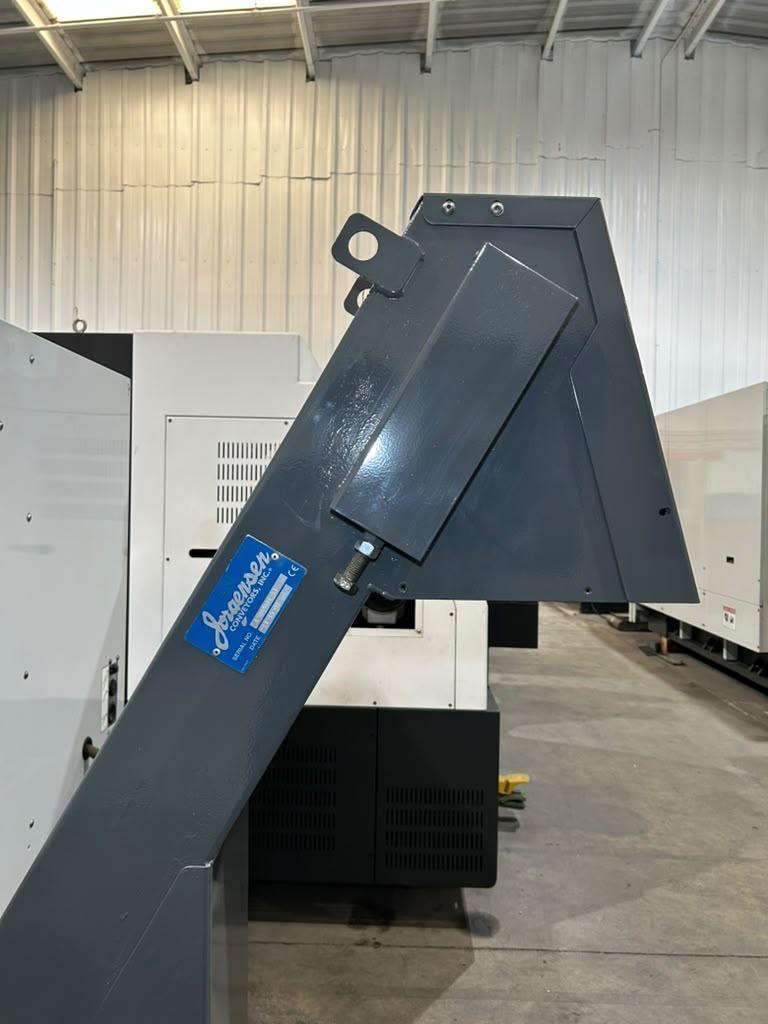

Chip Conveyor
Foot Switch
Capacity:
Max Turning Diameter : 13.0 inch
Max Swing Over Bed : 21.0 inch
Max Turning Length: 22.5 inch
Max Bar Capacity : 2.5 inch
Travels:
X Axis Travel : 8.40 inch
Z1 Axis Travel : 22.5 inch
Feedrate:
Rapid Traverse X Axis: 710 IPM
Rapid Traverse Z Axis: 710 IPM
Spindle:
Spindle Nose: A2-6
Spindle Bore: 3.0 inch
Spindle Speed: 3400 RPM
Spindle Motor: 20 HP

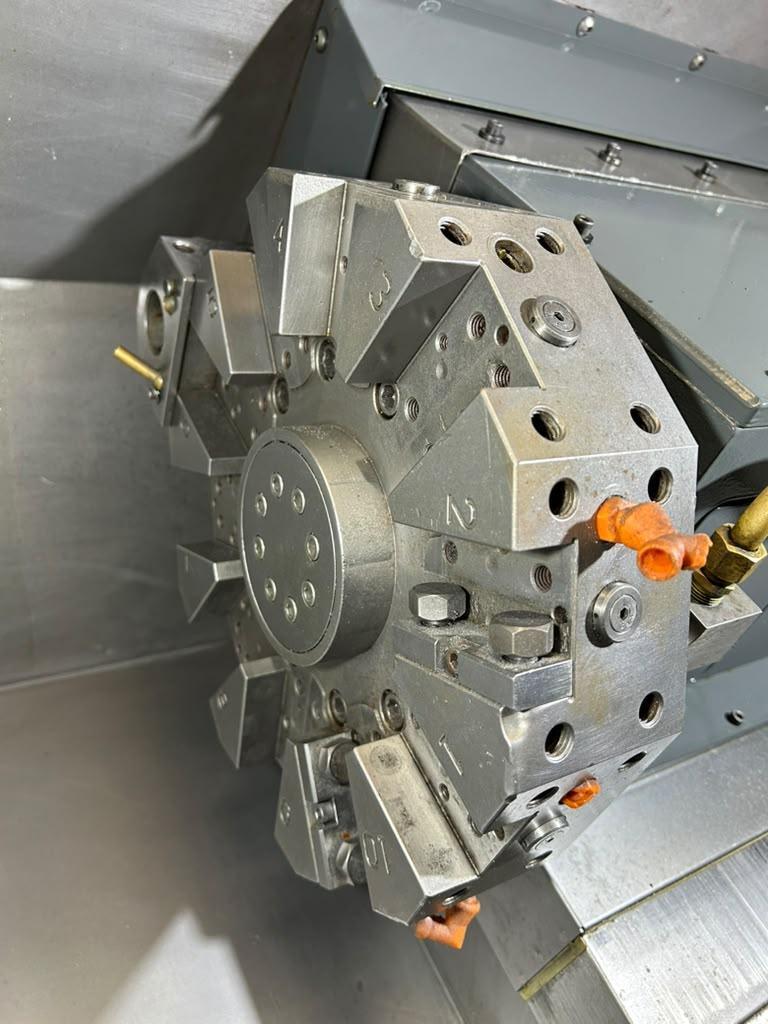

Turret:
Turret Capacity: 10 Stations
Turret Index Time: 1 Second
Tailstock:
Taper: MT-4
General:
Power Source: AC 220v / 3-Phase / 60 Hz
Machine Dimensions: 142 inch x 90 inch x 92 inch High Approx.
Machine Weight: 9,000 lbs Approx.
