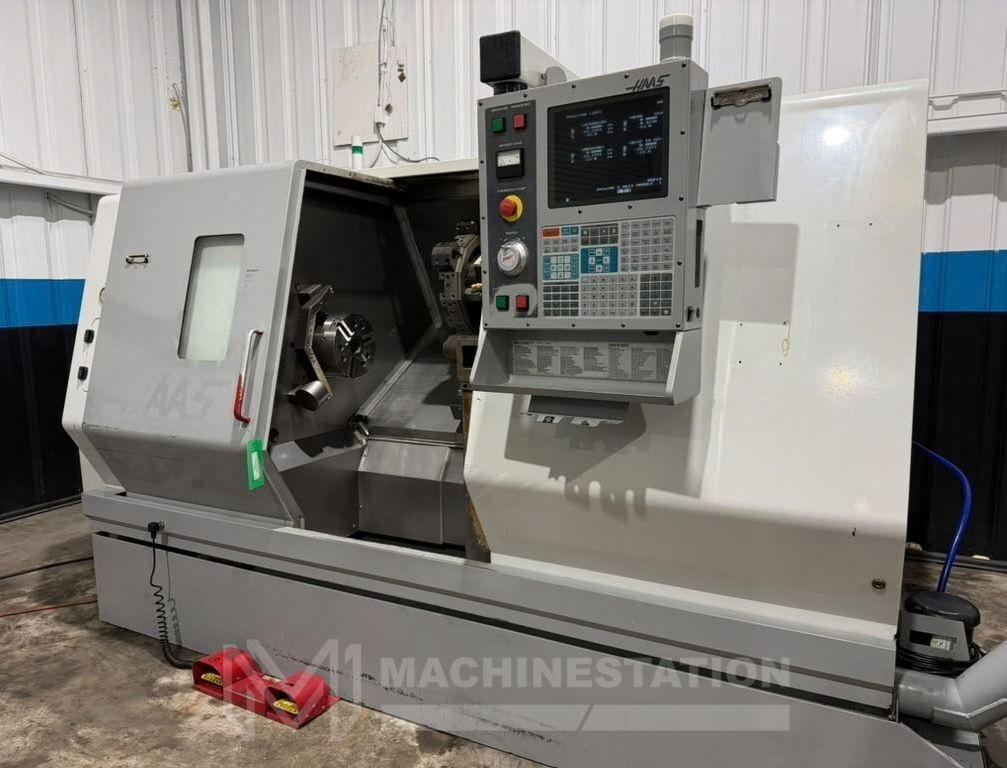

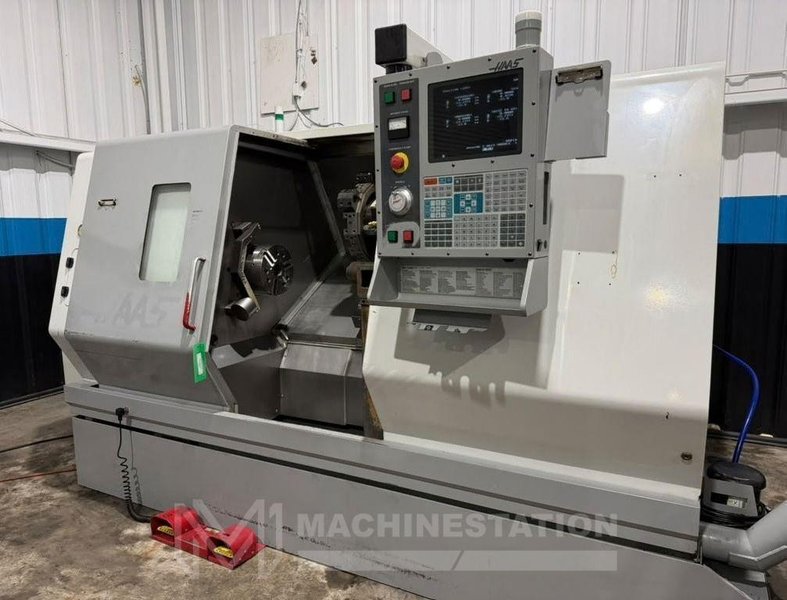

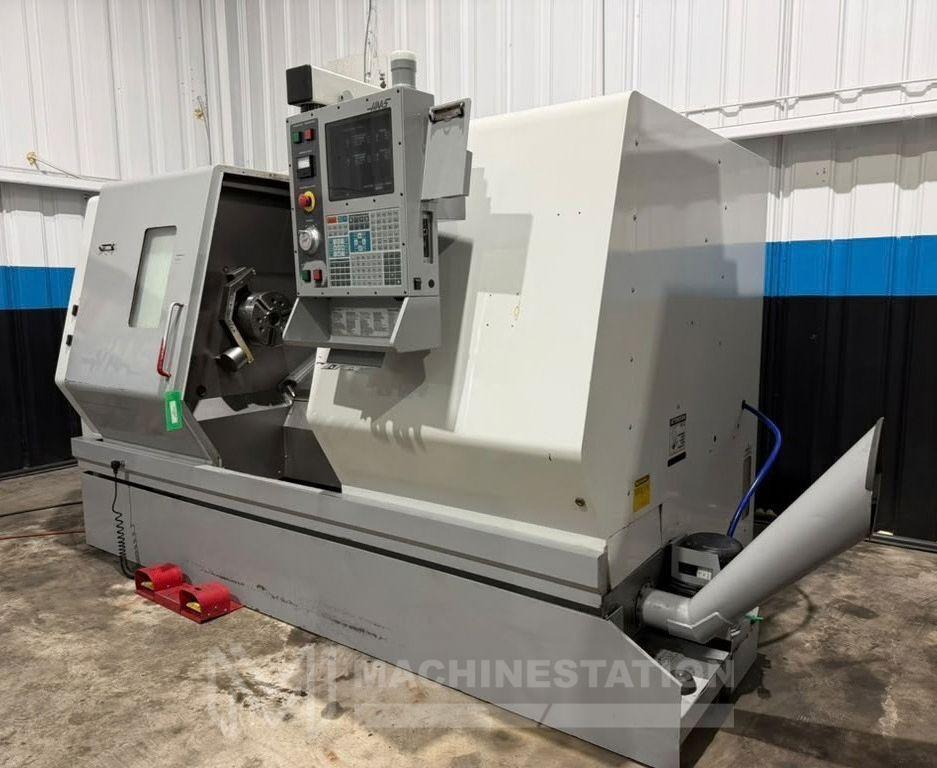

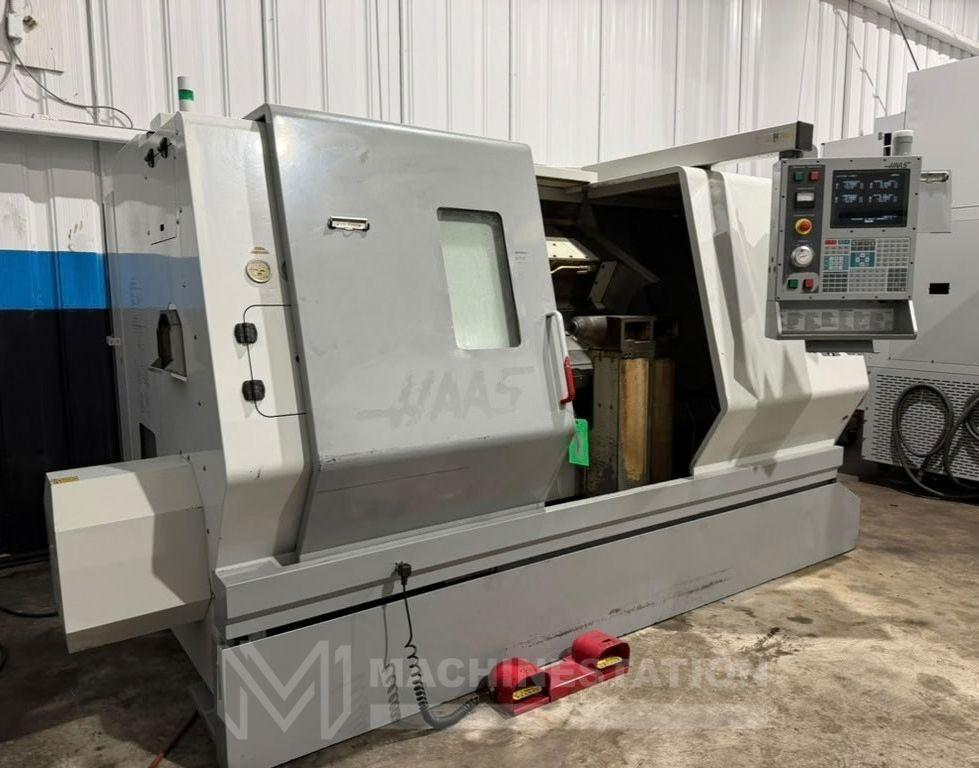

Haas SL-30T CNC Turning Center – 10″ Chuck, Tailstock Lathe

Haas SL-30T CNC Turning Center – 10″ Chuck, Tailstock Lathe

Name: Haas SL-30T CNC Turning Center – 10″ Chuck, Tailstock Lathe
Brand: HAAS
SKU: 113683
Availability: InStock

Brand

HAAS

Location

Not specified

Specifications
Files & Videos

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Make:	Haas
Model:	SL-30T
Year:	2001

Features:

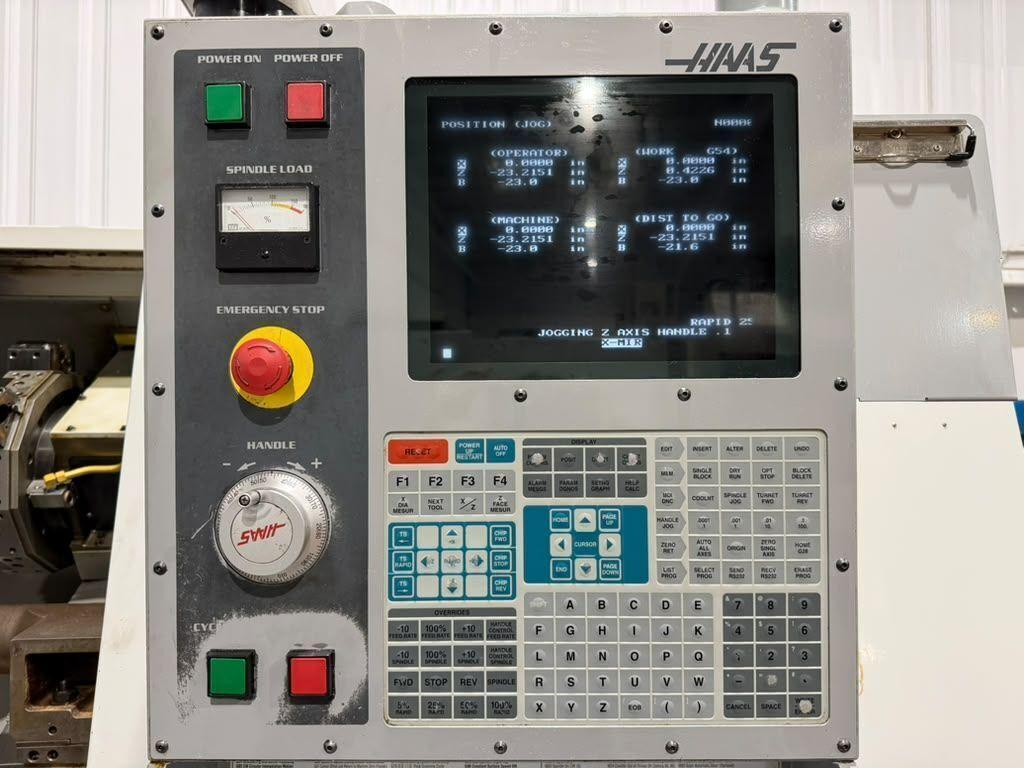

Haas CNC Control

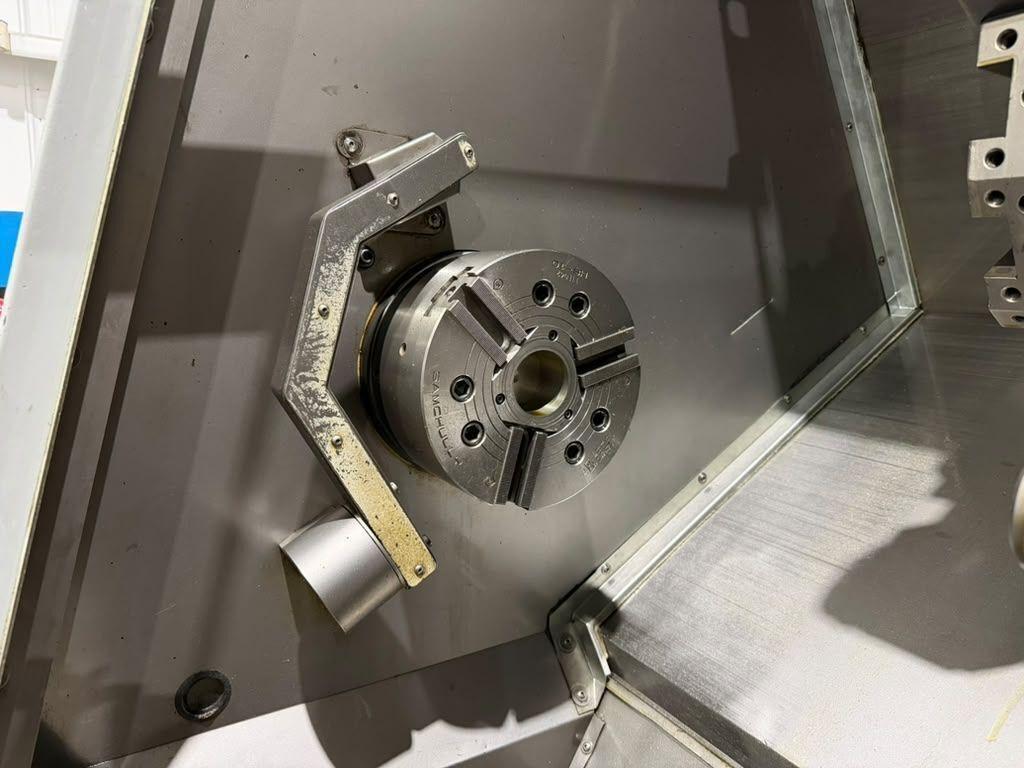

10″ 3-Jaw Samchully SH-10 Chuck

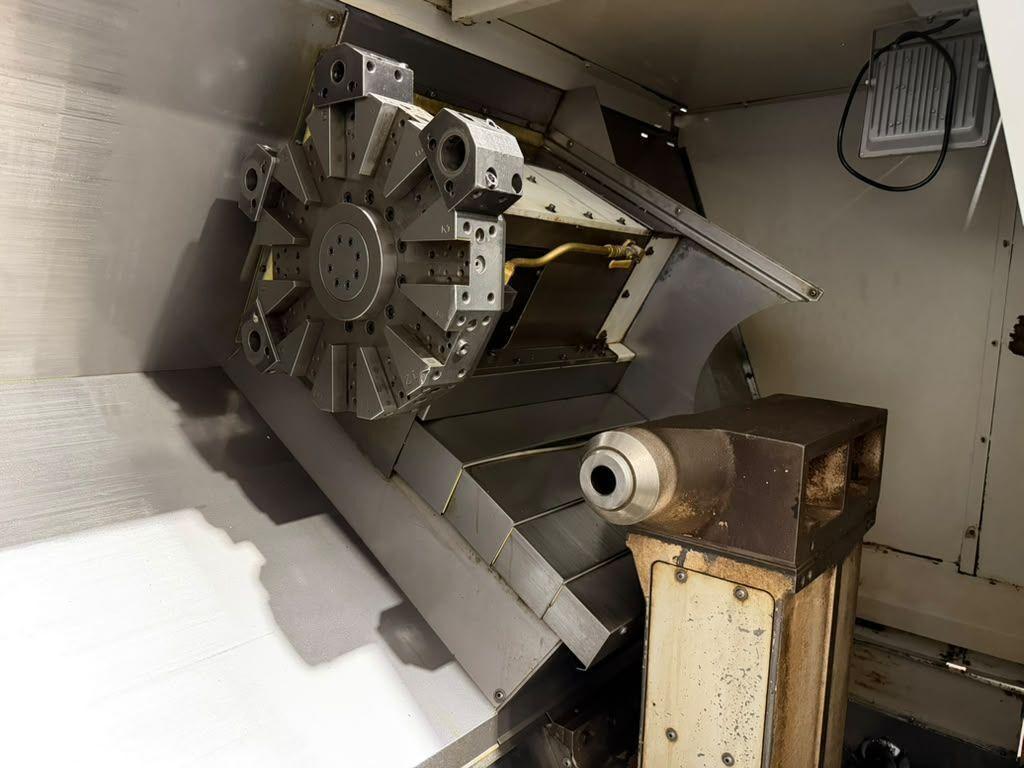

12-Station Bolt-On Turret

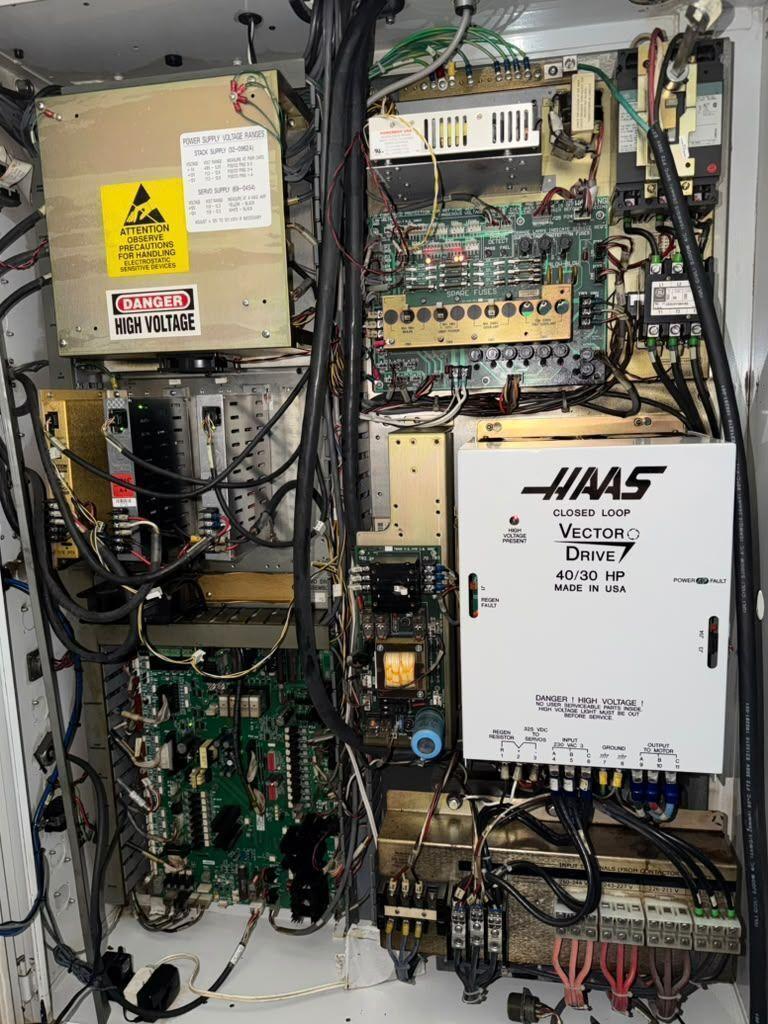

30 HP Vector Dual Drive
A2-6 Spindle
Tool Presetter
3.5″ Big Bore Spindle
Programmable Tailstock
Coolant Tank

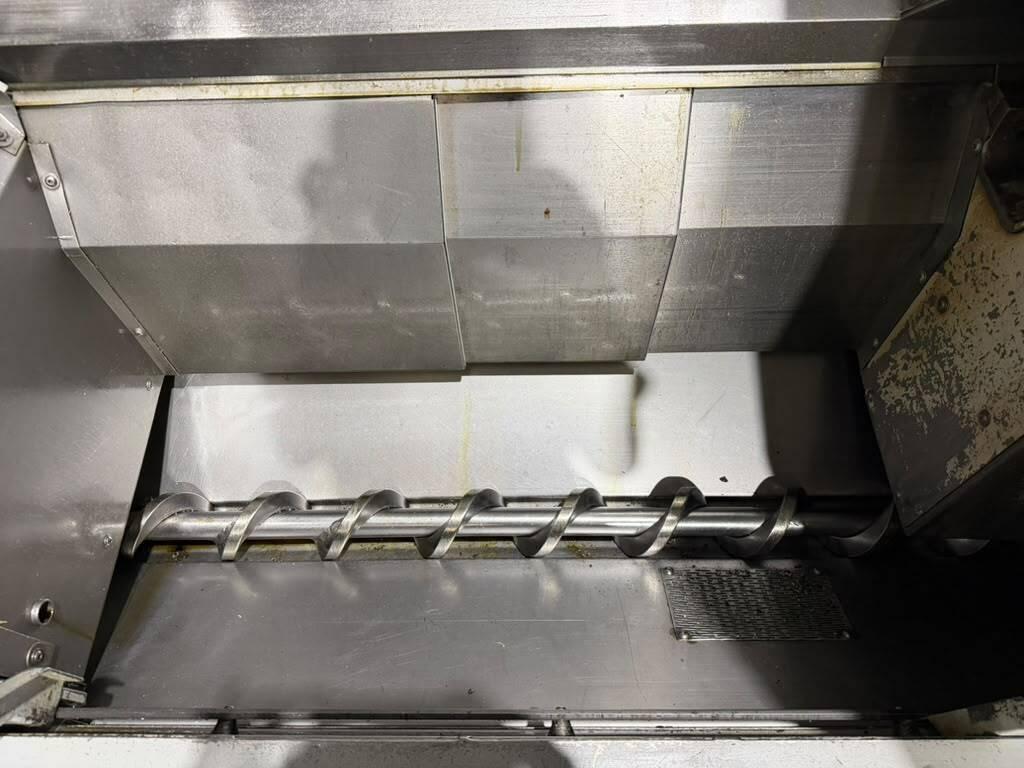

Chip Auger
Foot Switch
Leveling Pads

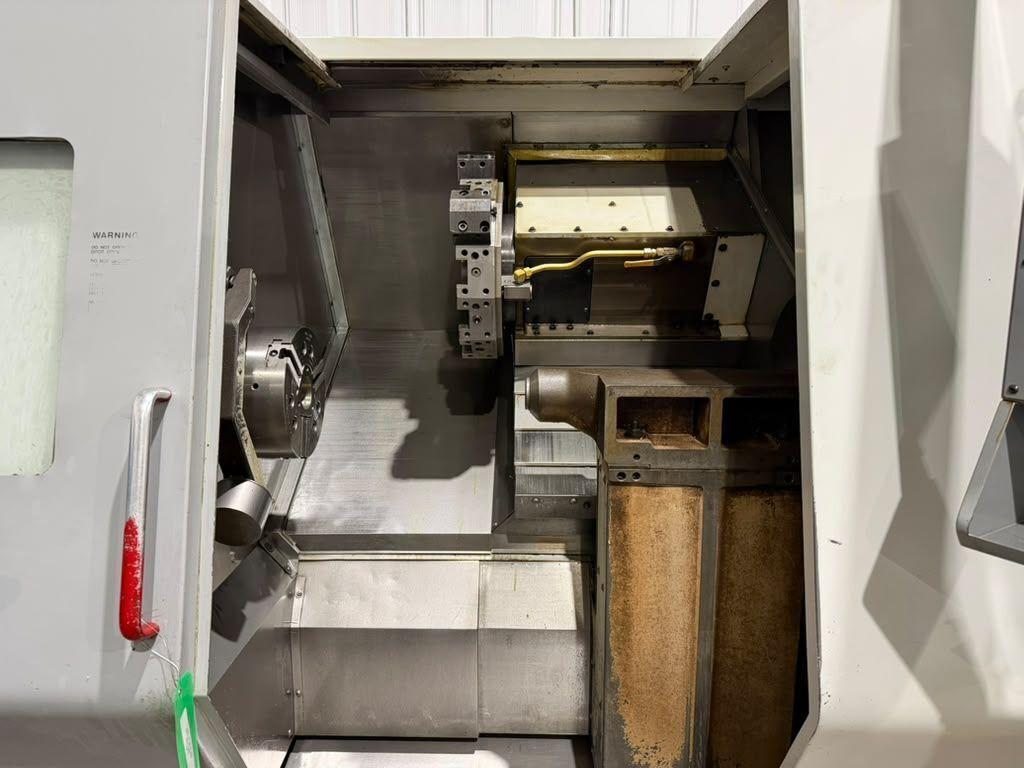

(4) Boring Tool Holders Mounted on Turret (As Shown in the Images)

Capacity:
Maximum Turning Diameter: 15.0″
Maximum Swing Over Bed: 21.0″
Maximum Turning Length: 34.0″
Maximum Bar Capacity: 3.0″

Travels:
X-Axis Travel: 9.4″
Z-Axis Travel: 32.5″

Feedrate:
Rapid Traverse X-Axis: 710 IPM
Rapid Traverse Z-Axis: 710 IPM

Spindle:
Spindle Nose: A2-6
Spindle Bore: 3.5″
Spindle Speed: 3,400 RPM
Spindle Motor: 30 HP

Turret:
Turret Capacity: 12 Stations
Turret Index Time: 1 Second
Turret Type: Bolt-On Turret

Tailstock:
Tailstock Taper: MT-4
Tailstock Type: Programmable

General:
Air Required: 100 psi, 4 scfm

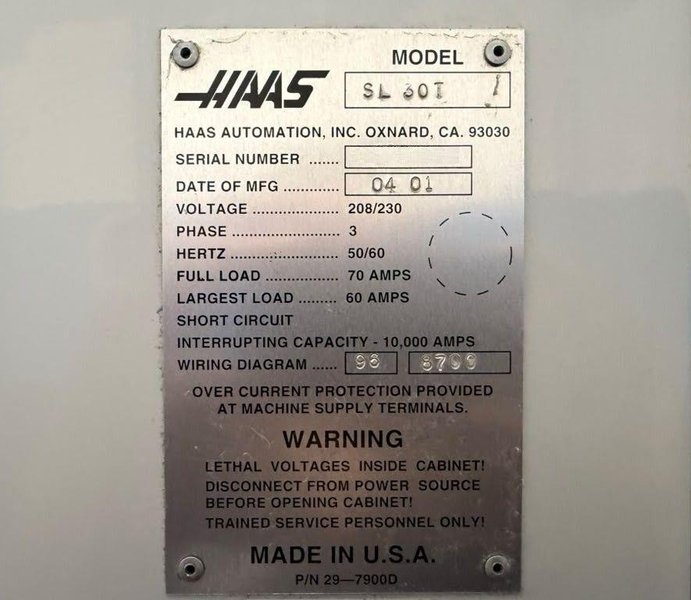

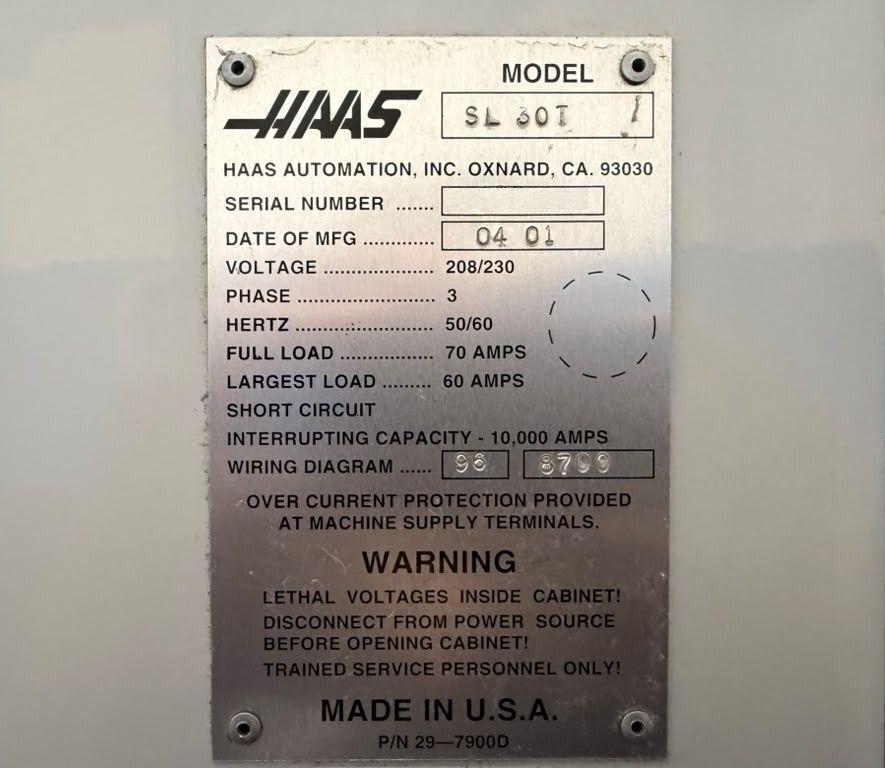

Power Source: AC 220V / 230V / 3-Phase / 50/60 Hz
Machine Dimensions: 170″ × 90″ × 98″ High Approx.
Machine Weight: 11,000 lbs Approx.
