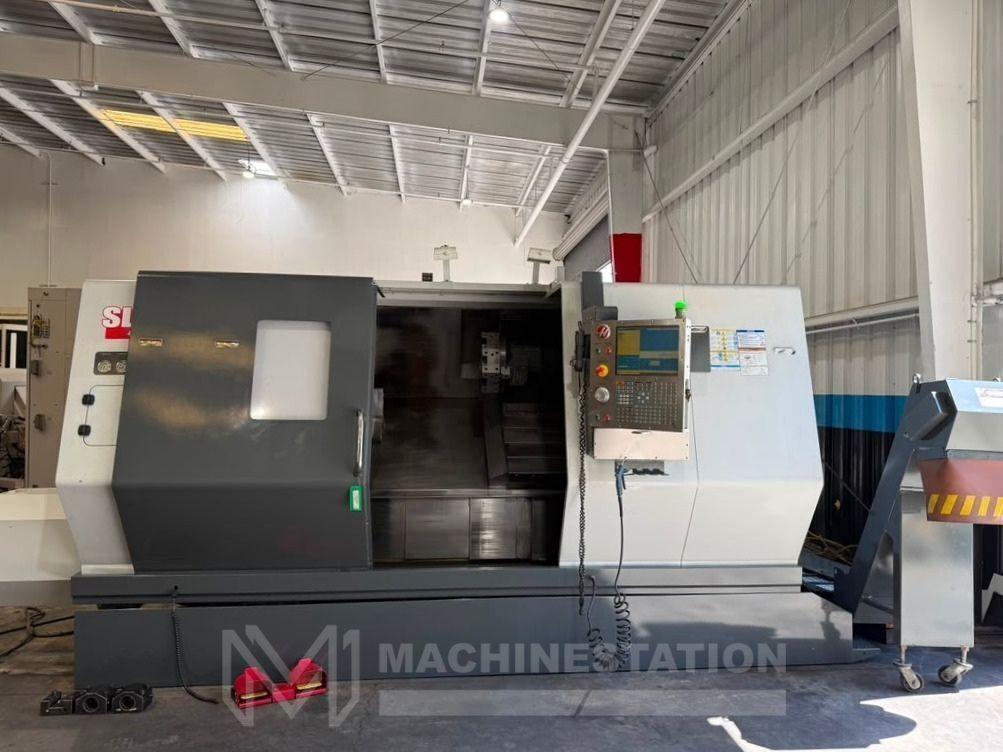

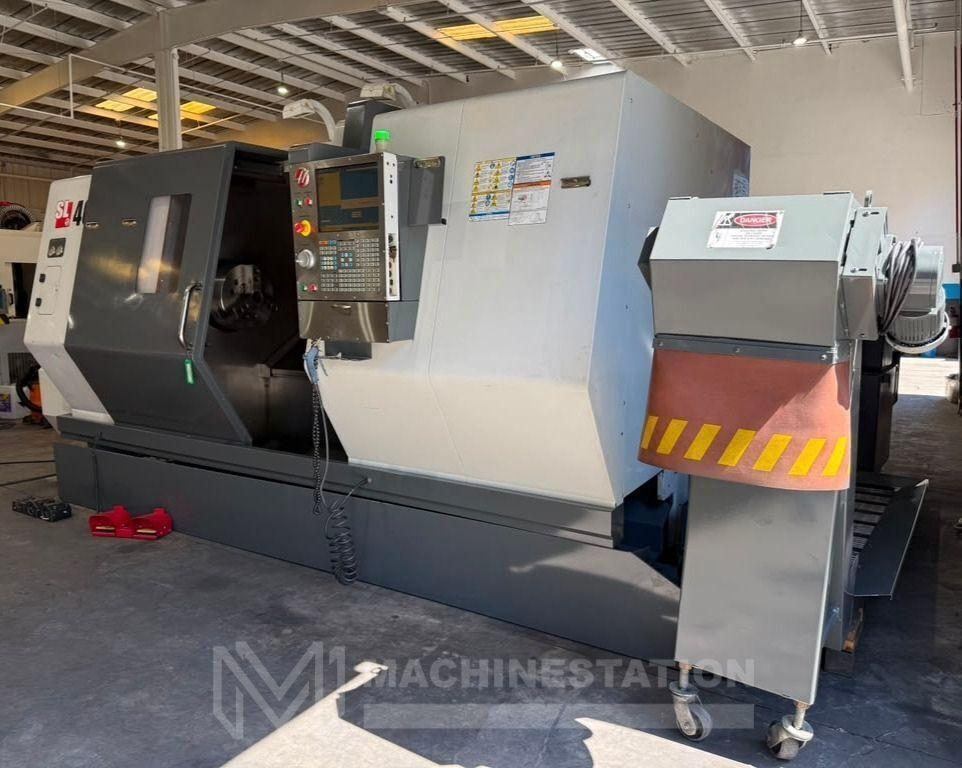

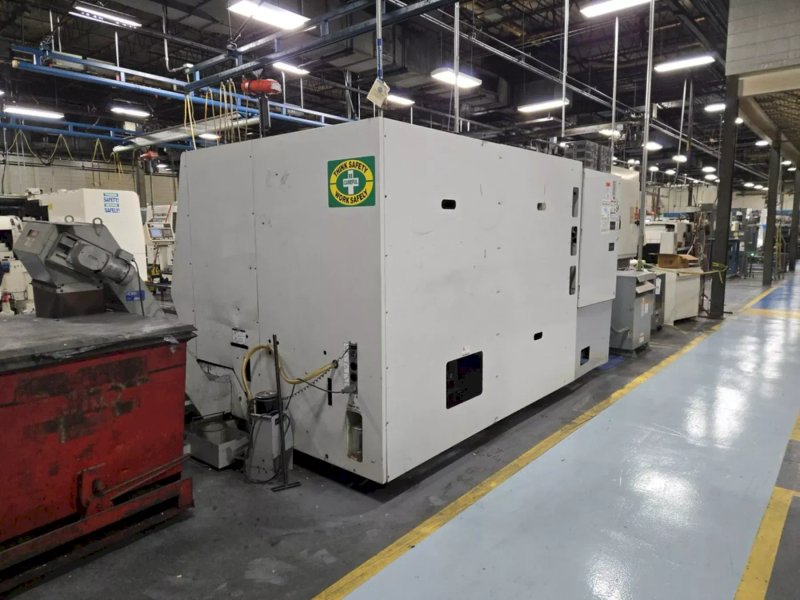

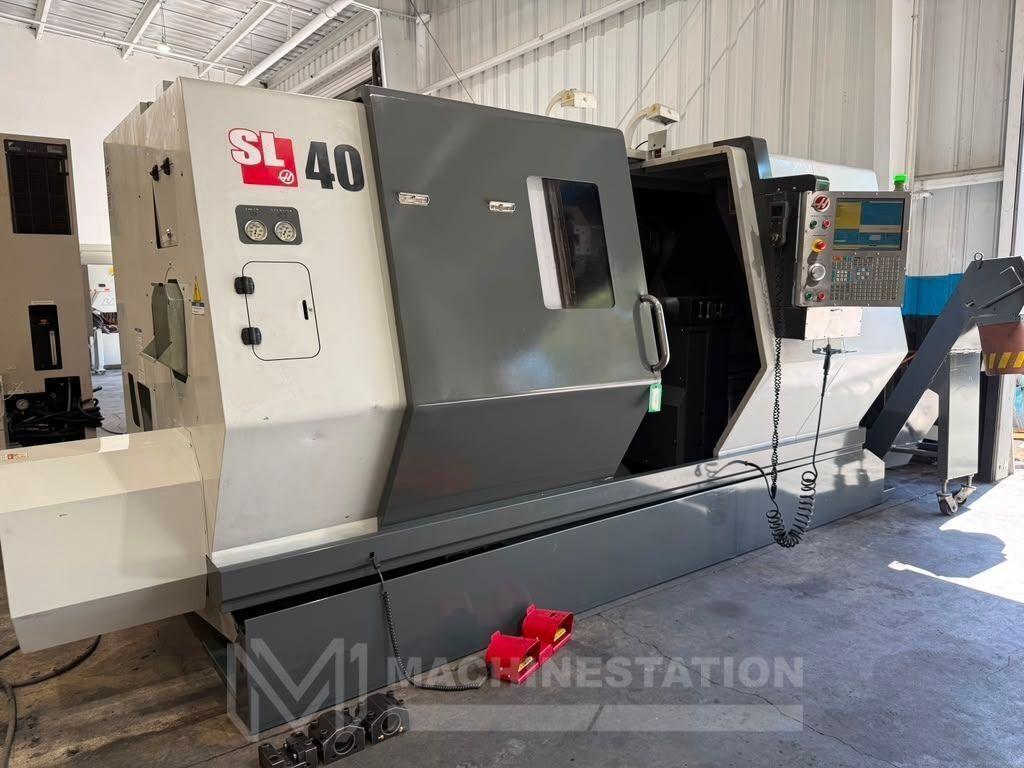

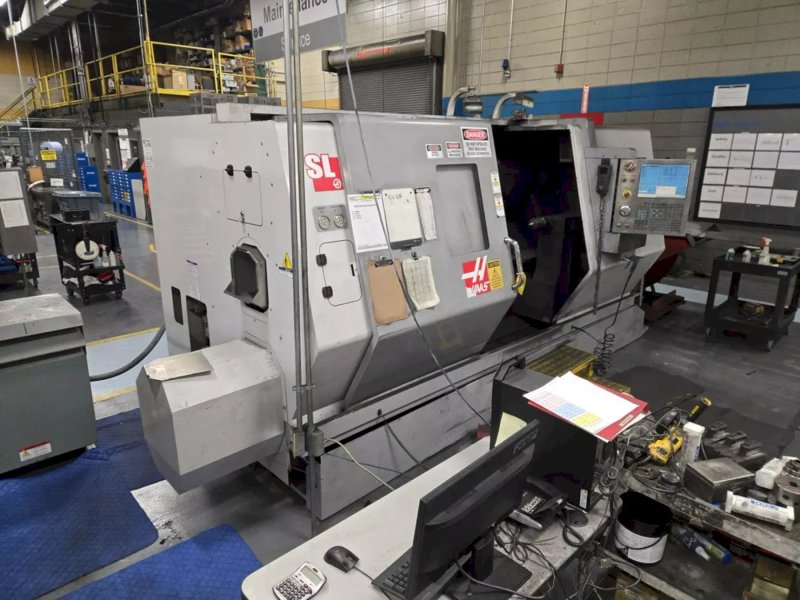

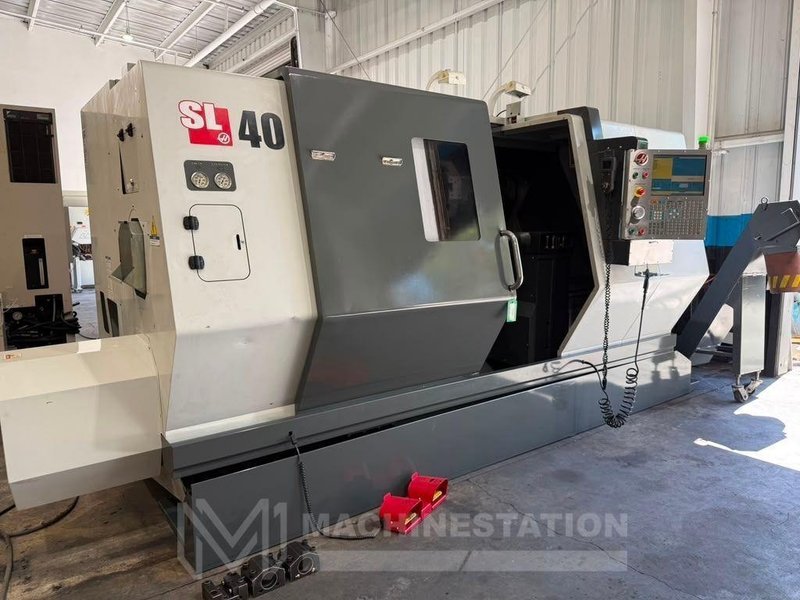

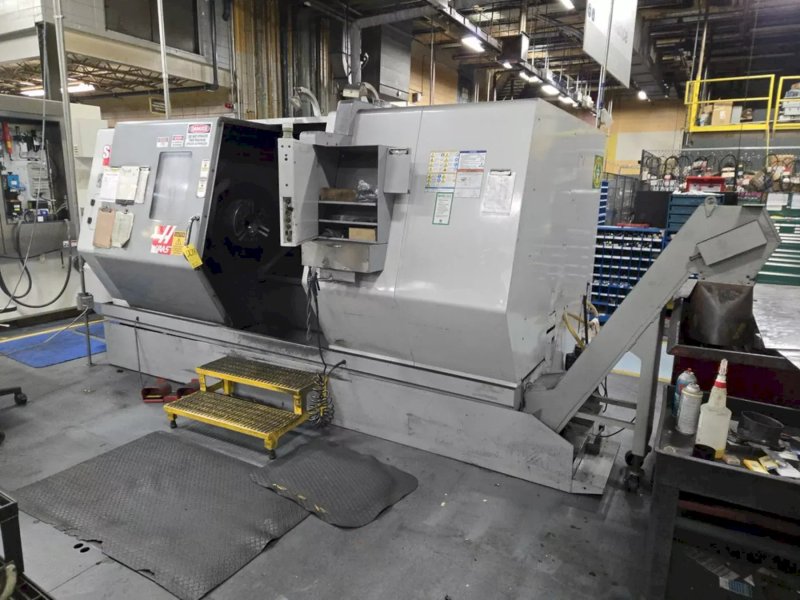

Haas SL-40 CNC Turning Center – 15″ Chuck, Tailstock Lathe

Brand
Model
SL-40
Stock #
113642
Year
Not specified
Condition
Not specified

Location

Not specified

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Make: Haas
Model: SL-40
Year: 2007
Equipped With:

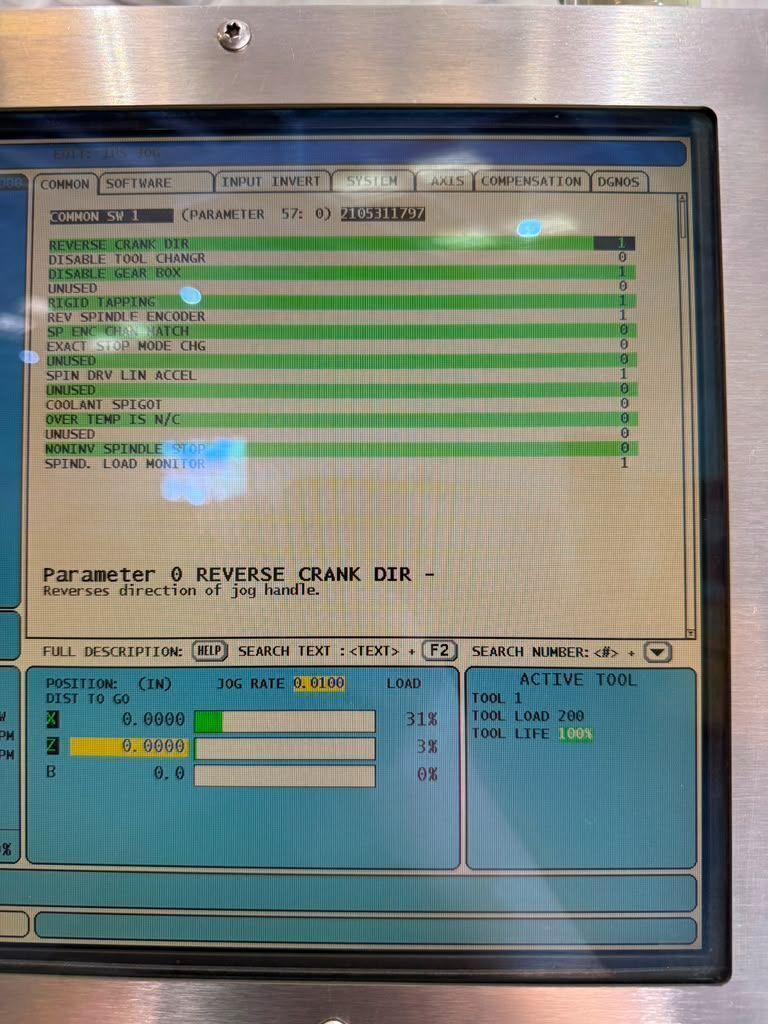

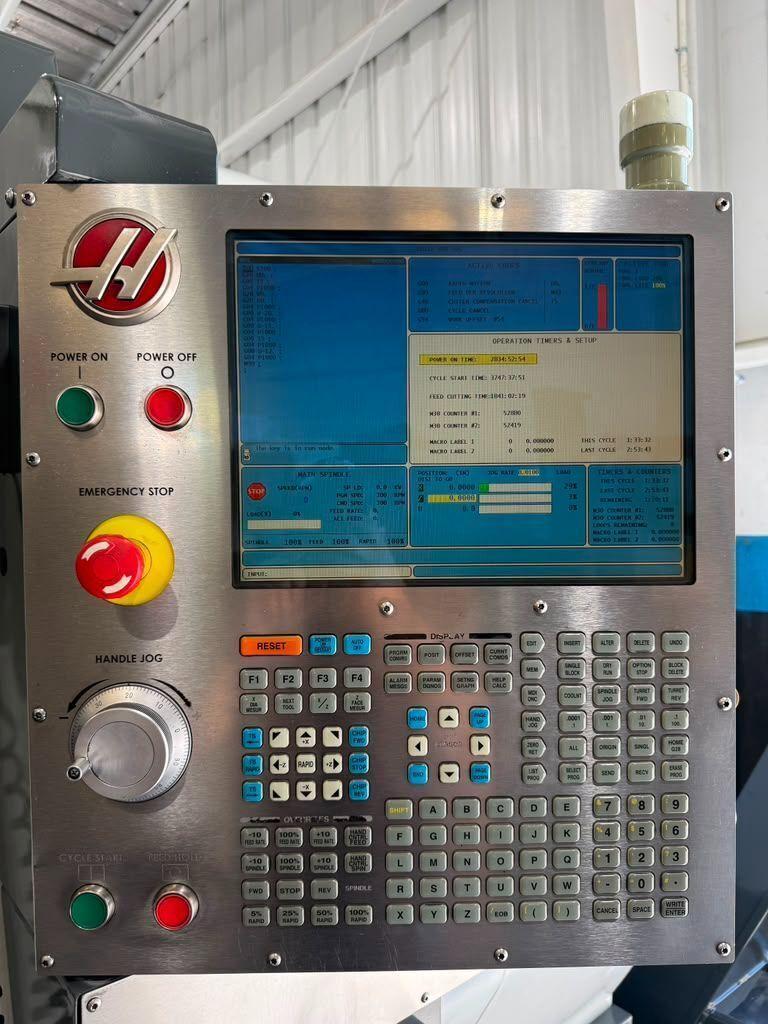

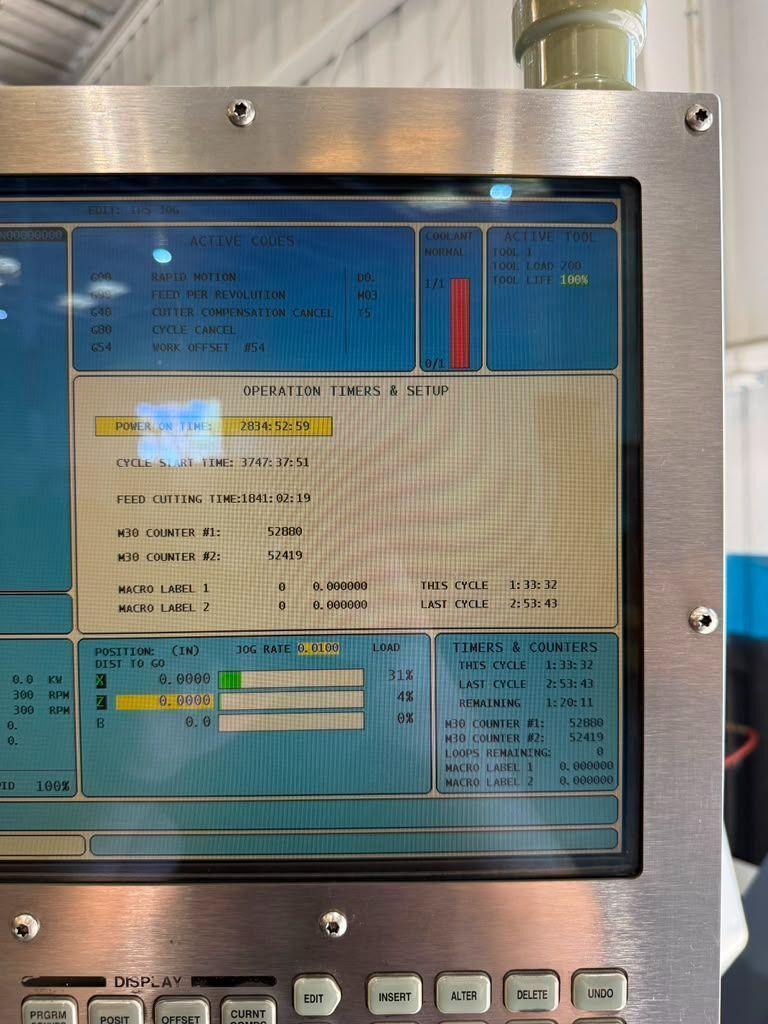

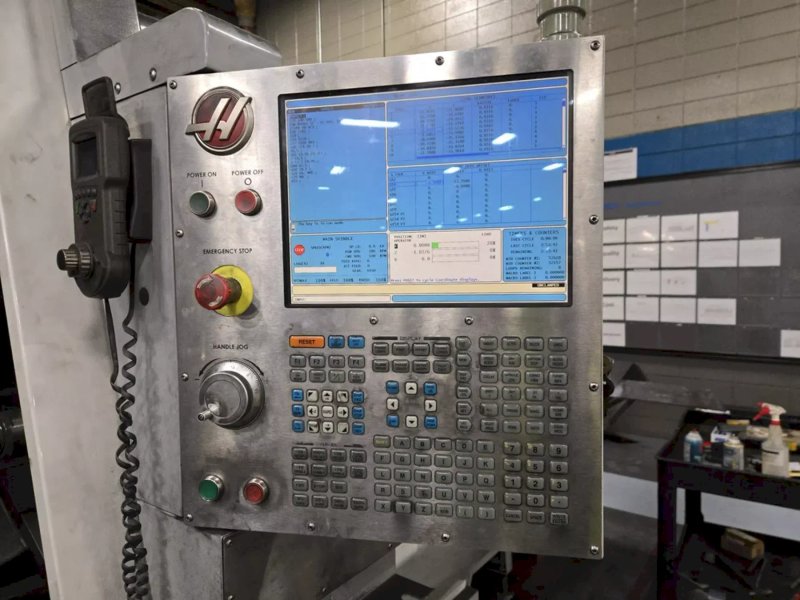

Haas CNC Control

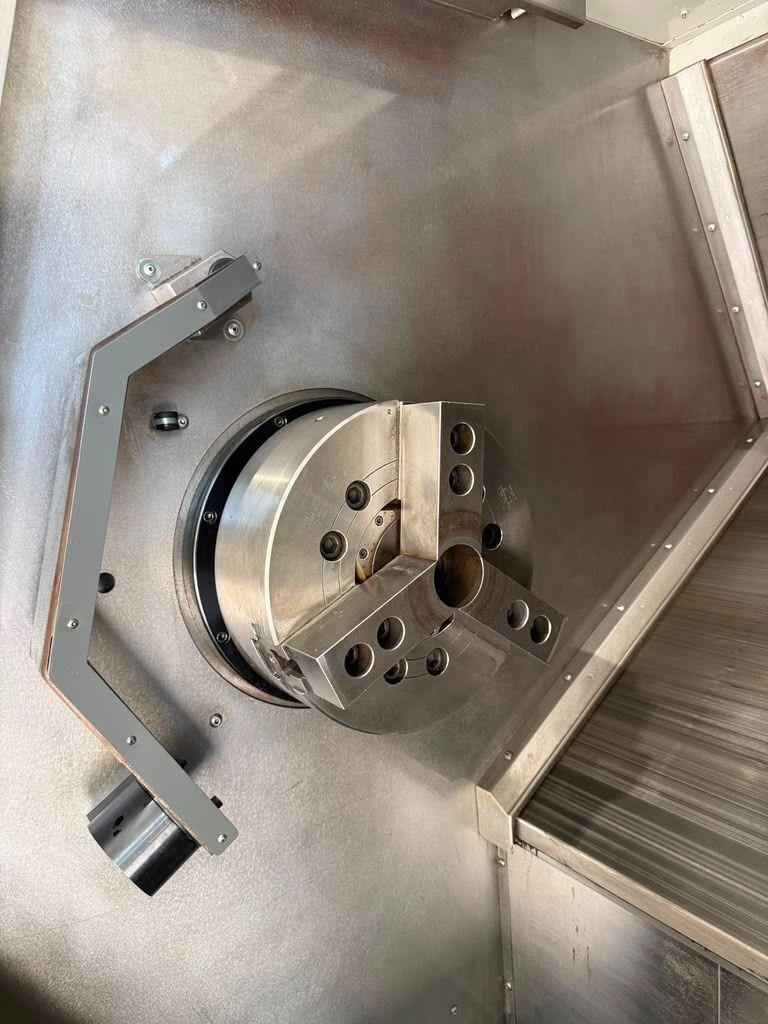

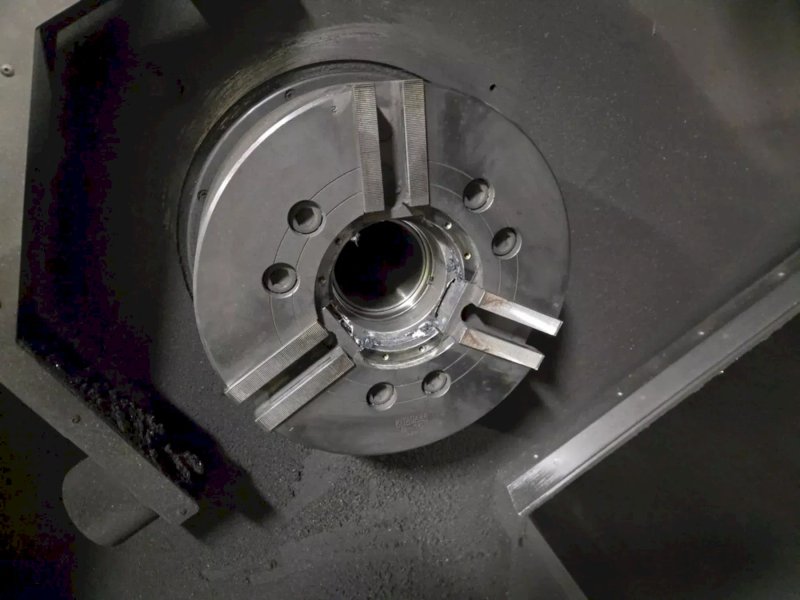

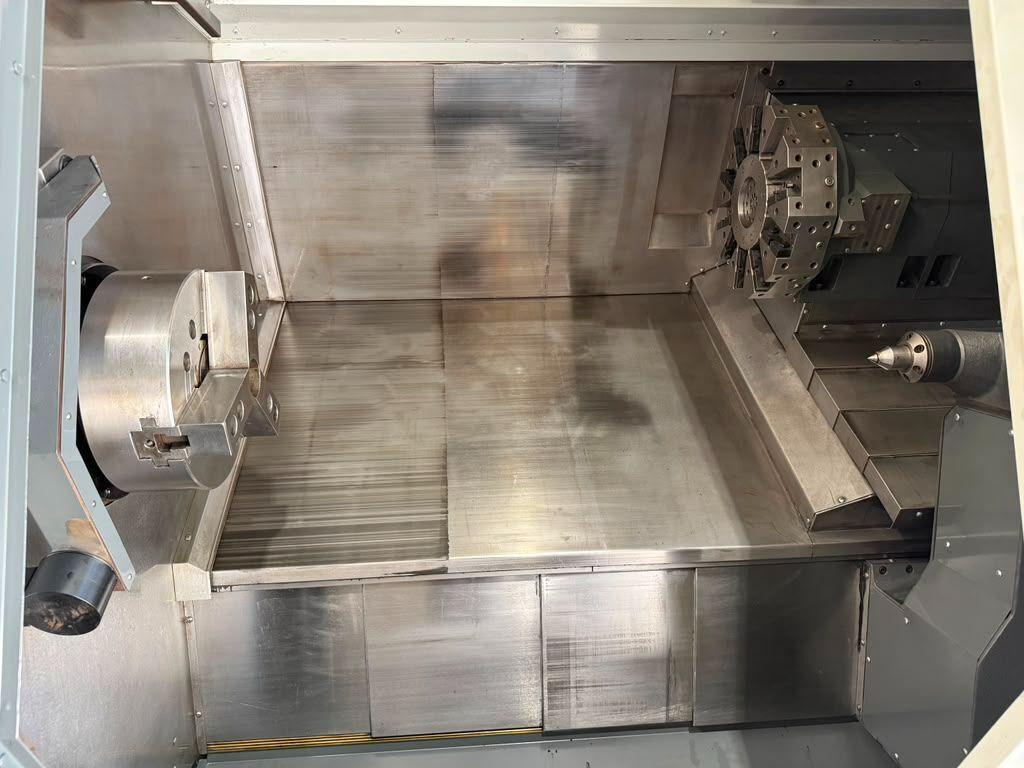

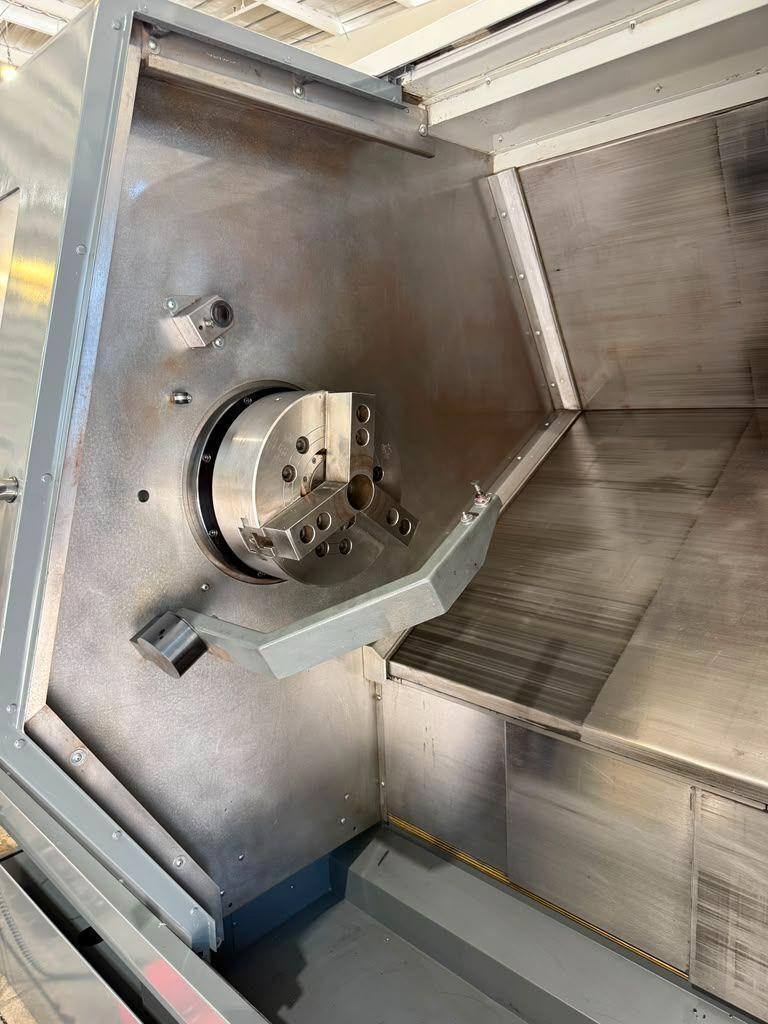

15″ 3-Jaw Kitagawa B-15 Hydraulic Chuck
A2-8 Spindle with 4.62″ Bore

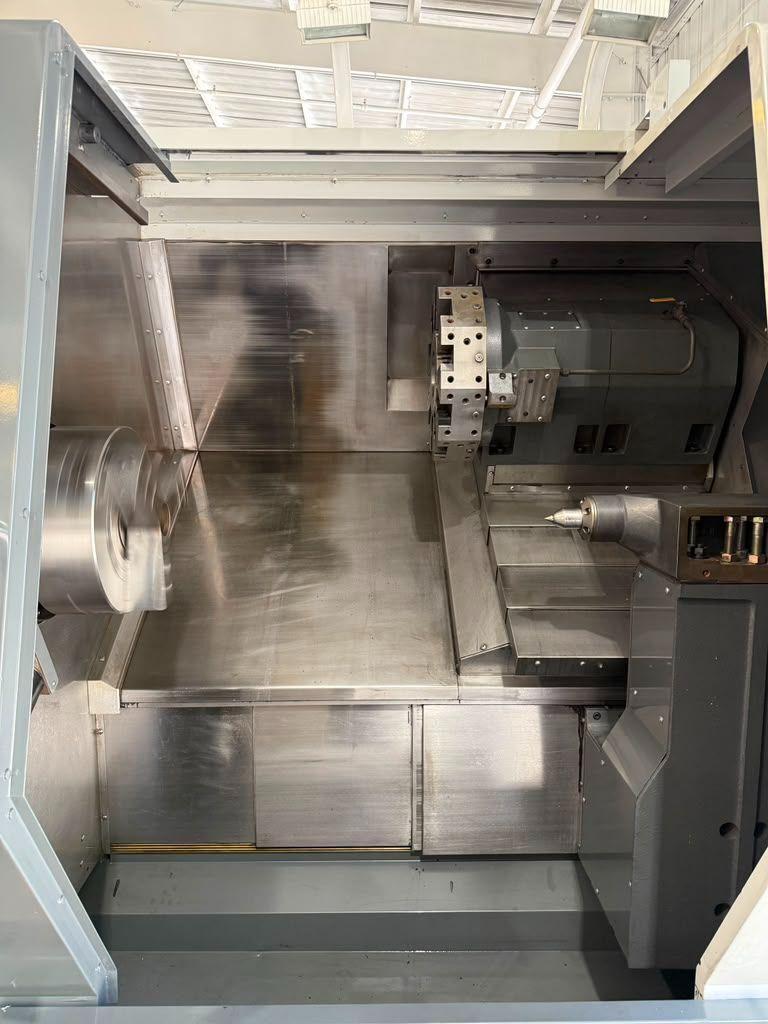

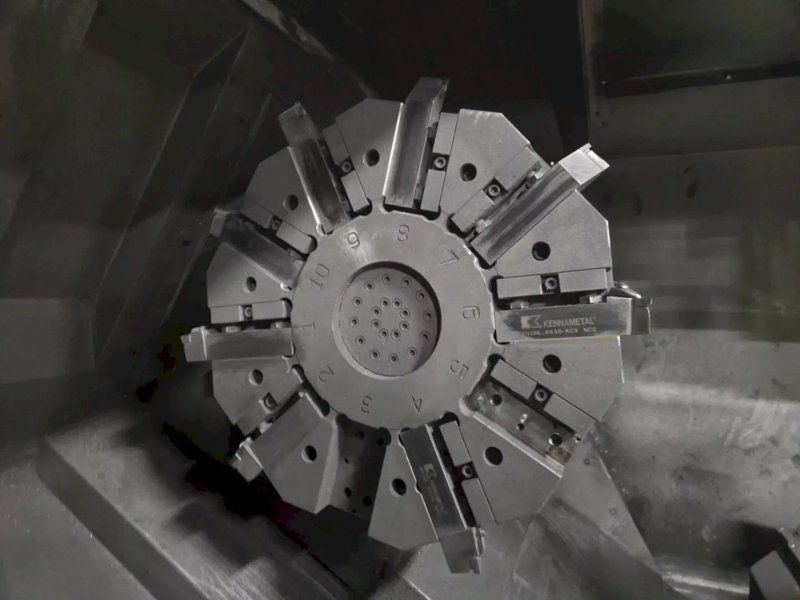

12-Station Automatic Turret
Tool Presetter

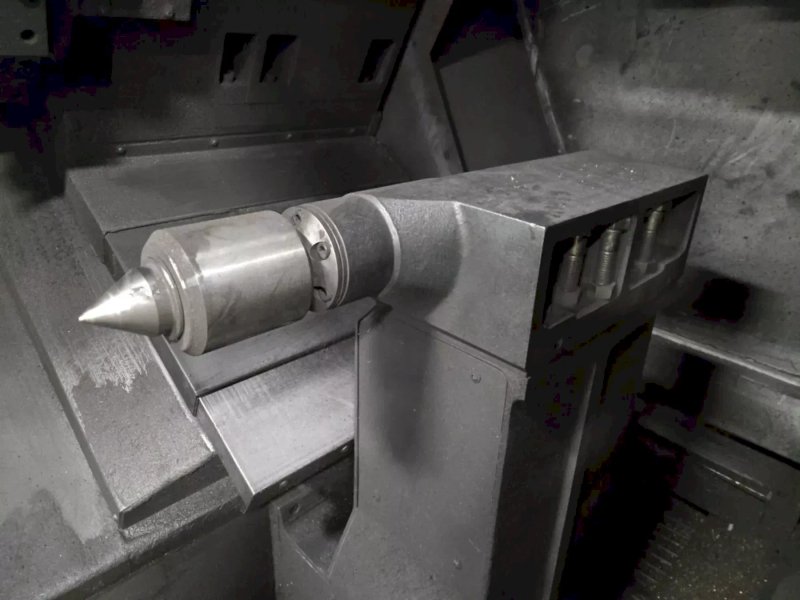

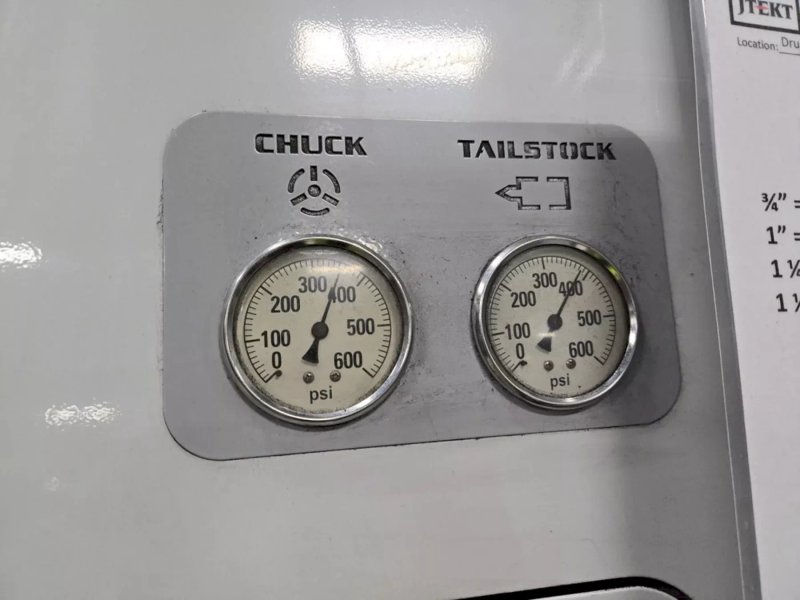

Programmable Tailstock
Rigid Tapping

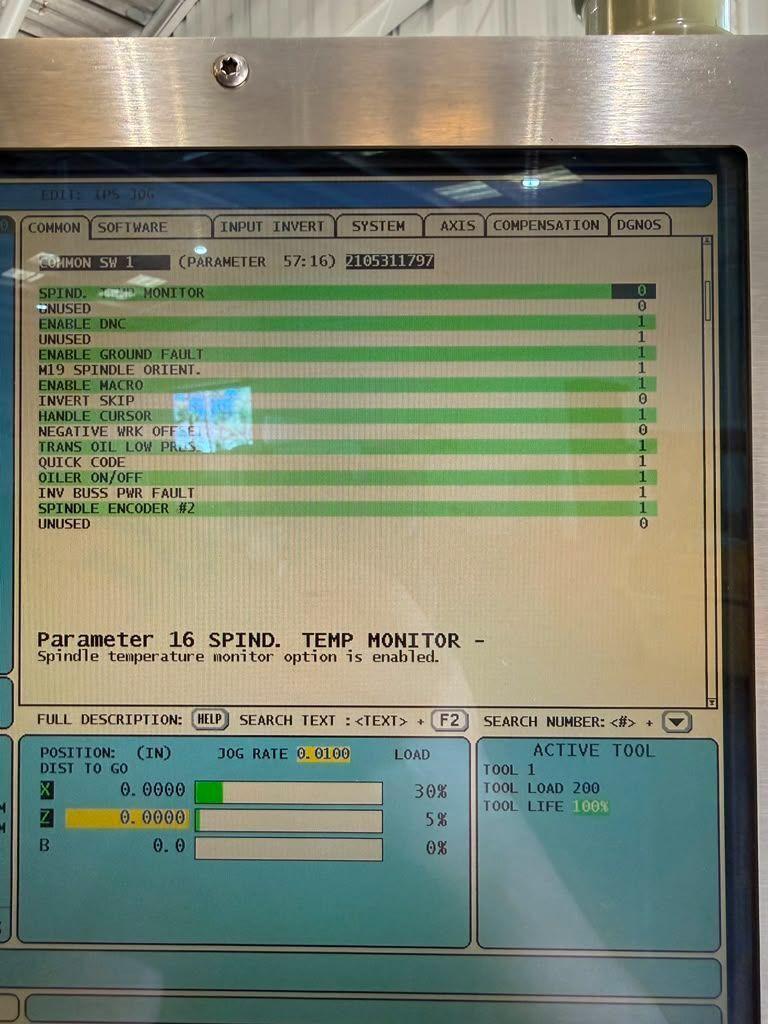

Macros
Quick Code

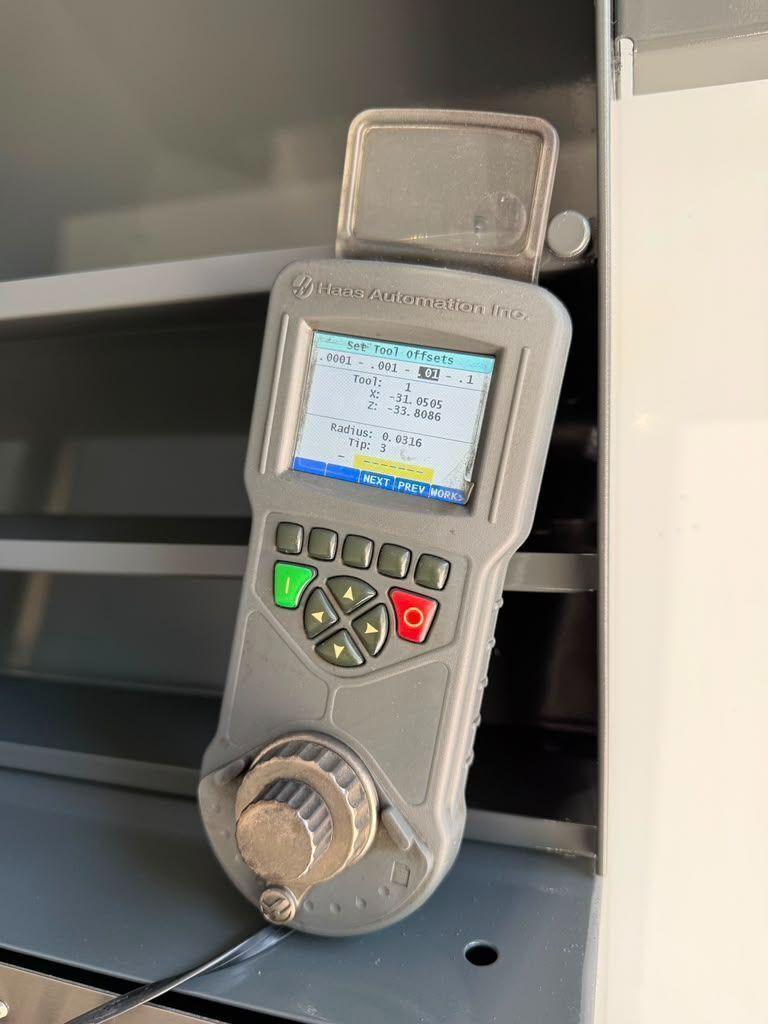

MPG Handwheel Control
Enable DNC

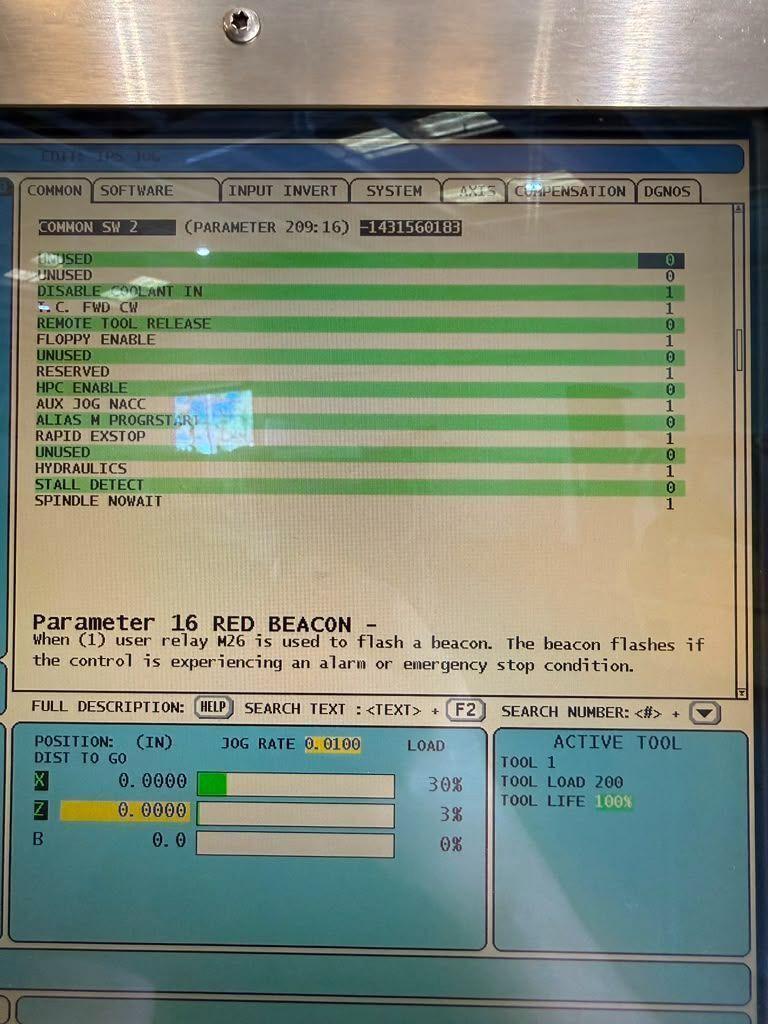

Enable Floppy
60 HP Vector Drive
Coolant Tank

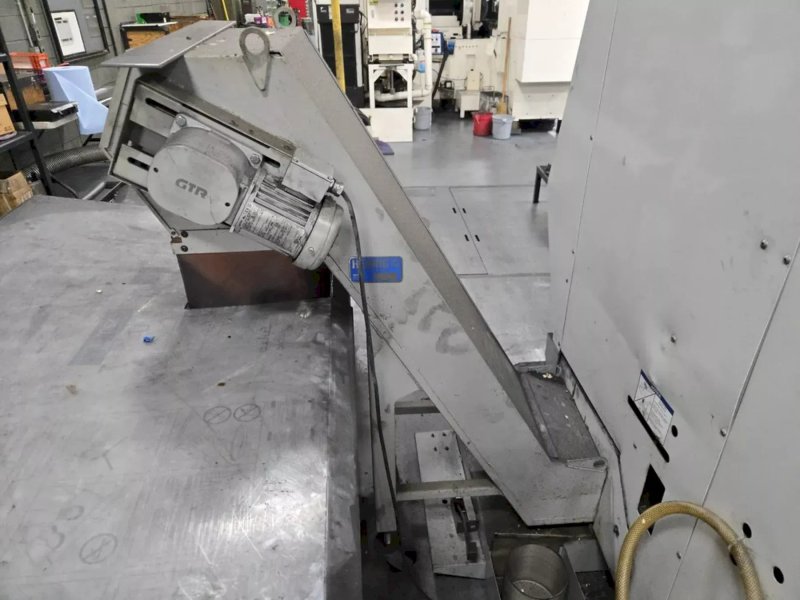

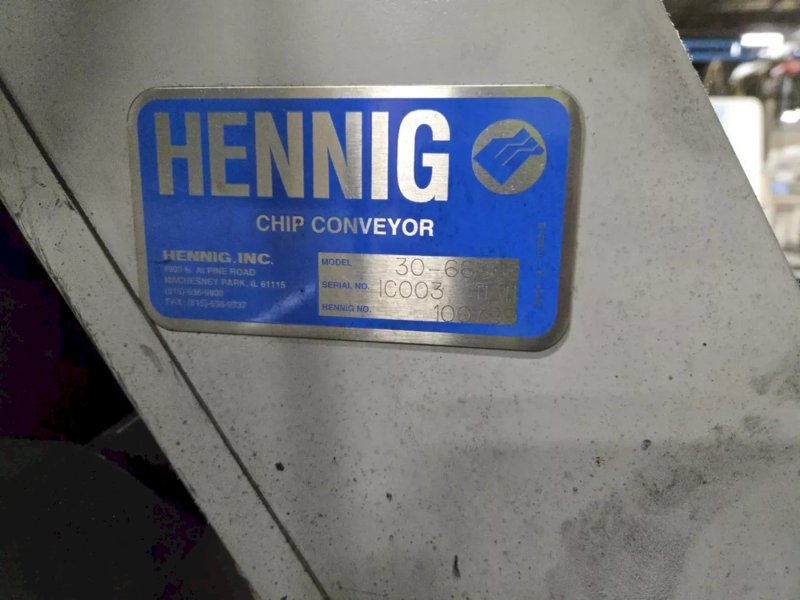

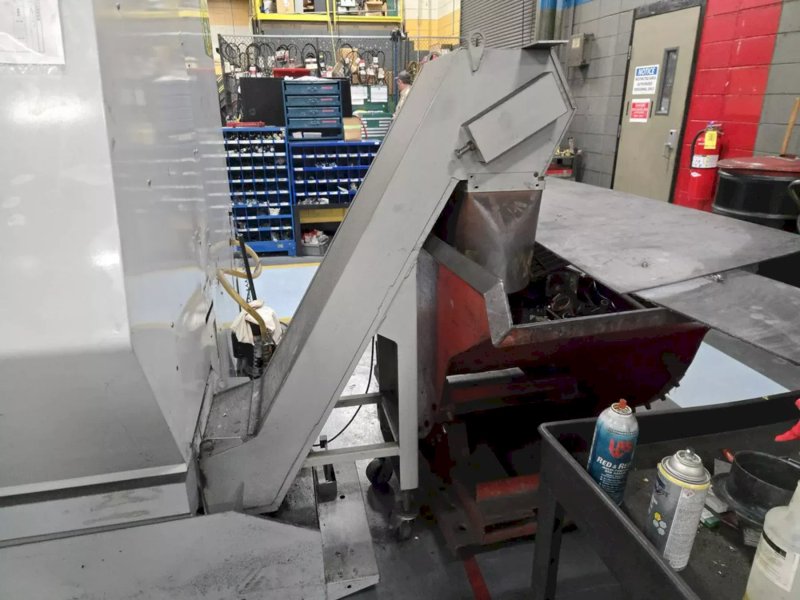

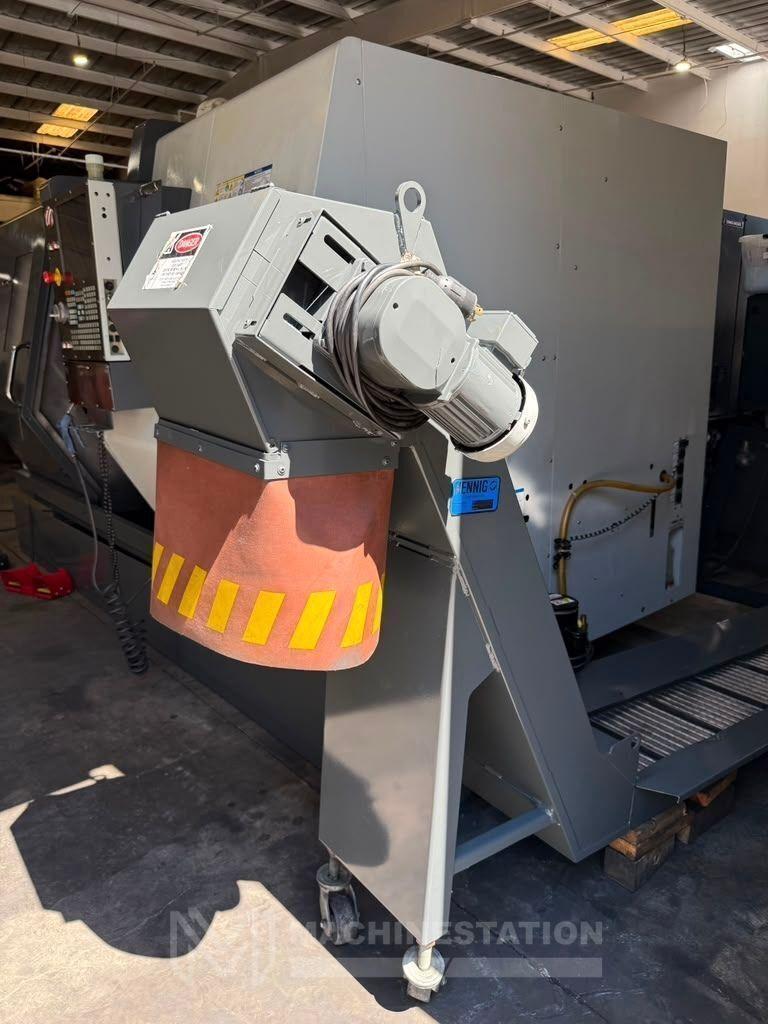

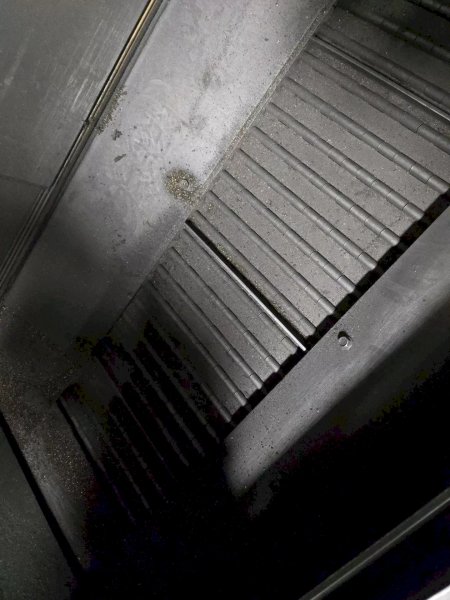

Chip Conveyor

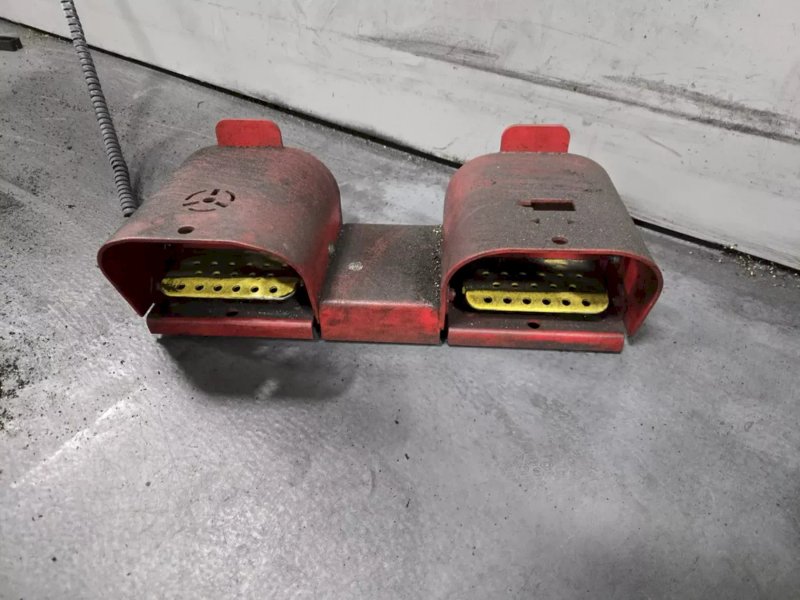

Foot Switch
(2) Boring Tool Holders & (1) Turning Tool Holder
Capacity:
Maximum Turning Diameter: 25.5″
Maximum Swing Over Bed: 40.0″
Maximum Turning Length: 44.0″
Maximum Bar Capacity: 4.0″
Travels:
X-Axis Travel: 17.0″
Z1-Axis Travel: 44.0″
Feedrate:
Rapid Traverse X-Axis: 710 IPM
Rapid Traverse Z-Axis: 710 IPM
Spindle:
Spindle Nose: A2-8
Spindle Bore: 4.62″

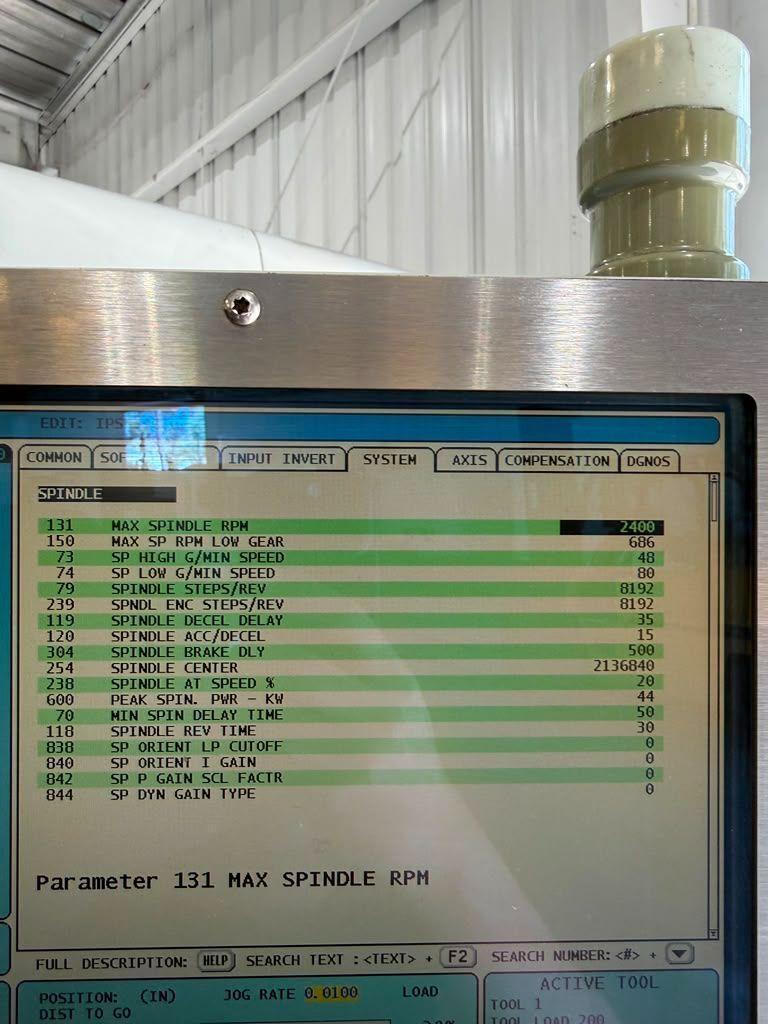

Spindle Speed: 2,400 RPM
Spindle Power: 60 HP
Turret:
Turret Capacity: 12 Stations
Turret Index Time: 1 Second
Tailstock:
Tailstock Type: Programmable
Tailstock Taper: MT-5
General:
Power Source: AC 220V / 3-Phase / 60 Hz
Machine Dimensions: 190″ × 103″ × 90″ High
Machine Weight: 25,000 lbs Approx.
