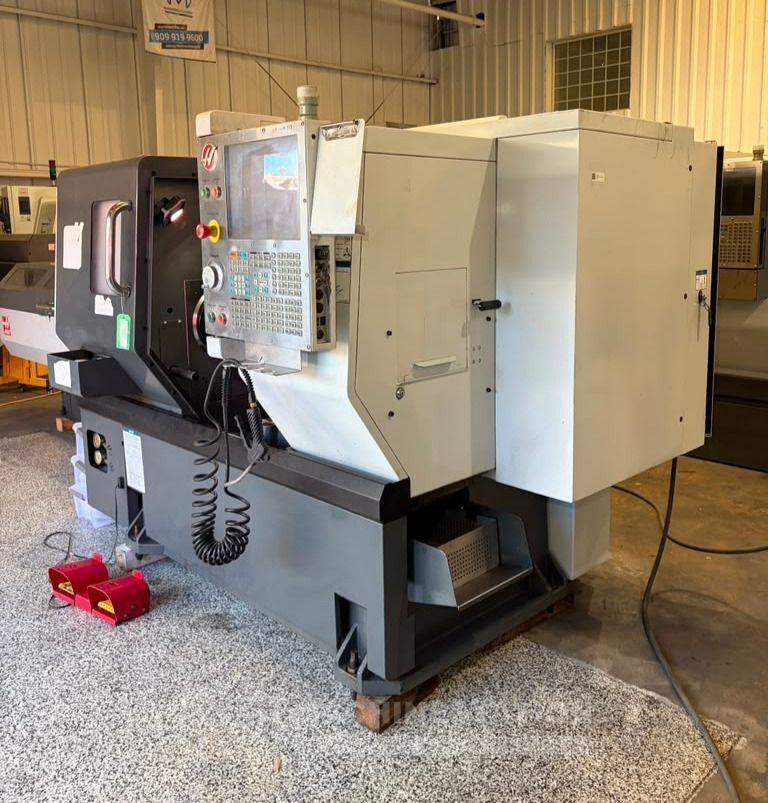

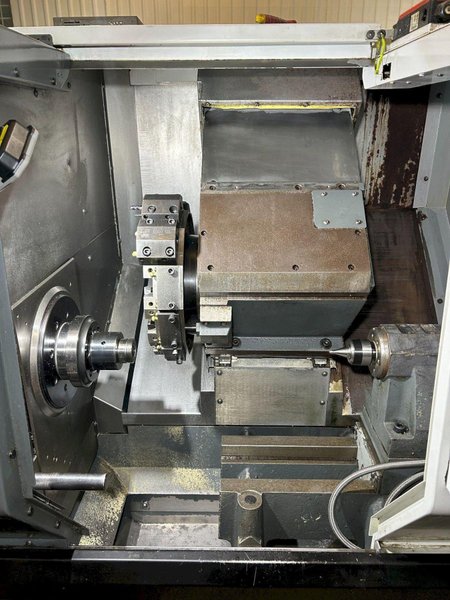

Haas ST-10 CNC Turning Center – Lathe W/ Bar Feeder

Brand
HAAS
Category
Lathes & Turning Machines
Type
Turning Centers
Model
ST-10
Stock #
113646
Year
Not specified
Condition
Not specified

Location

Not specified

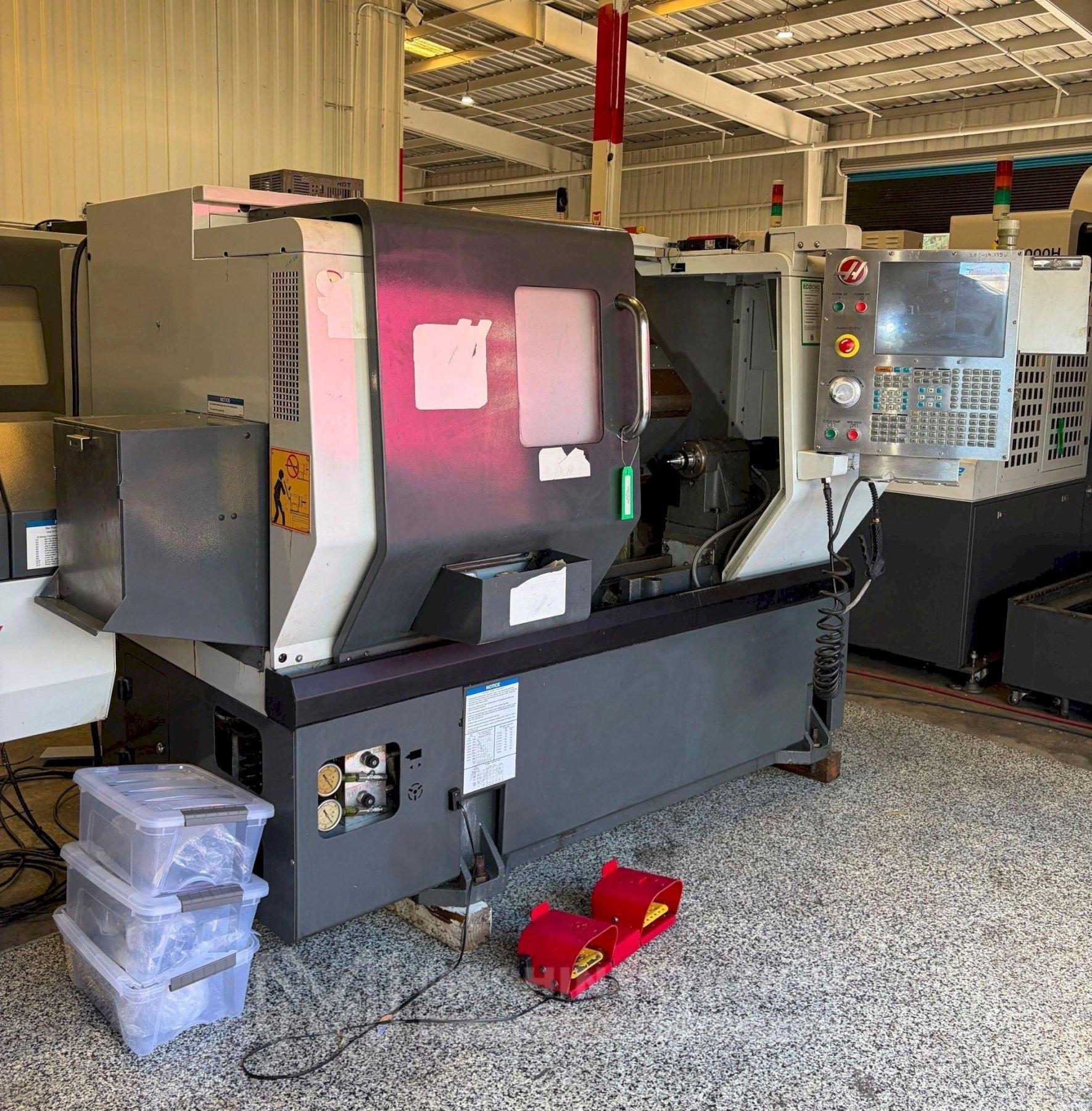

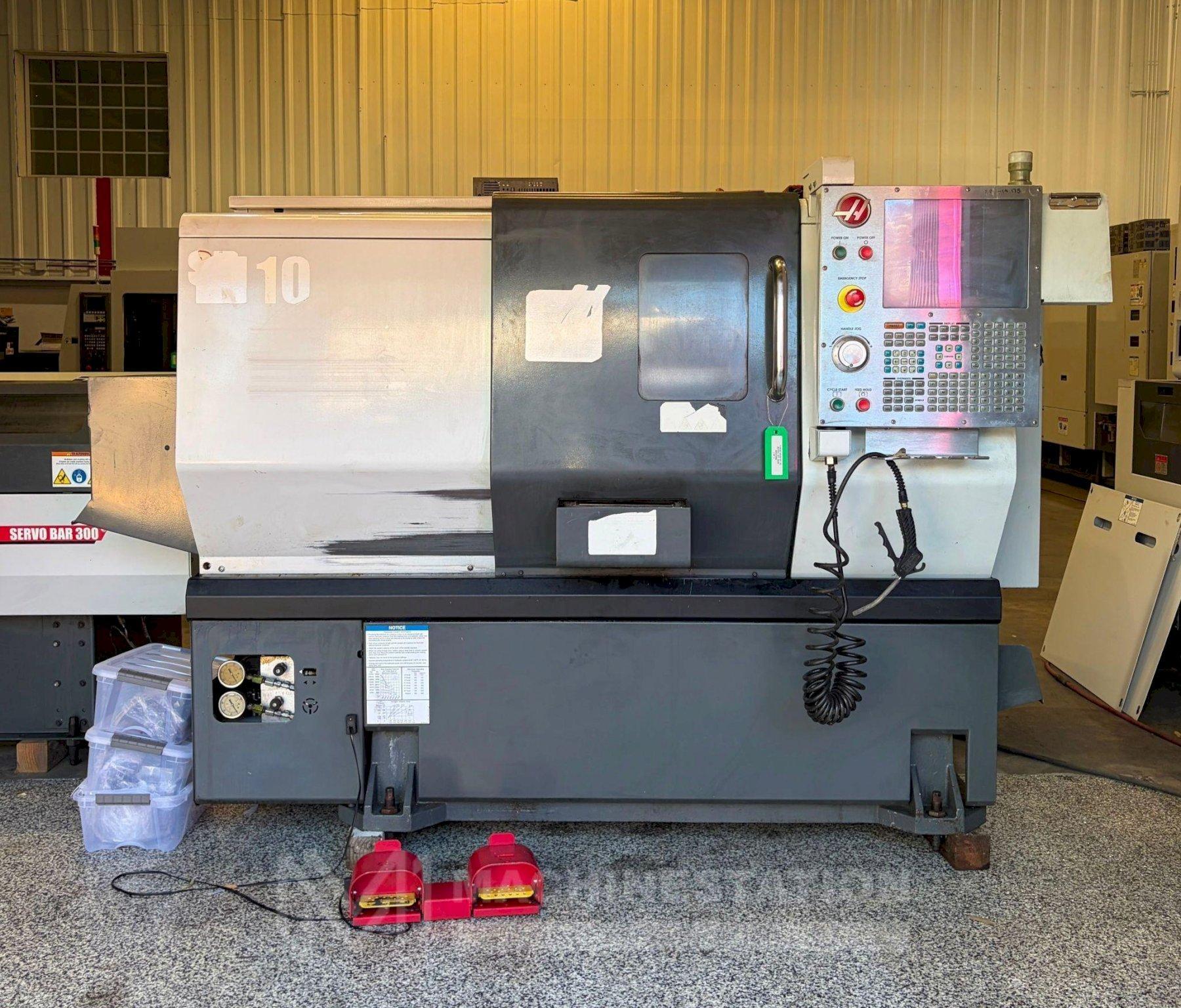

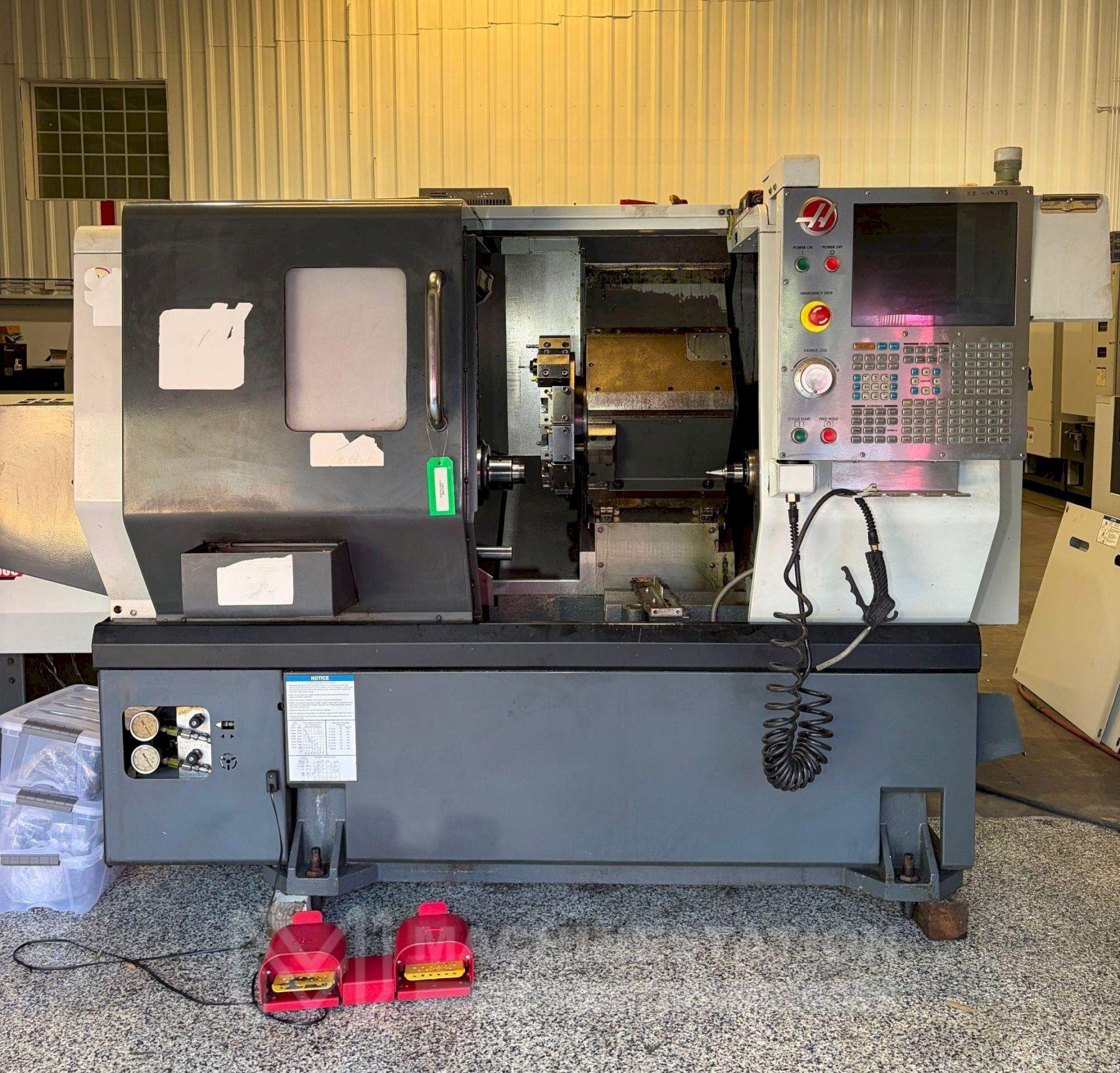

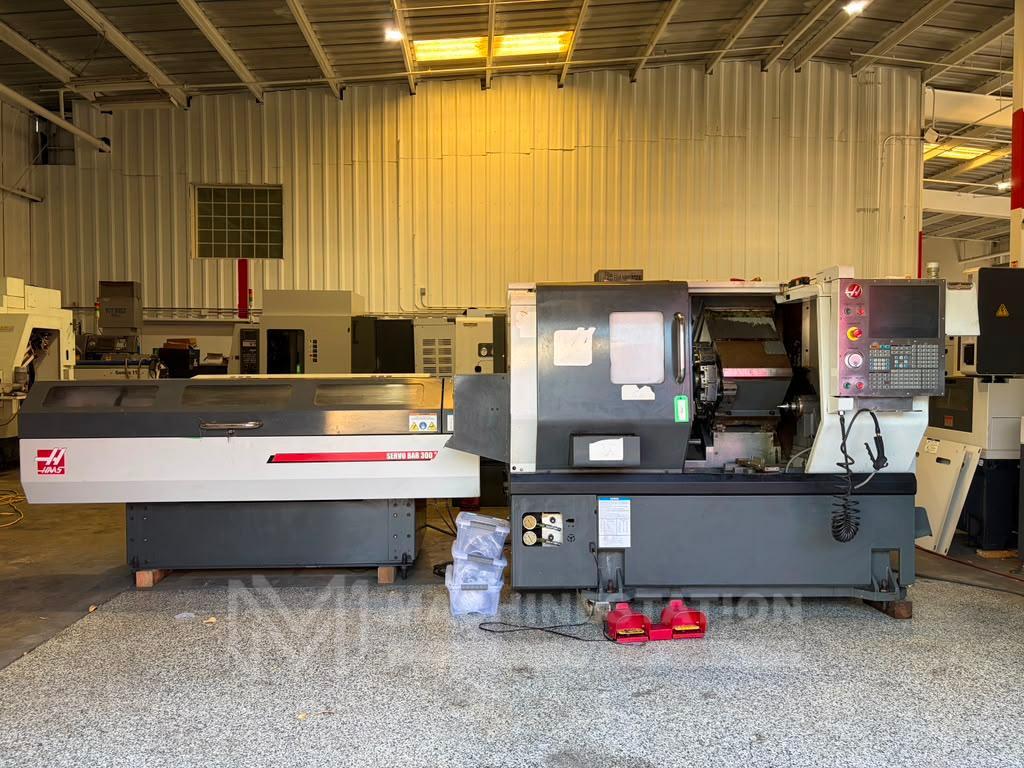

2011 Haas ST-10 CNC lathe available for sale . Features include 12.0 inch Turning Diameter, 16.0 inch Turning Length, 16.5 inch Swing, 1.75 inch bar capacity, 15 HP Spindle Power, and up to 6,000 spindle RPM. This lathe is ready for precision tasks. Machine comes with Samchully HS-06 6 inch 3-Jaw Chuck and ATS Workholding Collet Chuck.

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Features:

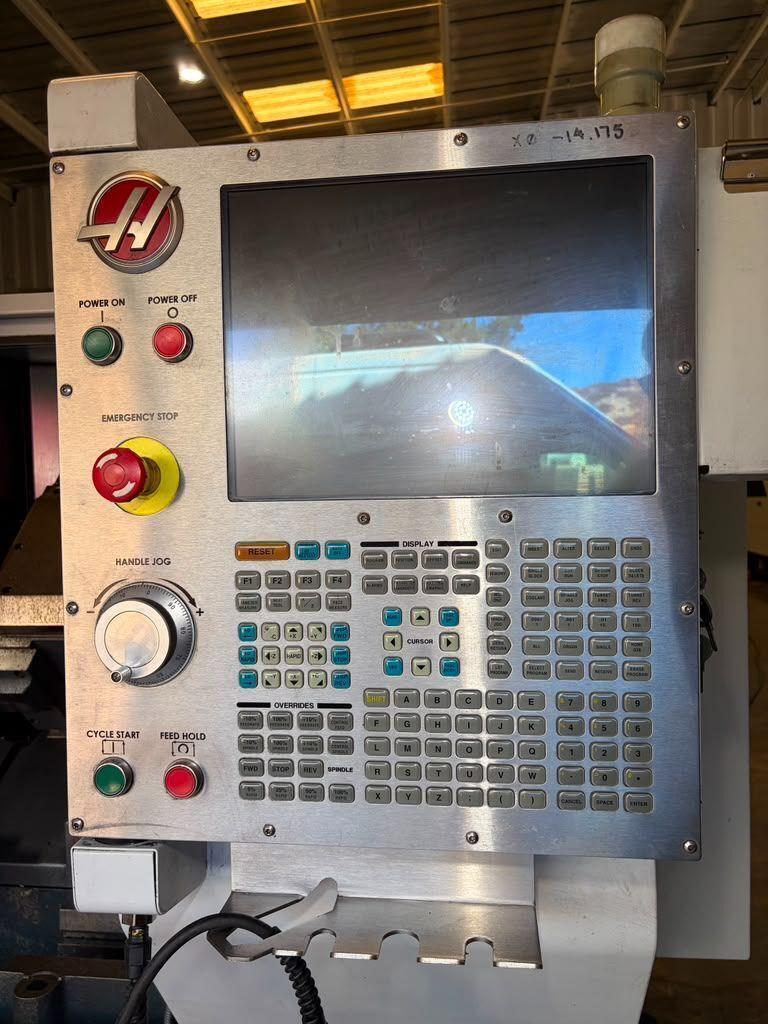

Haas CNC Control

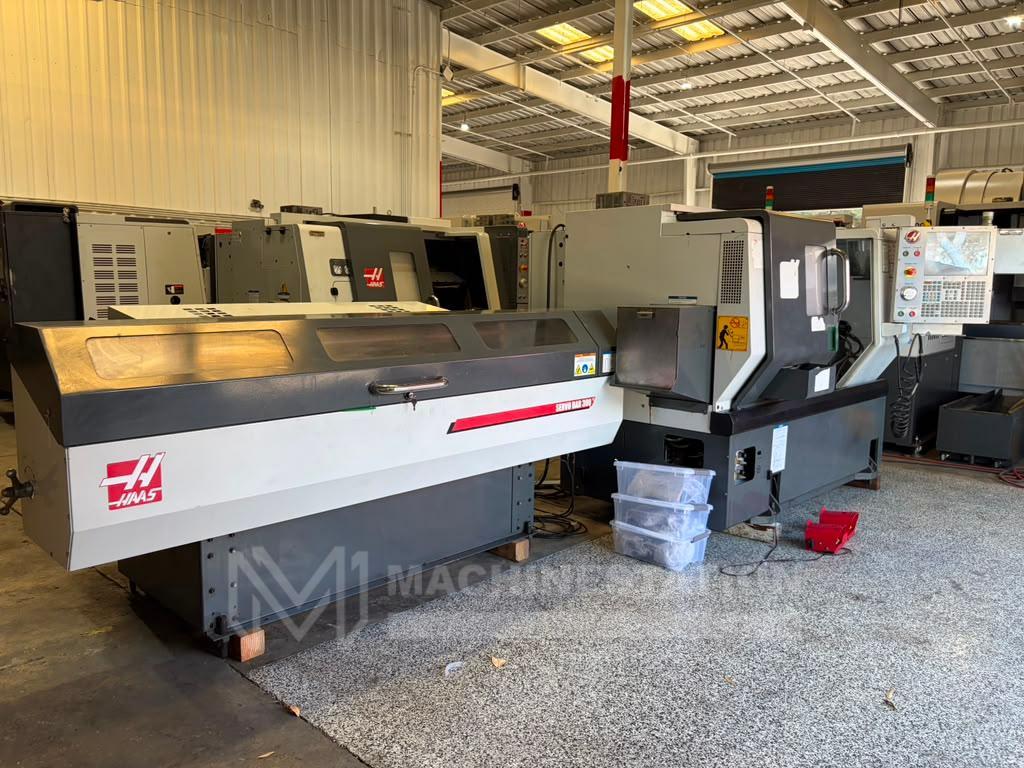

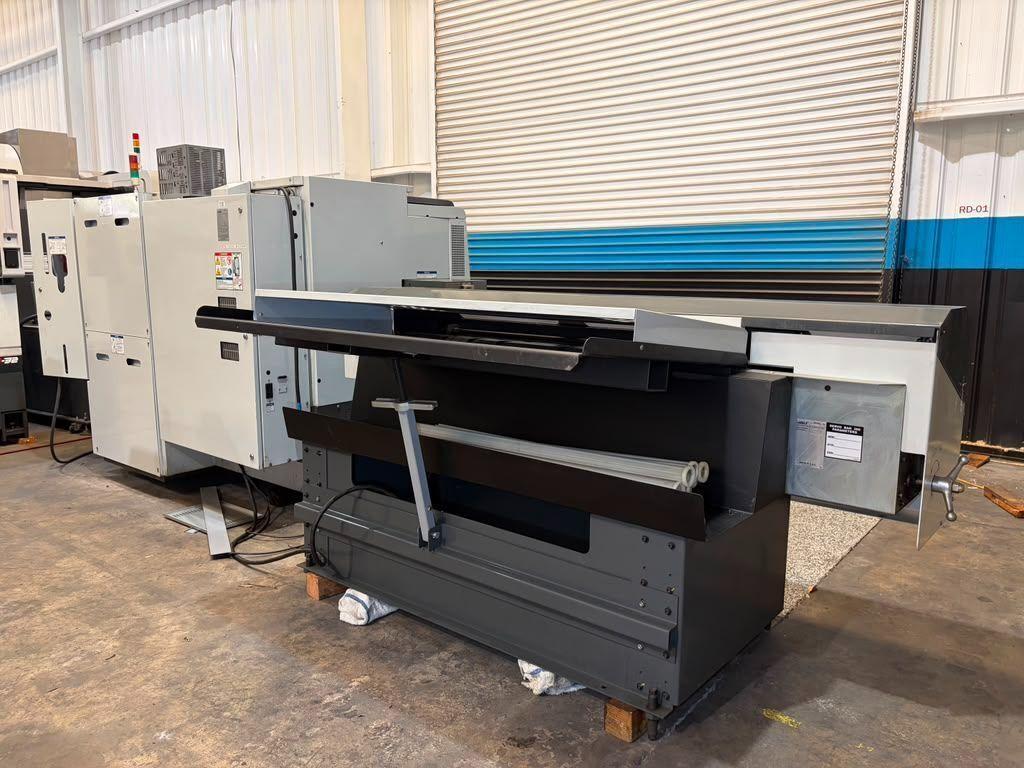

Haas Servo Bar 300 Bar Feeder

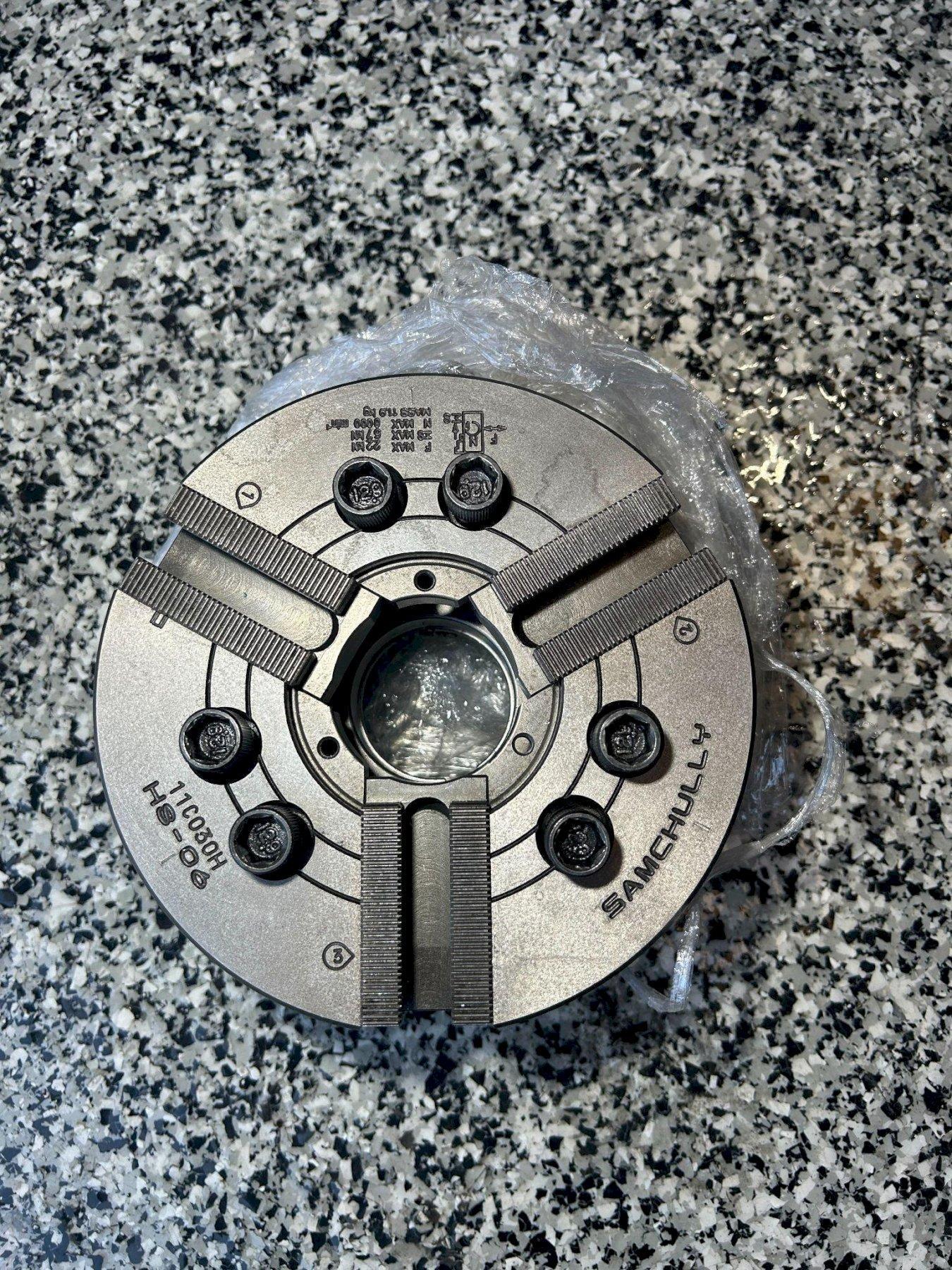

Samchully HS-06 6 inch 3-Jaw Chuck

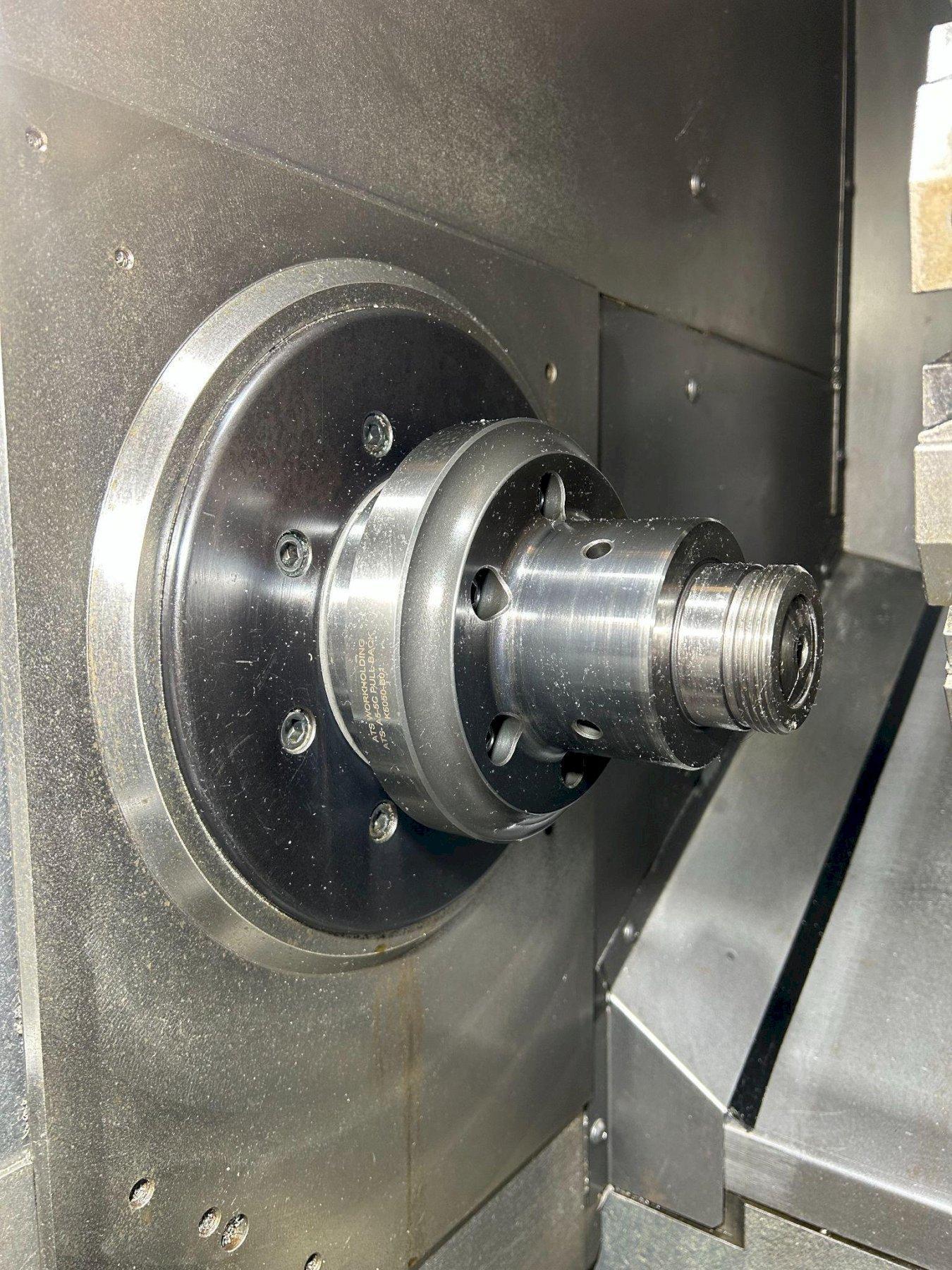

ATS Workholding A5-5C Pull Back Collet Chuck

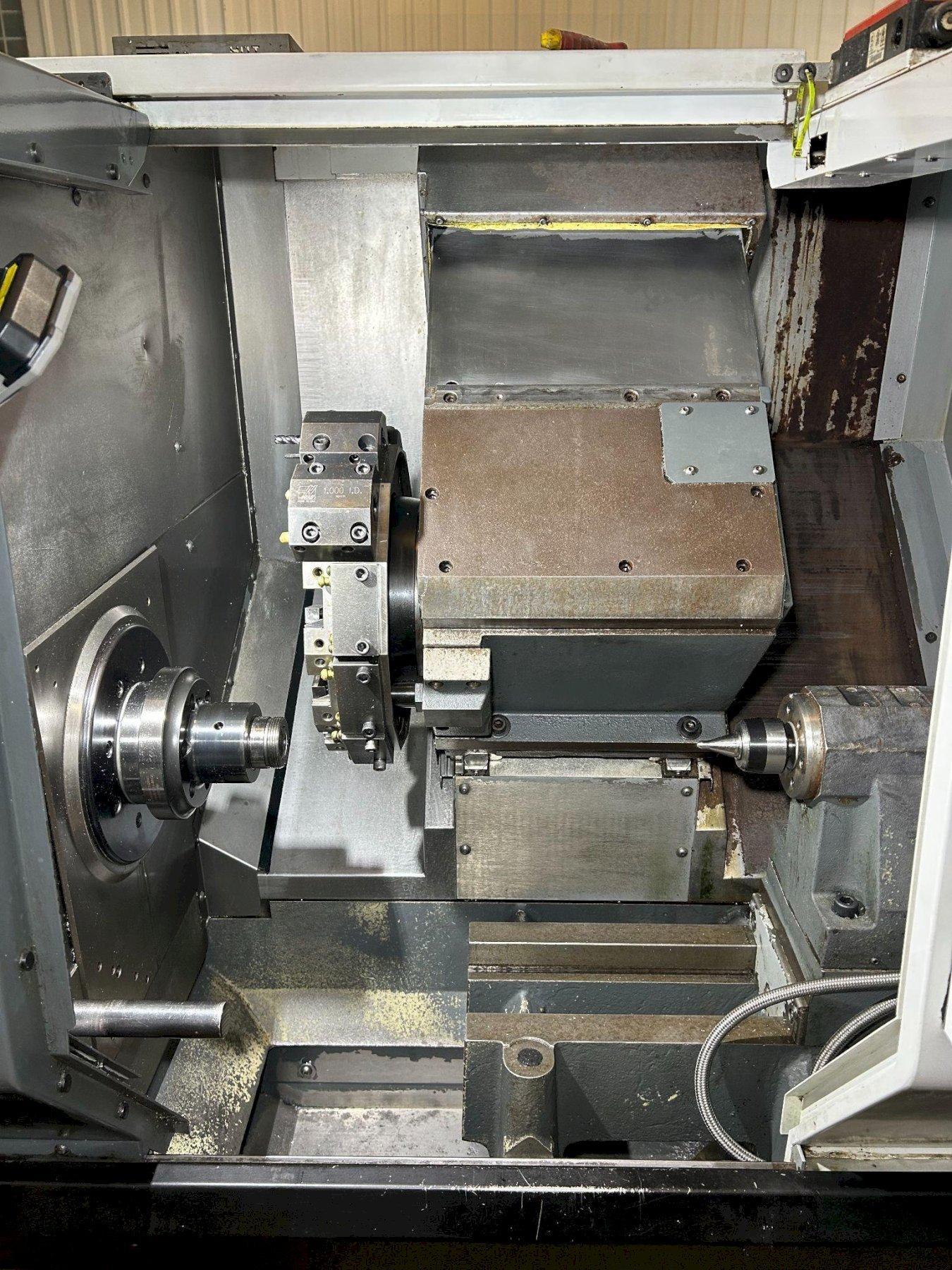

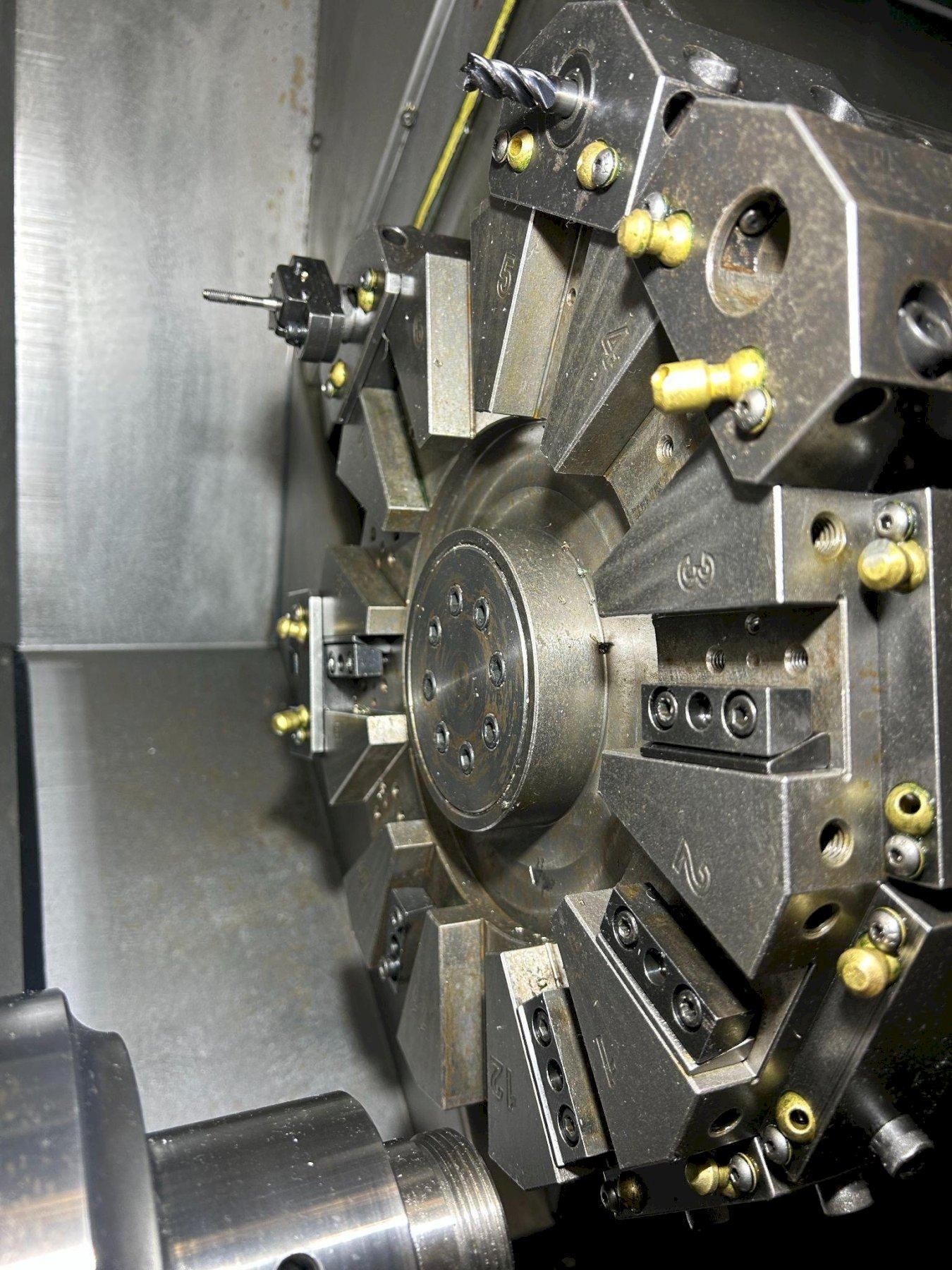

12-Station Automatic Turret
6,000 RPM Spindle
A2-5 Spindle Nose
Rigid Tapping
Foot Switch
Capacity:
Max Turning Diameter: 12.0 inch
Max Swing: 16.5 inch
Max Turning Length: 16.0 inch
Max Bar Capacity: 1.75 inch
Travels:
X Axis Travel: 7.88 inch
Z Axis Travel: 16.0 inch
Feedrate:
Rapid Traverse X Axis: 1,200 IPM
Rapid Traverse Z Axis: 1,200 IPM
Spindle:
Spindle Nose: A2-5
Spindle Bore: 2.31 inch
Spindle Speed: 6,000 RPM
Spindle Motor: 15 HP
Turret:
Turret Capacity: 12 Stations
Tool Holder Type: Bolt Mounted

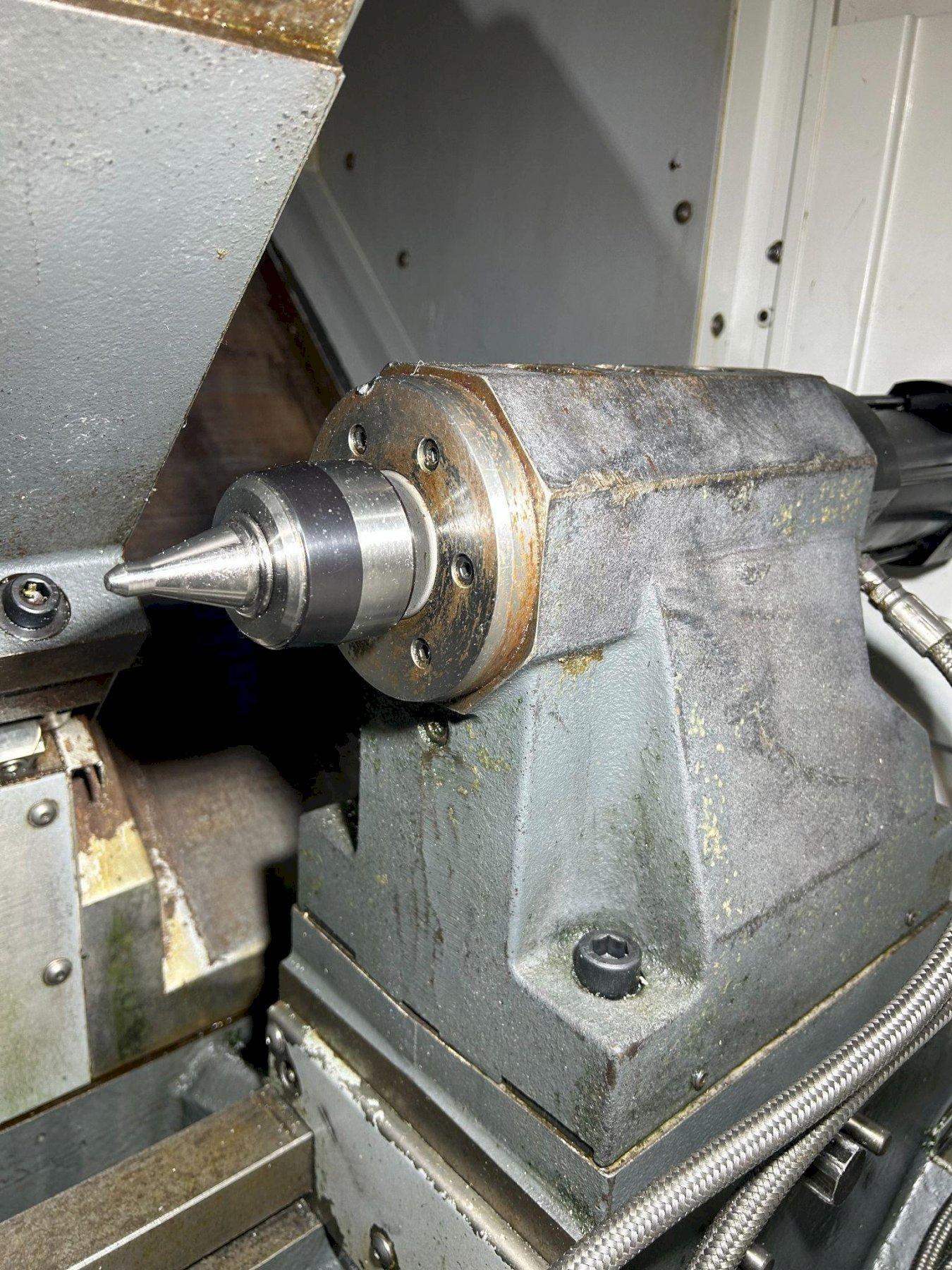

Tailstock:
Tailstock Taper: MT-3
Hydraulic Quill Travel: 3.8 inch
General:
Air Required: 100 psi, 4 scfm
Machine Dimensions: 126 inch × 70 inch × 81 inch High Approx.
Machine Weight: 7,900 lbs Approx.
No files or videos to display

Want to request a quote or ask the owner of this listing a question?

Similar Listings to - Haas ST-10 CNC Turning Center – Lathe W/ Bar Feeder
Haas SL-40 CNC Turning Center – 15″ Chuck, Tailstock Lathe
HAAS

Turning Centers

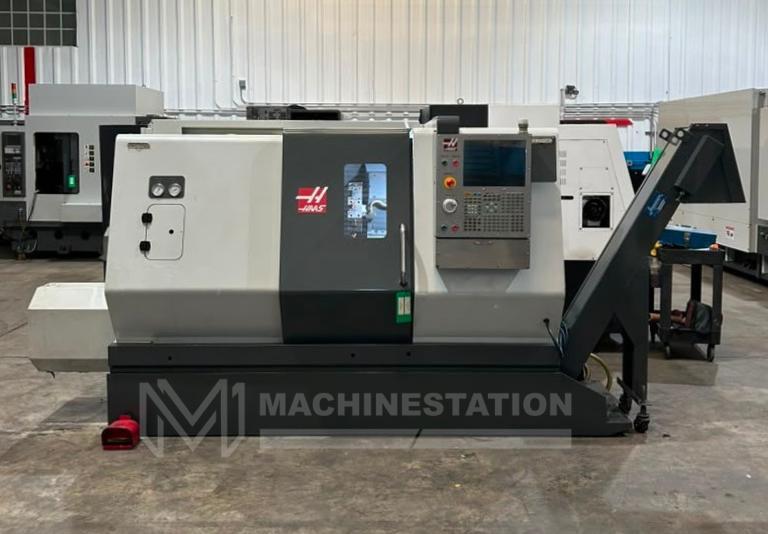

Haas SL-20TB CNC Turning Center – 10″ Chuck Lathe
