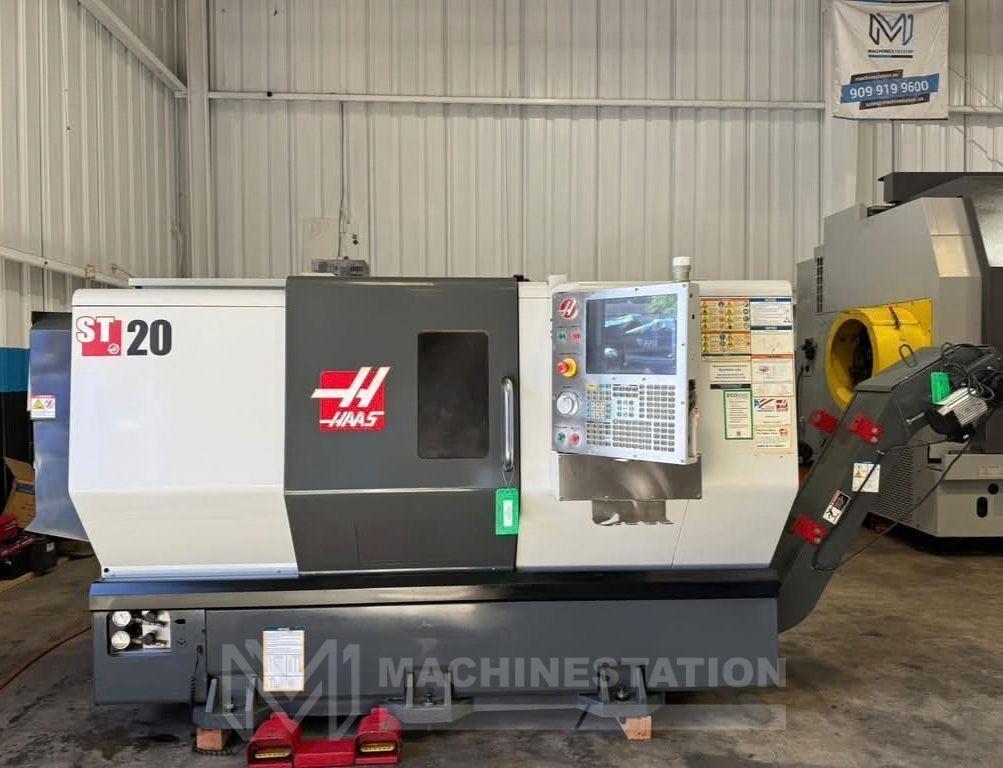

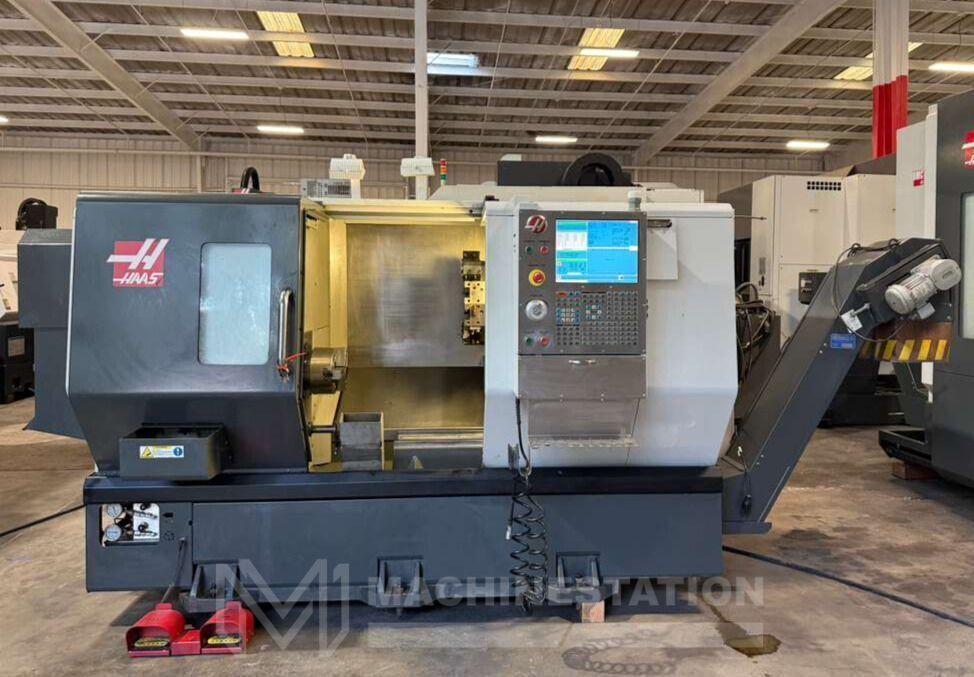

Name: Haas ST-20 CNC Turning Center – 8″ Chuck, Tailstock Lathe
Brand: HAAS
SKU: 113682
Availability: InStock

Brand

HAAS

Location

Not specified

Specifications
Files & Videos

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Make:	Haas
Model:	ST-20
Year:	2011

Equipped With:
Haas CNC Control
8″ 3-Jaw Hydraulic Chuck
A2-6 Spindle Nose
12-Station Automatic Turret
Rigid Tapping
Programmable Tailstock (Upgraded $8,695 Value Included) – Excellent for Longer Parts
Coolant Tank
Belt Type Chip Conveyor (Upgraded $6,195 Value Included) – For Efficient Chip Removal
Automatic Lubrication Unit
Foot Switches
Leveling Pads
(4) Boring Tool Holders Mounted on Turret (As Shown in the Images)

Capacity:
Maximum Turning Diameter: 13.0″
Maximum Swing Over Bed: 21.0″
Maximum Turning Length: 22.5″
Maximum Bar Capacity: 2.00″

Travels:
X-Axis Travel: 8.4″
Z-Axis Travel: 22.5″

Feedrate:
Rapid Traverse X-Axis: 945 IPM
Rapid Traverse Z-Axis: 945 IPM

Spindle:
Spindle Nose: A2-6
Spindle Bore: 2.5″
Spindle Speed: 4,000 RPM
Spindle Motor: 20 HP

Turret:
Turret Capacity: 12 Stations
Turret Index Time: 1 Second
Turret Type: Bolt-On Tool Turret

Tailstock:
Tailstock Type: Programmable
Tailstock Taper: MT-4

General:
Air Requirement: 4 scfm @ 100 psi
Power Source: AC 195V – 260V / 3-Phase / 50/60 Hz
Machine Dimensions: 142.5″ × 90″ × 92″ High
Machine Weight: 8,820 lbs Approx.
