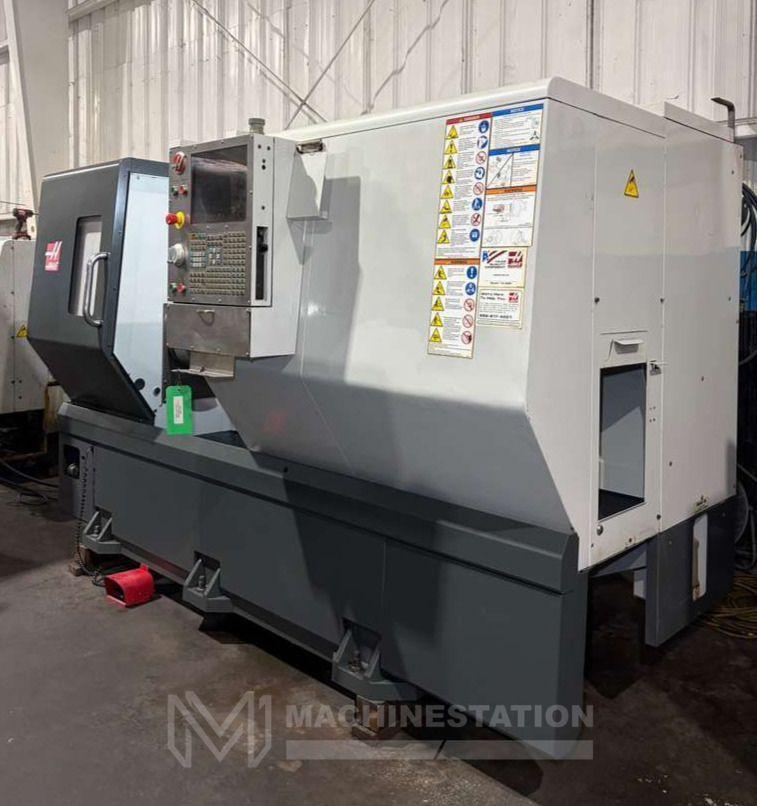

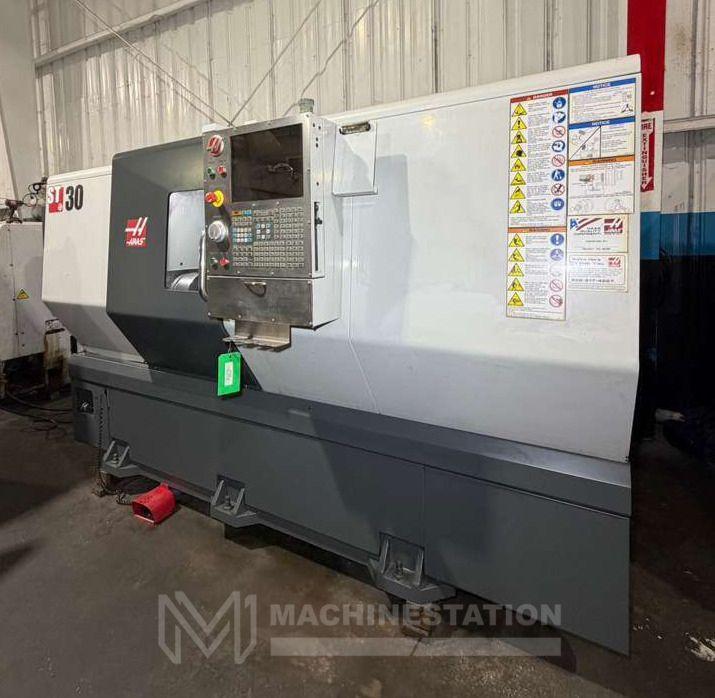

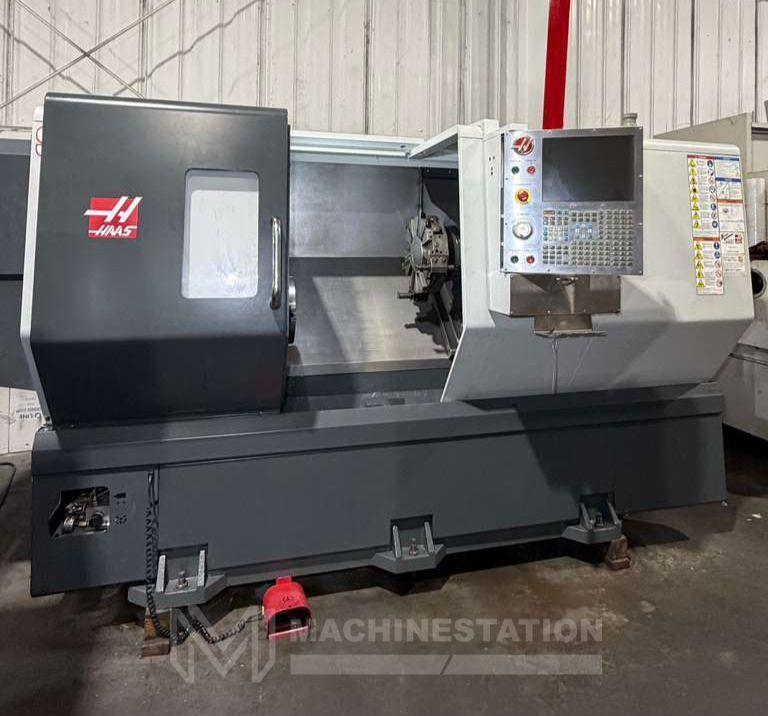

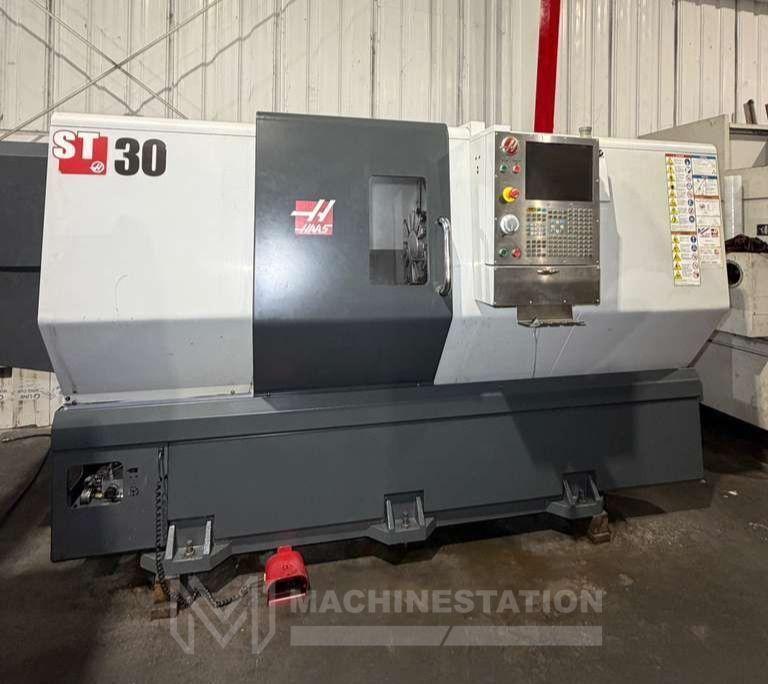

Name: Haas ST-30 CNC Turning Center – 12″ Chuck Lathe
Brand: HAAS
SKU: 113553
Availability: InStock

Brand

HAAS

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Make:	Haas
Model:	ST-30
Year:	2010
Condition:	Used – Good

Equipped With:

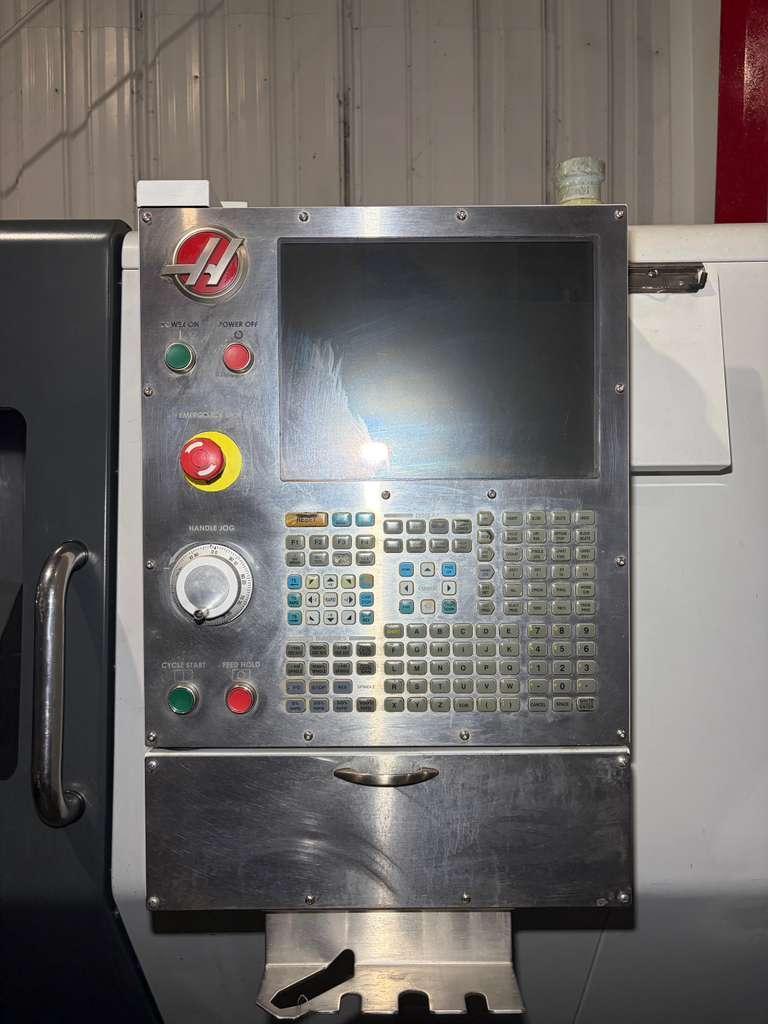

Haas CNC Control

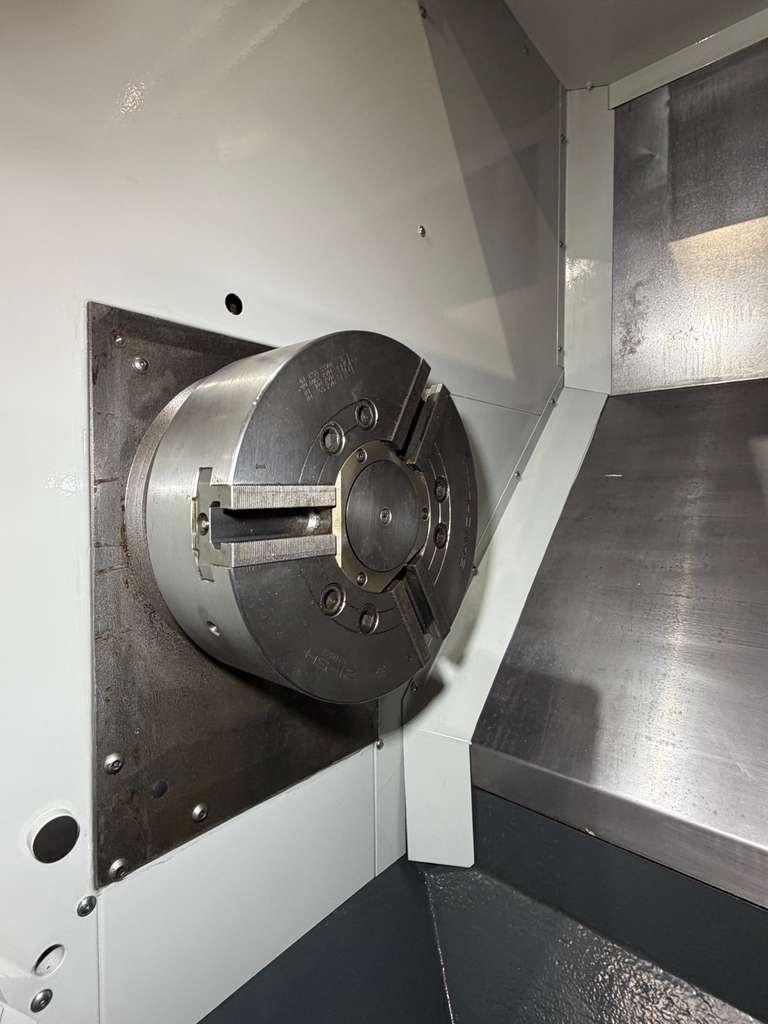

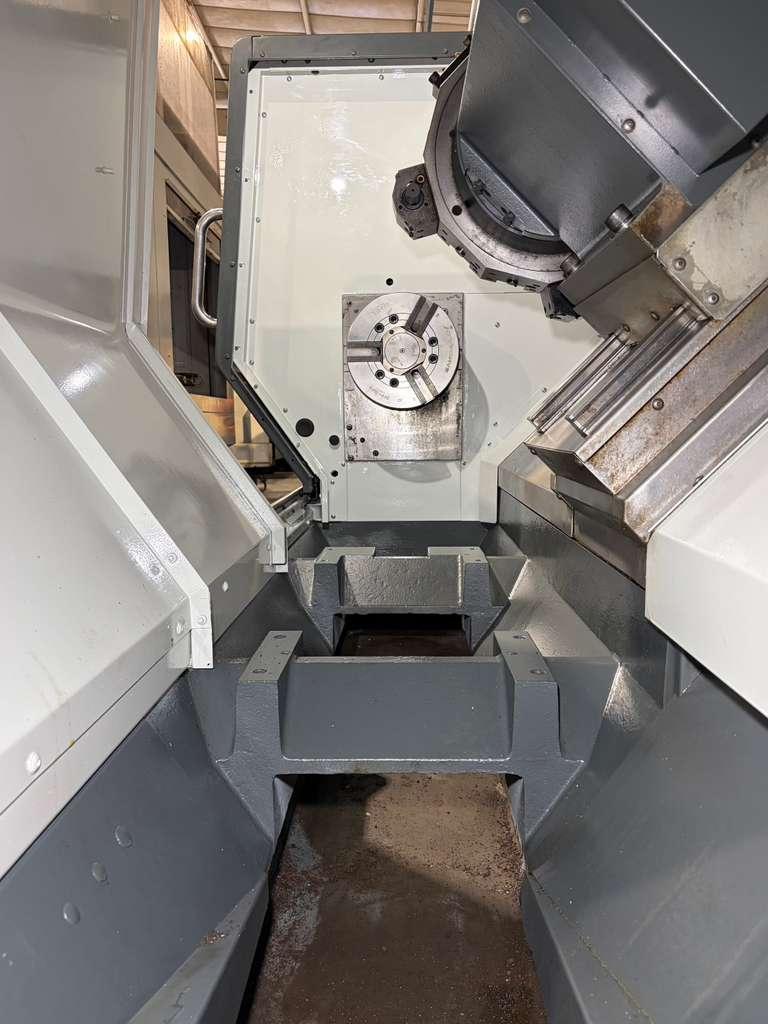

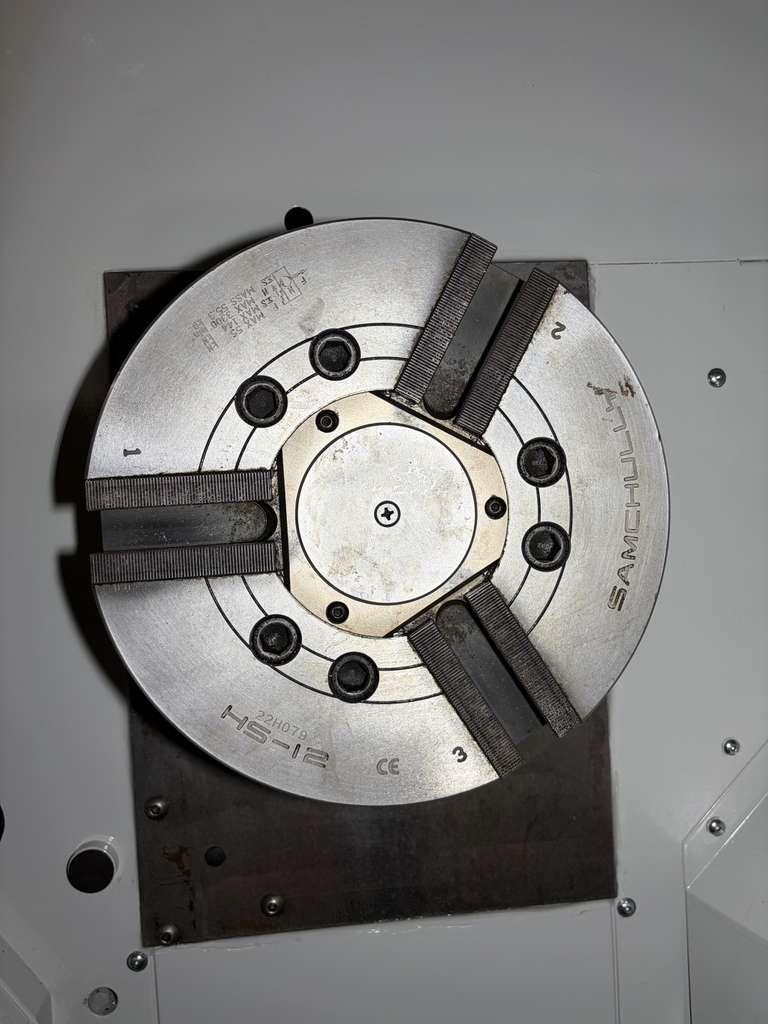

12″ 3-Jaw Samchully SH-12 Chuck

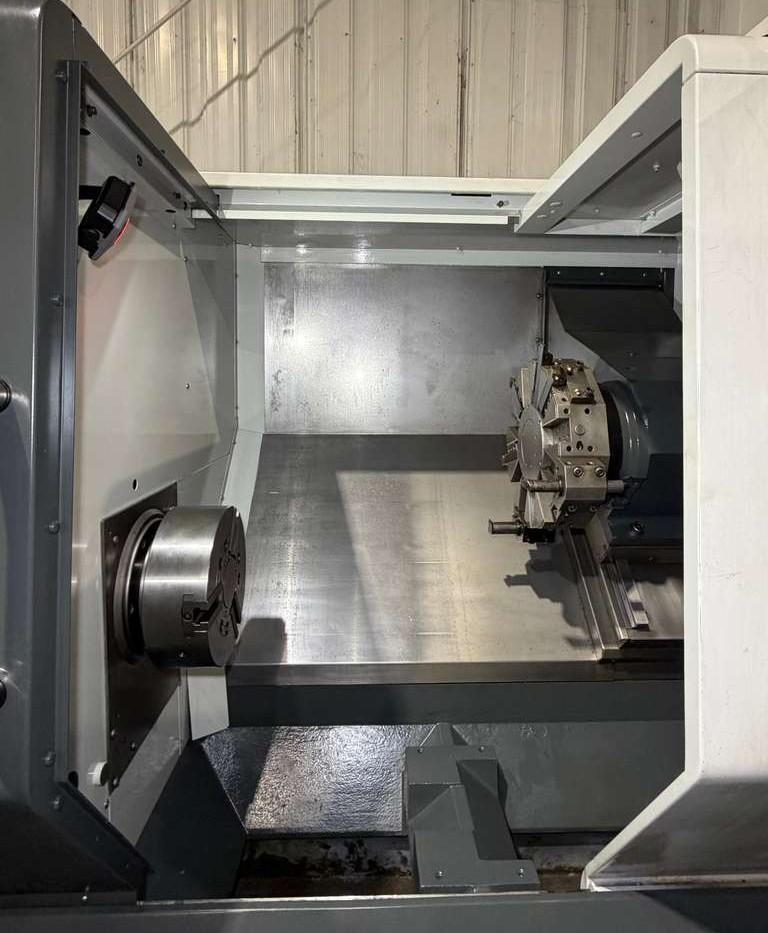

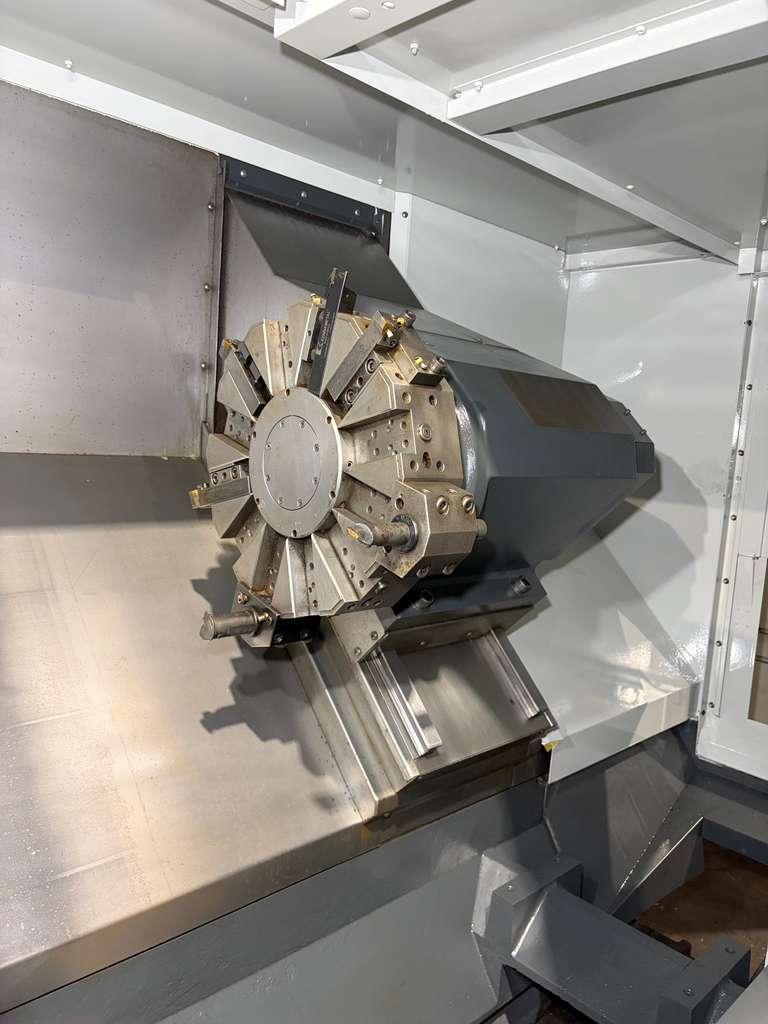

12 Station Automatic Turret
A2-6 Spindle, 3400 RPM Spindle
3.5″ Spindle Bore
Rigid Tapping

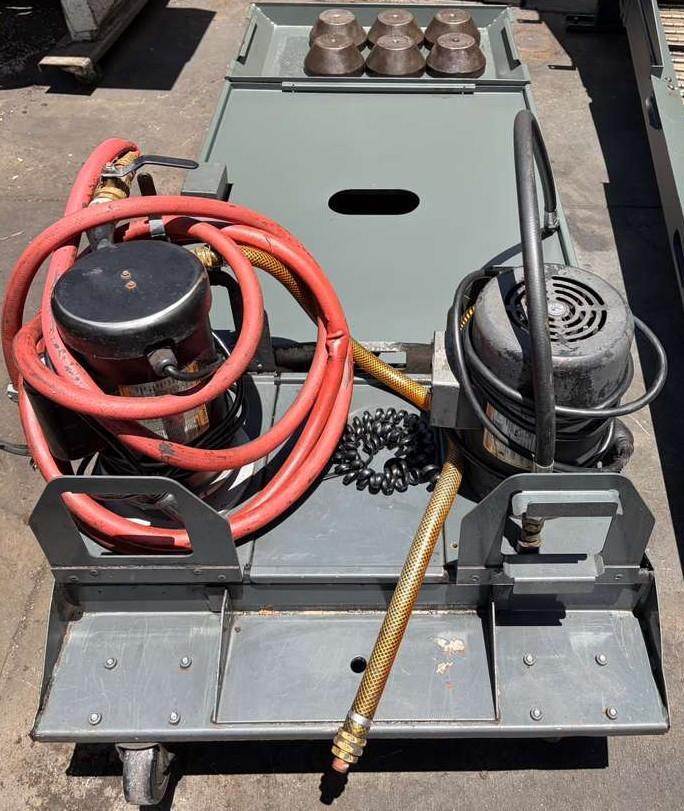

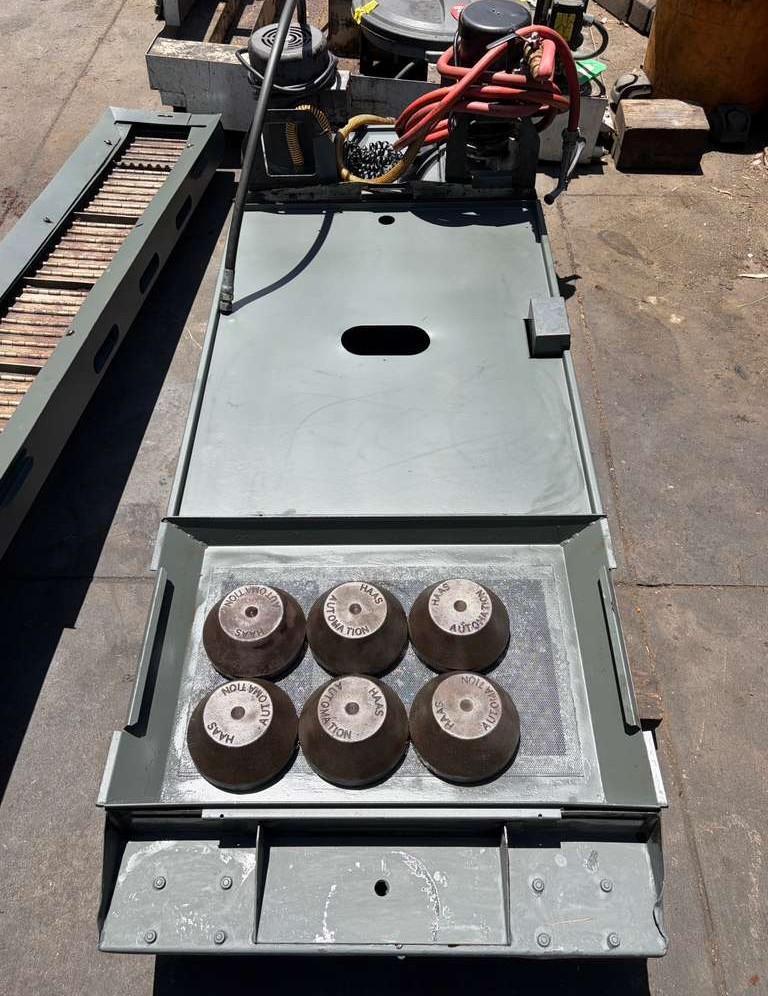

Coolant Tank
Belt Type Chip Conveyor
Automatic Lubrication system
Foot Switch

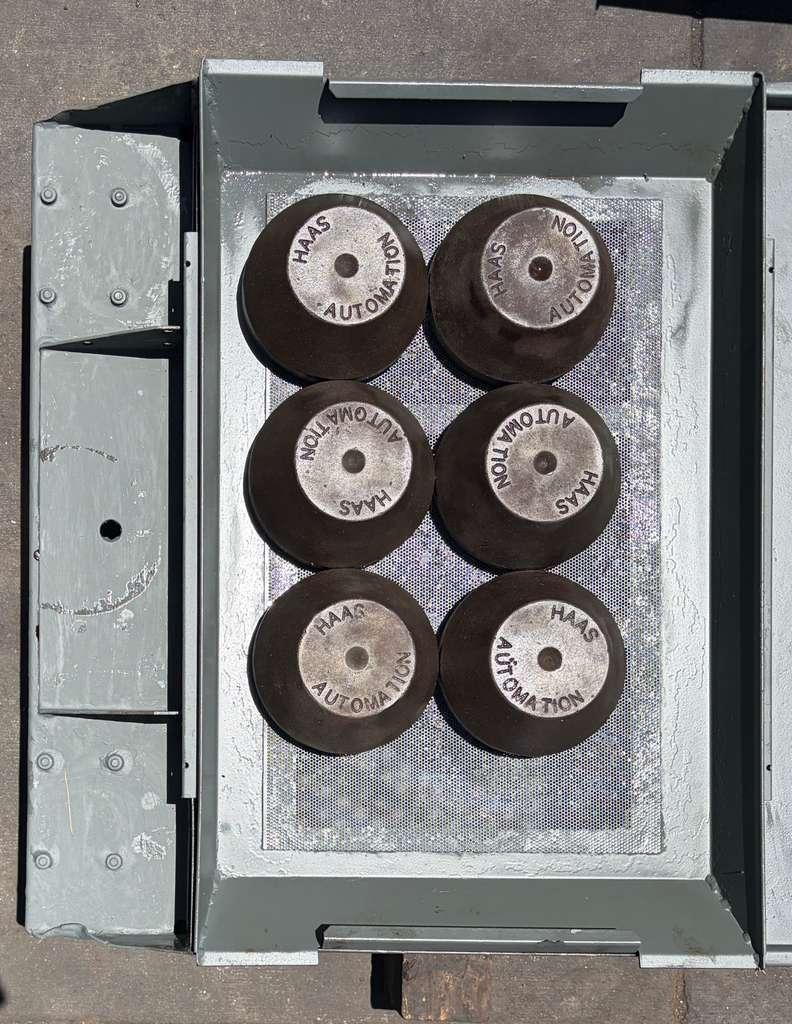

Leveling Pads
(2) Boring Tool Holders Are Mounted on the Turret (As Shown in the images)

Capacity:
Max Turning Diameter : 15.0″
Max Swing Over Bed : 21.0″
Max Turning Length: 32.5″
Max Bar Capacity : 3.0″

Travels:
X Axis Travel : 9.4″
Z Axis Travel : 32.5″

Feedrate:
Rapid Traverse X Axis: 945 IPM
Rapid Traverse Z Axis: 945 IPM

Spindle:
Spindle Nose: A2-6
Spindle Bore: 3.5″
Spindle Speed: 3400 RPM
Spindle Motor: 30 HP

Turret:
Turret Capacity: 12 Stations
Turret Type: Bolt-On Tool Turret

General:
Air Required: 100 psi 4 scfm
Power Source: AC 220v / 3-Phase / 60 Hz
Machine Dimensions: 170″ x 90″ x 98″ High Approx.
Machine Weight: 10,900 lbs Approx.
