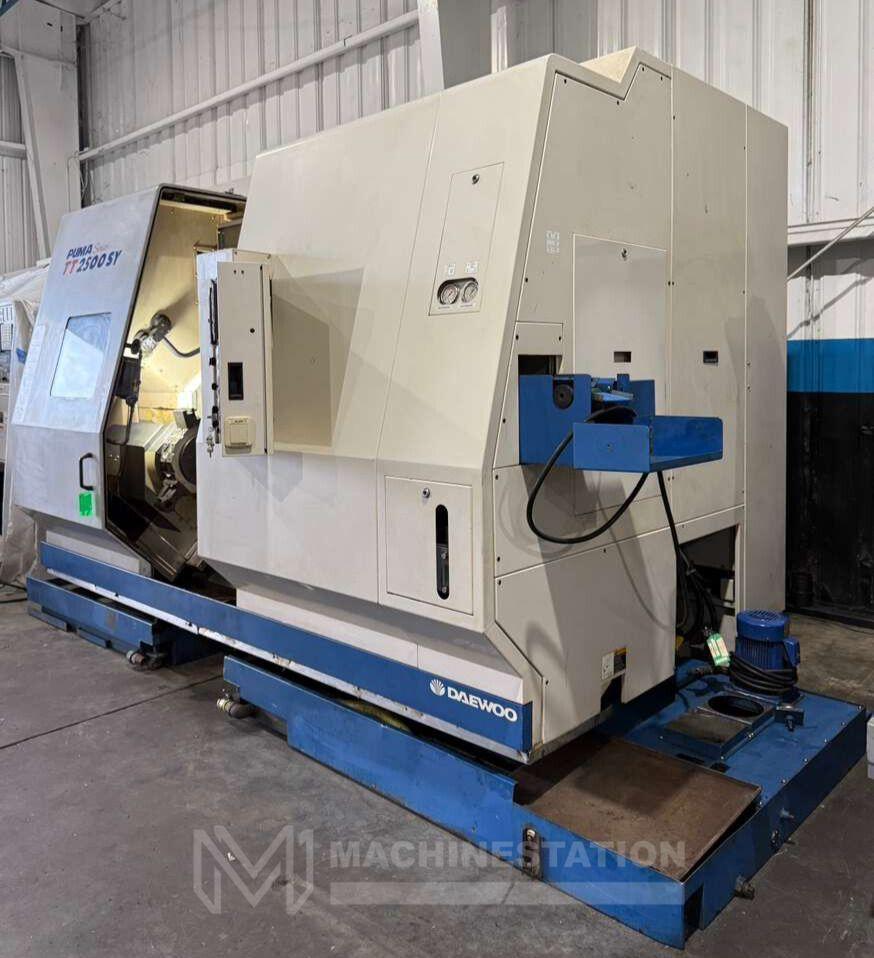

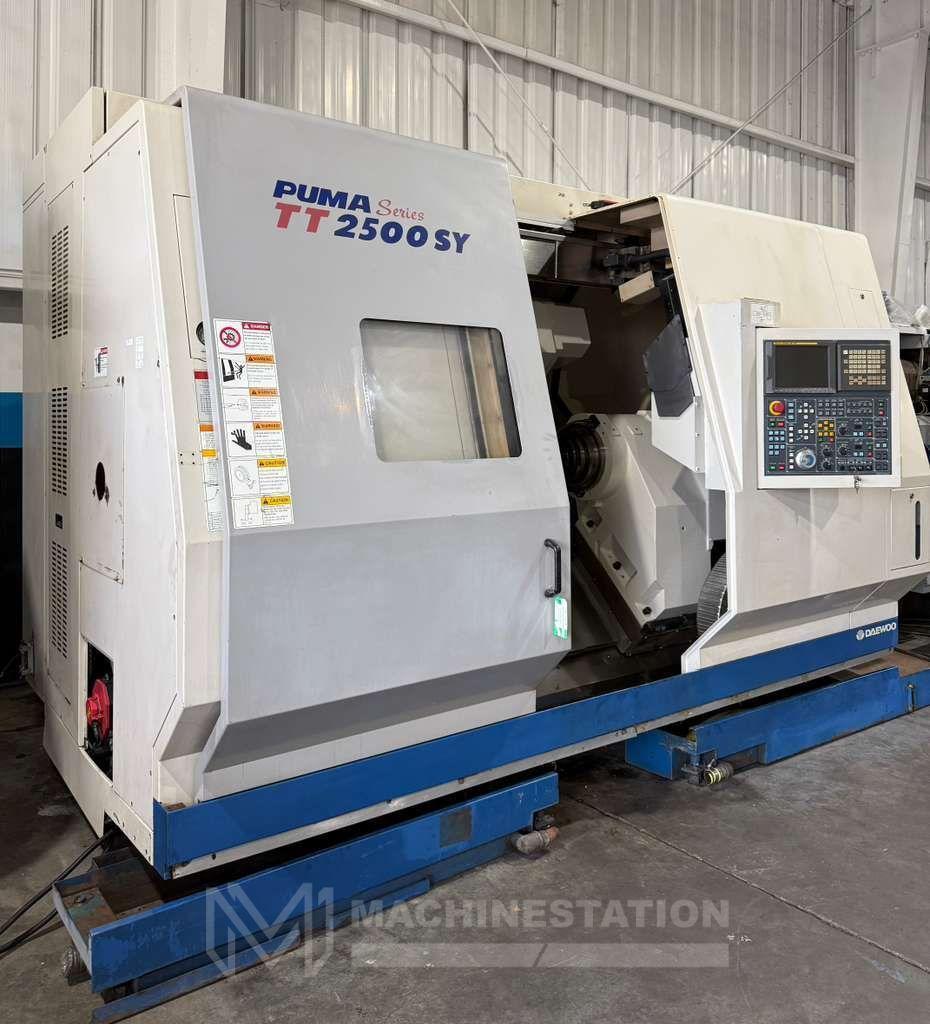

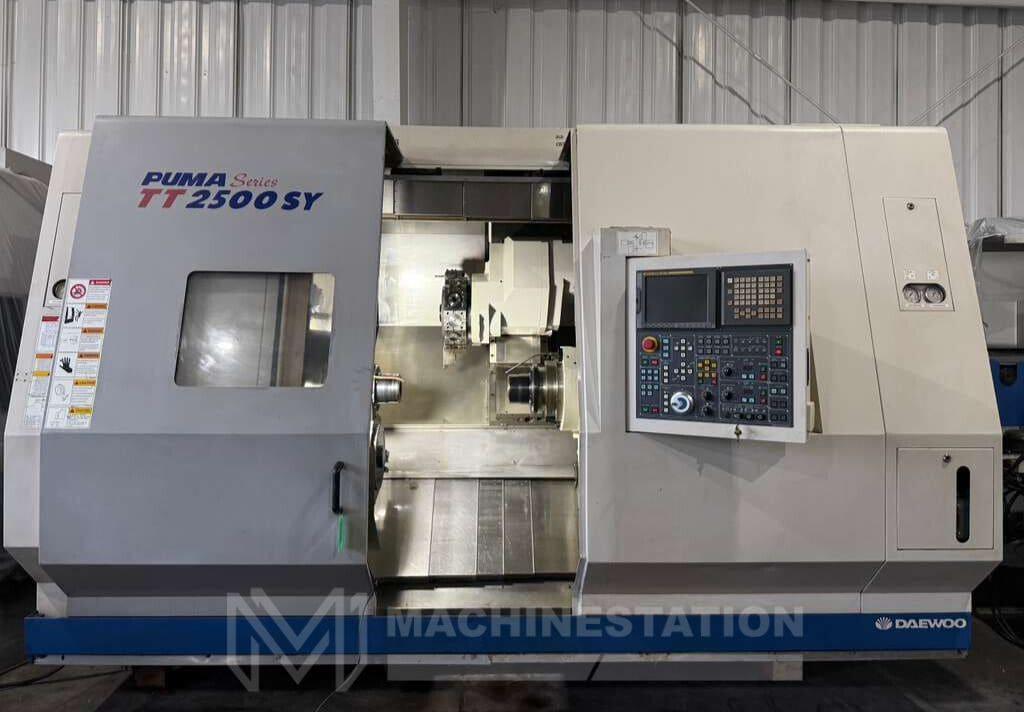

Daewoo Puma TT2500SY Multi Axis CNC Lathe – Y Axis Twin Spindle Twin Turret

Daewoo Puma TT2500SY Multi Axis CNC Lathe – Y Axis Twin Spindle Twin Turret

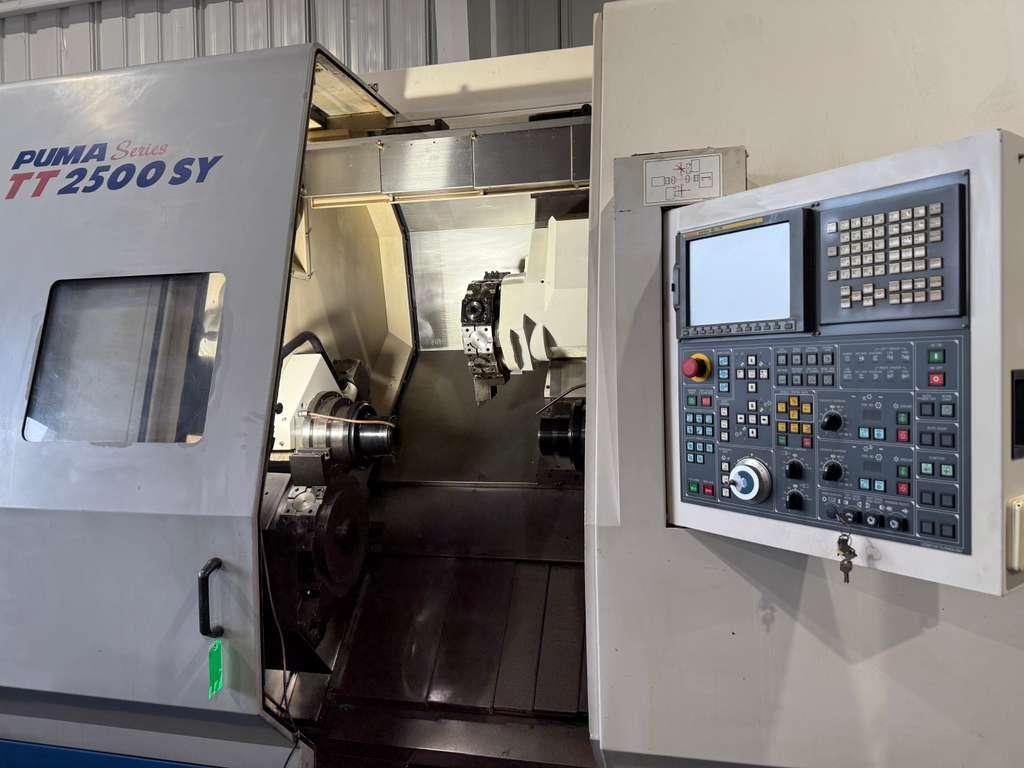

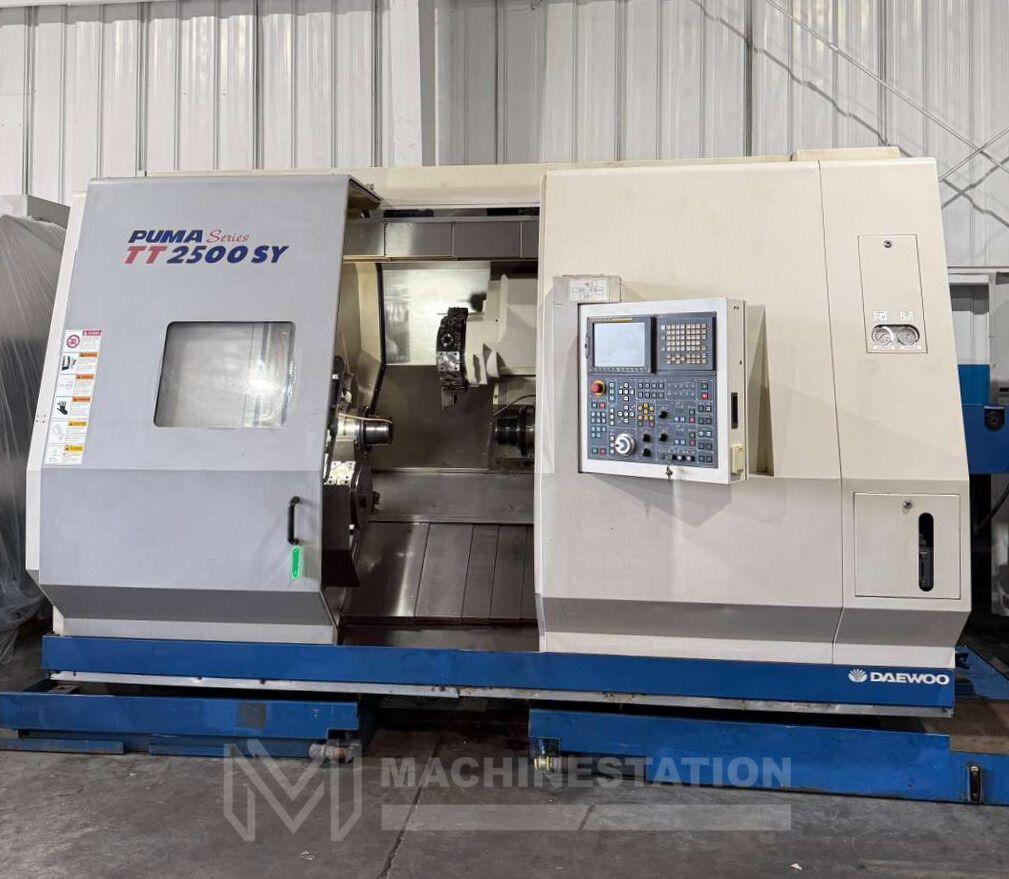

Name: Daewoo Puma TT2500SY Multi Axis CNC Lathe – Y Axis Twin Spindle Twin Turret
Brand: DOOSAN DAEWOO
SKU: 112879
Availability: InStock

Brand

DOOSAN DAEWOO

Location

Not specified

Specifications
Files & Videos

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Make:	Daewoo
Model:	Puma TT2500SY
Year:	2004

Equipped With:

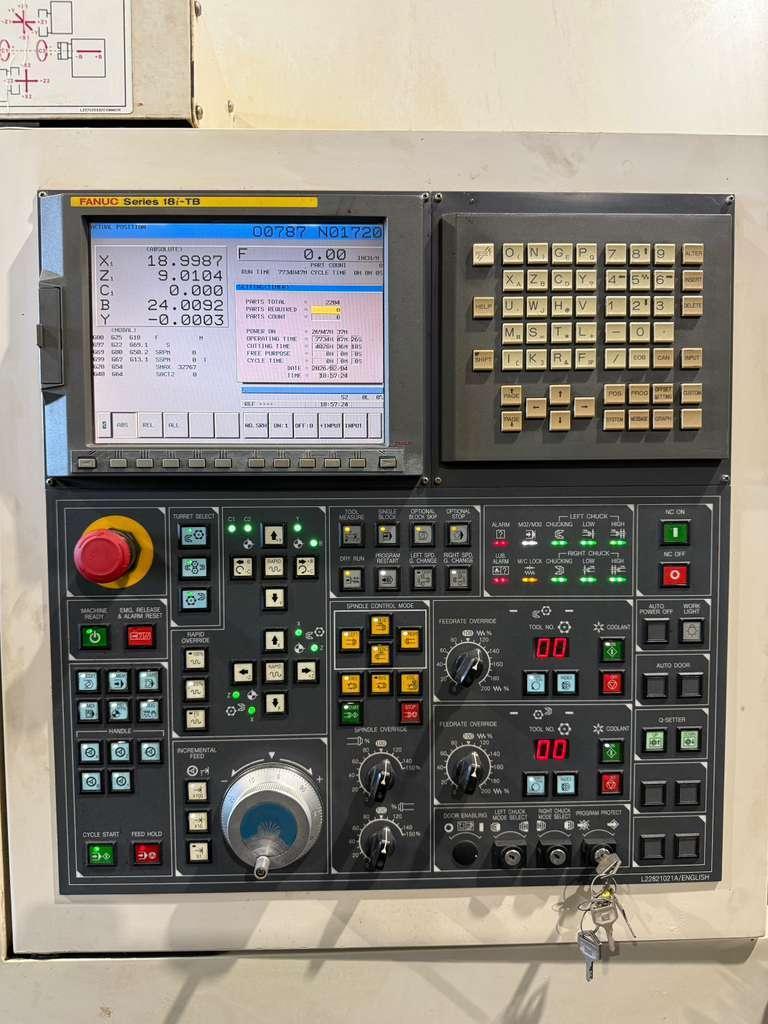

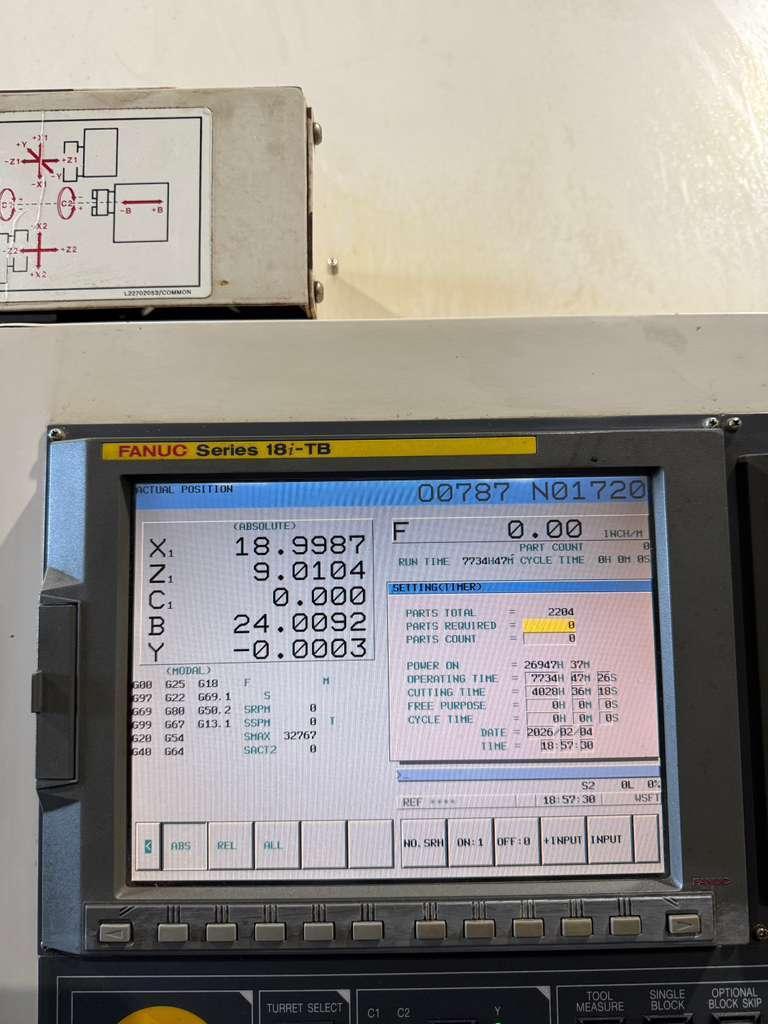

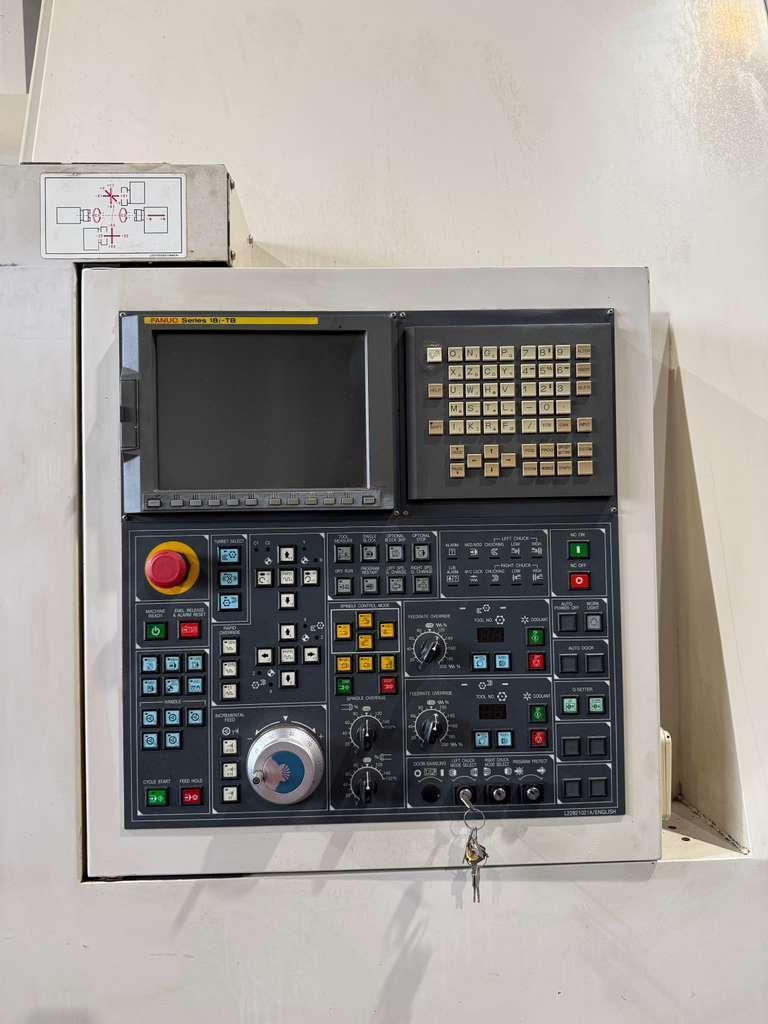

Fanuc 18i-TB CNC Control
Heavy Duty Box Way Construction
Collet Chuck on Main Spindle (Capable 10 inch Chuck)
Collet Chuck on Sub Spindle (Capable 10 inch Chuck)

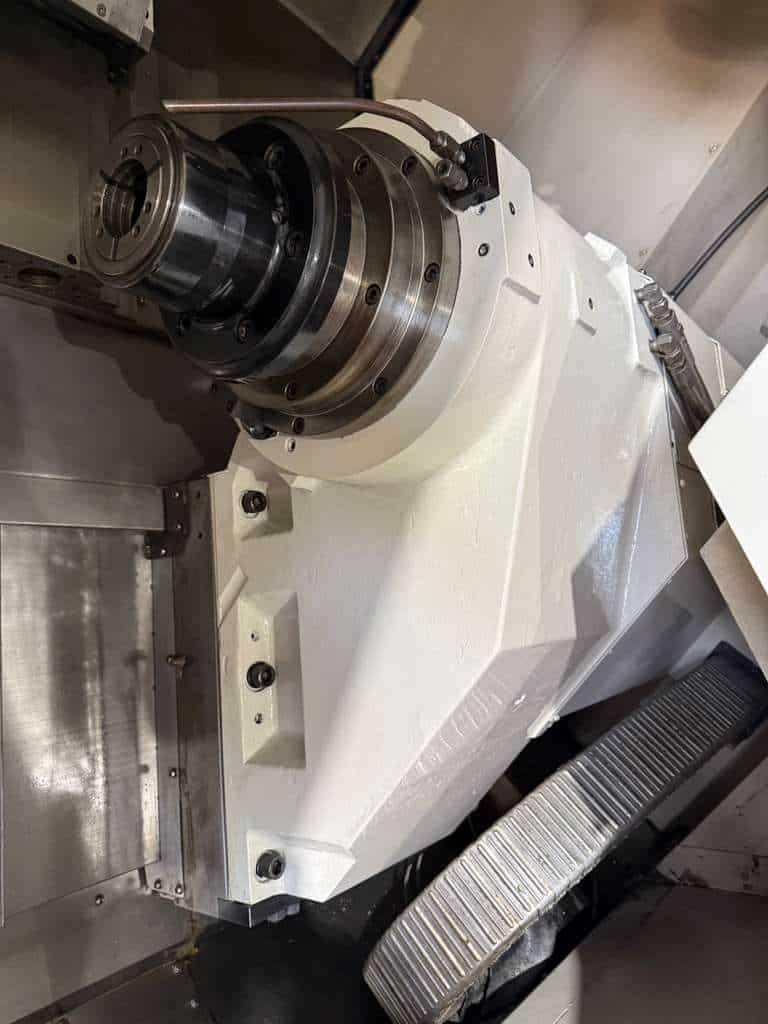

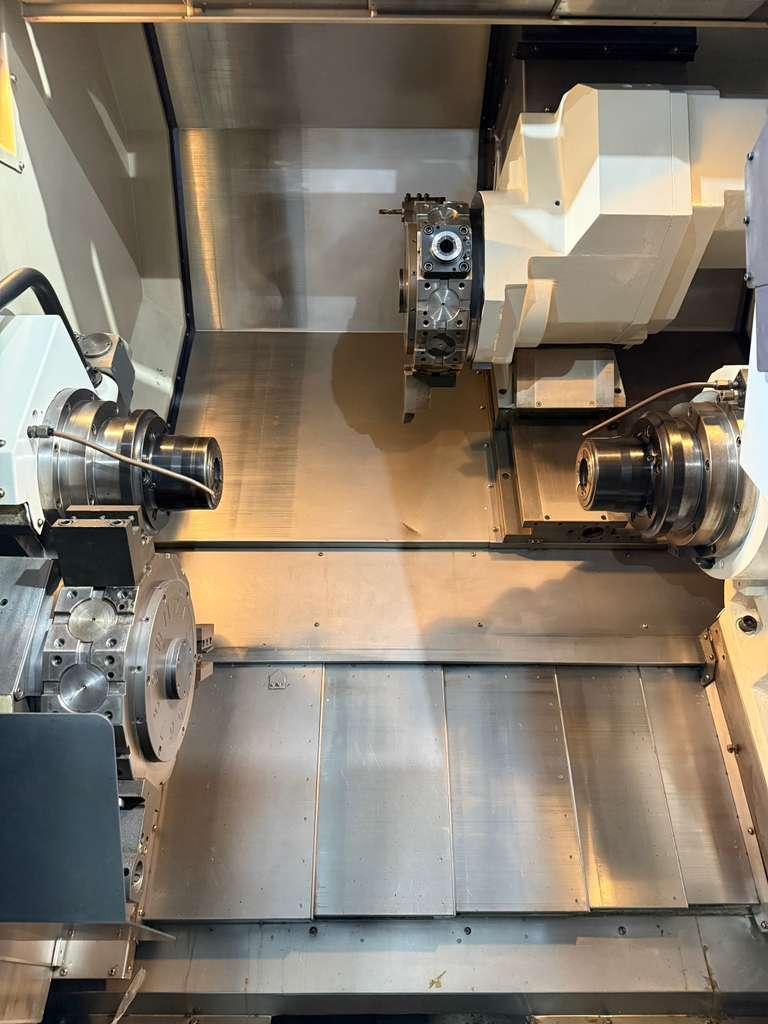

Sub Spindle
Servo Controlled Full C-Axis on Both Spindles
Both Spindle Synchronization

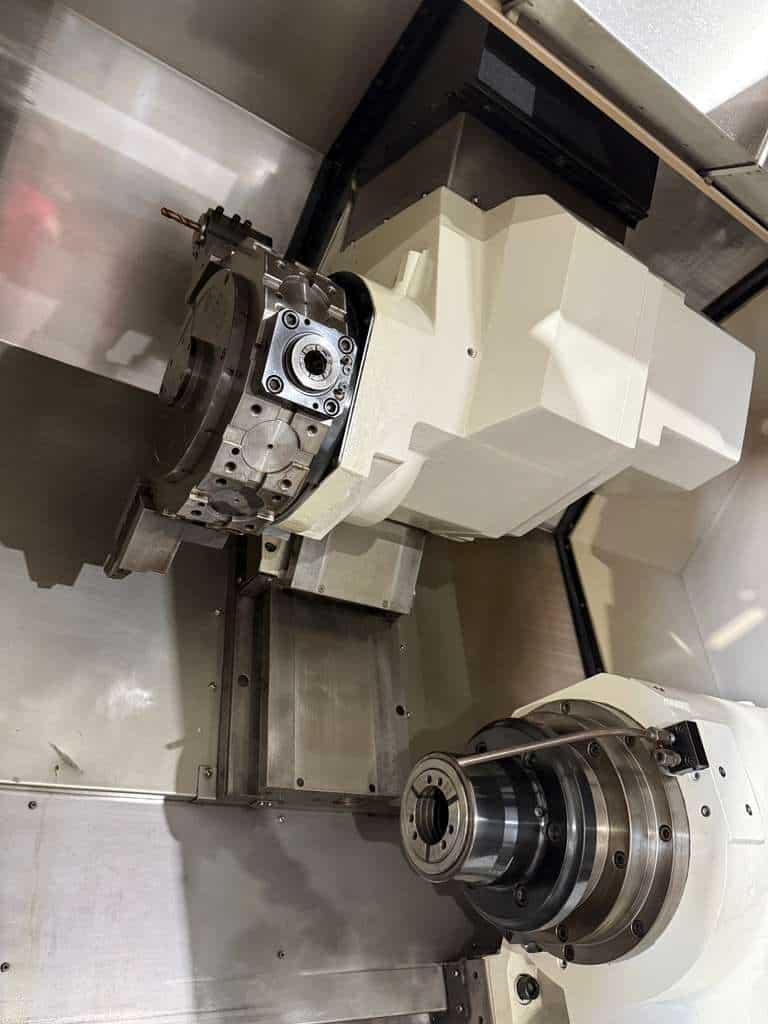

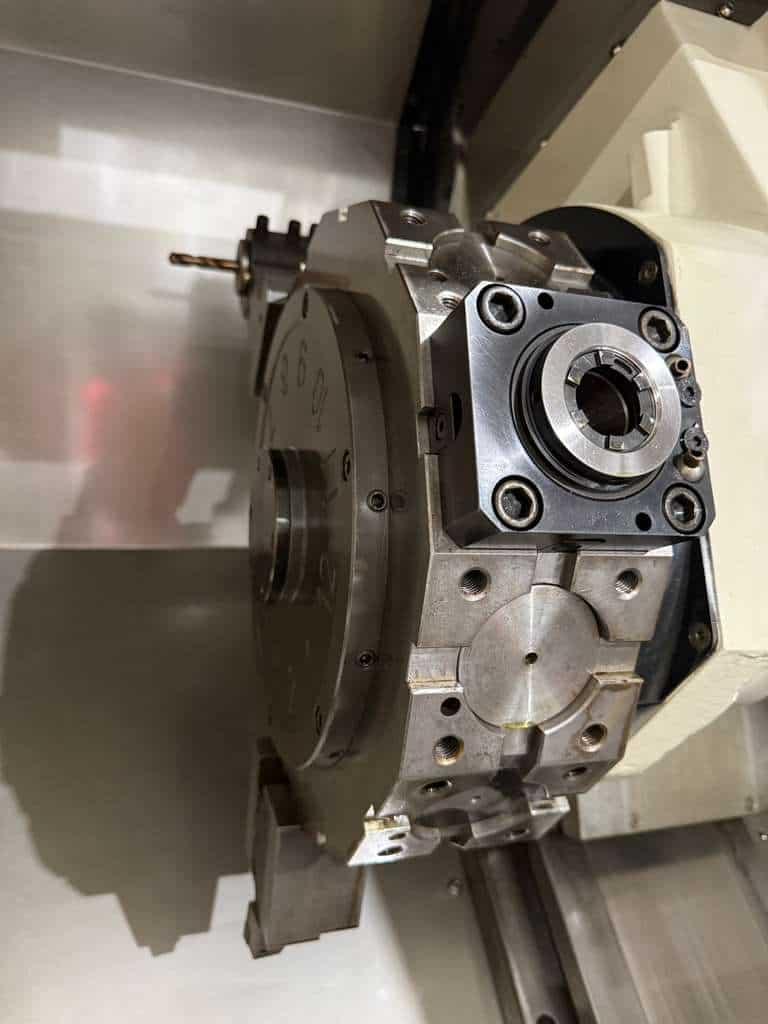

12 Station Live Tool Upper Turret

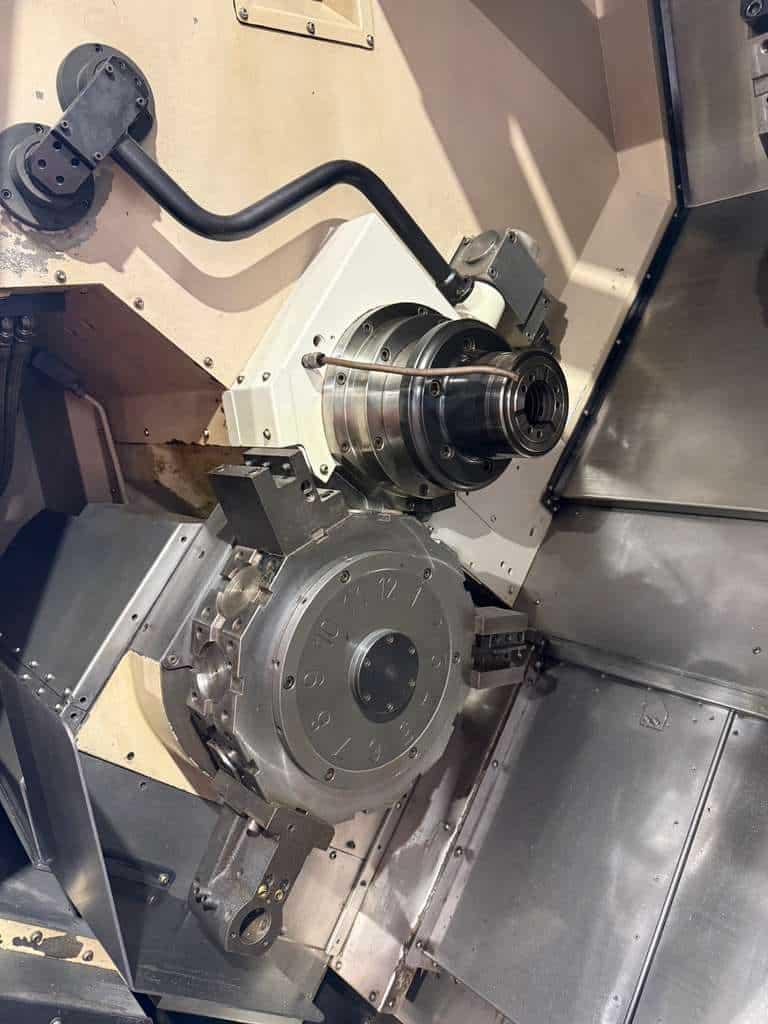

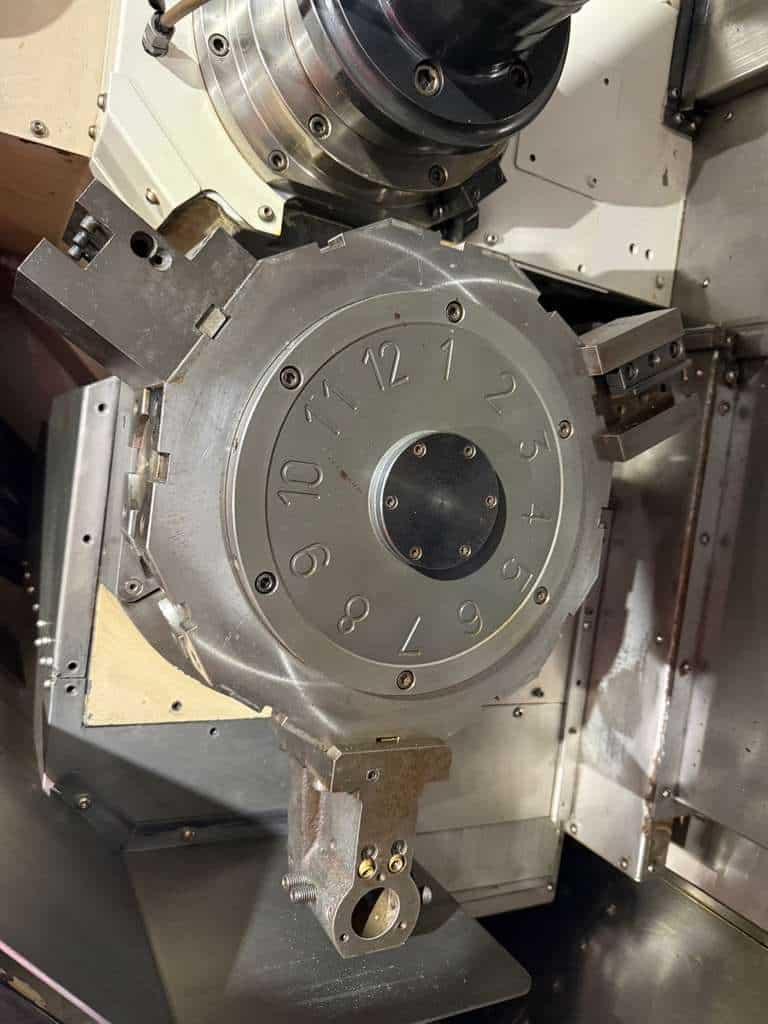

12 Station Live Tool Lower Turret
Y Axis Capability on Upper Turret
Tool Presetter
Bar Feeder Interface
Coolant Tank
Chip Conveyor

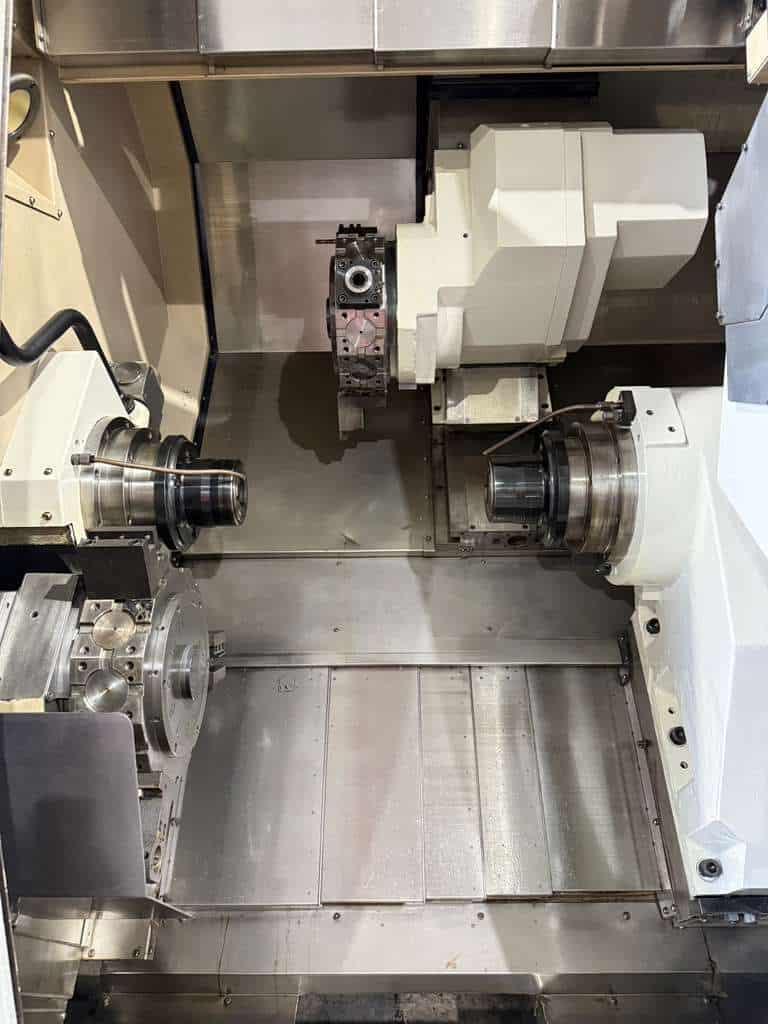

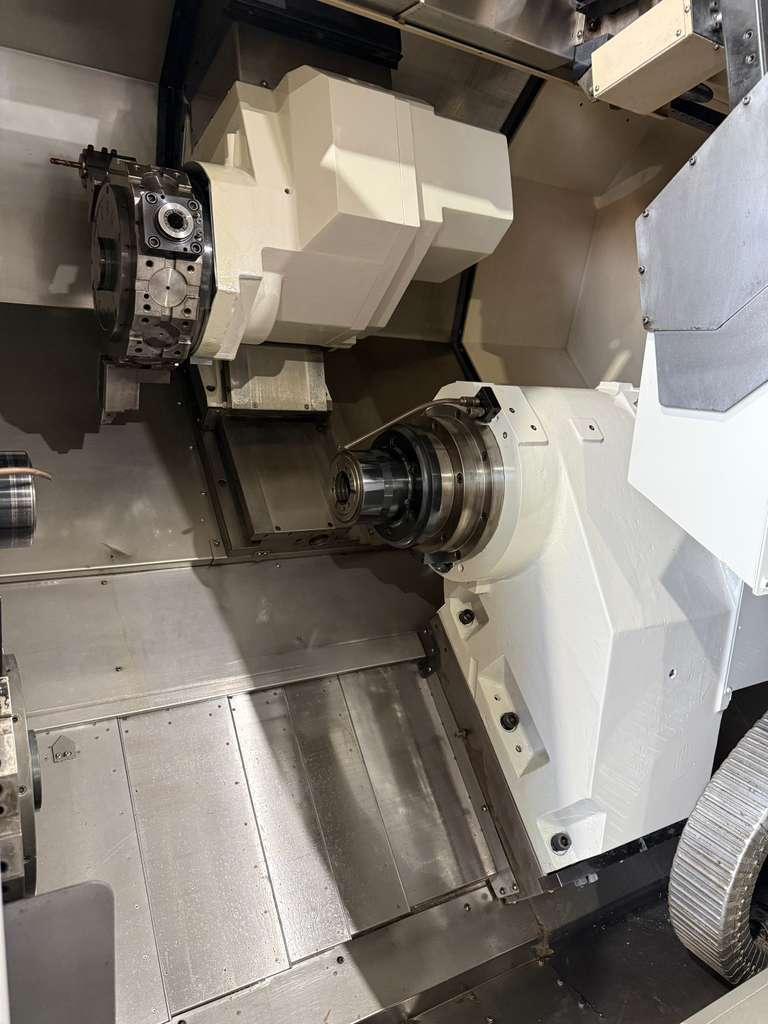

Live & Statics Tool Holders are Mounted on Turrets (As shown in the images)

Capacity:
Max Turning Diameter Upper Turret : 15.4 inch
Max Turning Diameter Lower Turret : 11.8 inch
Max Swing Over Bed : 31.5 inch
Max Swing Over Saddle: 24.4 inch
Max Turning Length: 13.8 inch
Max Bar Capacity Main Spindle : 3.0 inch
Max Bar Capacity Sub Spindle : 3.0 inch

Travels:
X1 Axis Travel Upper Turret: 10.0 inch
X2 Axis Travel Lower Turret : 8.26 inch
Y Axis Travel Upper Turret: -2.4 inch/+2.4 inch
Z1 Axis Travel Upper Turret: 31.5 inch
Z2 Axis Travel Lower Turret : 35.4 inch
A Axis Travel: 31.9 inch ( Sub Spindle )
C Axis: 360° (0.001°) Both Spindle

Feedrate:
X1/X2 Axis: 787 IPM Rapid Traverse
Z1/Z2 Axis: 945 IPM Rapid Traverse
A Axis: 945 IPM Rapid Traverse

Main Spindle:
Main Spindle Nose: A2-8
Main Spindle Bore: 3.38 inch
Main Spindle Speed: 3,500 RPM
Main Spindle Power: 30 HP

Sub Spindle:
Main Spindle Nose: A2-8
Main Spindle Bore: 3.38 inch
Main Spindle Speed: 3,500 RPM
Main Spindle Power: 30 HP

Turret:
Upper Turret Capacity: 12 Stations
Lower Turret Capacity: 12 Stations
Live Milling Speed: 4000 RPM
Live Milling Motor: 7.5 HP
Turret Index Time (Tool to Tool): 0.2 sec
Turret Type: BMT

General:

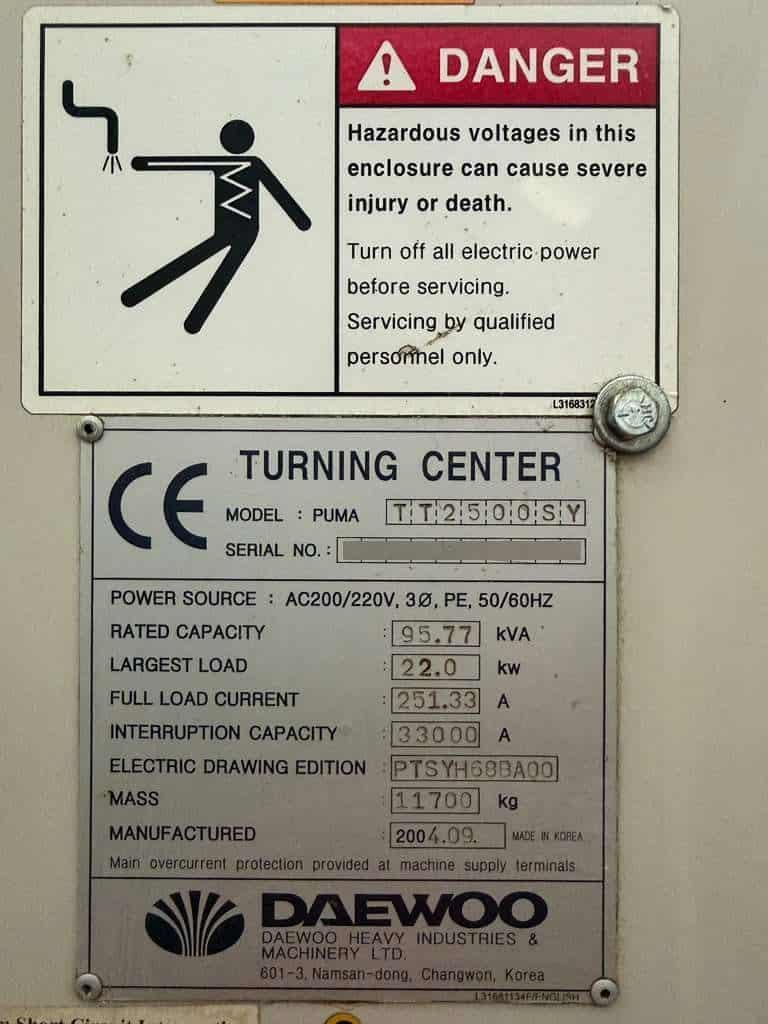

Power Source: AC 220v / 3-Phase / 50/60 Hz
Power Requirement: 95.77 kva
Machine Dimensions: 160 inch x 87 inch x 97 inch High Approx.
Machine Weight: 25,794 lbs Approx.
