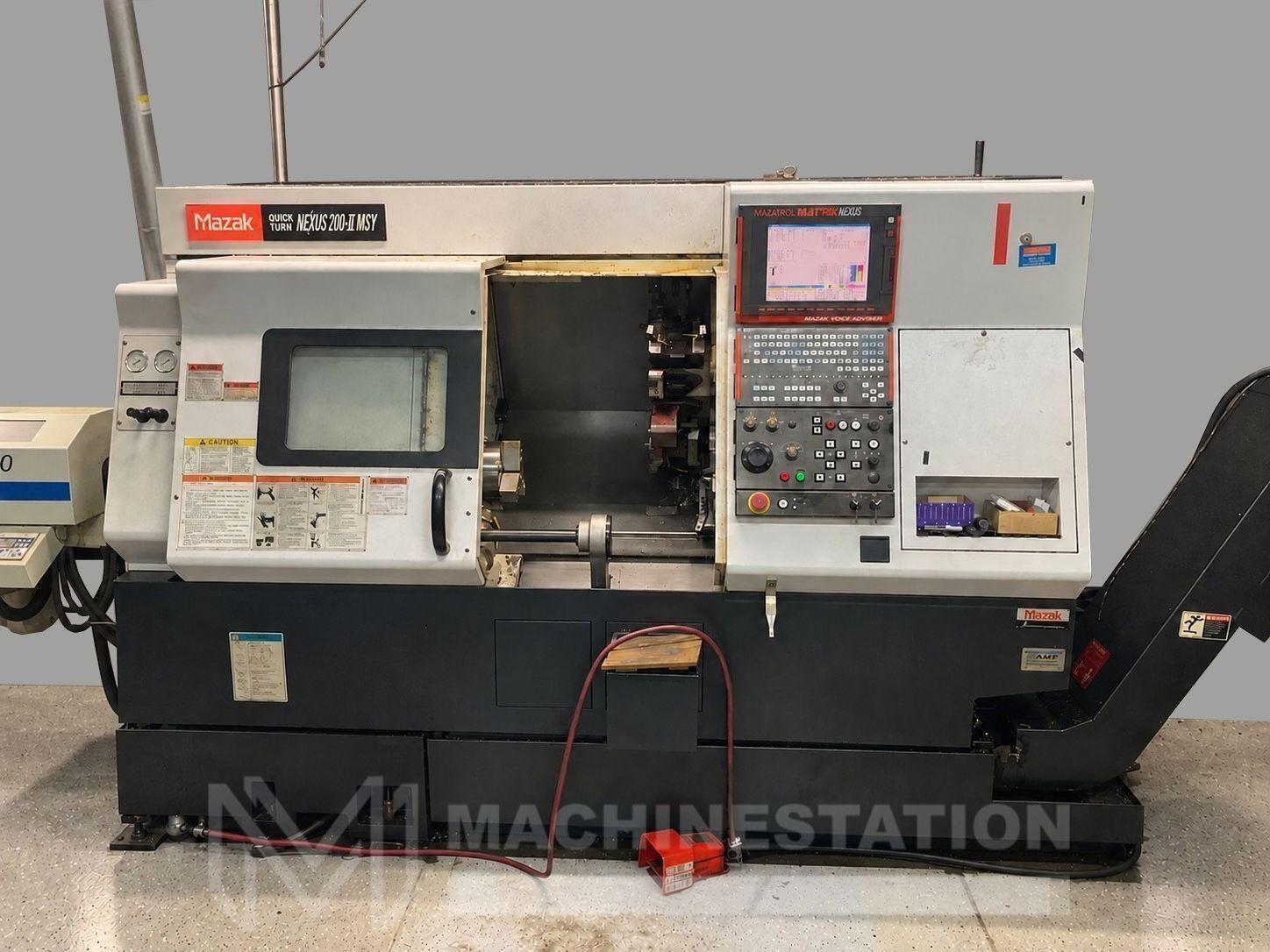

Name: Mazak Quick Turn Nexus 200-II MSY CNC Turning Center – Y Axis, Sub Spindle Lathe
Brand: MAZAK
SKU: 113690
Availability: InStock

Brand

MAZAK

Location

Not specified

Specifications
Files & Videos

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Make:	Mazak
Model:	Quick Turn Nexus 200-II MSY
Year:	2007

Equipped With:
Mazatrol Matrix Nexus CNC Control
SMW Spacesaver 2200 Bar Feeder
8″ 3-Jaw Kitagawa B-208 Chuck on Main Spindle
6″ 3-Jaw Kitagawa Chuck on Sub Spindle
Servo Controlled C-Axis on Both Spindles
12-Station Automatic Turret
Live Tooling
Y-Axis on Turret
Tool Presetter
Parts Catcher
Jorgensen Chip Conveyor
Coolant Tank
Automatic Lubrication Unit
Foot Switch
Tool Holders Are Not Included With The Machine

Capacity:
Maximum Swing: 26.57″
Swing Over Carriage: 13.78″
Maximum Machining Diameter: 14.96″
Maximum Machining Length: 21.18″
Distance Between Spindle Faces: 22.64″
Maximum Bar Capacity: 2.56″

Travels:
X-Axis Travel: 9.06″
Y-Axis Travel: 3.94″
Z-Axis Travel: 22.64″
W-Axis Stroke (Sub Spindle): 23.03″

Feedrate:
Rapid Traverse X-Axis: 1,181 IPM
Rapid Traverse Y-Axis: 827 IPM
Rapid Traverse Z-Axis: 1,299 IPM
Rapid Traverse C-Axis: 555 RPM

Main Spindle:
Chuck Size: 8″
Spindle Nose: A2-6
Spindle Bore: 3.0″
Maximum Spindle Speed: 5,000 RPM
Spindle Motor: 35 HP / 30 HP (30-Minute / Continuous)

Second Spindle:
Chuck Size: 6″
Maximum Spindle Speed: 6,000 RPM
Spindle Motor: 15 HP

Turret:
Turret Capacity: 12 Stations
Turning Tool Shank: 1″
Boring Bar Shank Diameter: 1.57″
Turret Indexing Time: 0.2 Sec.
Maximum Rotary Tool Speed: 4,500 RPM
Rotary Tool Spindle Motor: 7.5 HP
