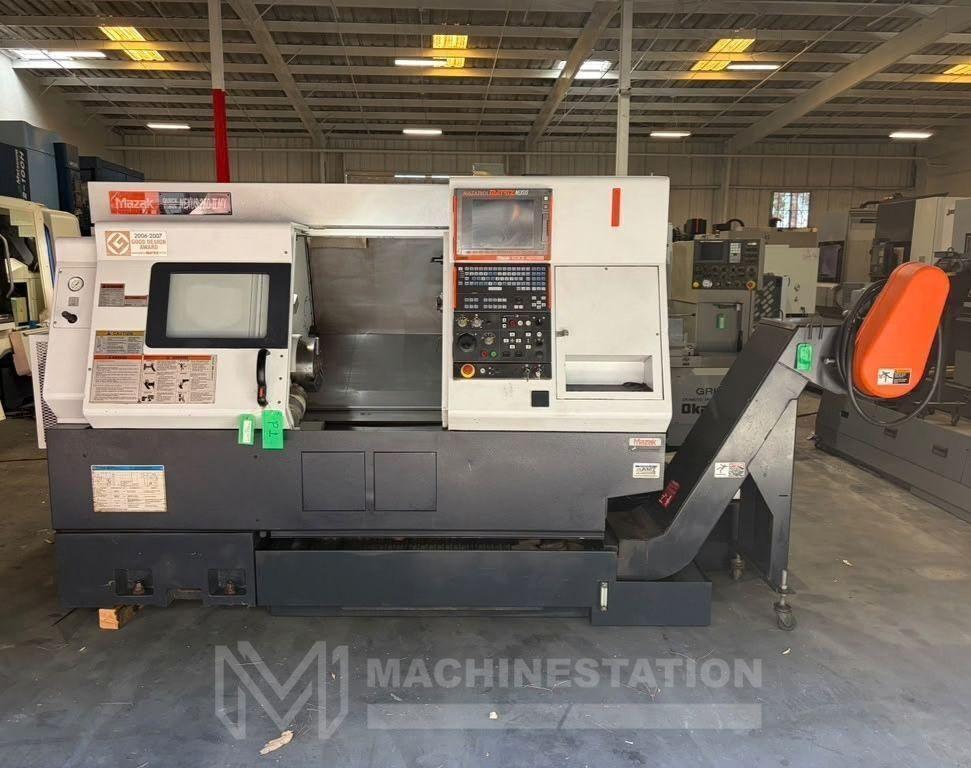

Mazak Quick Turn Nexus 250-II MY CNC Turning Center – Y Axis, C Axis Live Tool Lathe

Mazak Quick Turn Nexus 250-II MY CNC Turning Center – Y Axis, C Axis Live Tool Lathe

Name: Mazak Quick Turn Nexus 250-II MY CNC Turning Center – Y Axis, C Axis Live Tool Lathe
Brand: MAZAK
SKU: 113668
Availability: InStock

Brand

MAZAK

Location

Not specified

Specifications
Files & Videos

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Features:
Mazatrol Matrix Nexus CNC Control
10 inch 3-Jaw Kitagawa B-210 Hydraulic Chuck
12-Station Live Tool Turret
C & Y Axis Capability
Programmable NC Servo Tailstock
Automatic Tool Presetter
Rigid Tapping
Coolant Tank
Chip Conveyor
Books & Manuals

Capacity:
Maximum Turning Diameter: 14.96 inch
Maximum Turning Length: 19.84 inch
Maximum Swing Over Bed: 26.57 inch
Maximum Bar Capacity: 3.03 inch

Travels:
X-Axis Travel: 9.05 inch
Y-Axis Travel: 4.00 inch (±2.0 inch)
Z-Axis Travel: 22.63 inch
C-Axis: 360° (0.001°)

Feedrate:
Rapid Traverse X-Axis: 1,181 IPM
Rapid Traverse Y-Axis: 827 IPM
Rapid Traverse Z-Axis: 1,299 IPM

Spindle:
Spindle Bore: 3.46 inch
Spindle Nose: A2-8
Spindle Speed: 4,000 RPM
Spindle Power: 35 HP

Turret:
Turret Capacity: 12 Stations
Turret Index Time: 0.2 Seconds
Milling Spindle Speed: 4,500 RPM
Milling Spindle Power: 7.5 HP
Maximum Boring Bar Shank Diameter: 1.57 inch
Turning Tool Shank Size: 1.00 inch
