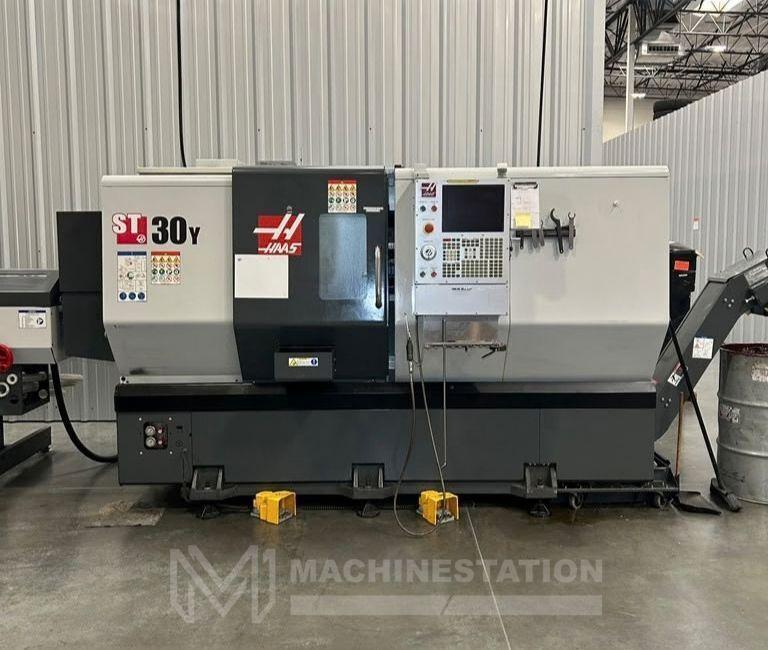

Haas ST-30Y CNC Turning Center – 2019 Bar Feeder, 10″ Chuck, Tailstock Lathe

Haas ST-30Y CNC Turning Center – 2019 Bar Feeder, 10″ Chuck, Tailstock Lathe

Name: Haas ST-30Y CNC Turning Center – 2019 Bar Feeder, 10″ Chuck, Tailstock Lathe
Brand: UNKNOWN
SKU: 113703
Availability: InStock

Brand

UNKNOWN

Location

Not specified

Specifications
Files & Videos

2019 Haas ST-30Y is fully equipped with 10″ Chuck, C & Y Axis, Tool Presetter, Part Catcher, Programmable Tailstock and Chip Conveyor.

“Replacement Cost Over $200,000 with Similar Options”

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Make:	Haas
Model:	ST-30Y
Year:	2019

Equipped With:
Haas CNC Control
Haas Bar Feeder (Upgraded $22,095 Value Included)
10 inch 3-Jaw Hydraulic Chuck
12 Station Live Tool Turret – 24 Positions (Upgraded $6,195 Value Included)
C & Y Axis Capability
6,000 RPM Live Tool Spindle Speed (Upgraded $3,195 Value Included)
30 HP Vector Dual Drive
Tool Presetter (Upgraded $6,195 Value Included) – Speeds up Changeovers and Setup
Part Catcher (Upgraded $3,795 Value Included) – Catch a Finished Part as it is Cut Off
A2-6 Spindle
3.5 inch Big Bore Spindle
Rigid Tapping
Spindle Orientation
Visual Part Programming System & User-Definable Macro
Media Display
1 GB Max Memory
Compensation Tables
Wireless Networking
USB Port
Programmable Hydraulic Tailstock (Upgraded $11,095 Value Included) – Provides Additional Support for Long Workpieces
High Pressure Coolant – 300 PSI (Upgraded $9,195 Value Included)
Coolant Tank
Belt Type Chip Conveyor (Upgraded $6,195 Value Included) – For Efficient Chip Removal
Foot Switches
Note: Tool Holders Are Not Included with the Machine

Capacity:
Max Turning Diameter: 13.75 inch
Max Swing Over Bed: 21.0 inch
Max Turning Length: 32.5 inch
Max Bar Capacity: 3.0 inch
Distance Between Centers: 32.5 inch

Travels:
X Axis Travel: 9.4 inch
Y Axis Travel: ± 2.0 inch
Z Axis Travel: 32.5 inch
C Axis: 0.01°

Feedrate:
Rapid Traverse X Axis: 472 IPM
Rapid Traverse Y Axis: 472 IPM
Rapid Traverse Z Axis: 945 IPM

Spindle:
Spindle Nose: A2-6
Spindle Bore: 3.5 inch
Spindle Speed: 3,400 RPM
Spindle Motor: 30 HP

Turret:
Turret Capacity: 12 Stations – 24 Positions
Live Tool Speed: 6,000 RPM
Turret Type: BMT-65

Tailstock:
Tailstock Taper: MT-4
Tailstock Type: Programmable

General:
Air Required: 100 PSI, 4 SCFM
Power Source: 440V / 3-Phase / 50/60 Hz
Machine Dimensions: 170 inch x 90 inch x 98 inch High Approx.
Machine Weight: 11,340 lbs Approx.
