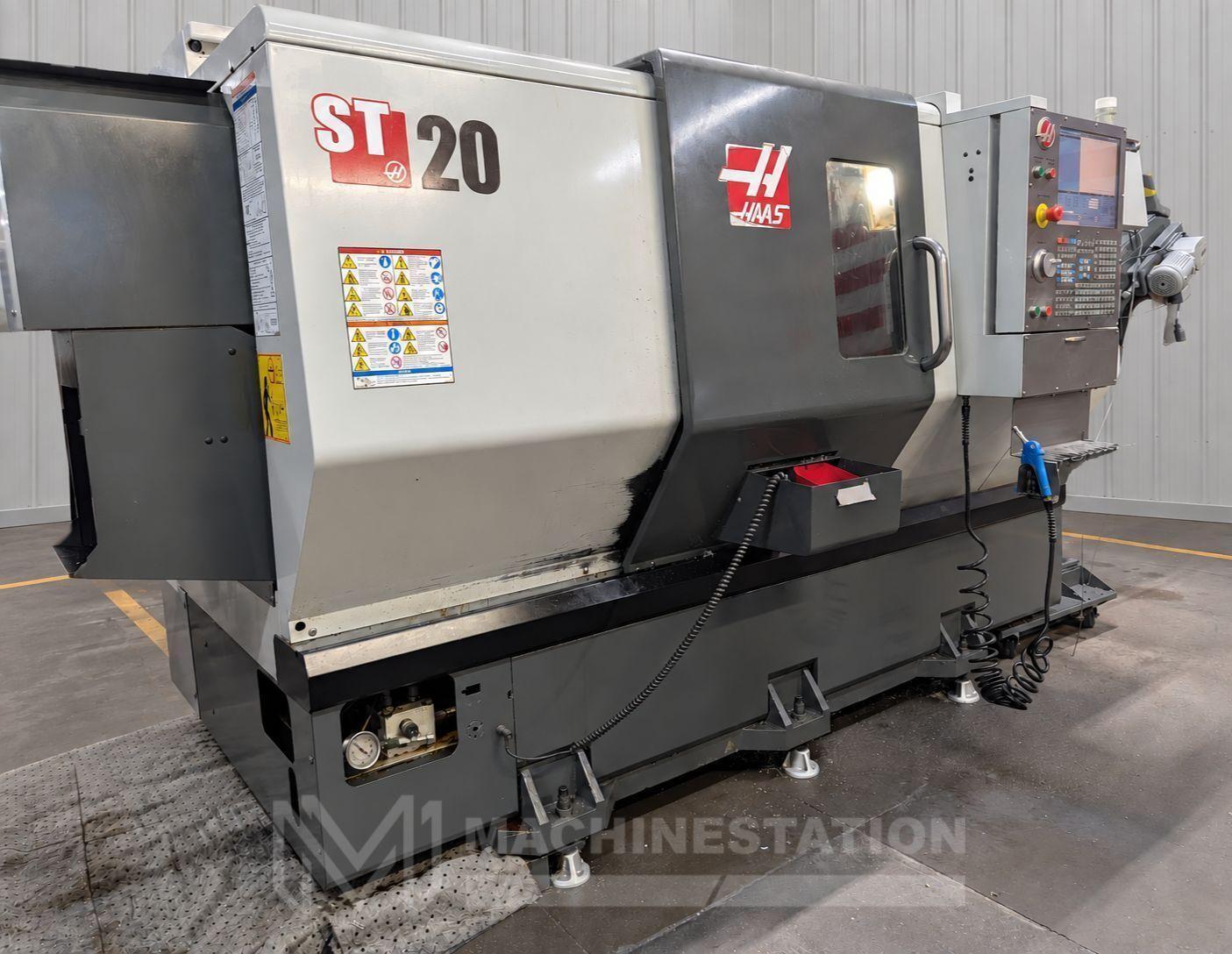

Haas ST-20M CNC Turning Center – C-Axis Live Tool Lathe

Haas ST-20M CNC Turning Center – C-Axis Live Tool Lathe

Name: Haas ST-20M CNC Turning Center – C-Axis Live Tool Lathe
Brand: UNKNOWN
SKU: 113691
Availability: InStock

Brand

UNKNOWN

Location

Not specified

Specifications
Files & Videos

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Make:	Haas
Model:	ST-20M
Year:	2013

Equipped With:
Haas CNC Control
Royal Collet Chuck (Capable 10″ Chuck)
A2-6 Spindle Nose
12-Station Live Tool Turret
C-Axis Live Tool
Tool Presetter
Parts Catcher
Rigid Tapping
Coolant Tank
Belt Type Chip Conveyor
Foot Switch
Note: Tool Holders Are Not Included With the Machine

Capacity:
Maximum Turning Diameter: 11.80″
Maximum Swing Over Bed: 21.0″
Maximum Turning Length: 22.5″
Maximum Bar Capacity: 2.00″

Travels:
X-Axis Travel: 8.4″
Z-Axis Travel: 22.5″

Feedrate:
Rapid Traverse X-Axis: 945 IPM
Rapid Traverse Z-Axis: 945 IPM

Spindle:
Spindle Nose: A2-6
Spindle Bore: 2.5″
Spindle Speed: 4,000 RPM
Spindle Motor: 20 HP

Turret:
Turret Capacity: 12 Stations
Turret Index Time: 1 Second
Turret Type: VDI 40 (Live Tool)

General:
Air Requirement: 4 scfm @ 100 psi
Power Source: AC 195V – 260V / 3-Phase / 50/60 Hz
Machine Dimensions: 142.5″ × 90″ × 92″ High
Machine Weight: 8,820 lbs Approx.
