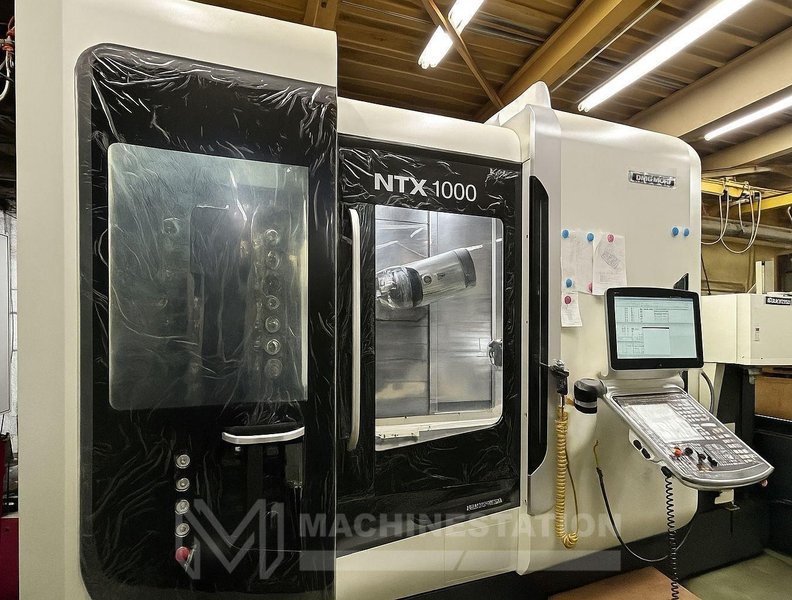

Dmg Mori NTX 1000 Multi Axis CNC Turning Center – 2020 Lathe

Dmg Mori NTX 1000 Multi Axis CNC Turning Center – 2020 Lathe

Name: Dmg Mori NTX 1000 Multi Axis CNC Turning Center – 2020 Lathe
Brand: DMG MORI
SKU: 115099
Availability: PreOrder

Brand

DMG MORI

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Make:	DMG Mori
Model:	NTX 1000
Condition:	Used – Good

Features:

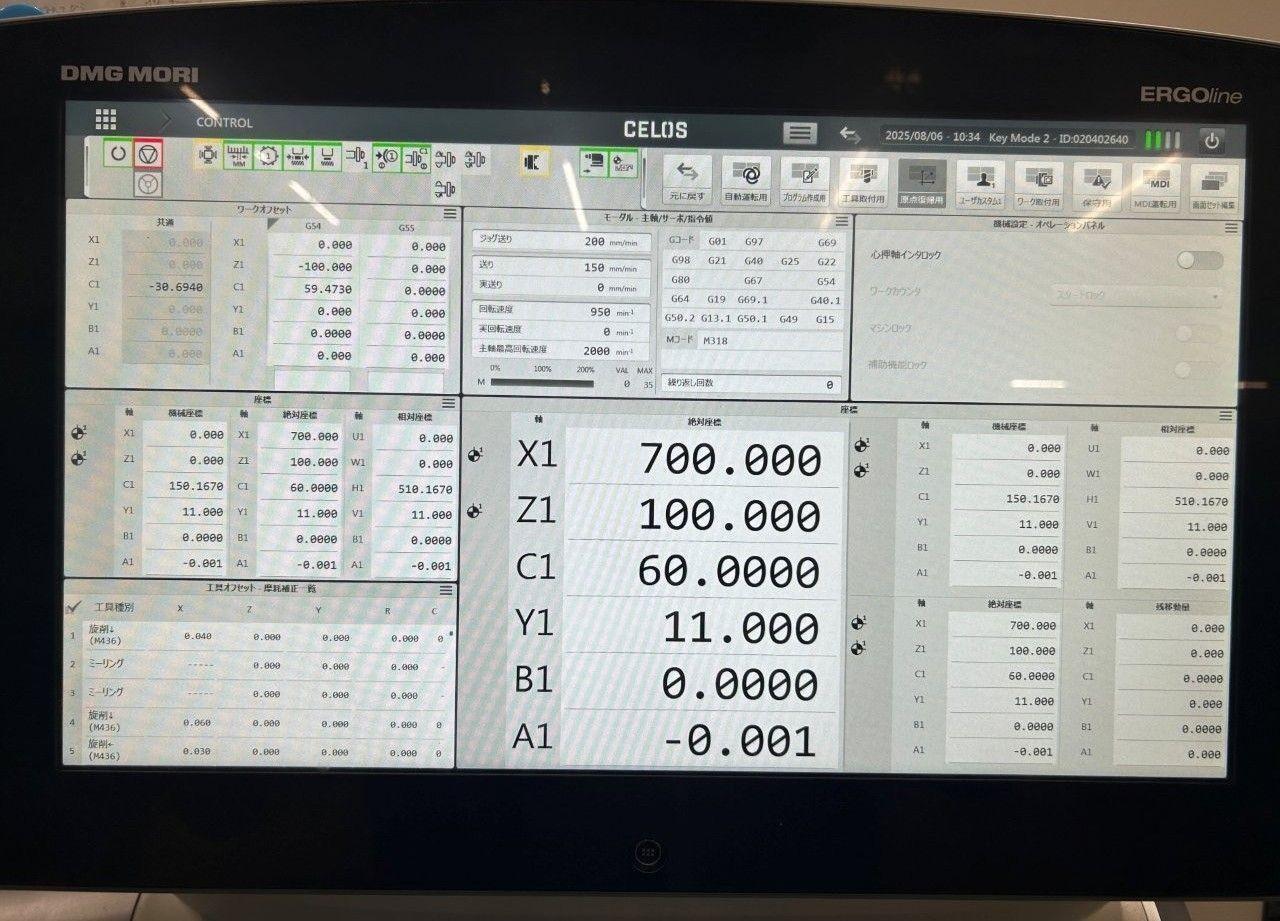

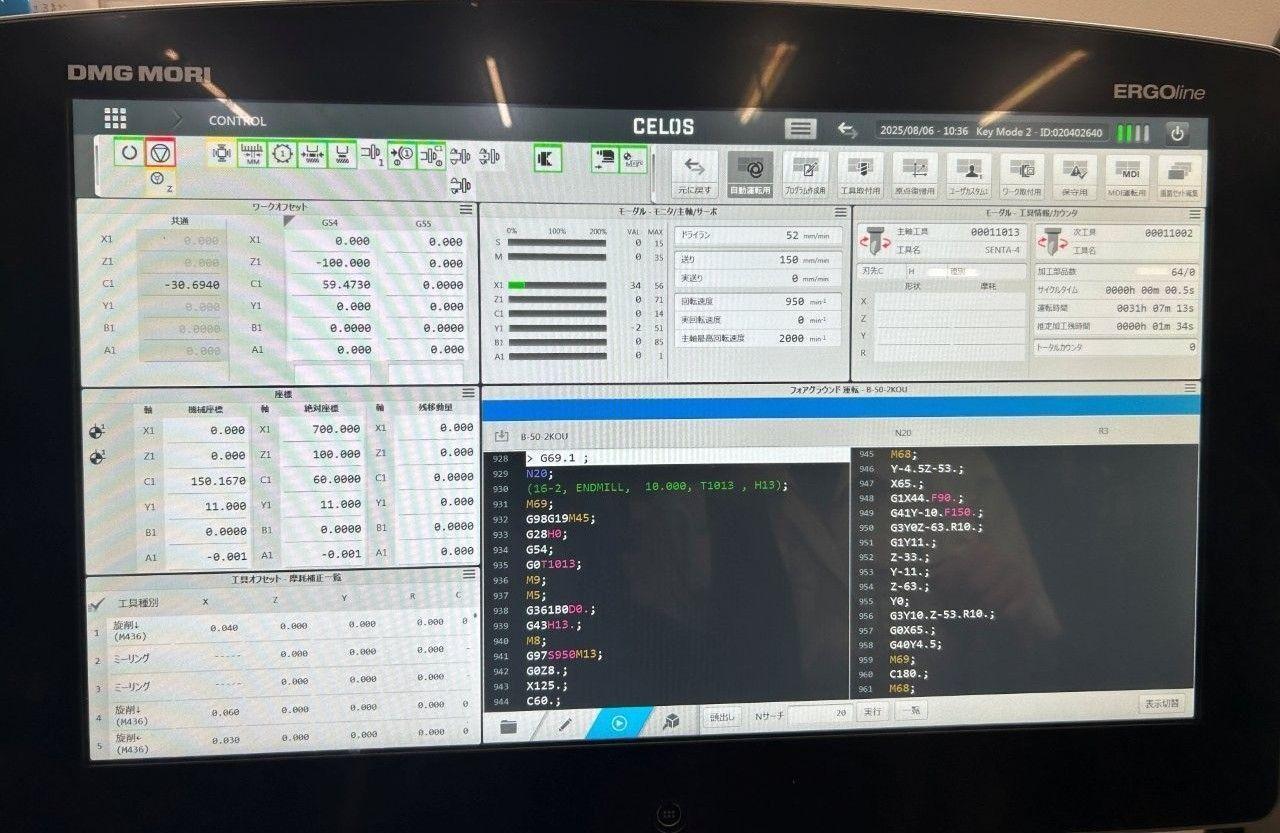

Fanuc F31iB5 With CELOS ERGOline Touch CNC Control

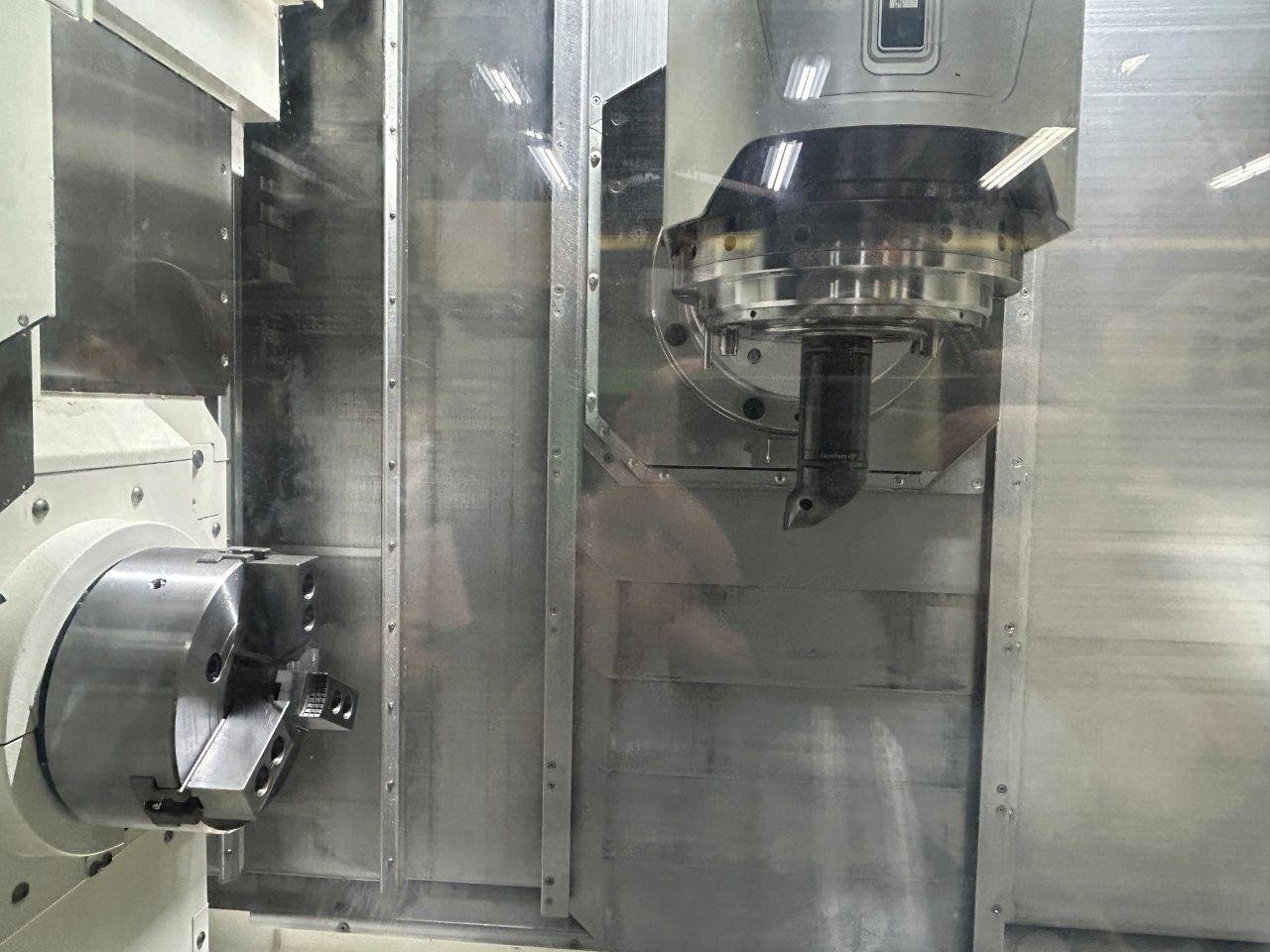

12,000 RPM Pendulum Milling Head

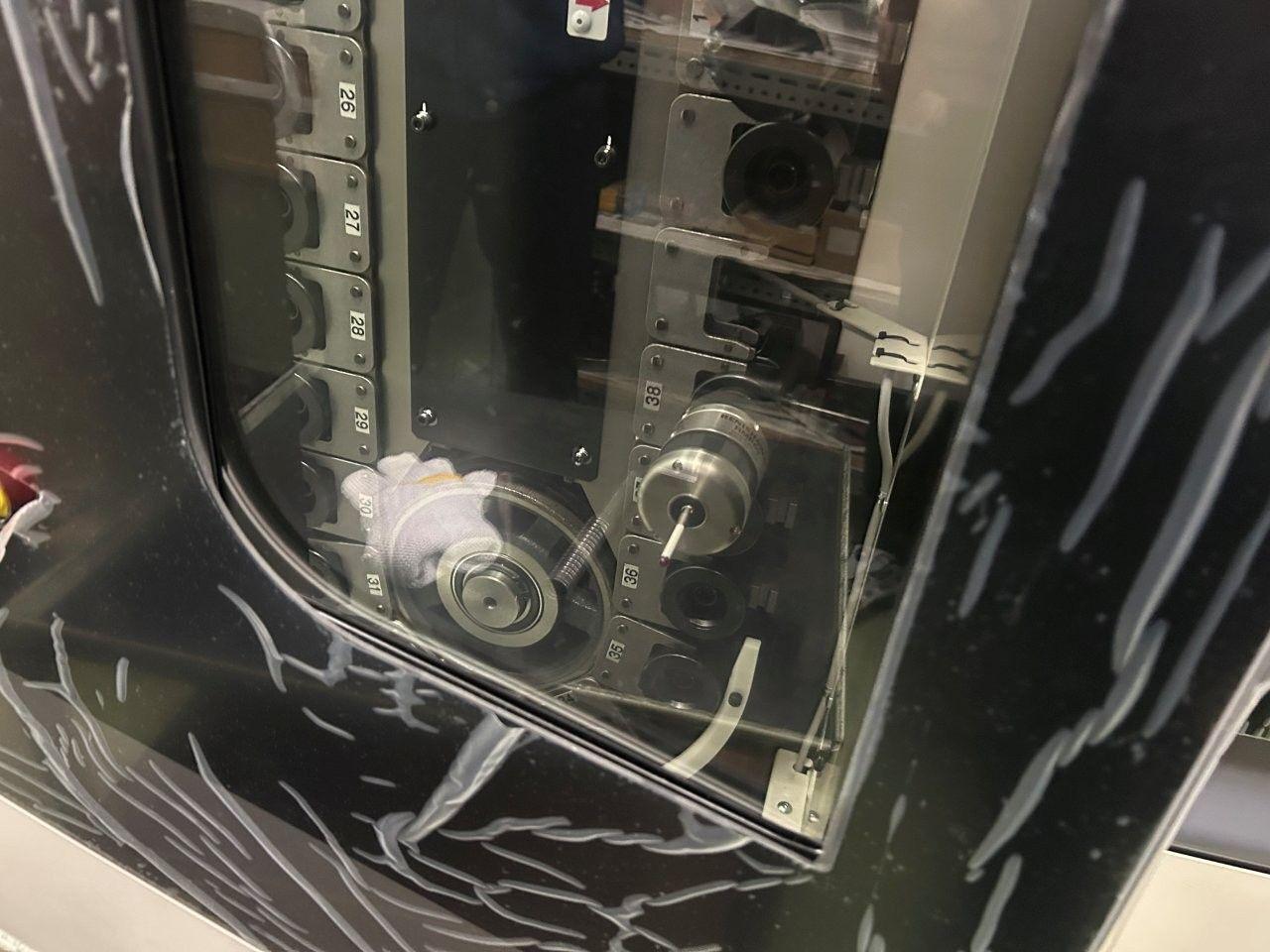

38-Station Tool Magazine
Full C-Axis on Spindle
Y Axis Capability
10″ 3-Jaw Chuck On Spindle
Renishaw Probe
Programmable Tailstock

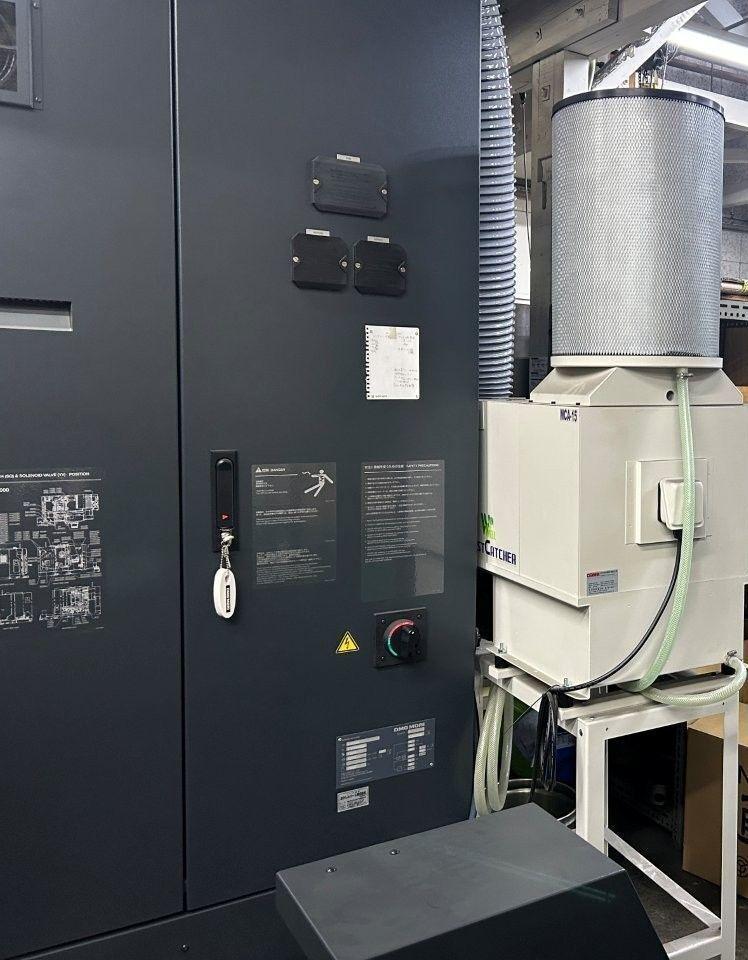

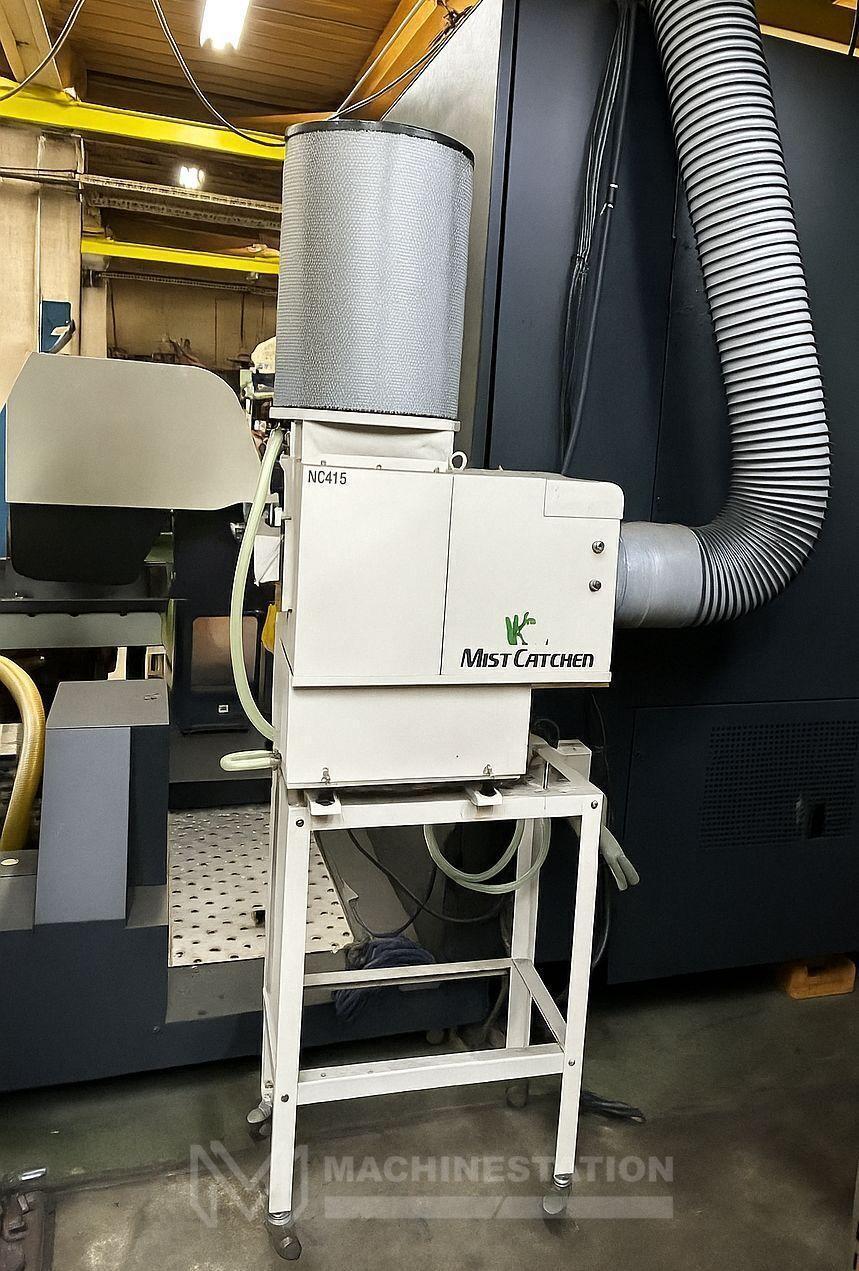

Mist Collector

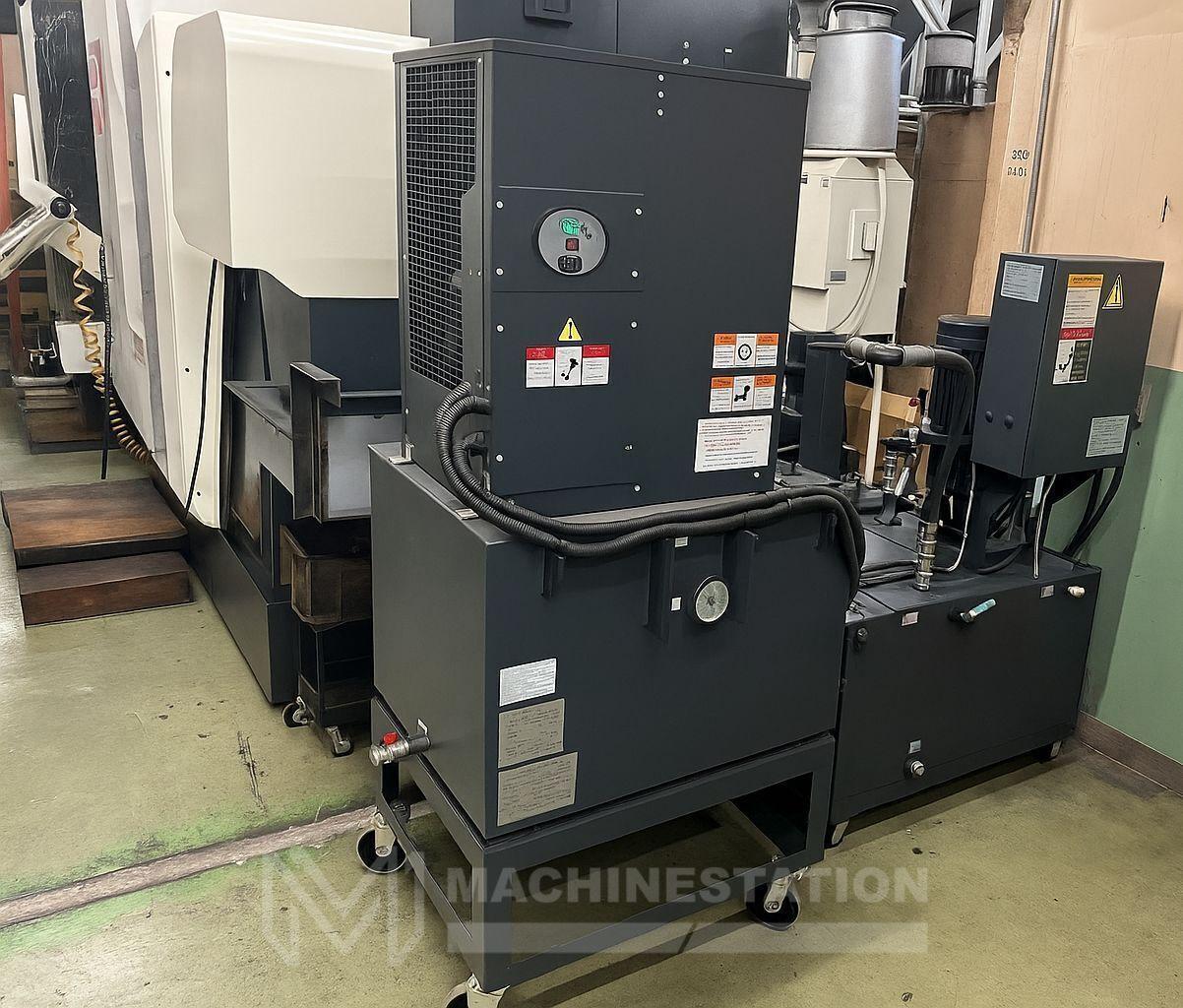

Coolant Unit
Rigid Tapping
Coolant Tank
Chip Conveyor

Capacity:
Max Turning Diameter (Tool Spindle): 16.9″
Max Turning Length (Tool Spindle): 31.4″
Max Bar Capacity: 2.0″
Swing Over Cross Slide: 17.7″
Distance Between Center: 41.3″

Travel:
X Axis Travel (Tool spindle): 17.9″
Y Axis Travel (Tool spindle): +/- 4.1″
Z Axis Travel(Tool spindle) + For ATC: 31.4″ + 6.4″
B Axis Travel: 240° (0.0001°)
C Axis: 360° (0.0001°)
X Rapid Traverse Rate: 1574.8 Inch Per Minute
Y Rapid Traverse Rate: 1574.8 Inch Per Minute
Z Rapid Traverse Rate: 1968.5 Inch Per Minute

Main Spindle:
Spindle Nose: A2-6
Spindle Bore: 2.5″
Spindle Speed: 5000 RPM
Spindle Motor: 15 HP

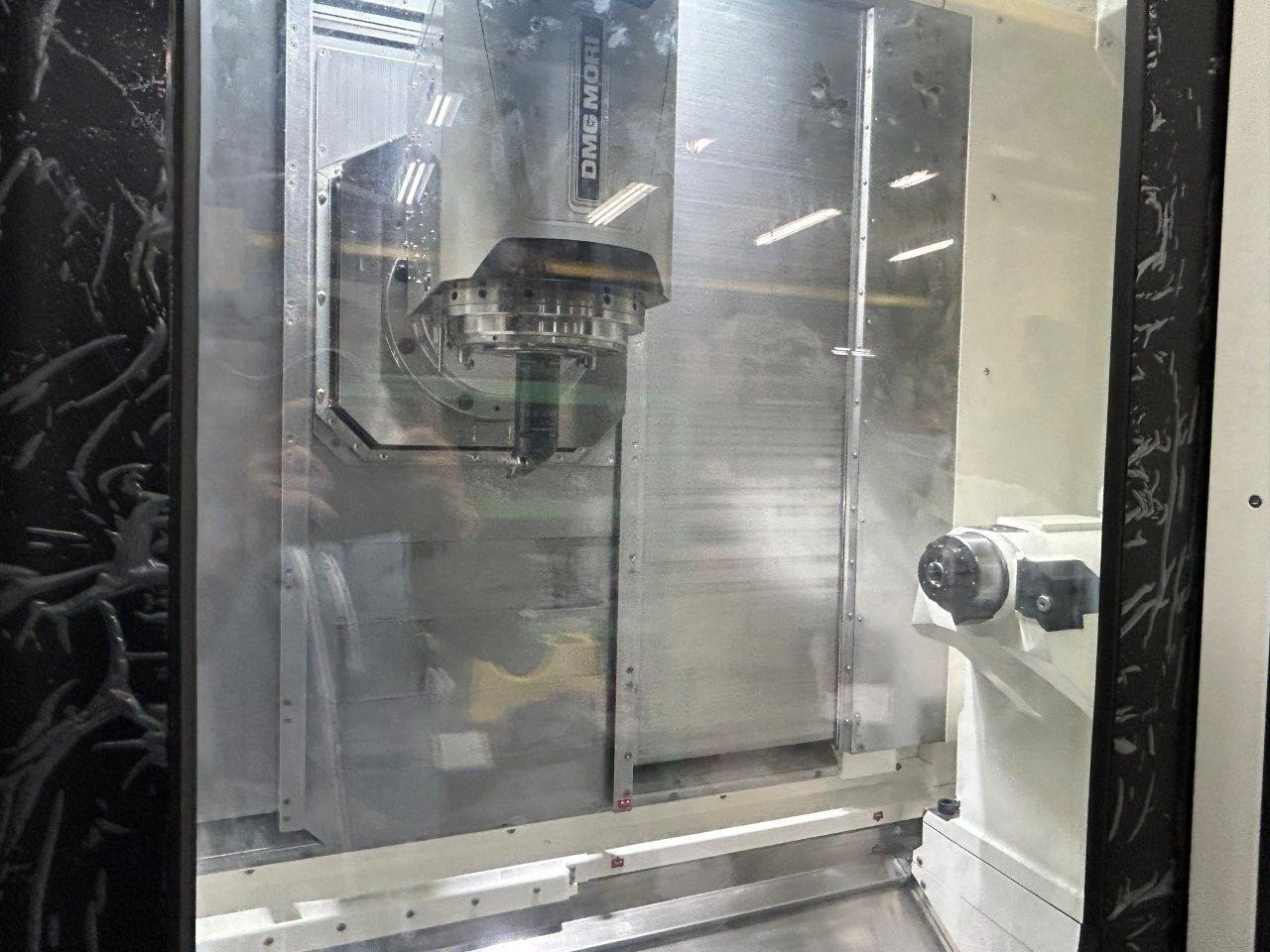

Tool Spindle:

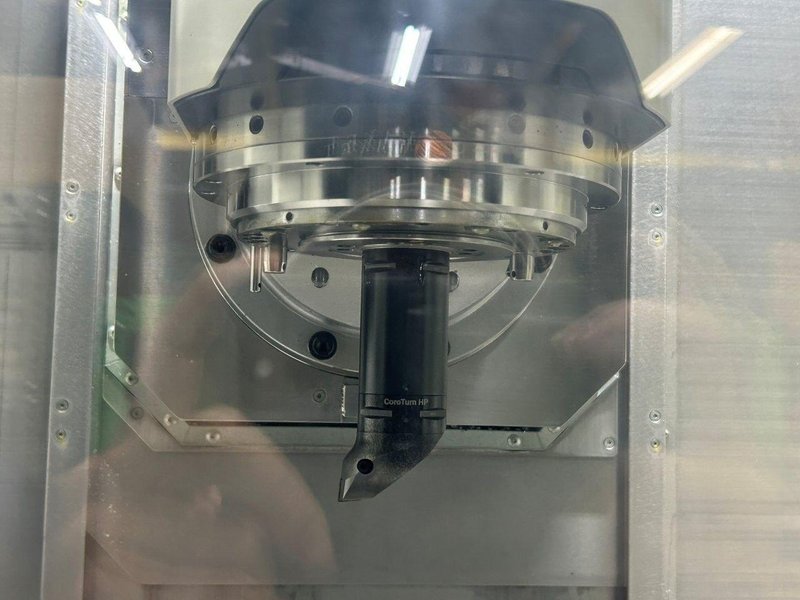

Single Station Pendulum Head
Tool Type: Capto C-5 Taper
Spindle Speed: 12,000 RPM
Spindle Motor: 12 HP

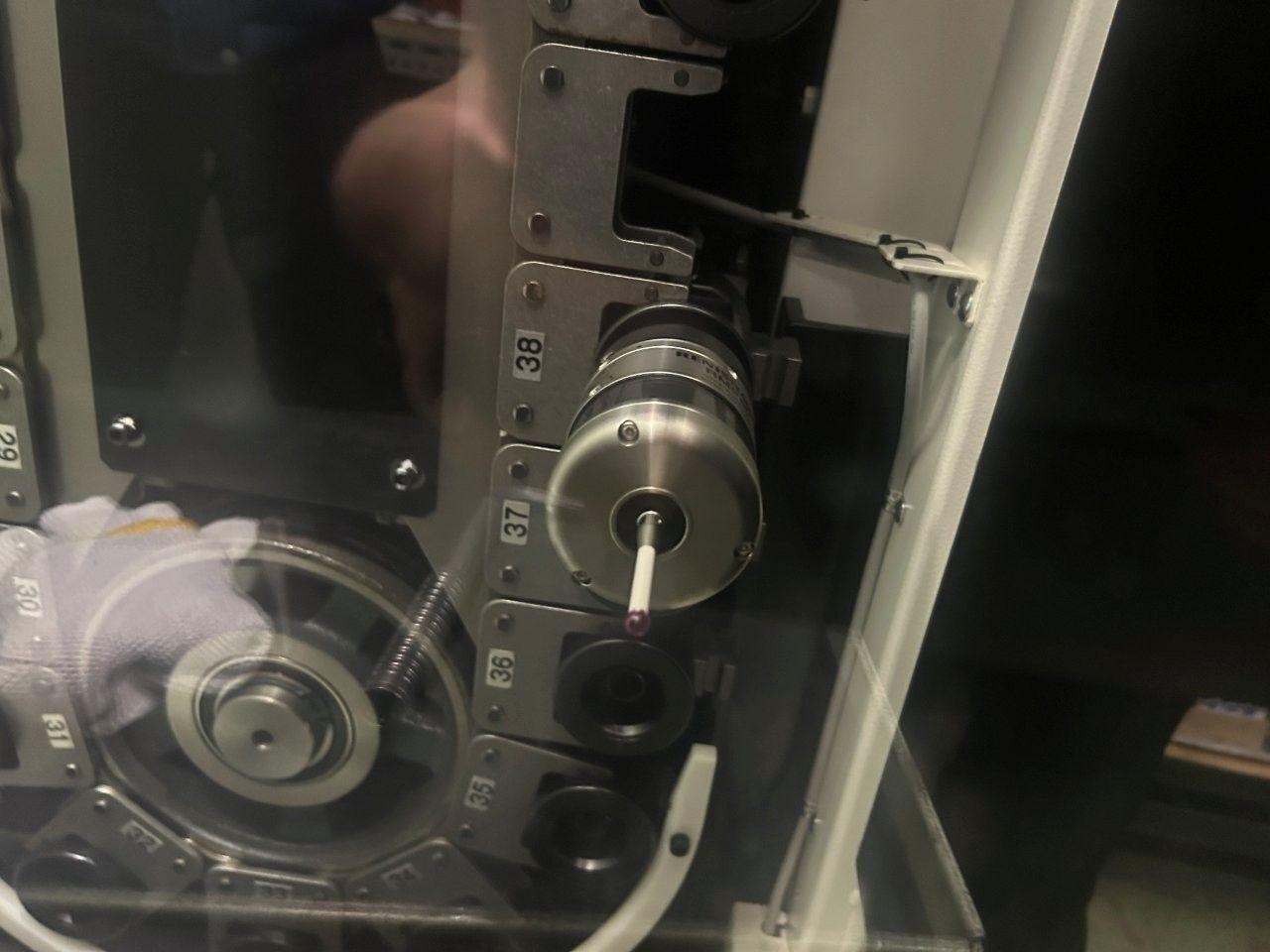

Automatic Tool Changer:
Capacity: 38 Tools
Max Tool Diameter (without Adjacent Tools): 5.1″
Max Tool Diameter (with Adjacent Tools): 2.7″
Max Tool Length: 9.8″
Max Tool Weight: 11 lbs.
Tool Changing Time: 2.26 Seconds

Tailstock:
Tailstock Taper: MT-4
Tailstock Travel: 32.28″

General:
Power Source: AC 220 V, Three Phase, 60 Hz
Power Requirement: 46 kva
Overall Dimensions: 163″ x 108″ x 111″ High Approx.
Weight : 25,353 lbs Approx.
