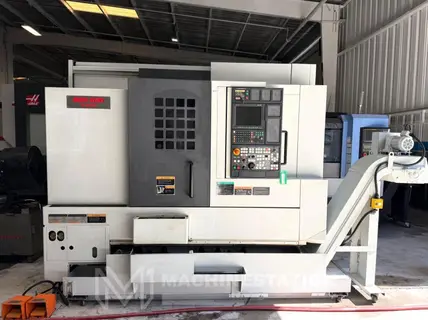

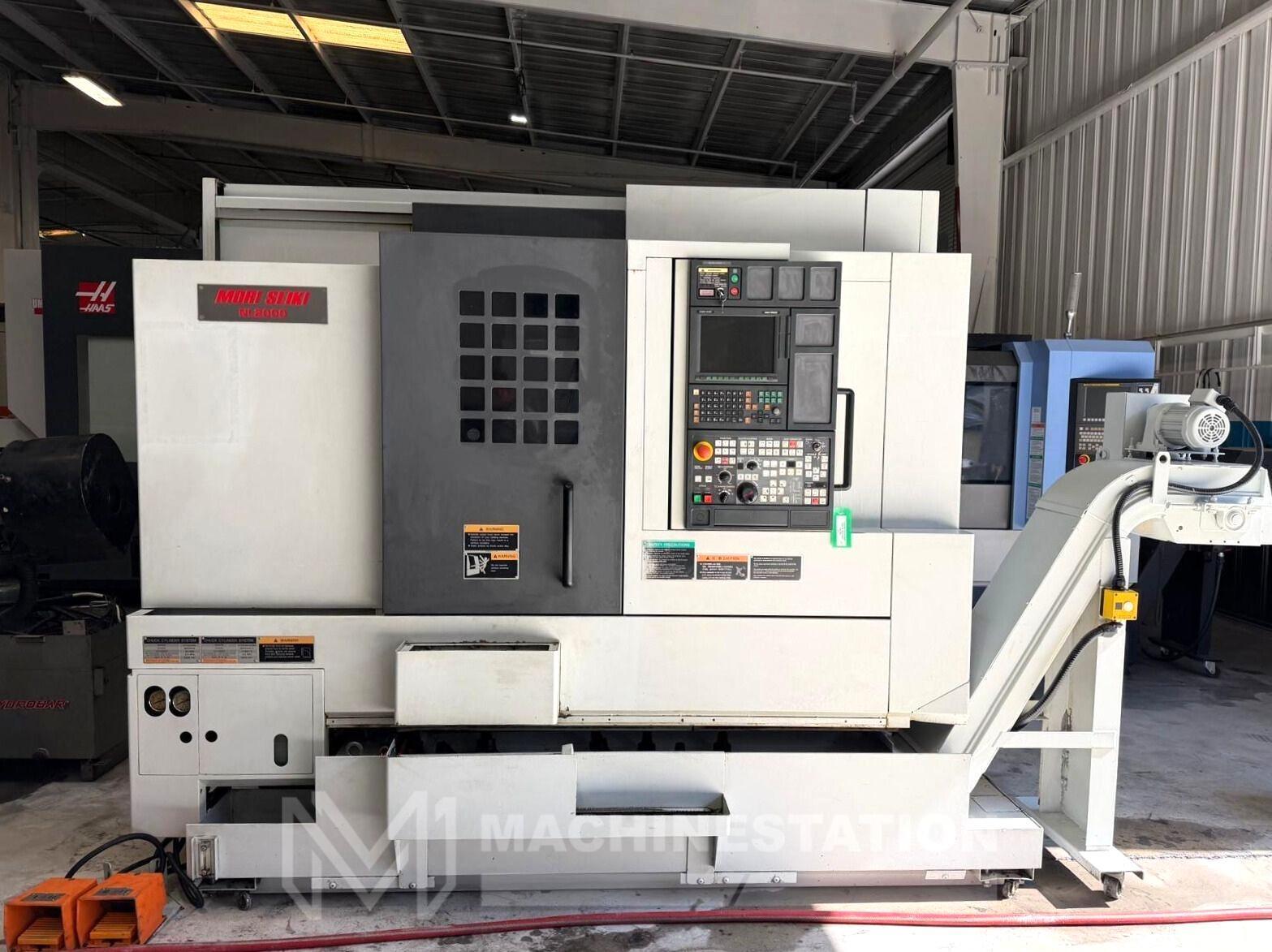

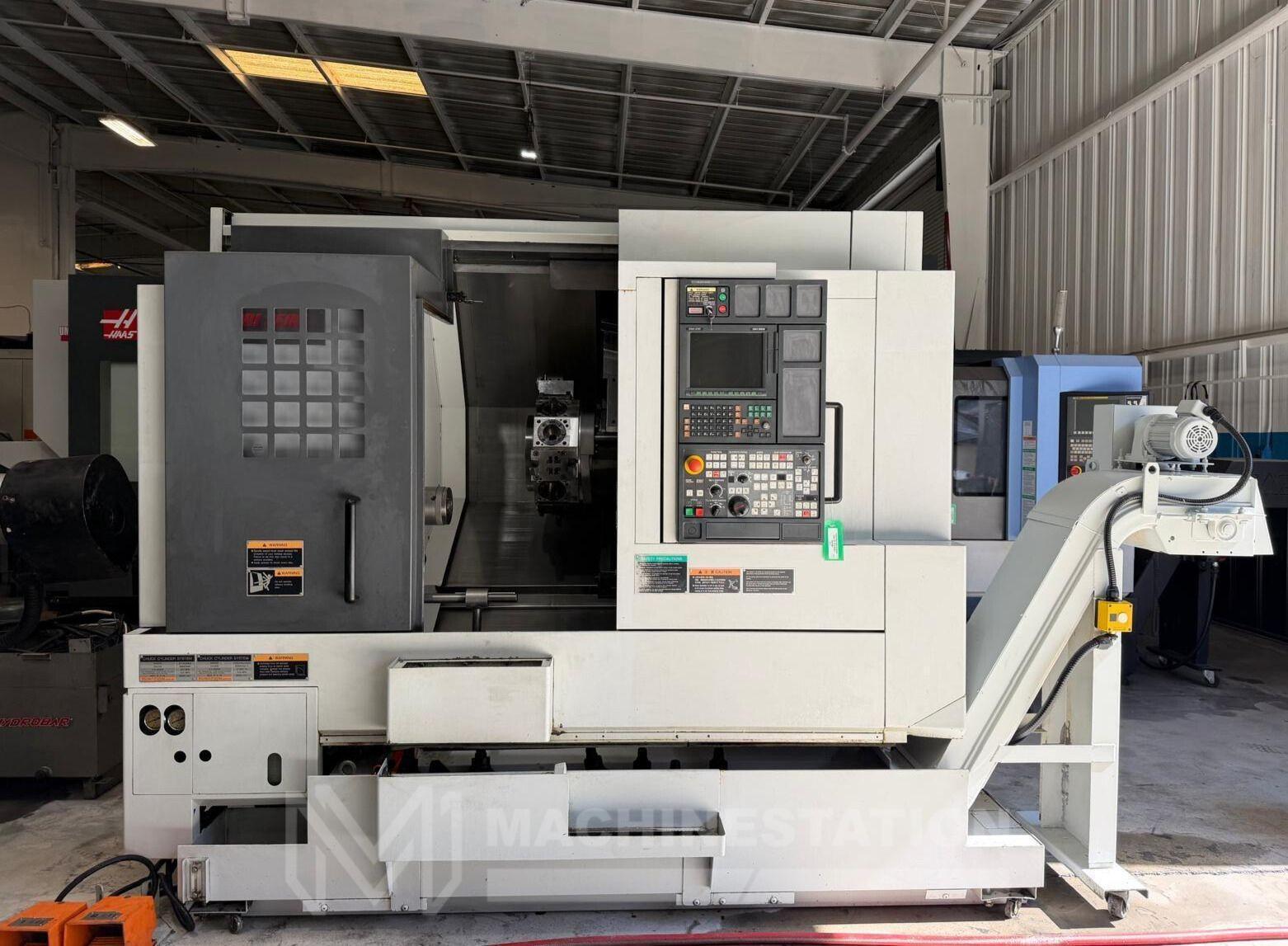

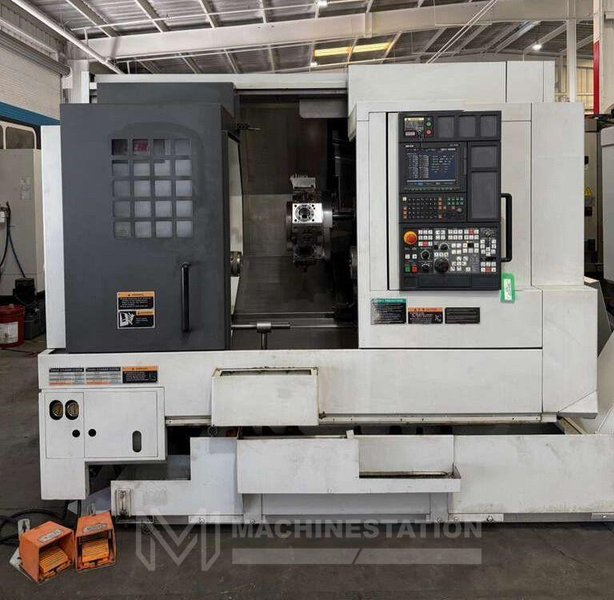

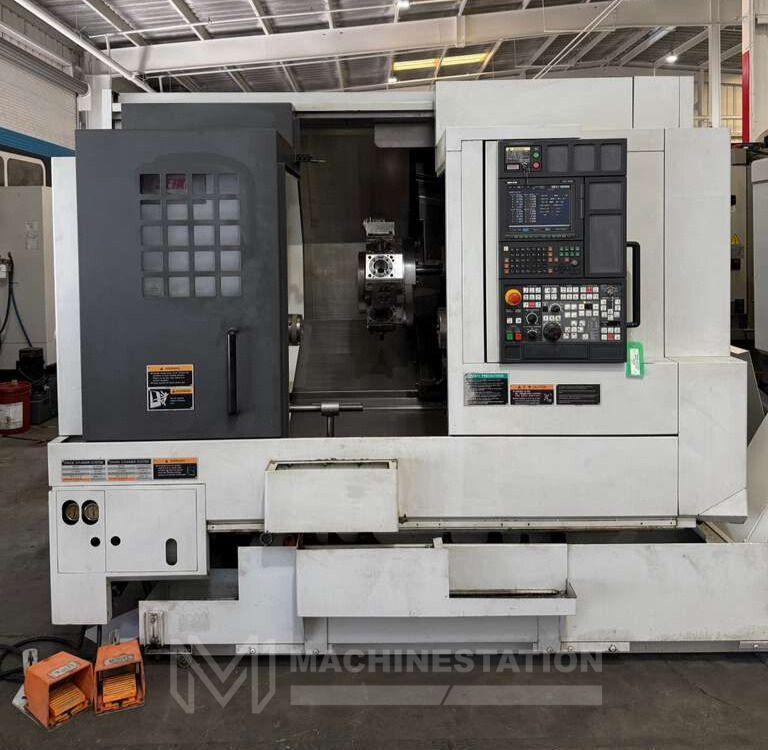

Mori Seiki NL-2000SY/500 CNC Turning Center – Sub Spindle, Y Axis, Bar Feeder Lathe

Brand
DMG MORI
Category
Lathes & Turning Machines
Type
Turning Centers
Model
Mori Seiki NL-2000SY/500
Stock #
113550
Year
2009
Condition
Not specified

Location

Not specified
REQUEST FINANCING

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Make: Mori Seiki
Model: NL-2000SY/500
Year: 2009 (Installed in 2010)
Condition: Used – Good
Equipped With:

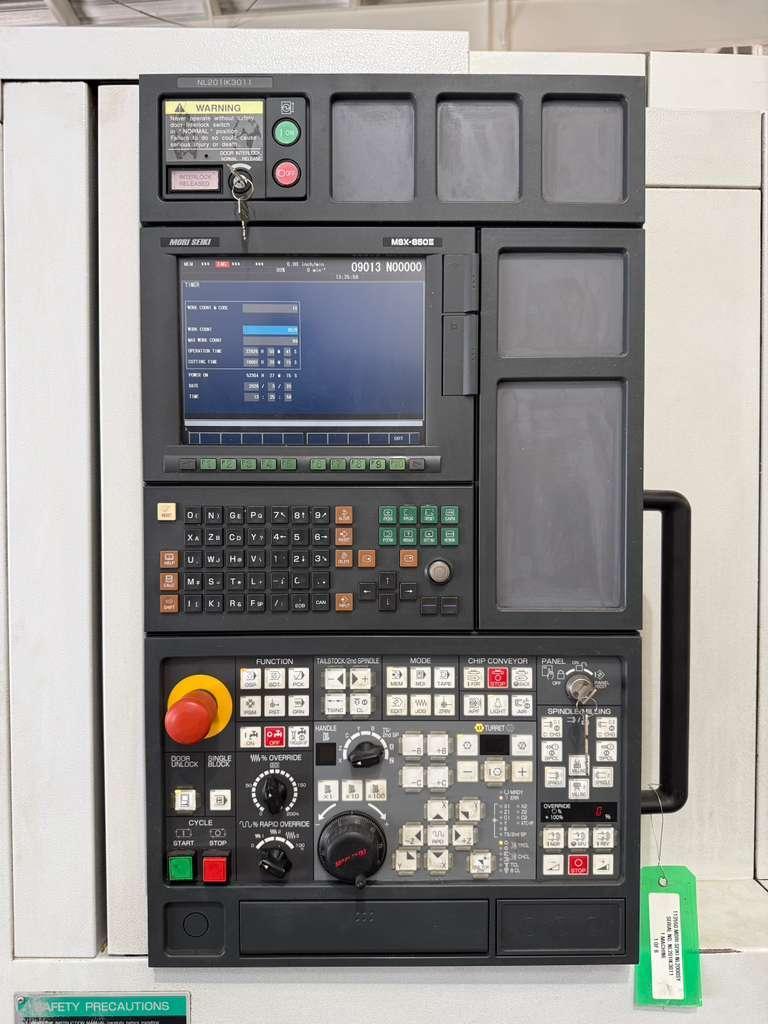

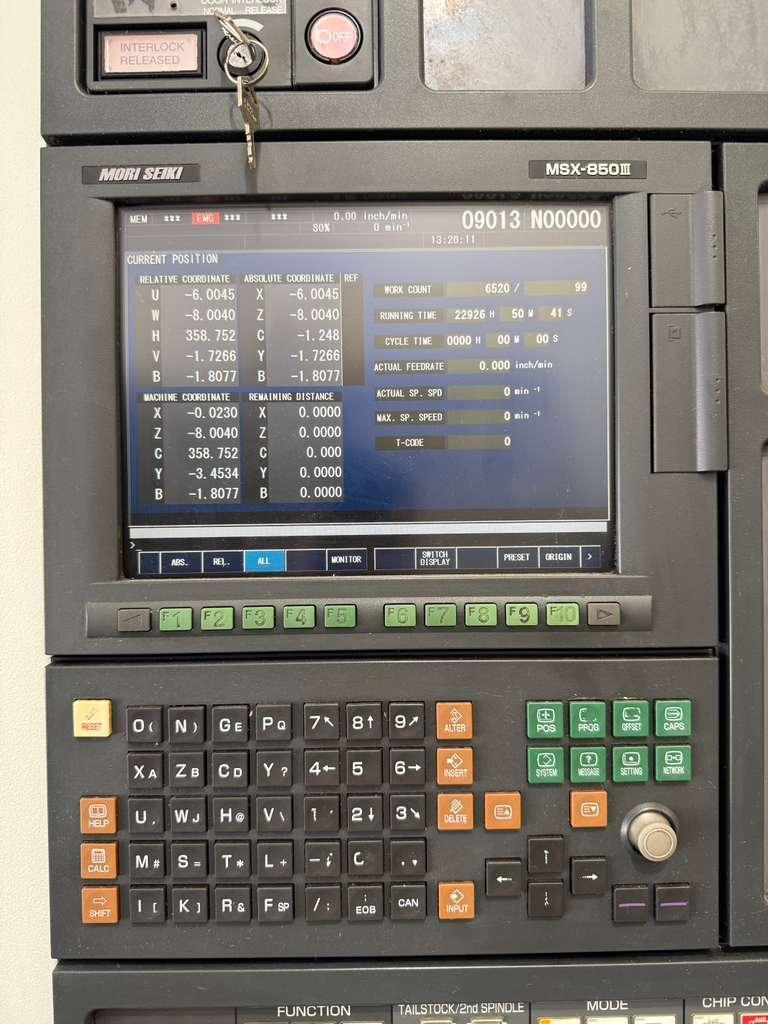

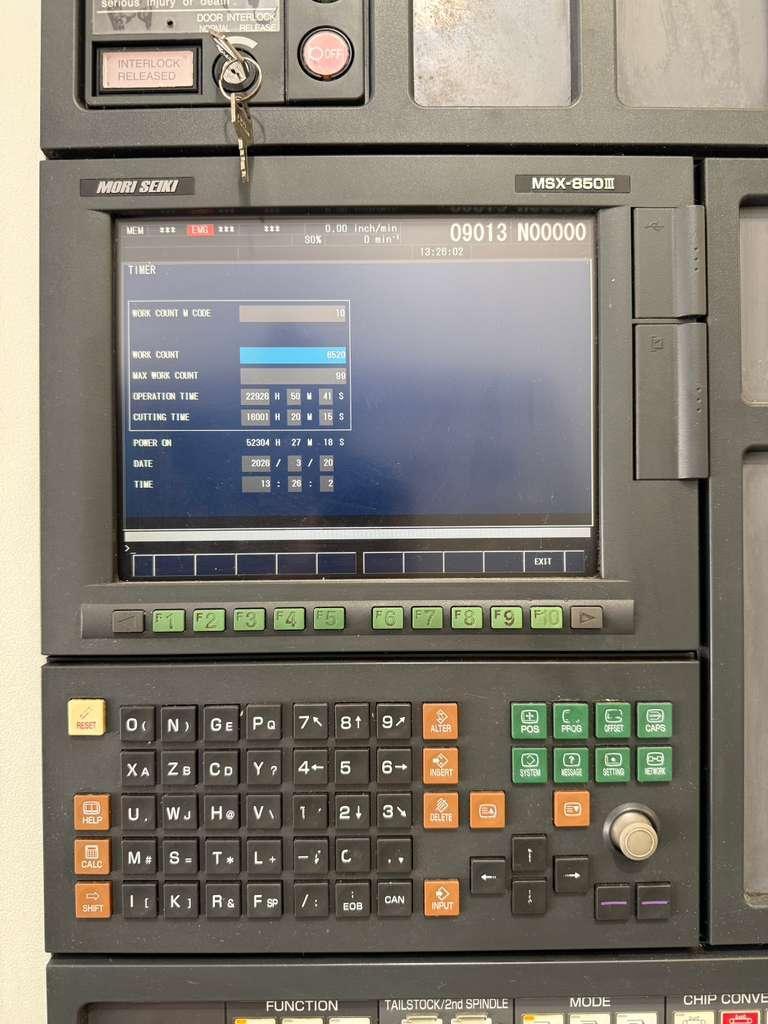

Mori Seiki MSX-850III CNC Control

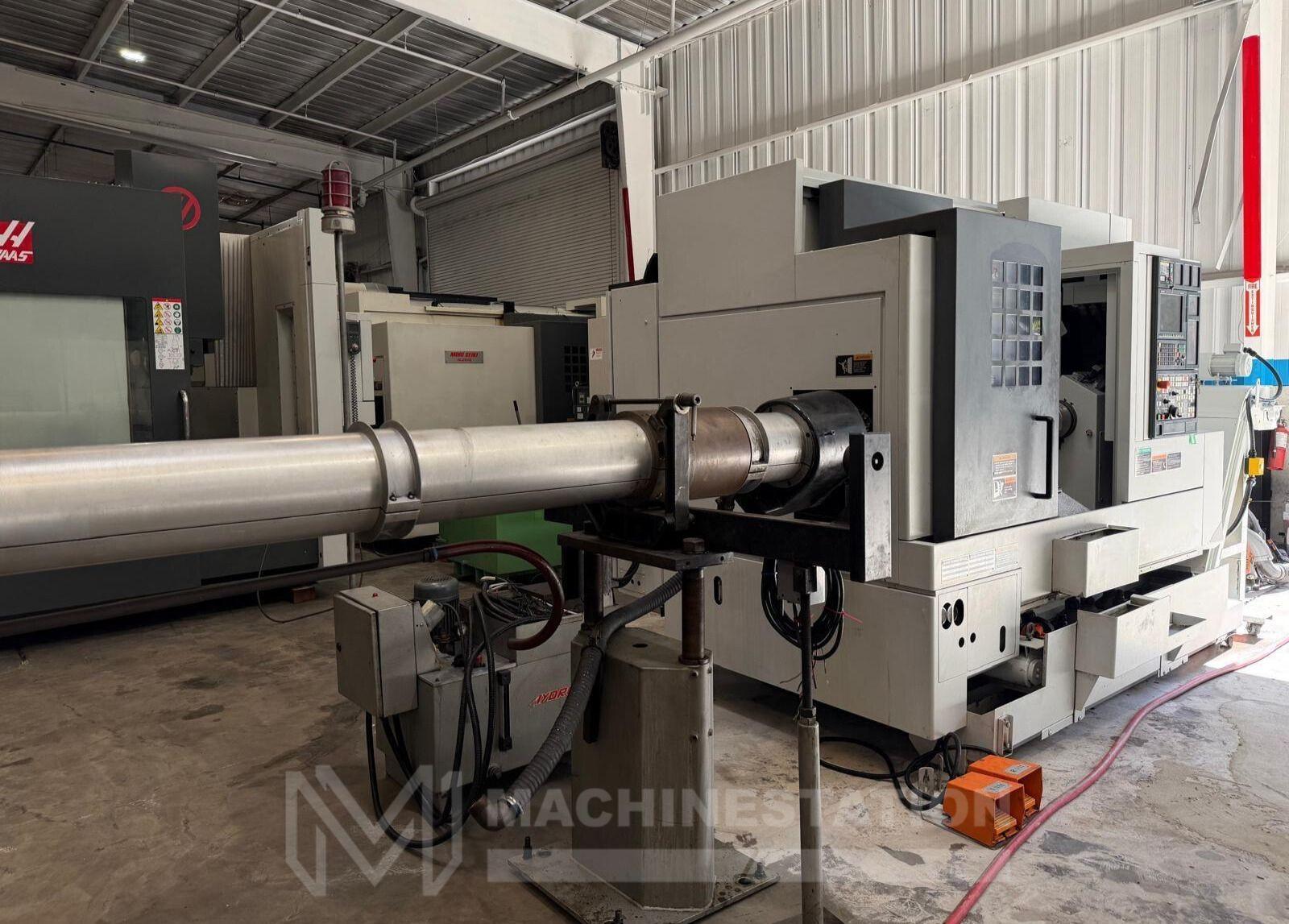

LNS Hydrobar Bar Feeder

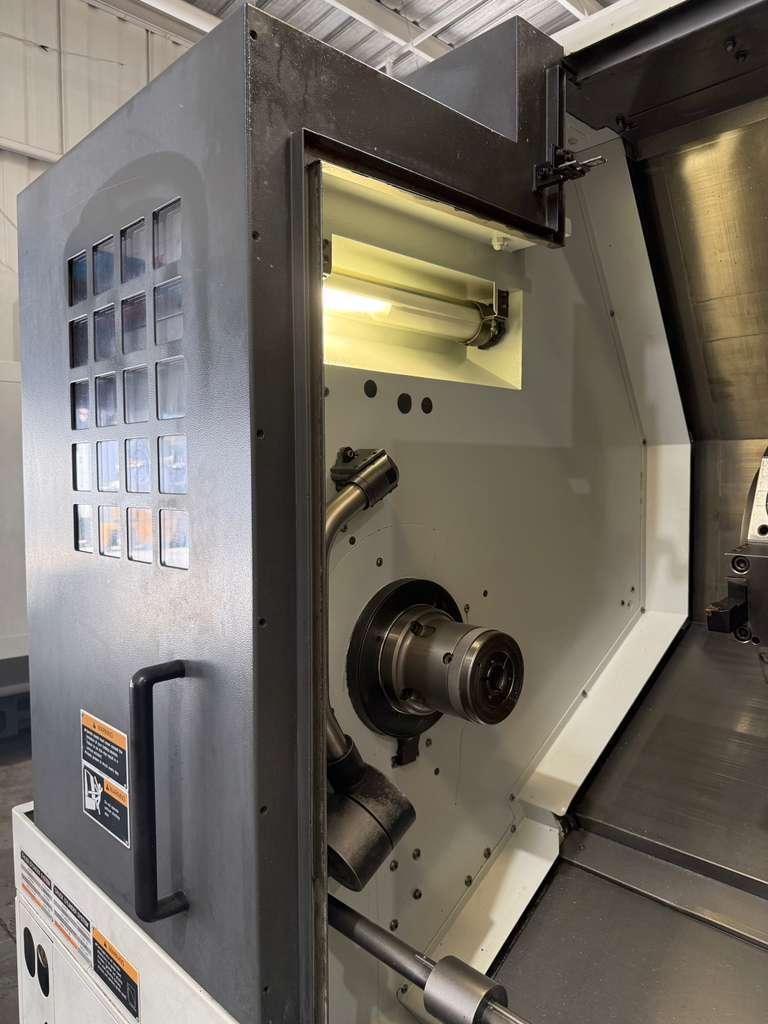

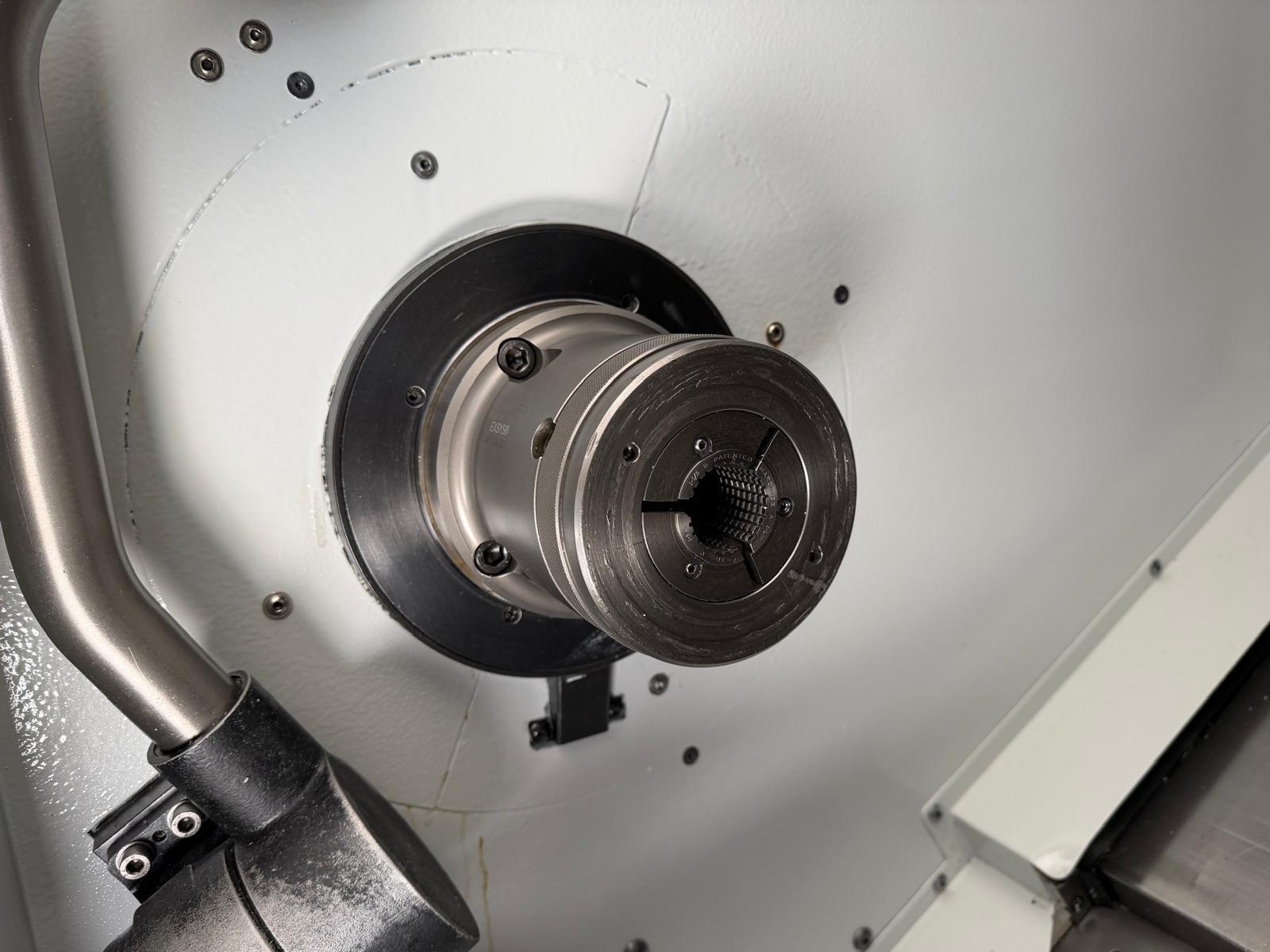

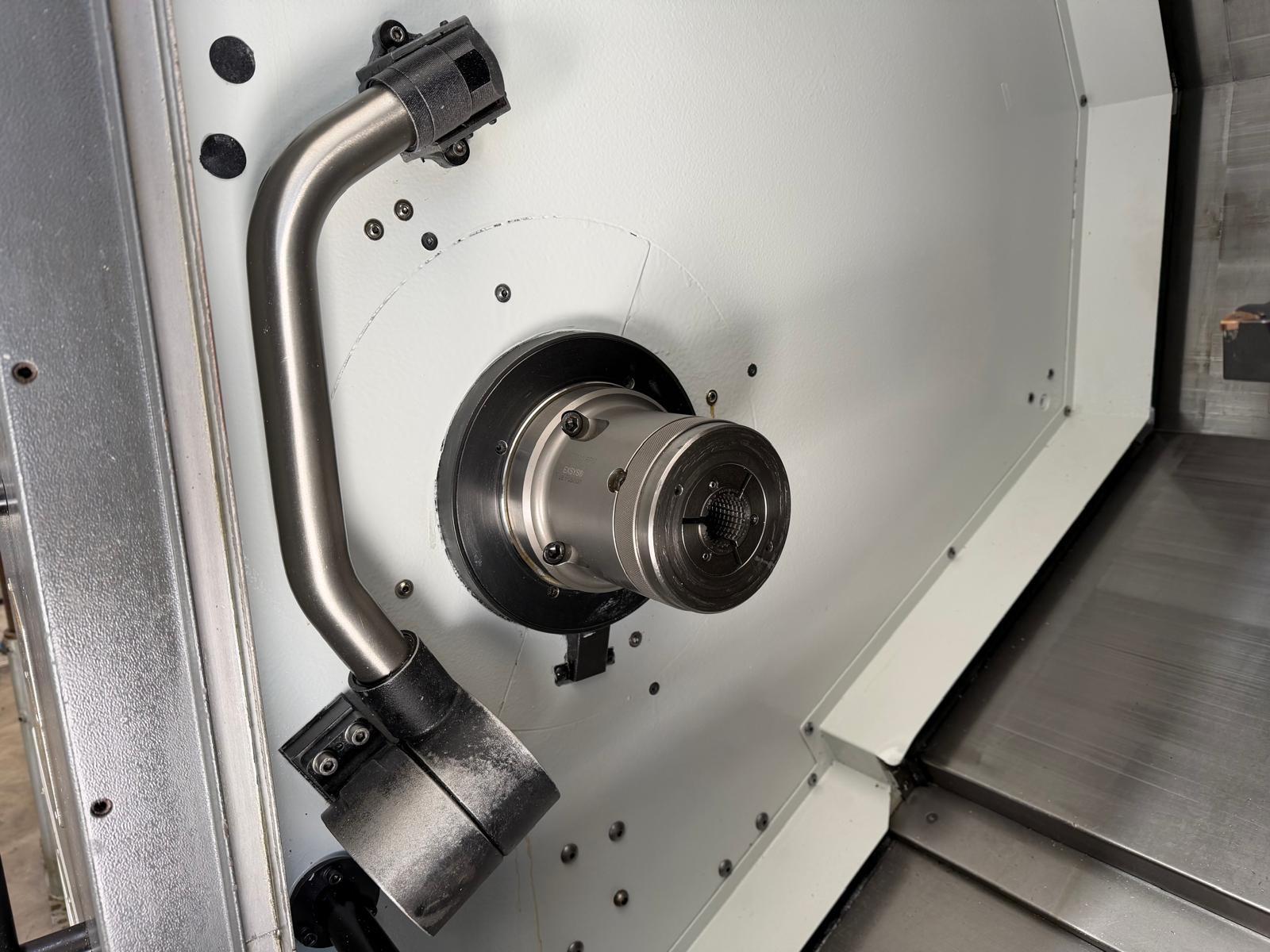

Collet Chuck (Capable 10″ Chuck) On Main Spindle

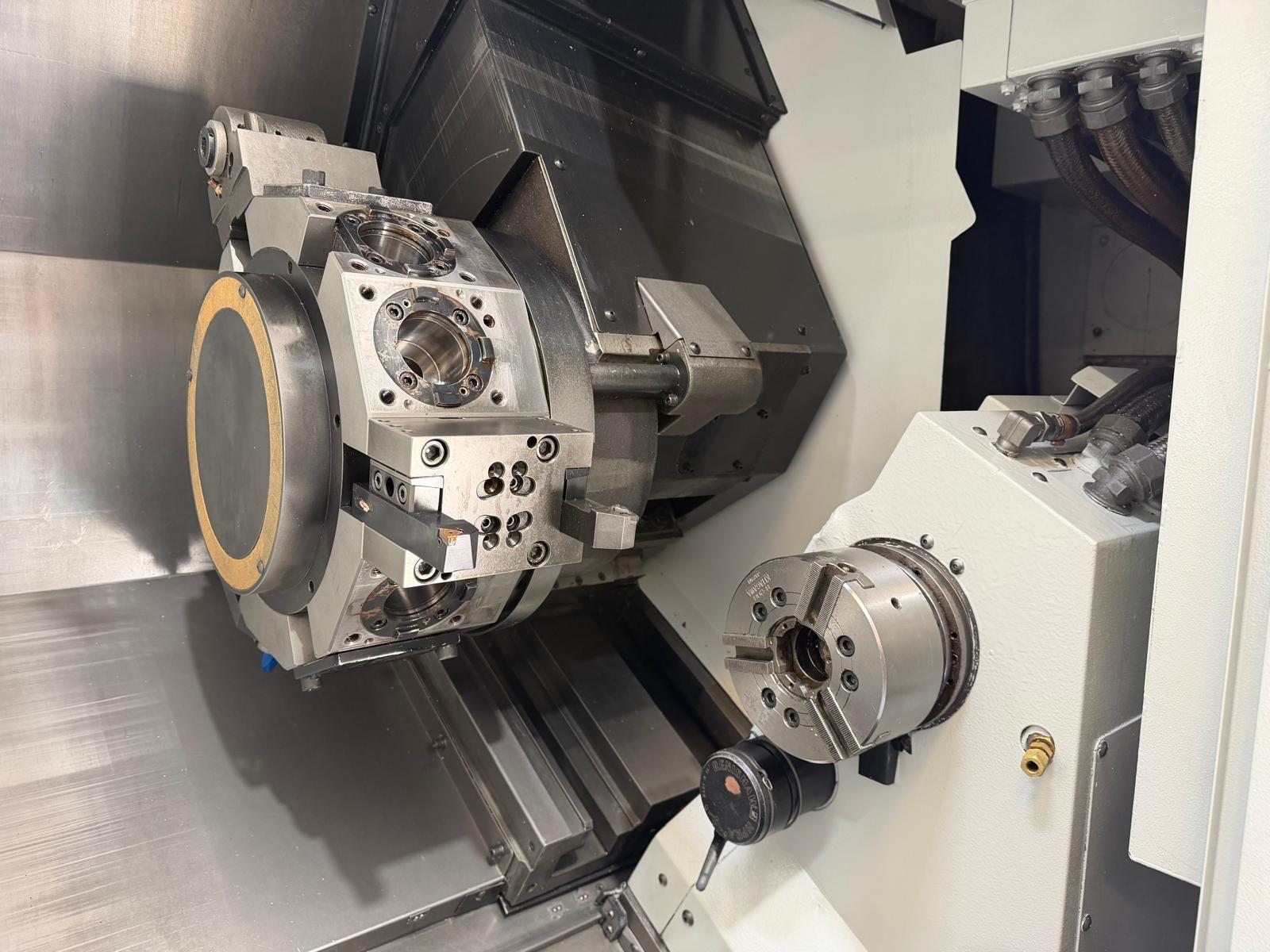

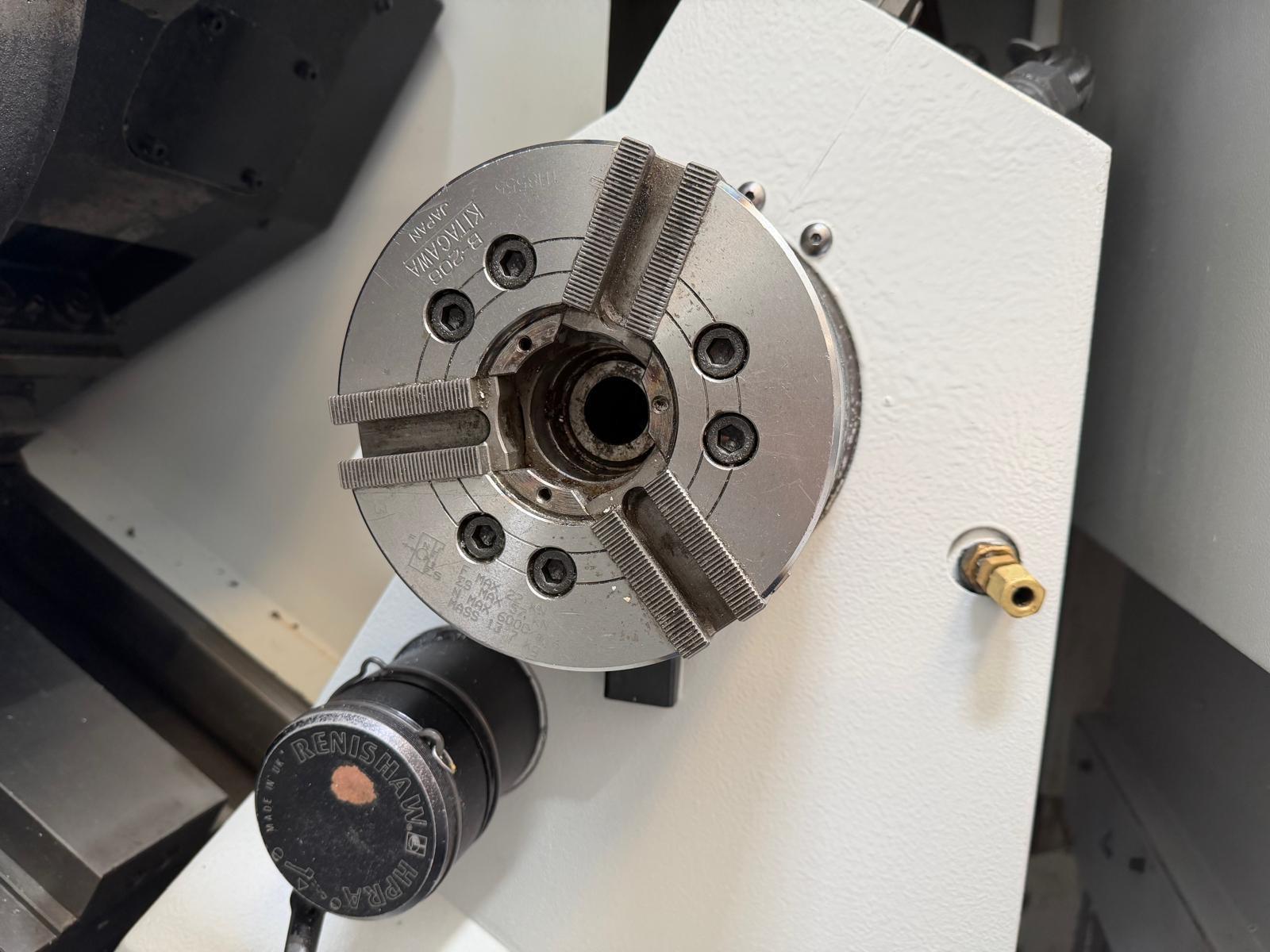

6″ 3-Jaw Kitagawa B-206 Chuck On Sub Spindle
Servo Controlled C Axis On Both Spindles

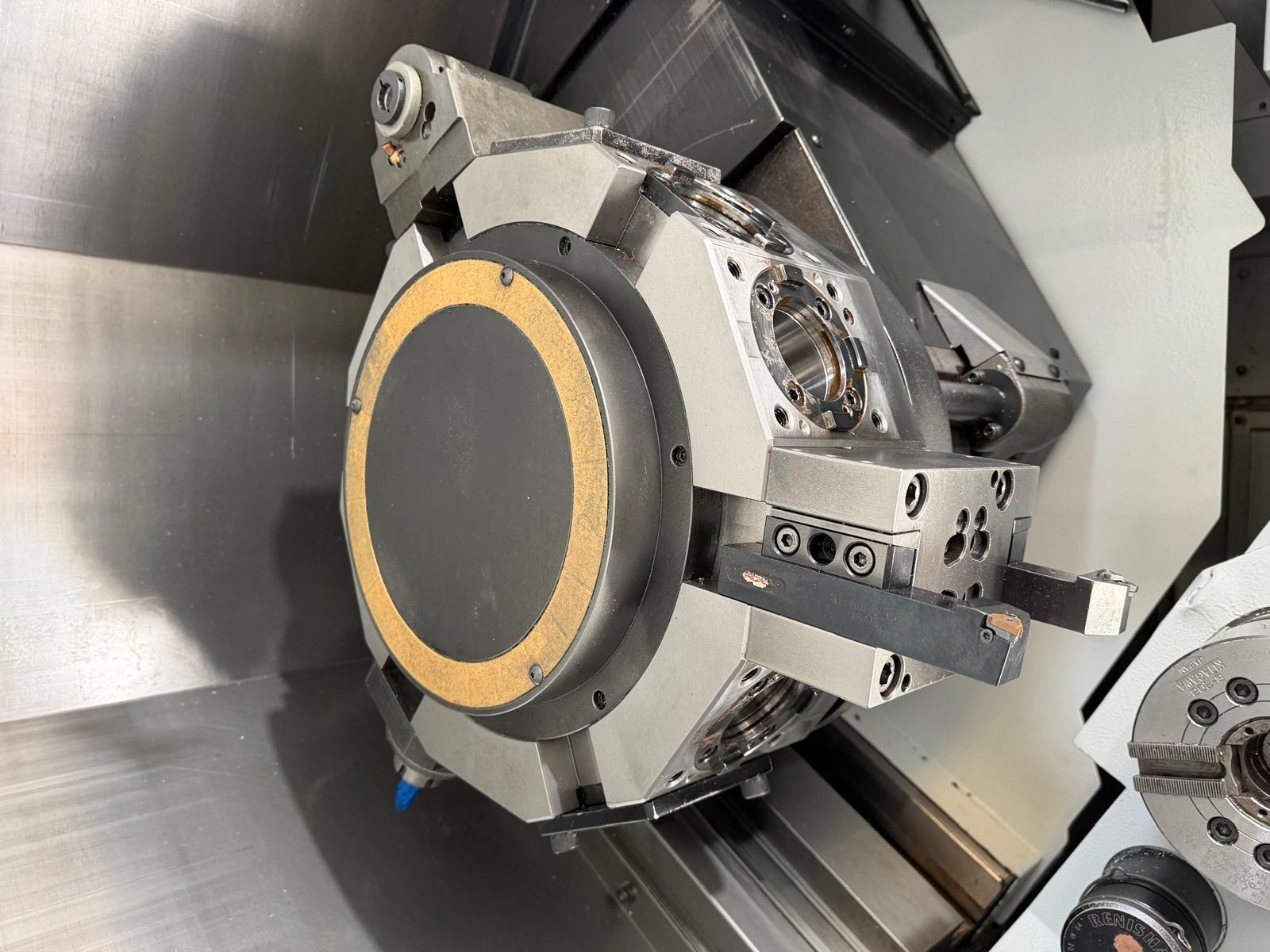

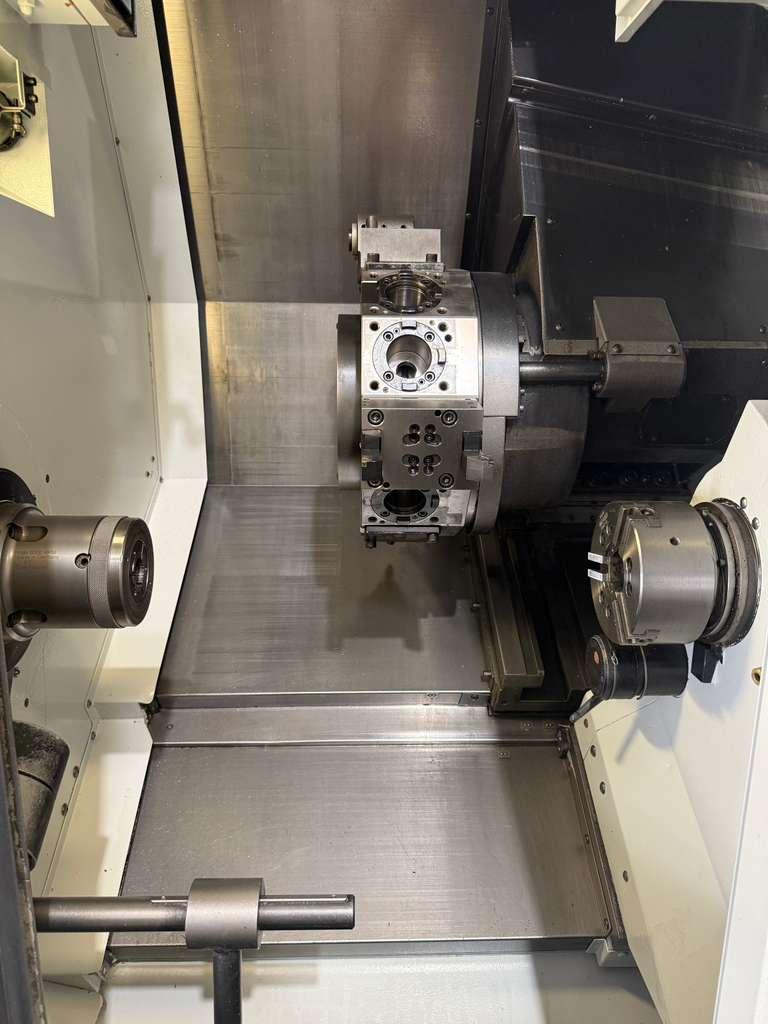

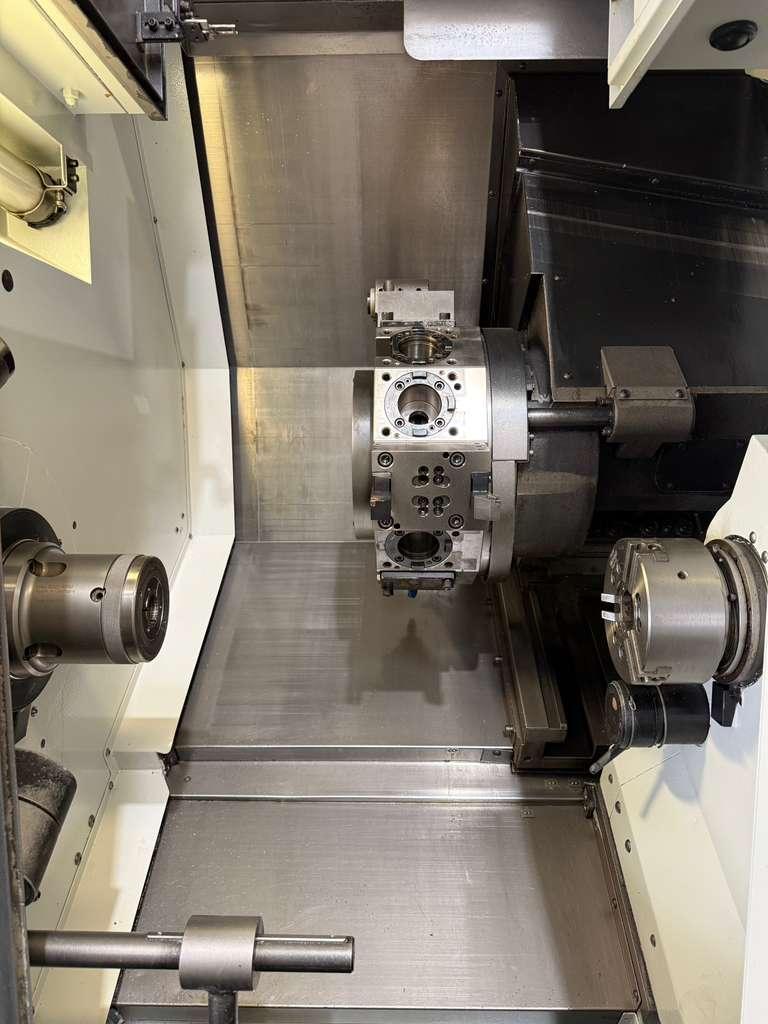

12 Station Live Tool Turret
Y Axis On Turret

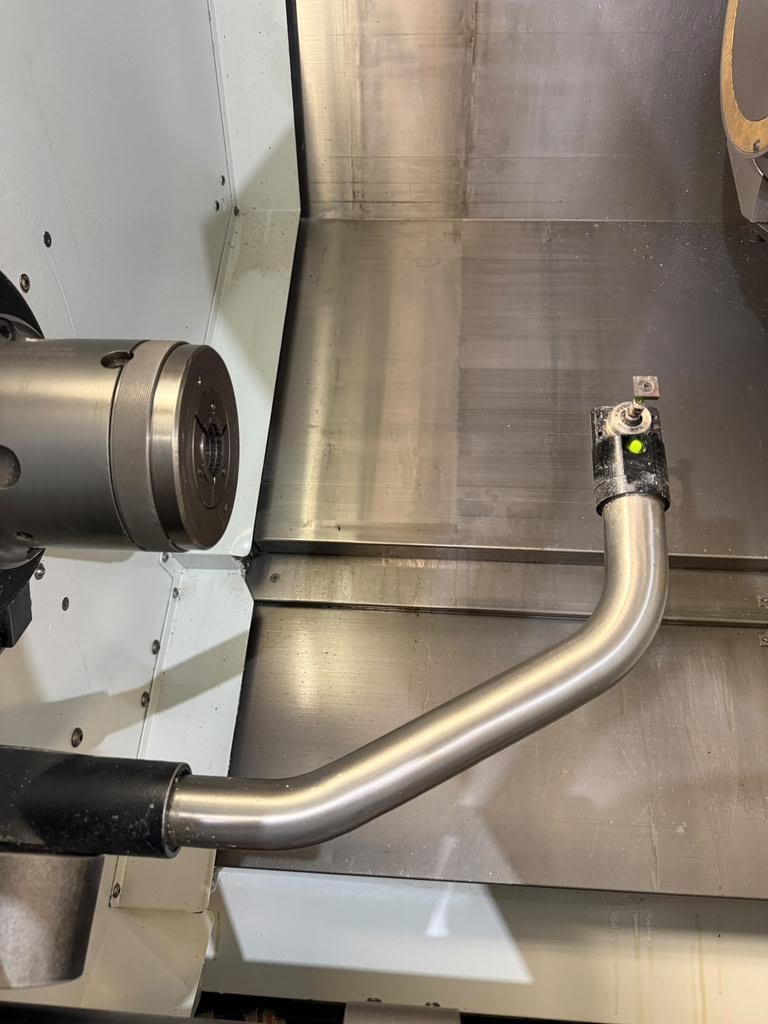

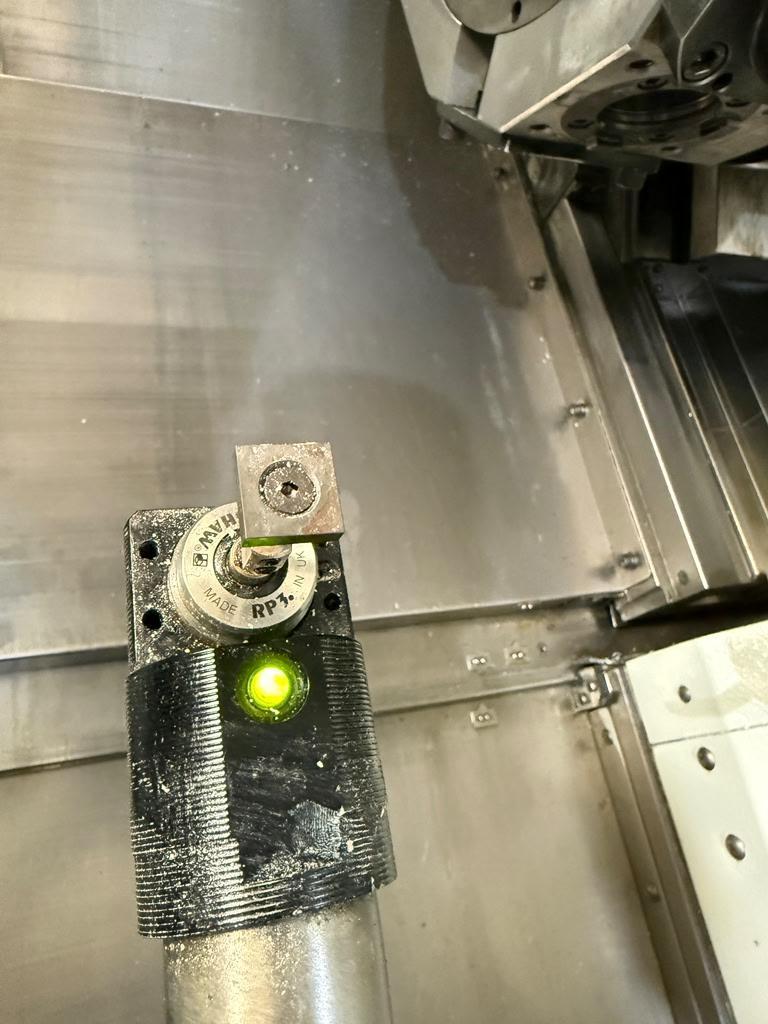

Tool Presetter
Parts Catcher
PCMCIA Card Slot
RS-232
Rigid Tapping
Coolant System
Transformer
Chip Conveyor
Misc Tool Holders Mounted on Turret (As shown in the images)
Capacity:
Max Turning Diameter: 14.4″
Max Turning Length: 20.0″
Swing Over Bed: 22.8″
Max Bar Capacity: 2.50″
Travel:
X Axis Travel: 10.2″
Z Axis Travel: 23.2″
Y Axis Travel: 3.9″ (±2.0)
B Axis Travel (Sub Spindle): 24.6″
C Axis: 360° (0.001°)
Rapid Traverse X,Z,B Axis: 1181 IPM
Rapid Traverse Y Axis: 394 IPM
Main Spindle:
Main Spindle Nose: A2-6
Main Spindle Bore: 2.9″
Main Spindle Speed: 5000 RPM
Main Spindle Motor: 20 HP
Sub Spindle:
Sub Spindle Nose: A2-5
Sub Spindle Bore: 1.7″
Sub Spindle Speed: 6000 RPM
Sub Spindle Motor: 15 HP
Turret:
Turret Capacity: 12 Stations
Turret Index Time: 0.25 Second
Rotary Tool Speed: 6,000 RPM
Rotary Tool Motor: 7.5 HP
Tool Holders Type: Bolt Mounted
General:
Power Source: AC 220 V, Three Phase, 60 Hz
Power Requirement: 38 kva
Overall Dimensions: 107″ X 79″ X 84″ High
Weight : 12,785 lbs. Approx.
