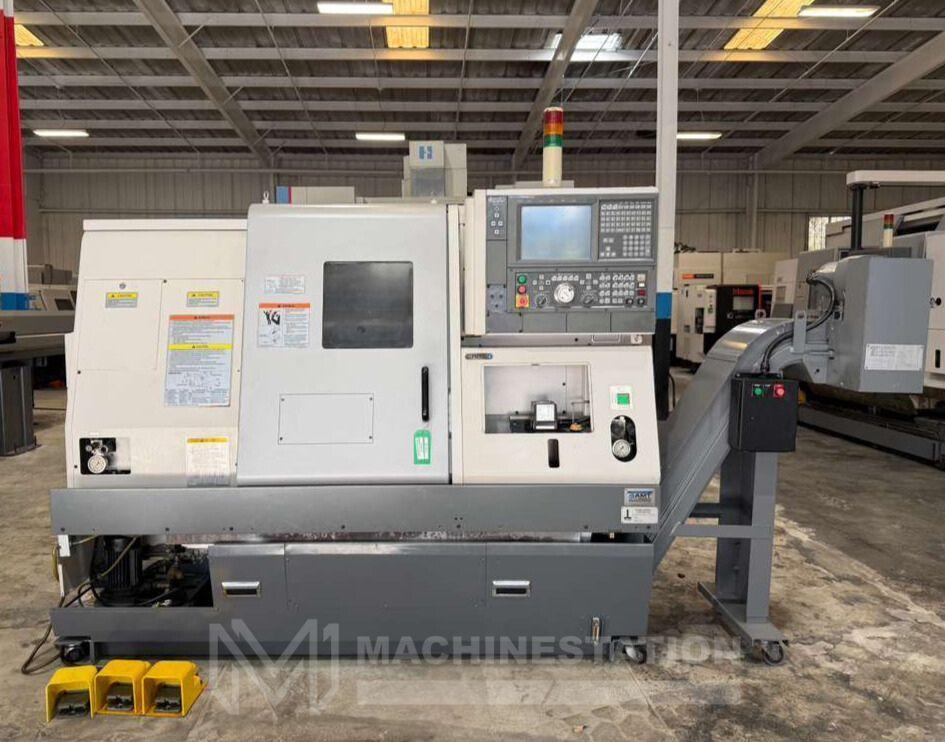

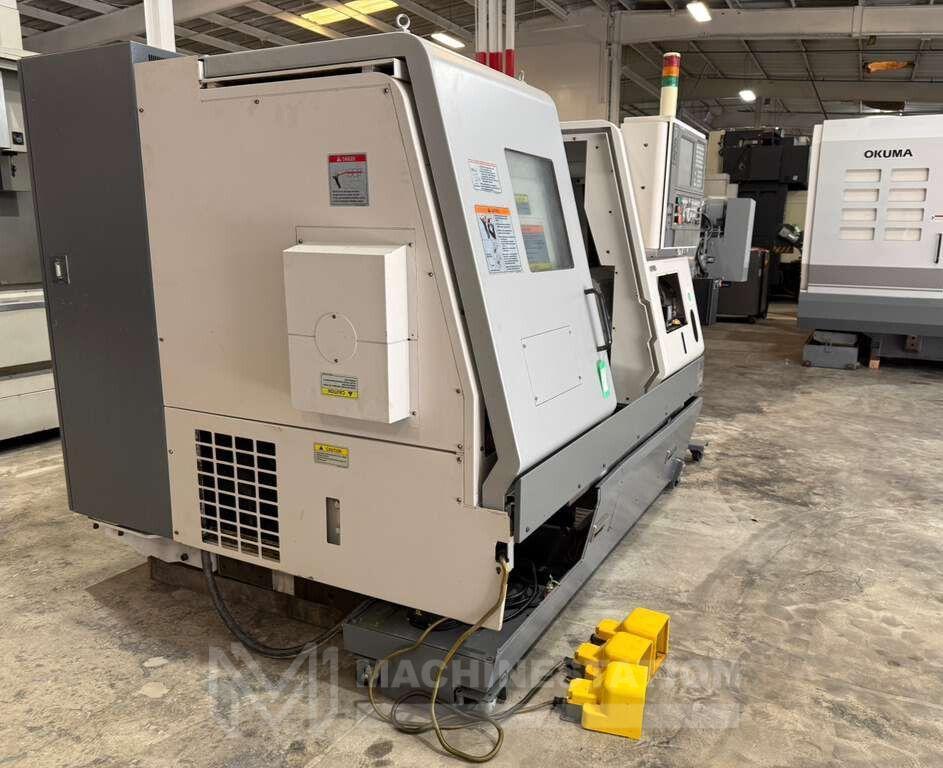

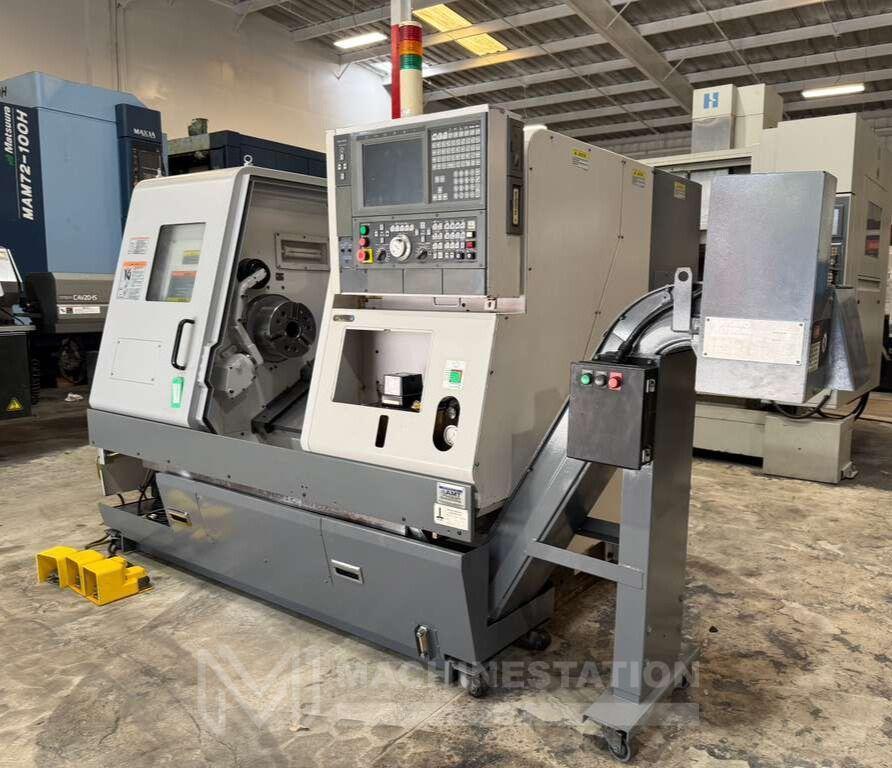

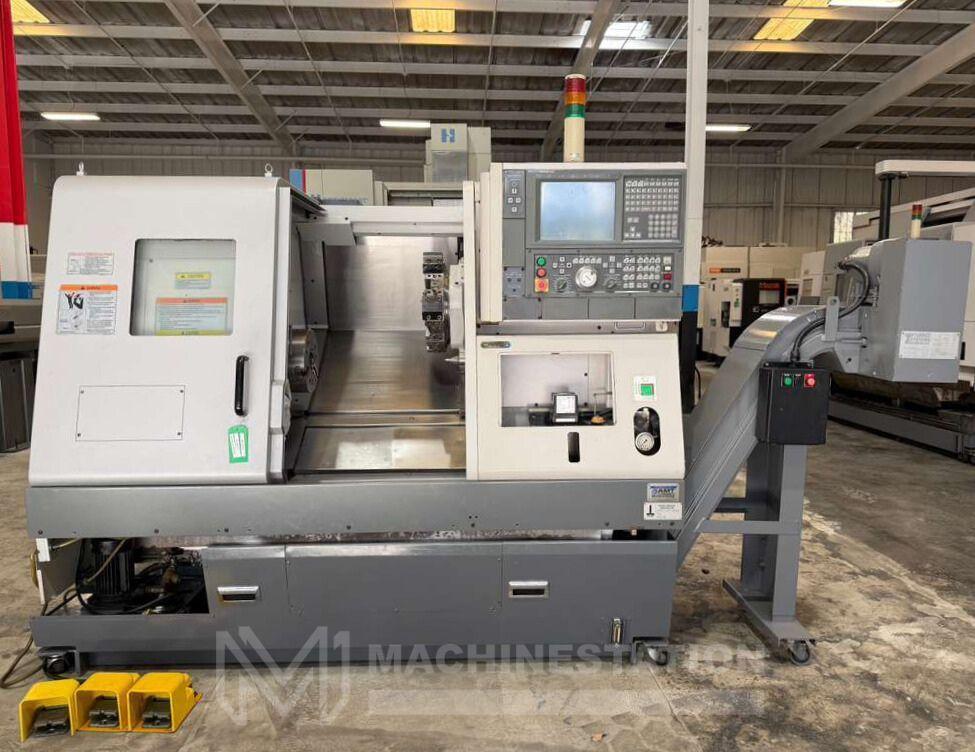

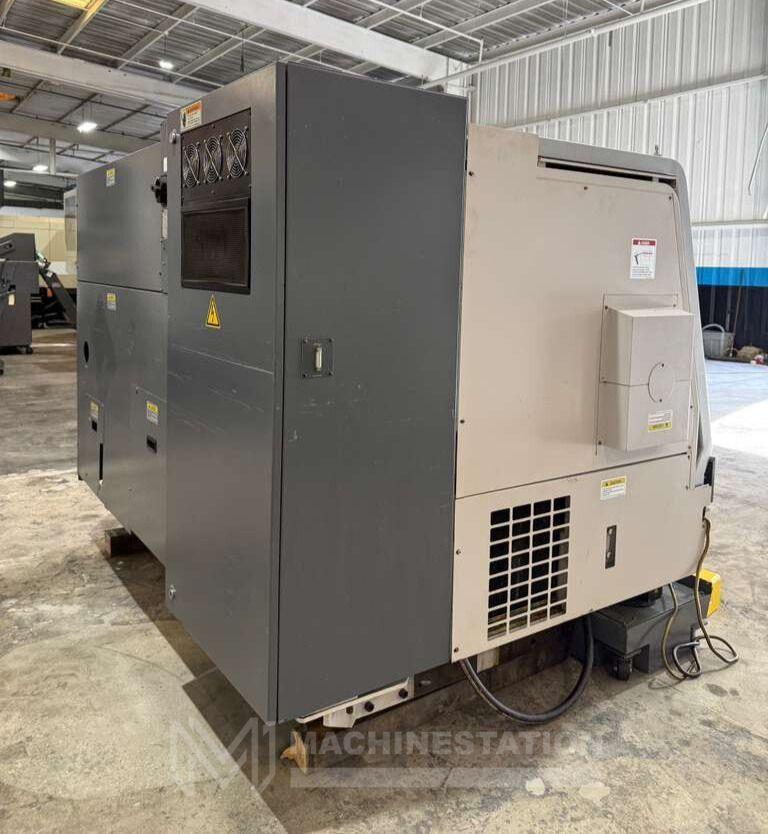

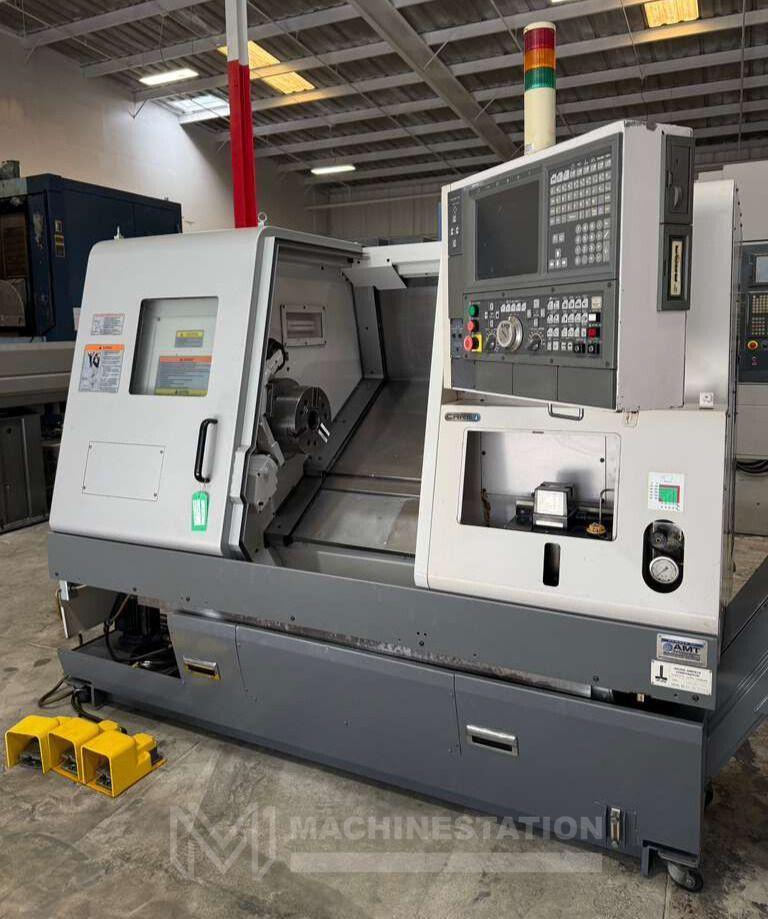

Okuma Captain L370 CNC Turning Center – 10″ Chuck Lathe

Okuma Captain L370 CNC Turning Center – 10″ Chuck Lathe

Name: Okuma Captain L370 CNC Turning Center – 10″ Chuck Lathe
Brand: OKUMA
SKU: 112979
Availability: PreOrder

Brand

OKUMA

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Make:	Okuma
Model:	Captain L-370
Year:	2006
Condition:	Used – Good

Equipped With:

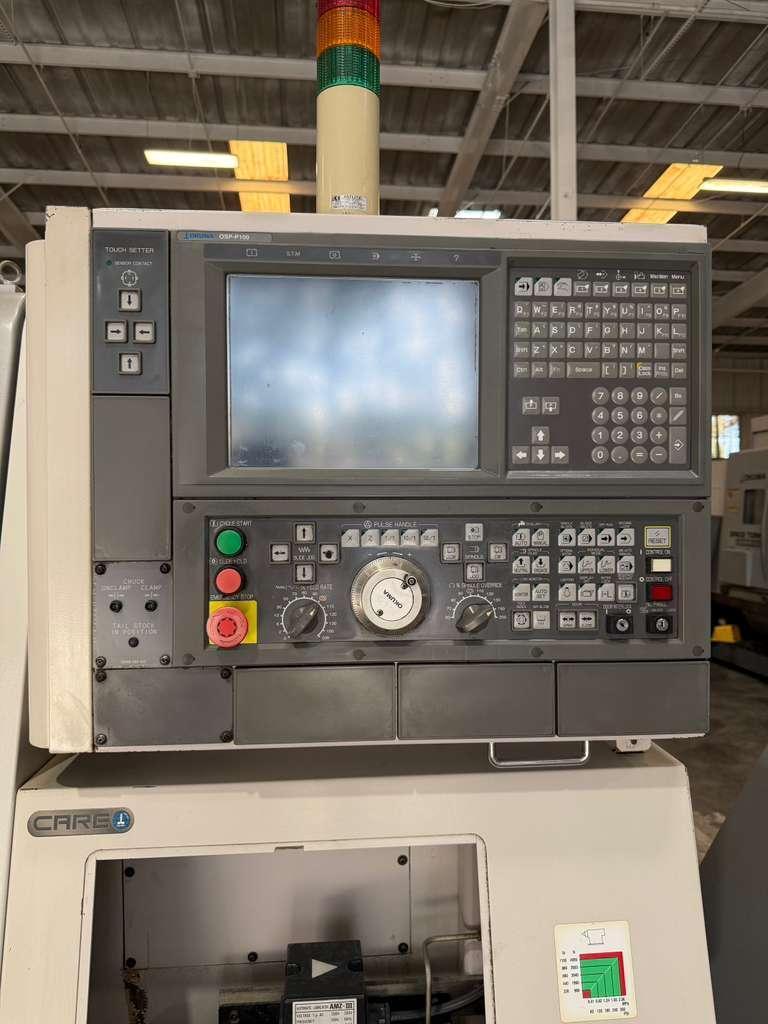

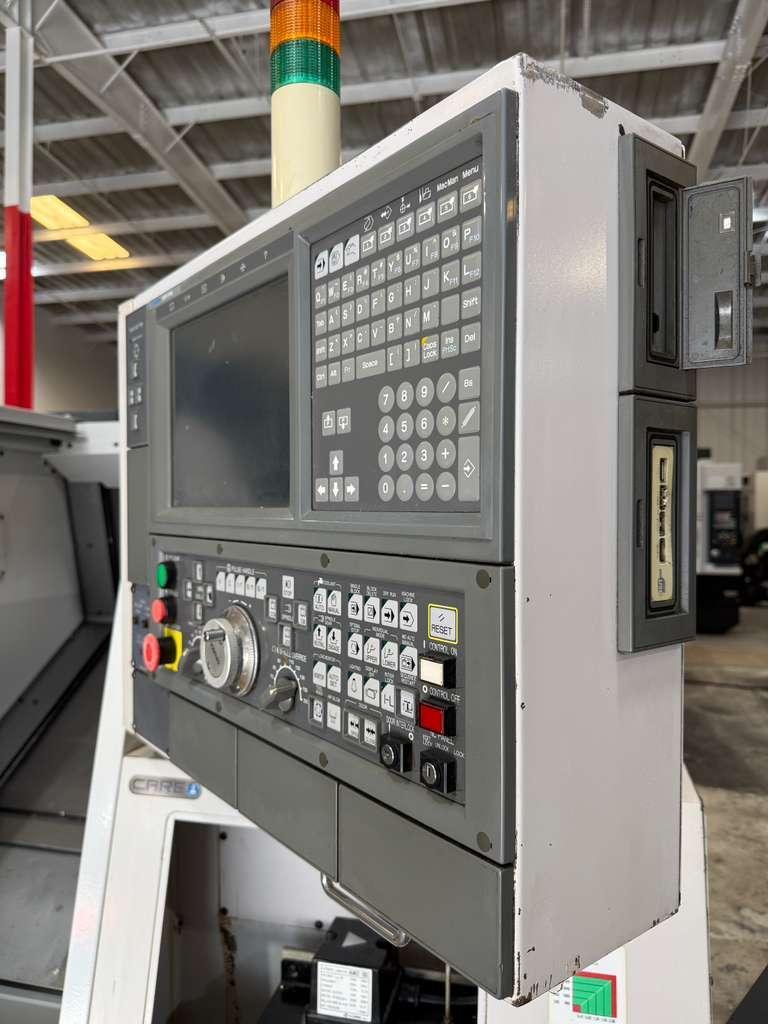

OSP-P100 CNC Control

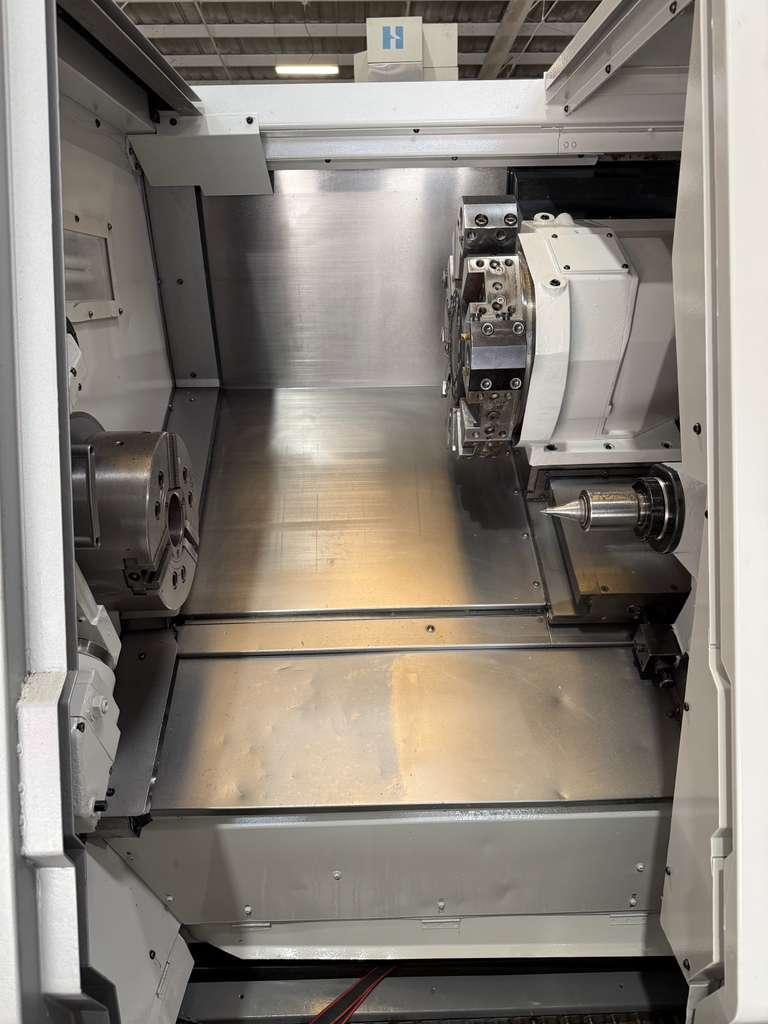

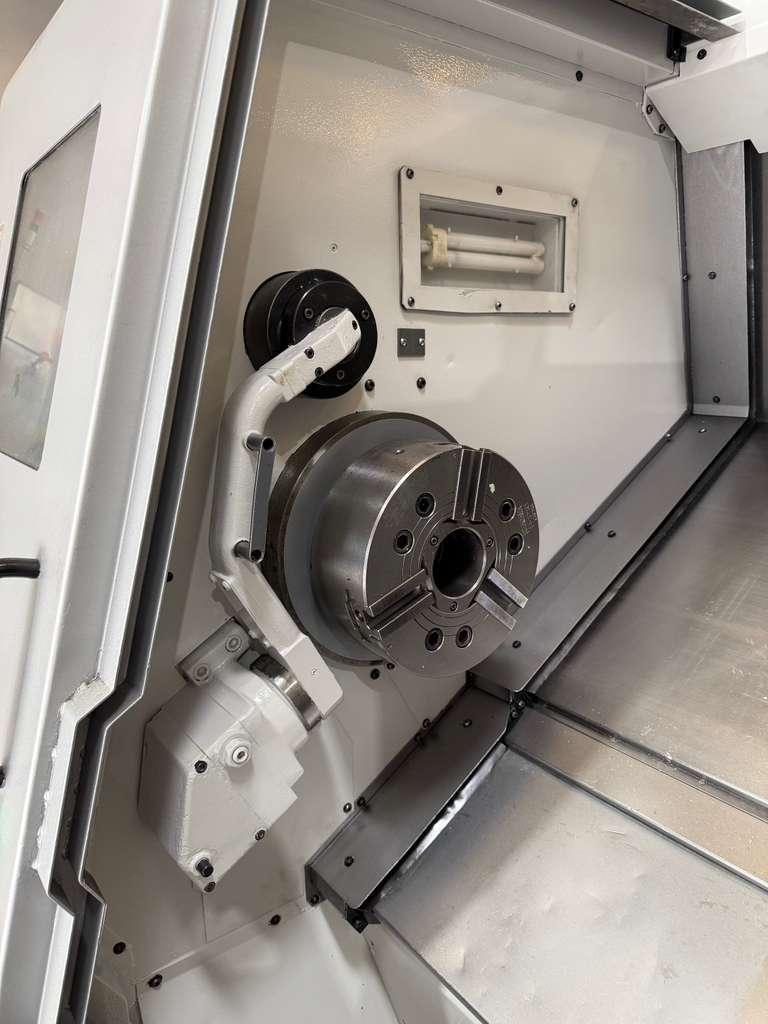

10″ 3-Jaw Kitagawa B-210 Hydraulic Chuck

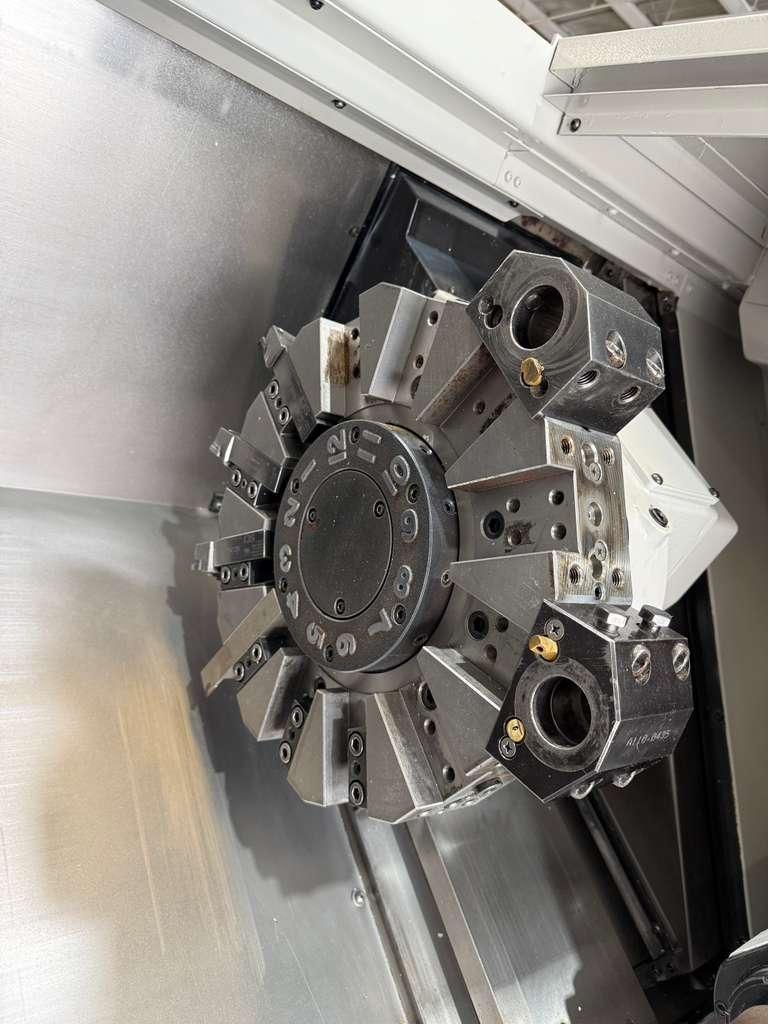

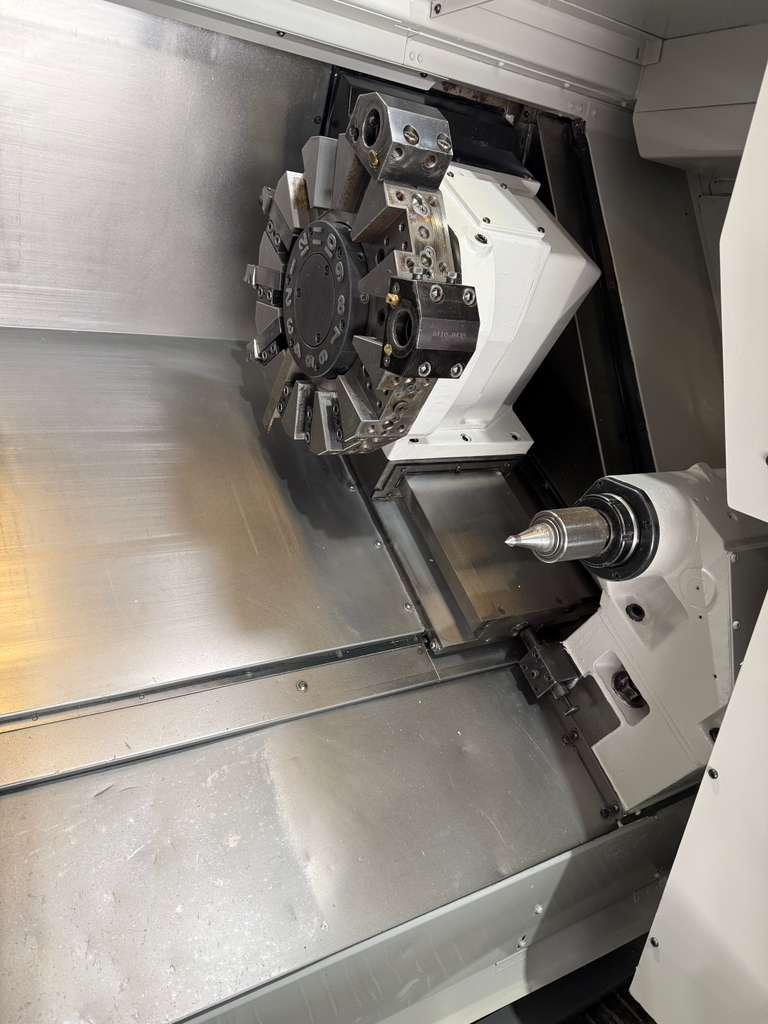

12-Station Automatic Turret

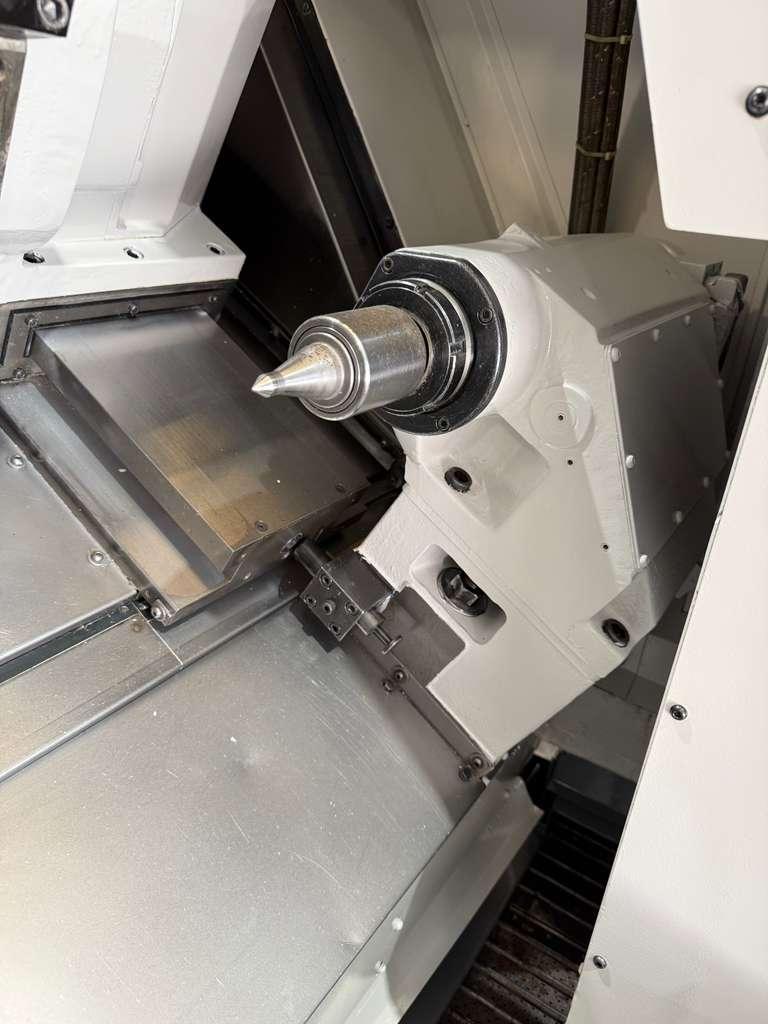

Hydraulic Tailstock with Power Quill
Tool Presetter
USB Ports
Floppy Drive
Automatic Lubrication system
Coolant System

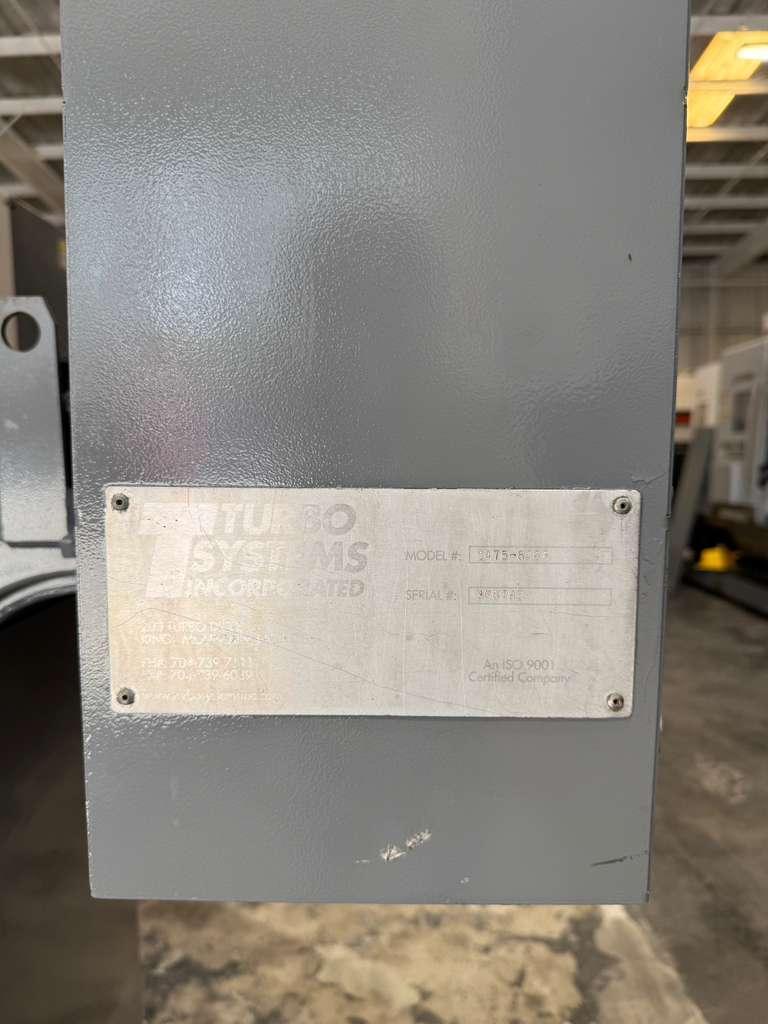

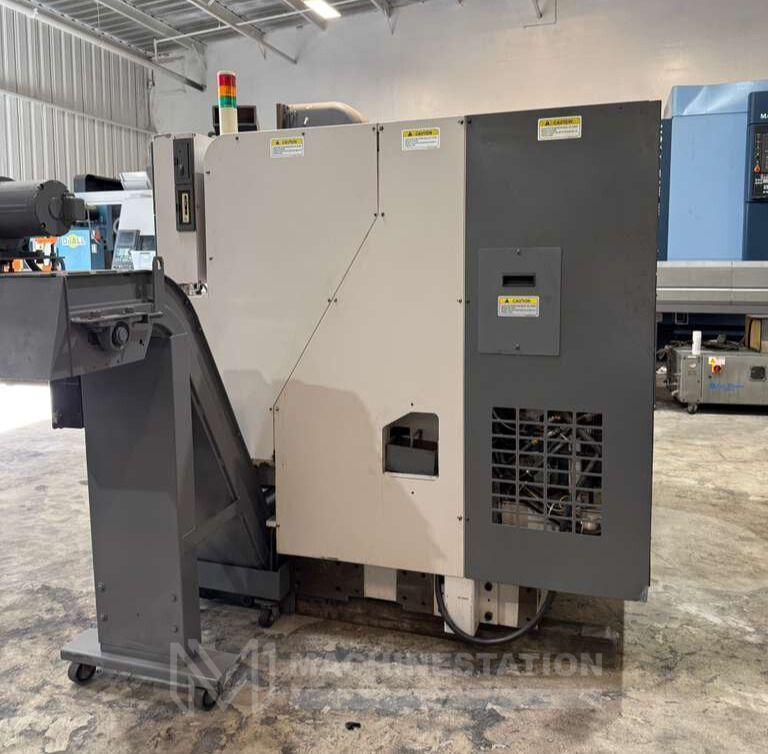

Turbo System Chip Conveyor
Foot Operated Control for Chuck and Tailstock
(2) Boring Tool Holders Equipped on Turret (As Shown in the Images)

Capacity:
Max Turning Diameter : 14.57″
Max Swing Over Bed : 20.86″
Max Turning Length: 19.68″
Max Bar Capacity : 2.54″
Distance Between Center: 20.0″

Travels:
X Axis Travel : 10.23″
Z1 Axis Travel : 20.47″

Feedrate:
Rapid Traverse X Axis: 787 IPM
Rapid Traverse Z Axis: 984 IPM

Spindle:
Spindle Nose: A2-8
Spindle Bore: 3.15″
Spindle Speed: 3800 RPM
Spindle Motor: 20 HP

Turret:
Turret Capacity: 12 Stations
Turret Index Time: 0.5 Second

Tailstock:
Tailstock Body Travel: 14.3″
Tailstock Taper: MT-5
Tailstock Quill Dia.: 3.54″
Tailstock Quill Travel: 3.93″

General:
Power Source: AC 220v/480v / 3-Phase / 60 Hz
Power Requirement: 28.2 kva
Machine Dimensions: 88″ x 68″ x 70″ High
Machine Weight: 9,500 lbs Approx.
