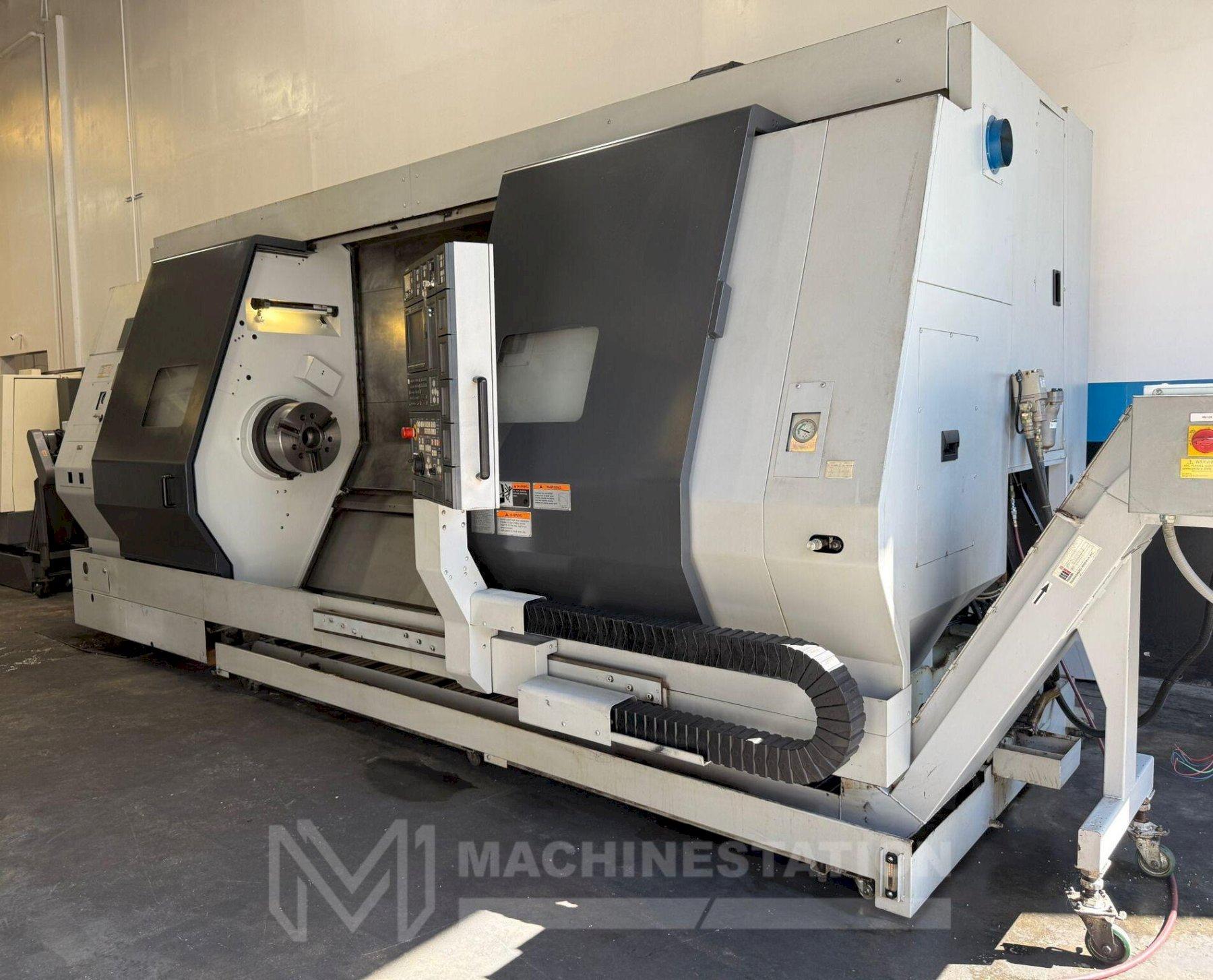

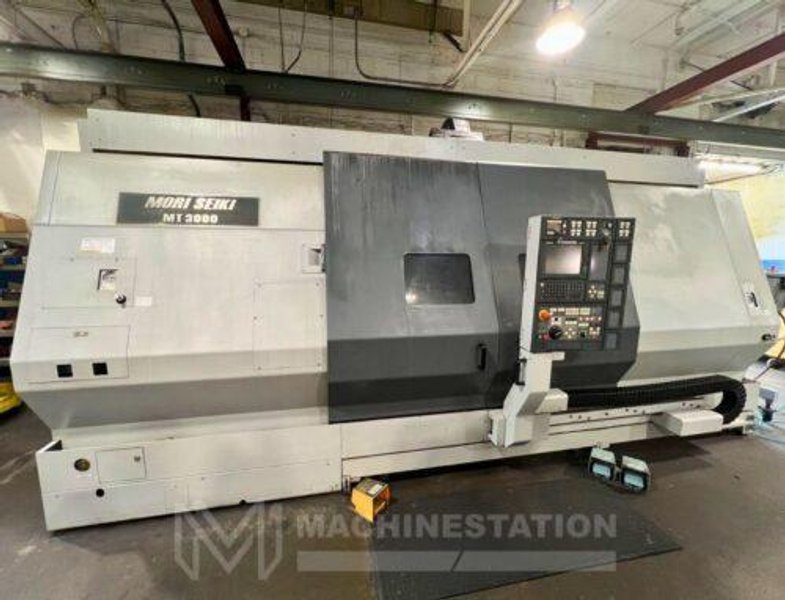

Mori Seiki MT-3000/1500 Multi Axis CNC Turning Center – Lathe

Mori Seiki MT-3000/1500 Multi Axis CNC Turning Center – Lathe

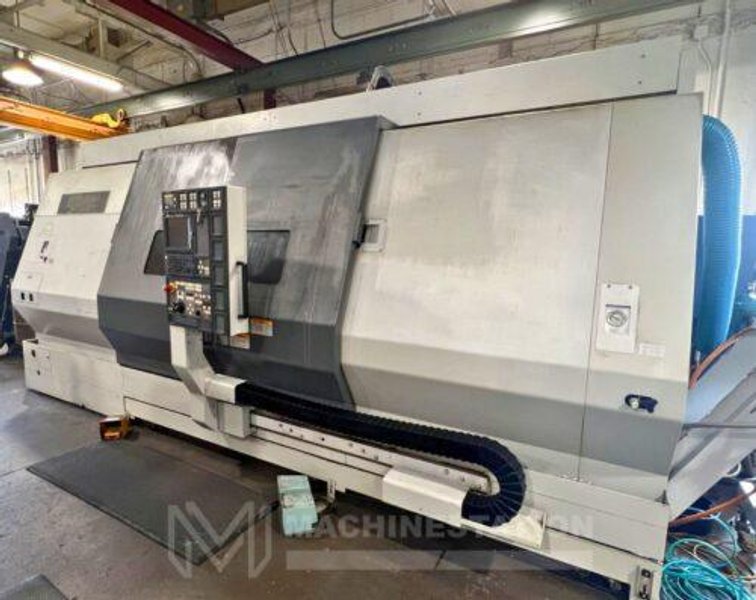

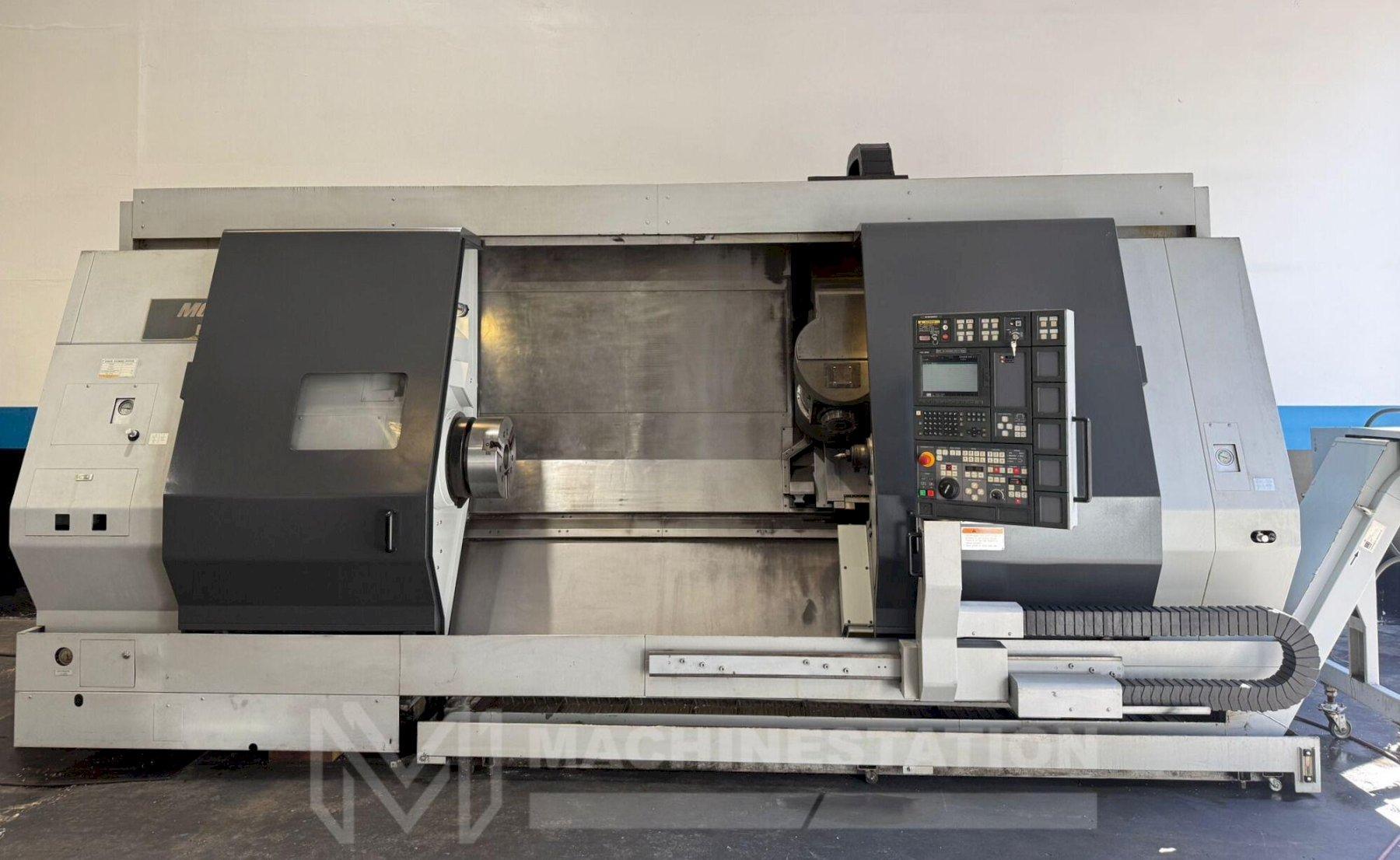

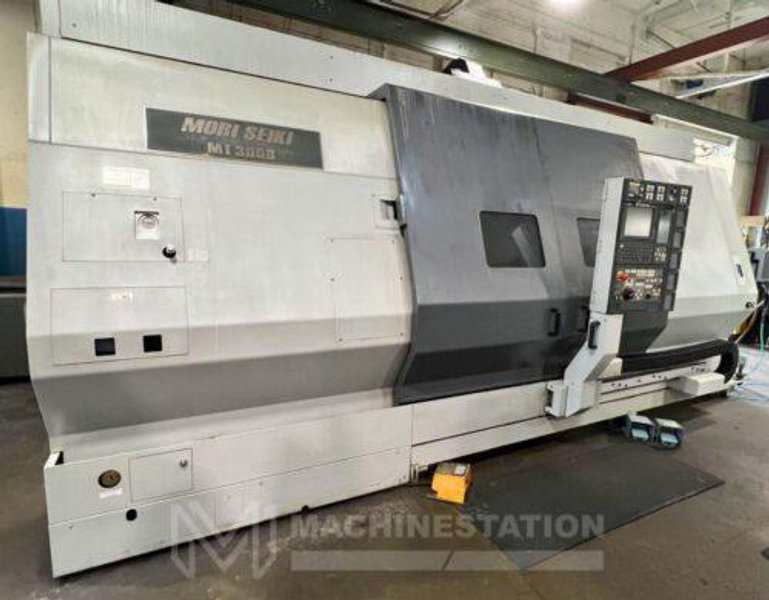

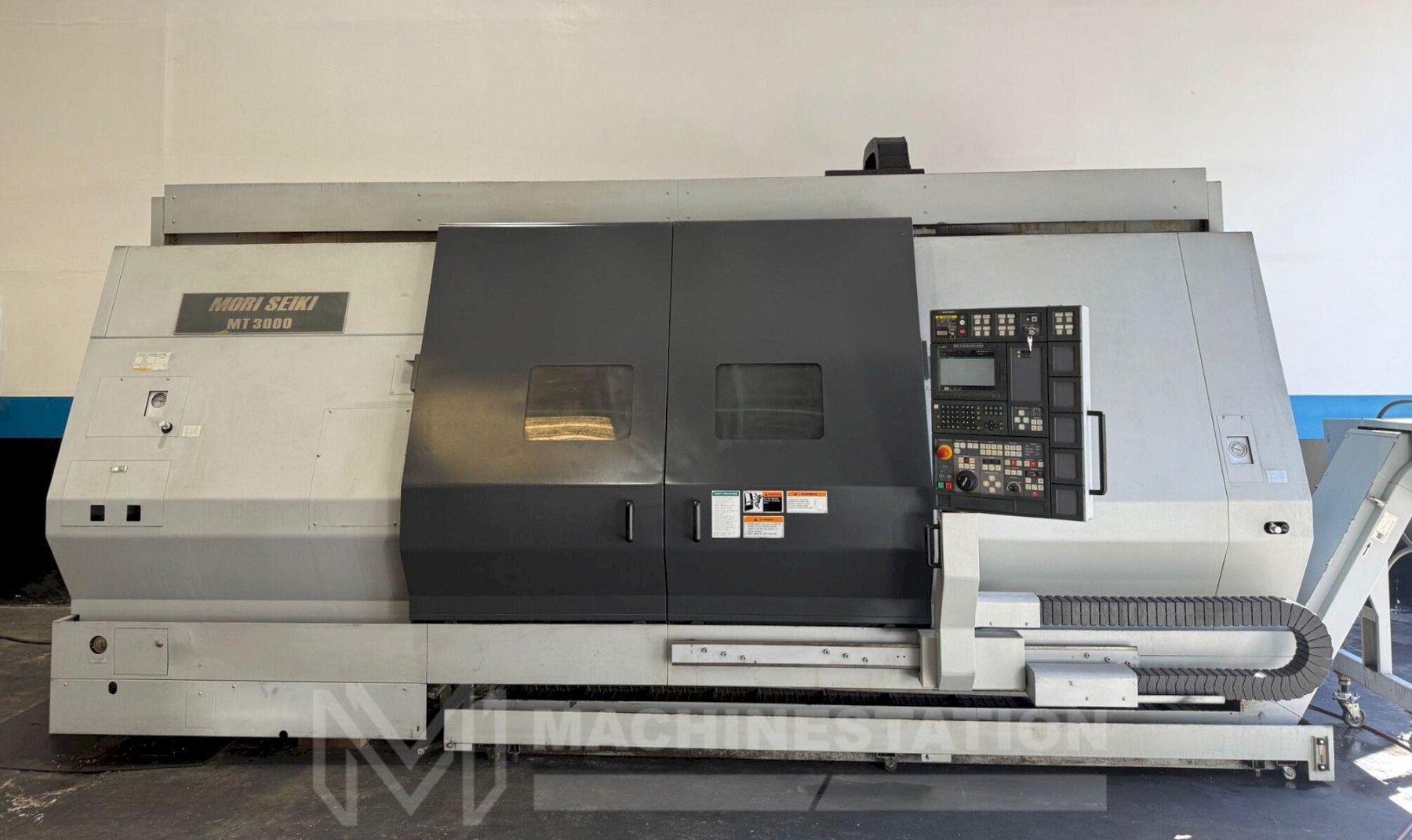

Name: Mori Seiki MT-3000/1500 Multi Axis CNC Turning Center – Lathe
Brand: DMG MORI
SKU: 112827
Availability: InStock

Brand

DMG MORI

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Make:	Mori Seiki
Model No.:	MT3000/1500
Year of Manufacture:	2003
Condition:	Used – Good

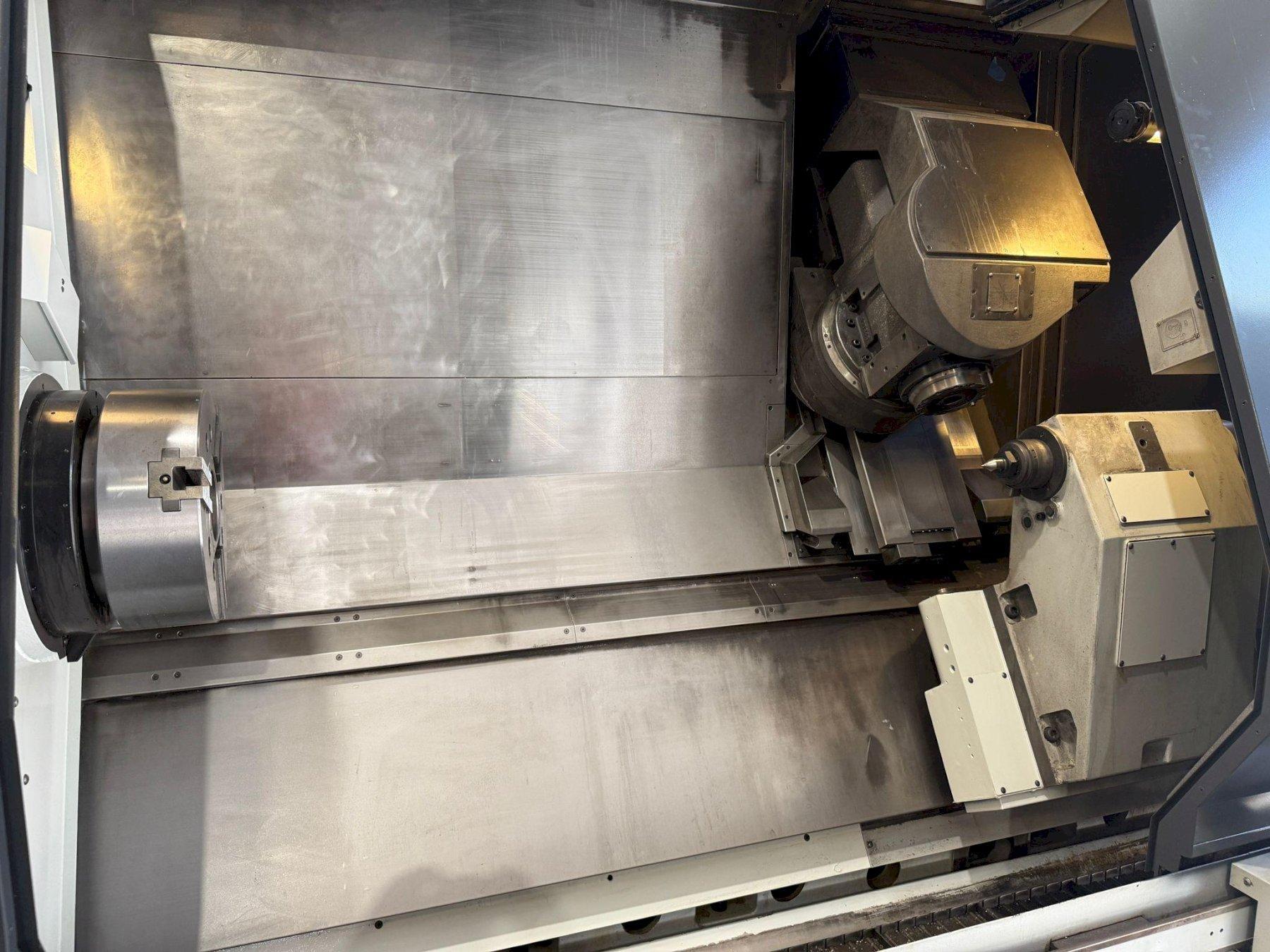

Equipped With:

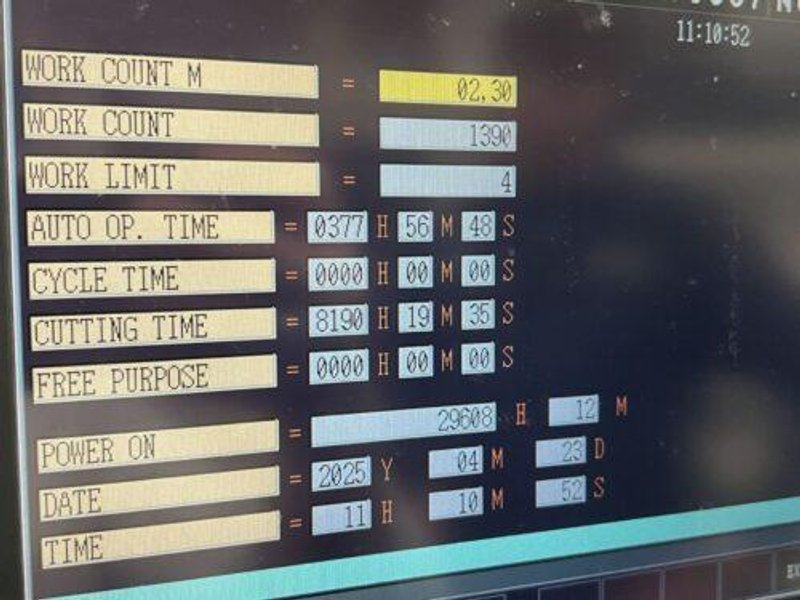

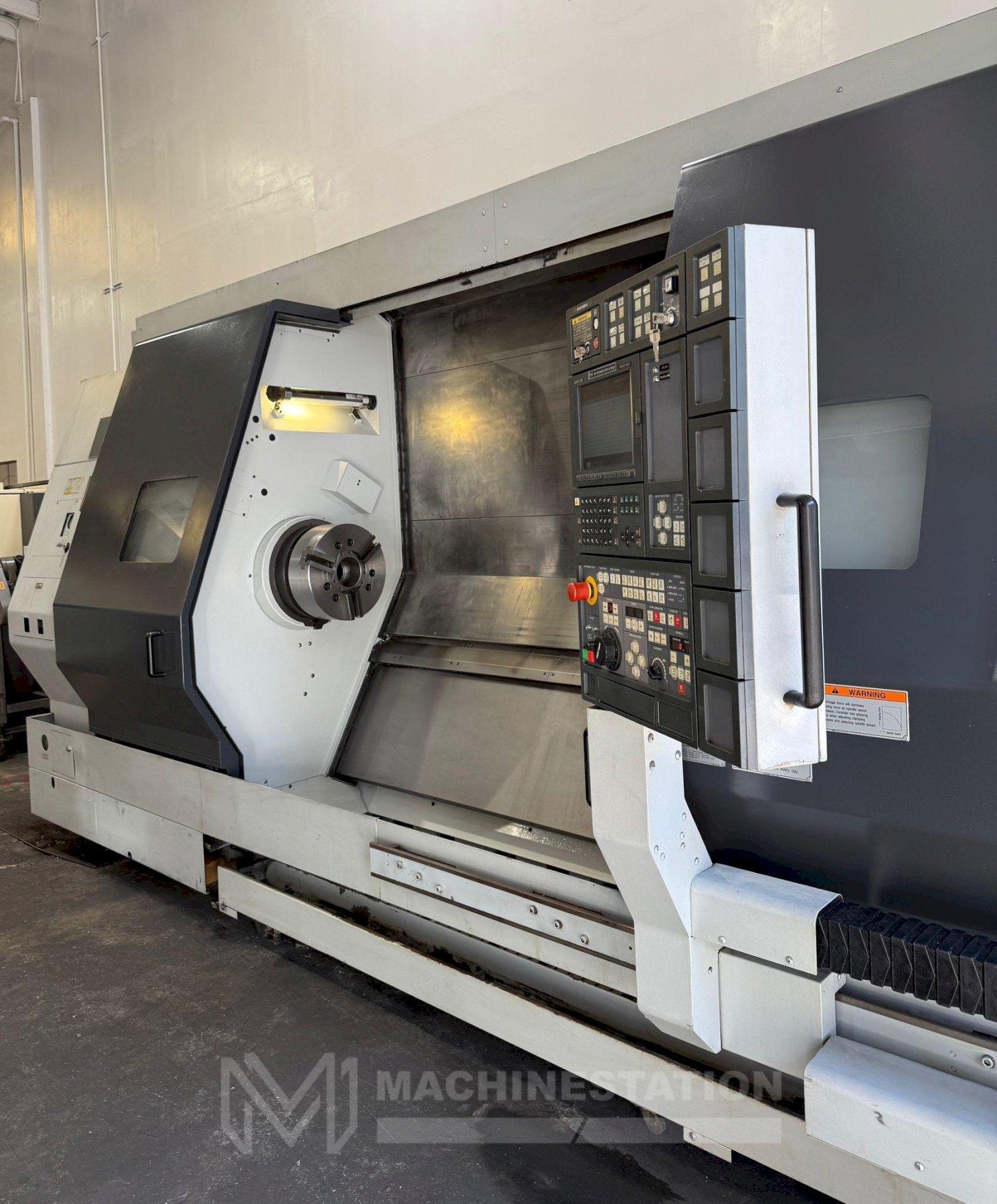

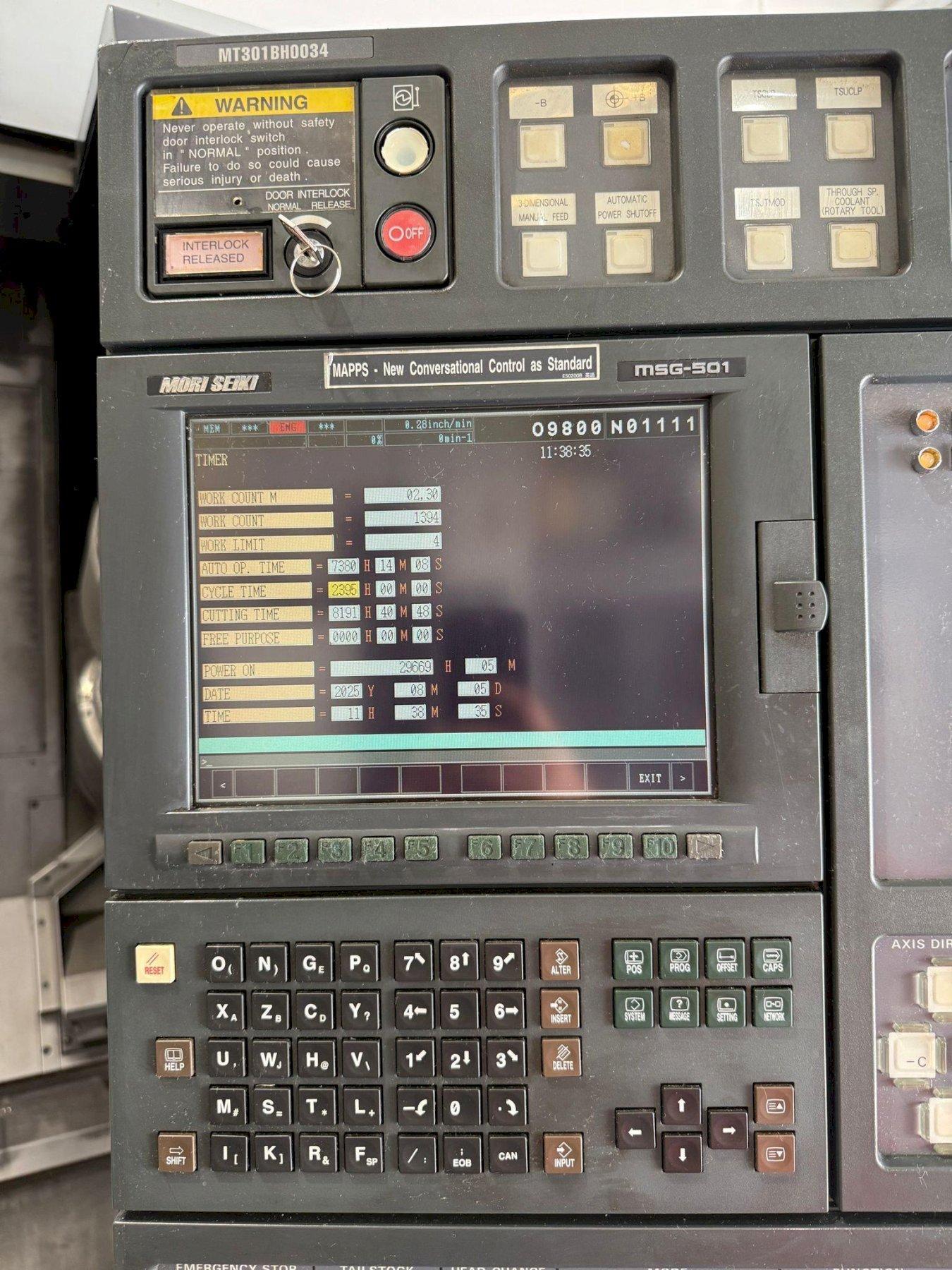

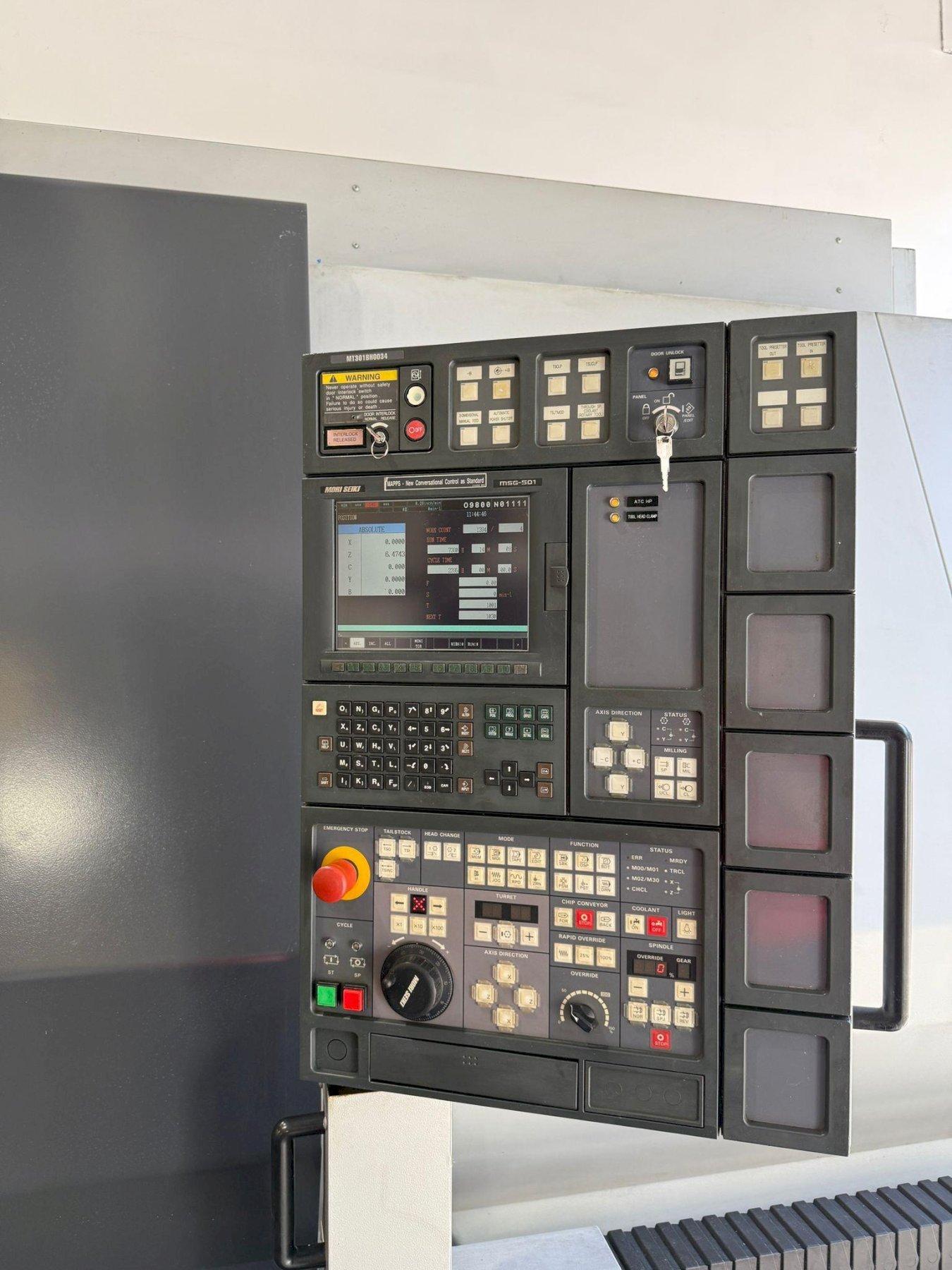

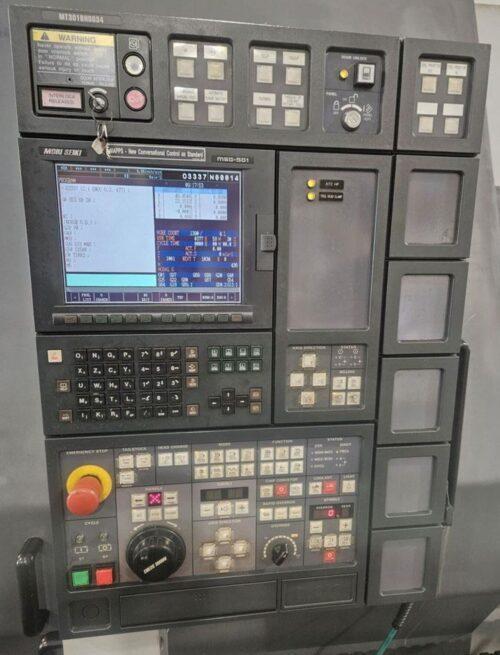

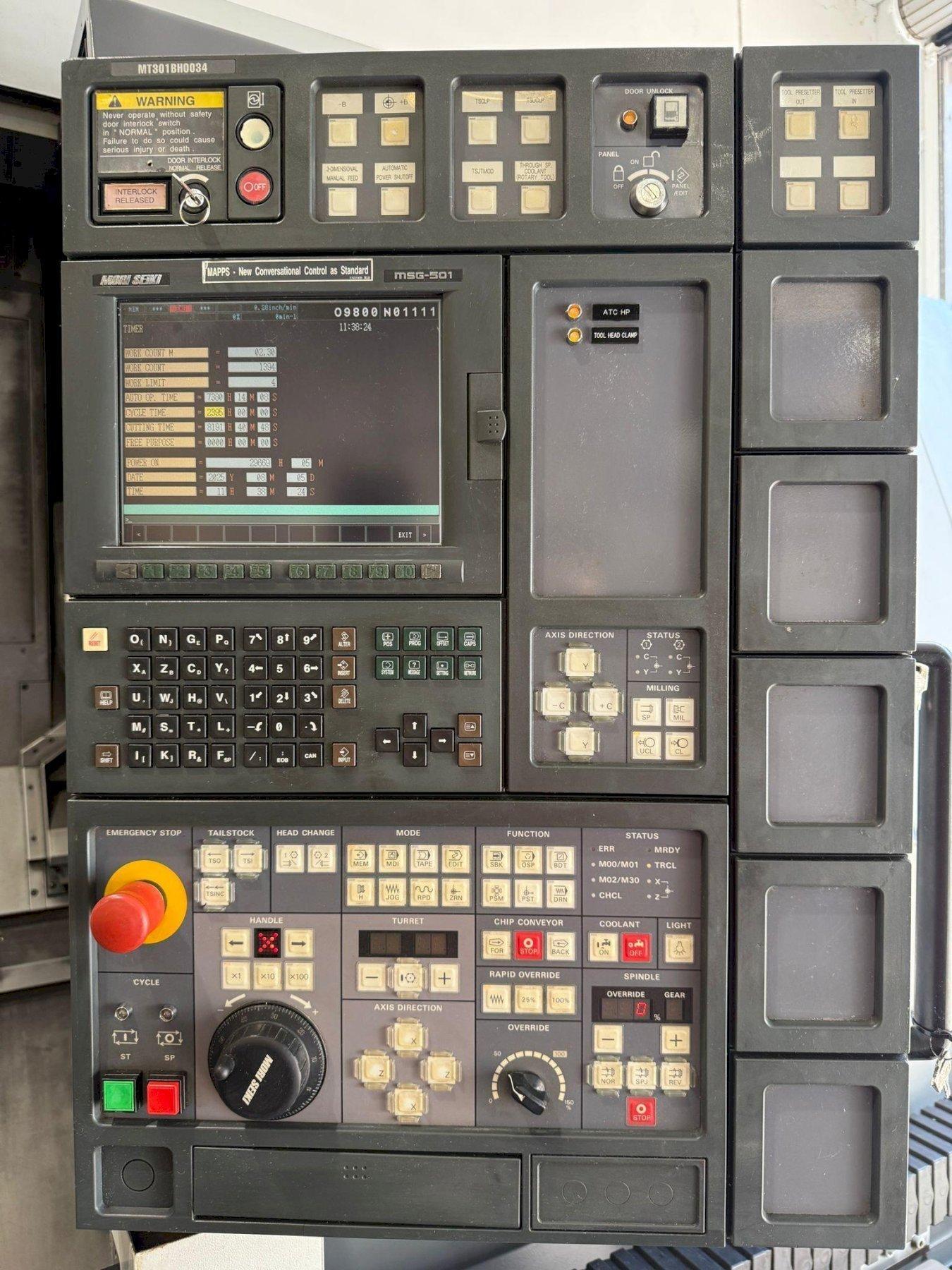

Mori Seiki MSG-501 (Fanuc) CNC Control

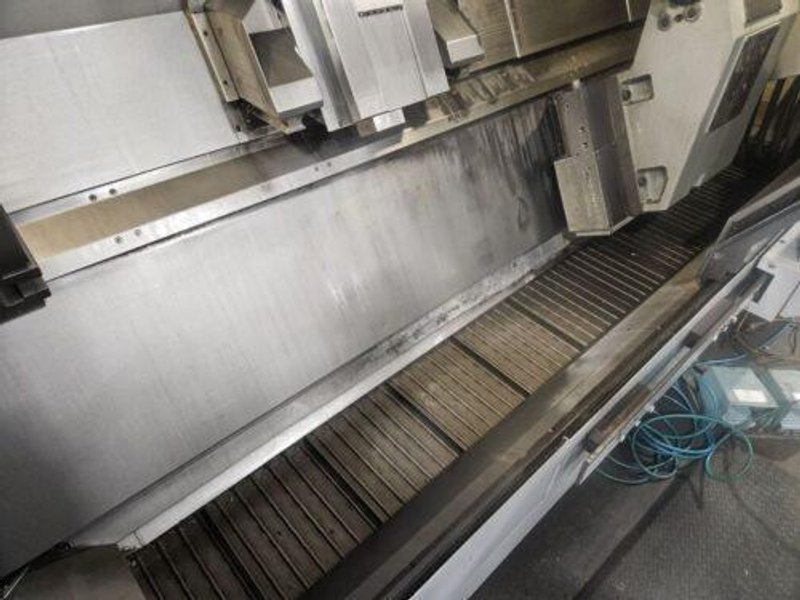

Linear Ways Construction

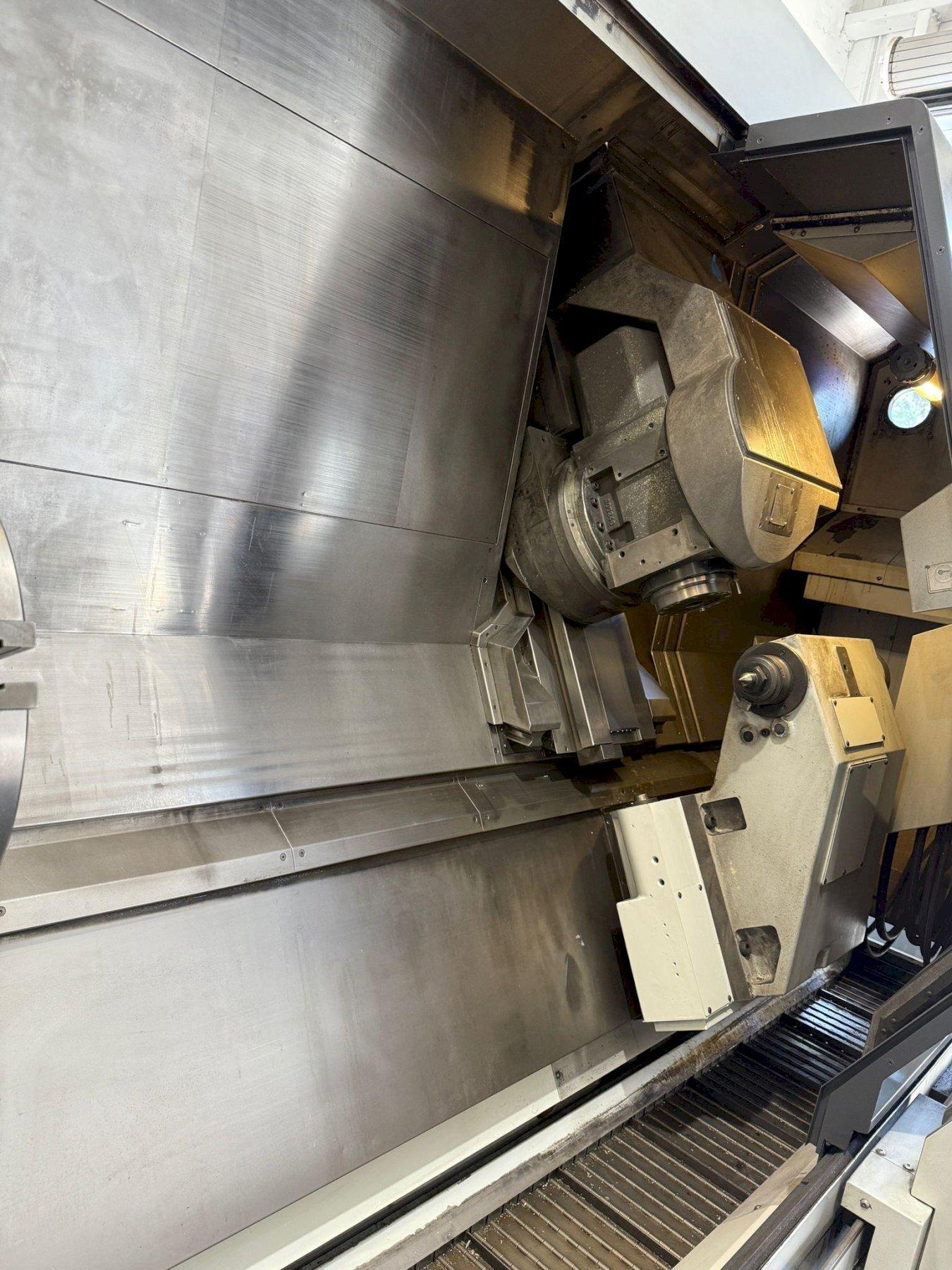

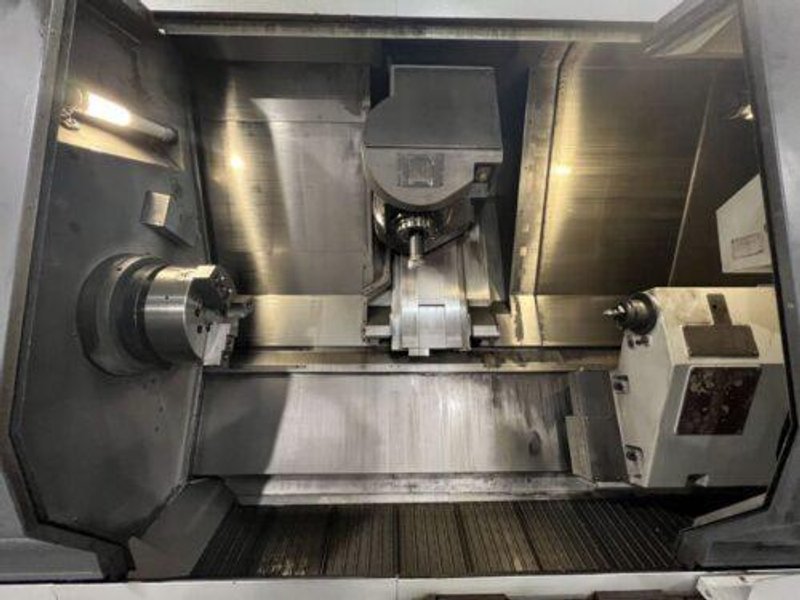

8,000 RPM Pendulum Milling Head
44 Station Tool Magazine

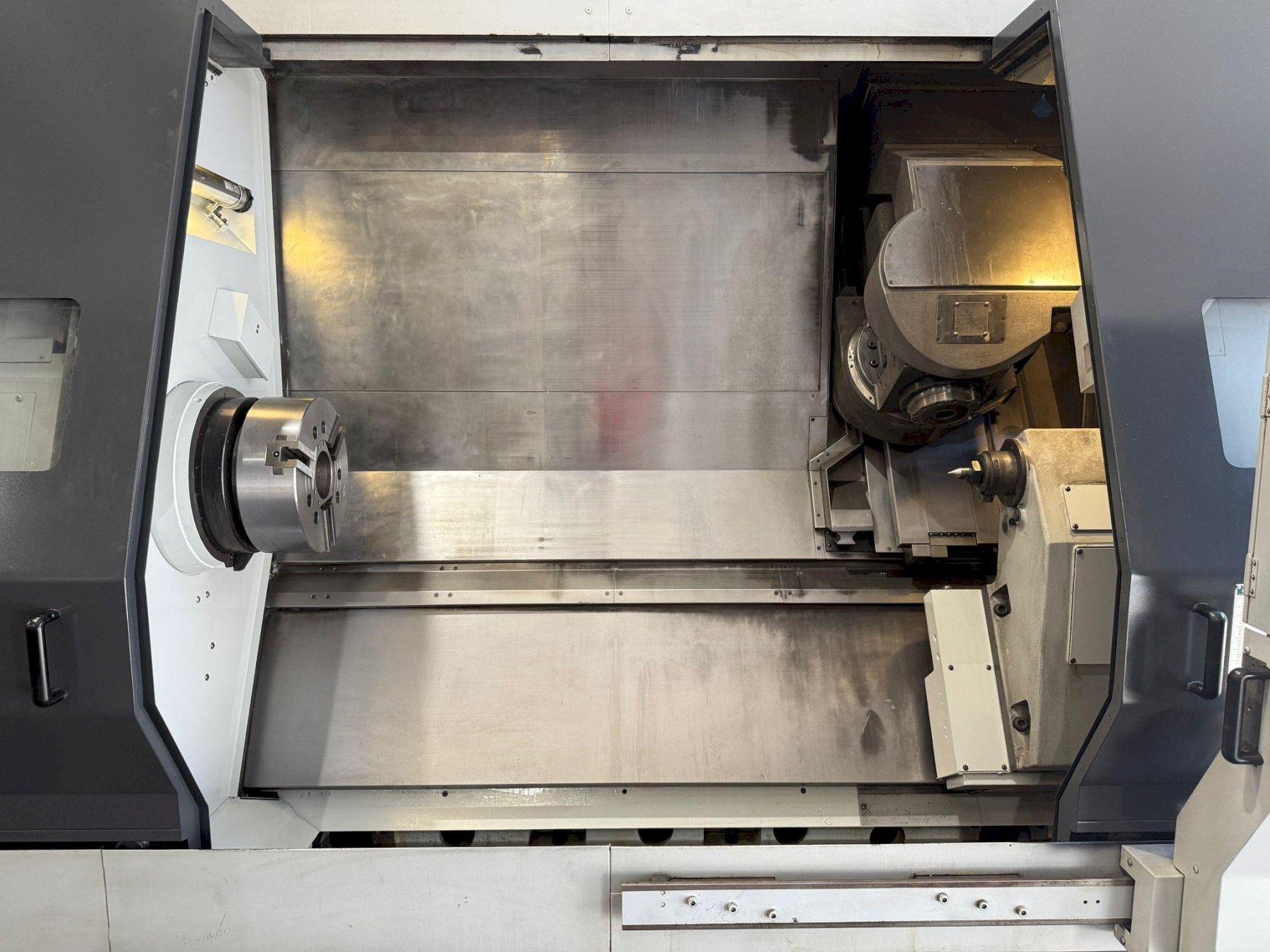

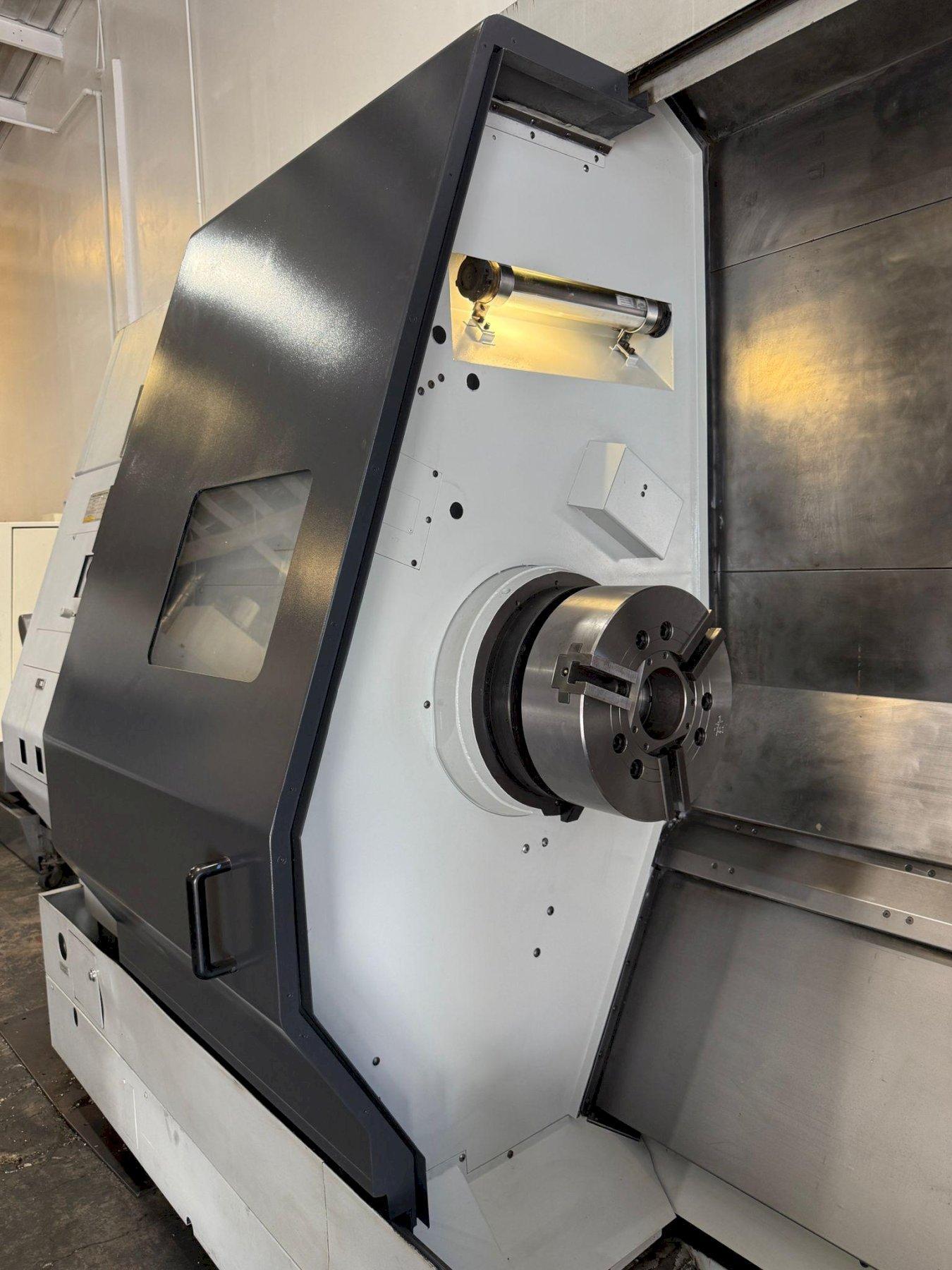

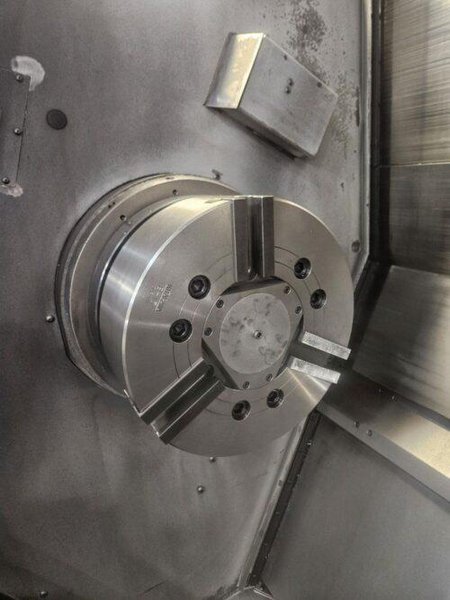

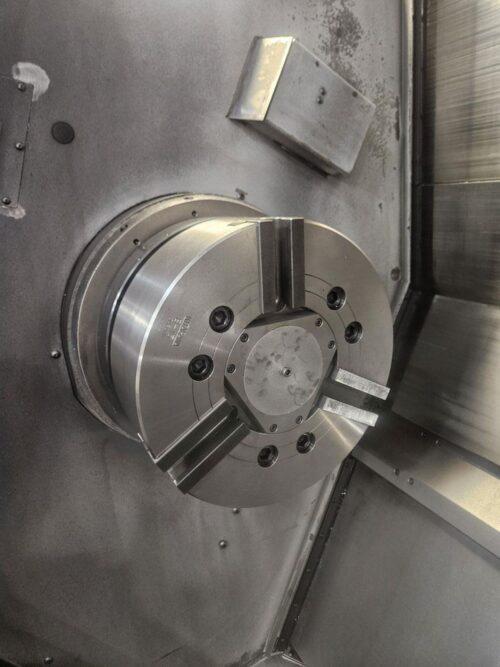

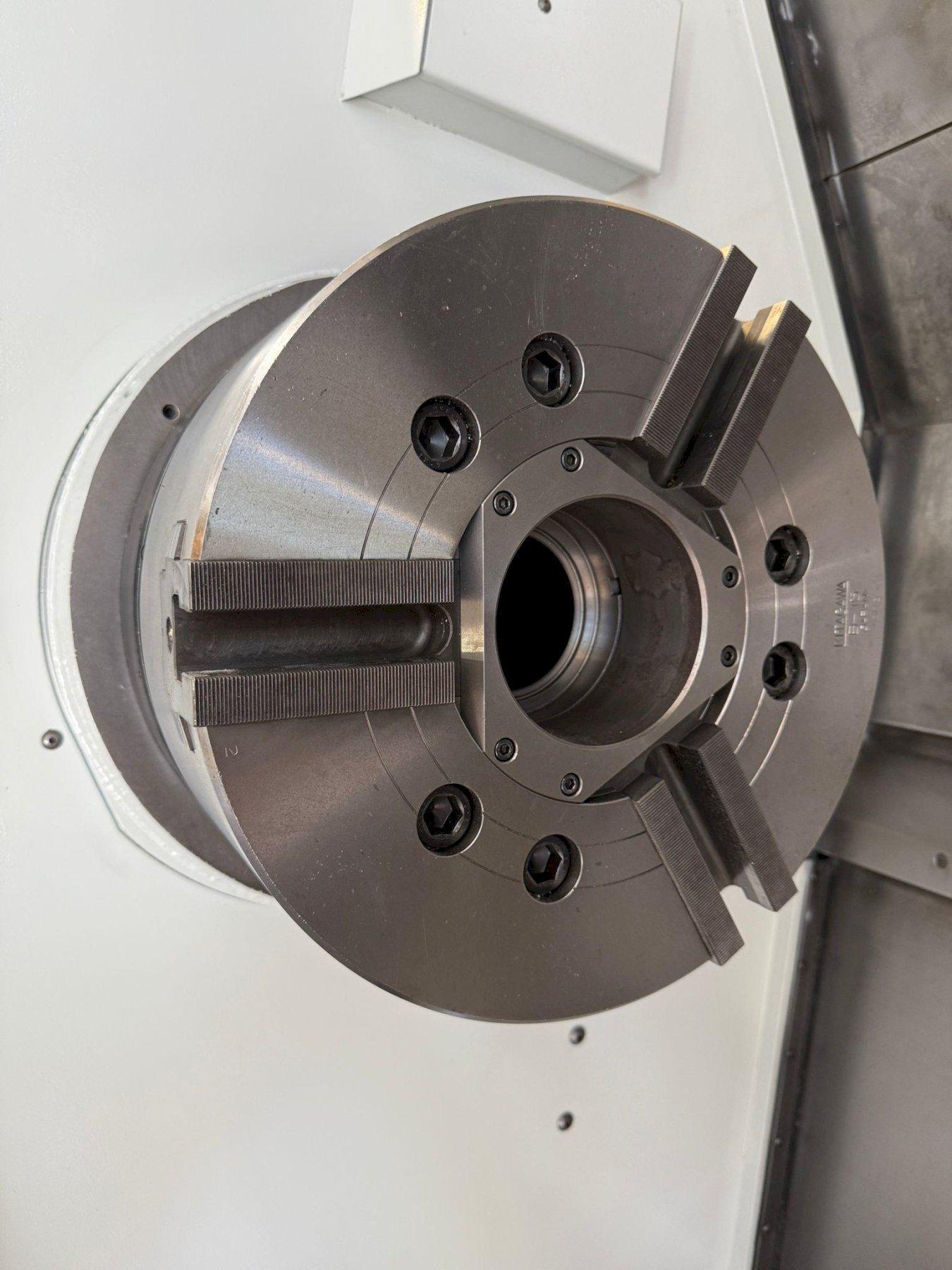

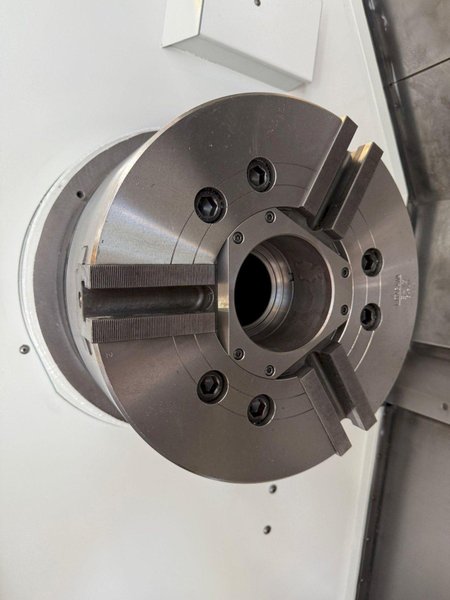

15″ 3-Jaw B-15 Kitagawa Chuck
Servo Controlled Full C-Axis on Spindles
Y-Axis on Upper Turret (Milling Head)
Tool Presetter

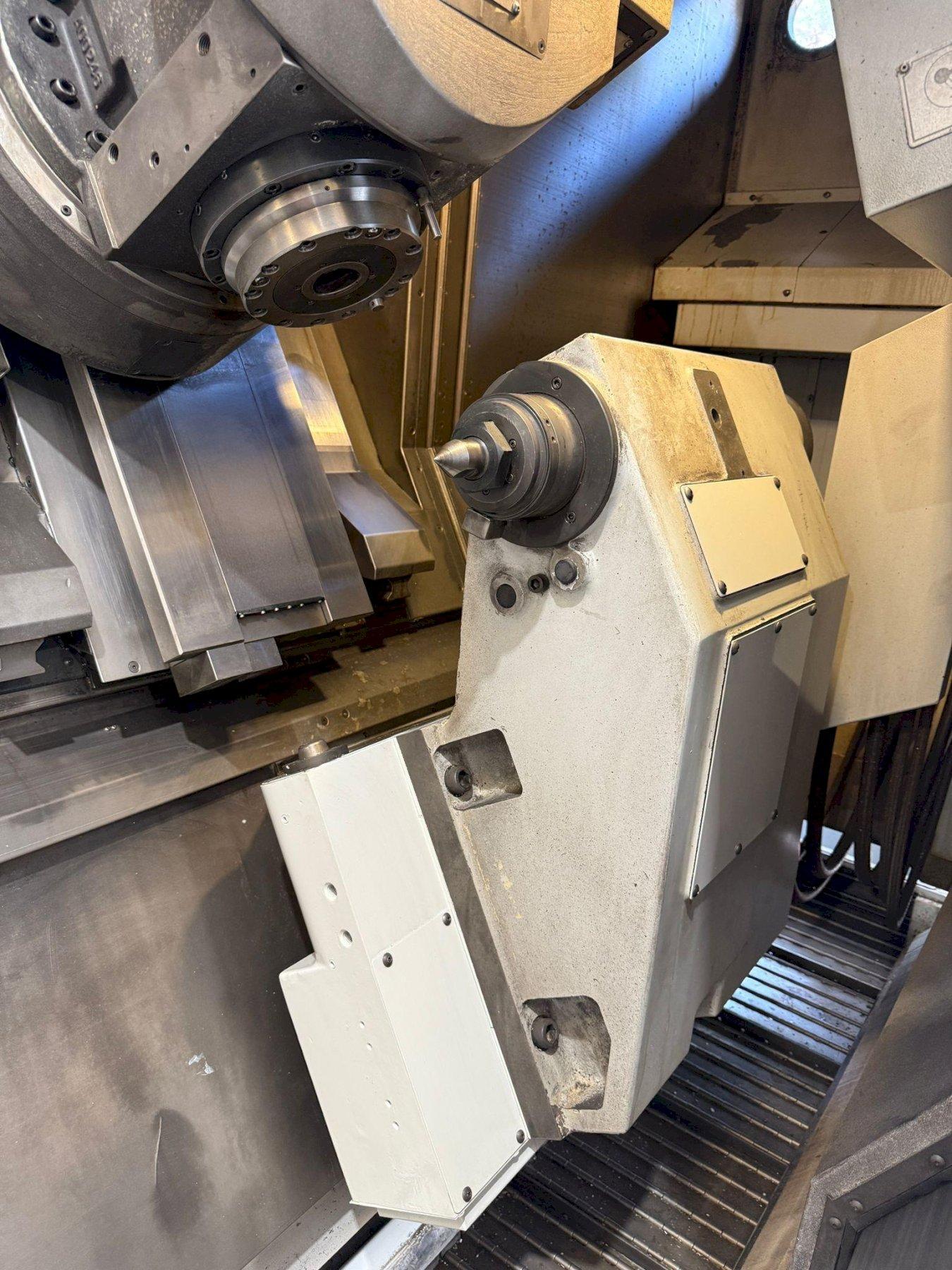

Tailstock
Rigid Tapping
Coolant System

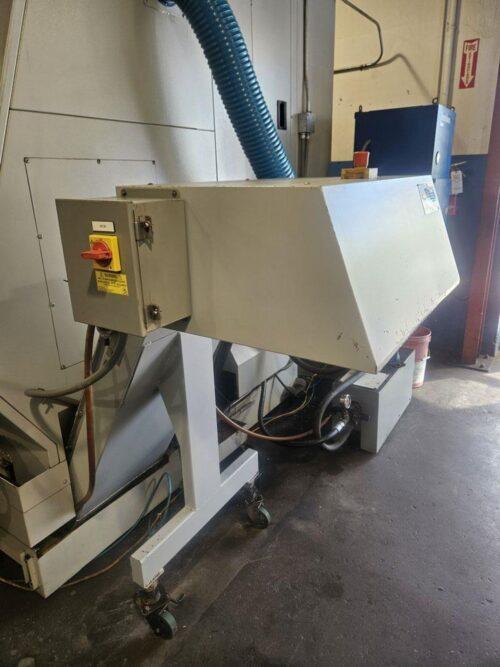

Chip Conveyor
Foot Switches

Capacity:
Max Turning Diameter: 22.44″
Max Turning Length: 60.00″
Max Swing Over Bed: 31.50″
Max Bar Capacity: 3.50″

Travel:
X Axis Travel: 25.0″
Z Axis Travel: 62.7″
Y Axis Travel: 8.6″ (+/- 4.3″)
B Axis Travel: -120° / +105°
C Axis: 360° (0.001°)
Rapid Traverse X Axis: 945 IPM
Rapid Traverse Z Axis: 1181 IPM
Rapid Traverse Y Axis: 945 IPM

Spindle:
Spindle Nose: A2-8
Spindle Bore: 4.1″
Bar Capacity: 3.5″
Spindle Speed: 30 – 3,000 RPM
Spindle Power: 40 HP

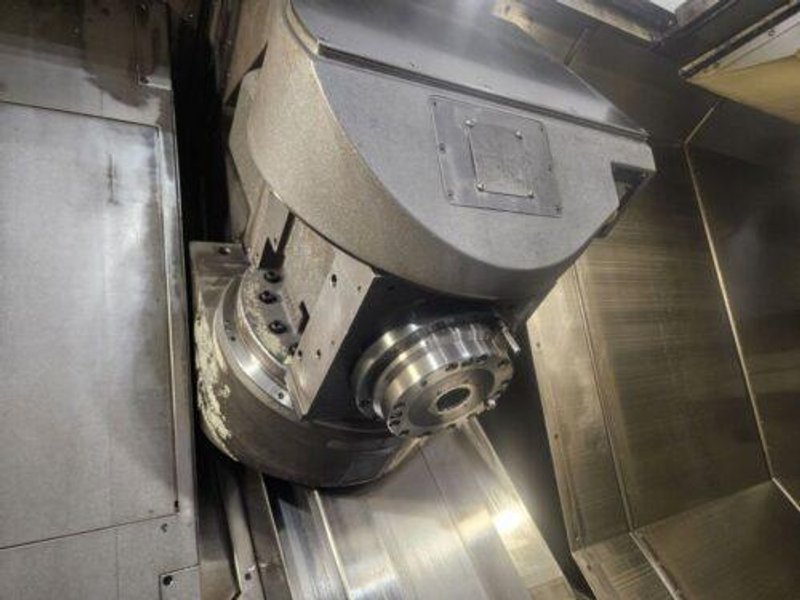

Milling Head:
Single Station Pendulum Head with 44 ATC
B Axis Indexing: -120° / +105°, 0.001 Degree
Tool Type: CAPTO C6
Tool Spindle Speed: 8,000 RPM
Tool Spindle Motor: 15 HP

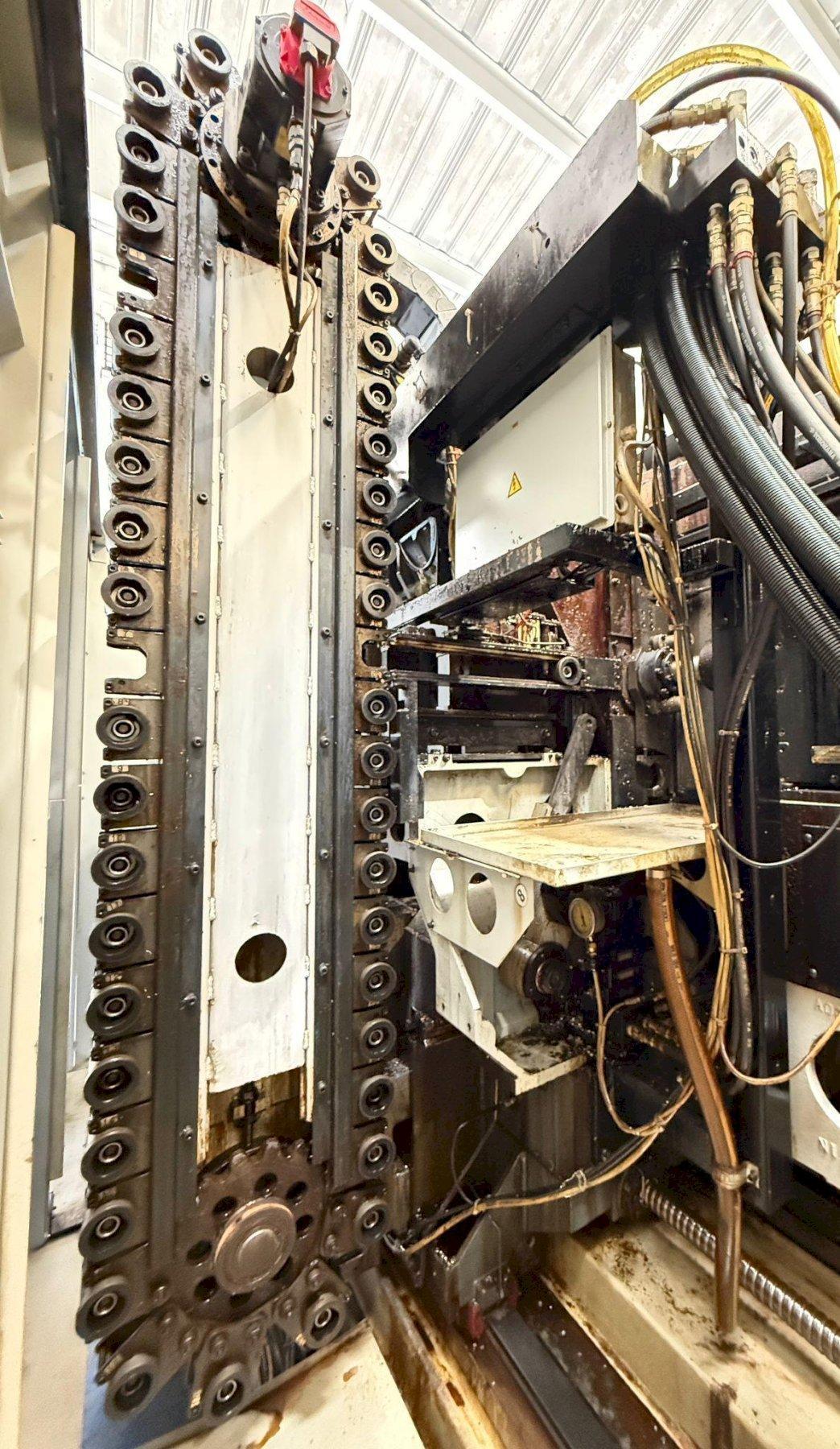

Automatic Tool Changer:
Capacity: 44 Tools
Tool Type: CAPTO C6
Max Tool Diameter: 3.54″ – 4.72″
Max Tool Length: 11.81″
Max Tool Weight: 17.63 lbs
Tool Change Time: 4.2 Seconds

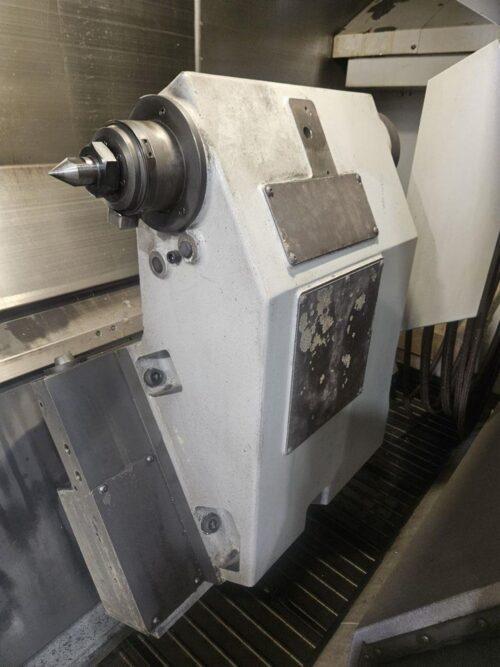

Tailstock:
Tailstock Taper: MT-5
Tailstock Quil Diameter: 4.33″
Tailstock Quil Travel: 5.90″

General:

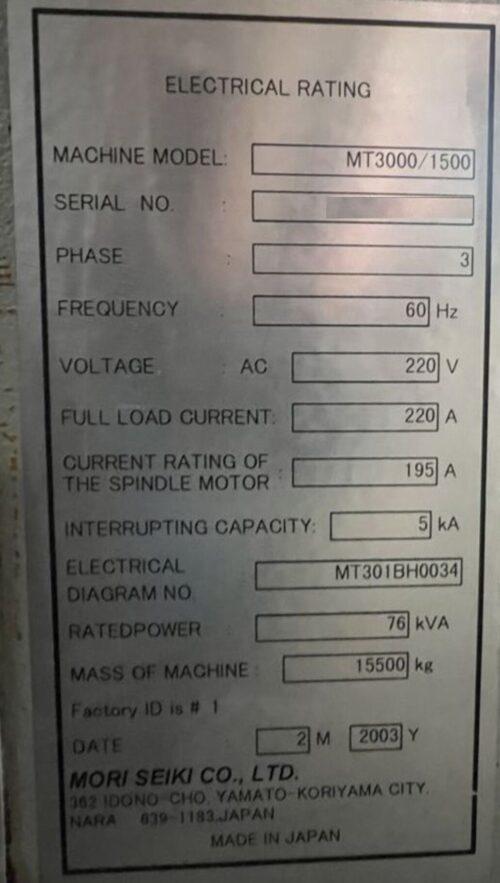

Power Source: 220v / 3-Phase / 60 Hz
Power Requirement: 76 kva
Overall Dimensions: 227″ x 120″ x 130″ High Approx.
Weight: 34,170 lbs Approx.
