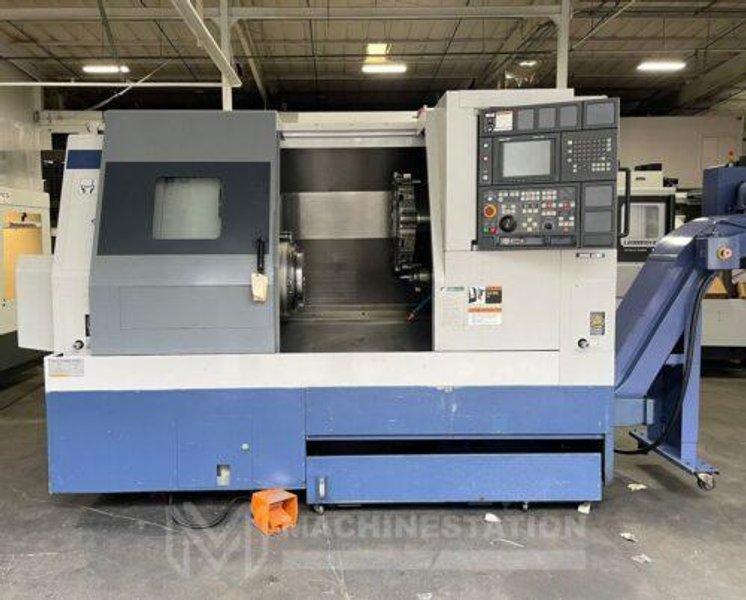

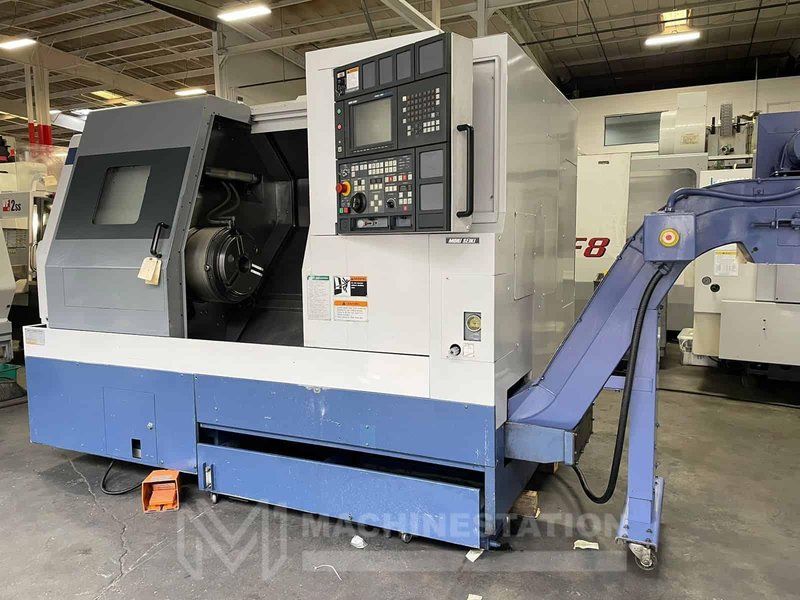

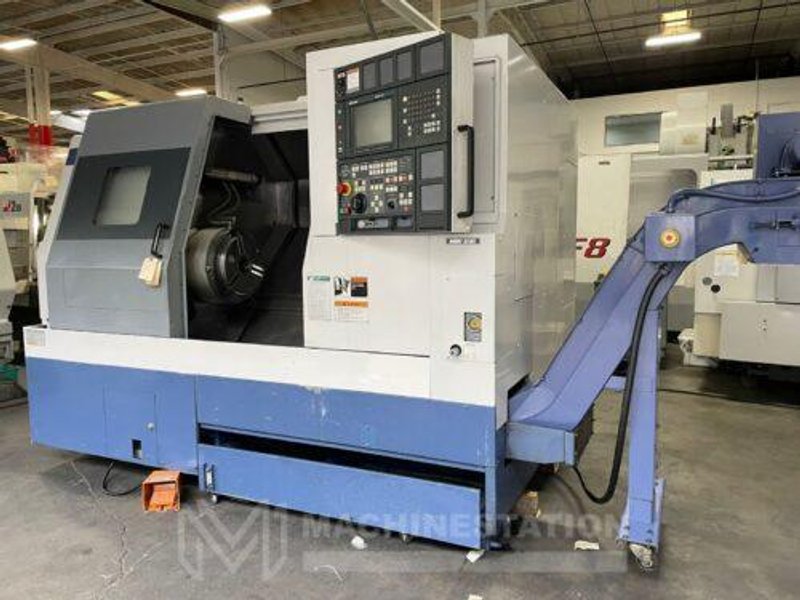

Mori Seiki SL-300A CNC Turning Center – 12″ Chuck Lathe

Mori Seiki SL-300A CNC Turning Center – 12″ Chuck Lathe

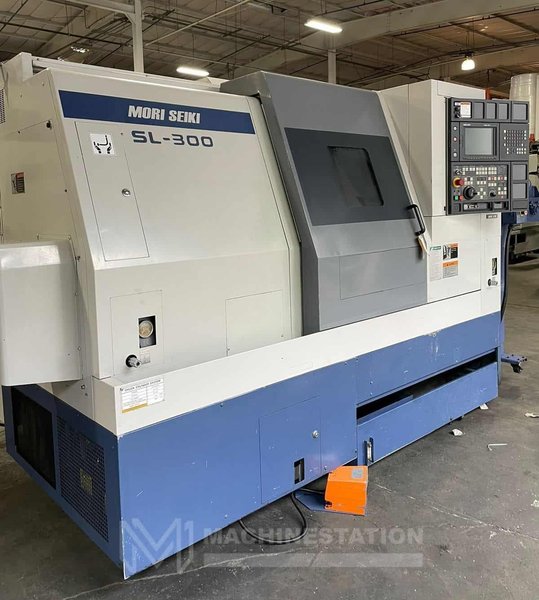

Name: Mori Seiki SL-300A CNC Turning Center – 12″ Chuck Lathe
Brand: DMG MORI
SKU: 112746
Availability: InStock

Brand

DMG MORI

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Make:	Mori Seiki
Model:	SL300A
Year:	1998
Condition:	Used – Good

Equipped With:

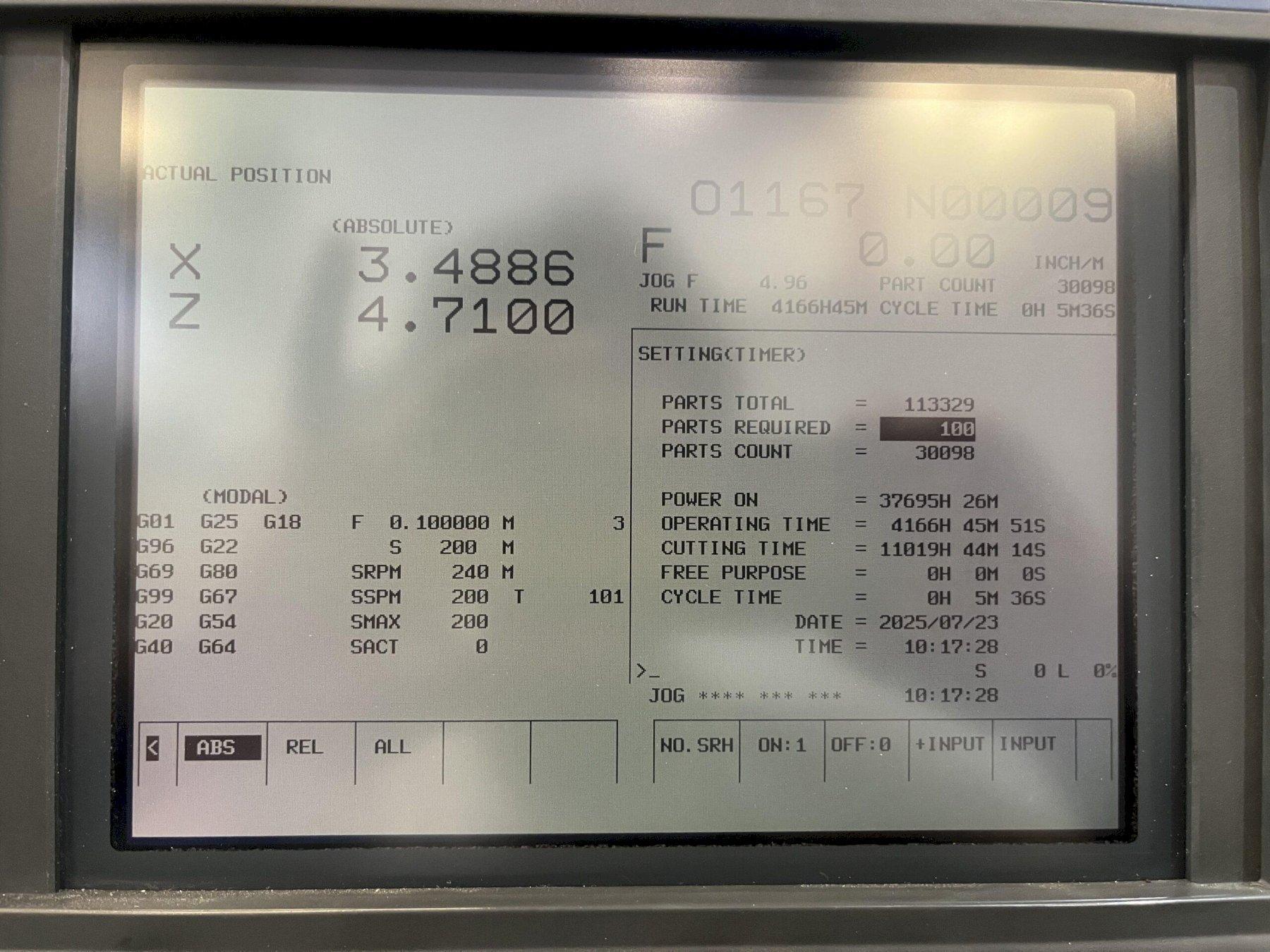

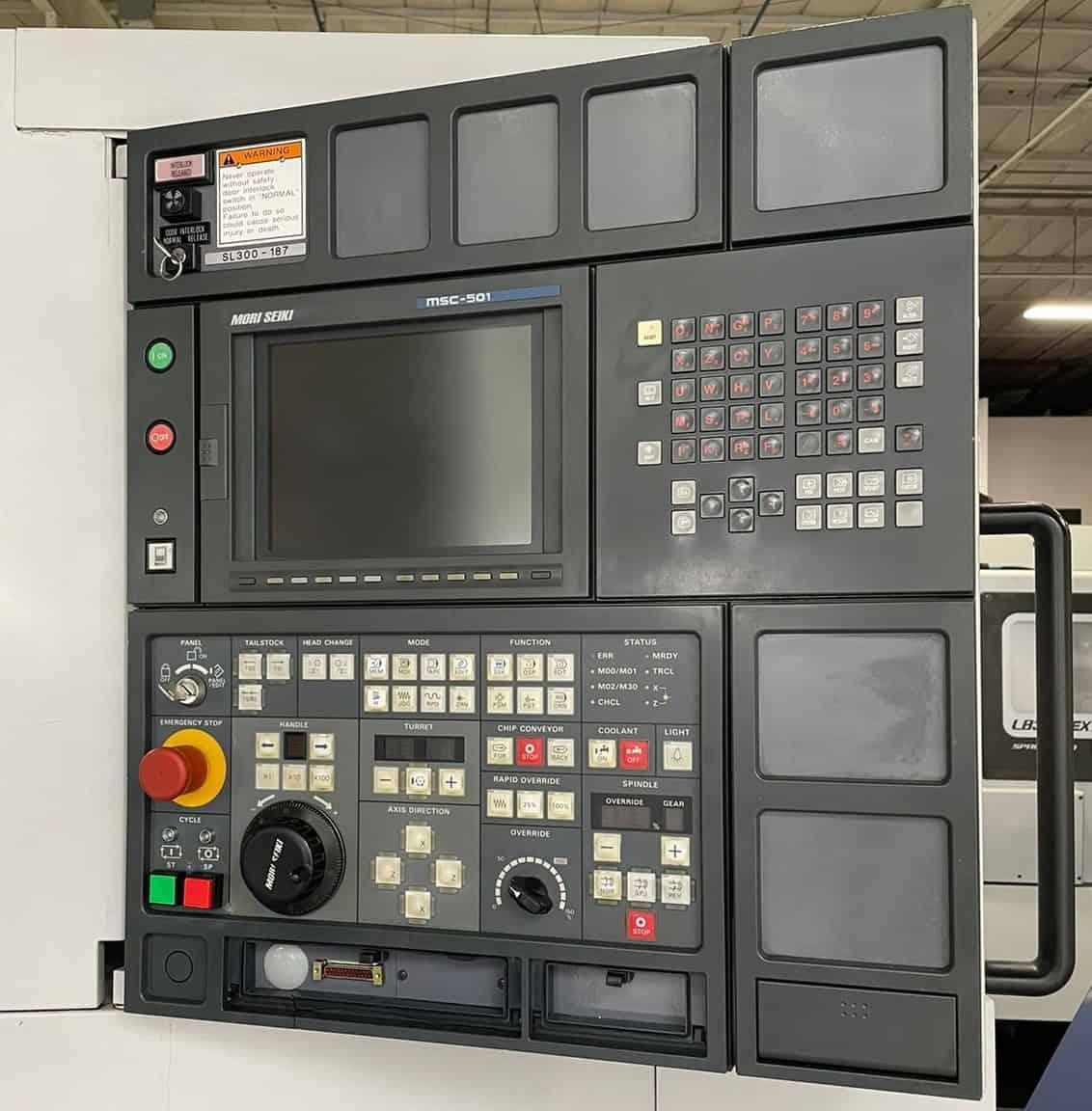

Mori Seiki MSC-501 (Fanuc) CNC Control

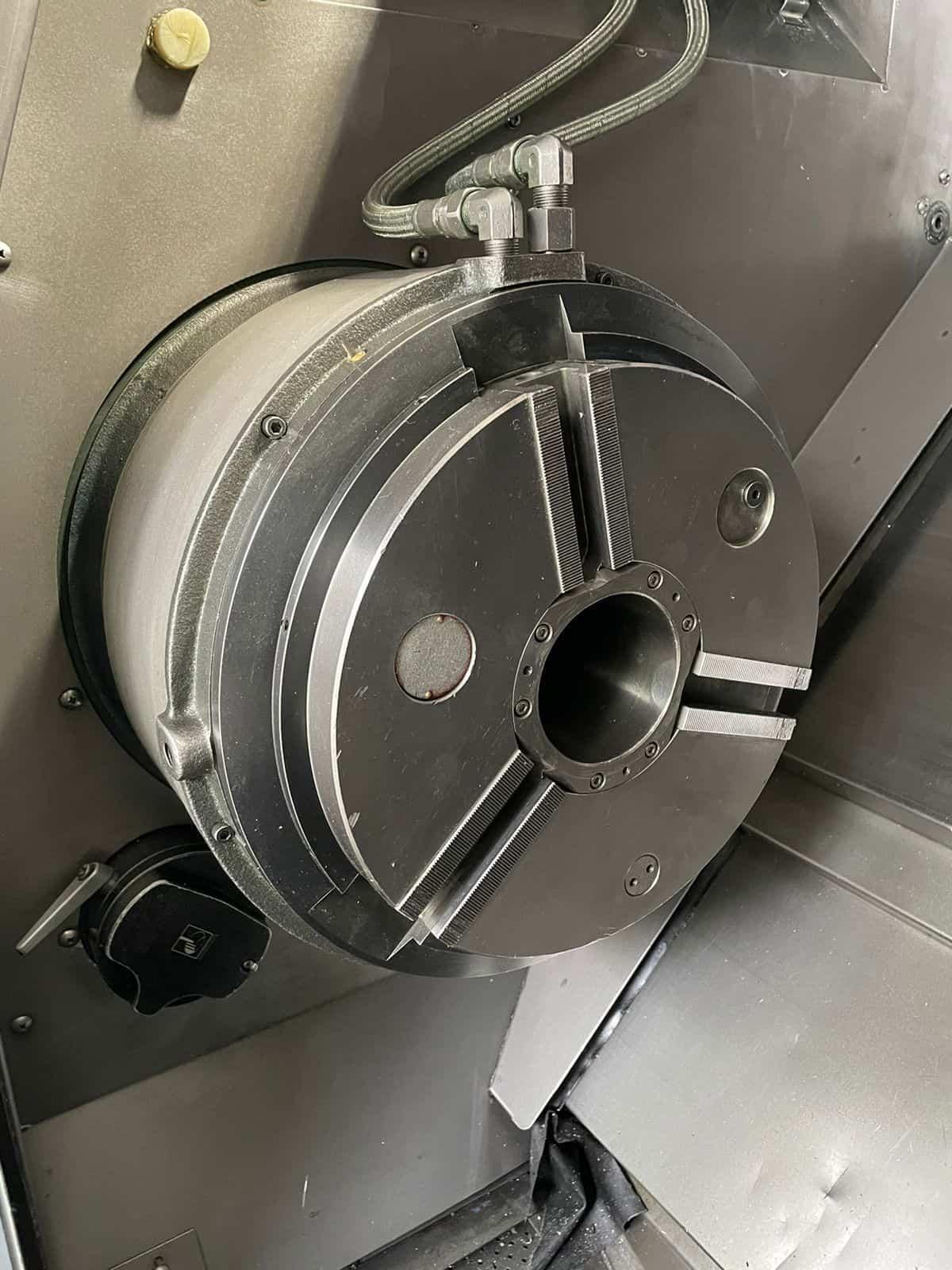

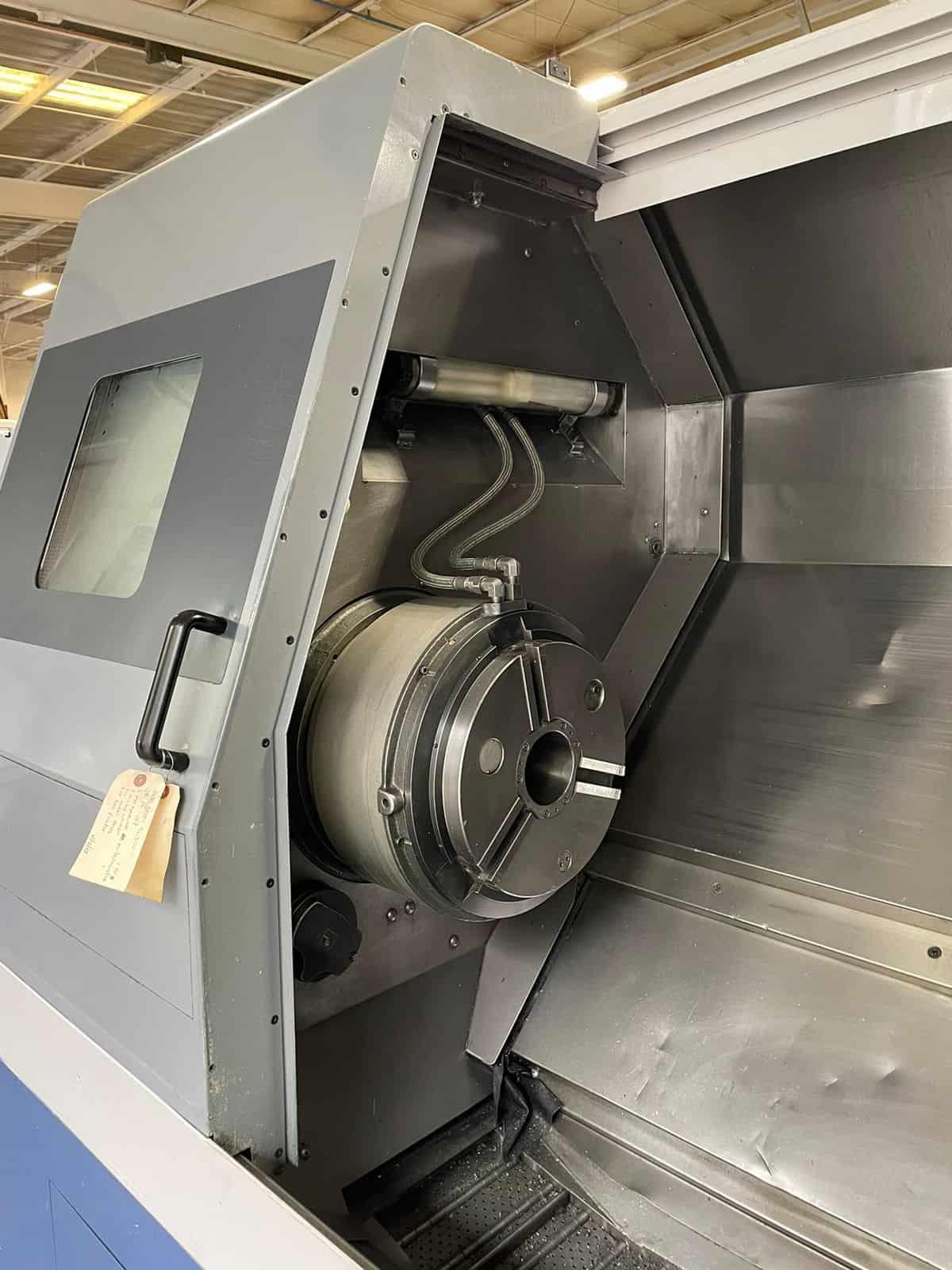

12″ 3-Jaw Air Chuck
12 Station Automatic Turret
Tool Presetter
2 Step gear spindle for powerful torque
RS-232 Port
Hydraulic Tailstock with Power Quill
Rigid Tapping
Coolant System

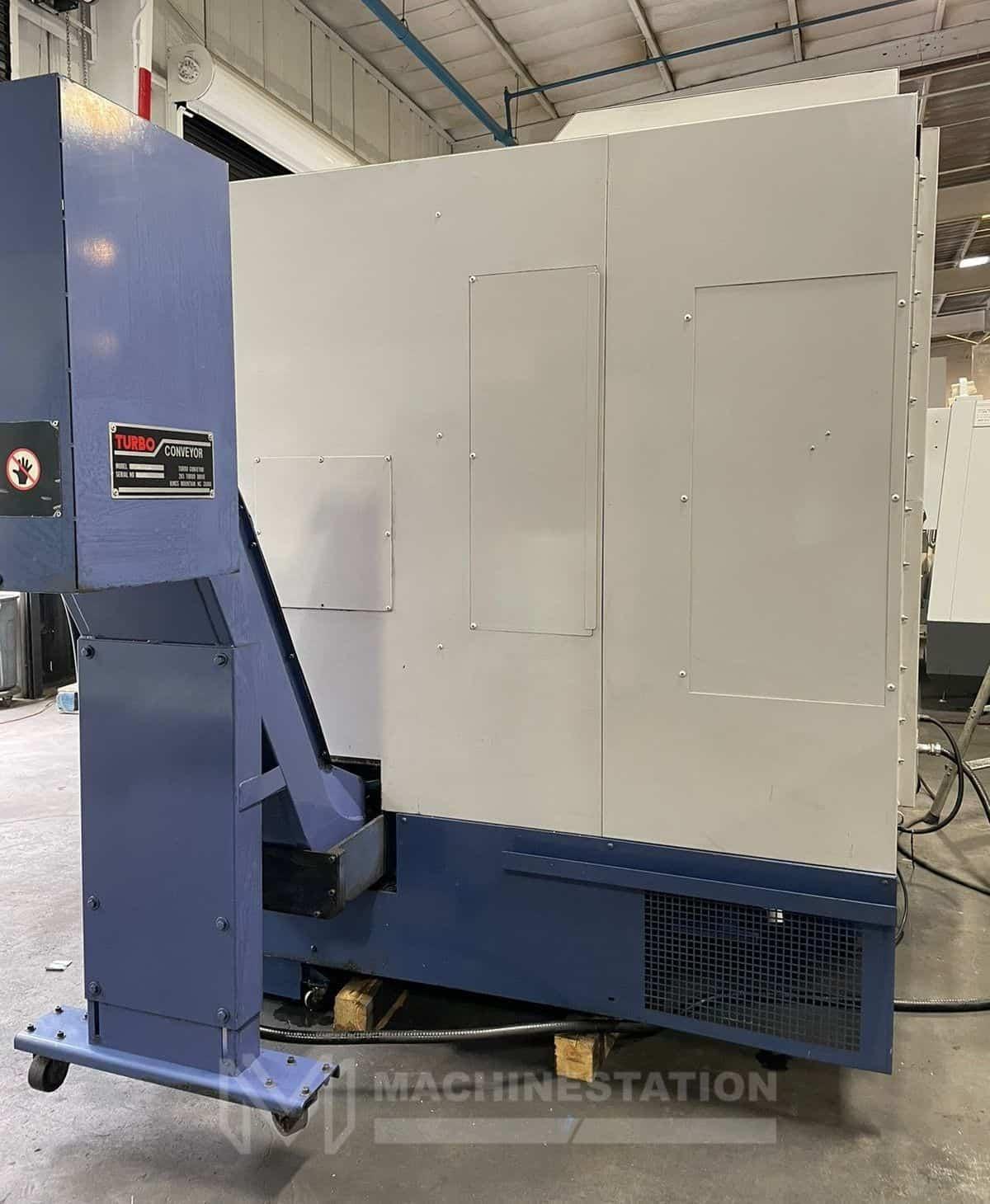

Turbo Chip Conveyor
Foot Switch

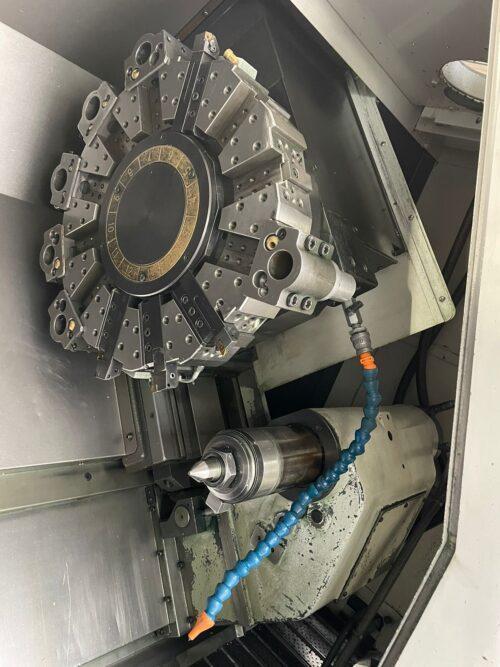

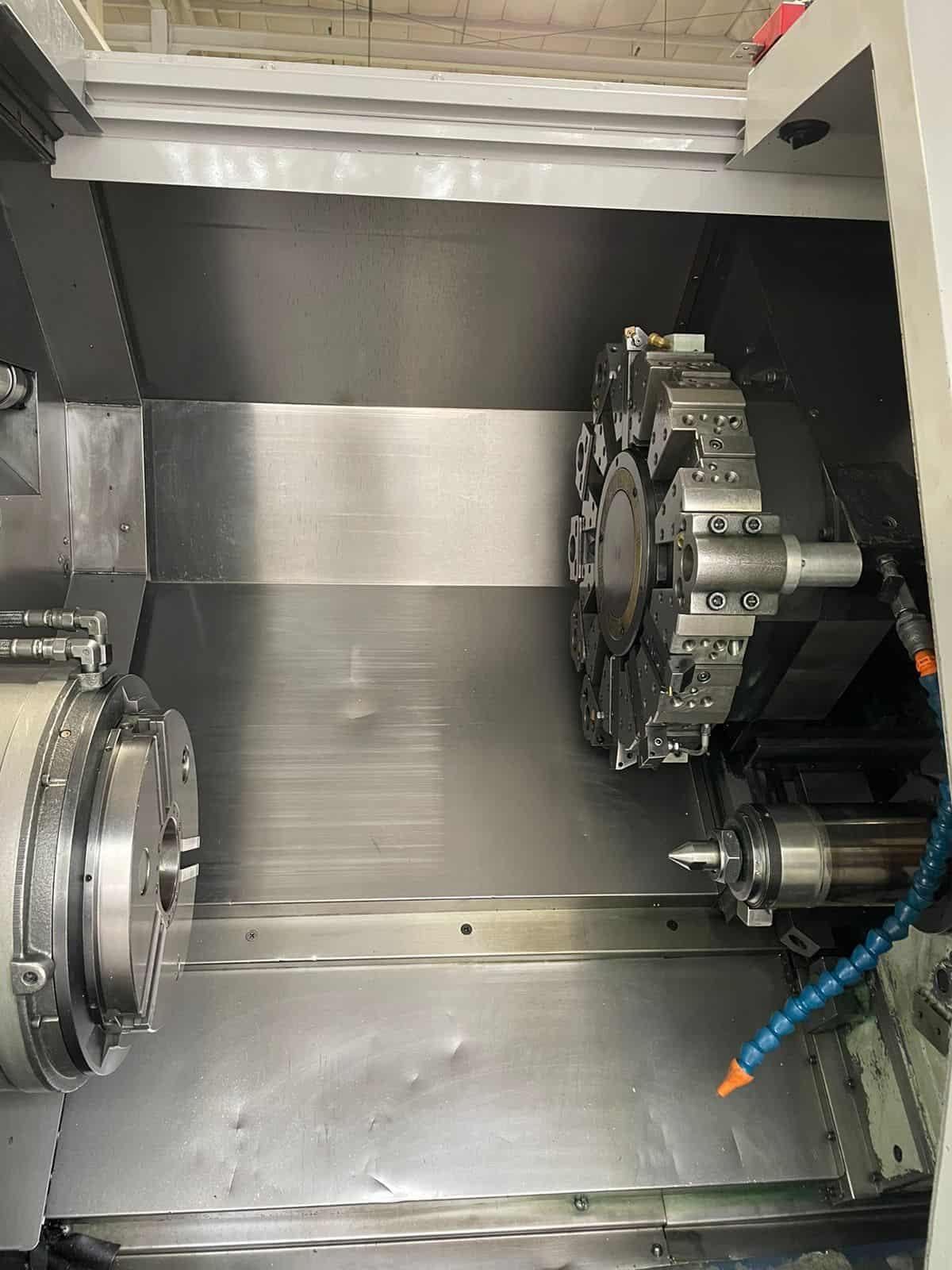

(4) Turning Tools & (6) Boring Tool Holders are Mounted on Turret (As shown in the images)

Capacity:
Max Turning Diameter: 16.5″
Max Turning Length: 27.9″
Max Bar Capacity: 3.4″
Swing Over Bed: 28″
Distance Between Centers: 31.5″

Travel:
X Axis Travel: 9.84″
Z Axis Travel: 31.49″
Rapid Traverse X Axis: 790 IPM
Rapid Traverse Z Axis: 940 IPM

Spindle:
Spindle Nose: A2-8
Spindle Bore: 3.4″
Spindle Speed: 35 – 3500 RPM
Spindle Motor: 30 HP

Turret:
Turret Capacity: 12 Stations
Tooling Type: BMT
Shank Height For Square Tool: 1.0″
Shank Diameter For Boring Bar: 2.0″
Turret Index Time: 0.5 Second

Tailstock:
Tailstock Quill Dia.: 4.3″
Tailstock Quill Stroke: 5.9″
Tailstock Taper: MT-5

General:

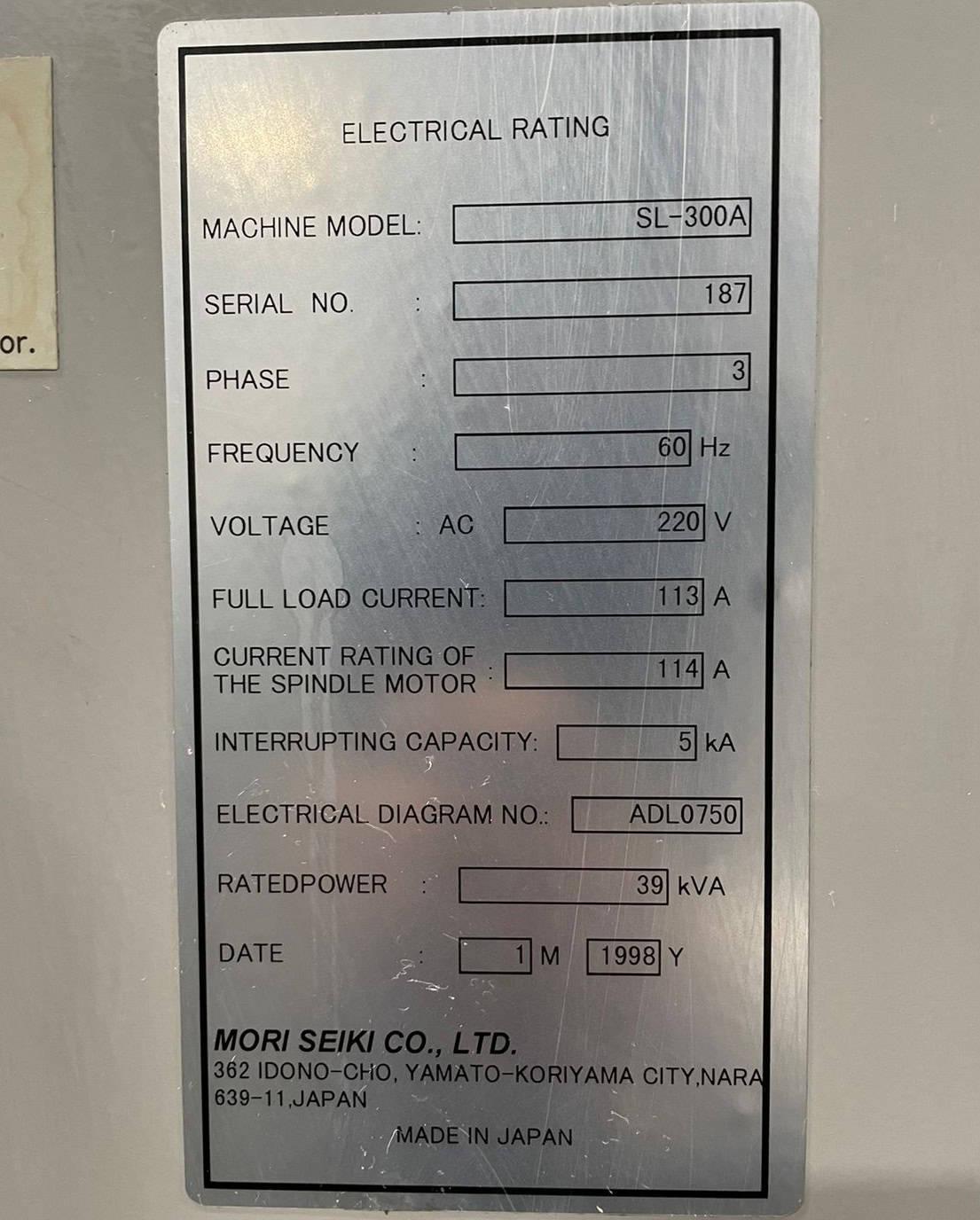

Power Source: AC 220 V, Three Phase, 60 Hz
Power Requirement: 39 kva
Overall Dimensions: 137″ X 84″ X 94″ High Approx.
Weight : 15,000 lbs. Approx.
