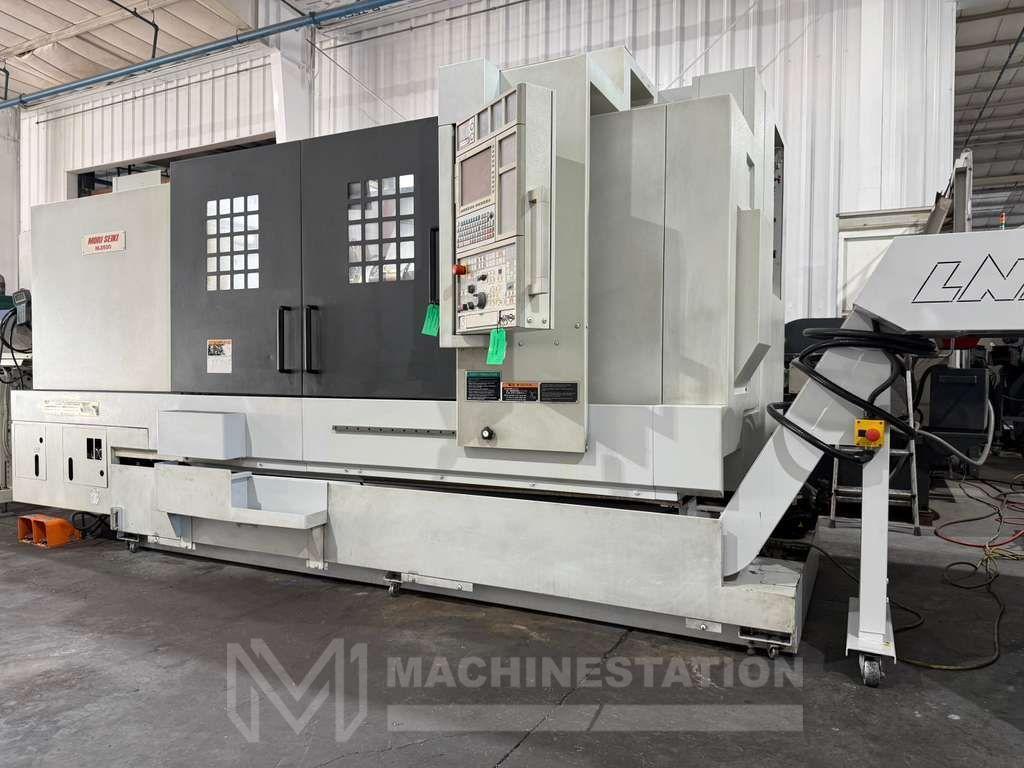

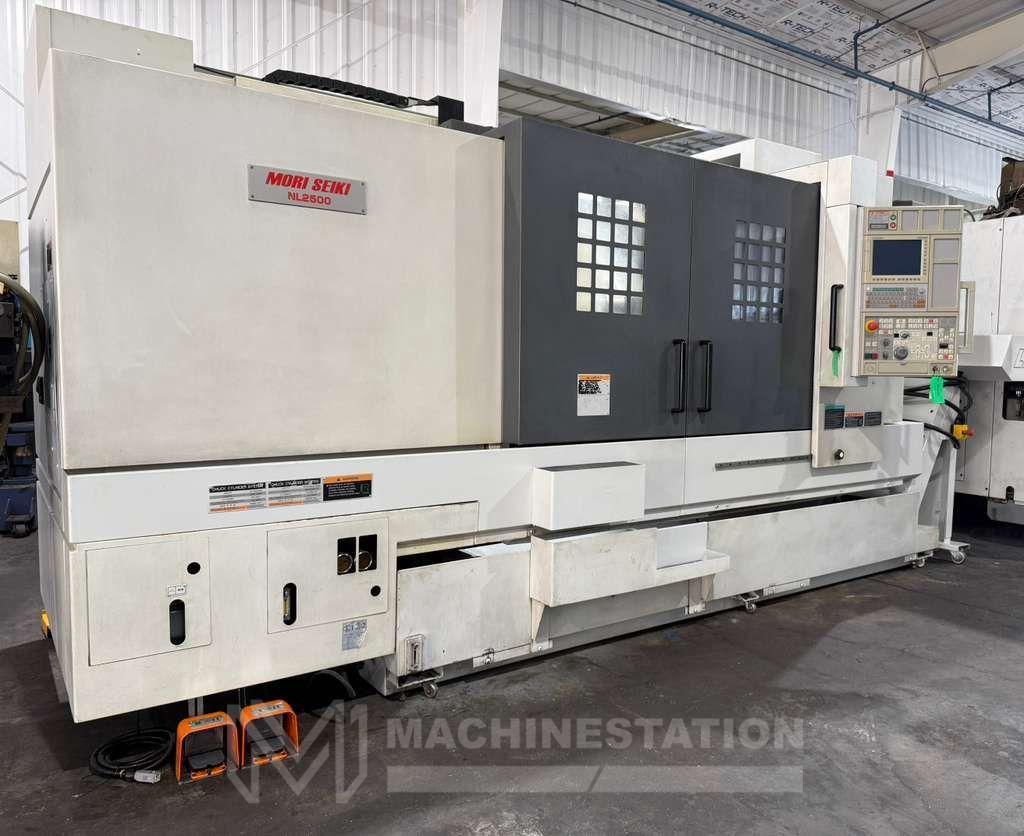

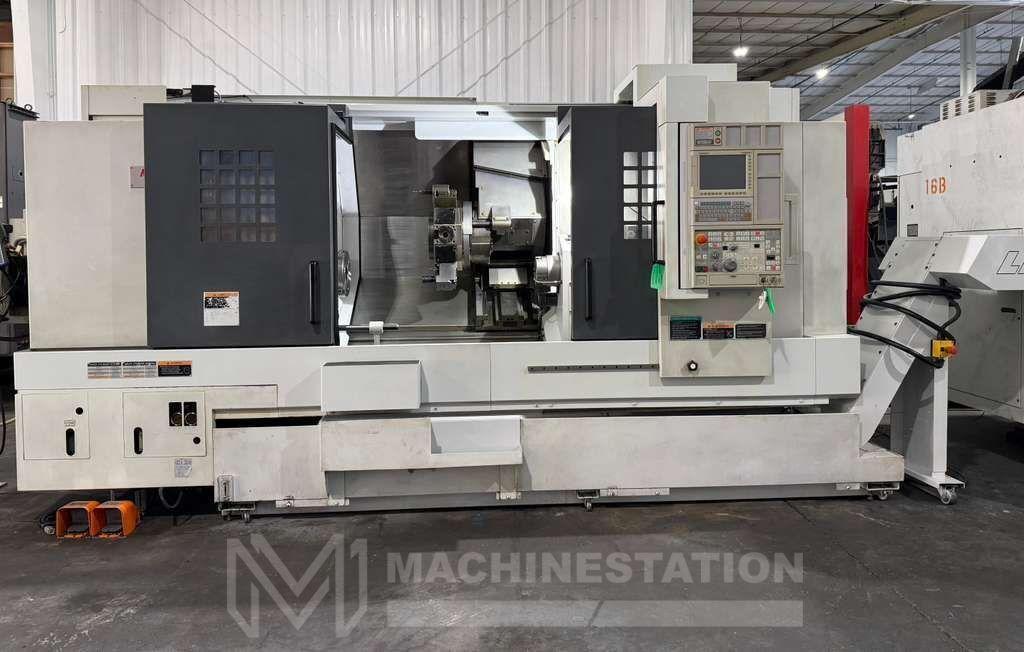

Mori Seiki NL2500SY/1250 CNC Turning Center – Long Bed Sub Spindle Y Axis Lathe

Brand
MORI SEIKI
Category
Lathes & Turning Machines
Type
Turning Centers
Model
: Mori Seiki NL2500SY/1250
Stock #
112892
Year
2011
Condition
Not specified

Location

Not specified
REQUEST FINANCING

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make: Mori Seiki
Model: NL2500SY/1250
Year: 2011
Condition: Used – Good
Equipped With:

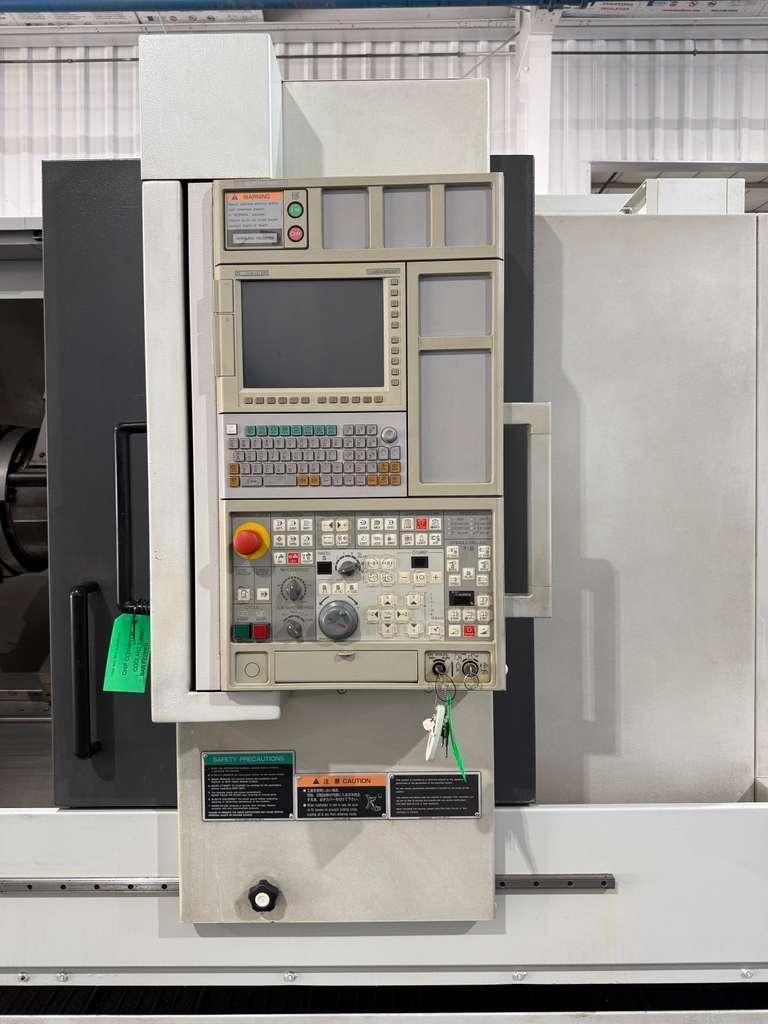

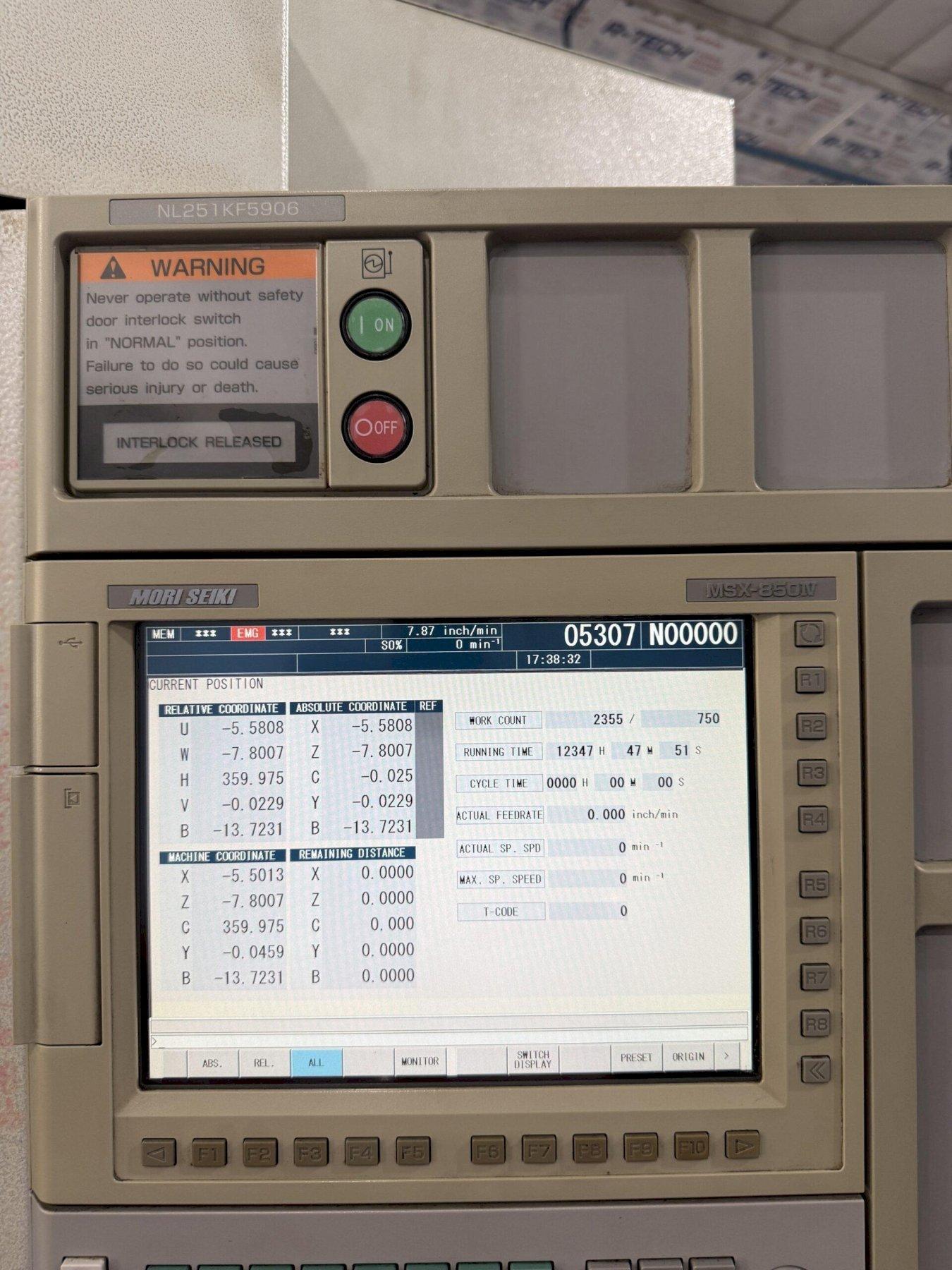

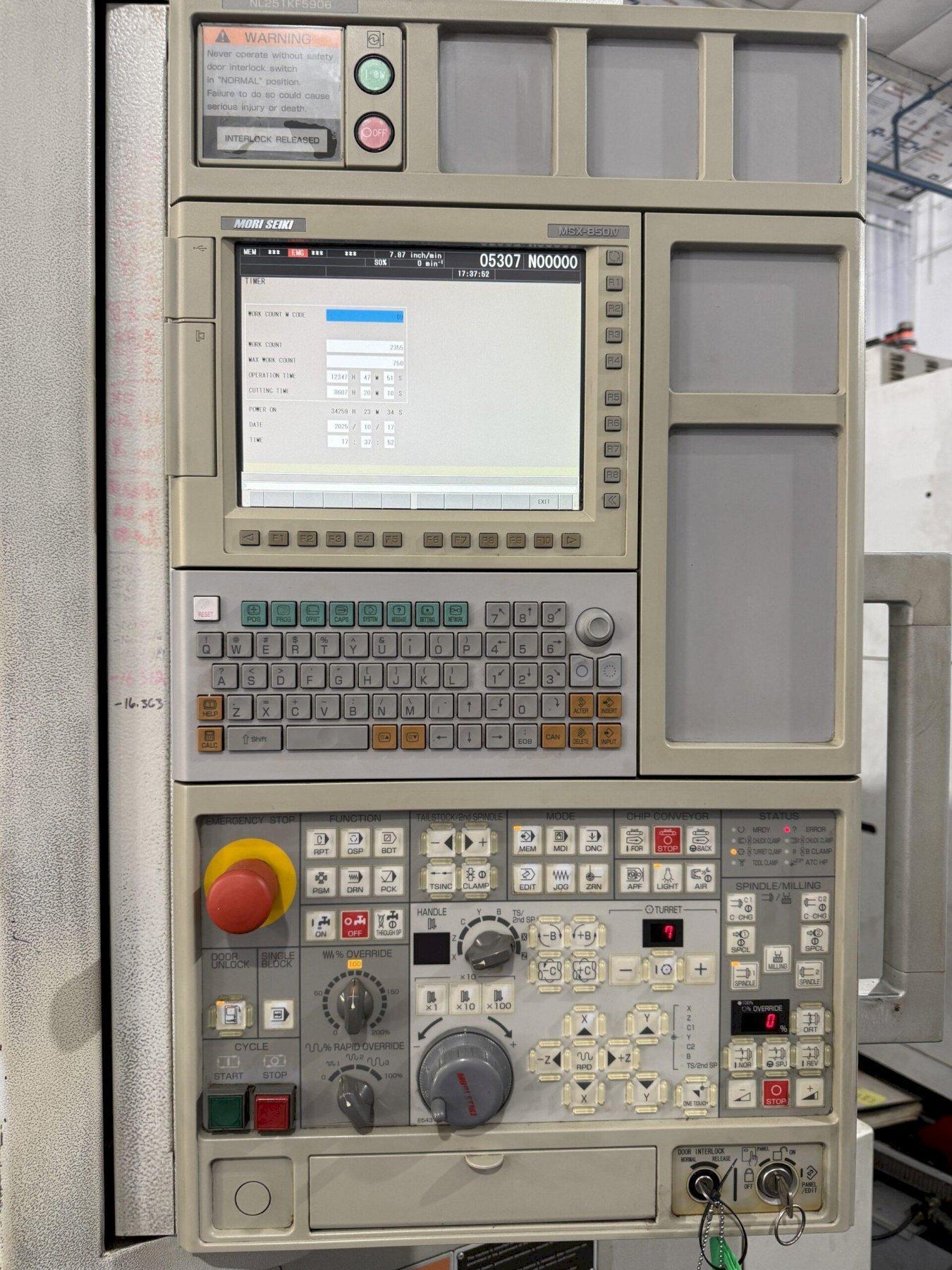

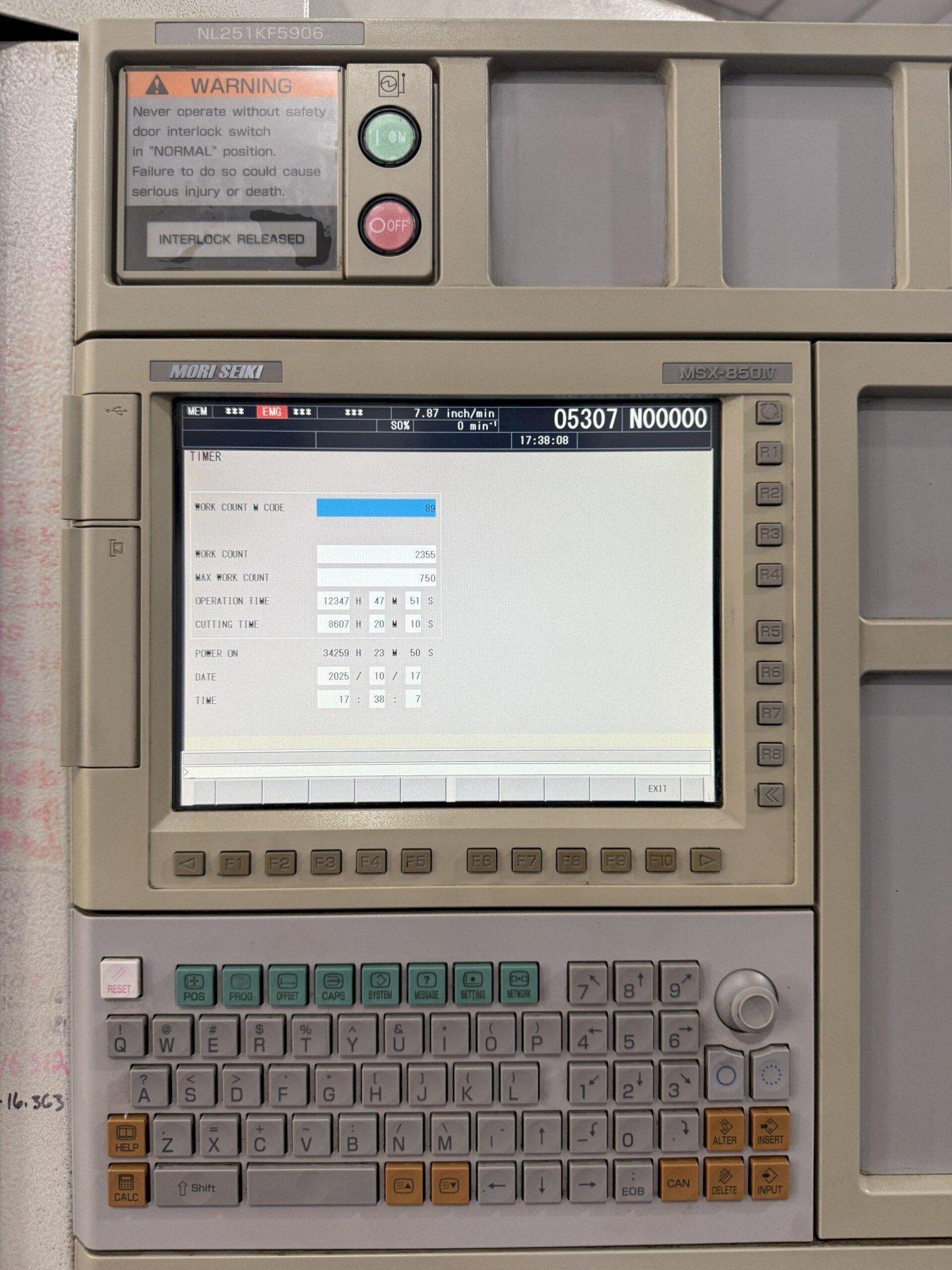

Mori Seiki MSX-850IV CNC Control
Heavy Duty Box Way Construction
Bar Feeder Interface

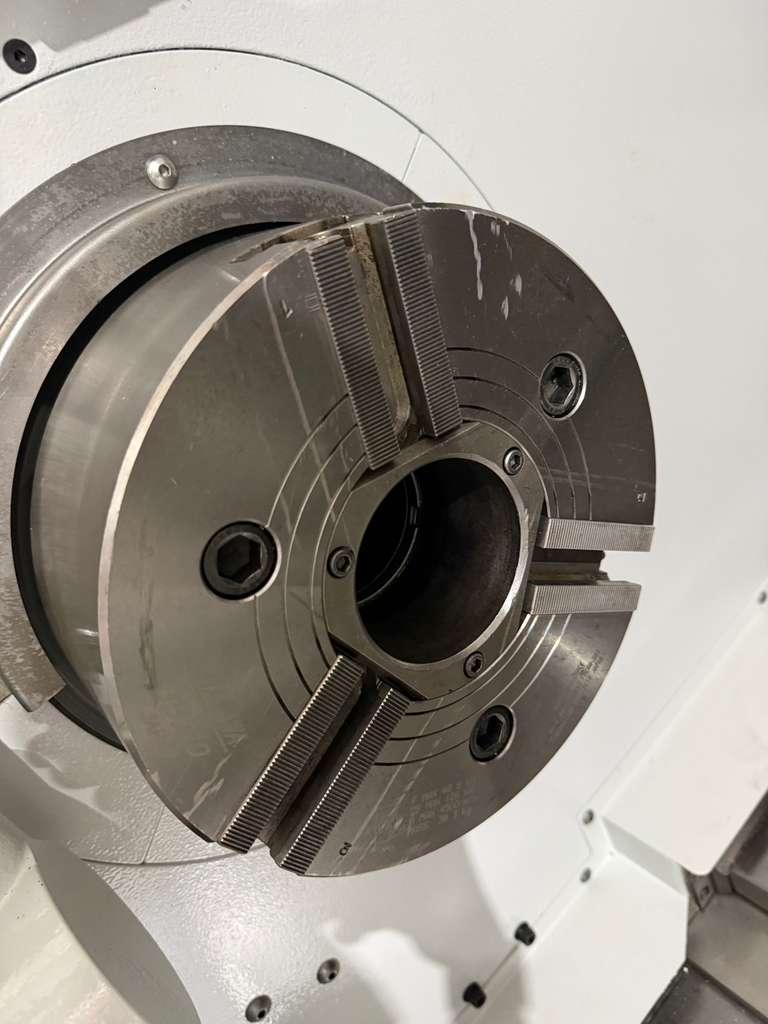

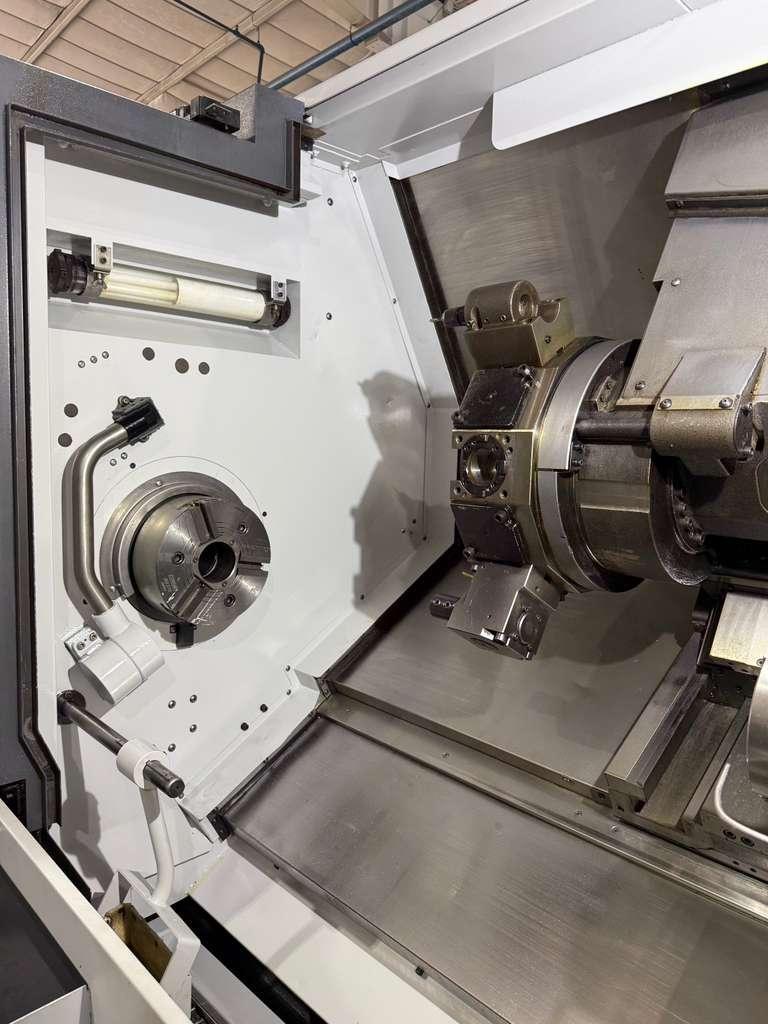

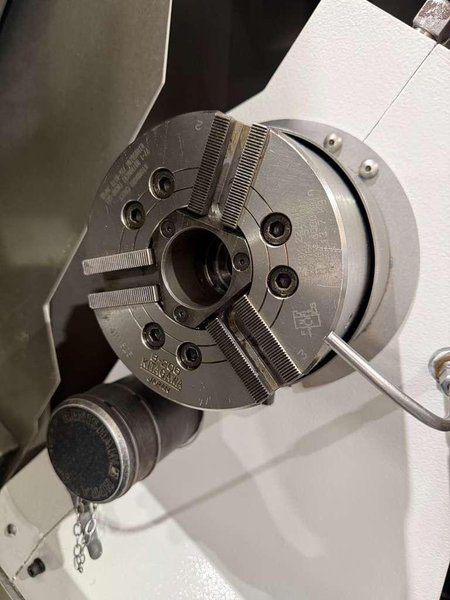

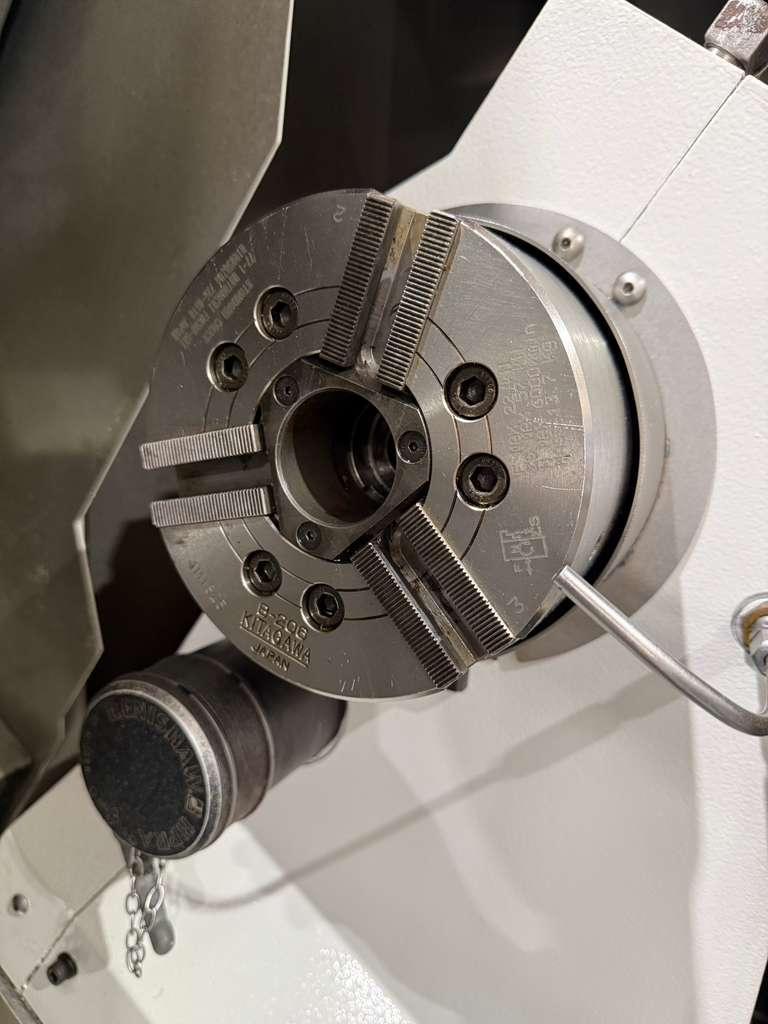

10″ 3-Jaw Kitagawa Chuck on Main Spindle

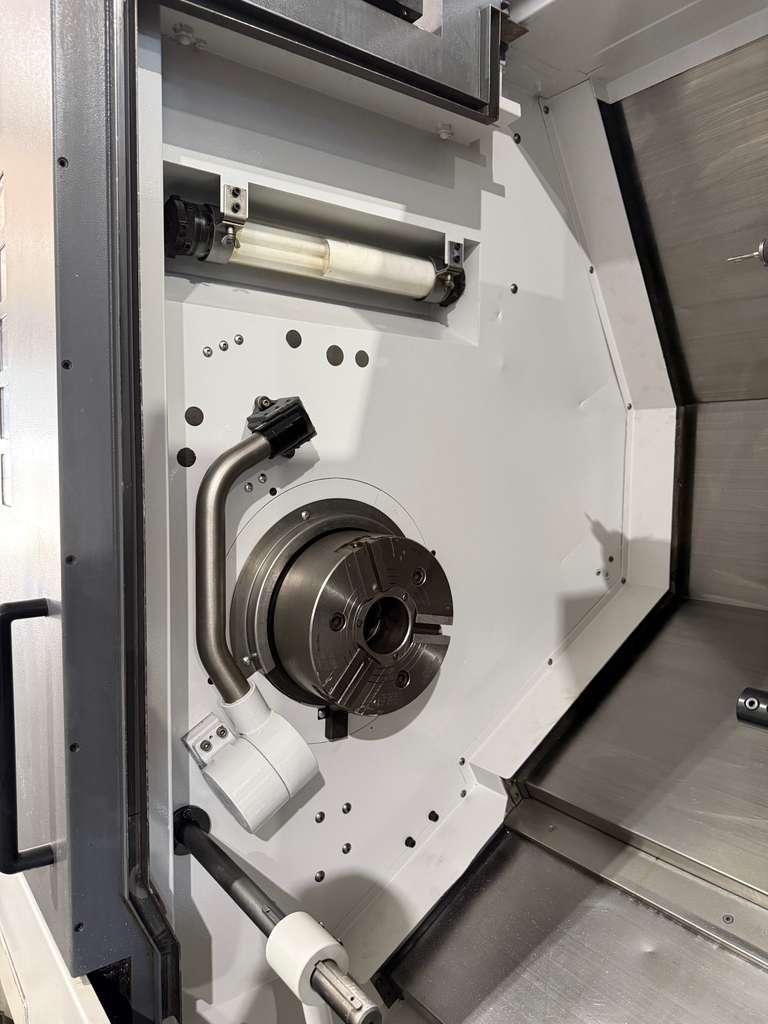

8″ 3-Jaw Kitagawa Chuck on Sub Spindle
C Axis Capable
Y Axis On Turret

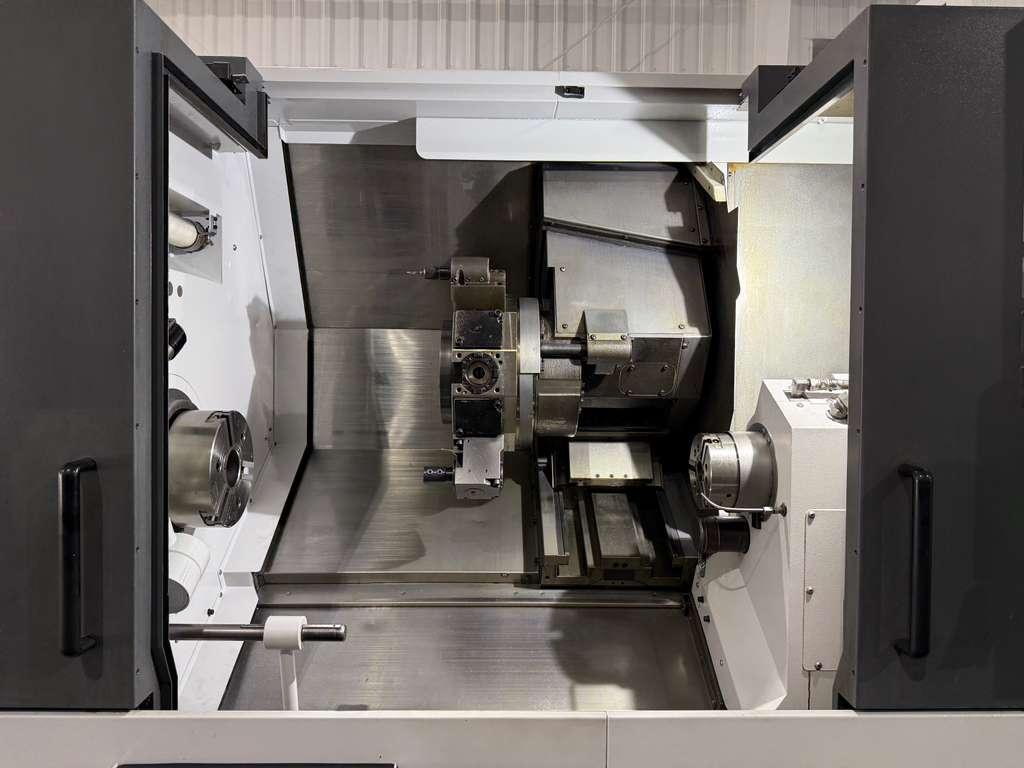

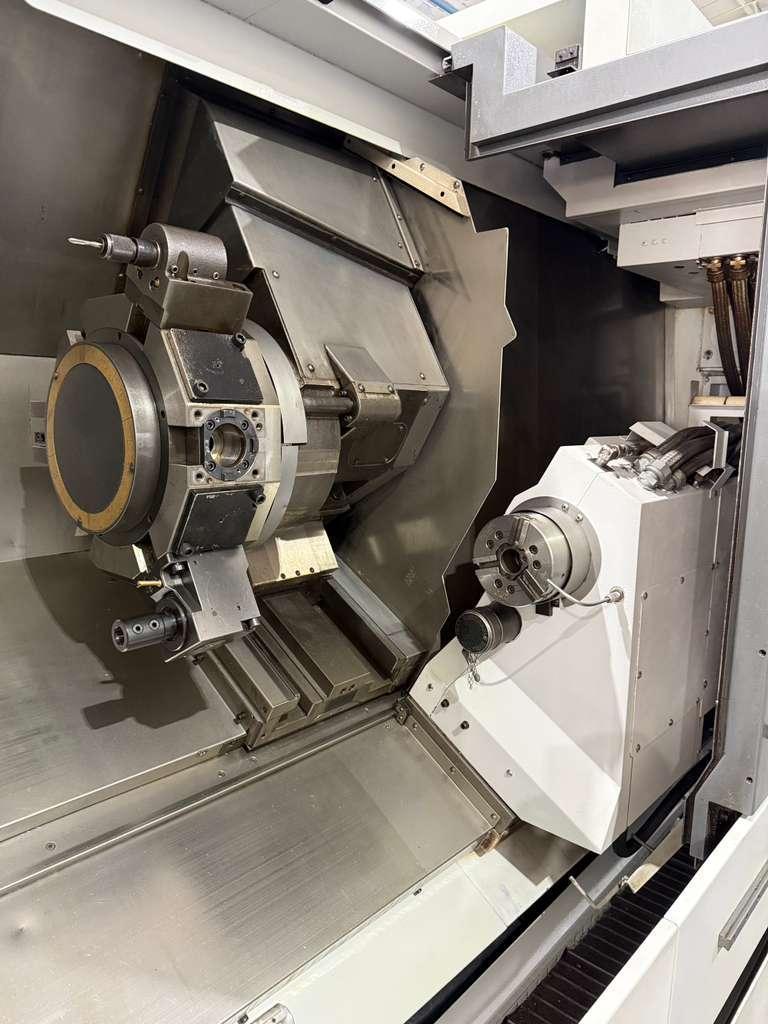

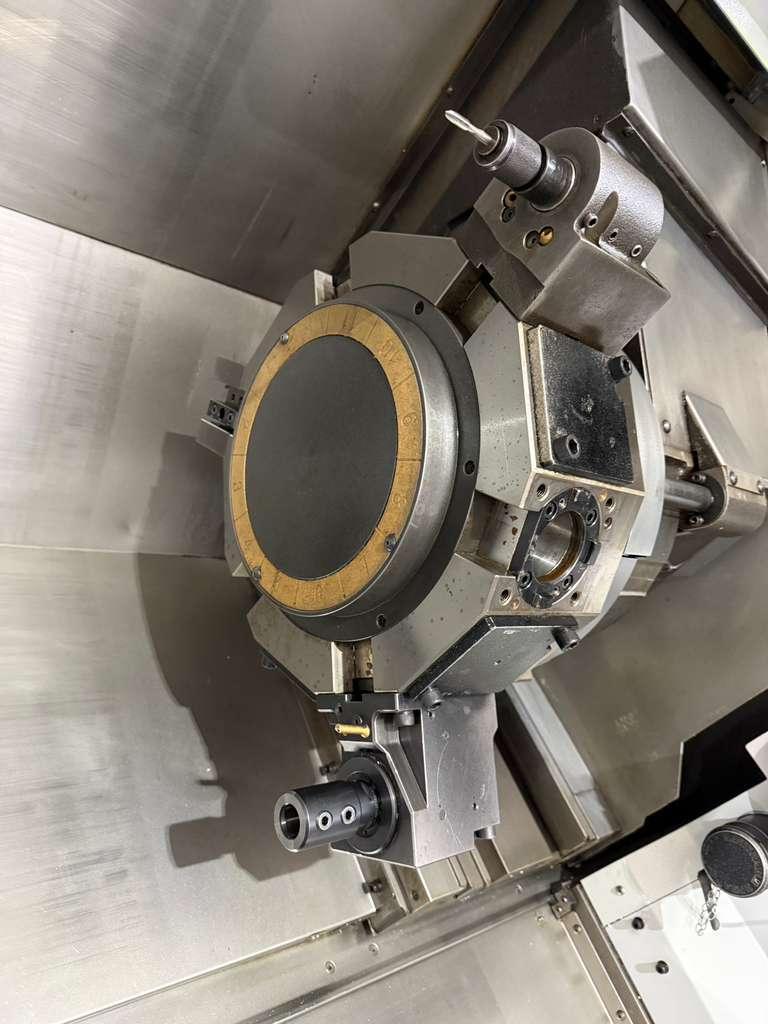

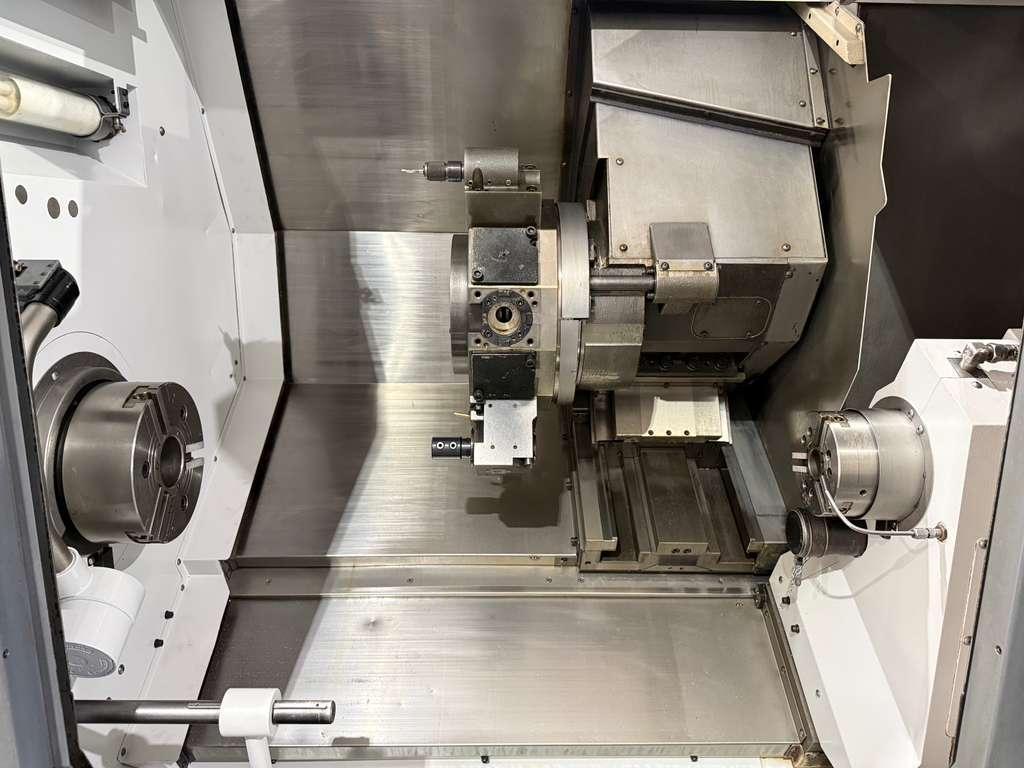

12 Station High Speed Live Tool Turret
Oil Cooling Unit
Tool Presetter
Parts Catcher
25 HP Main Spindle Power
PCMCIA Card Slot
Rigid Tapping
Automatic Lubrication System
Coolant System
LNS Chip Conveyor
Foot Switches
Capacity:
Max Turning Diameter: 14.0″
Max Turning Length: 51.1″
Swing Over Cross Slide: 29.7″
Max Bar Capacity: 3.1″
Travels:
X Axis Travel: 10.2″
Y Axis Travel: 3.9″ (±2.0)
Z Axis Travel: 53.0″
B Axis Travel (Sub Spindle): 50.6″
C Axis (Both Spindles): 360 Degree (0.001)
Rapid Traverse Rate X & Z Axis: 1181 IPM
Rapid Traverse Rate Y Axis: 394 IPM
Rapid Traverse Rate B Axis: 787 IPM
Main Spindle:
Spindle Nose: A2-8
Spindle Bore: 3.6″
Spindle Speed: 4000 RPM
Spindle Motor: 25 HP
Sub Spindle:
Spindle Nose: A2-5
Spindle Bore: 1.7″
Spindle Speed: 6000 RPM
Spindle Motor: 15 HP
Turret:
Turret Capacity: 12 Stations
Turret Index Time: 0.25 Second
Rotary Tool Speed: 6000 RPM
Rotary Tool Motor: 7.5 HP
Turret Type: BMT
General:
Power Source: AC 220 V Three Phase 60 Hz
Power Requirement: 50 kva
Overall Dimensions: 171″ x 85 ″ x 88″ High
Weight : 16,750 lbs Approx.

Tags:DMG, DMG MORI, DMG Mori Seiki
