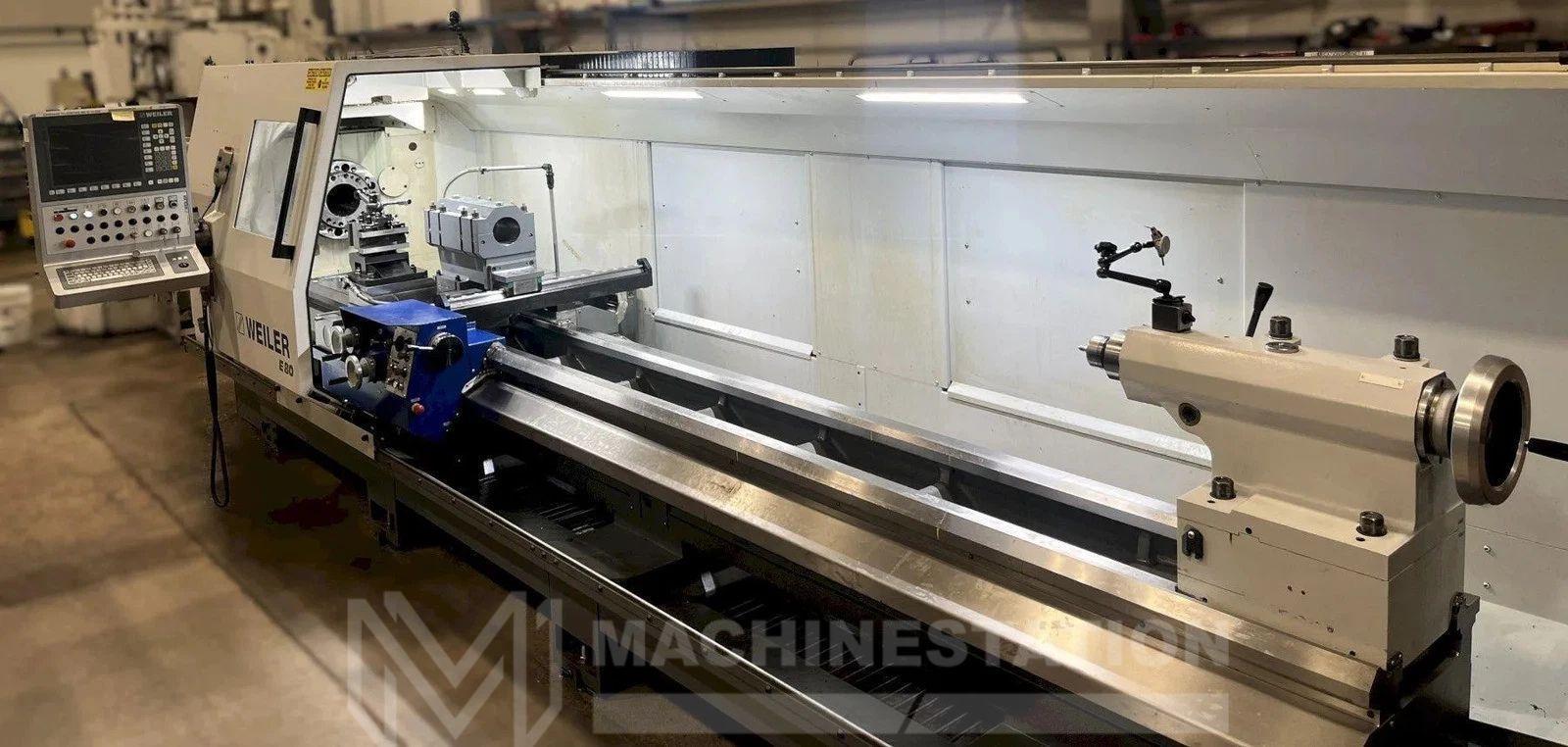

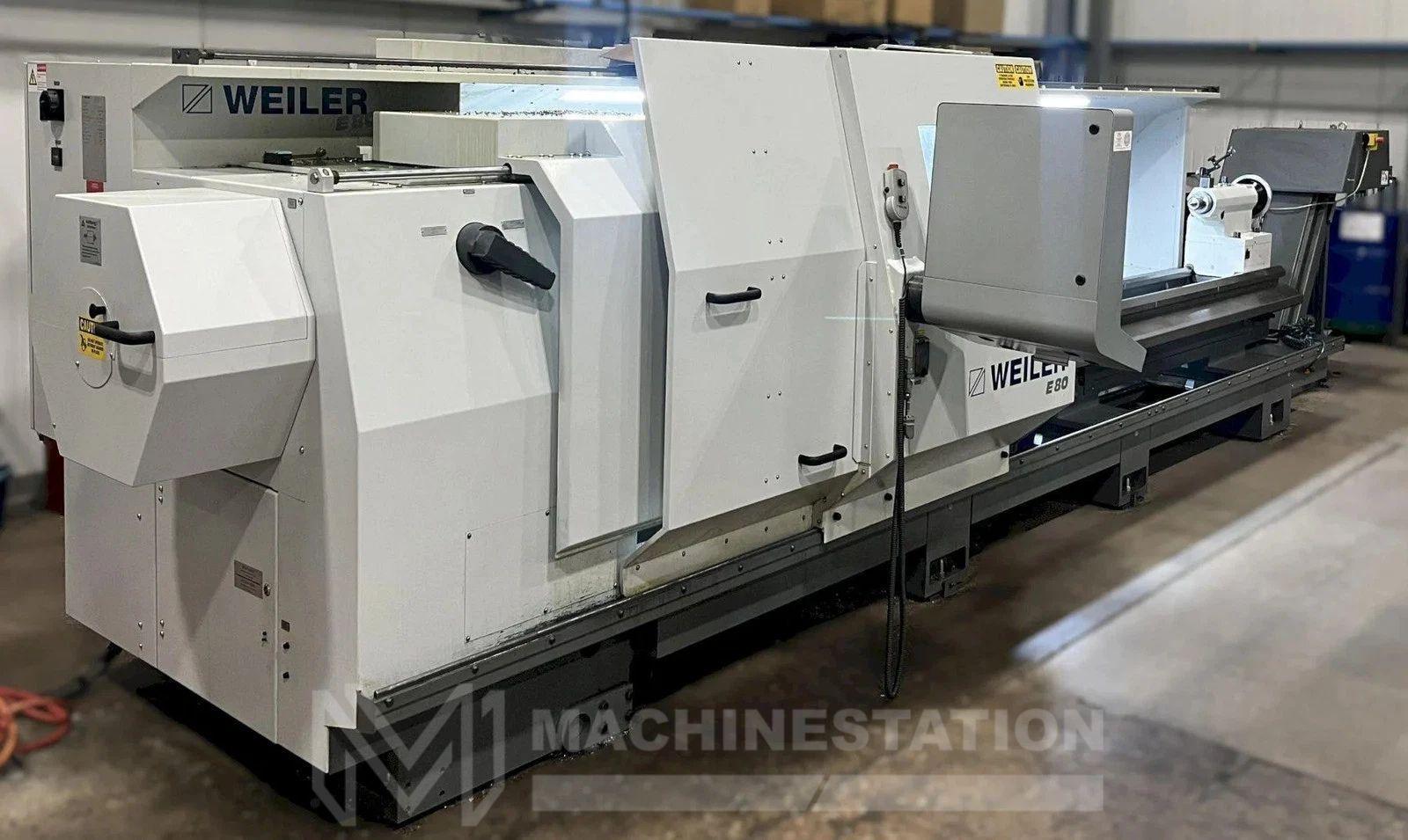

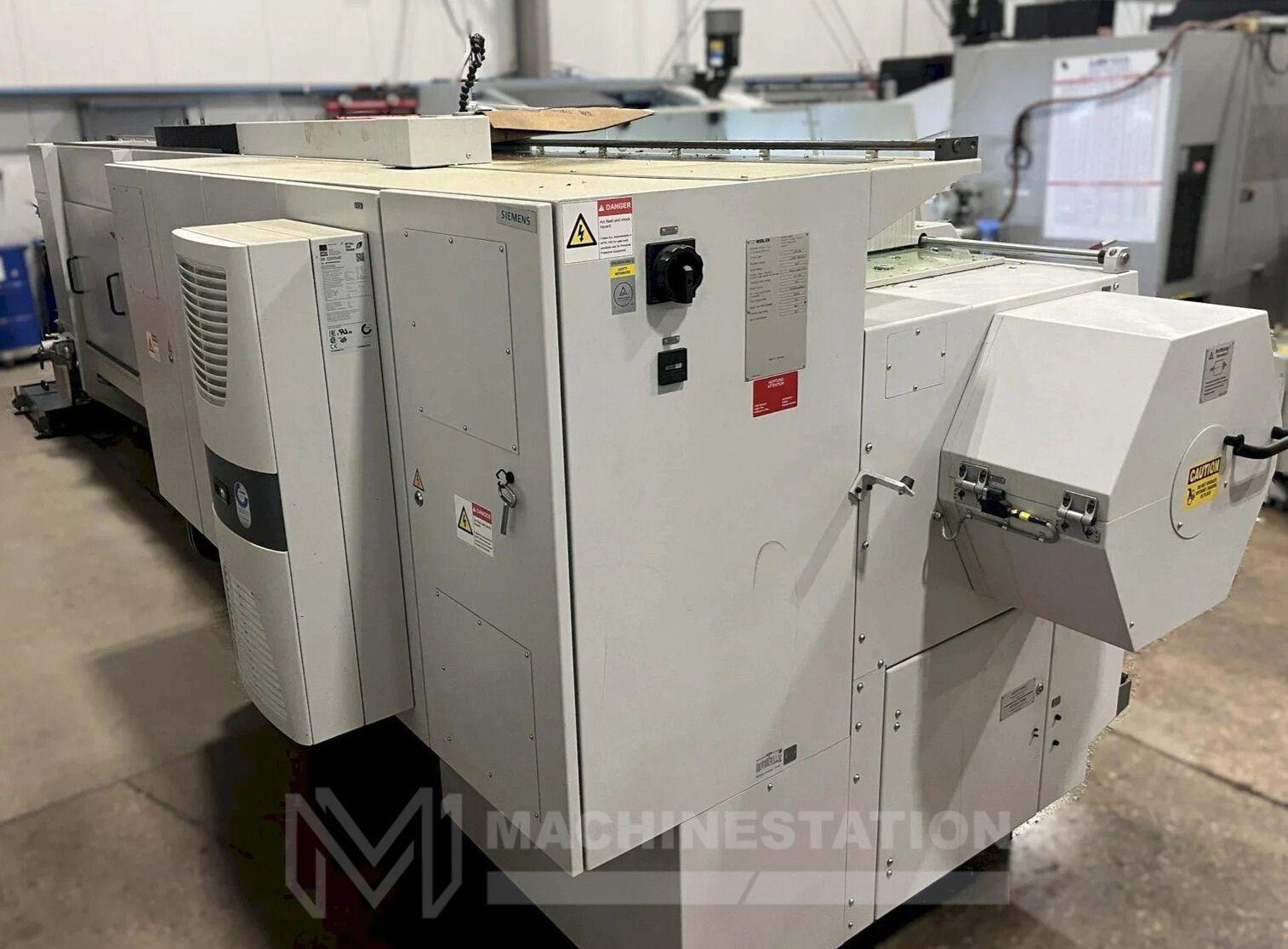

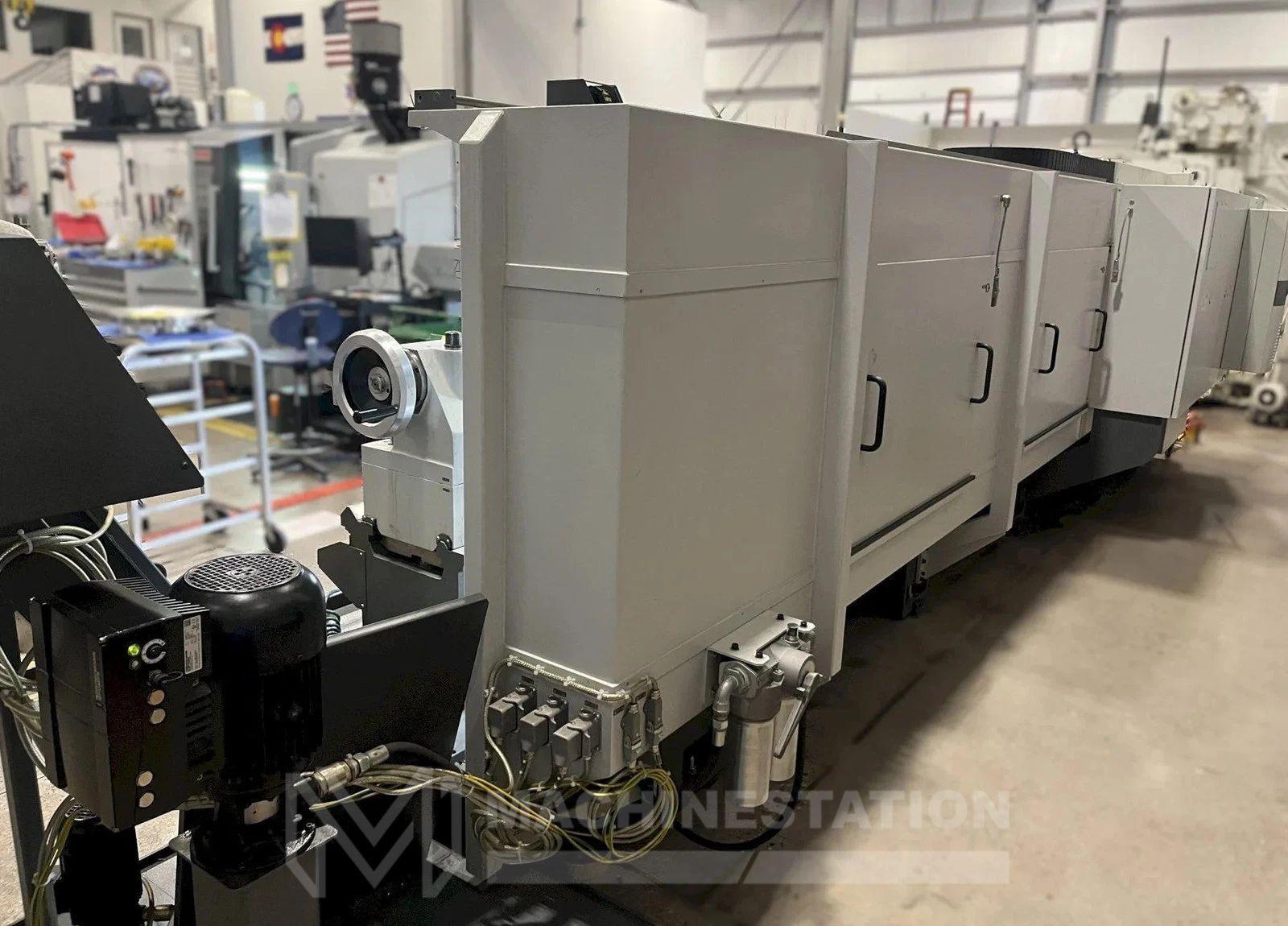

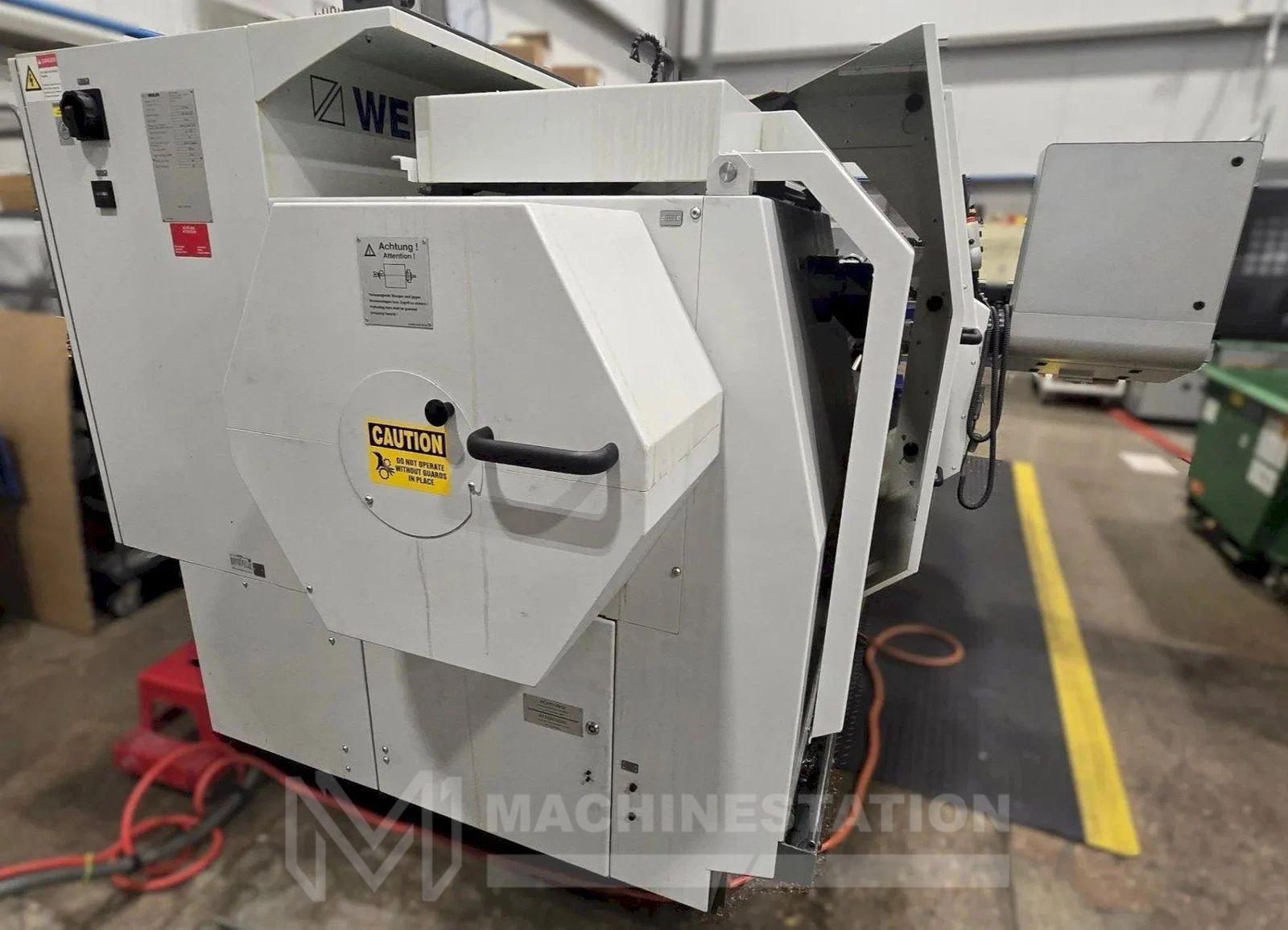

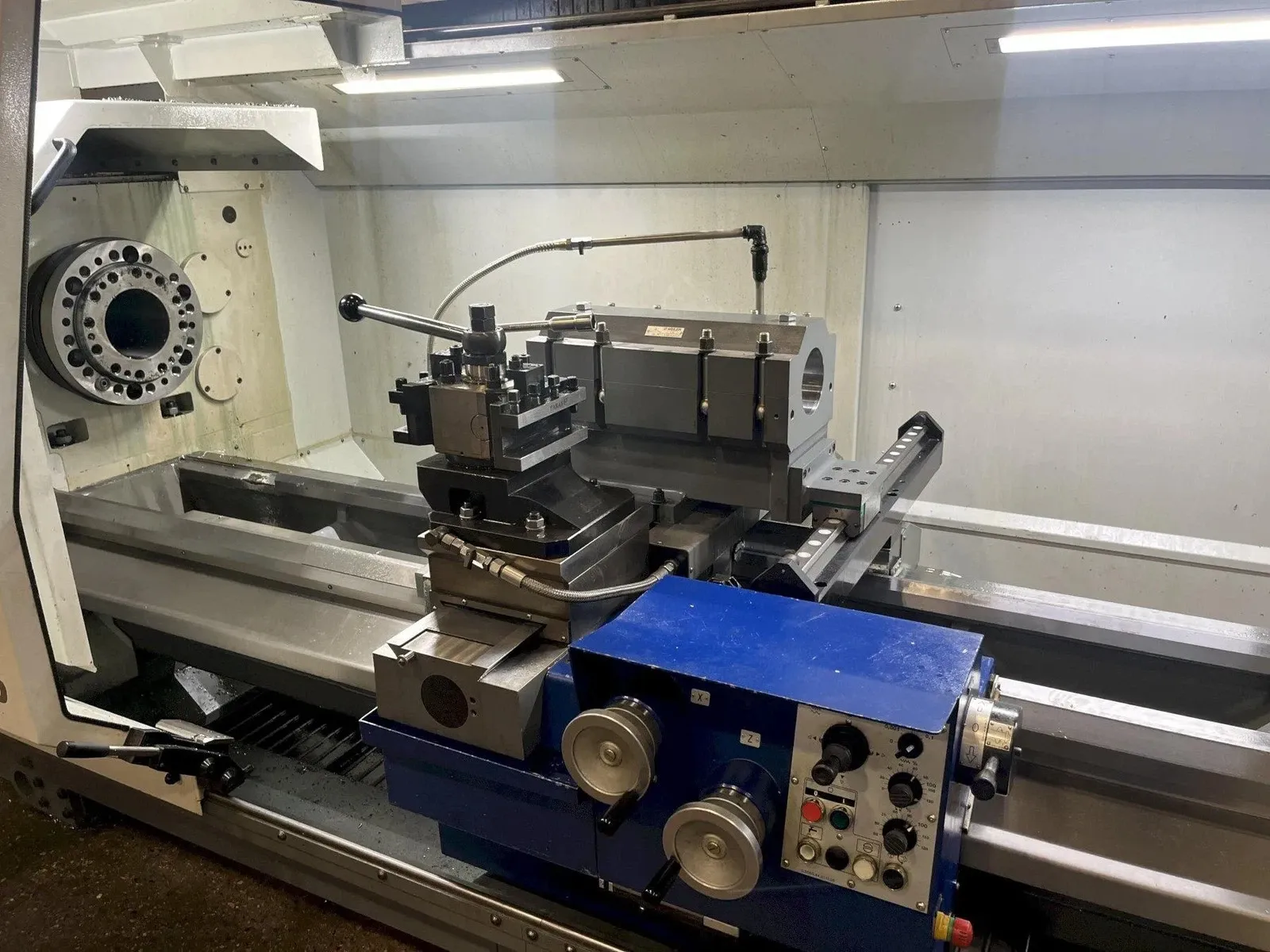

Weiler E80 x 4500 Flat Bed CNC Lathe – 2017 6.5″ Big Bore, 177″ Long Bed

Brand
WEILER
Category
Lathes & Turning Machines
Type
Turning Centers
Model
E80 x 4500
Stock #
115131
Year
2017
Condition
Not specified

Location

Not specified
REQUEST FINANCING

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Make: Weiler
Model: E80 x 4500
Year: 2017
Condition: Used – Excellent
Equipped With:

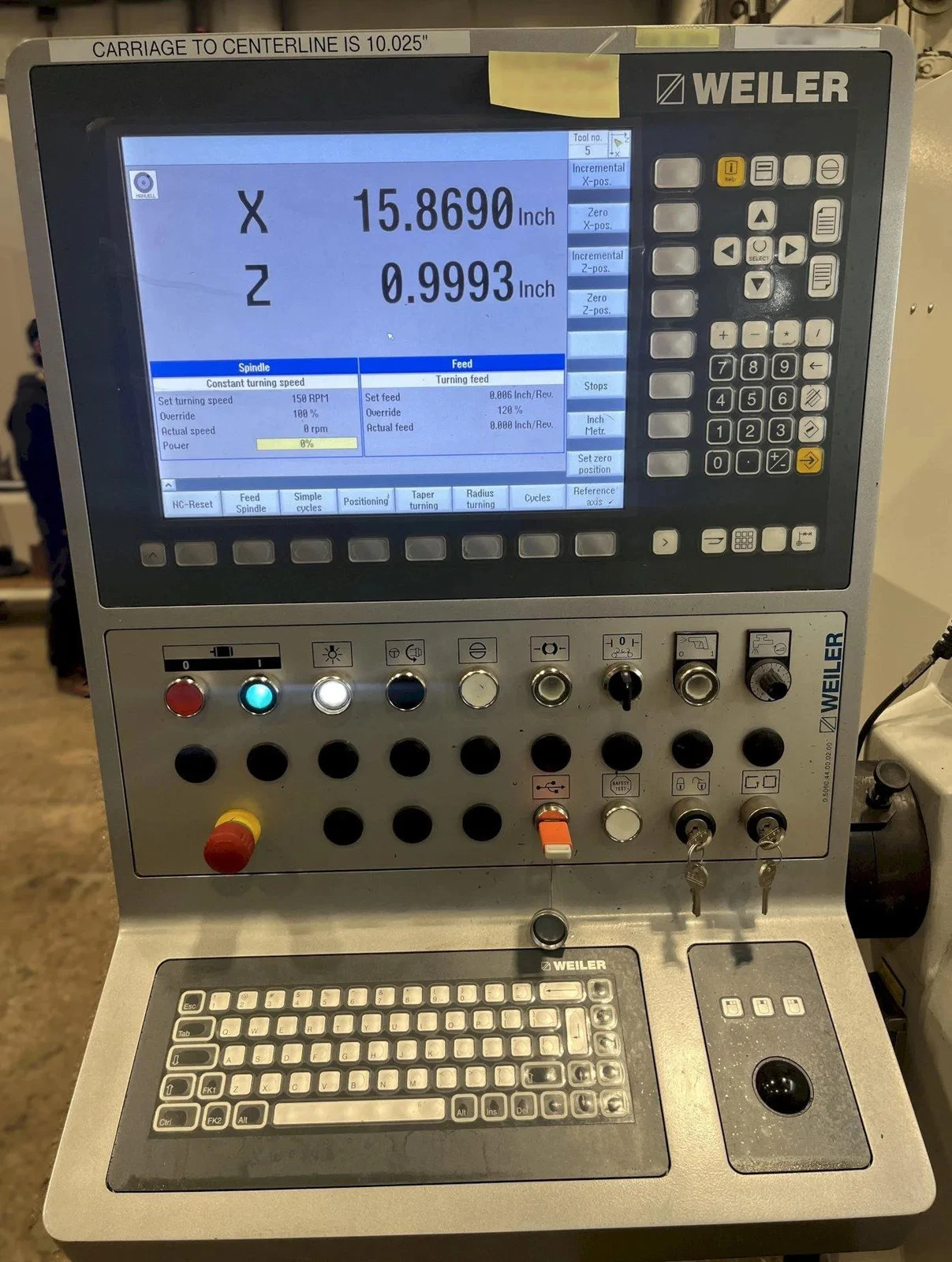

Weiler CNC Control

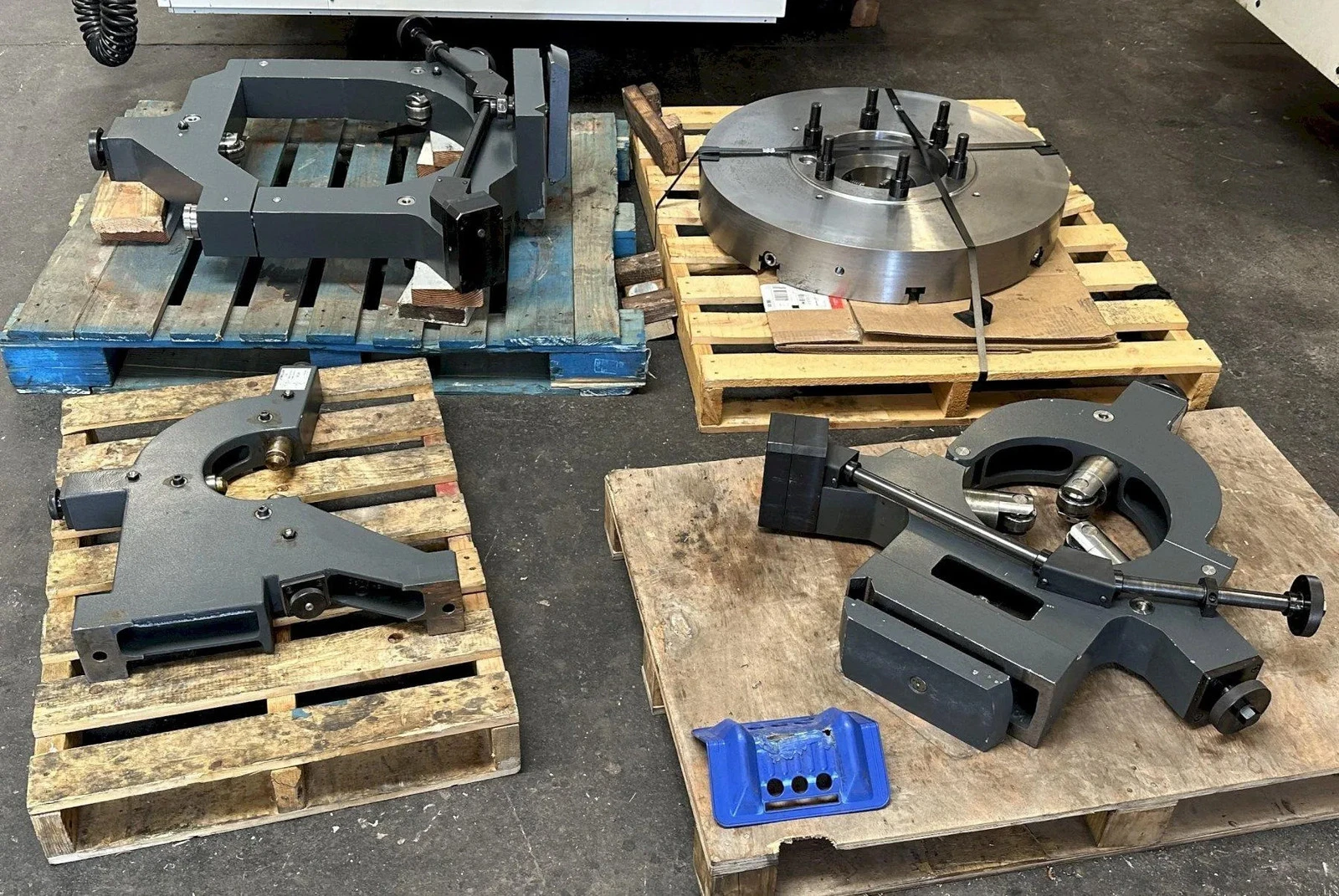

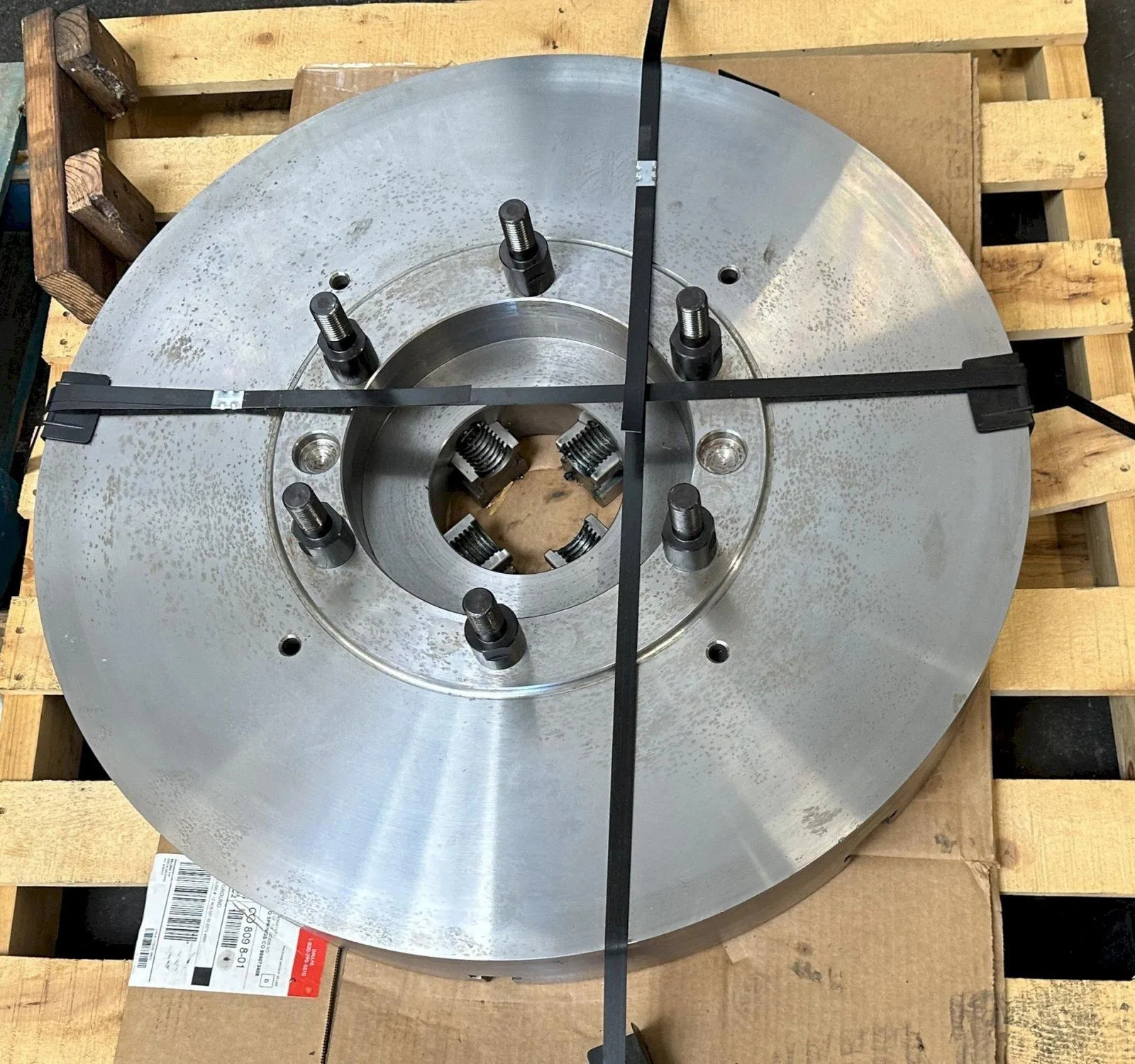

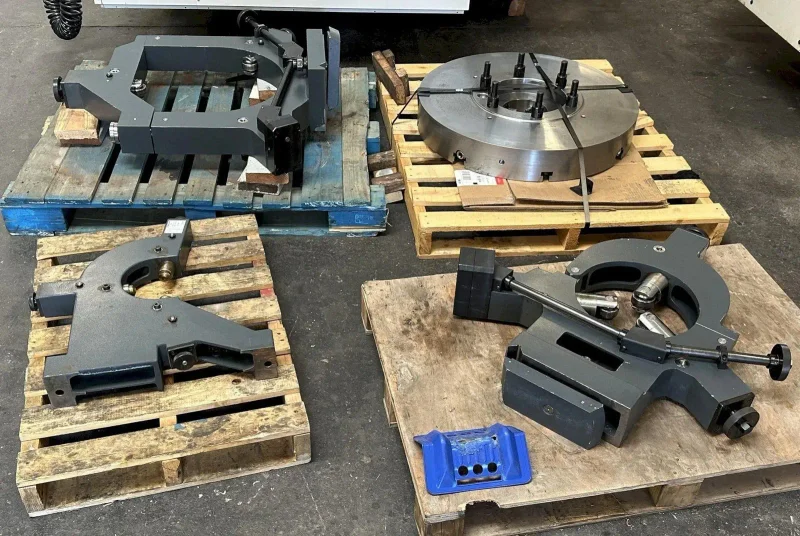

31.5″ 4-Jaw Chuck

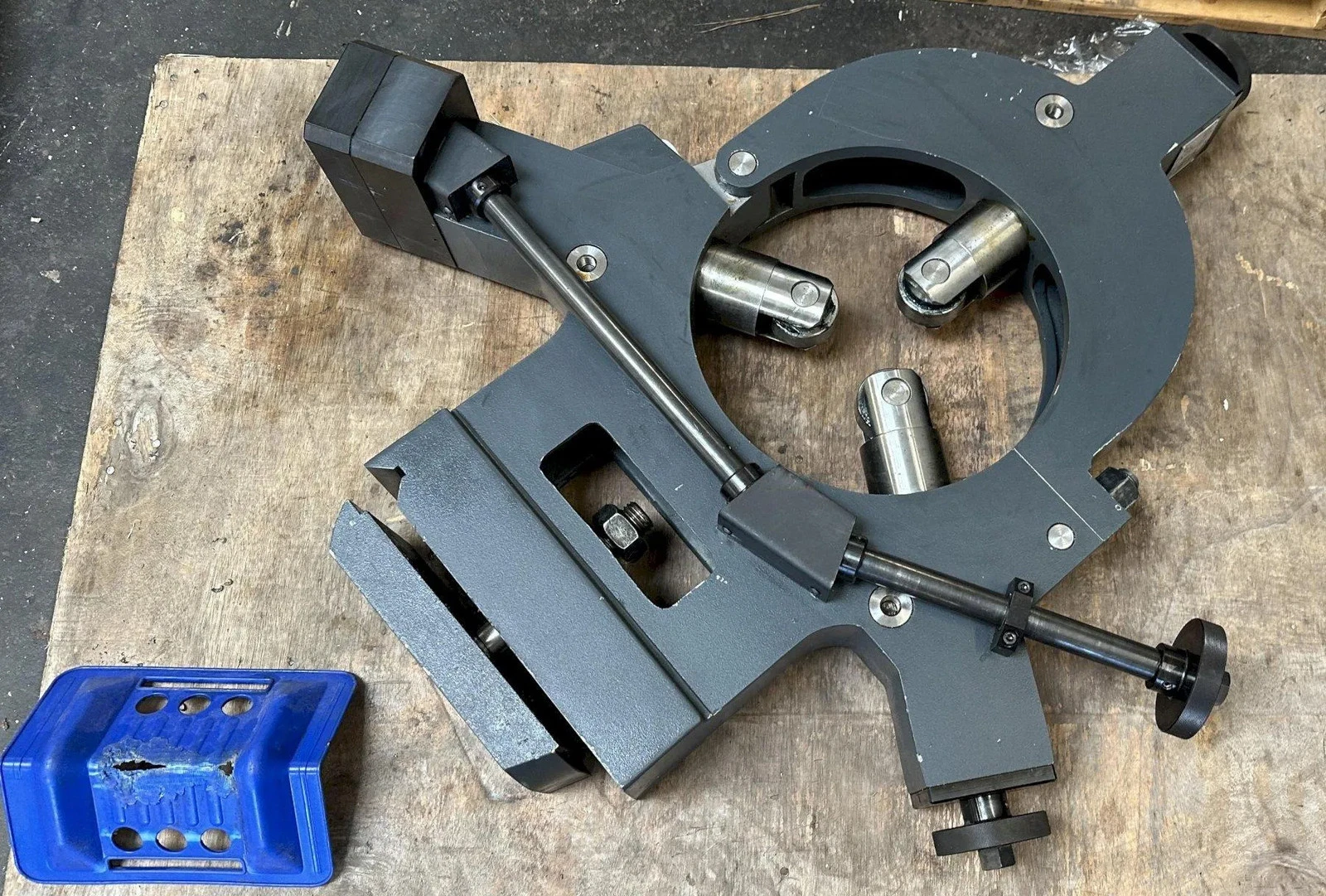

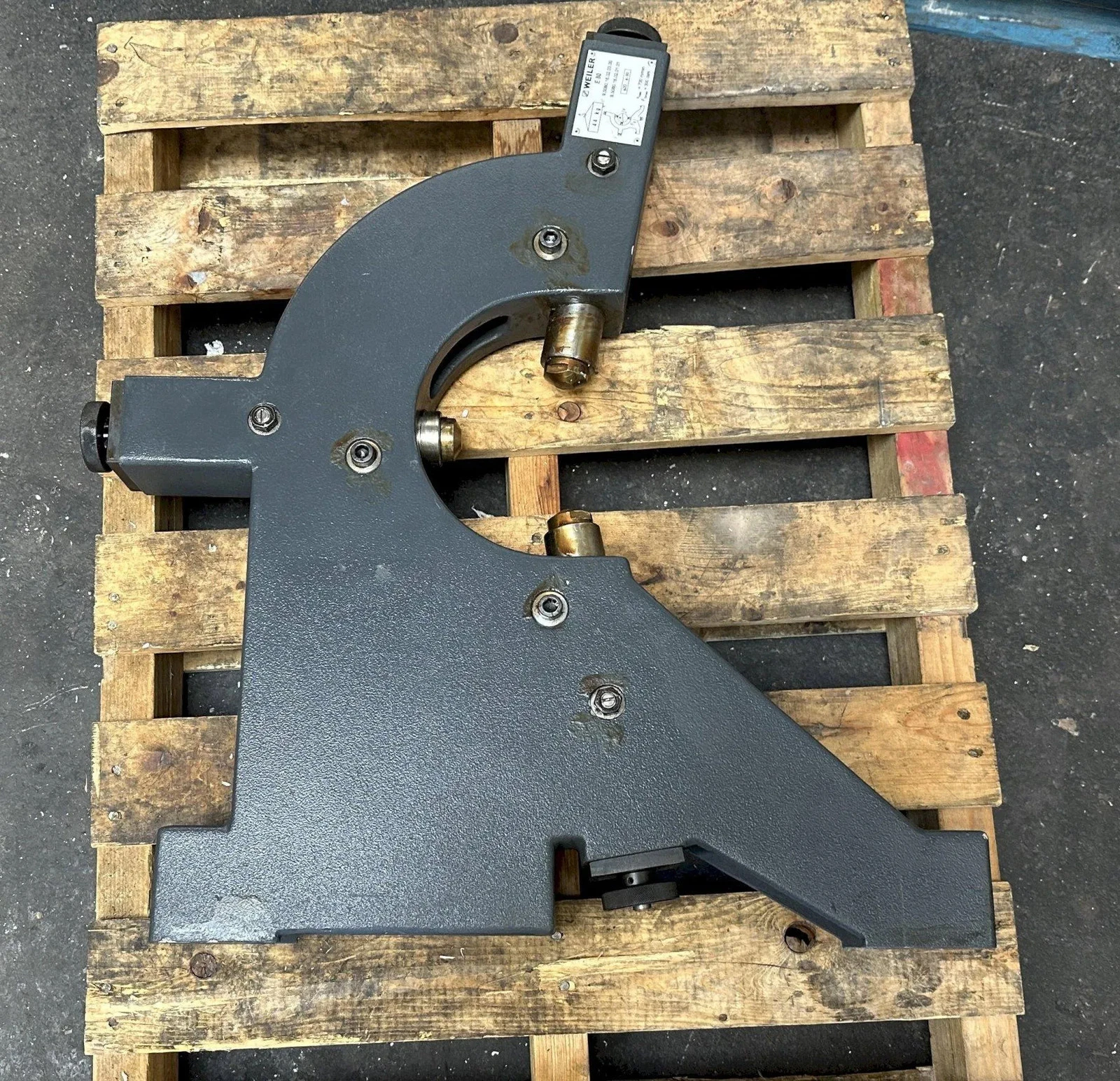

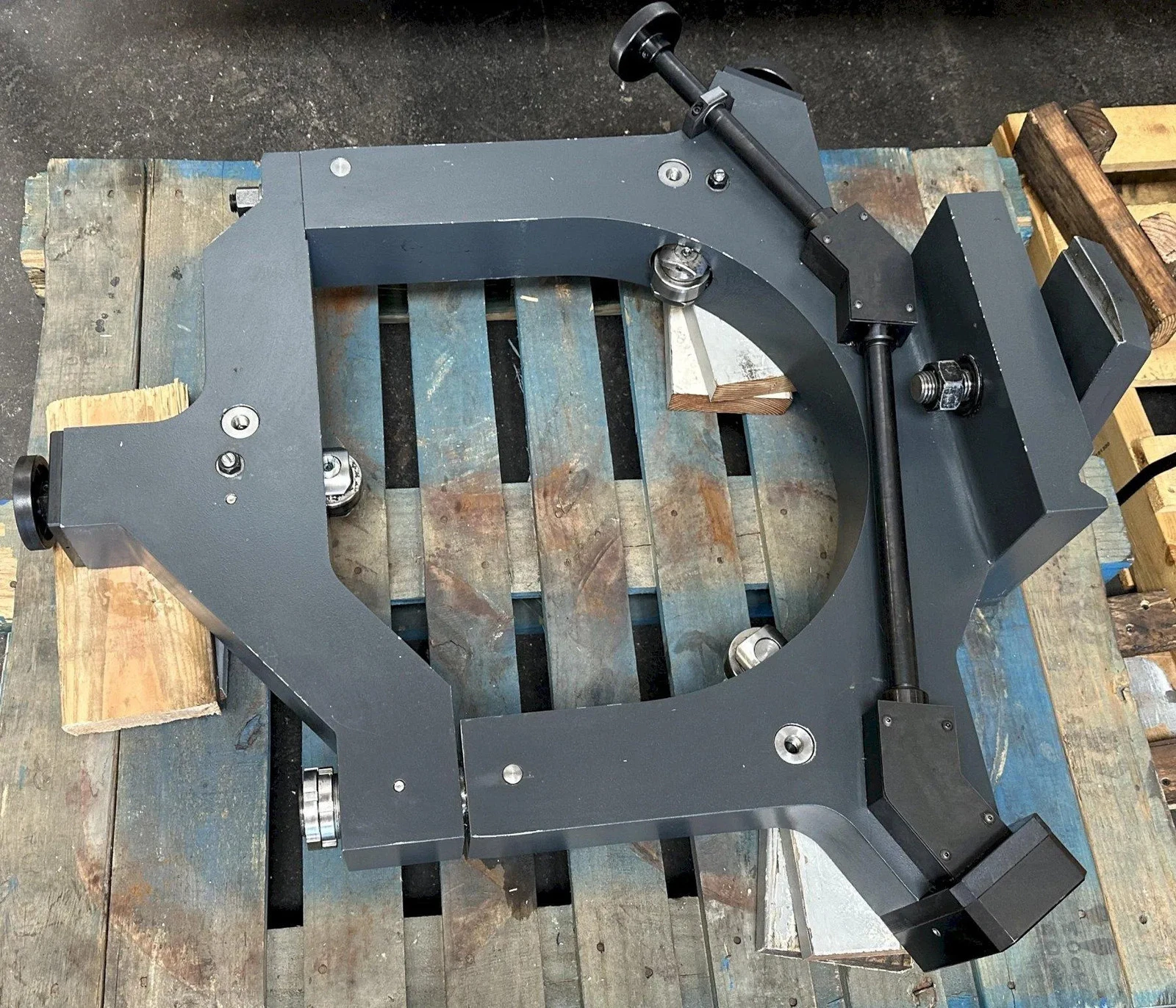

(2) Roller Steady Rest & (1) Follow Rest

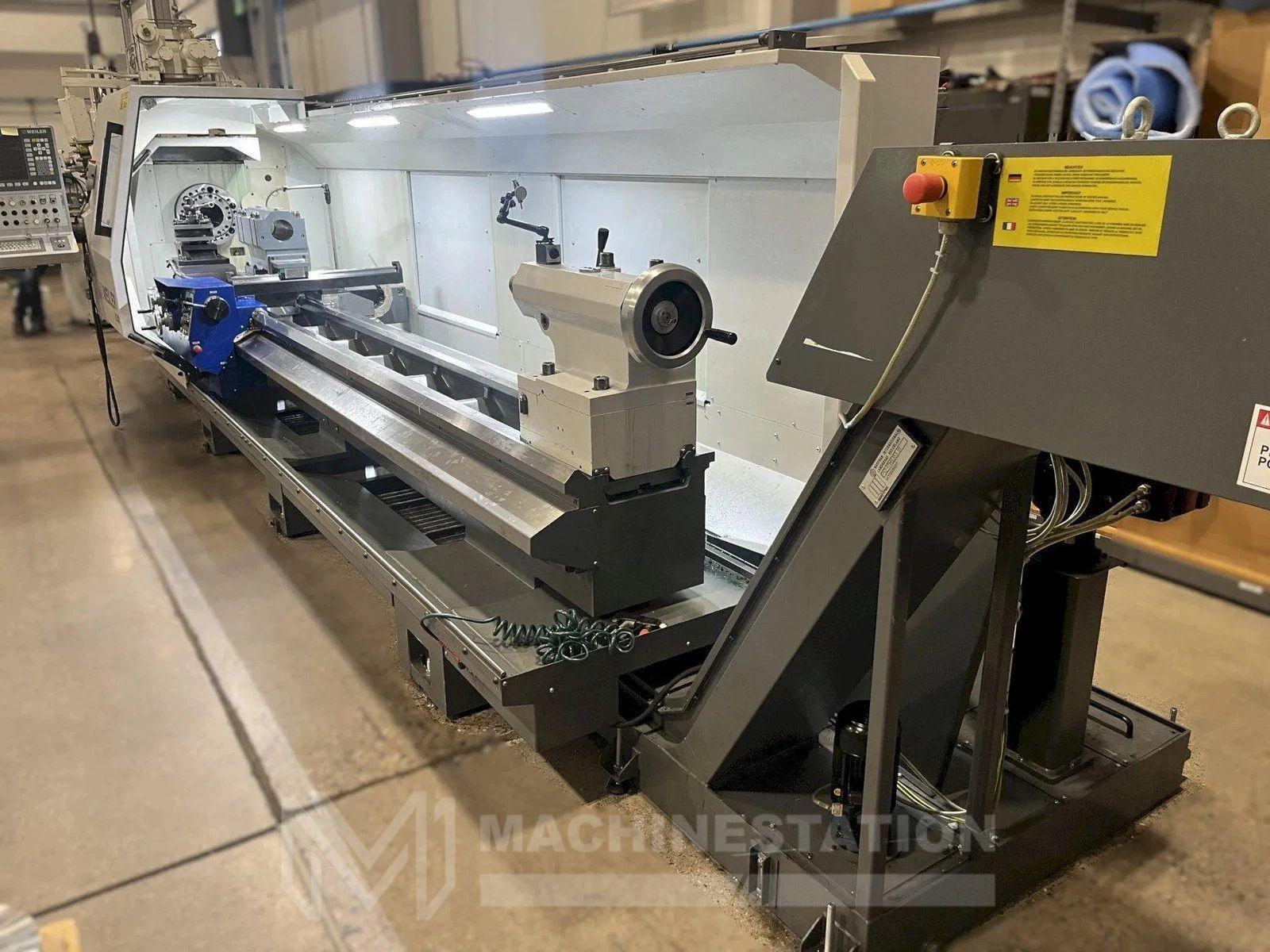

Tailstock With Live Center

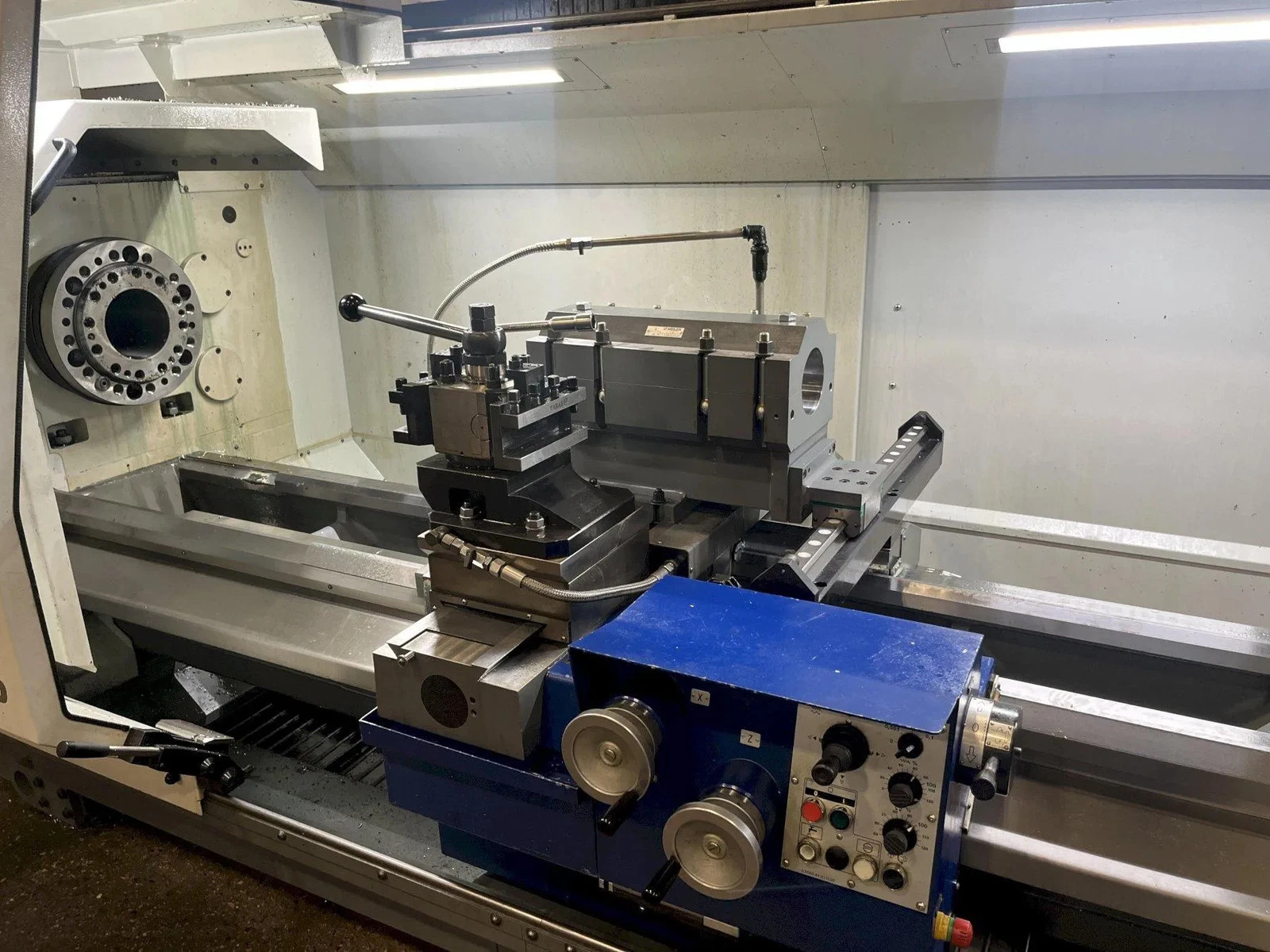

Parat Quick Change Tool Post With 2 Holders
Weiler Boring Bar Holder
Coolant System
Chip Conveyor
Capacity:
Max Swing Over Bed : 34.0″
Max Swing Over Cross Slide: 20.0″
Bed Width:  18.90″
Distance Between Centers :  177.17″
Travels:
X Axis Travel (Cross Slide): 16.14″
Z Axis Travel (Longitudinal) : 177″
Feedrate:
Rapid Traverse X Axis: 197 IPM
Rapid Traverse Z Axis: 394 IPM
Spindle:
Spindle Bore: 6.5″
Spindle Speed: 1 – 1800 RPM
Spindle Motor: 48 HP
Tailstock:
Taper:  MT-6
Quill Diameter:  5.51″
General:

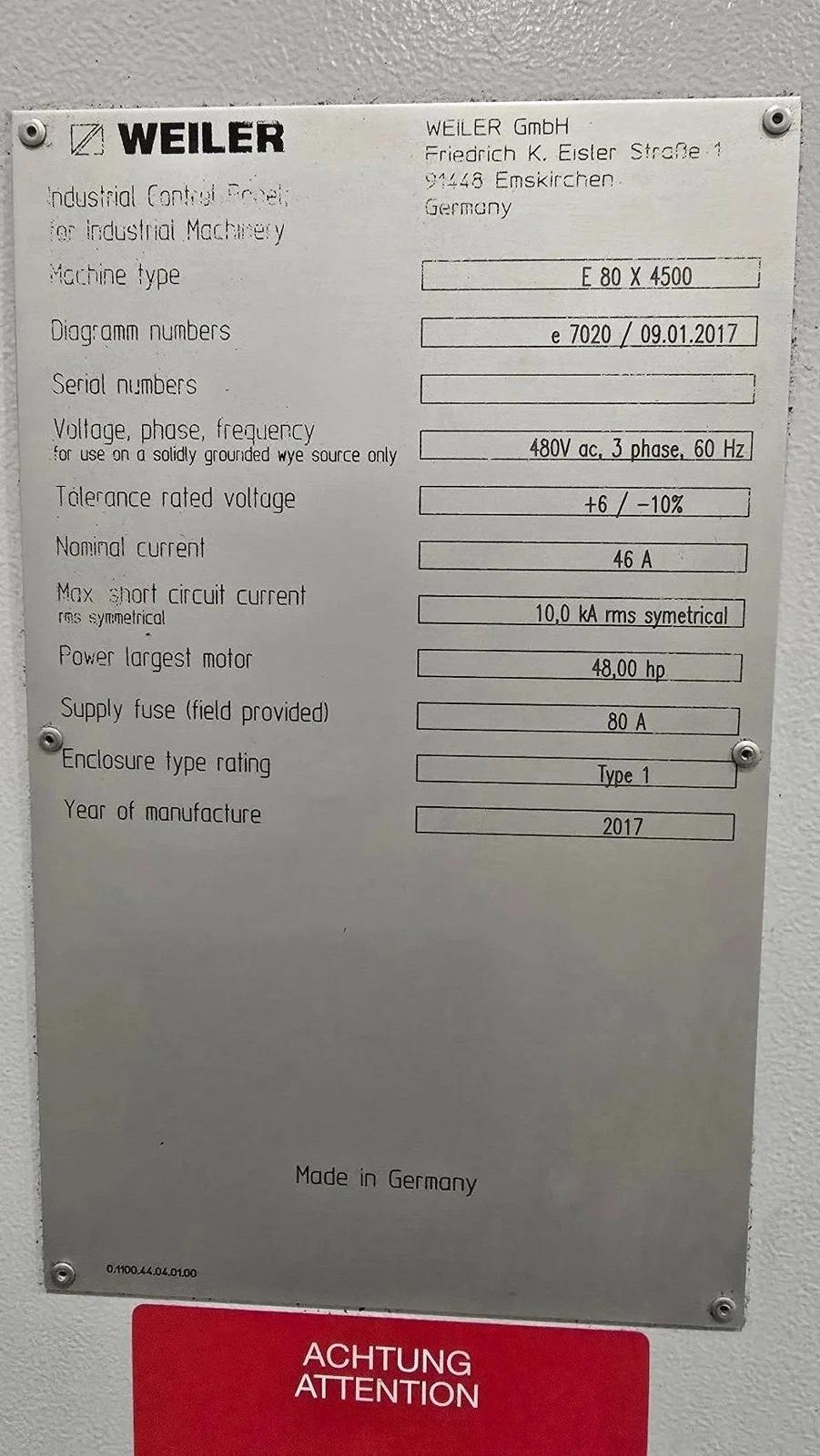

Power Requirement: 480v / 3 phase / 60 Hz
Machine Weight: 20,000 lbs. Approx.
No files or videos to display
