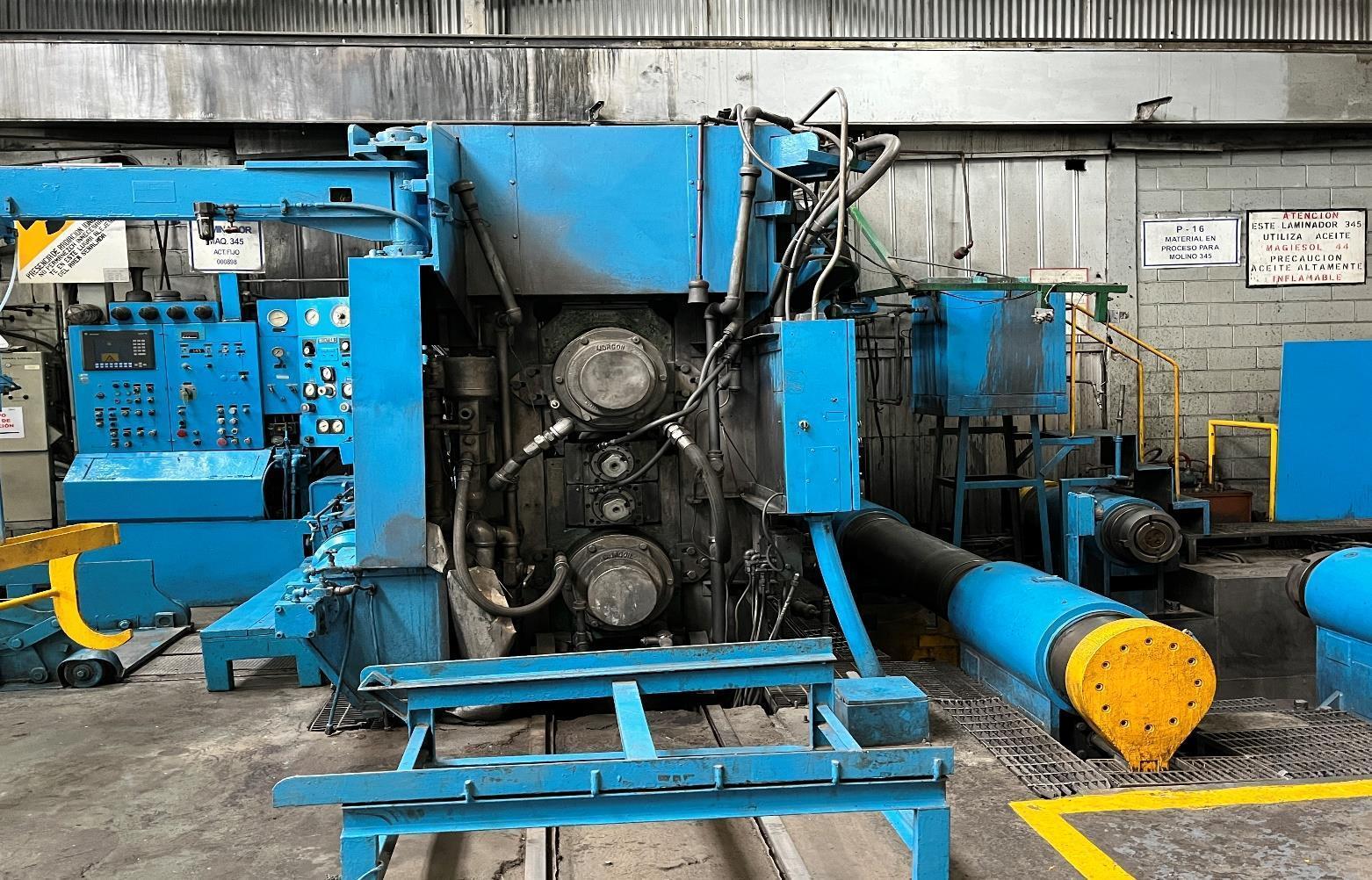

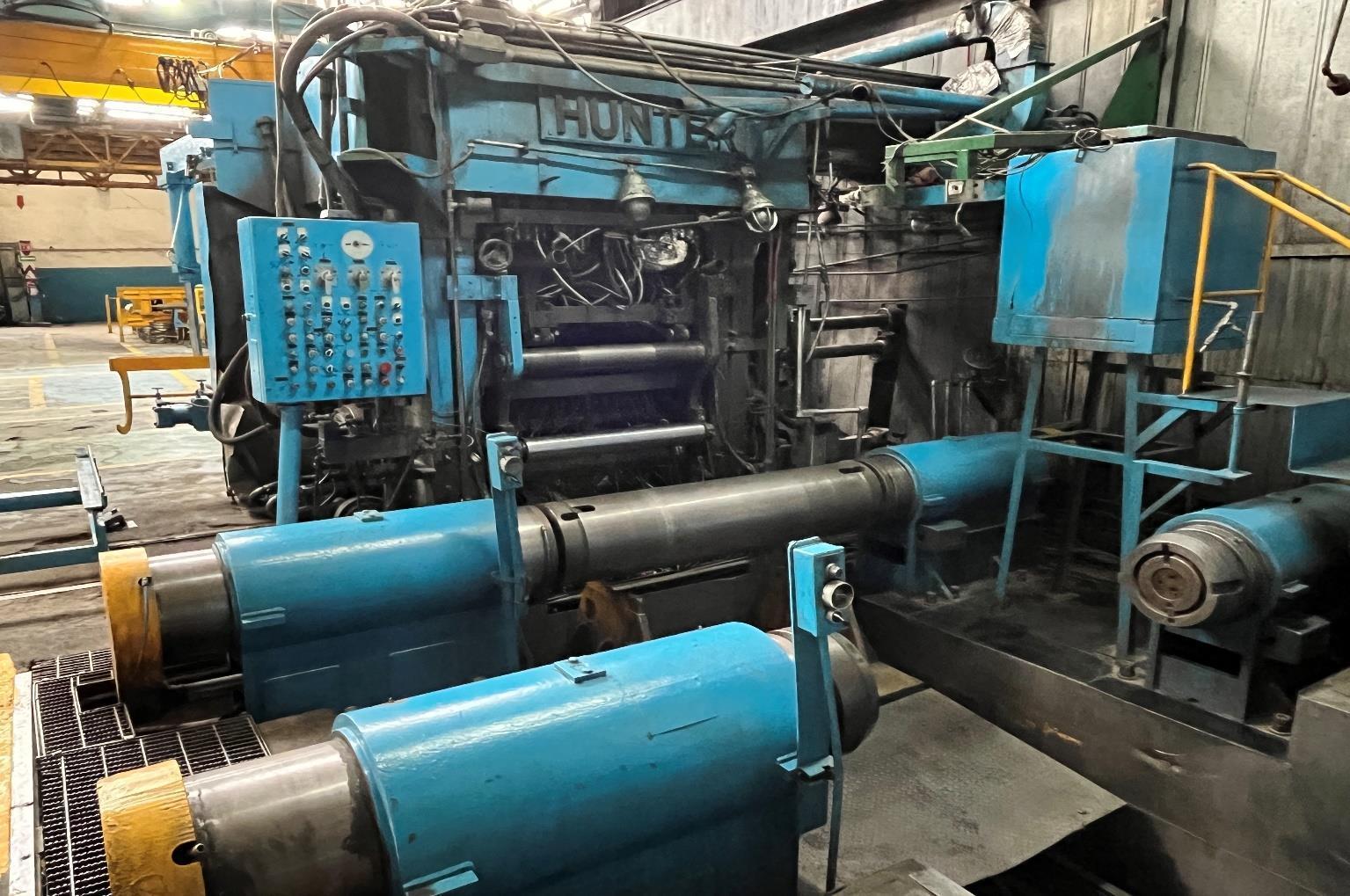

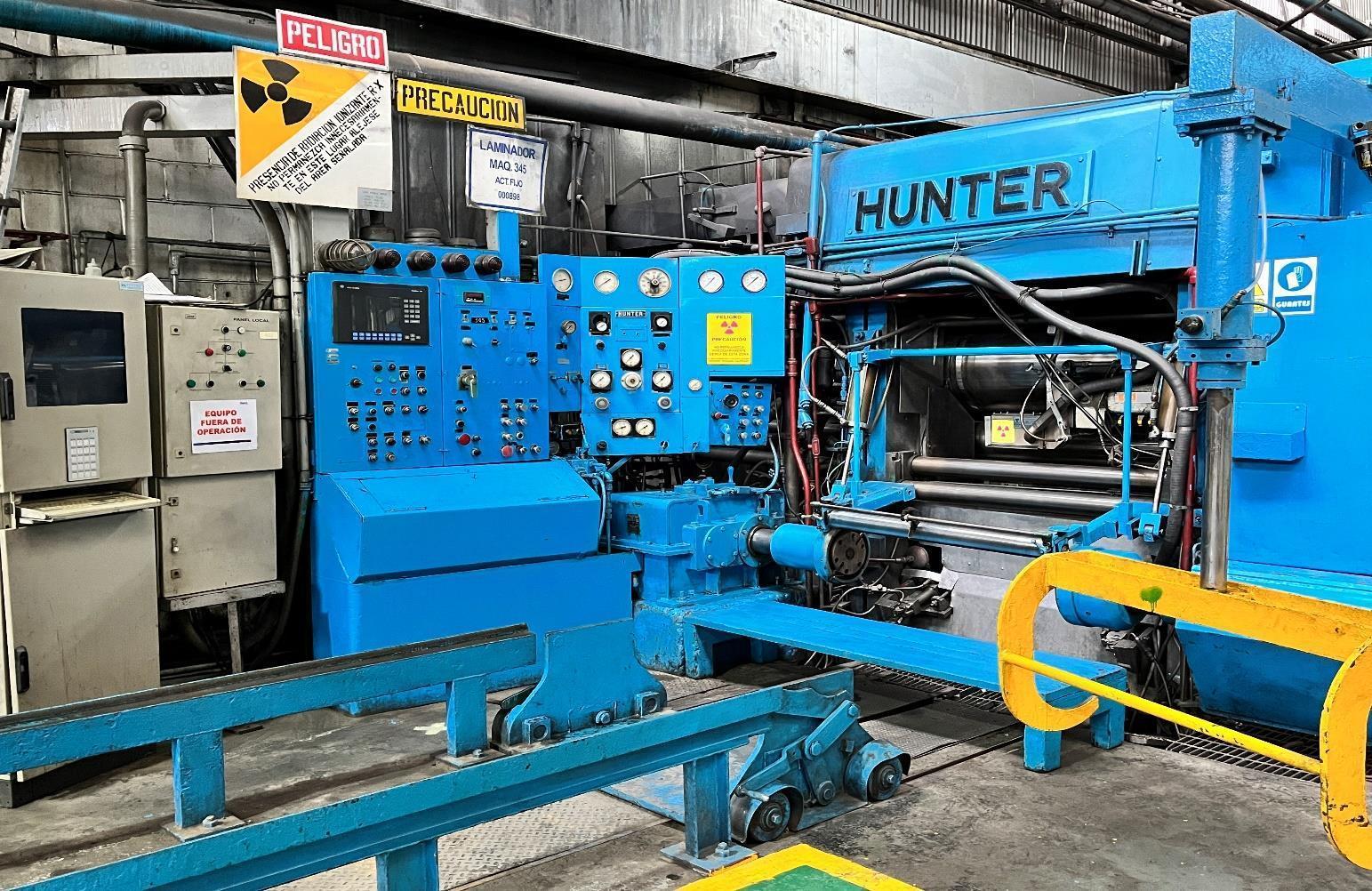

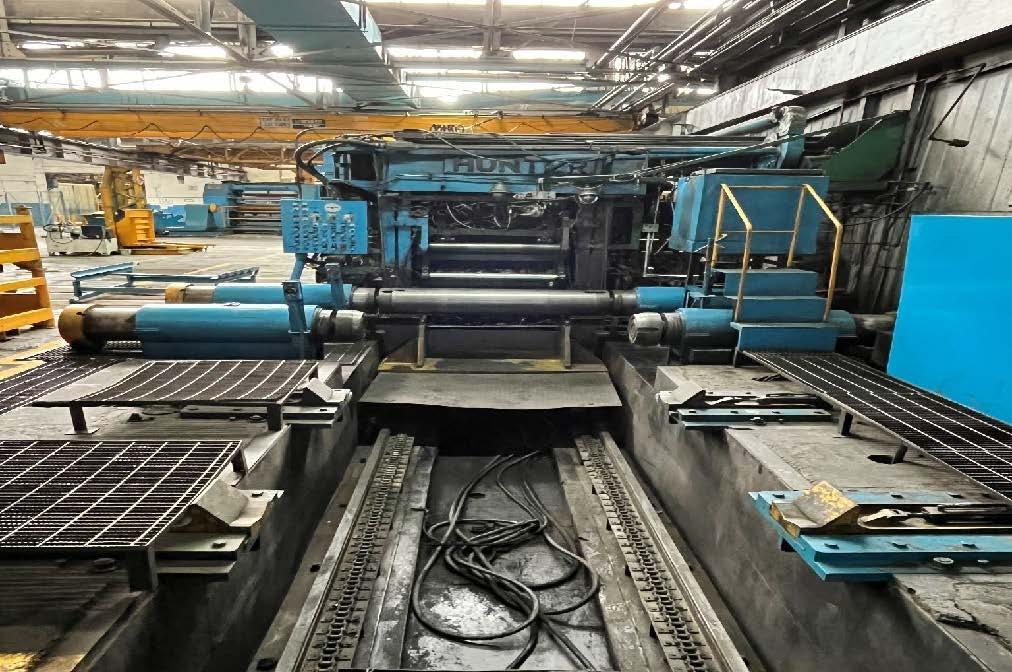

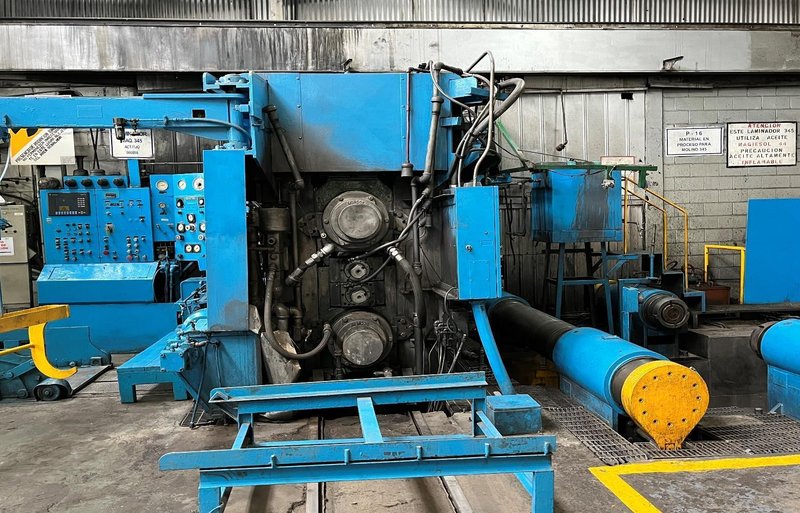

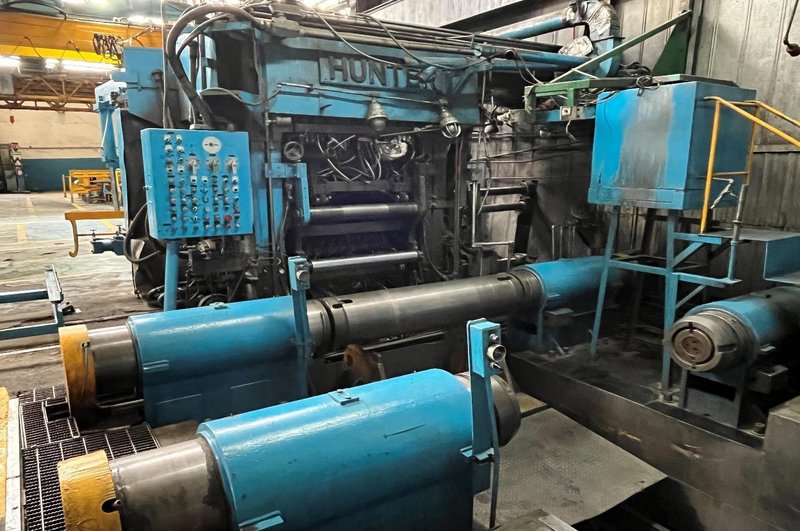

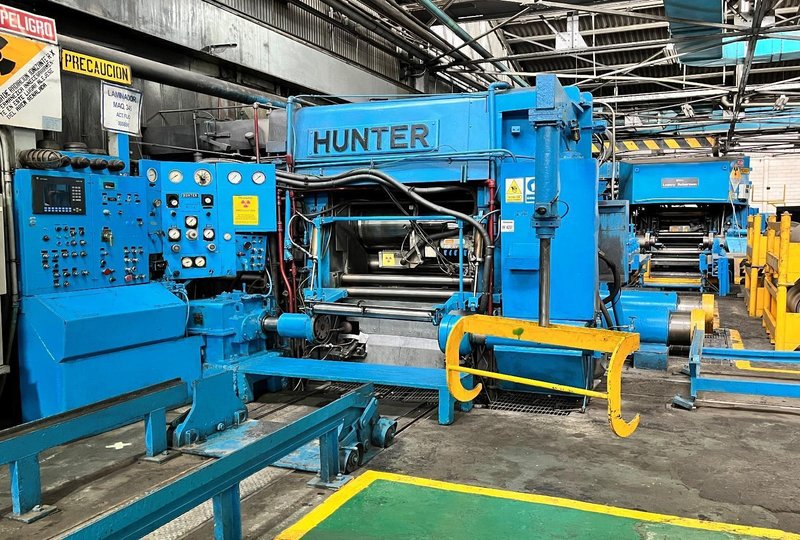

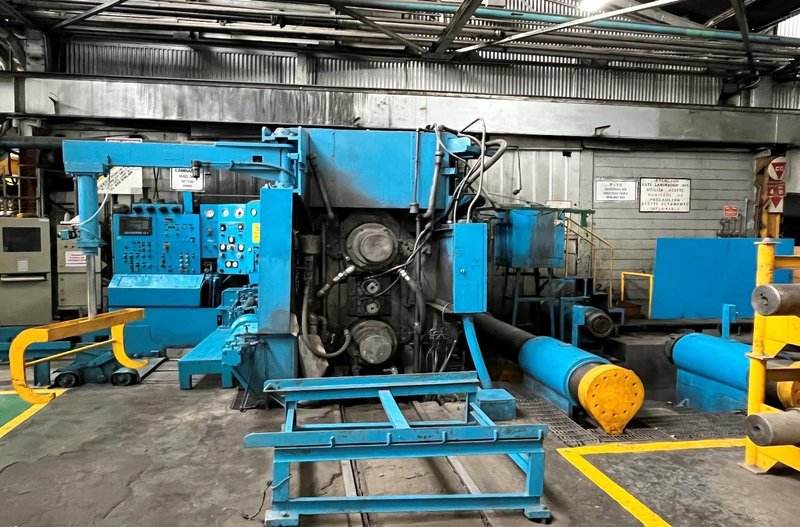

9 ” (228 mm) X 22” (559 mm) X 40” (1016 mm) HUNTER 4 HIGH ROLLING MILL (14533)

Name: Used HUNTER 4 high rolling mill For Sale 14533
Brand: HUNTER
SKU: 14533
Availability: PreOrder

Brand

HUNTER

Not specified

Max Width Workpiece	40 inches
Work Roll Dia.	9 inches
Back Up Roll Diameter	22
Roll Face Width	40
9” (228 mm) X 22” (559 mm) X 40” (1016 mm) Stock # 14533 Type Mill: 4 High Rolling Mill • Manufacturer: Hunter • Thickness measurement Not Available • Technical Specifications: • Width min-max: 457 – 1016 mm. • Entry Thickness: 0.38 mm Exit Max/Min Thickness: 0.3 / 2 x 0.007 mm. • Line Speed: 730 mpm max • Max Coil weight: 2000 kg. • Mill Data: • Work Roll Face: 1016 mm • Work Rolls Diameter: 228 mm. Back Up Rolls diameter: 559 mm. • 223.7 Kw Motor drive • Uncoiler Data: Recoiler Data: • Coil ID: 270/400 mm Coil ID: 270 mm. • Coil OD: 914 mm Coil OD: 914 mm. • Uncoiler 1 1 x 18.6 Kw Motor Drive 2 x 14.9 kw Motor Drive • Uncoiler 2 1 x 18.6 Kw Motor Drive • Uninstalled in warehouse • Control System Not Available • Hydraulics, Controls & Electric Not Available • Entry & exit coil rack • Edge trimmer Temporary Specifications Subject to Revisions PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE ALL SPECIFICATIONS ARE SUBJECT TO VERIFICATION
