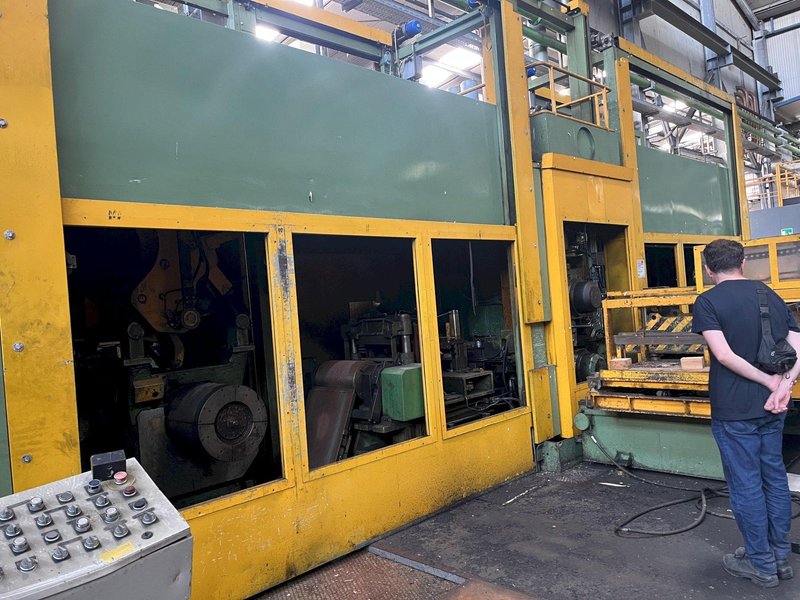

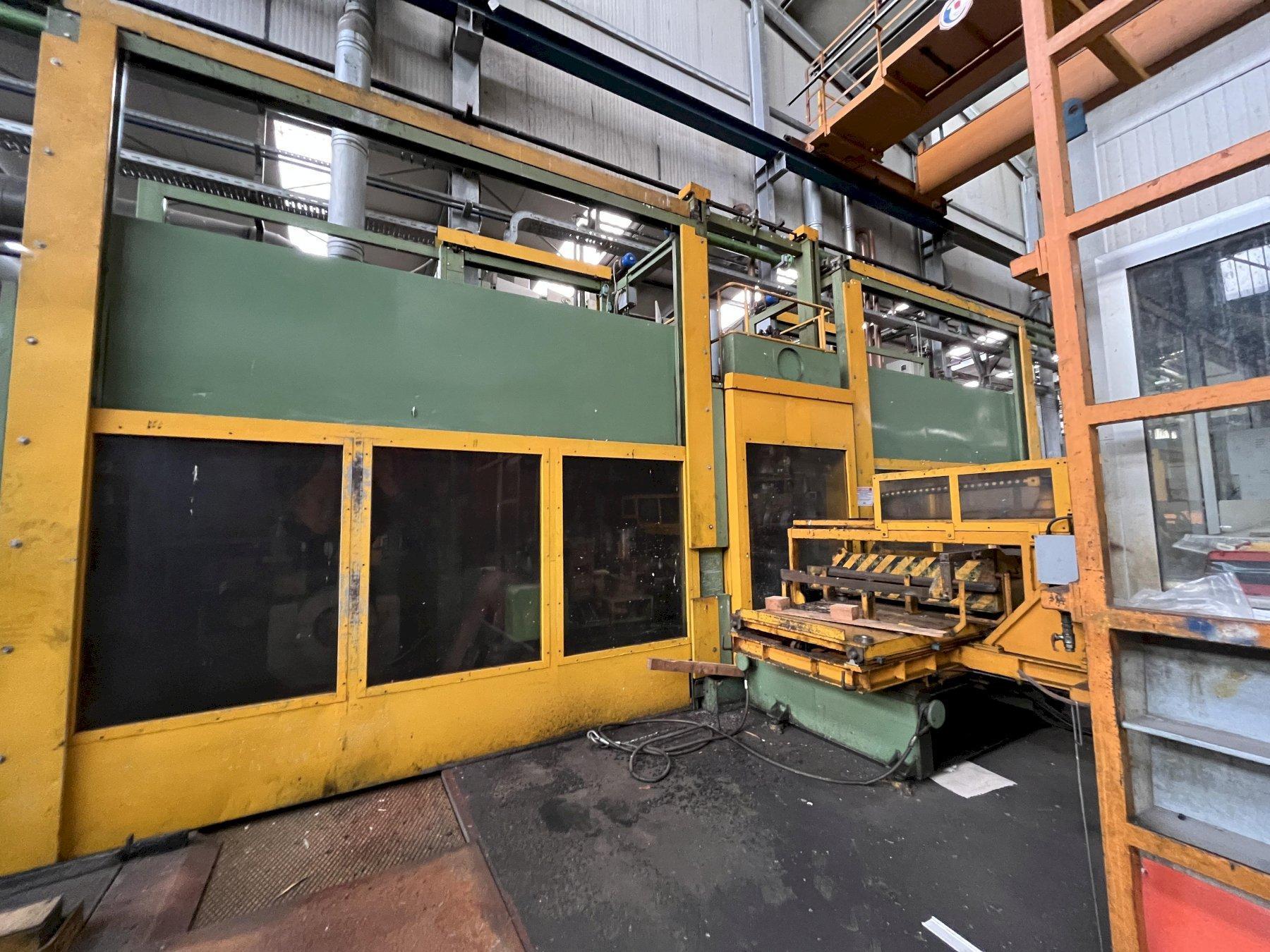

SCHMITZ FINISHING 4 HI ROLLING MILL

SCHMITZ Finishing 4Hi Rolling Mill #3

TYPE: FINISHING ROLLING MILL 4 HI - REVERSING

Description:

VOLLMER flatness control

AGC system

· Max force: 200 tons

· Working + backup rolls

Technical Specifications:

· Area: 250 m²

· Electrical Power: 550 kW

· Lubrication: Oil

· Roll Positioning: Hydraulic gap & bending

· Max Strip Width: 360 mm

· Thickness Range: Entry max 3.3 mm / Exit min 0.05 mm

· Direction..L-R

· Speed: 750 m/min

CONFIGURATION

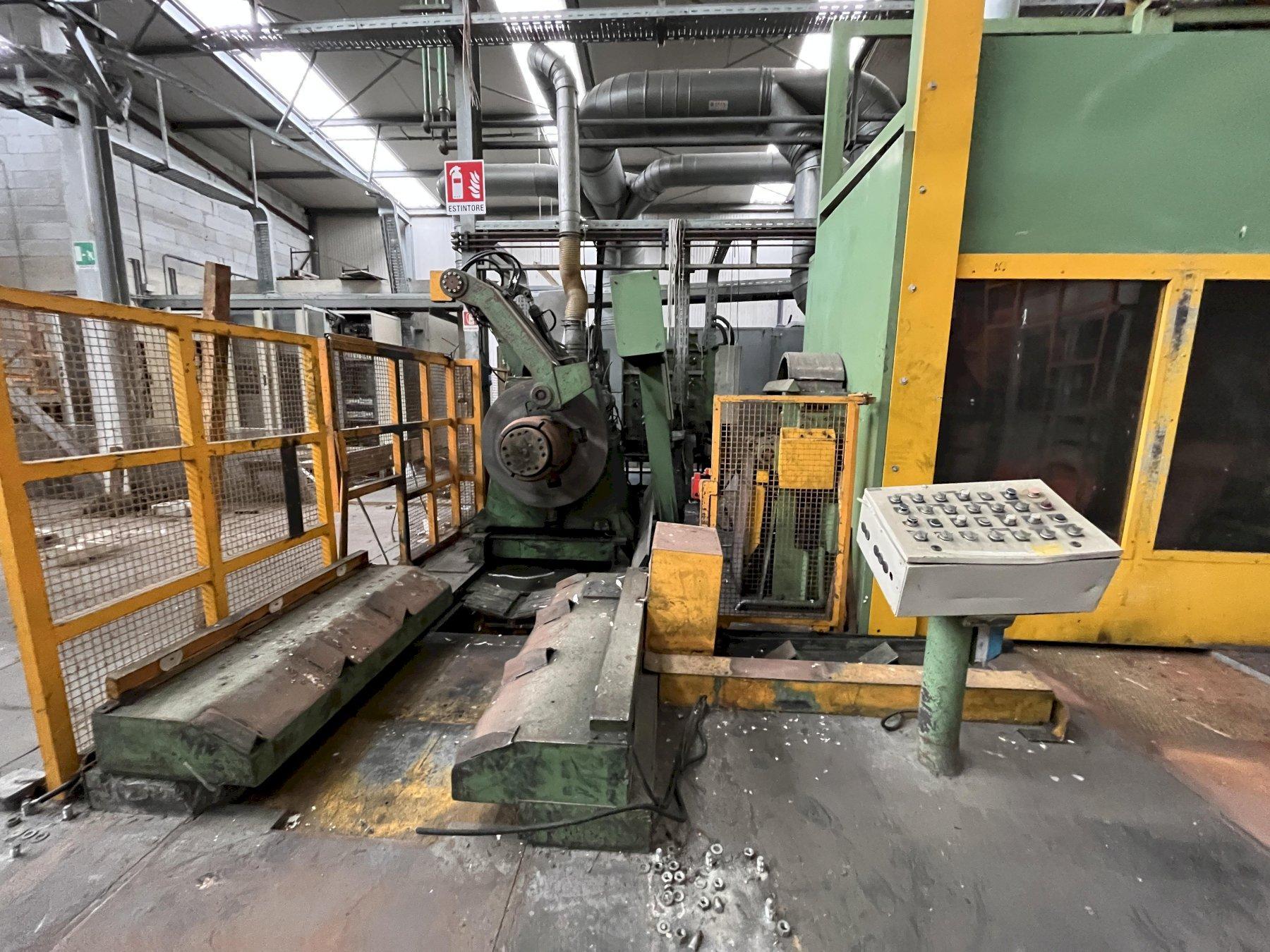

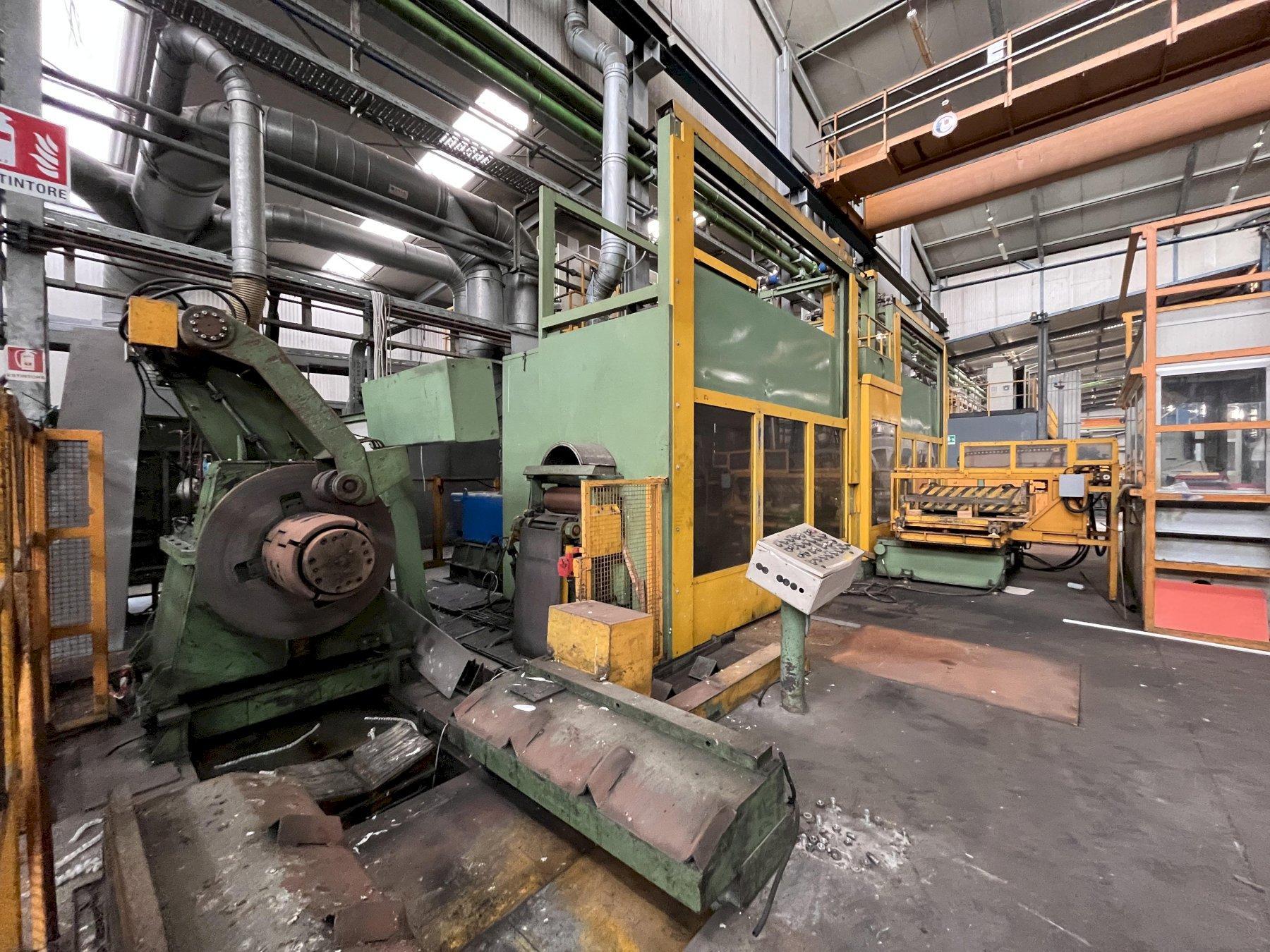

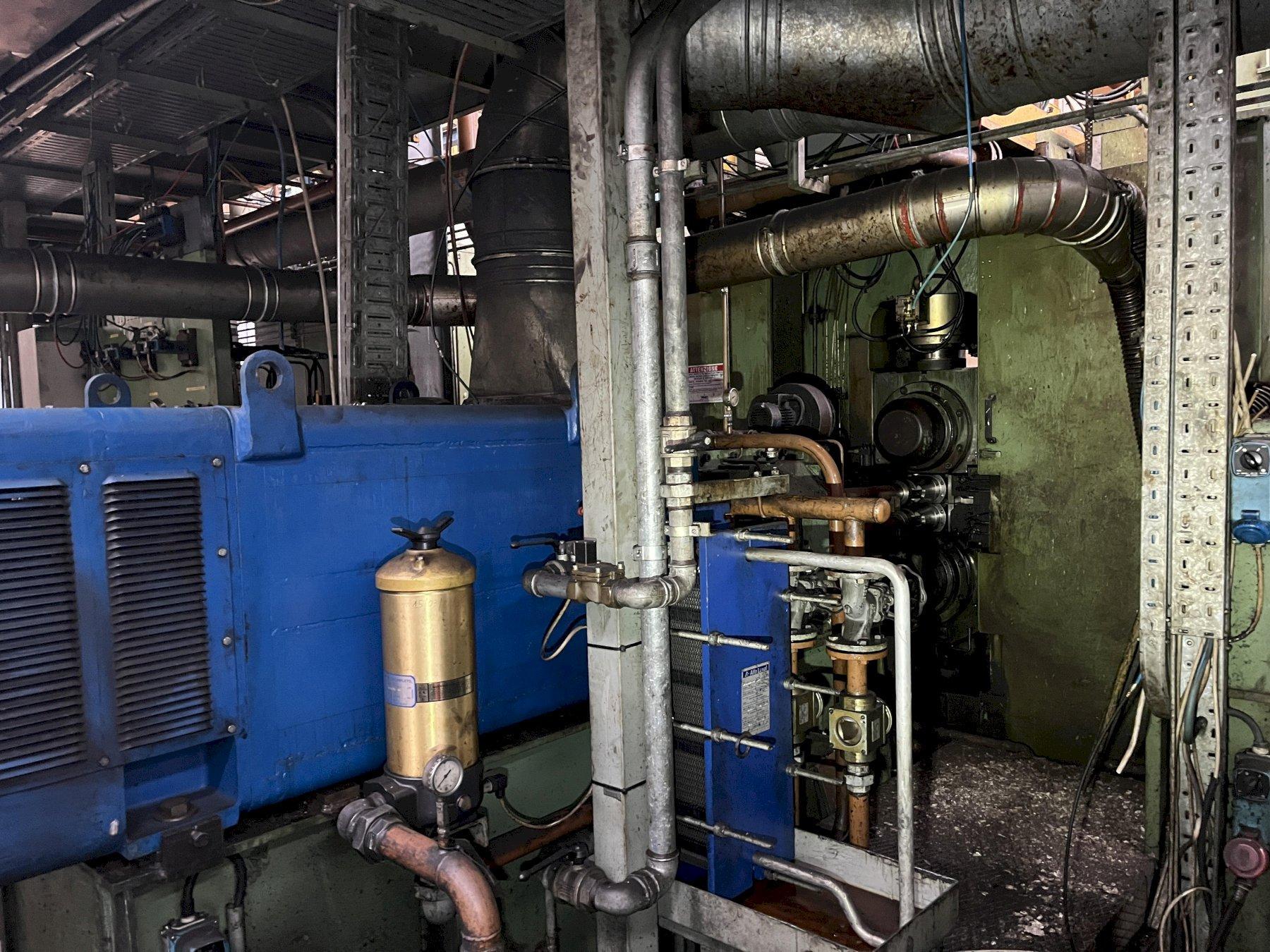

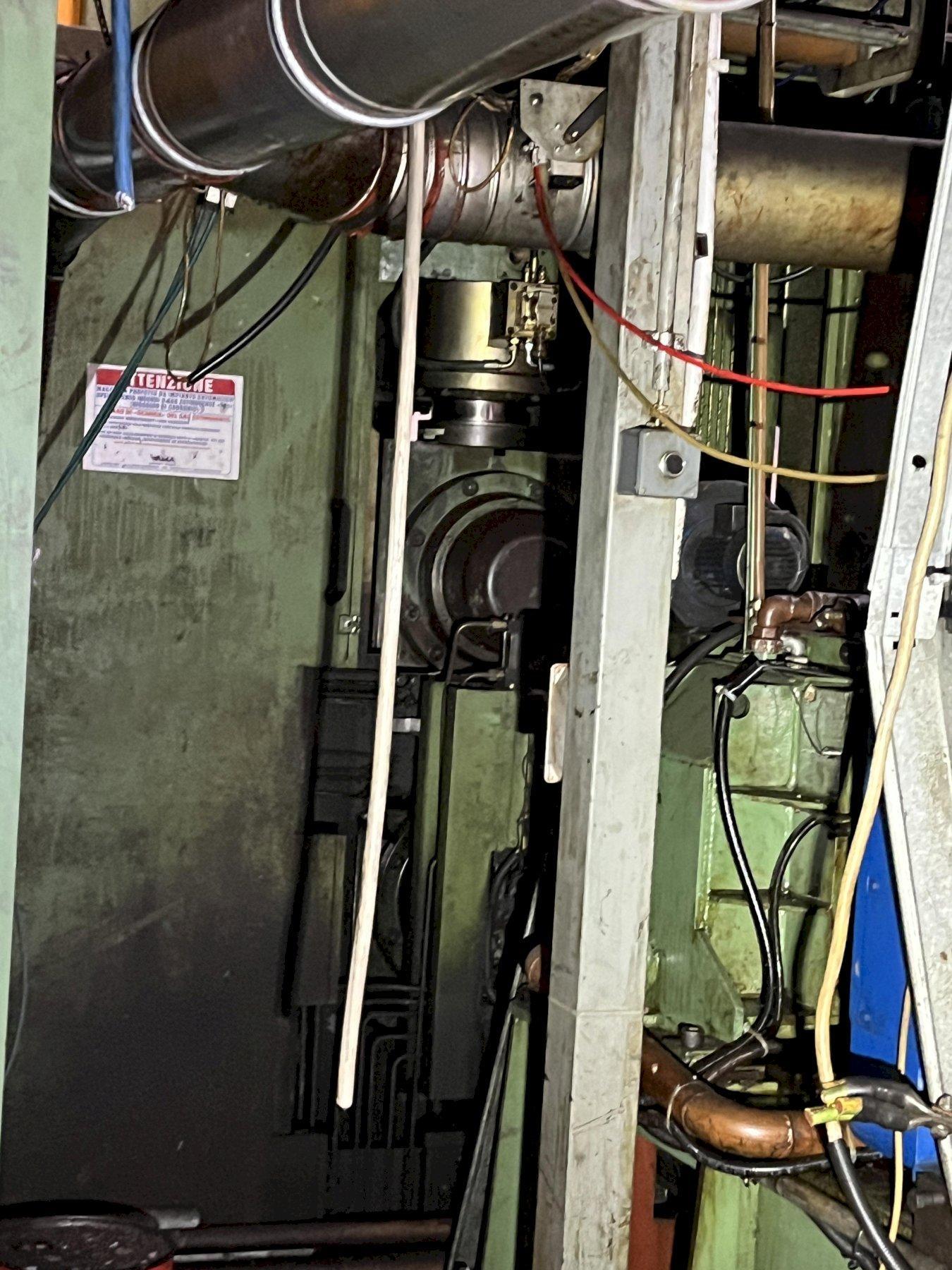

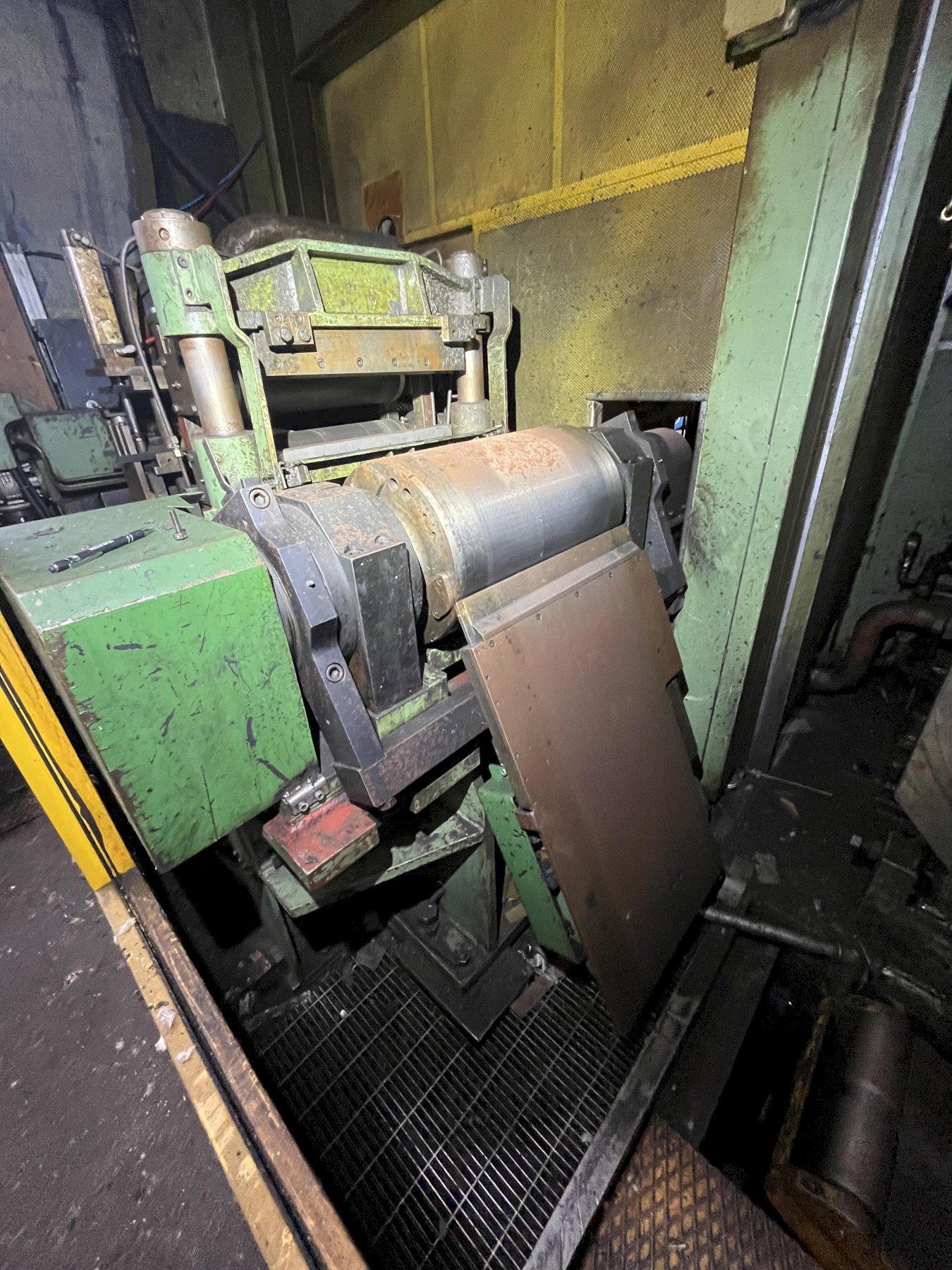

UNCOILER

Snub Roll , Hydraulic motor

Coil Car, Coil Stand

Hydraulic Expansion

Main Motor……………44 Kw, 440 Volt

LEFT SIDE WINDER……………………….160Kw, 600 Volt

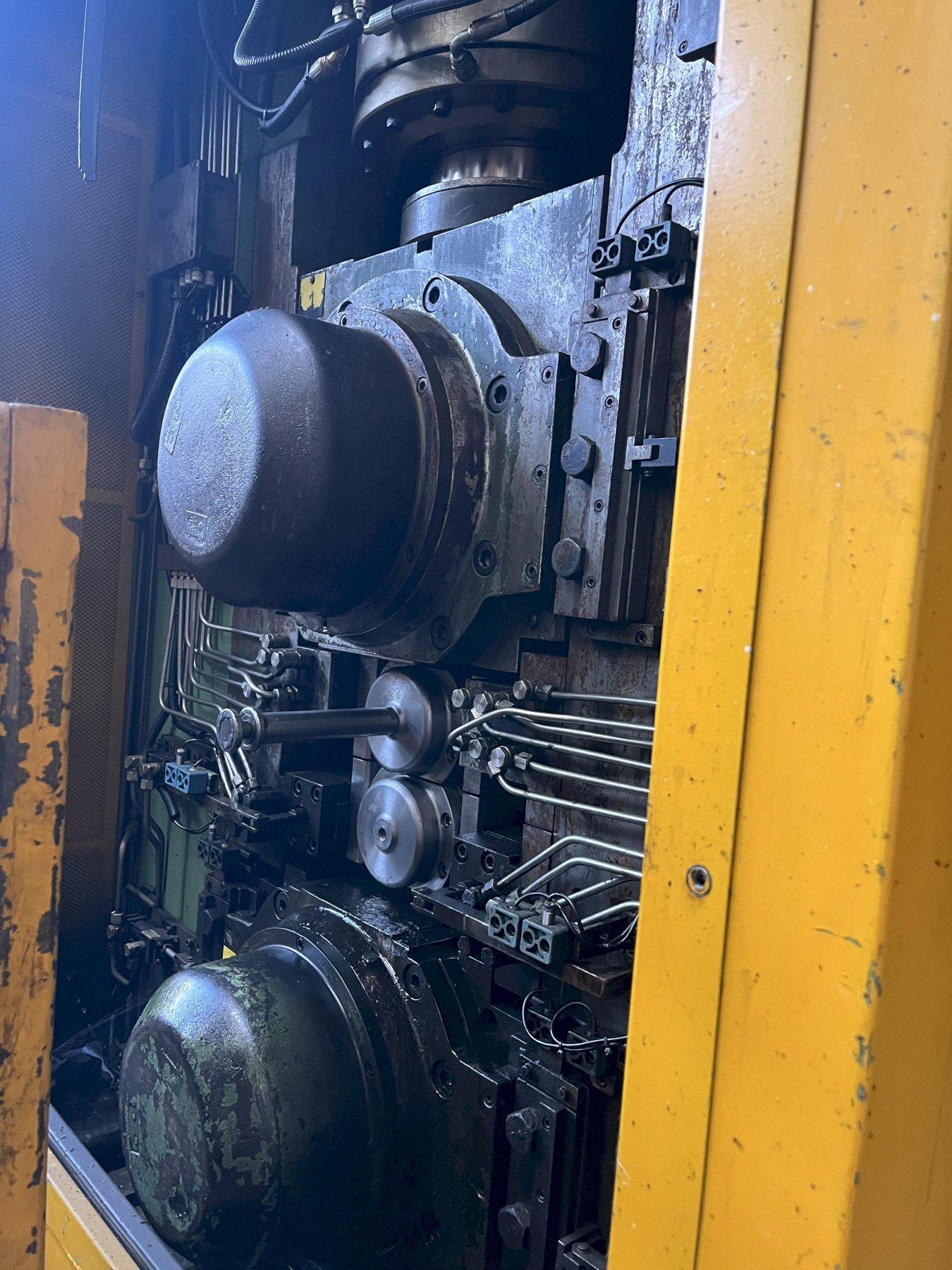

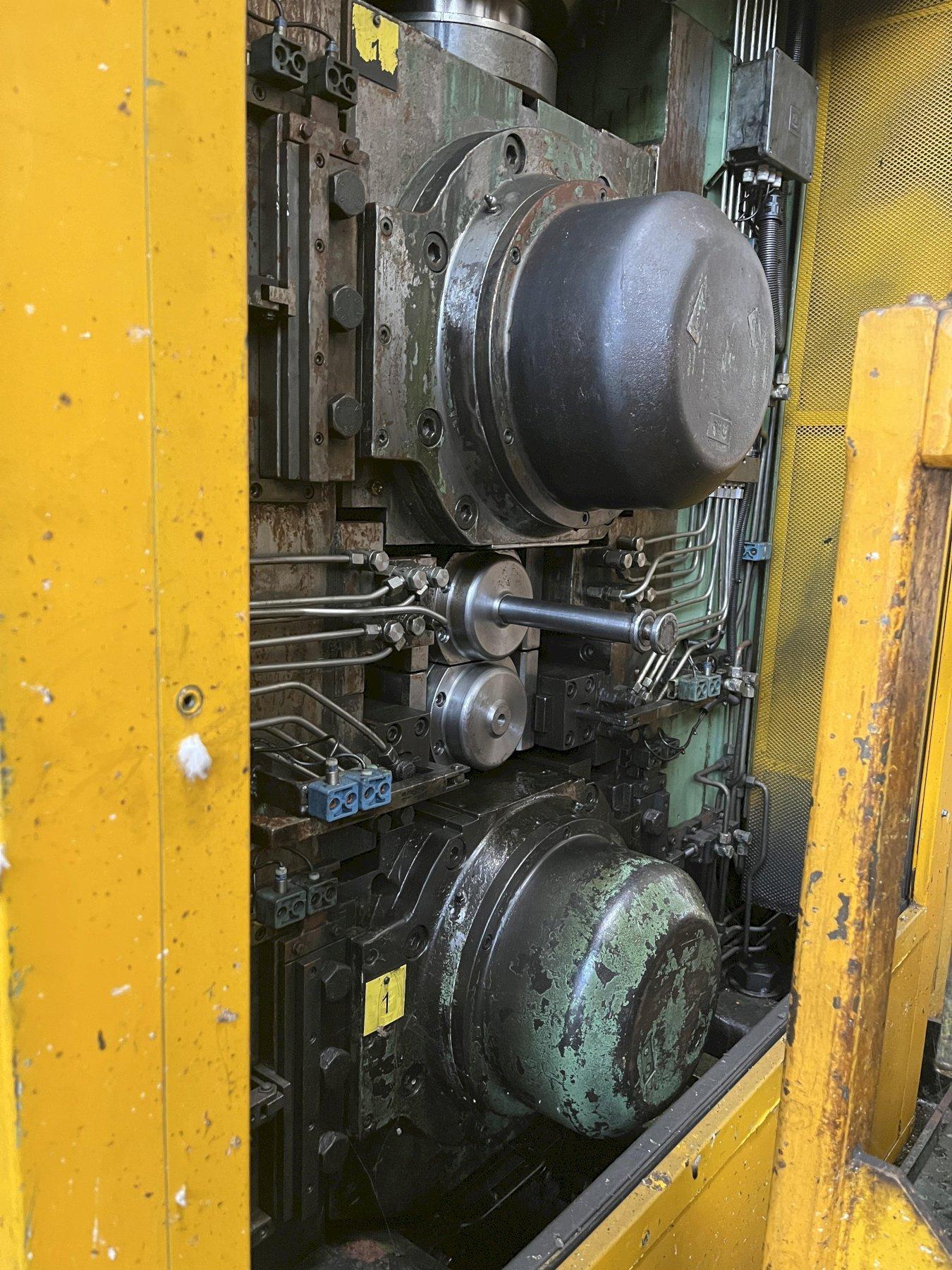

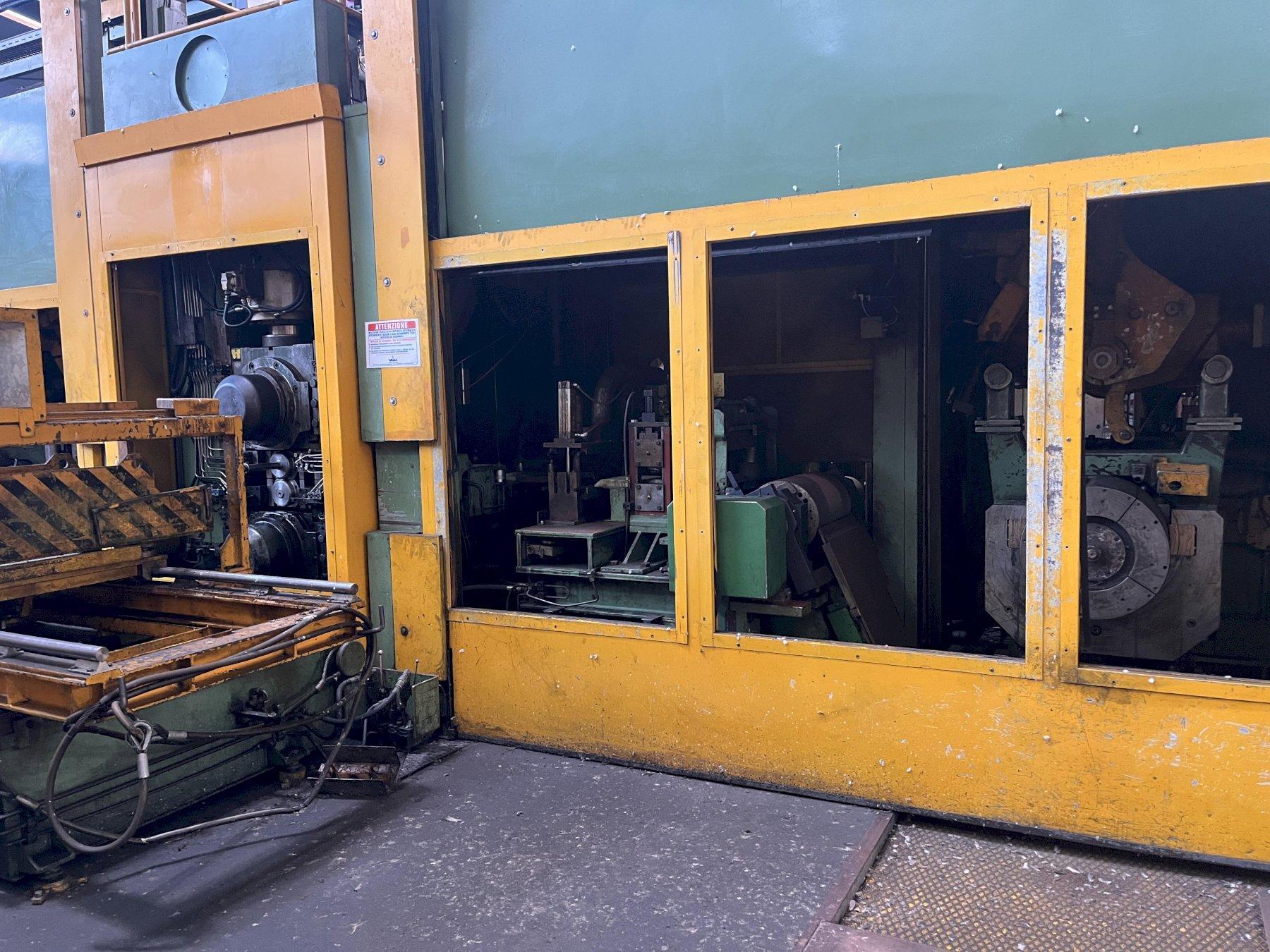

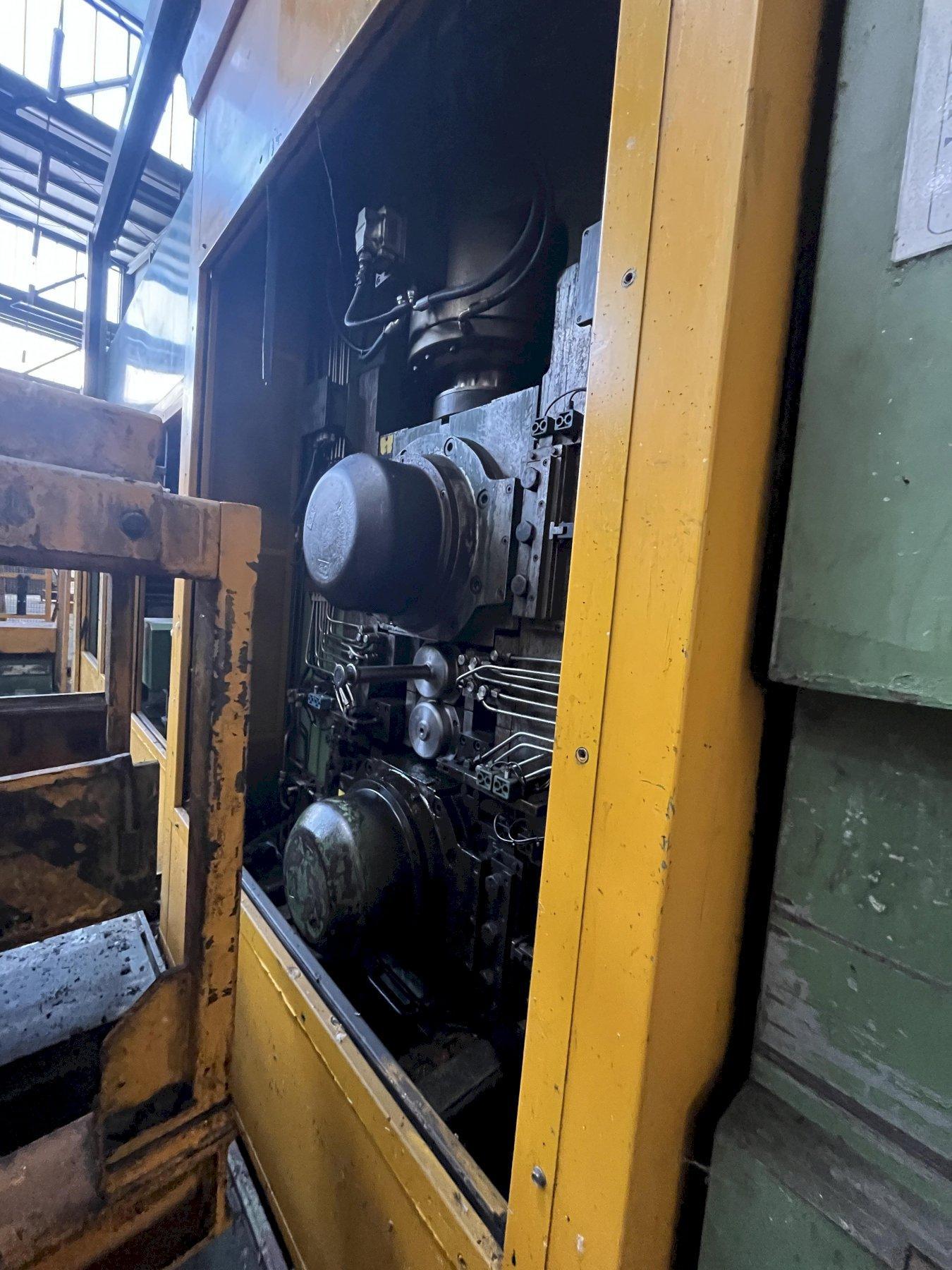

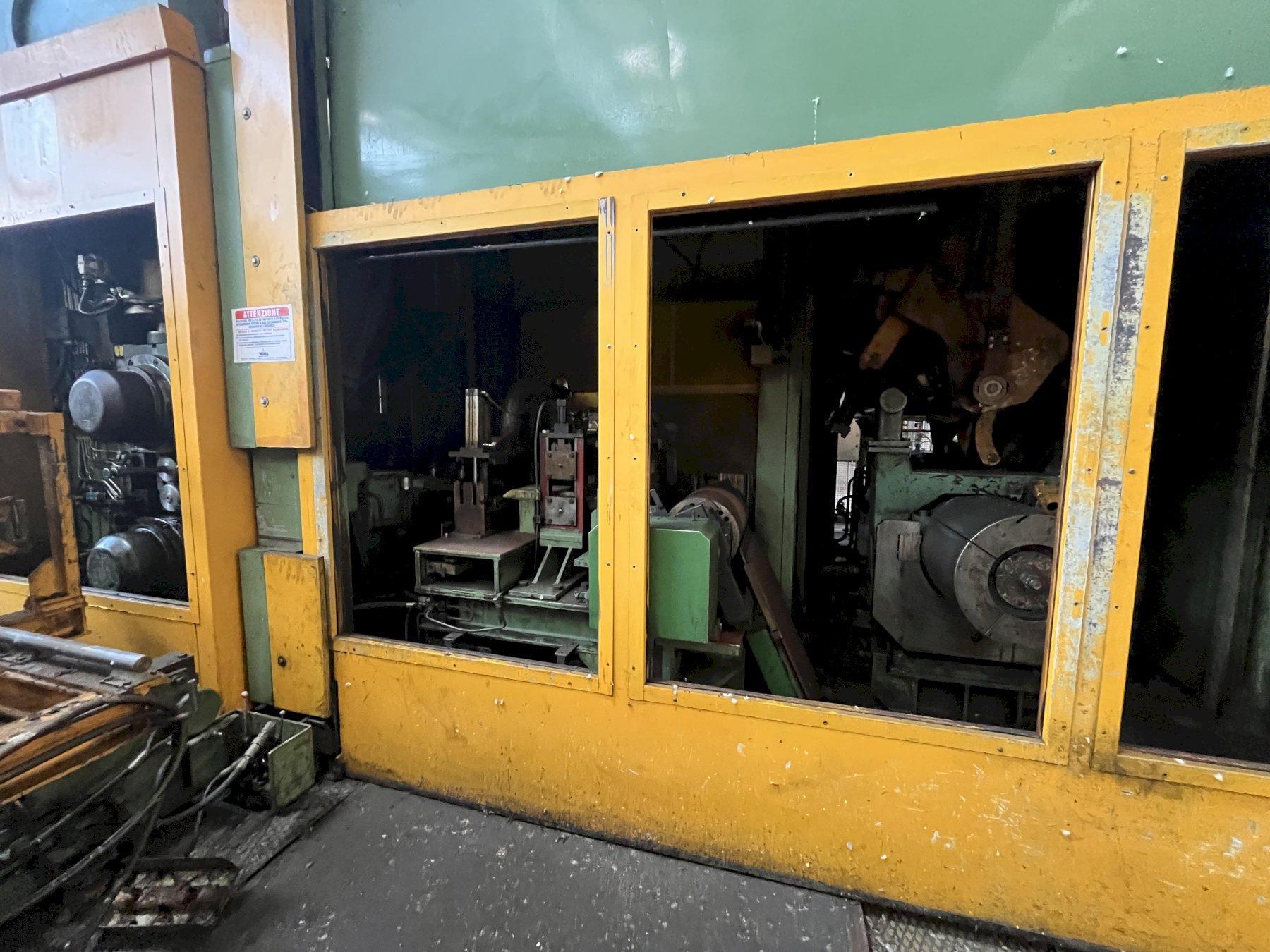

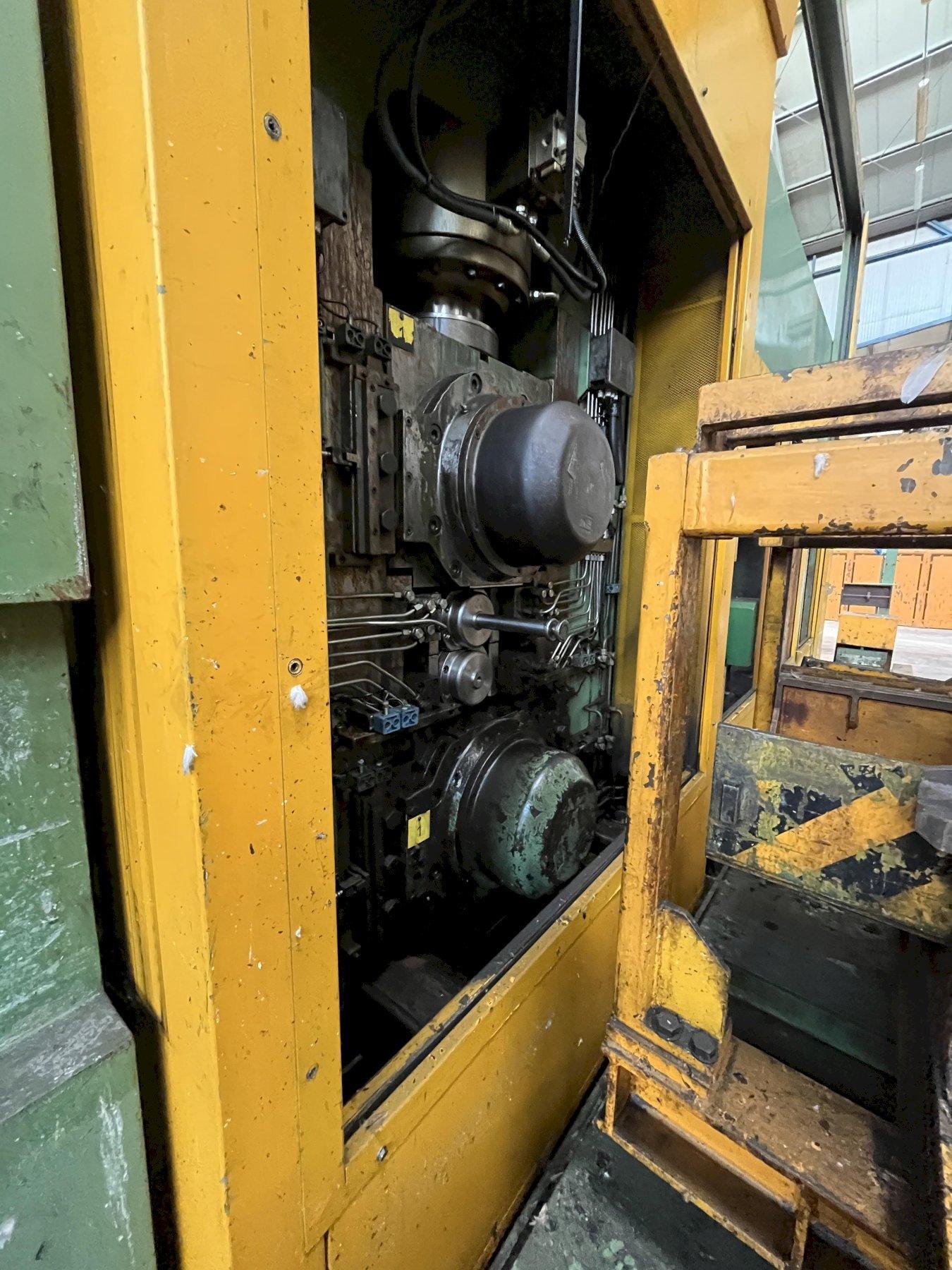

SCHMITZ 4 HI ROLLING MILL STAND

Roll Dimensions…………….150mm Dia x 400mm Width

Shape Meter Roll

Main Mill Motor…………………..550 Kw, 500/600 Volt

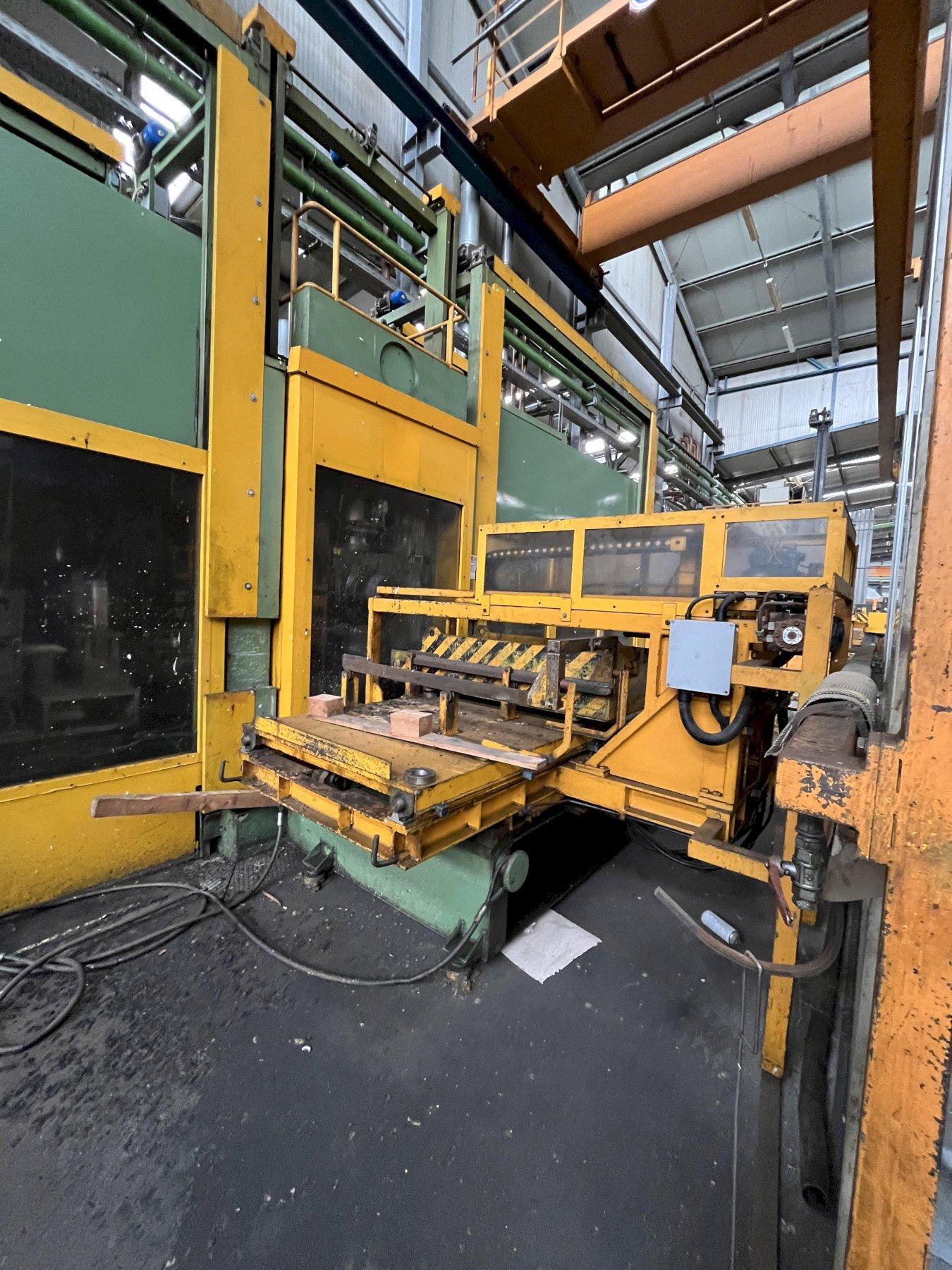

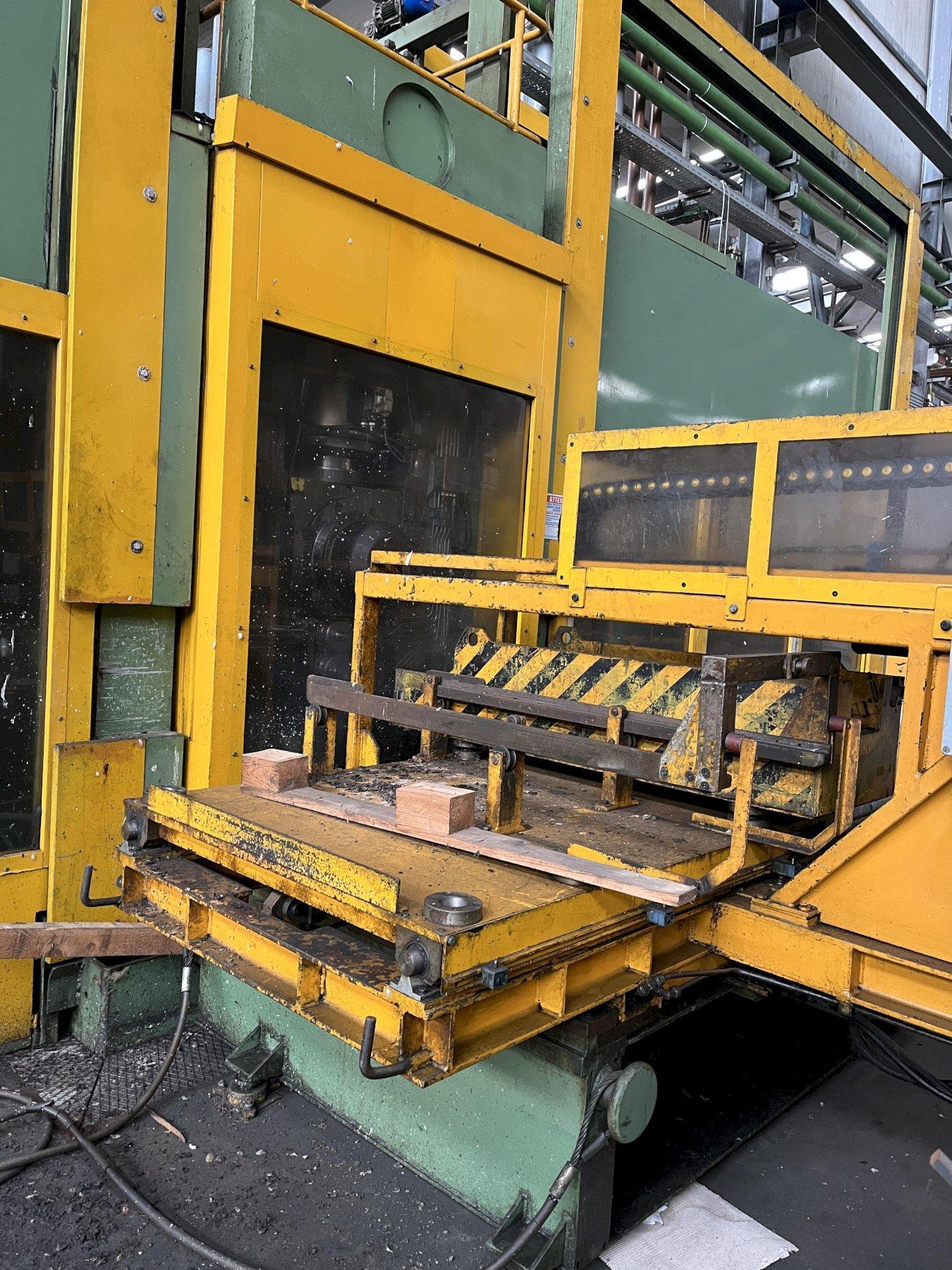

Roll Change Sled

RIGHT SIDE WINDER…………………………160 Kw, 600 Volt

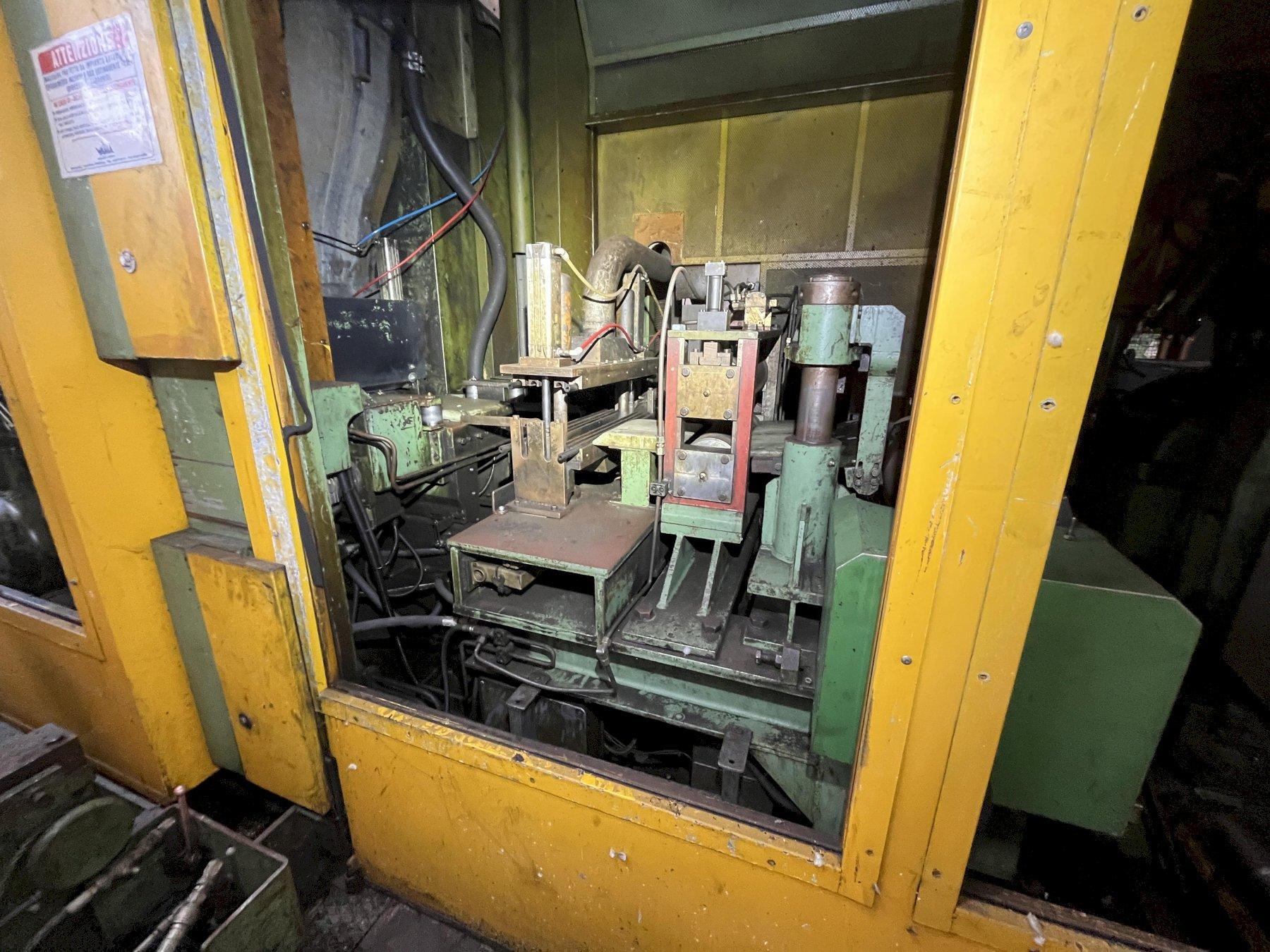

Vollmer Thickness Gauge

Belt Wrapper

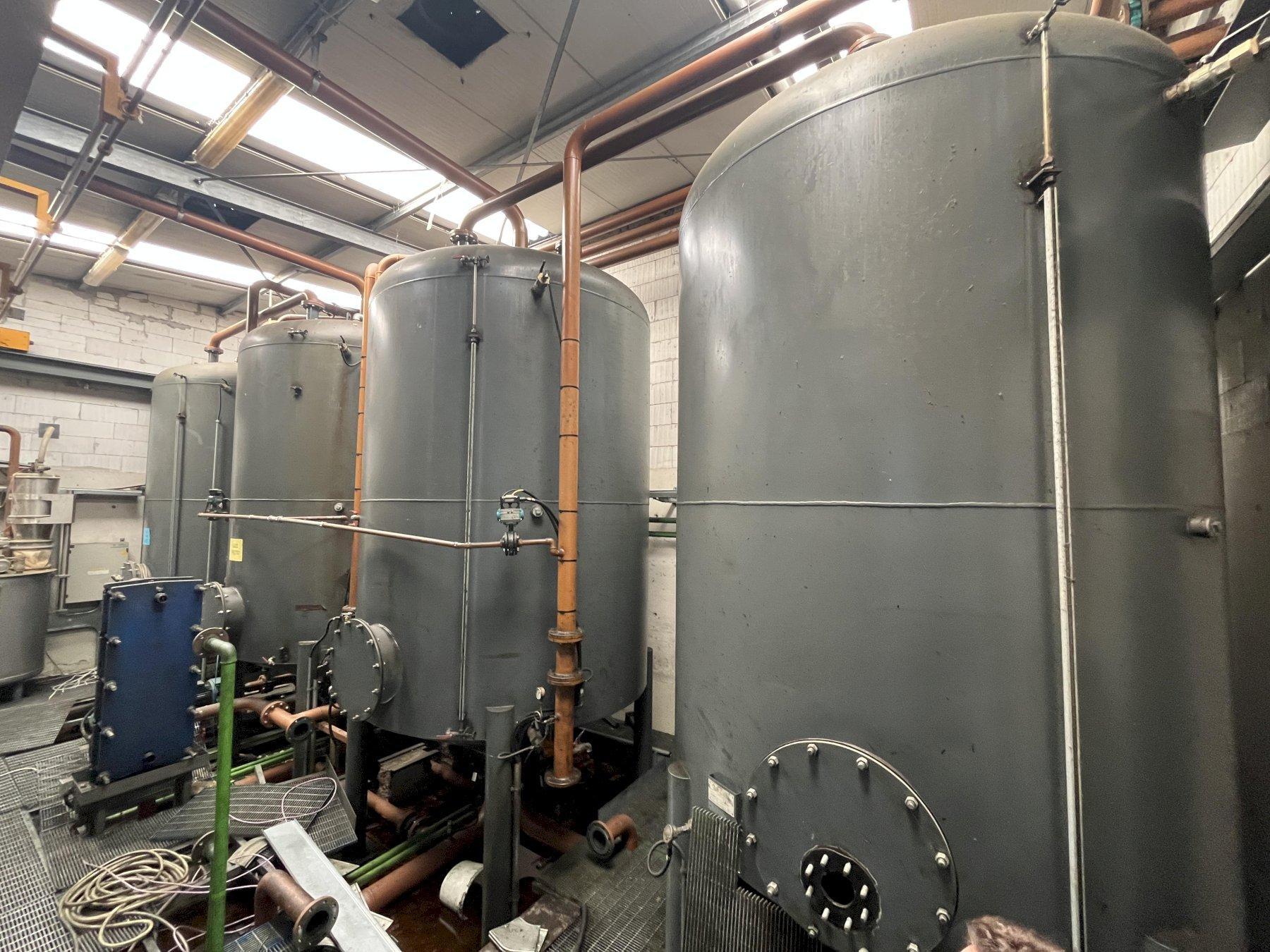

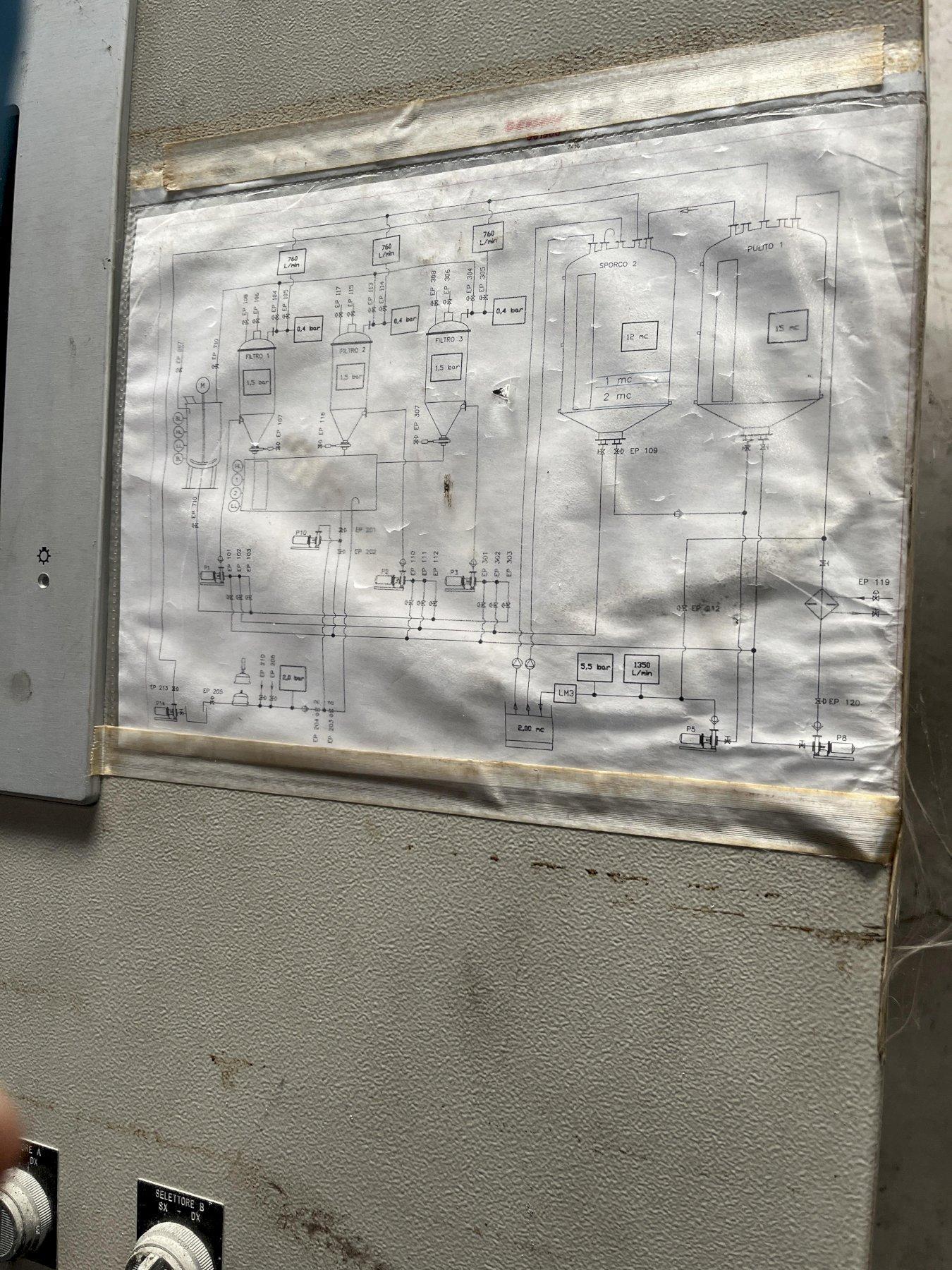

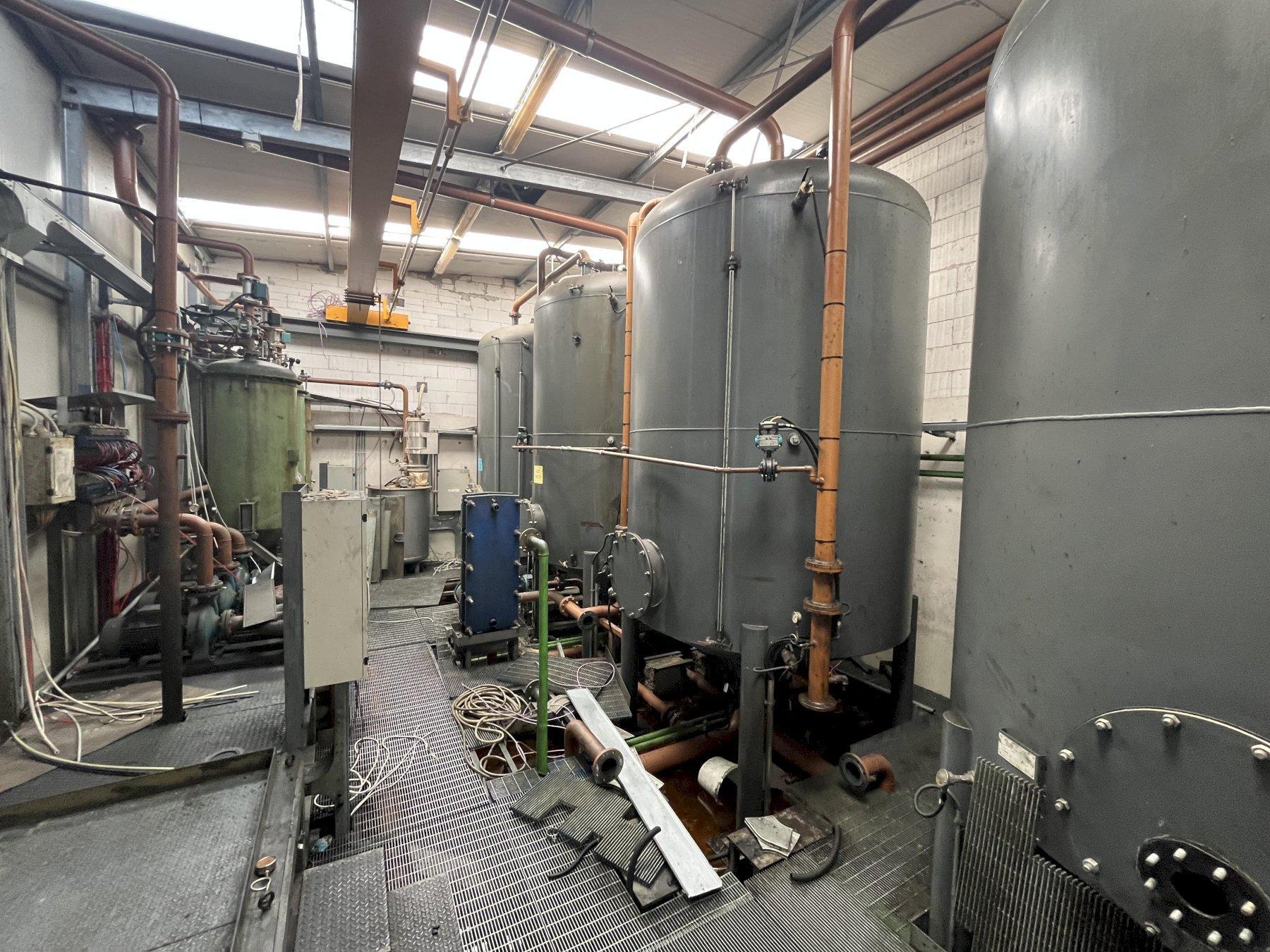

Mineral Oil Filtration System

Cartridge Type, 4 Holding tanks, 3 Cartridge Tanks

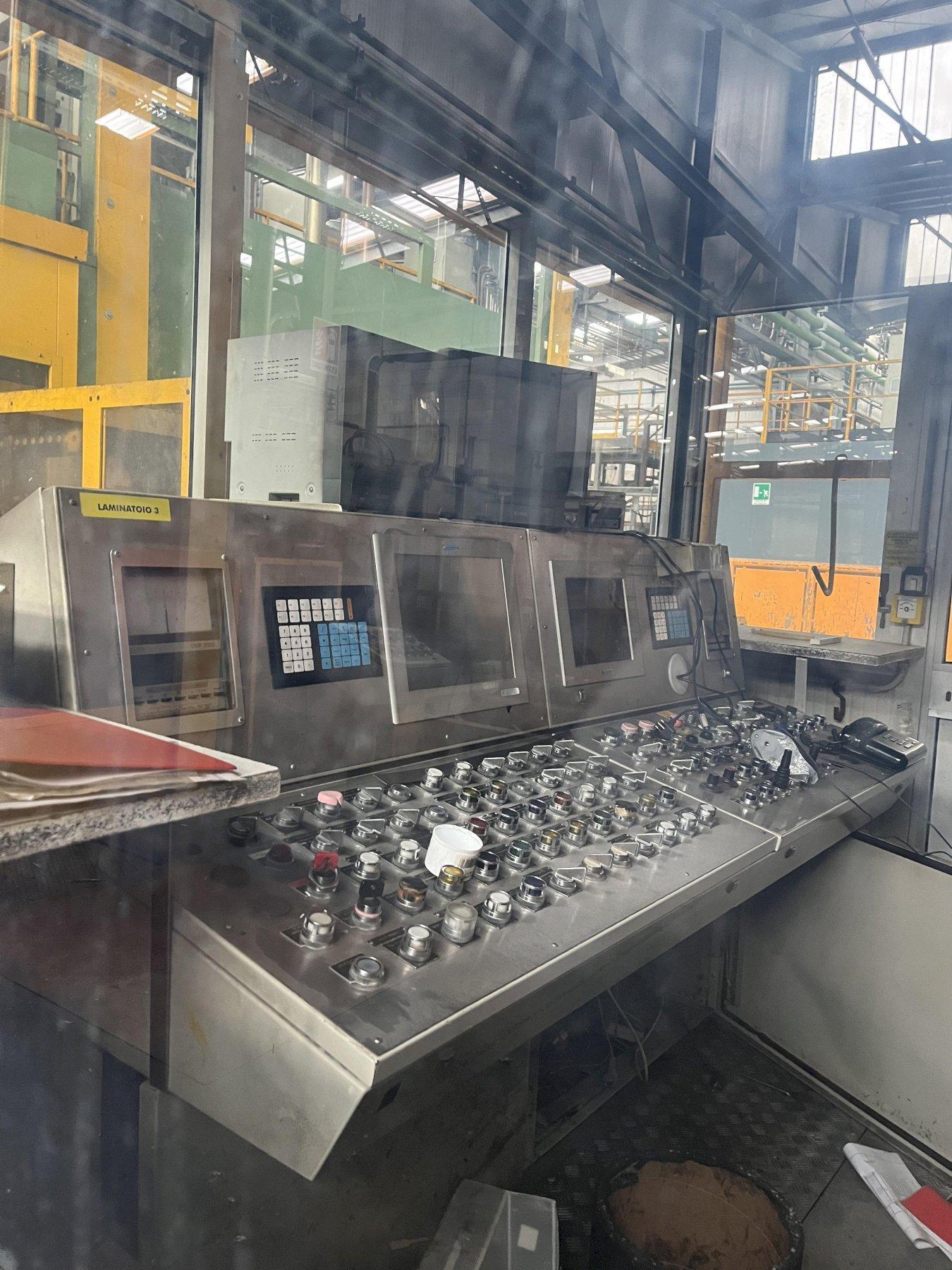

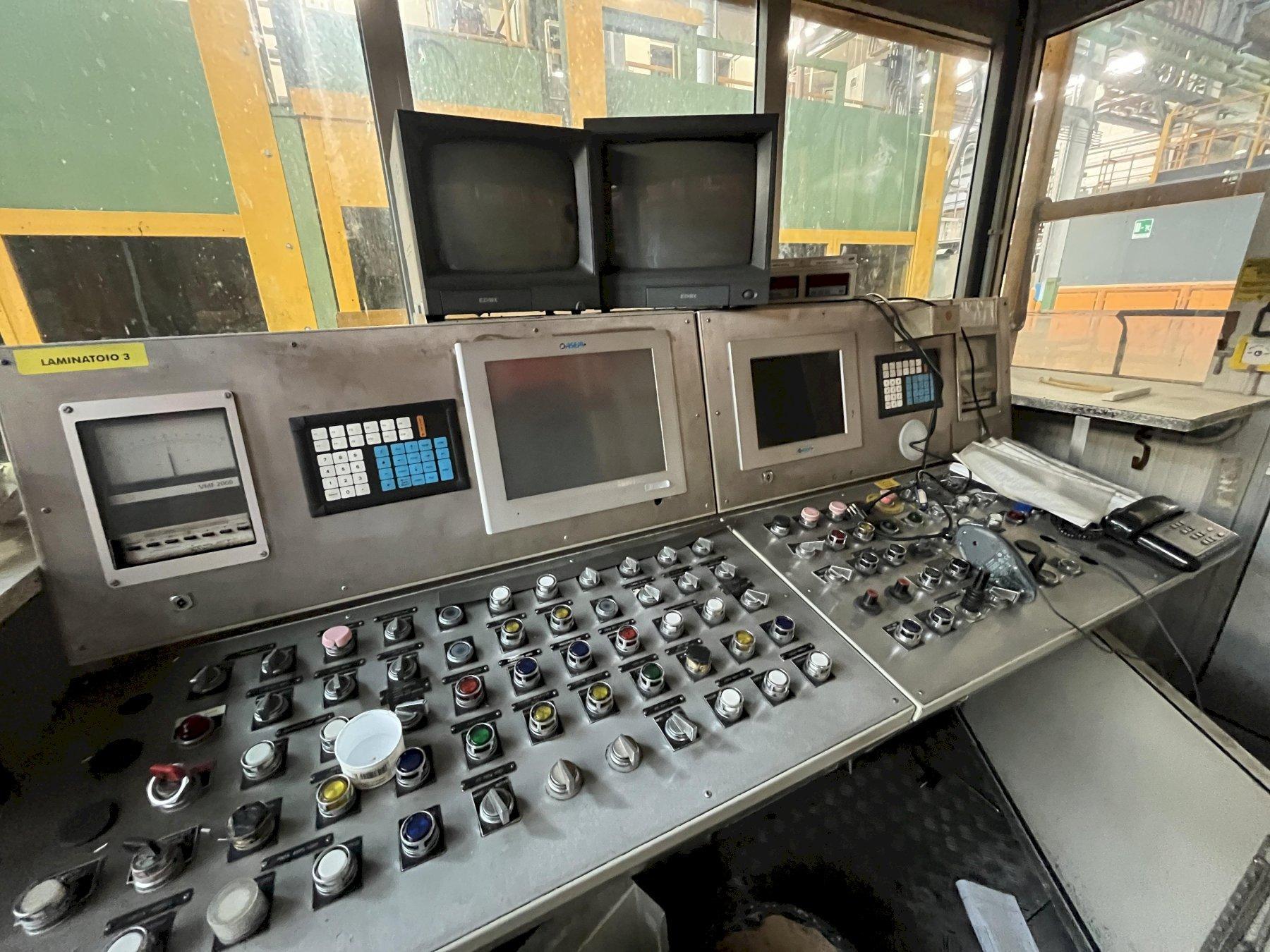

Operator’s Pulpit Control Stand
