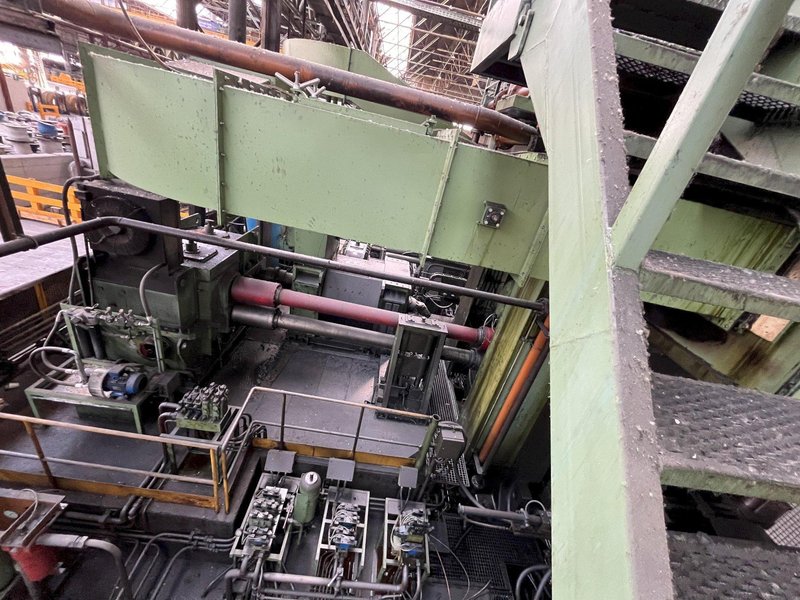

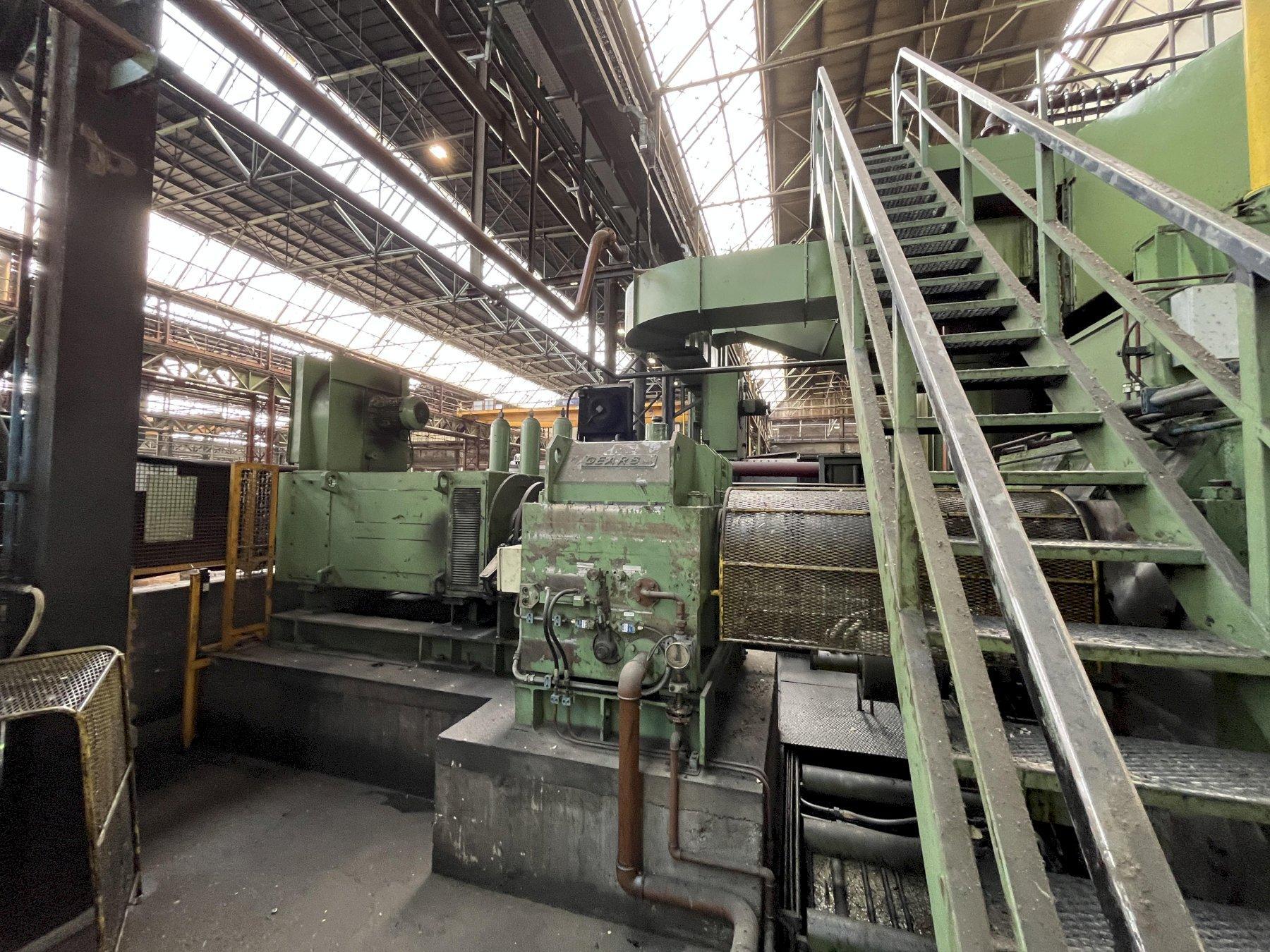

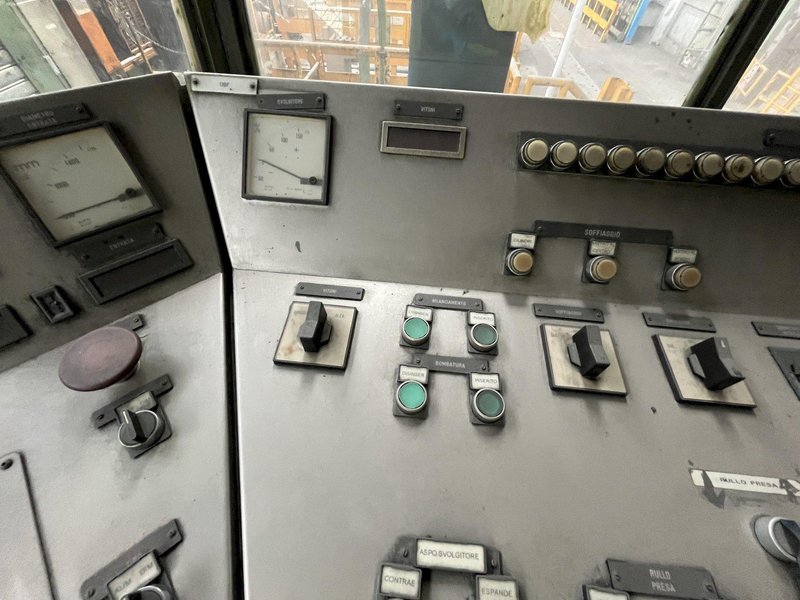

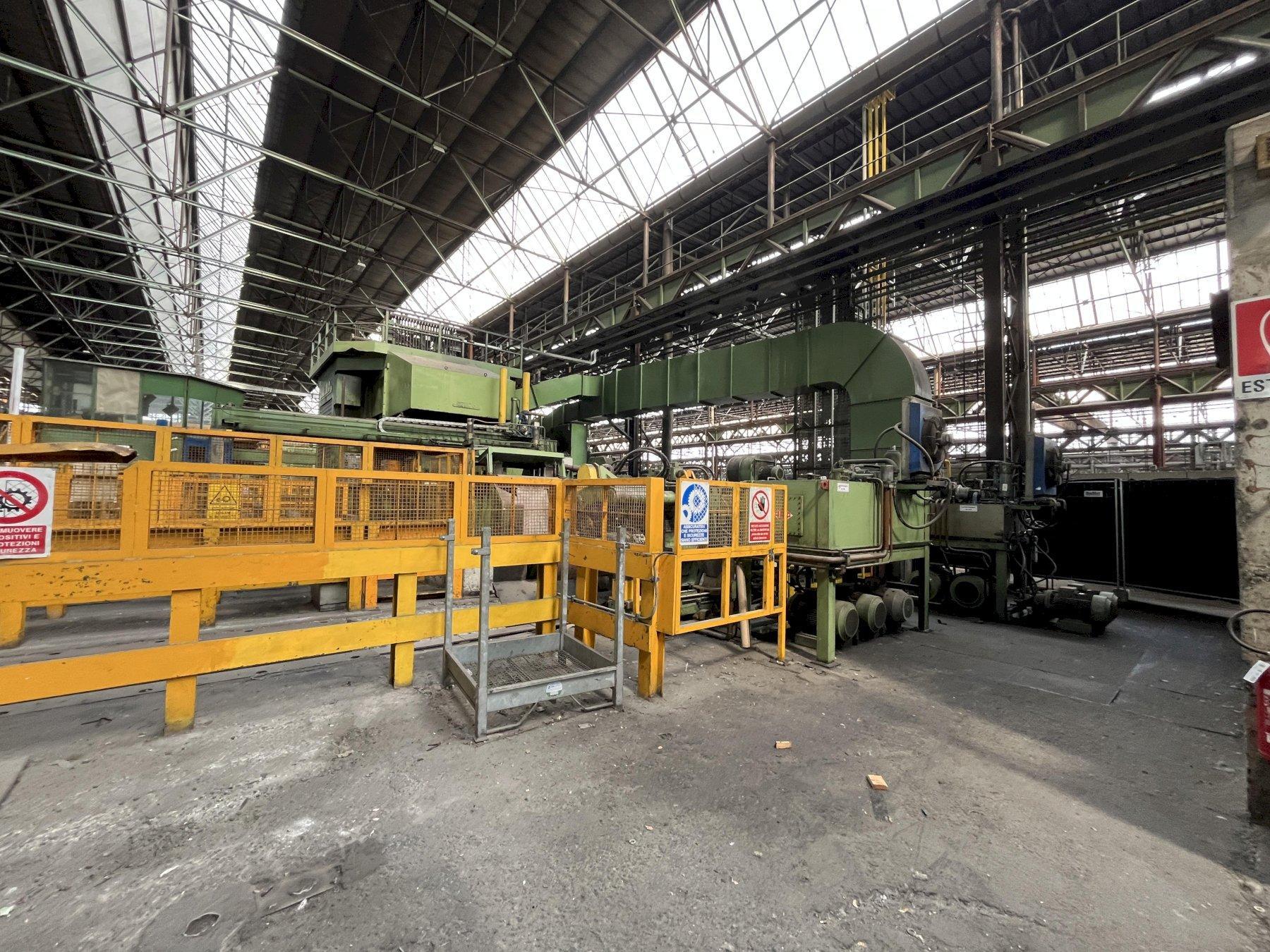

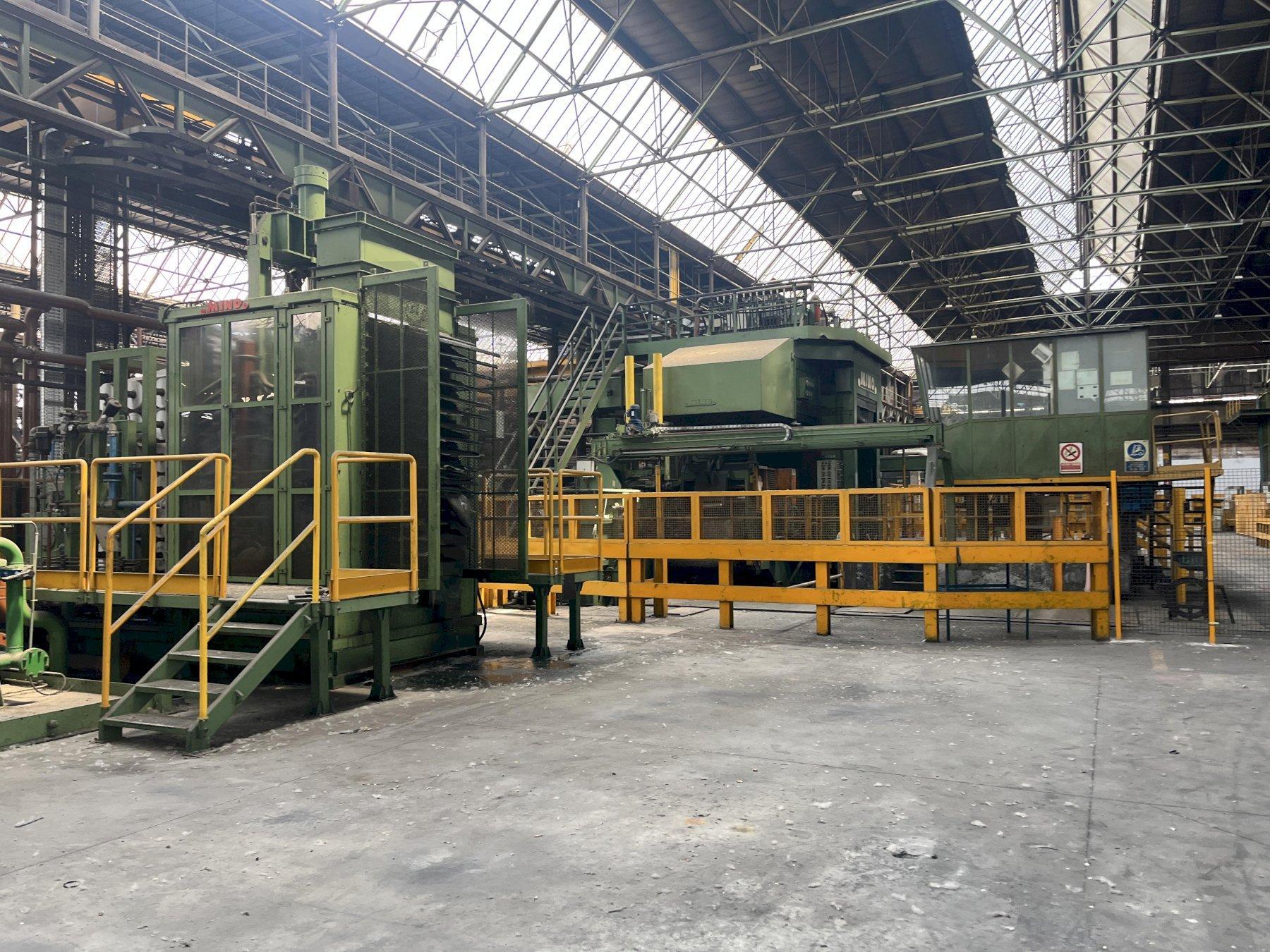

MINO 4-HI BREAKDOWN ROLLING MILL

MINO 4-High Breakdown Mill is complete with fume extraction equipment. The mill performs the primary cold reduction prior to intermediate rolling.

Floor space required is approximately 700 m² with an installed electrical capacity of 3,200 kW.

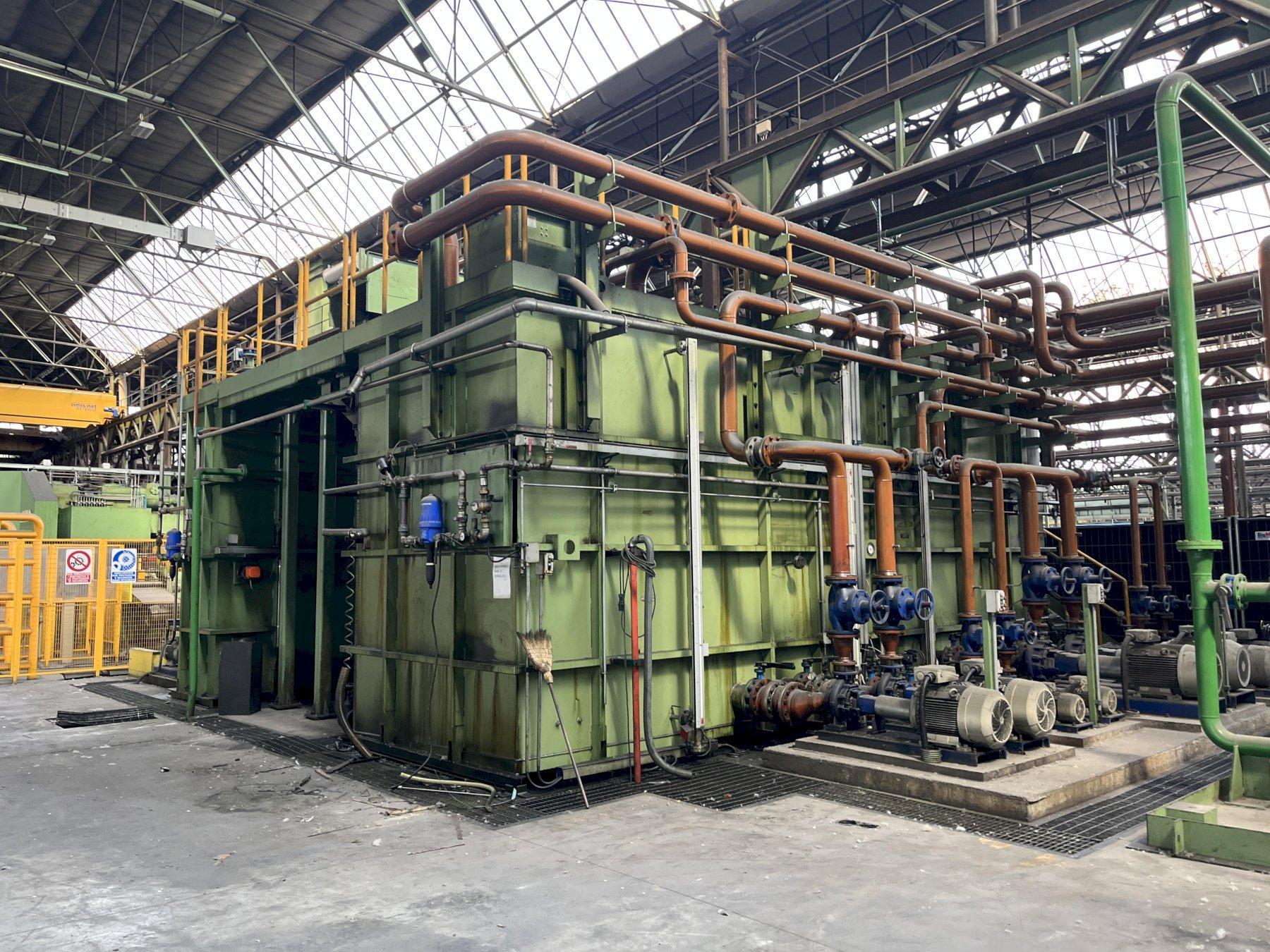

Lubrication is provided through Prosol NT70 emulsion (2.5%) and Achenbach Filtration system

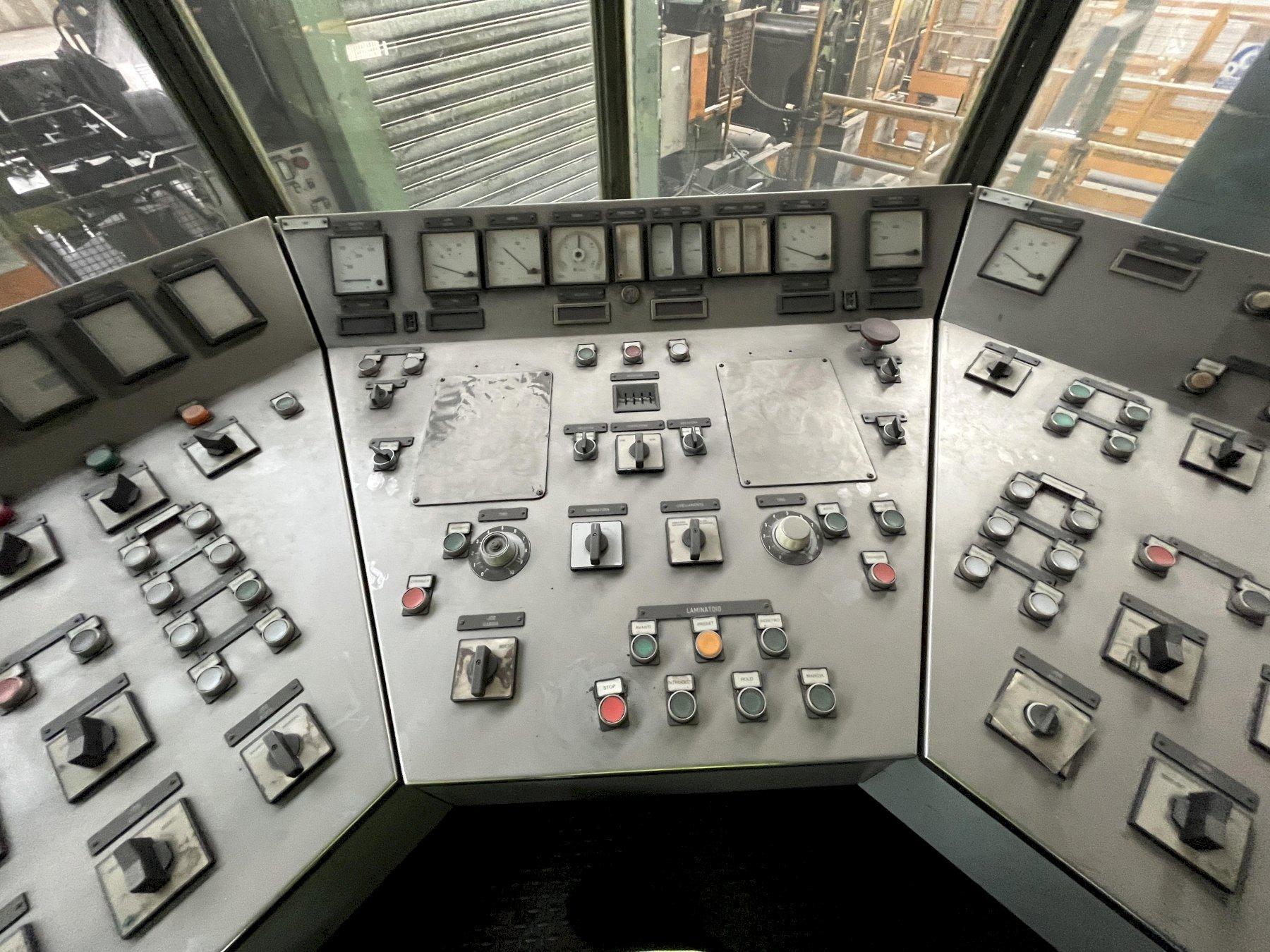

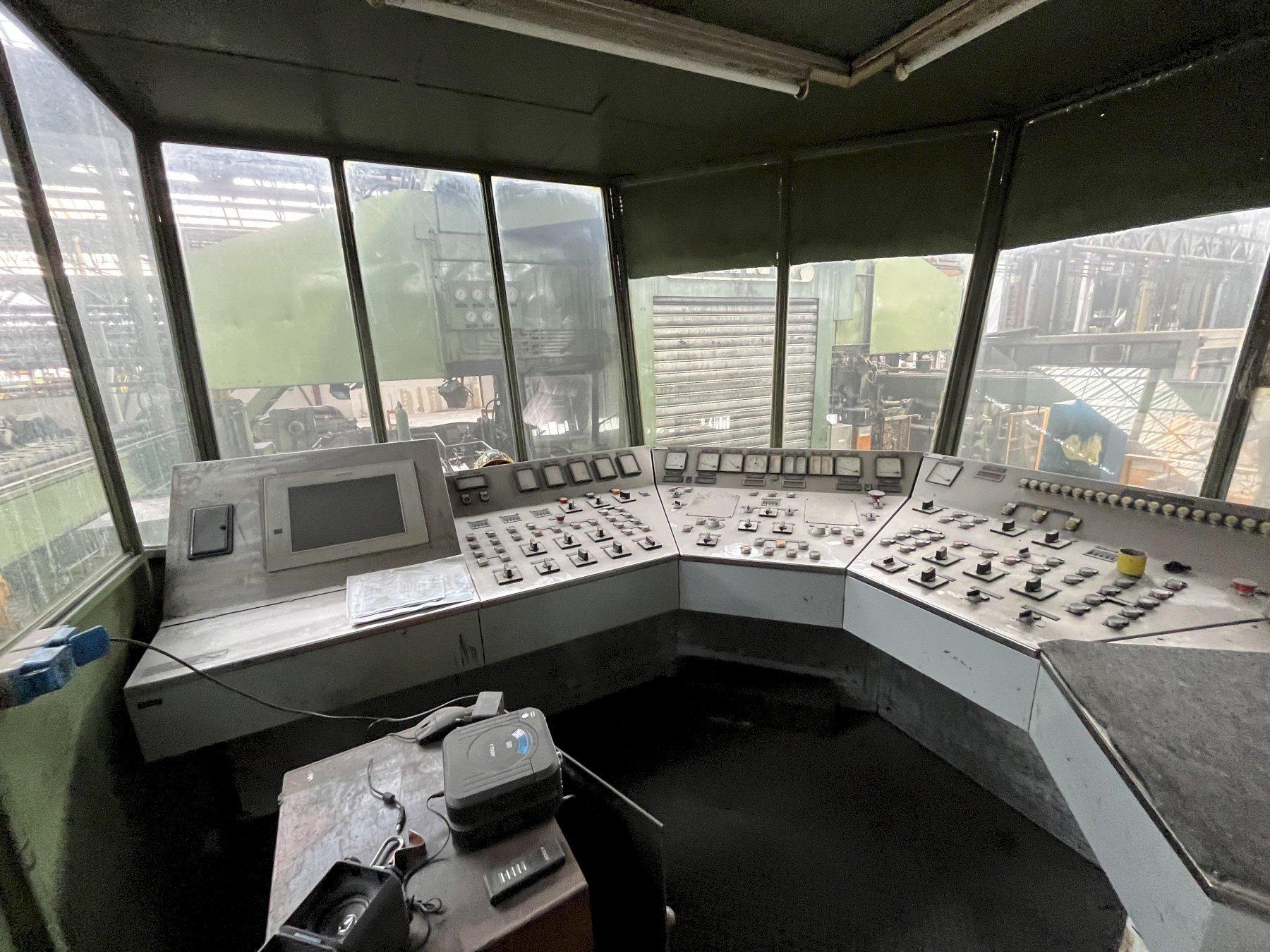

Automatic Gauge Control is achieved using both mechanical screw downs and Hydraulic Gap Control (HGC).

Operating specifications include:

• Coil Inside Diameter: 600–
• Coil Outside Diameter: 1,600 mm
• Strip width: 440–1,040 mm
• Thickness reduction: 15.5 mm to 0.6 mm

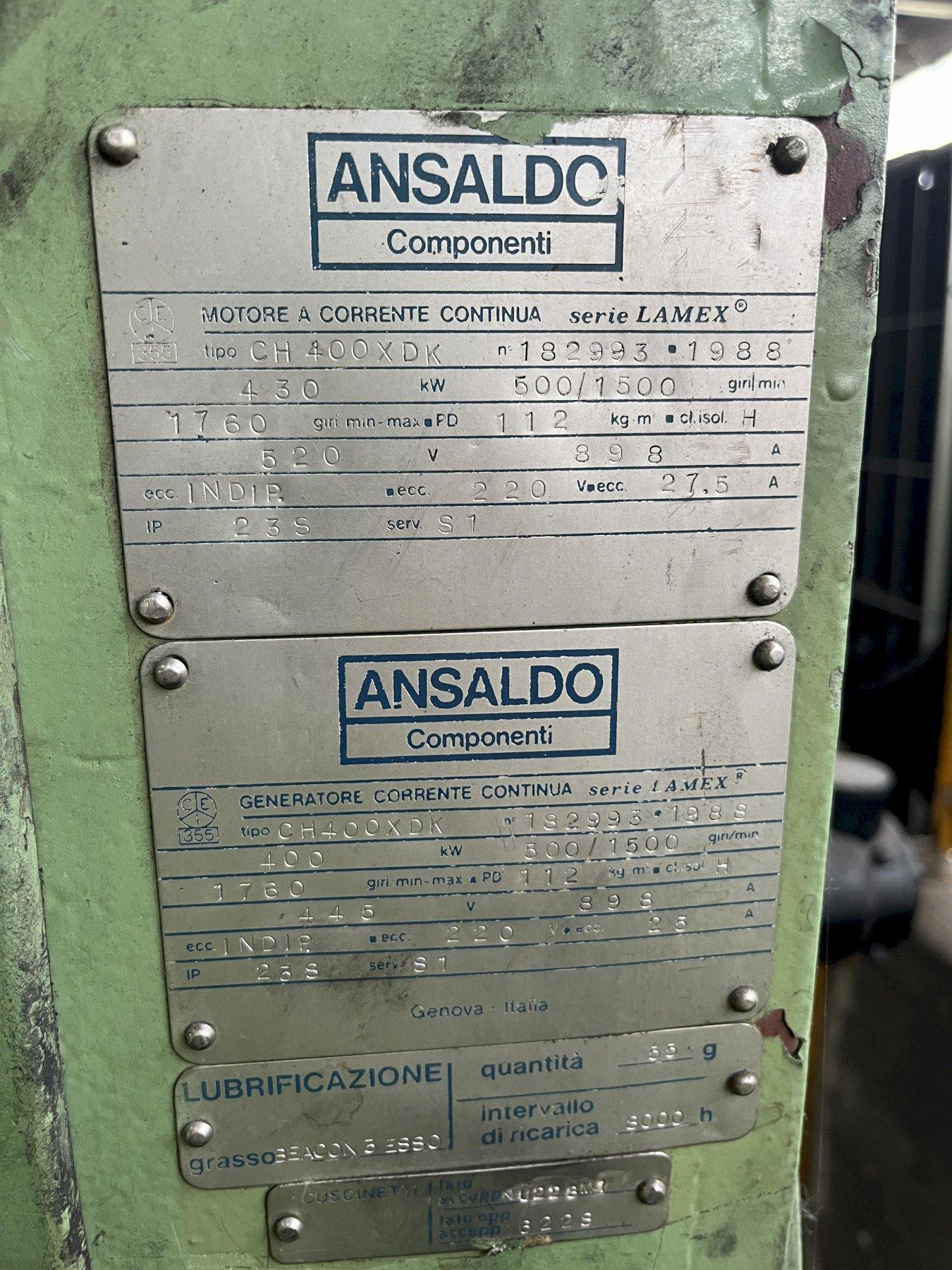

• Winder Motors: 430 Kw DC
• Winders with Outboard Support
• Maximum rolling speed: 150 m/min
• ABB Thickness Gauge

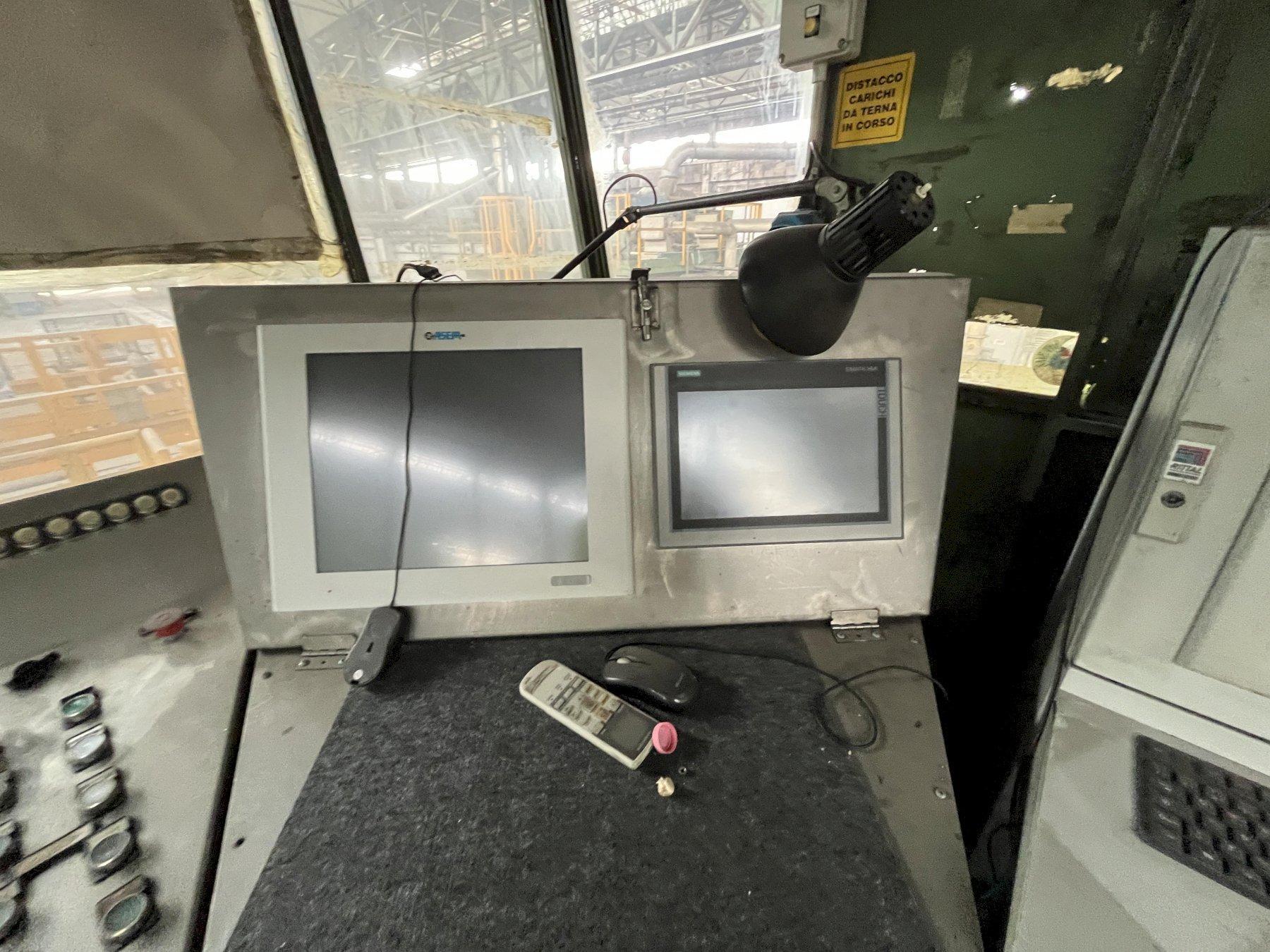

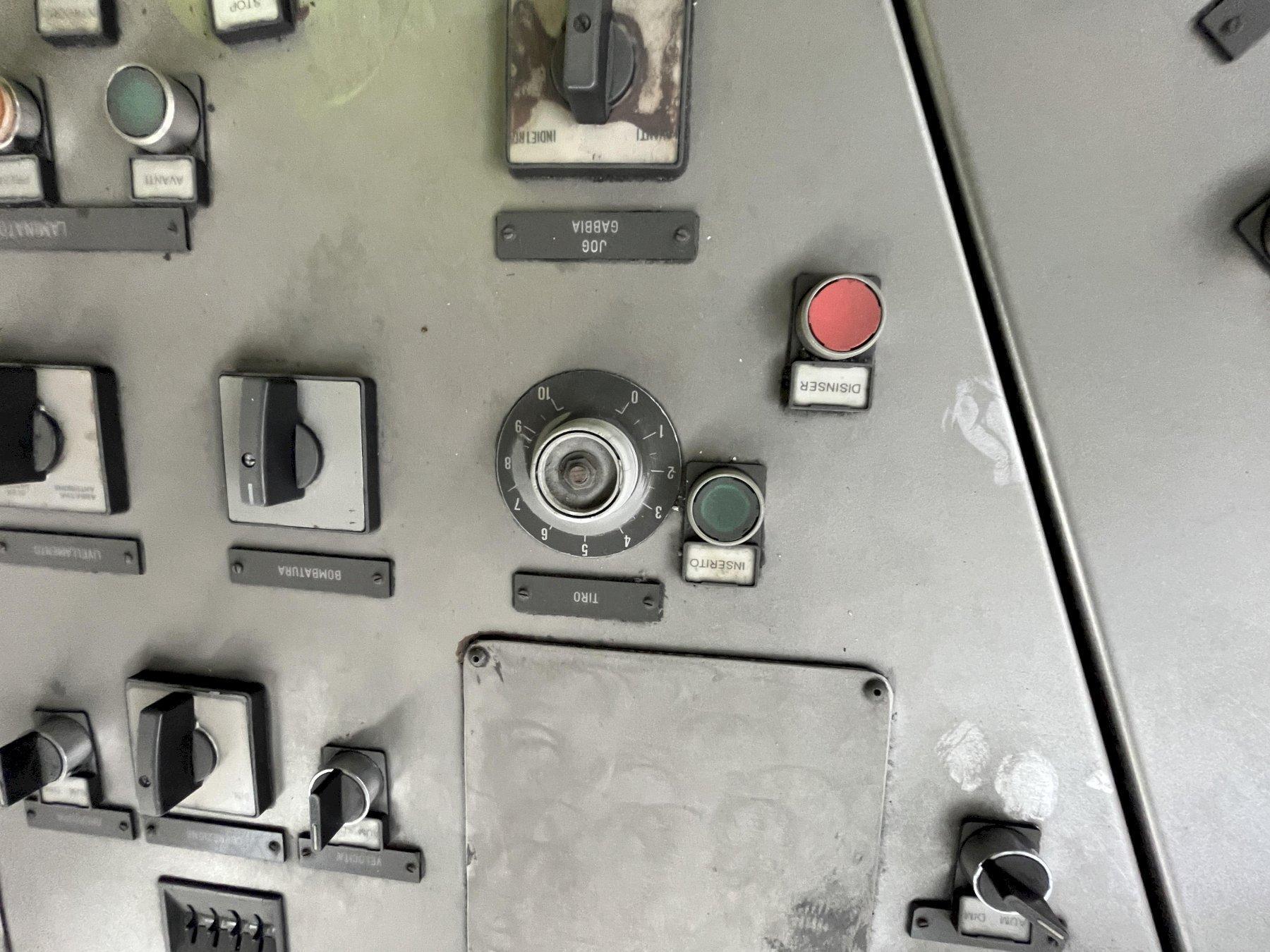

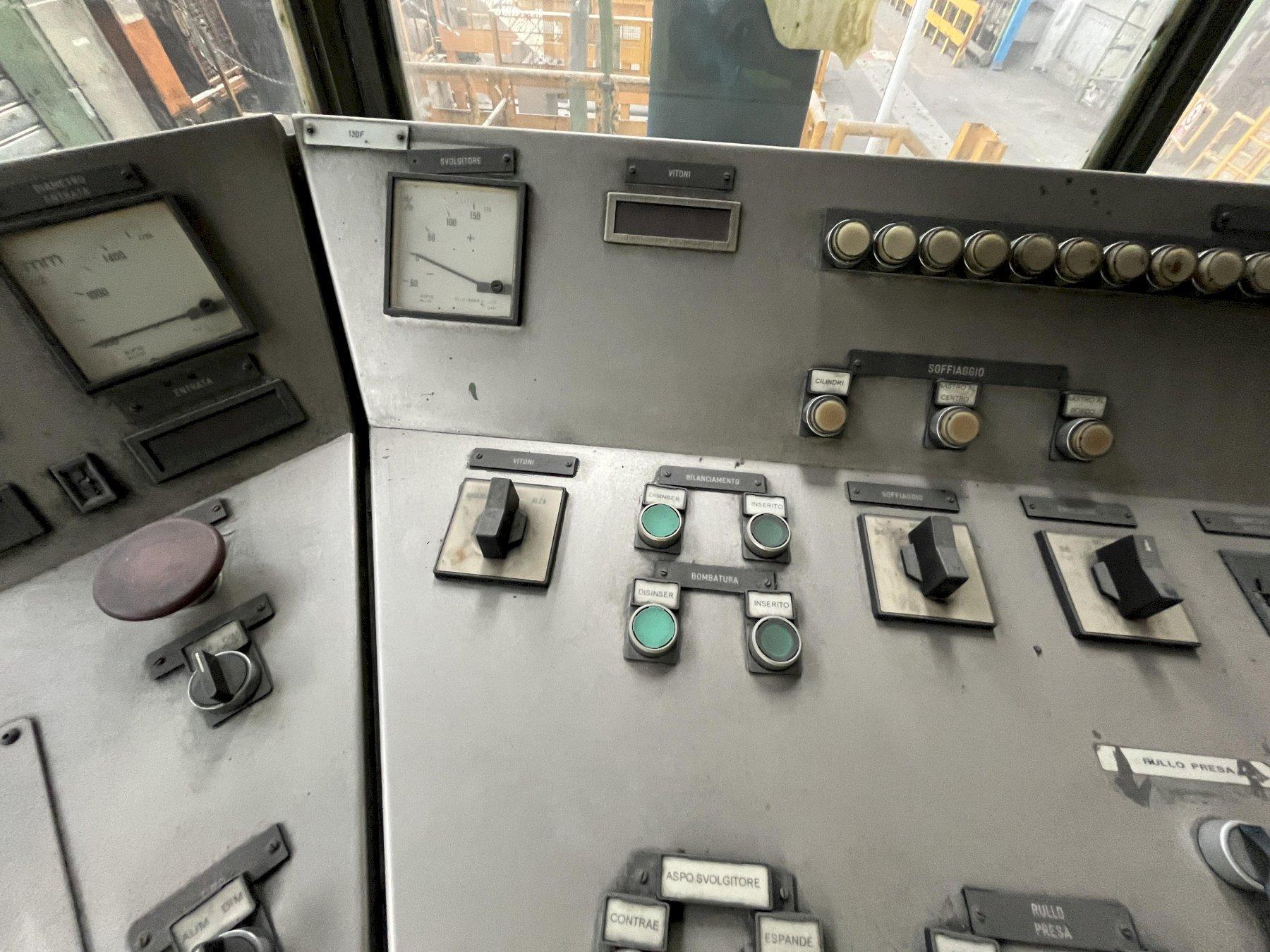

• Siemens S7-400 PLC, 2014

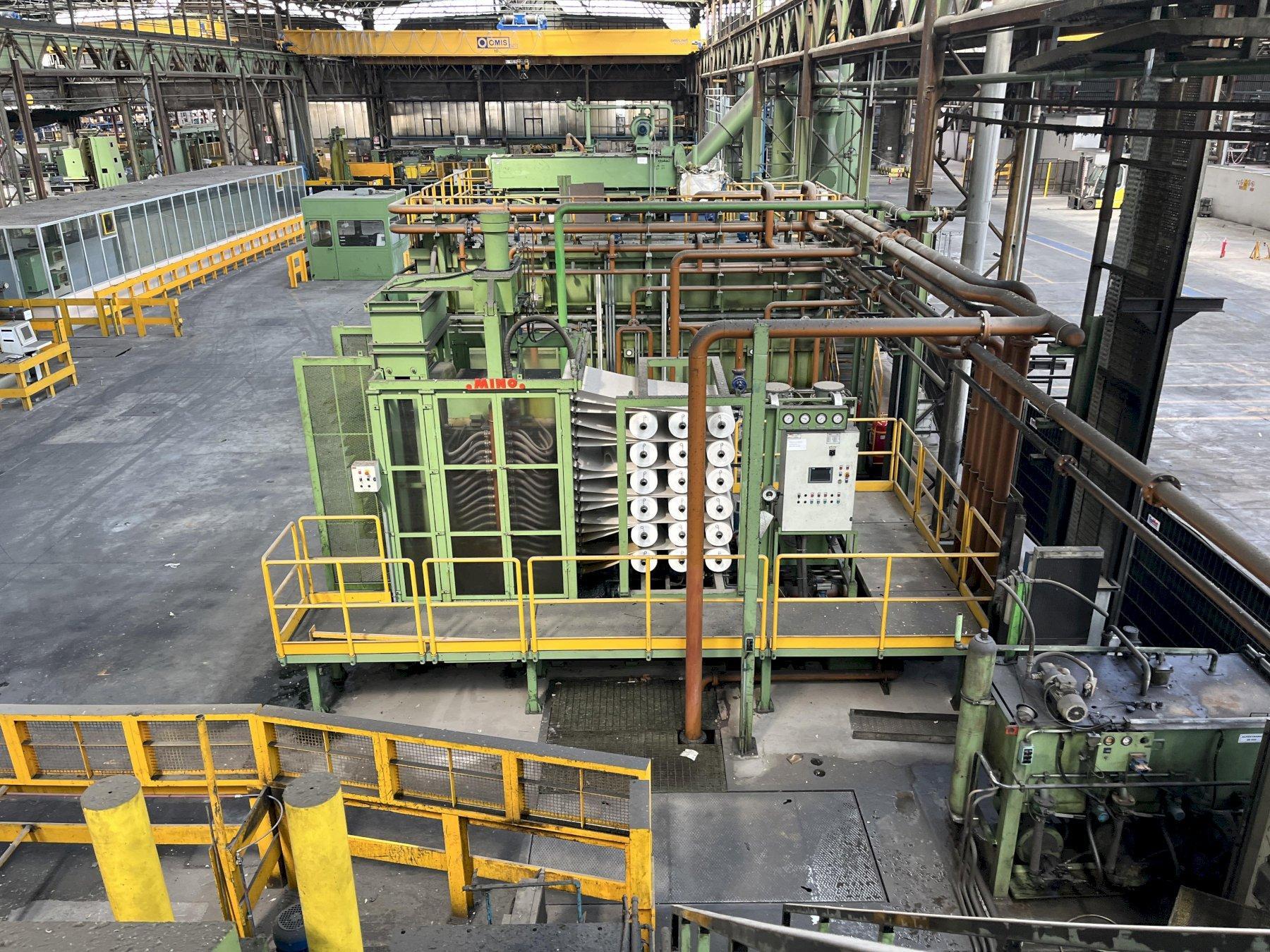

• Mino Superstack Filtration System

LINE CONFIGURATION

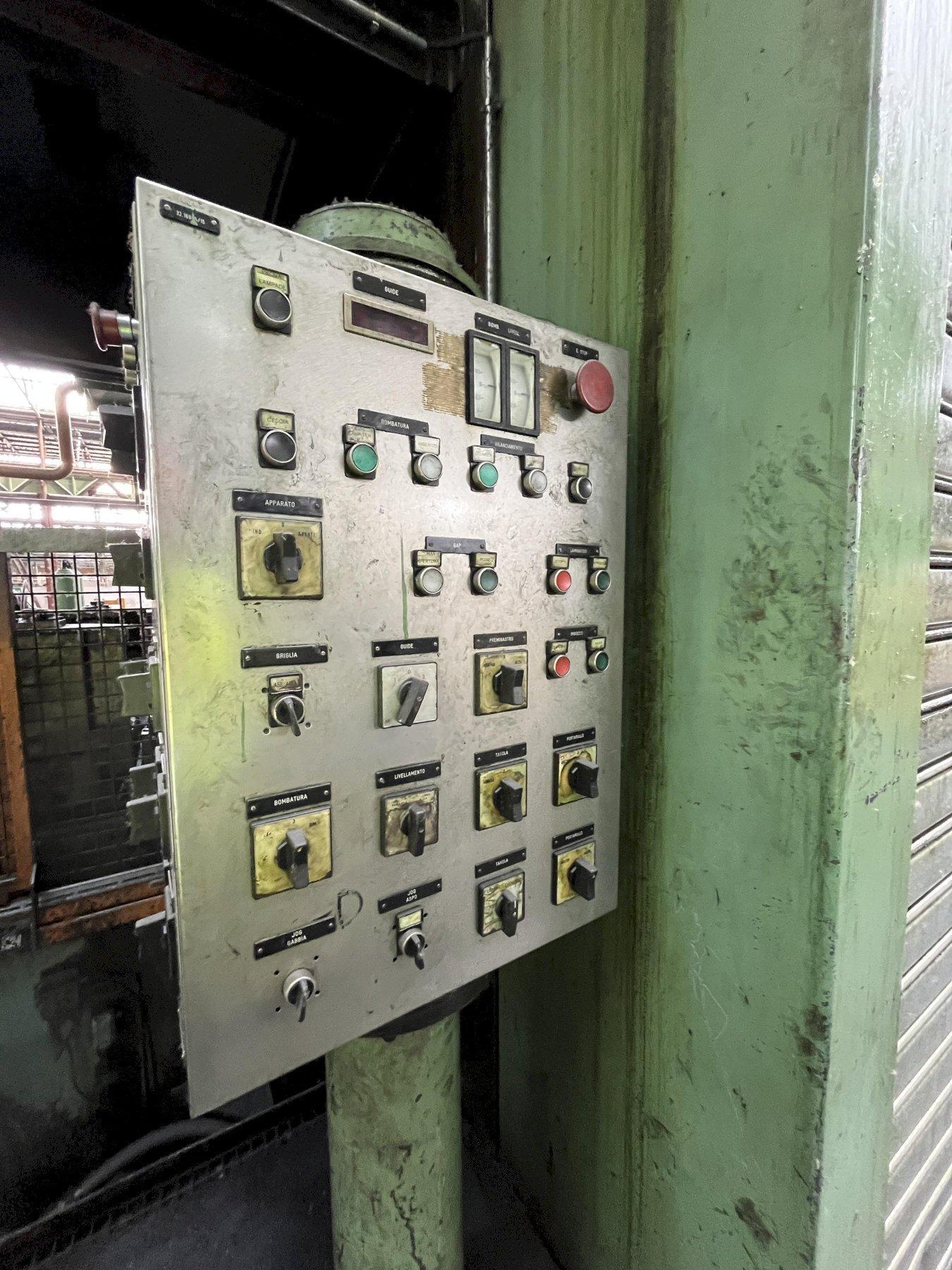

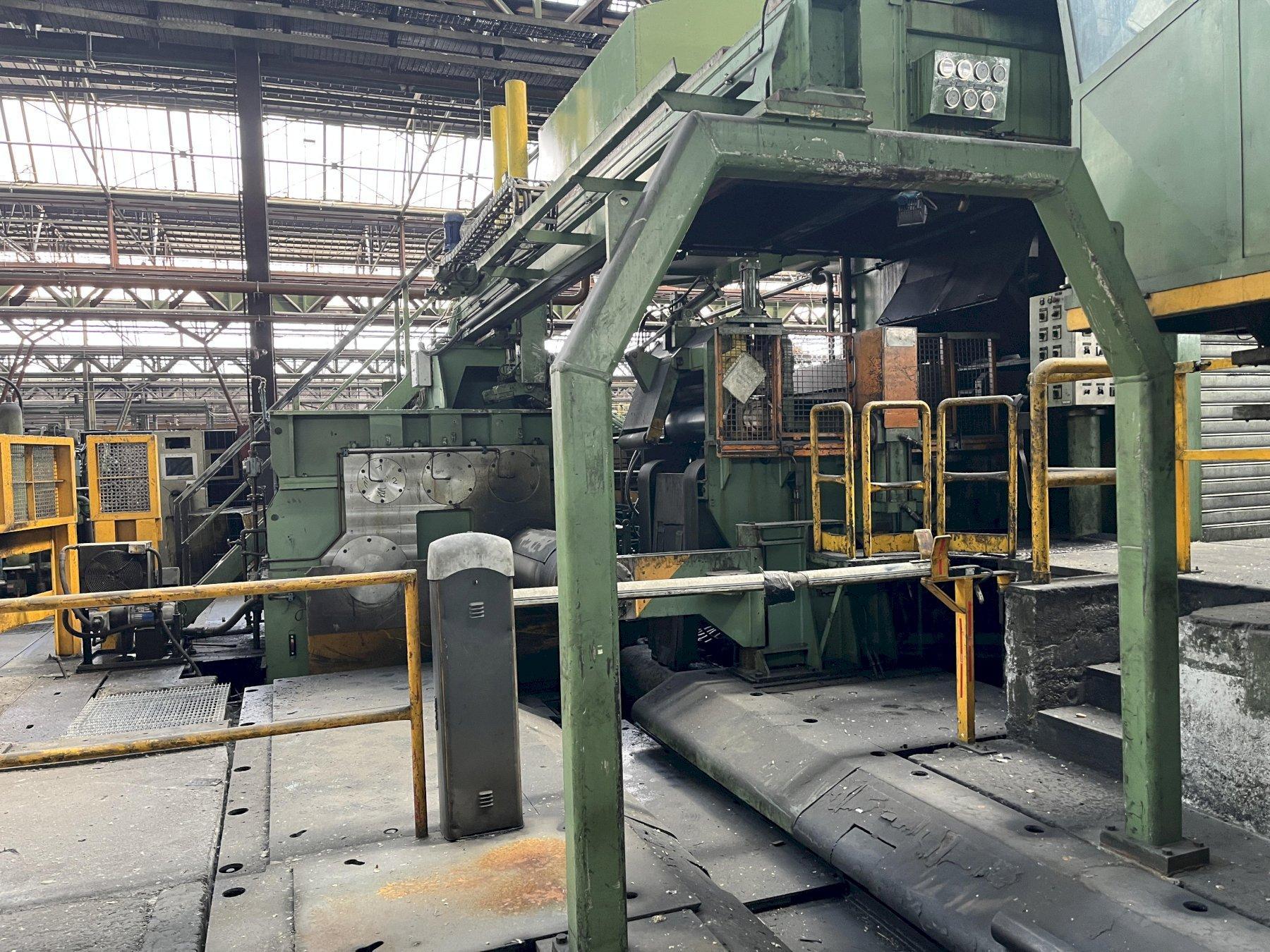

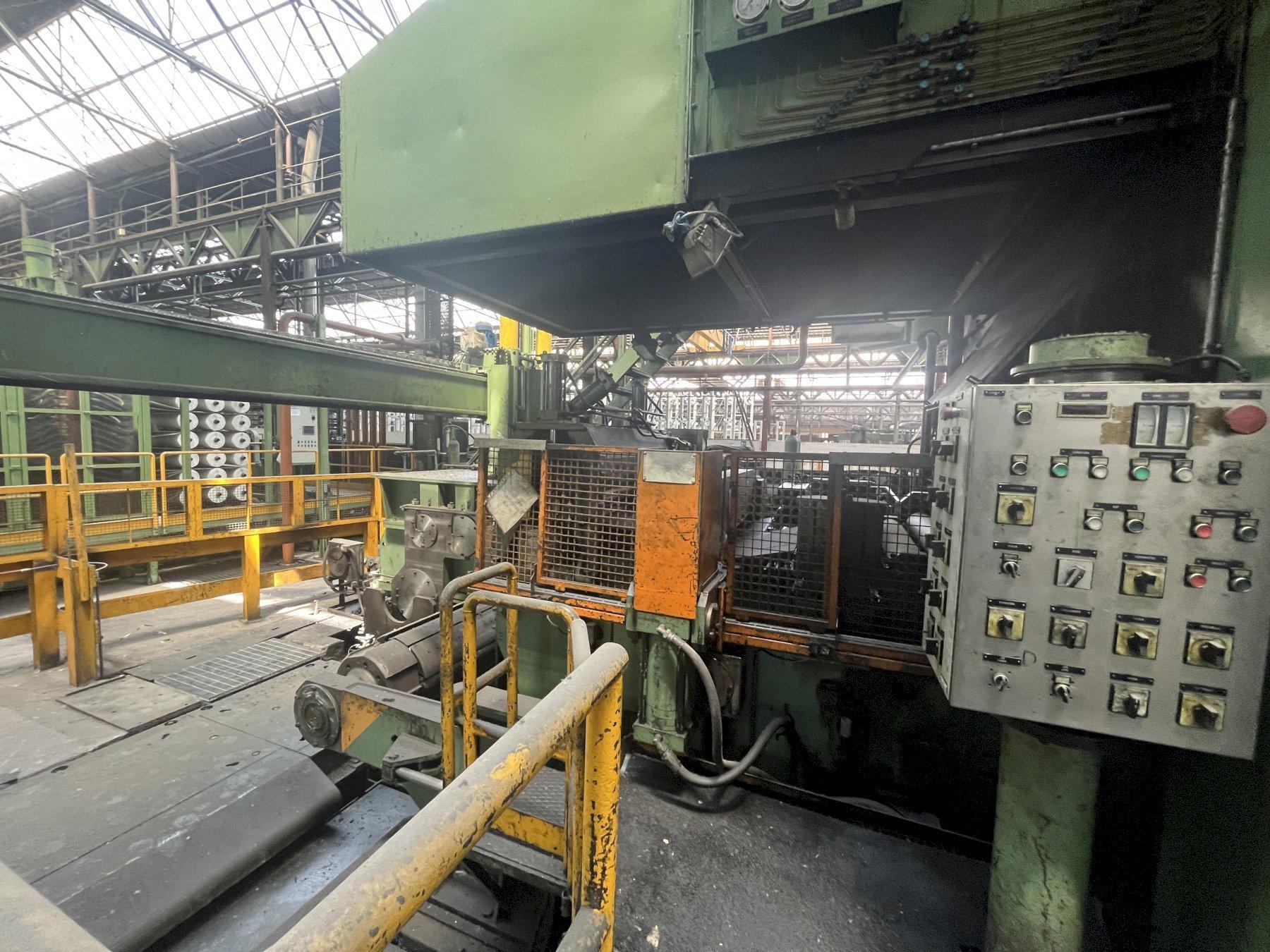

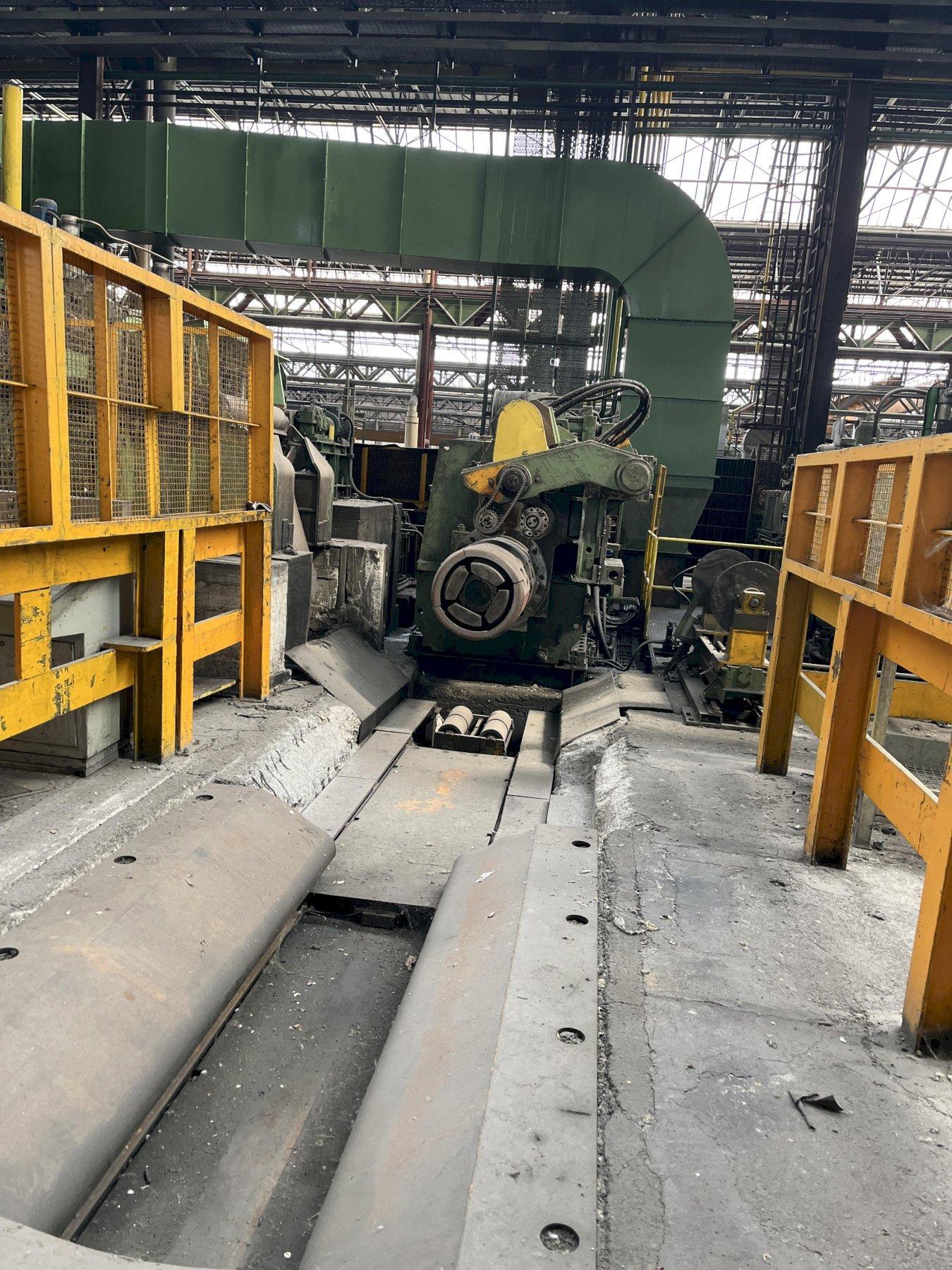

Entry Payoff:

Underground coil car

Mandrel type Uncoiler with hydraulic drum expansion

Mandrel OD: 500 – 600mm (LEAFS)

Snubber Roll Control Arm

Edge control system

Motor: 100kw- 500V DC drive

Peeler table

Edge guiding rolls

Pinch roll stand – 15kW Motor

Transport table

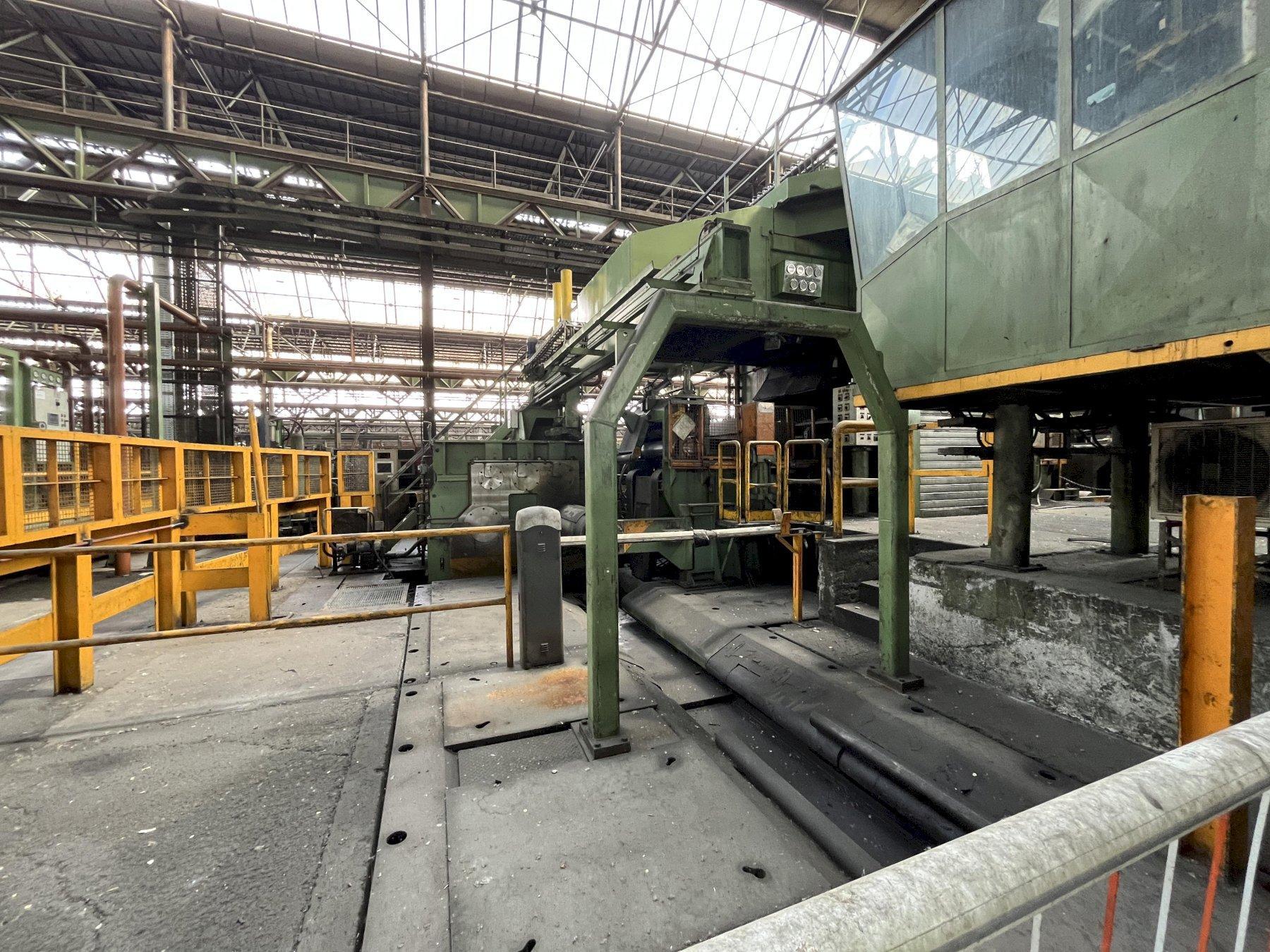

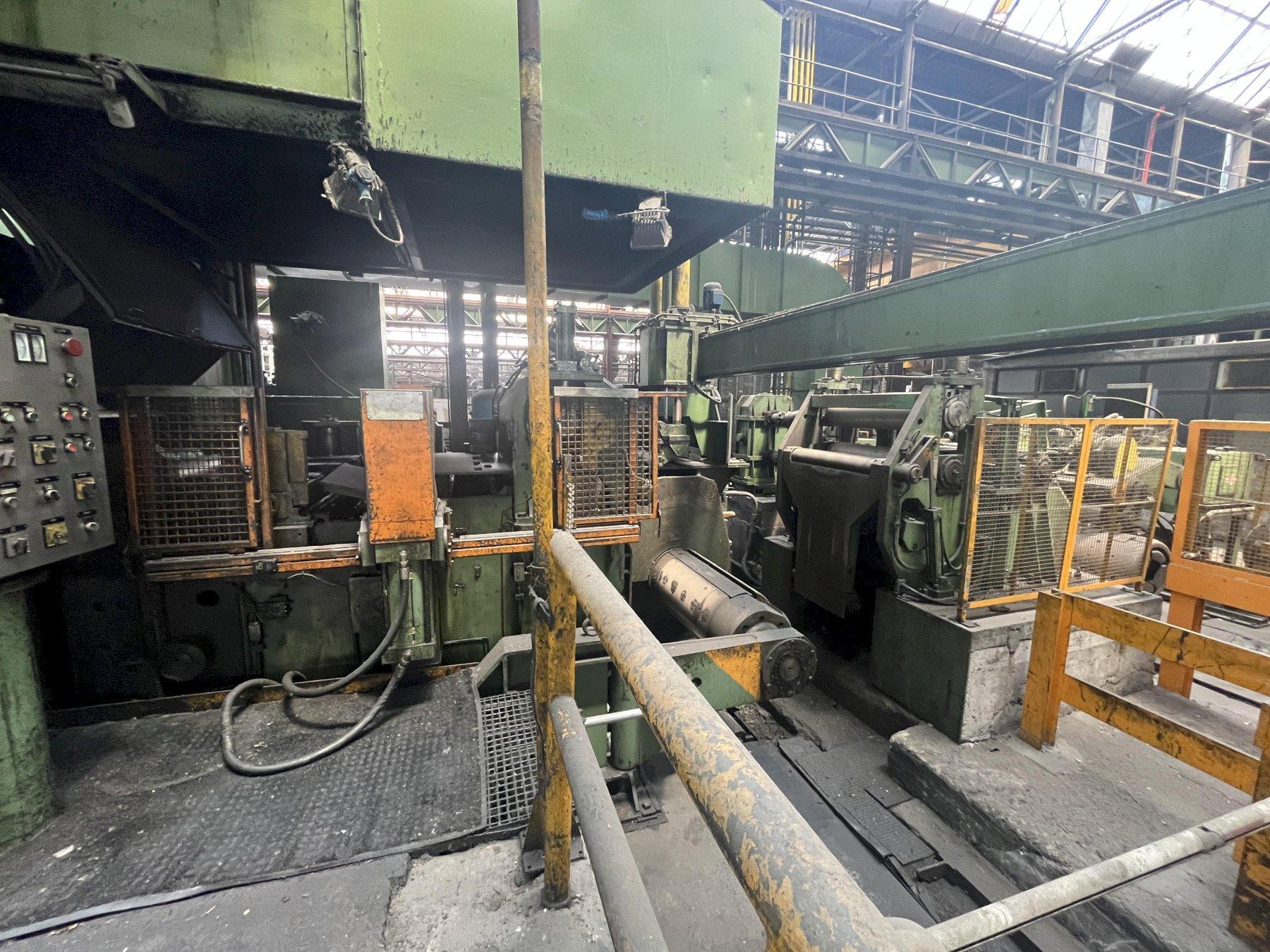

RIGHT SIDE WINDER Right

2 speed gear box

Motor Drive: 430kW,  520V DC

Winder Outboard Bearing Support

Underground coil car

Transport table with hold down roll

Pinch rolls + speed measurement roll

Crop shear

ABB Eddy current thickness gauge

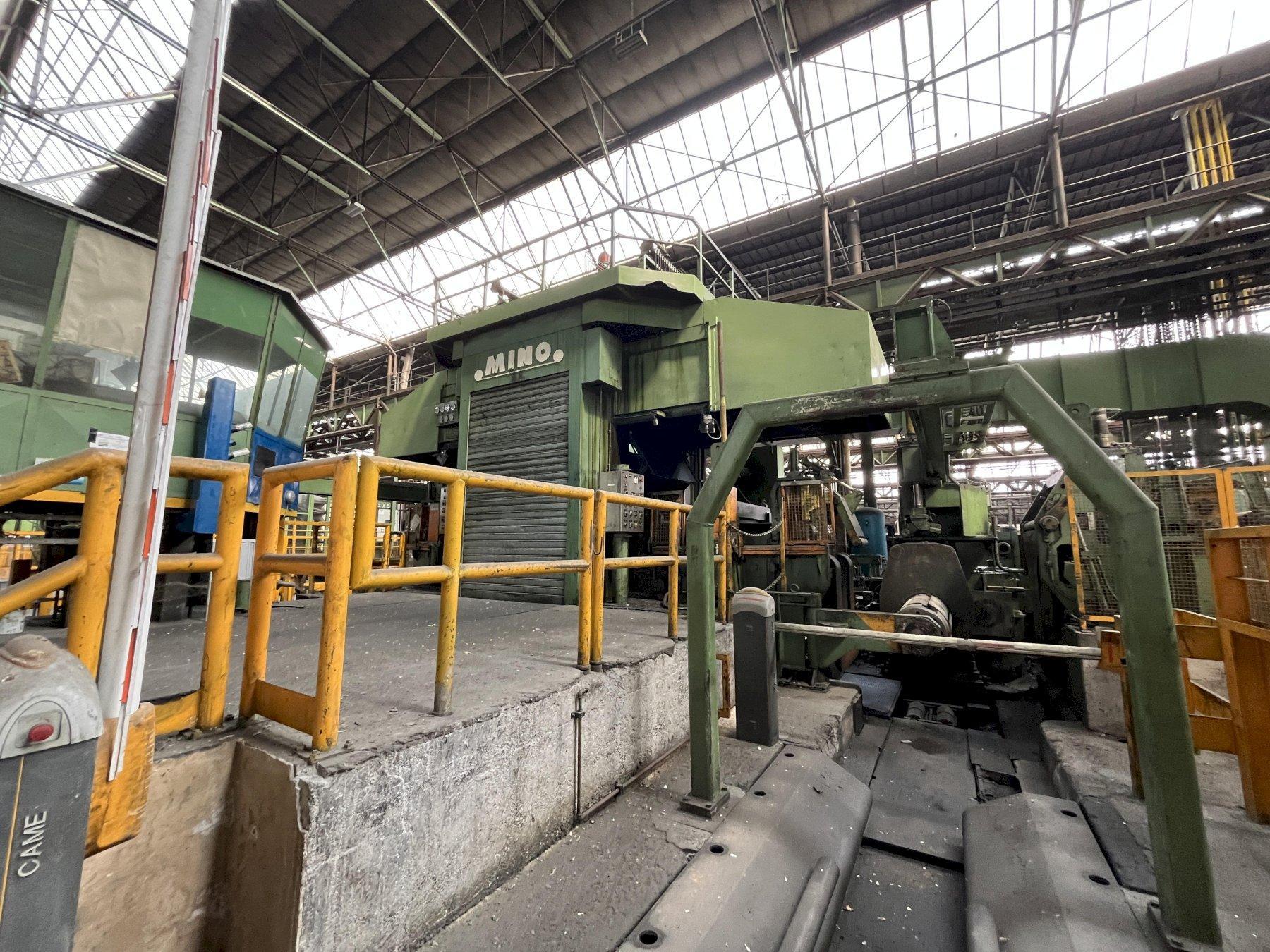

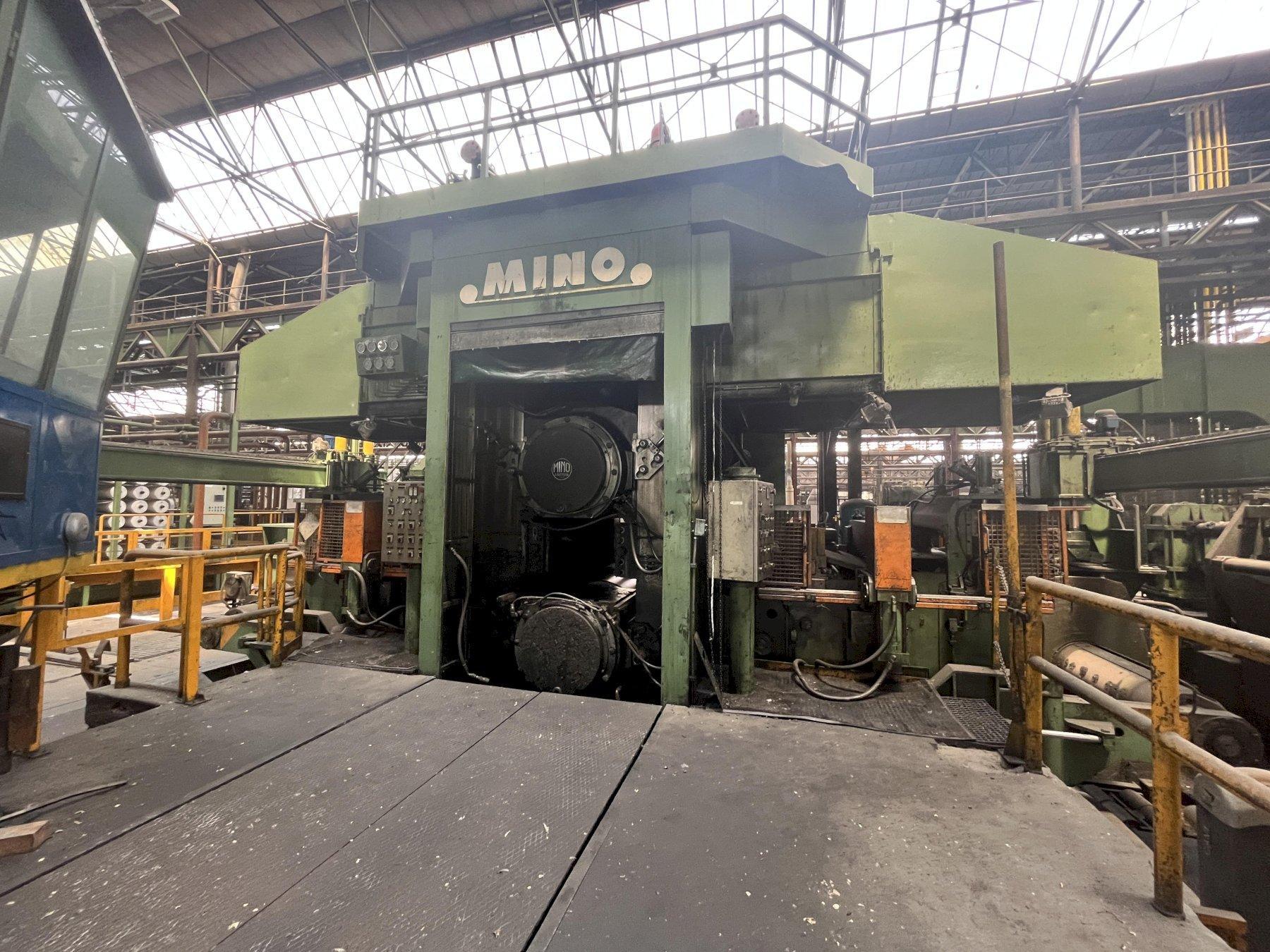

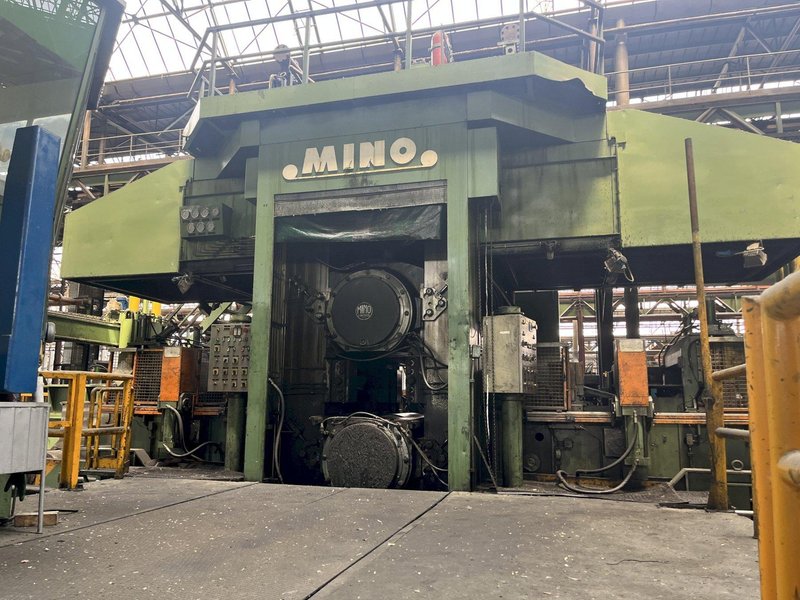

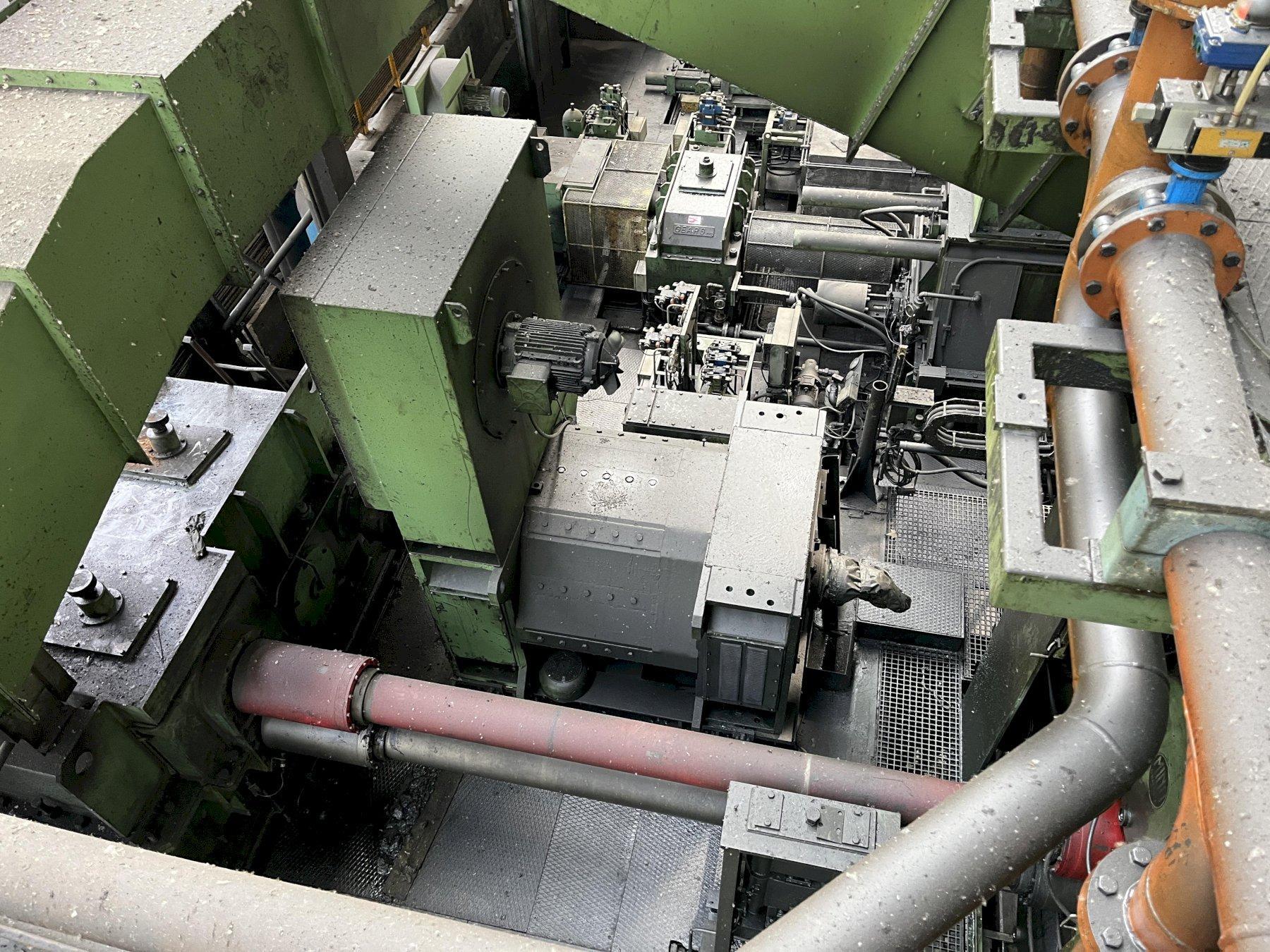

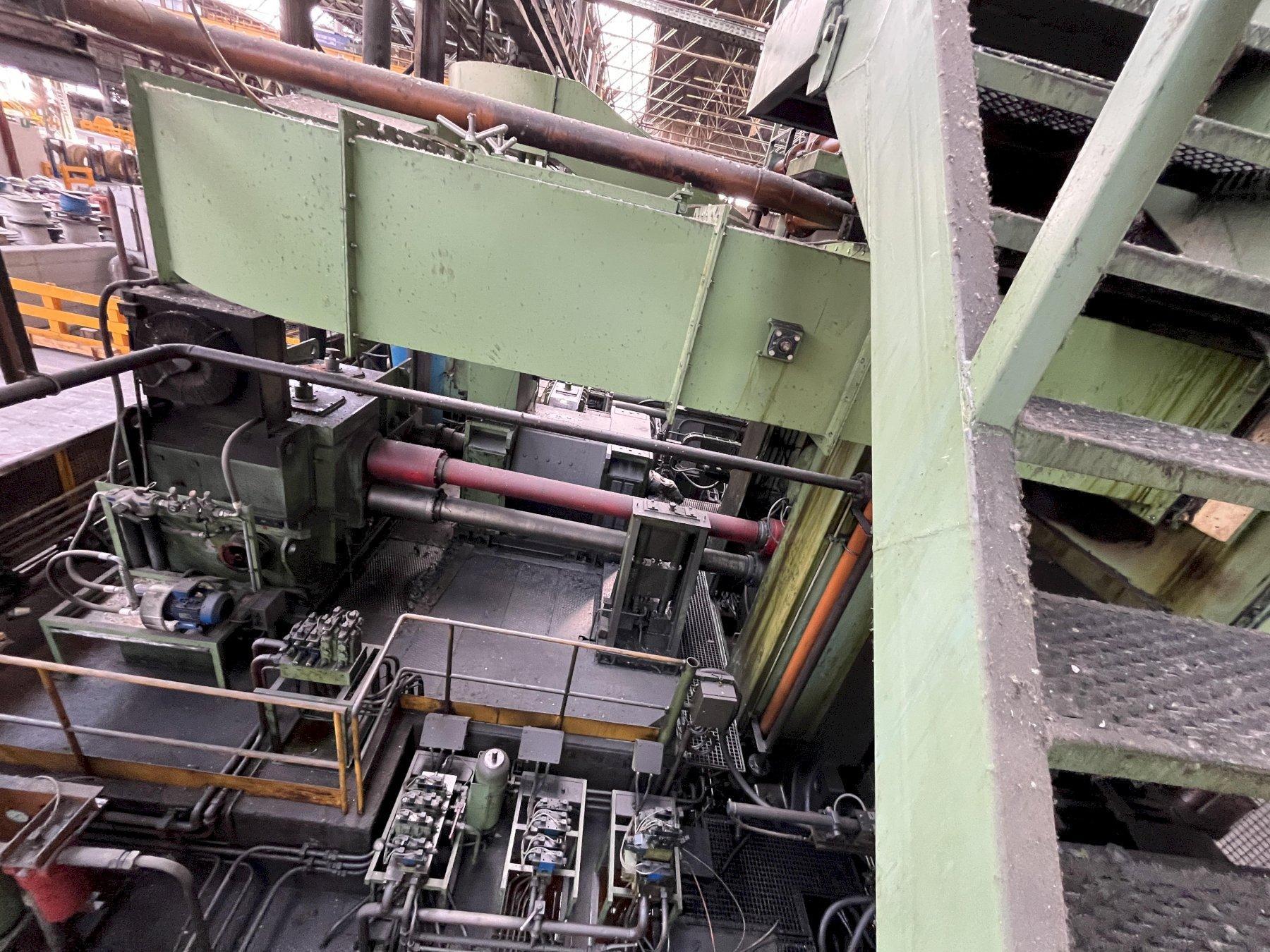

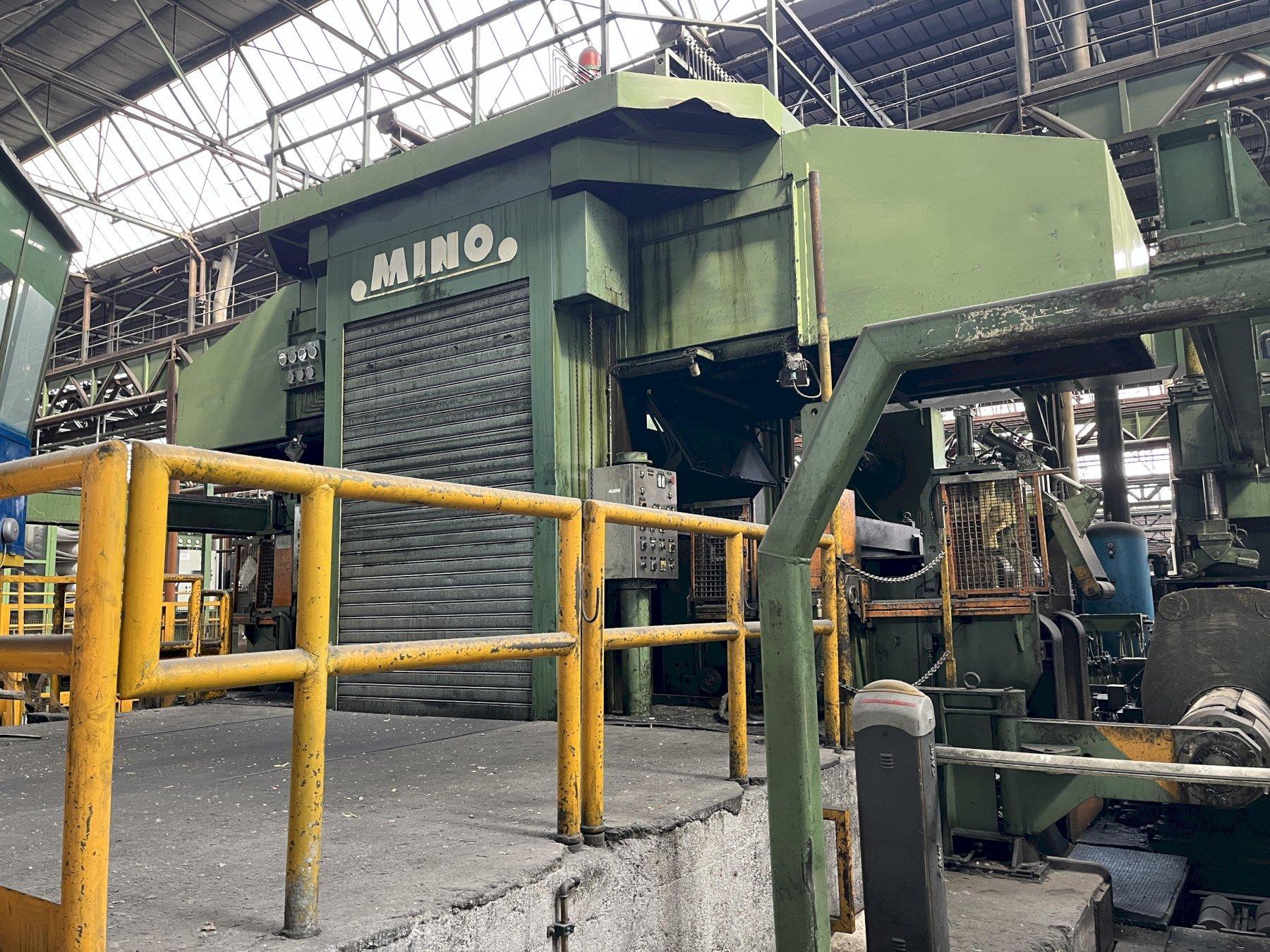

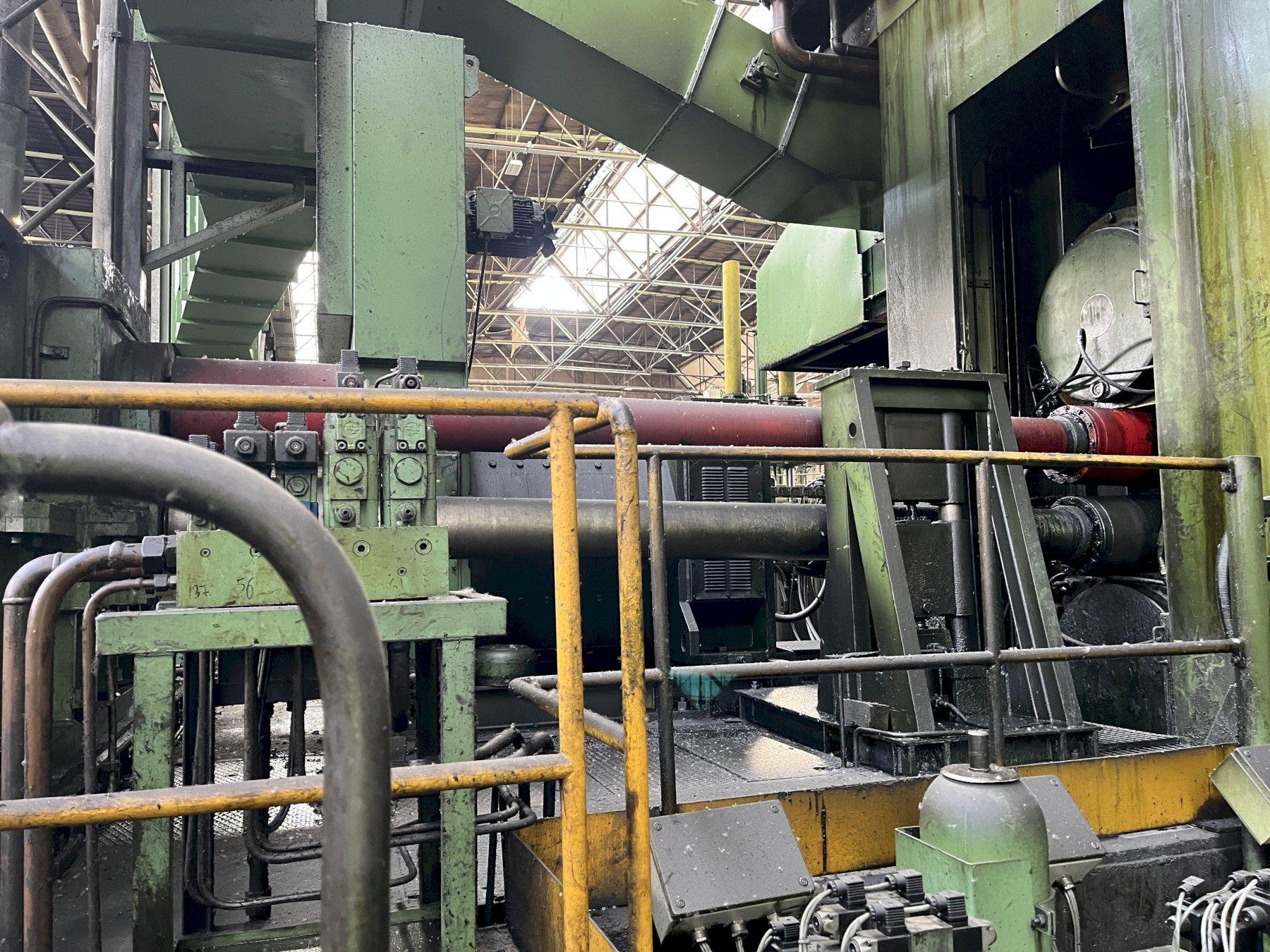

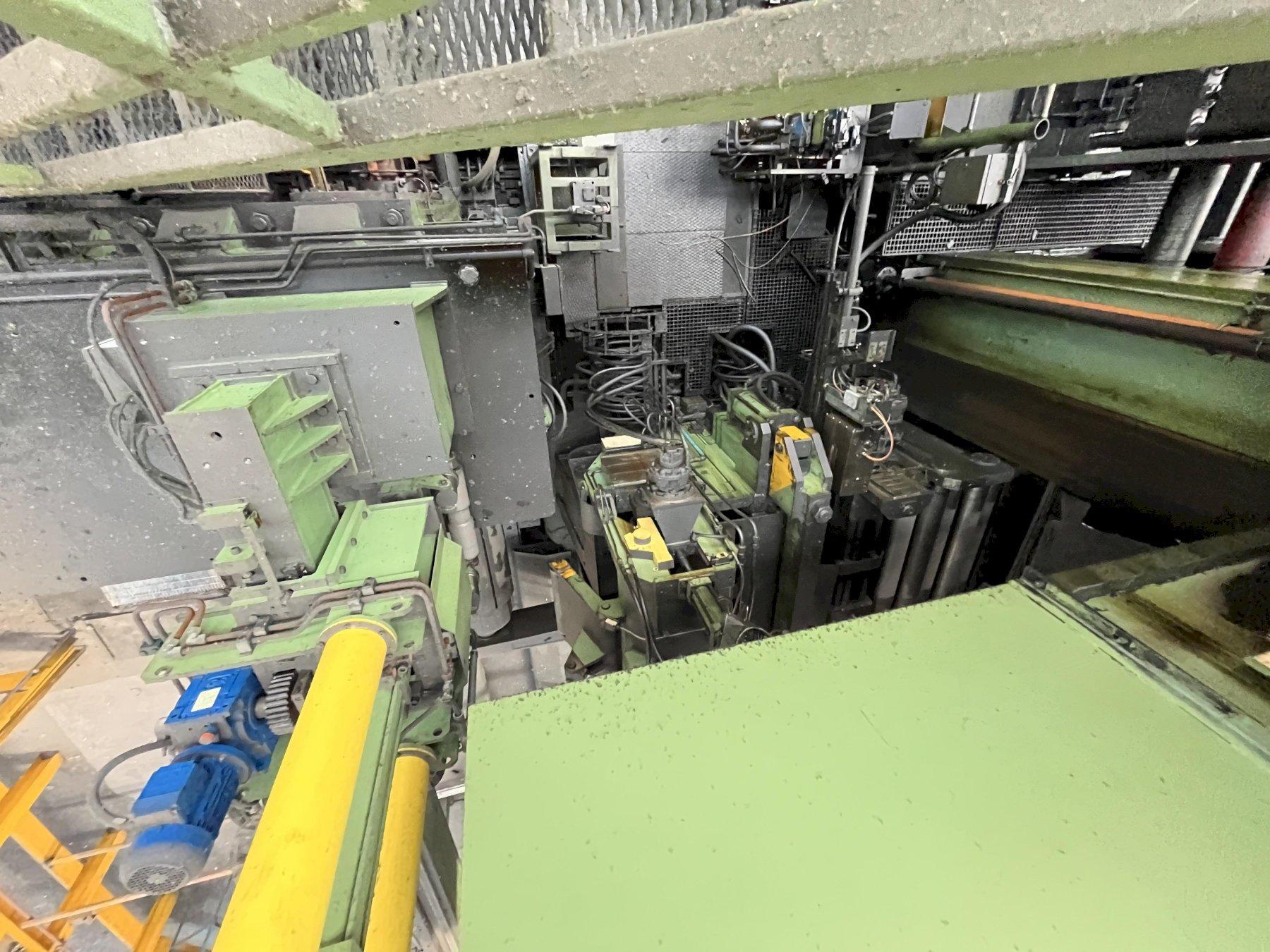

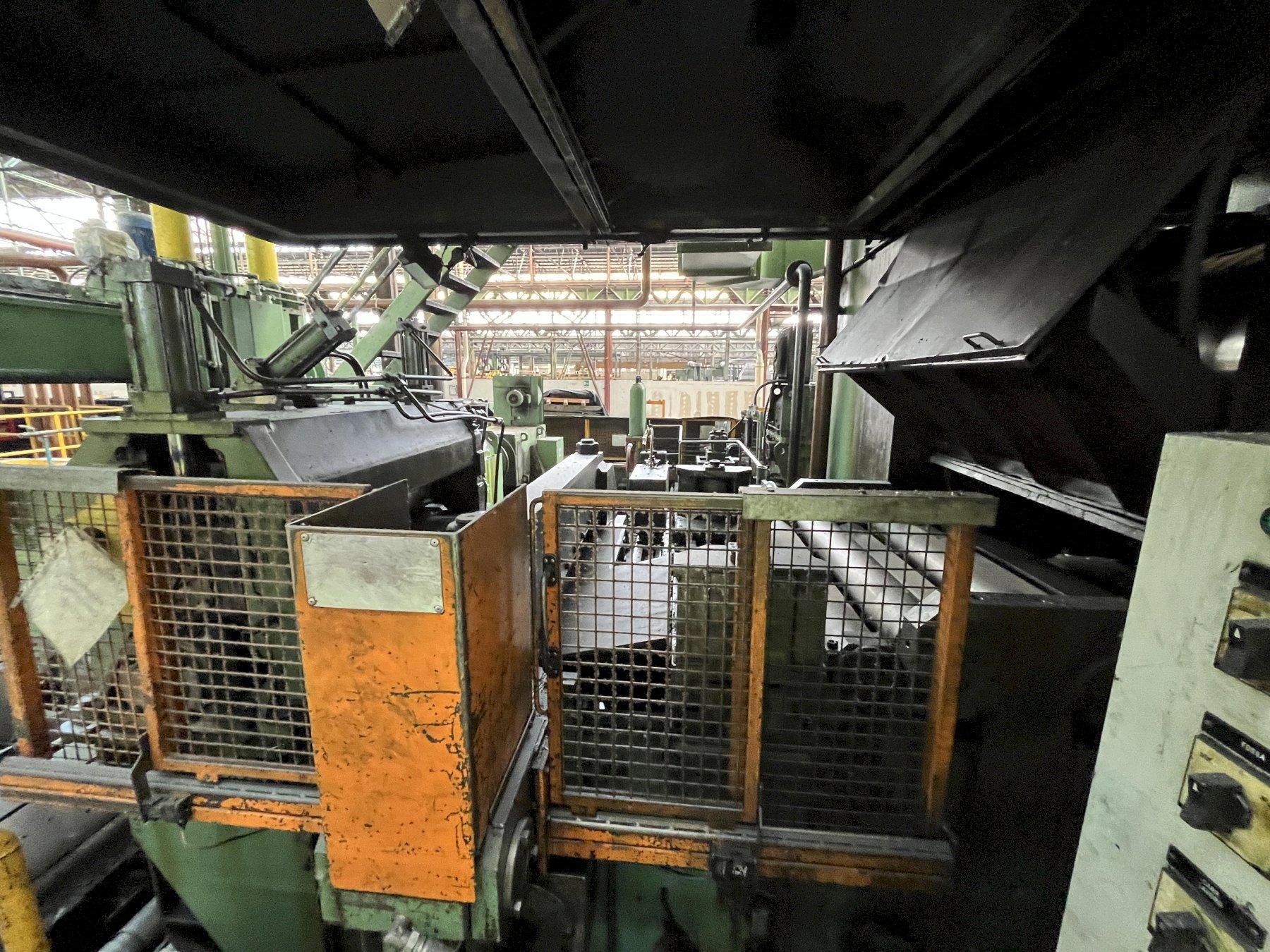

MINO 4HI BREAKDOWN MILL

• Work Roll: 400mm Dia x 1250 Face width
• Back Roll: 960mm Dia x 1170mm Face width

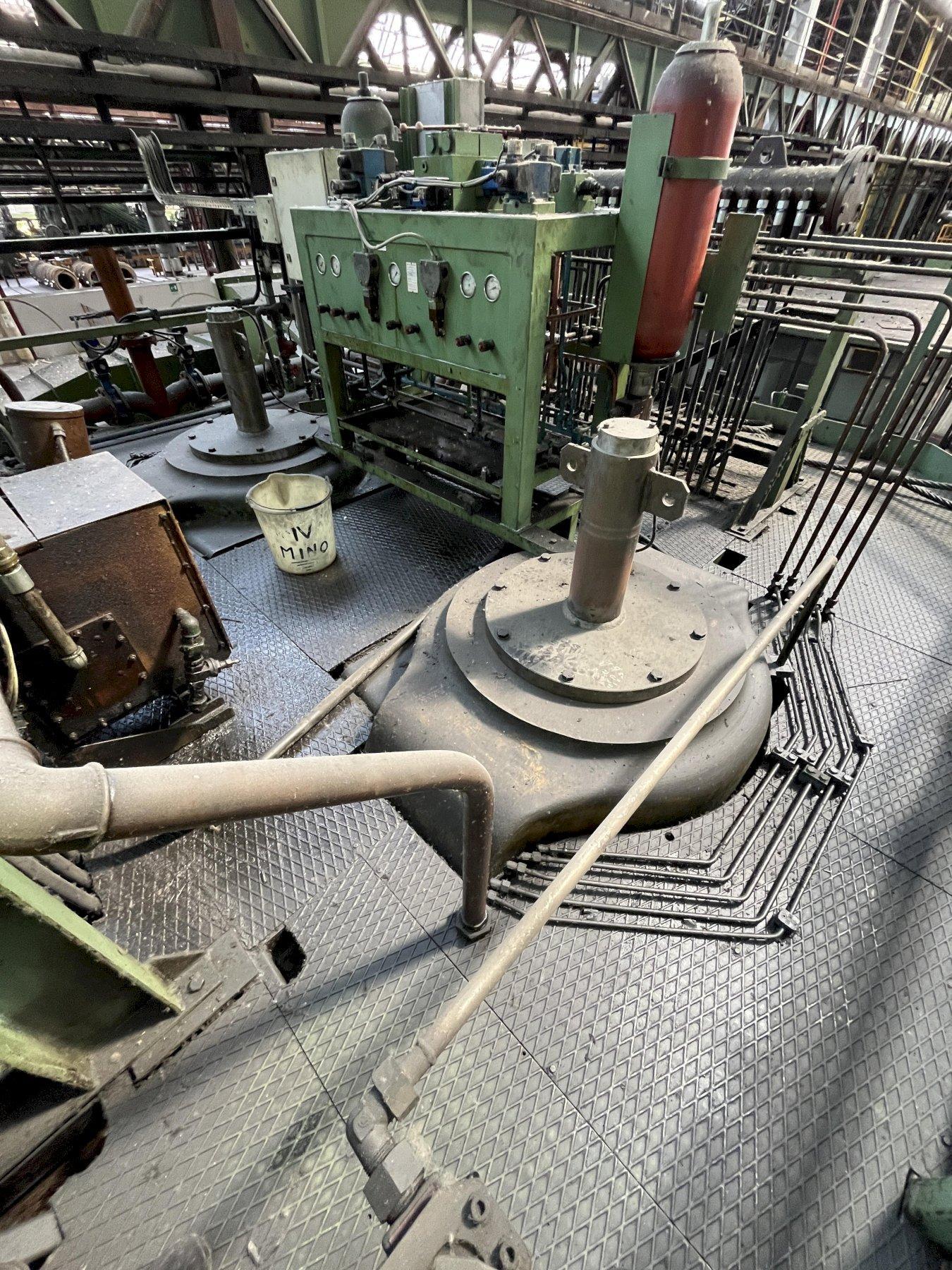

• AGC Roll Bending, Roll Balancing

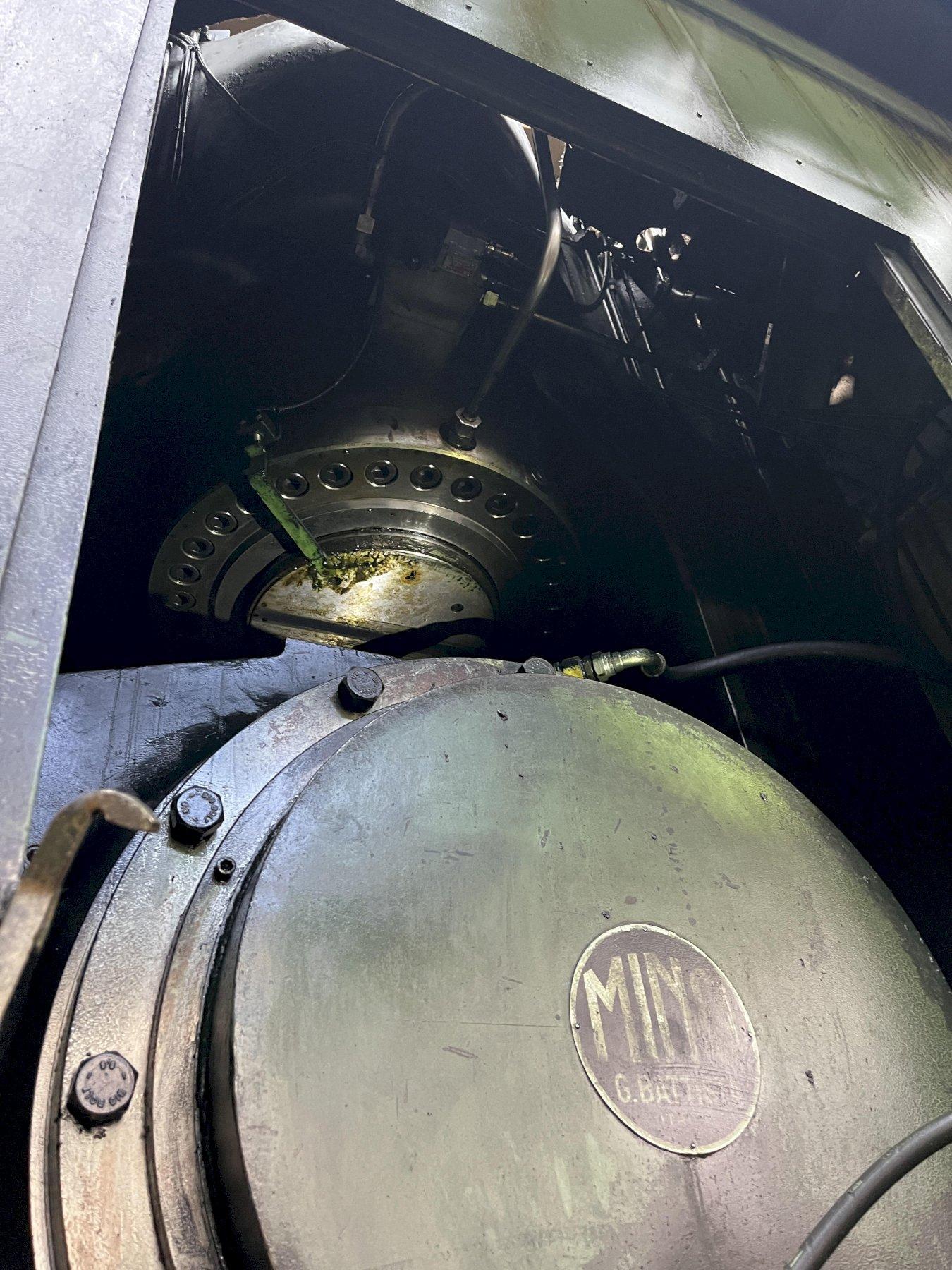

• Hydraulic screw down + Pancake cylinder
• Roll change sledge

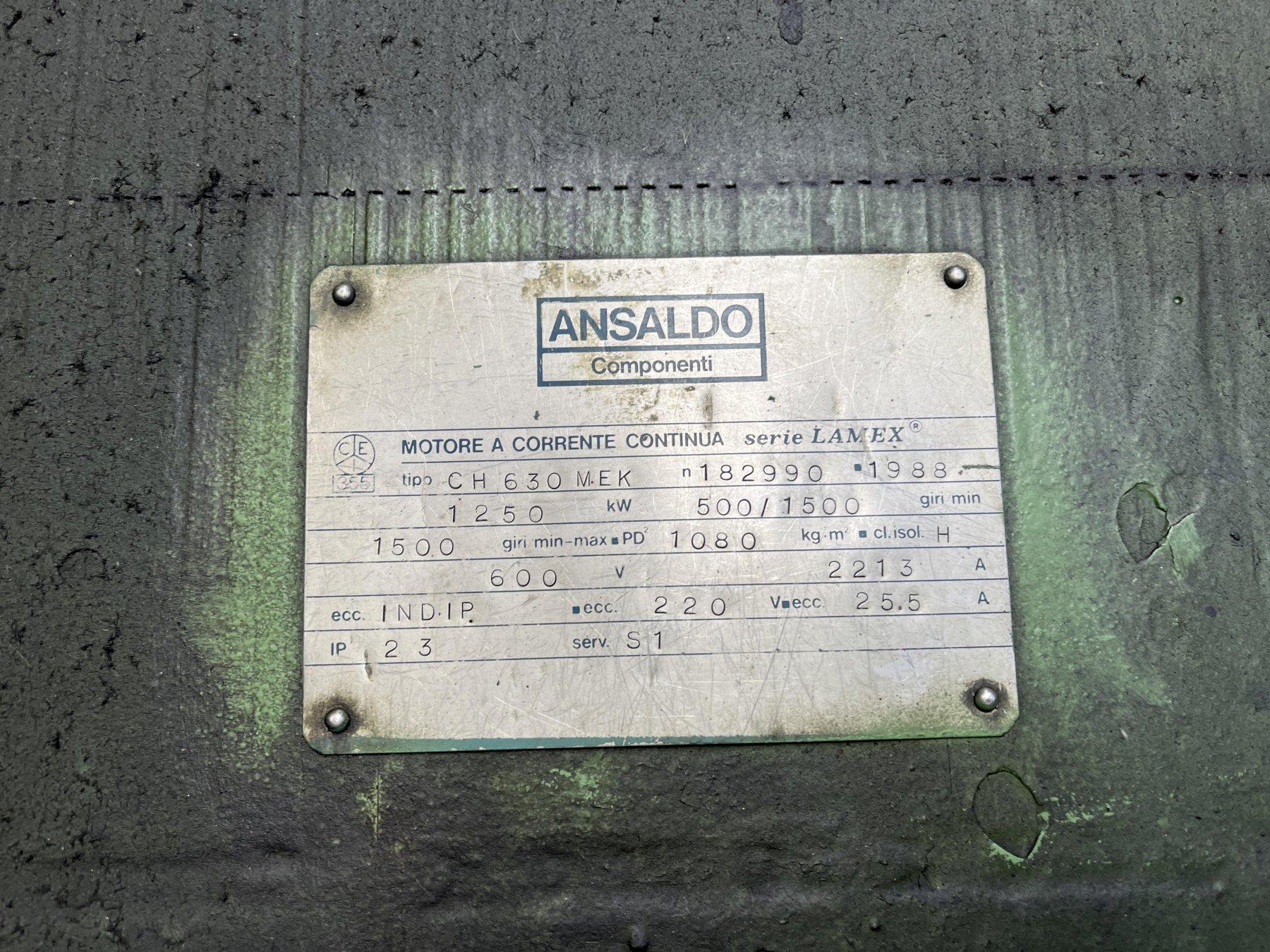

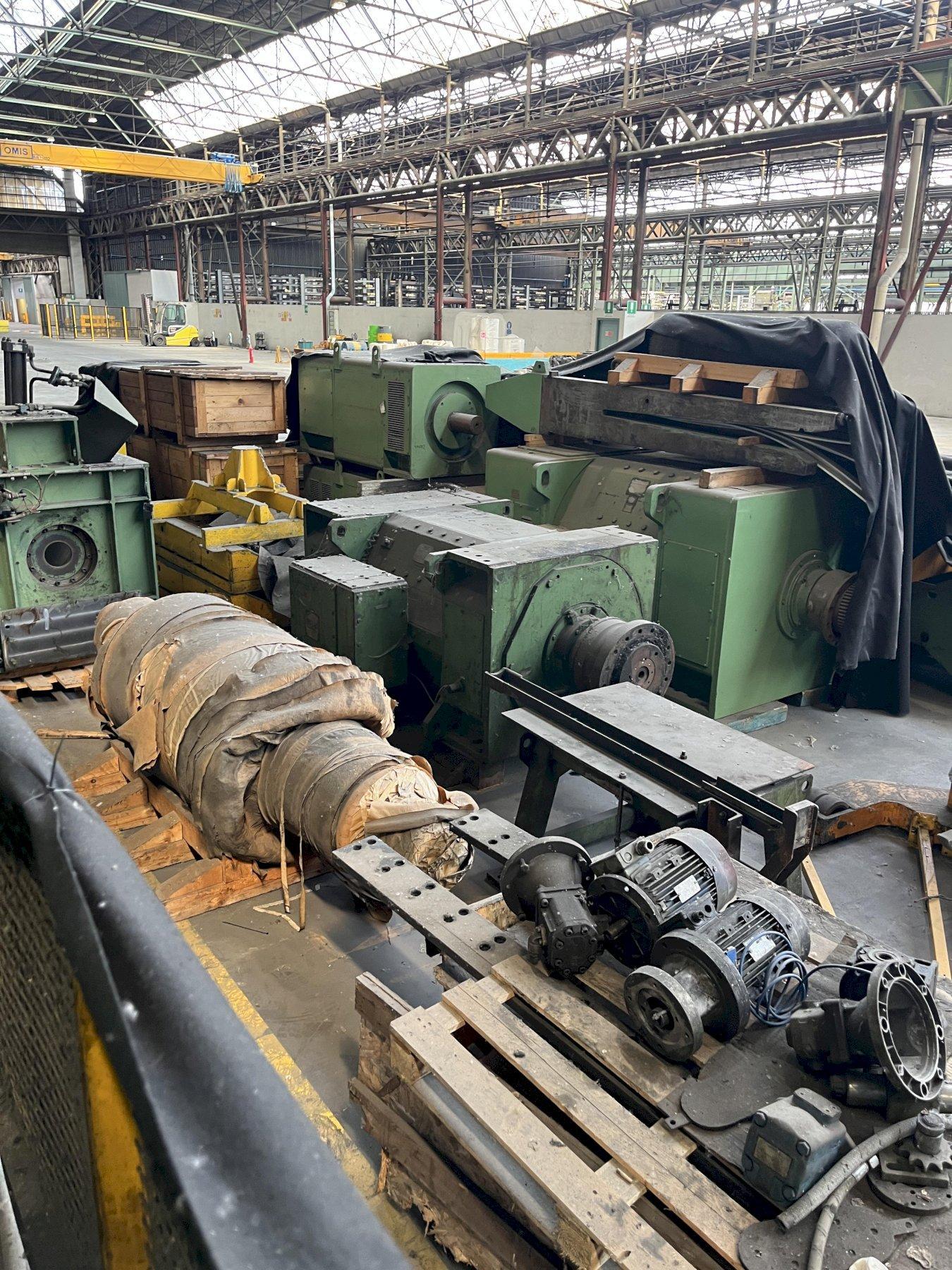

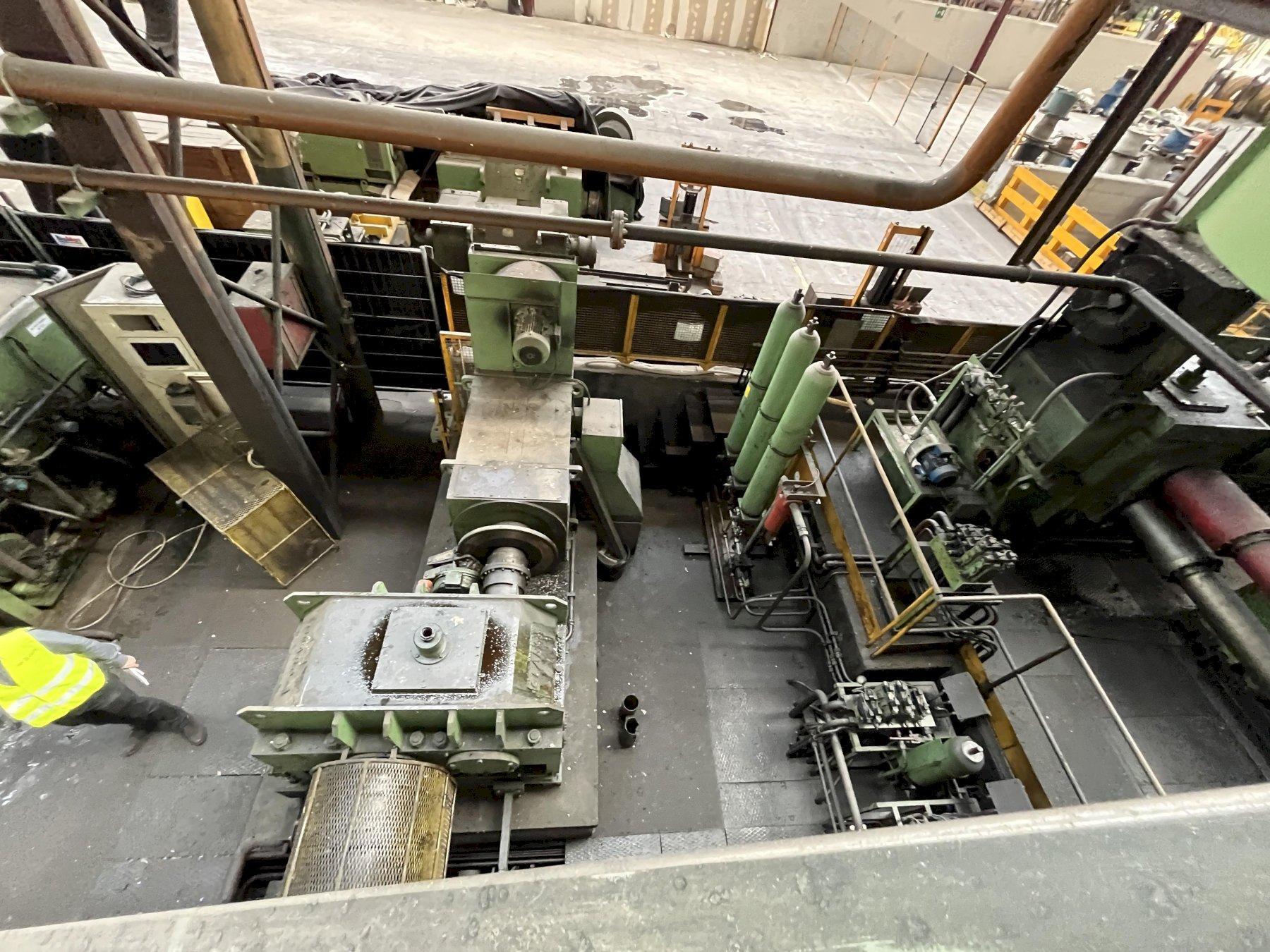

• Mill motor: 1250kw @ 600V DC with 2 speed gearbox
• Back-up rolls: 1170mm width x 850mm diameter

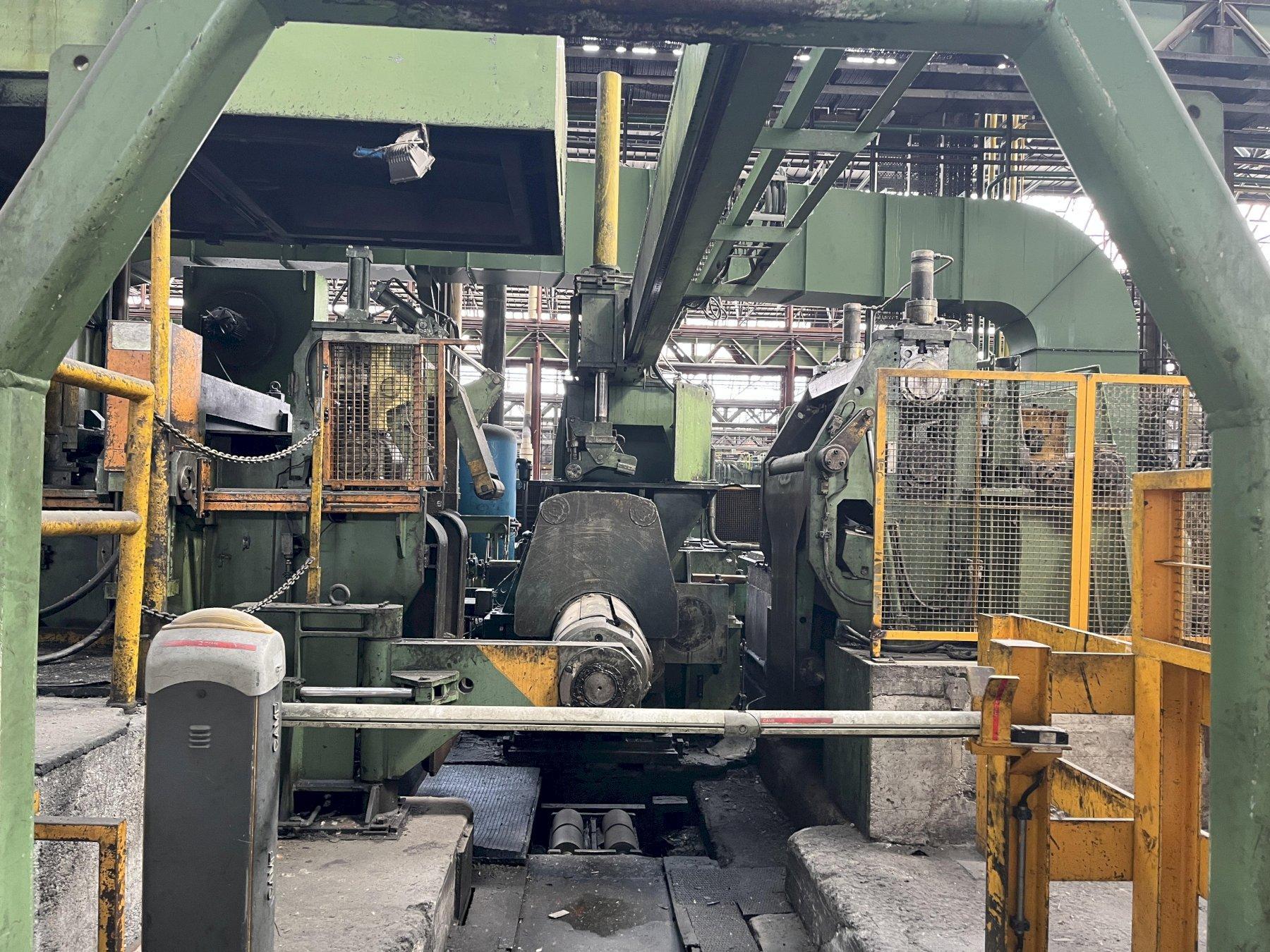

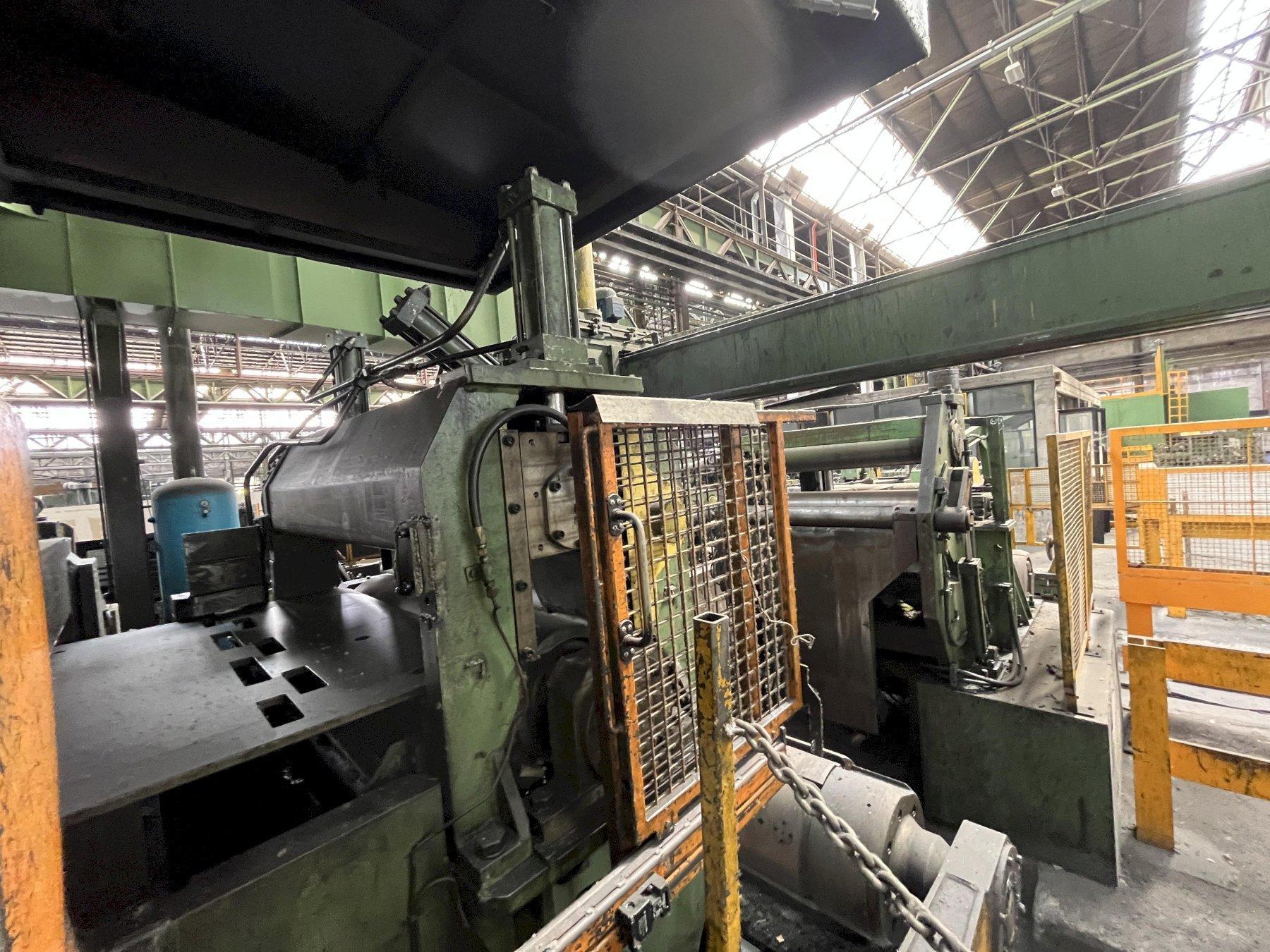

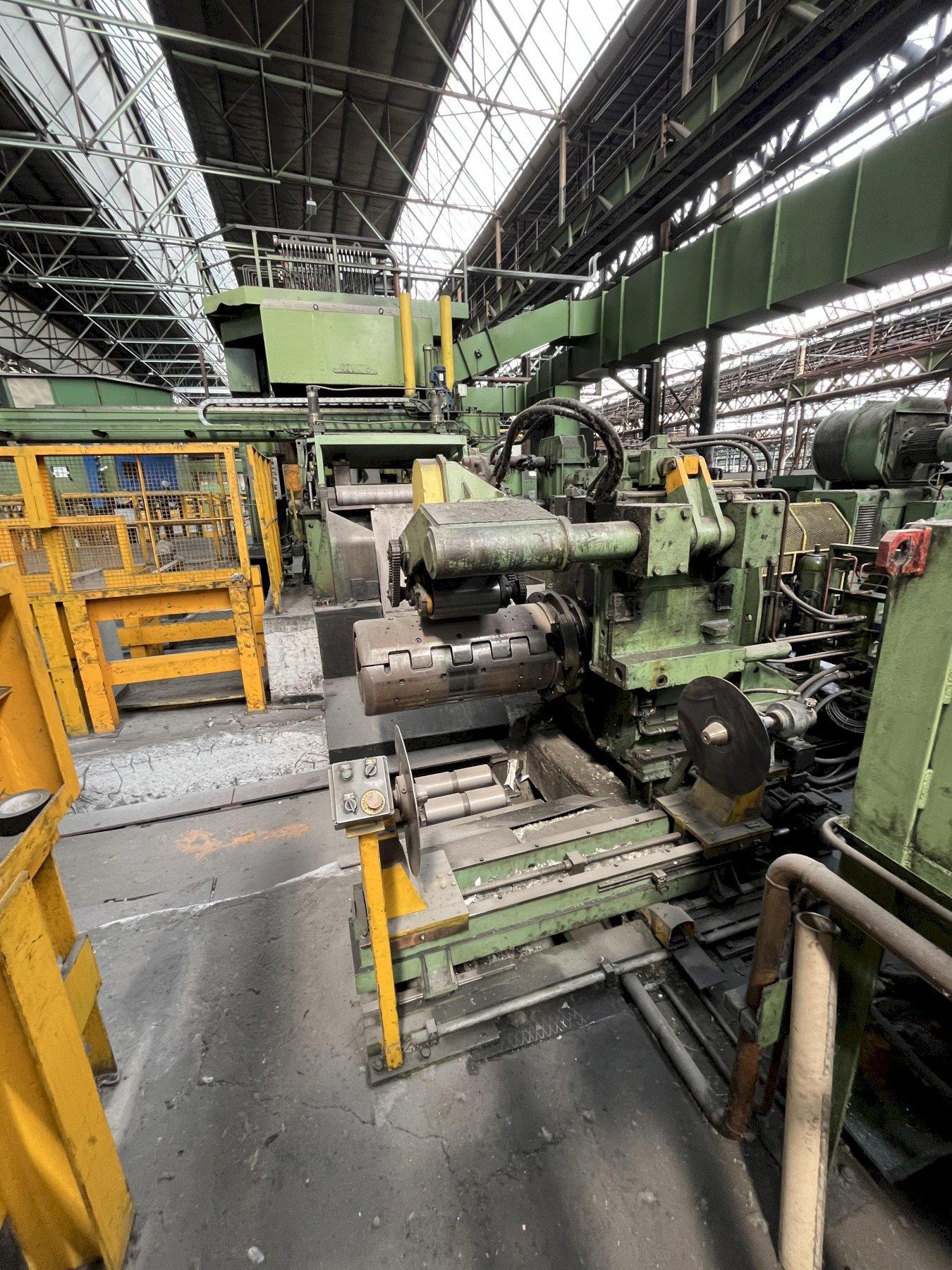

LEFT SIDE WINDER

 Mandrel OD: 500mm

Winder motor: 430kW @ 445V

Winder Outboard Bearing Support

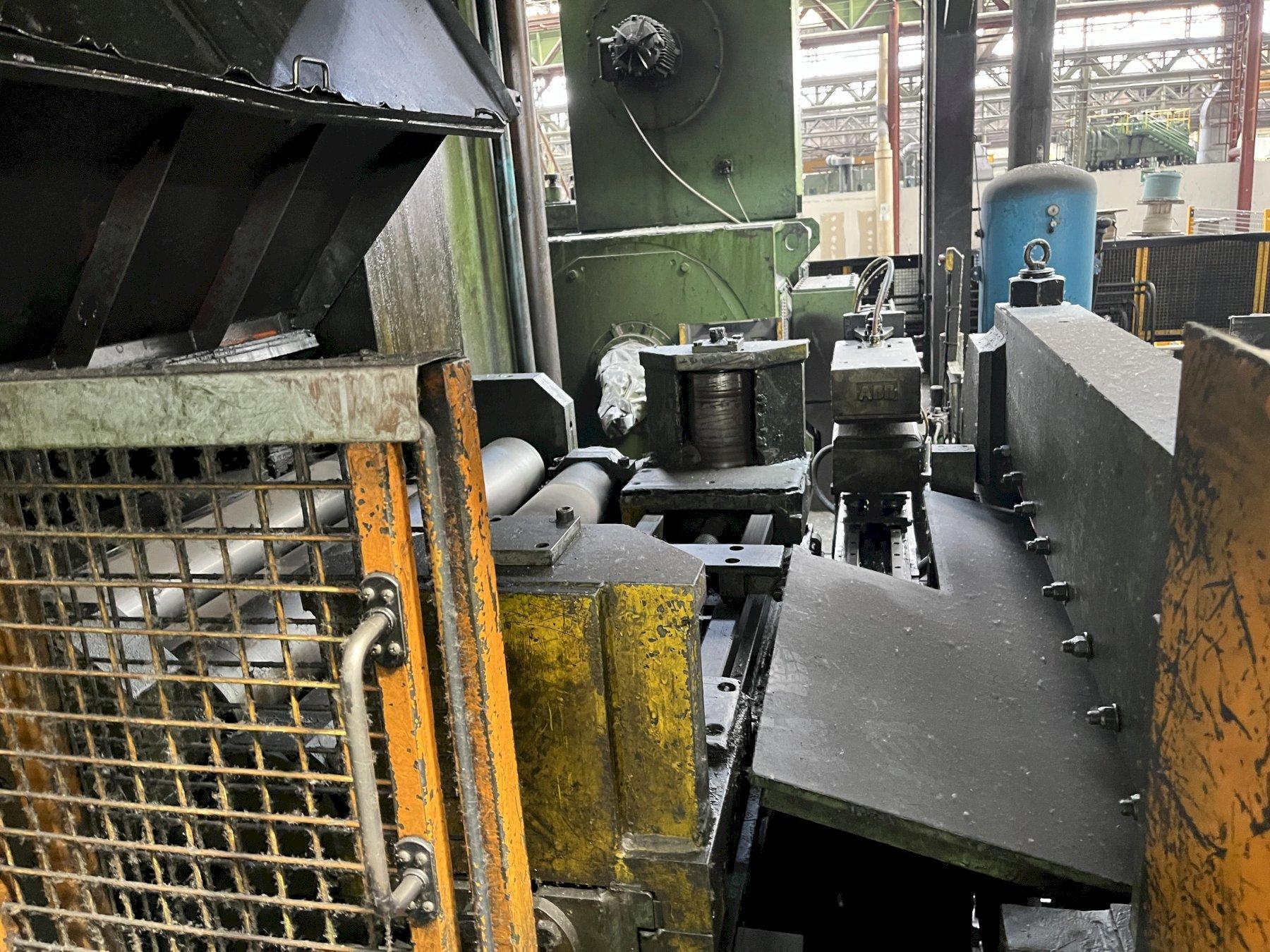

5 – roll straightener

Edge guides

Crop shear

Pinch rolls

ABB Eddy current thickness gauge

Underground coil car
