16" X 28" X 24" WATERBURY FARREL BONDING MILL LINE (14690)

Complete Steel-Aluminium Roll-Bonding Line, Consisting of, Levelers, Degreasing and
15" x 28" x 24"  Waterbury Farrel 4 Hi Reversing Bonding Rolling Mill (Stock #14690)

Big bonding line (Waterbury Farrel mill)
Stock # 14690

Technical details
Input:
Steel – used 101.6 to 203.2 mm width (254mm max equipment width)
Alloy – used 197mm max. width

Steel preparation:

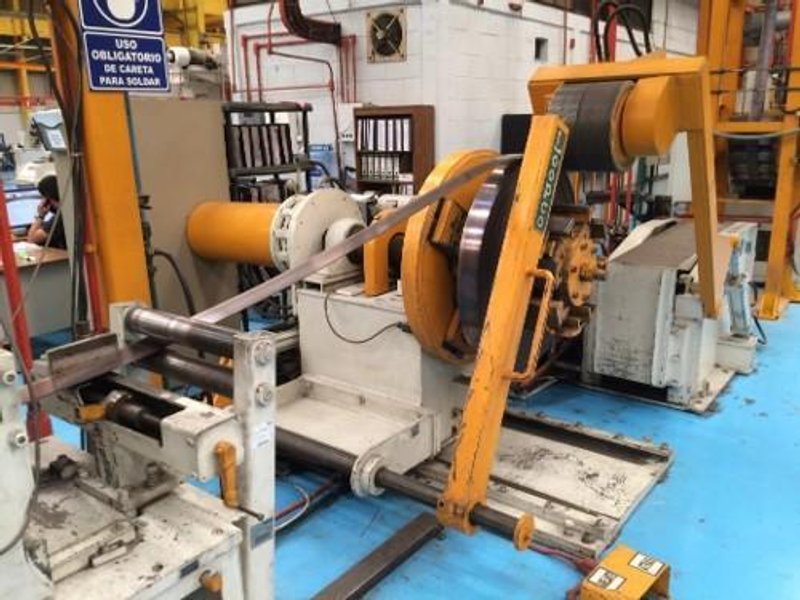

-    Decoiler

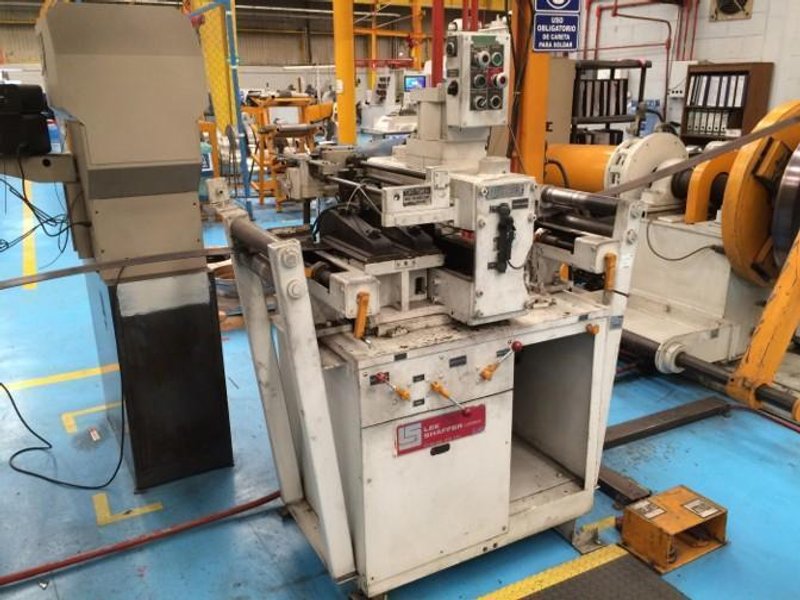

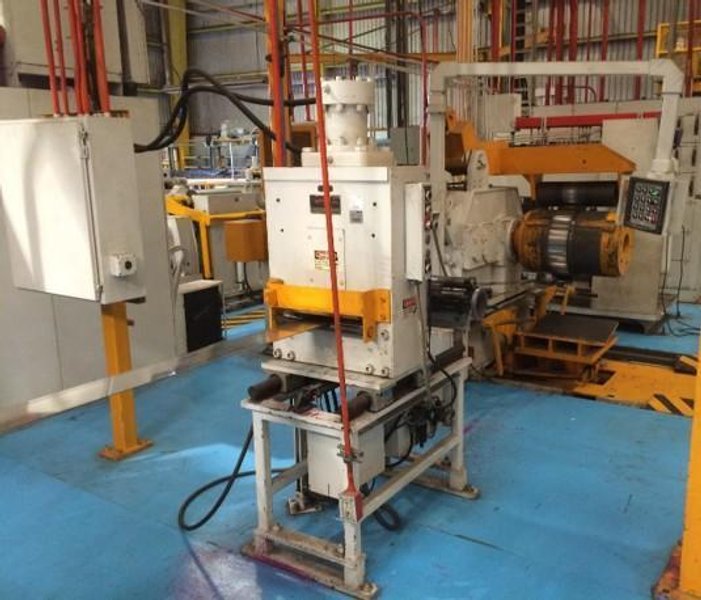

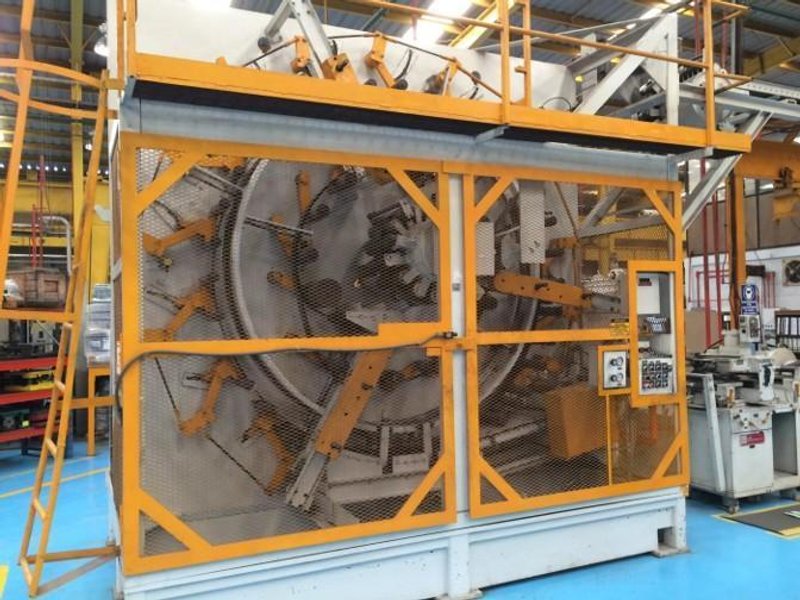

-    Welding + buffer for continuous operation

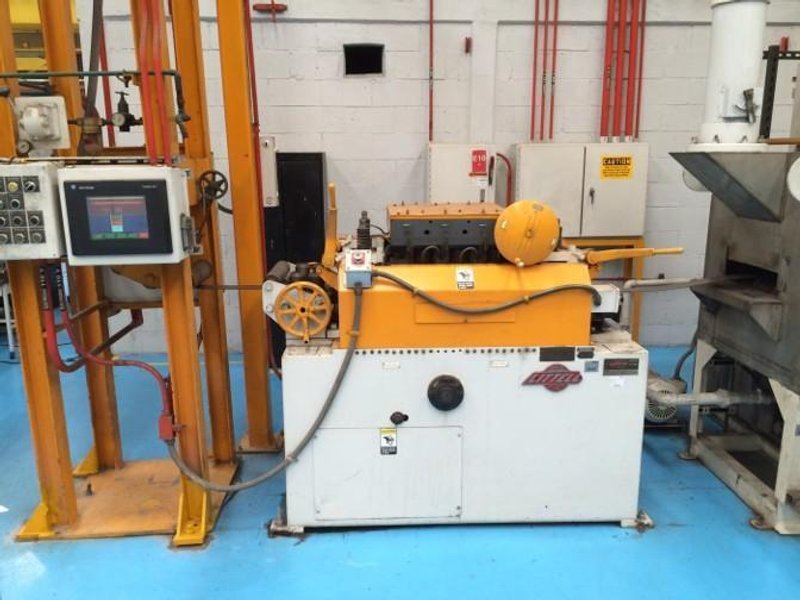

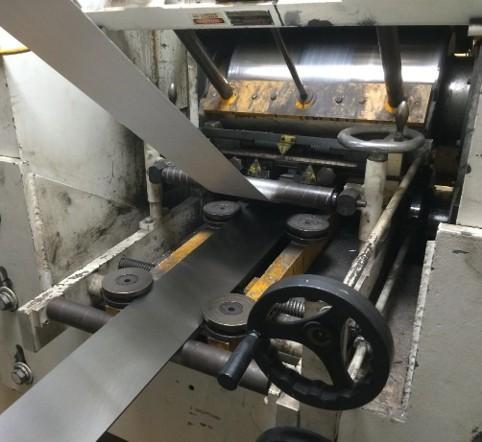

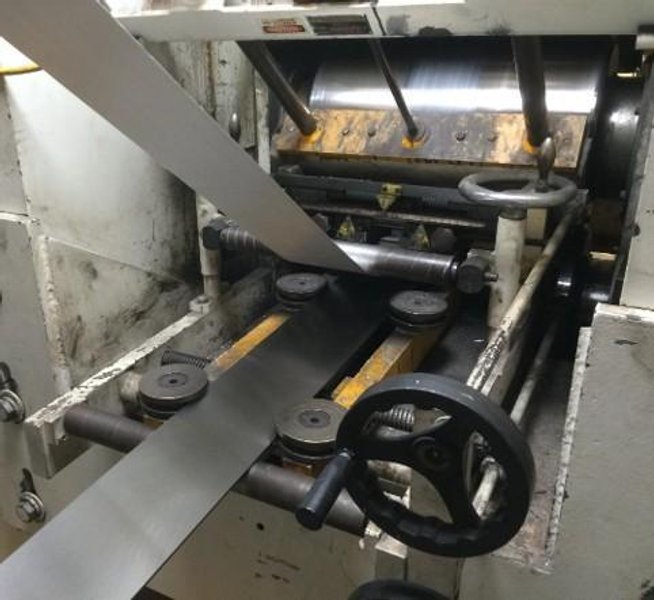

-    Leveller

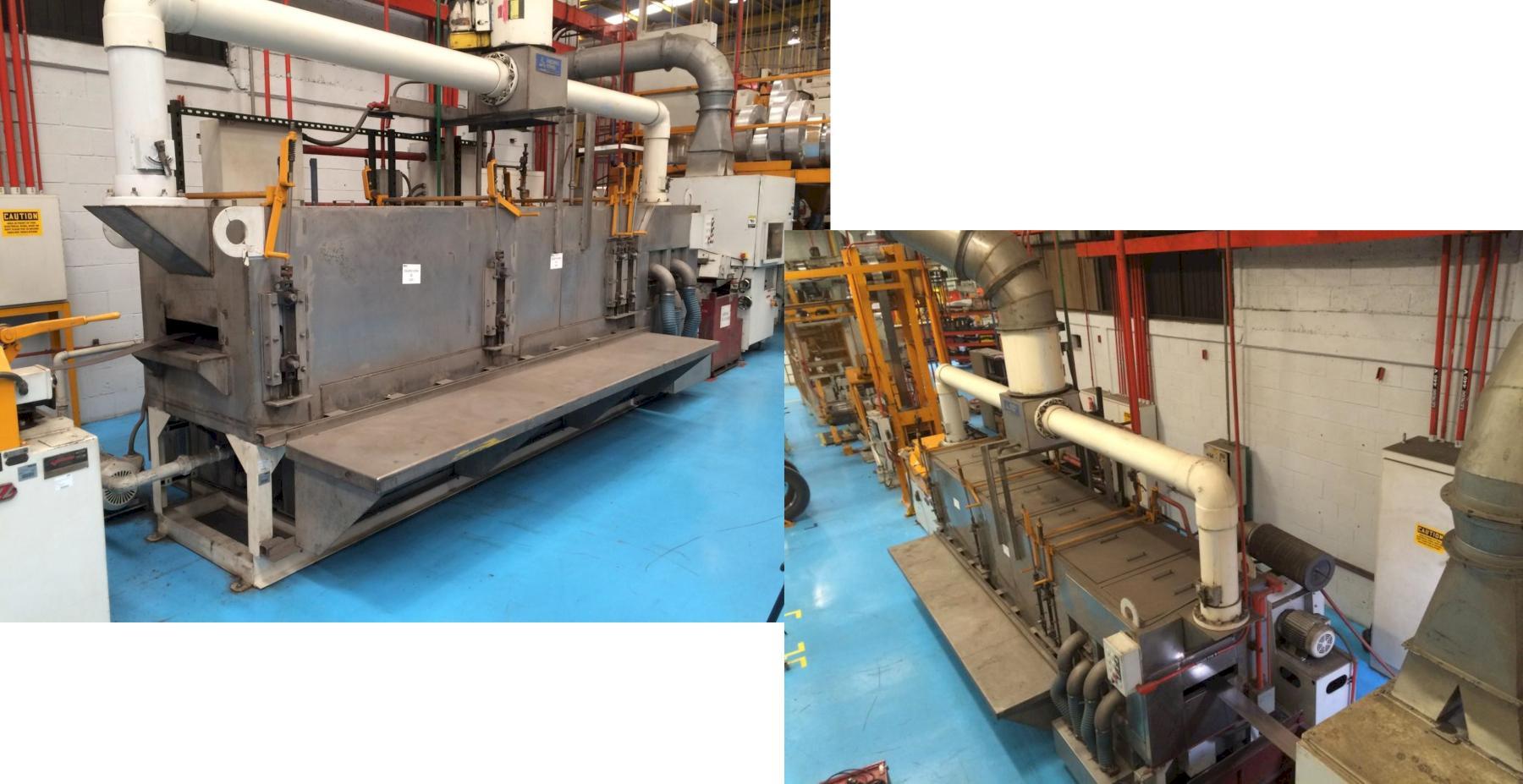

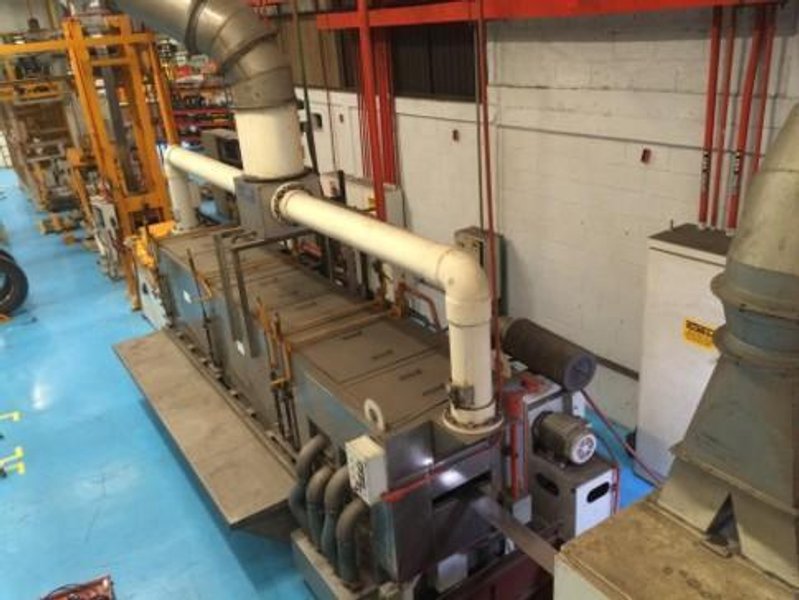

-    Degreasing

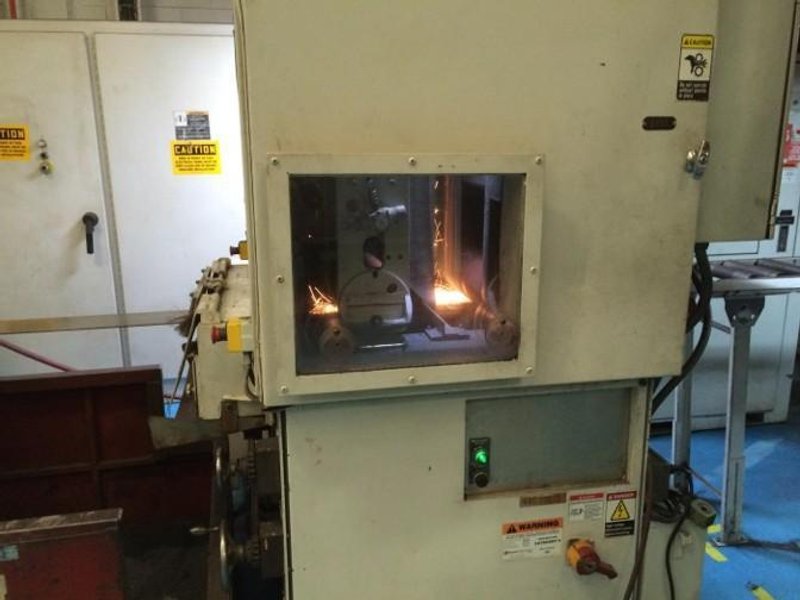

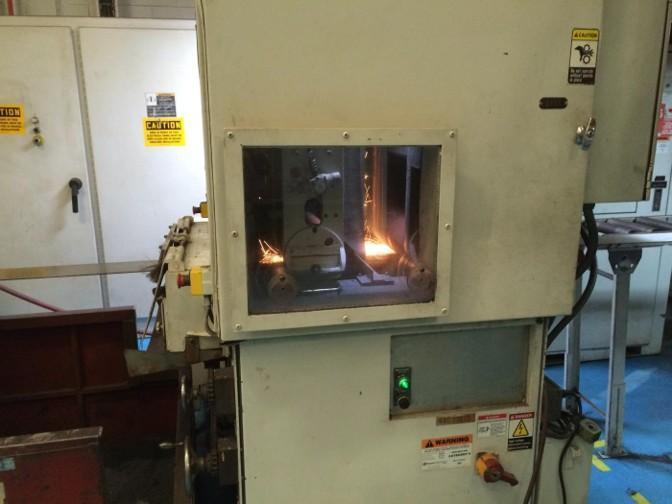

-    Linishing (Z36 belt) with lateral movement – one head and brushing of
        back surface – one unit
-    Induction heating for alloy thickness adjustment (max 300oF)

Alloy preparation:
-    Decoiler
-    Wire brushing – 3 heads with automatic pressure adjustment
        (electrical current)

Roll bonding:

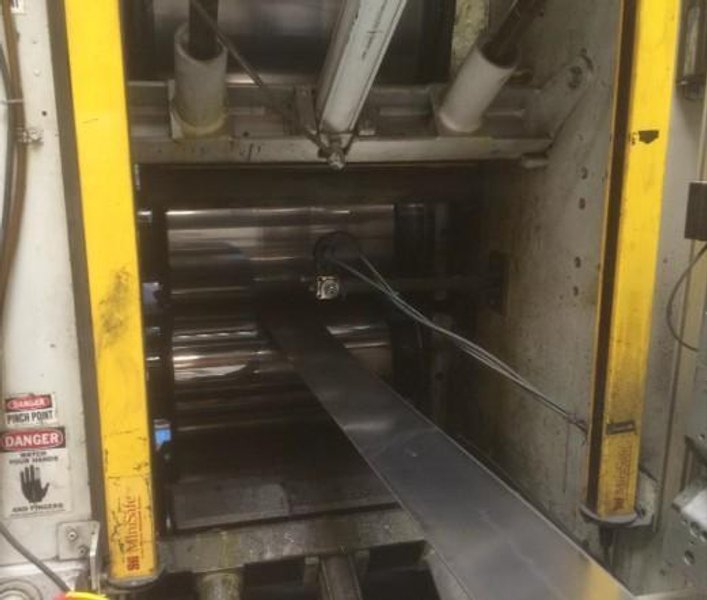

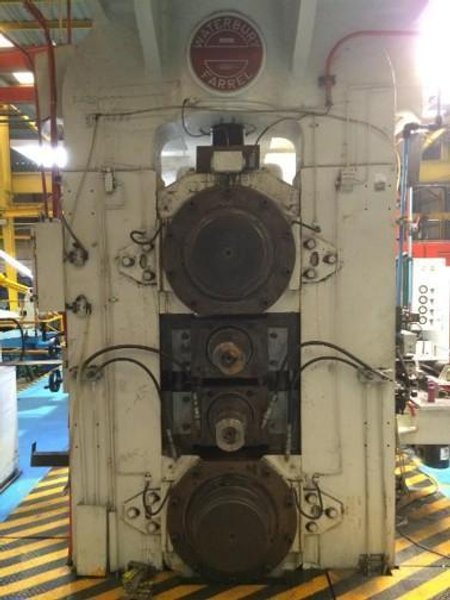

-    Waterbury Farrel 4-high rolling mill with mechanical screw-down and AGC
•    Separating force 1.500.000 lb (680t)
•    Single drive 500 HP
•    Maximum strip (incoming): thickness 12,7mm x width 254mm
•    Back-up rolls width 24” (610 mm) x Ø28” (711mm)
•    Working rolls width 24” (610 mm) x Ø15” (381mm)
-    Incoming speed from 7 to 10 m/min, depending on steel thickness
-    Total strip thickness checked with Vollmer contact gauge
-    Steel reduction 38-40% and alloy reduction 50-53% (depending
        on usage of steel induction pre-heating unit)
-    PLC/HMI based on Allen Bradley US

After roll bonding:
-    Scrap marking on the alloy surface (marked areas removed
        in other operations)
-    Flying shear

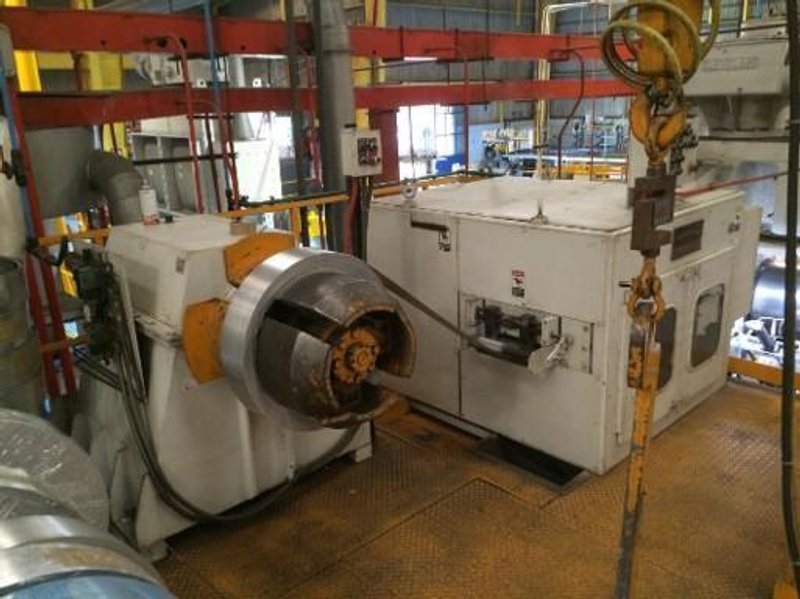

-    Recoiler

**Temporary Specifications Subject to Revisions**
**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**
**ALL SPECIFICATIONS ARE SUBJECT TO VERIFICATION**
