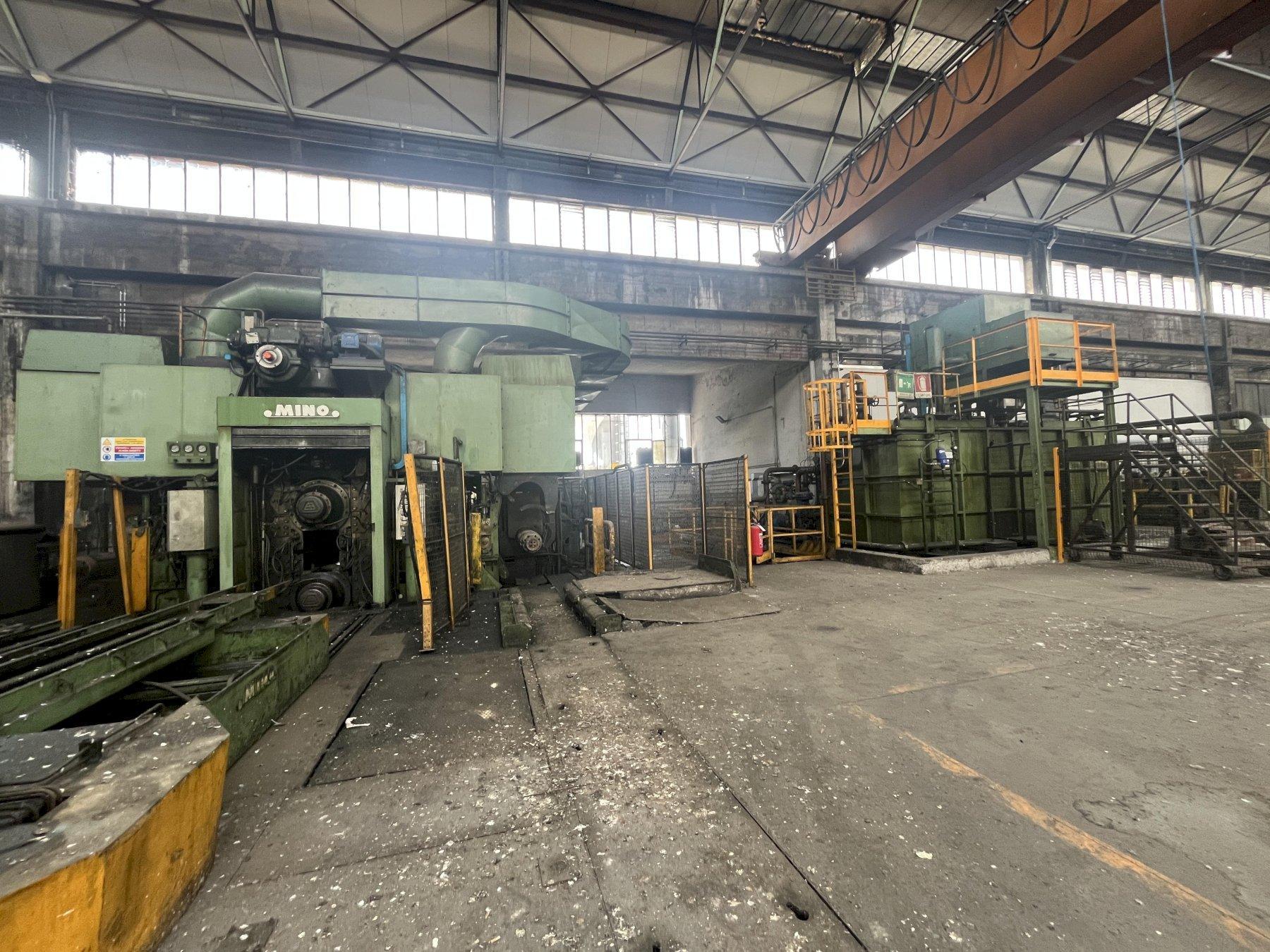

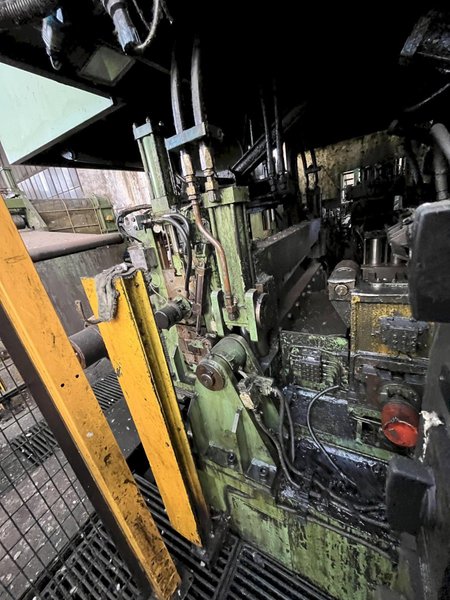

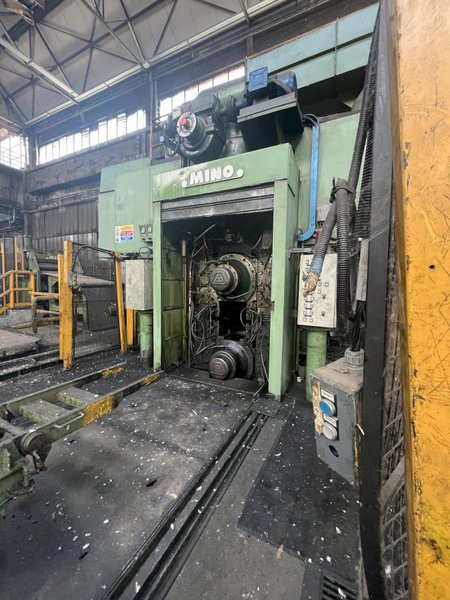

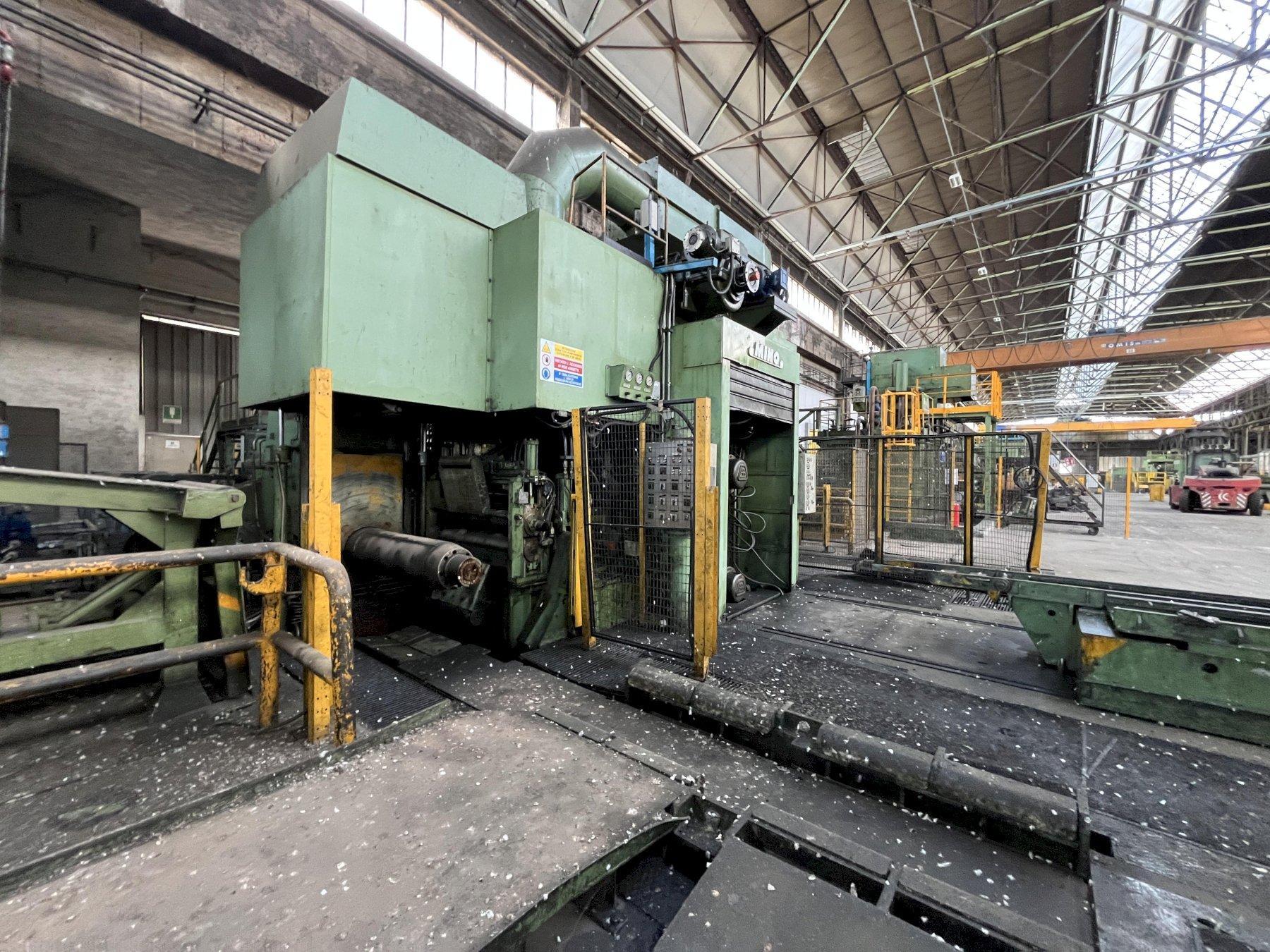

ACHENBACH-MINO 4-HI PRE-FINSHING ROLLING MILL "GARDA"

ACHENBACK / Rebuilt by MINO Reversing Mill, complete with fume extraction.

Installed power is 2,300 kW.

Features include:

• Coil diameters: 400 / 600
• Coil Outside Diameter: 1,600 mm
• Strip width: 440–1,040 mm
• Thickness: 0.2 - 4.0 mm
• Maximum speed: 200 m/min
• Prosol NT70 emulsion (2.5%)

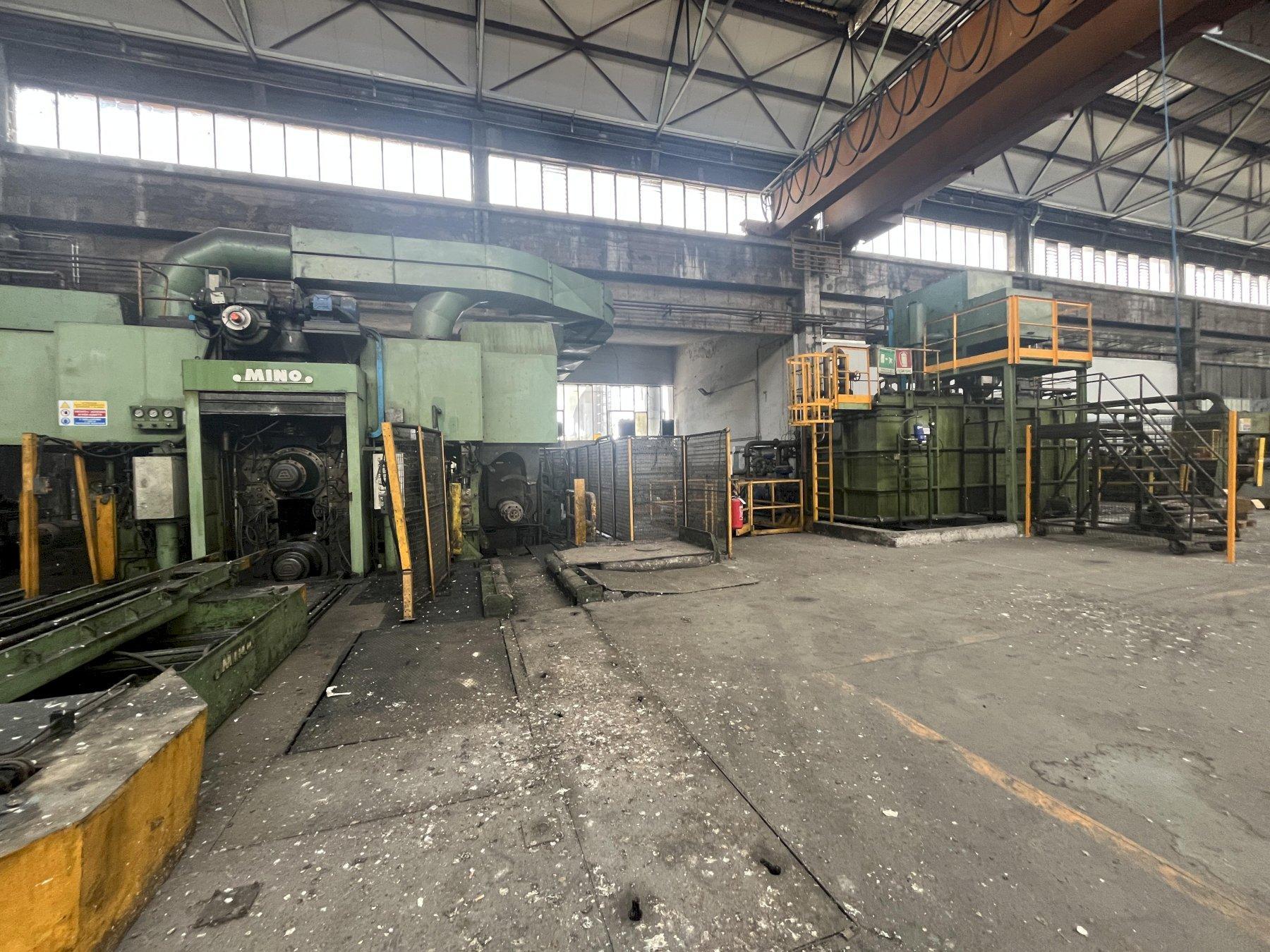

• Superstack Filtration System
• AGC using screwdowns and Hydraulic Gap Control
• Siemens S7-400 PLC
• Line Direction: Left to Right

• Work rolls:
• Dia = 330 to 291mm
• Face length = 1140mm
• Backup rolls:
• Dia = 780 to 740mm
• Face length = 1080mm

The mill includes:

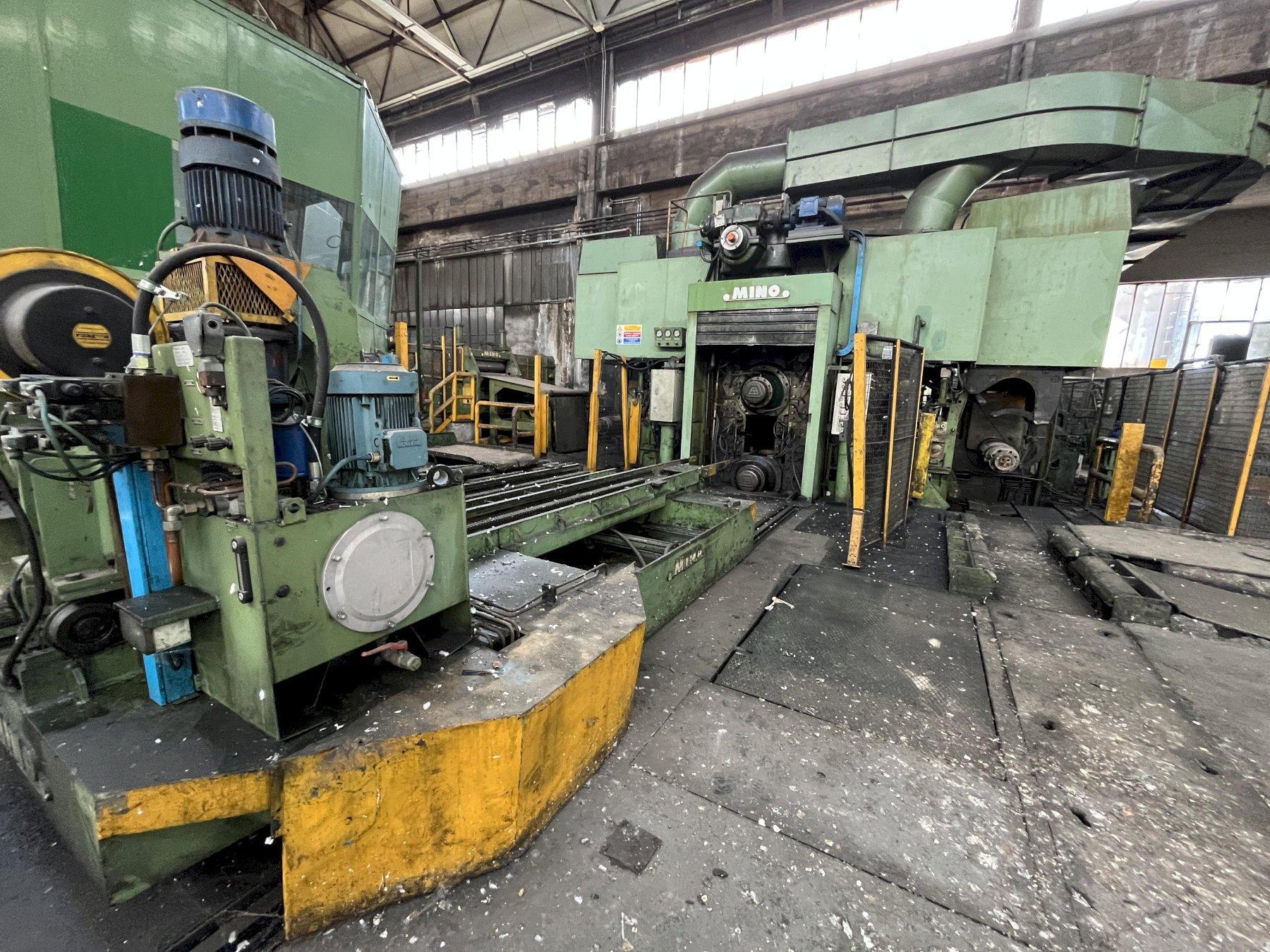

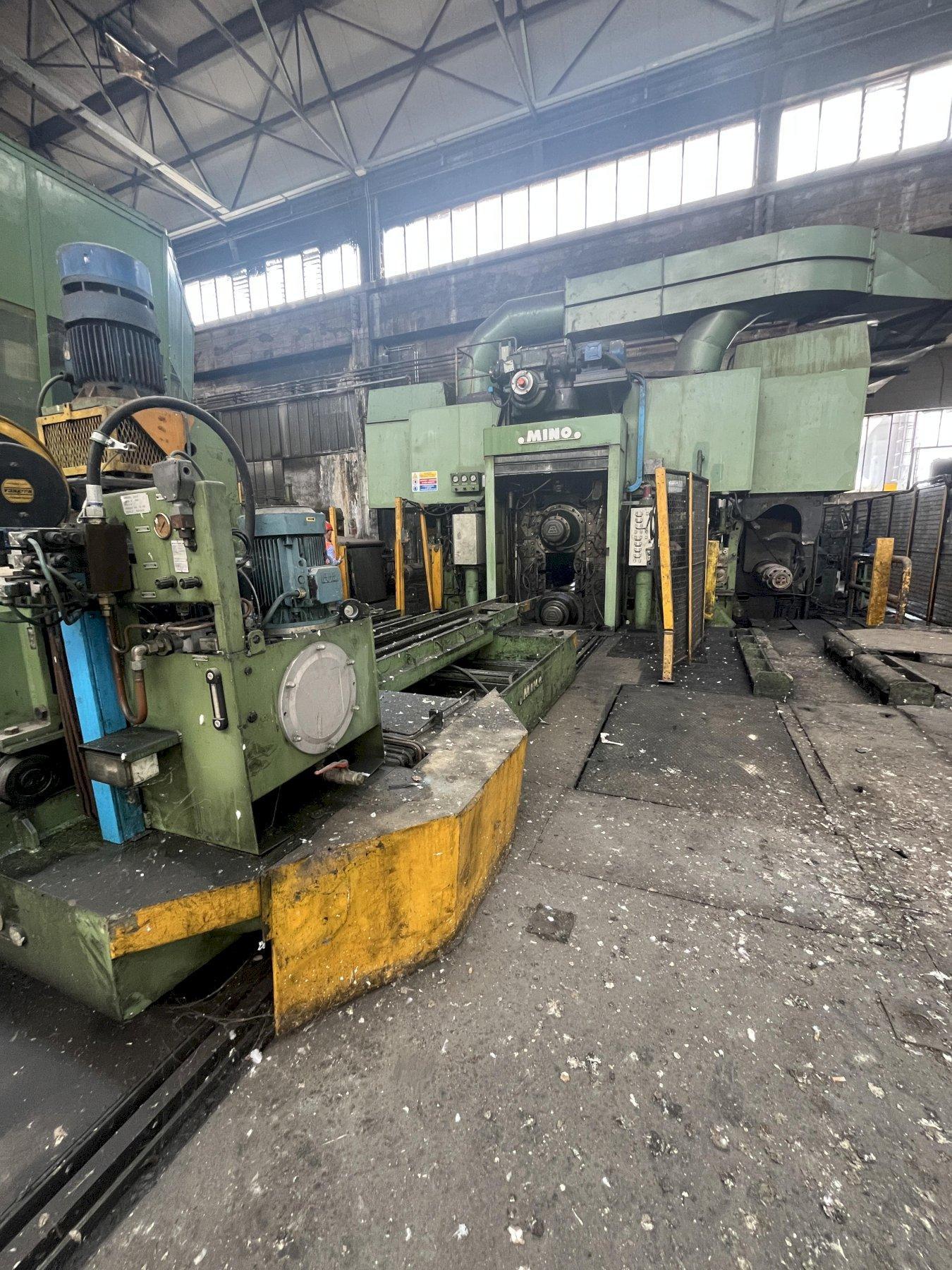

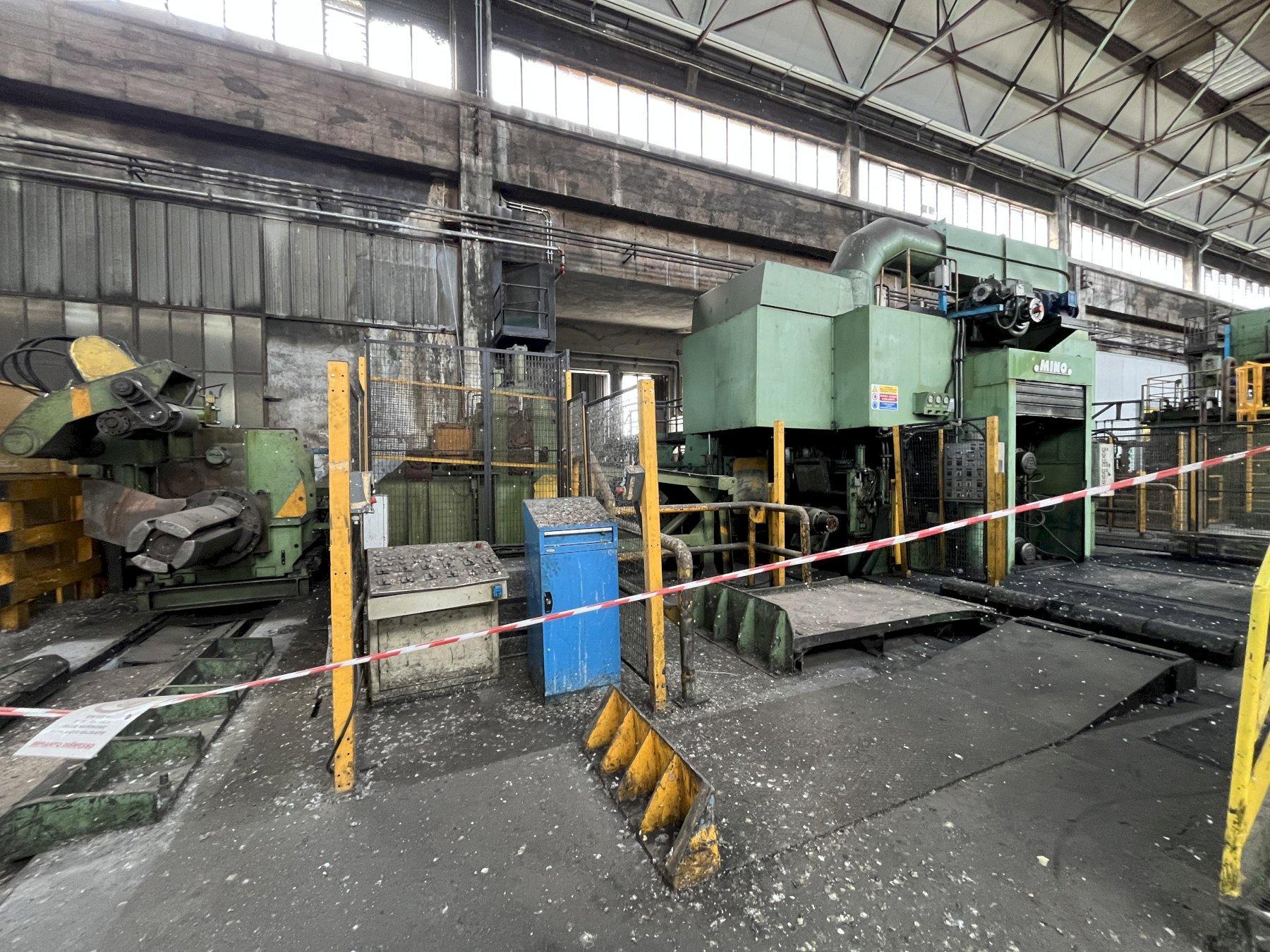

Coil Entry

Coil Car, Underground

Uncoiler

Hydraulic drum expansion

Snubber Control Arm, hydraulic drive

Motor: 120kw DC drive

Mandrel OD: 500 – 700mm

Peeler table

Edge guiding rolls

Pinch roll stand

Transport table

4HI Achenbach-Mino Reversing Mill:

LEFT WINDER with Hydraulic push-off plate

          Mandrel OD: 500mm

2 x 200kW 450V DC motor

Underground coil car

Transport table with hold down roll

Pinch rolls

Crop shear

Edge guiding rolls

3 – roll straightener

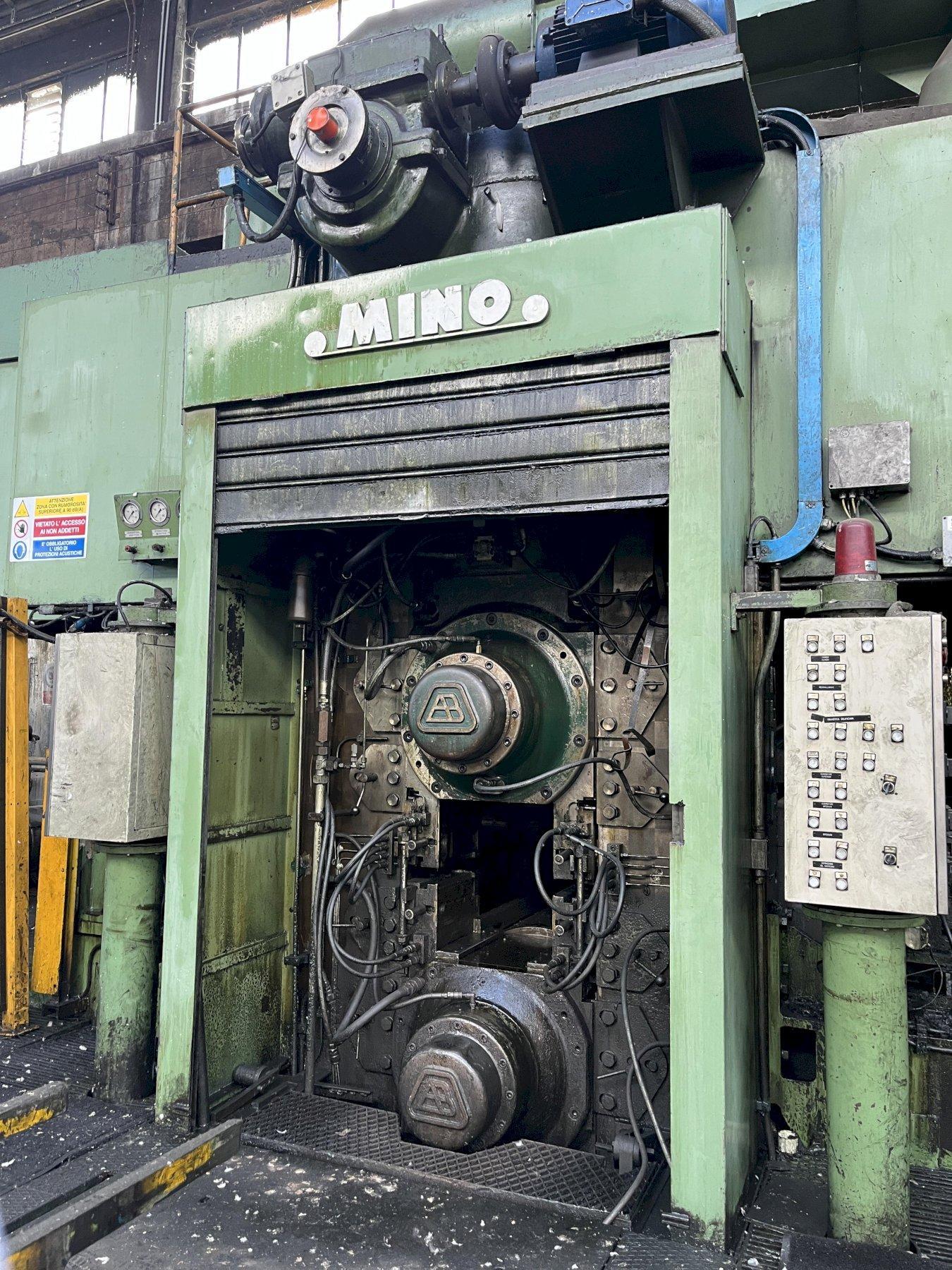

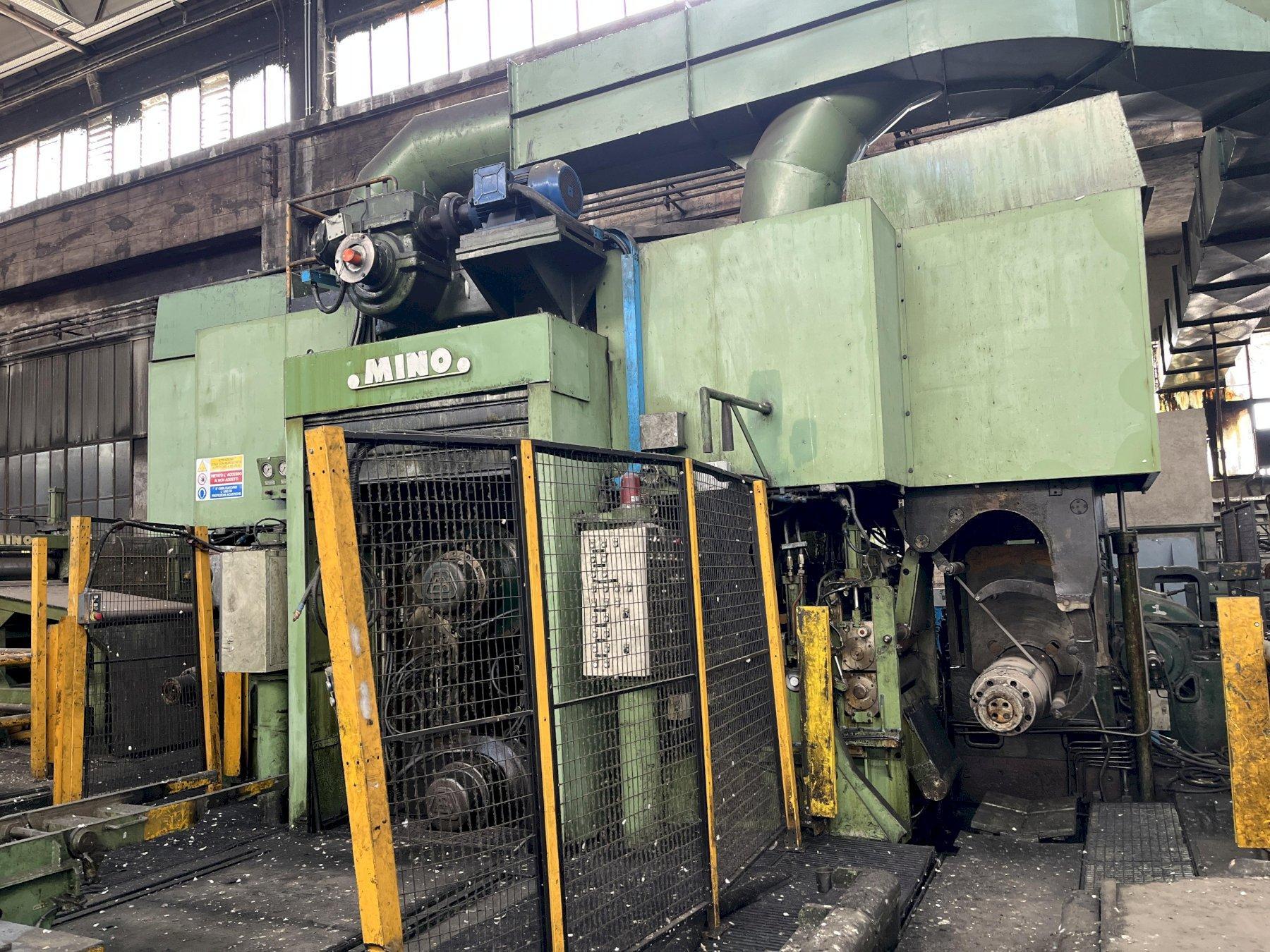

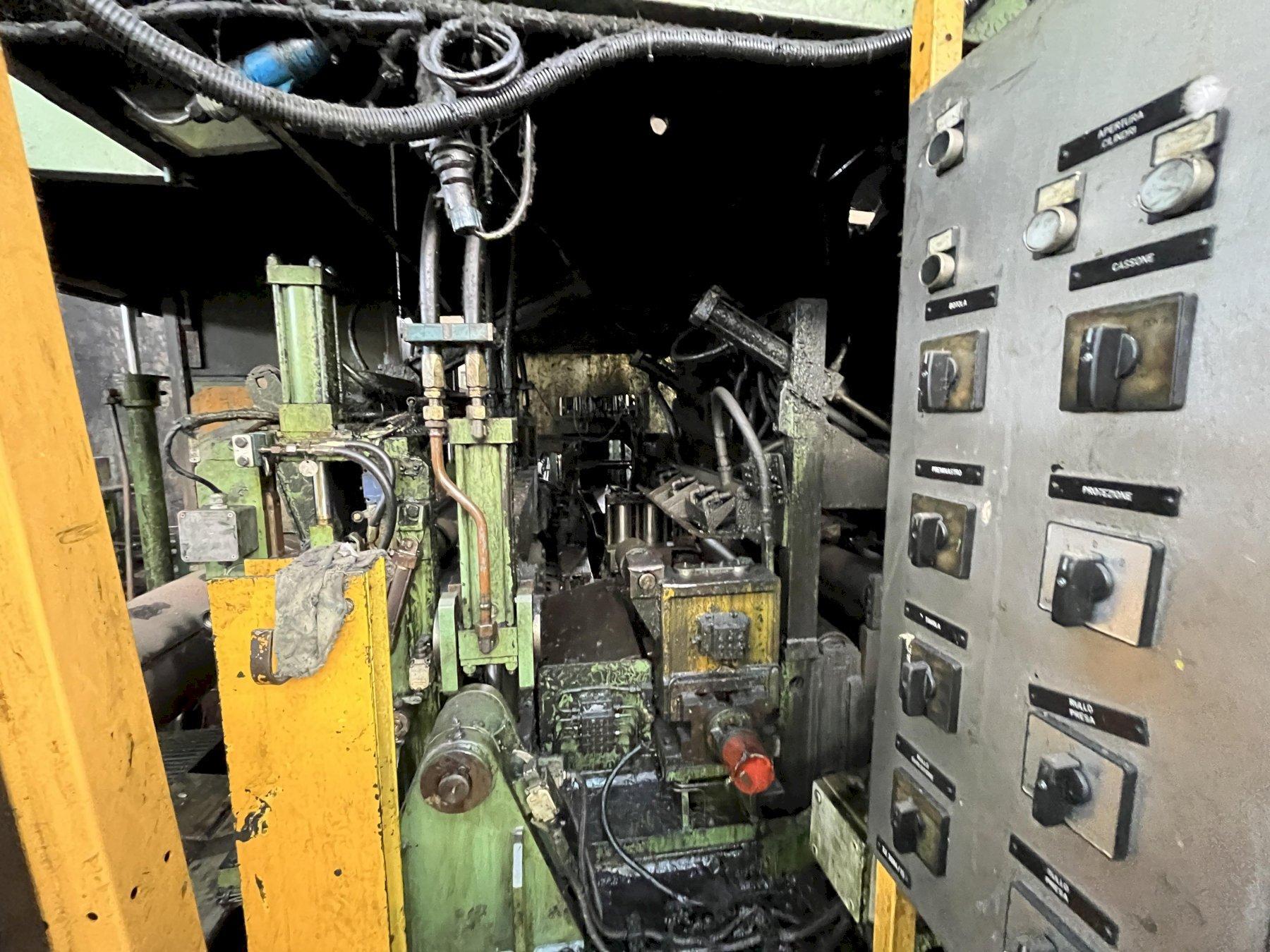

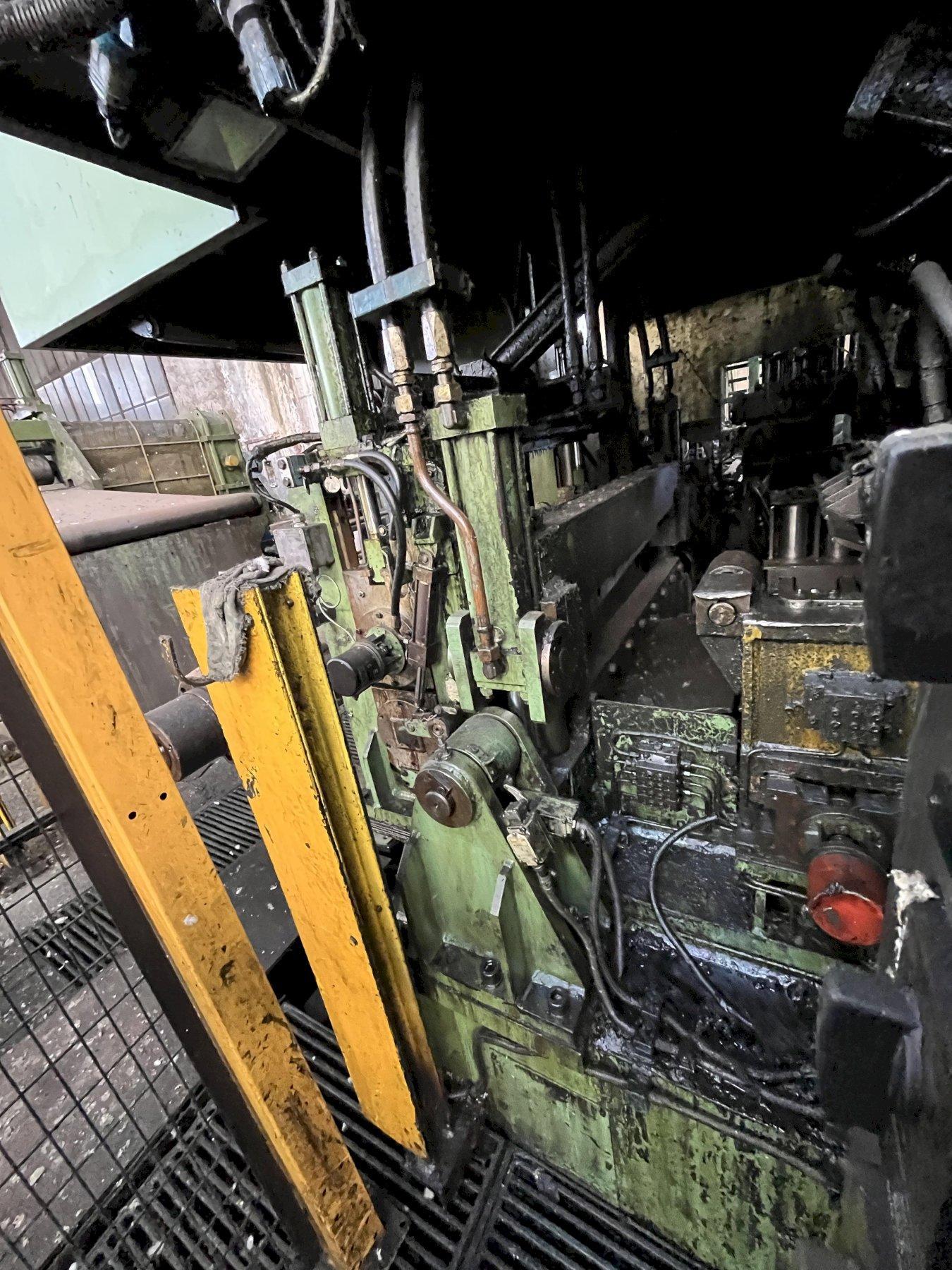

4HI Reversing Mill

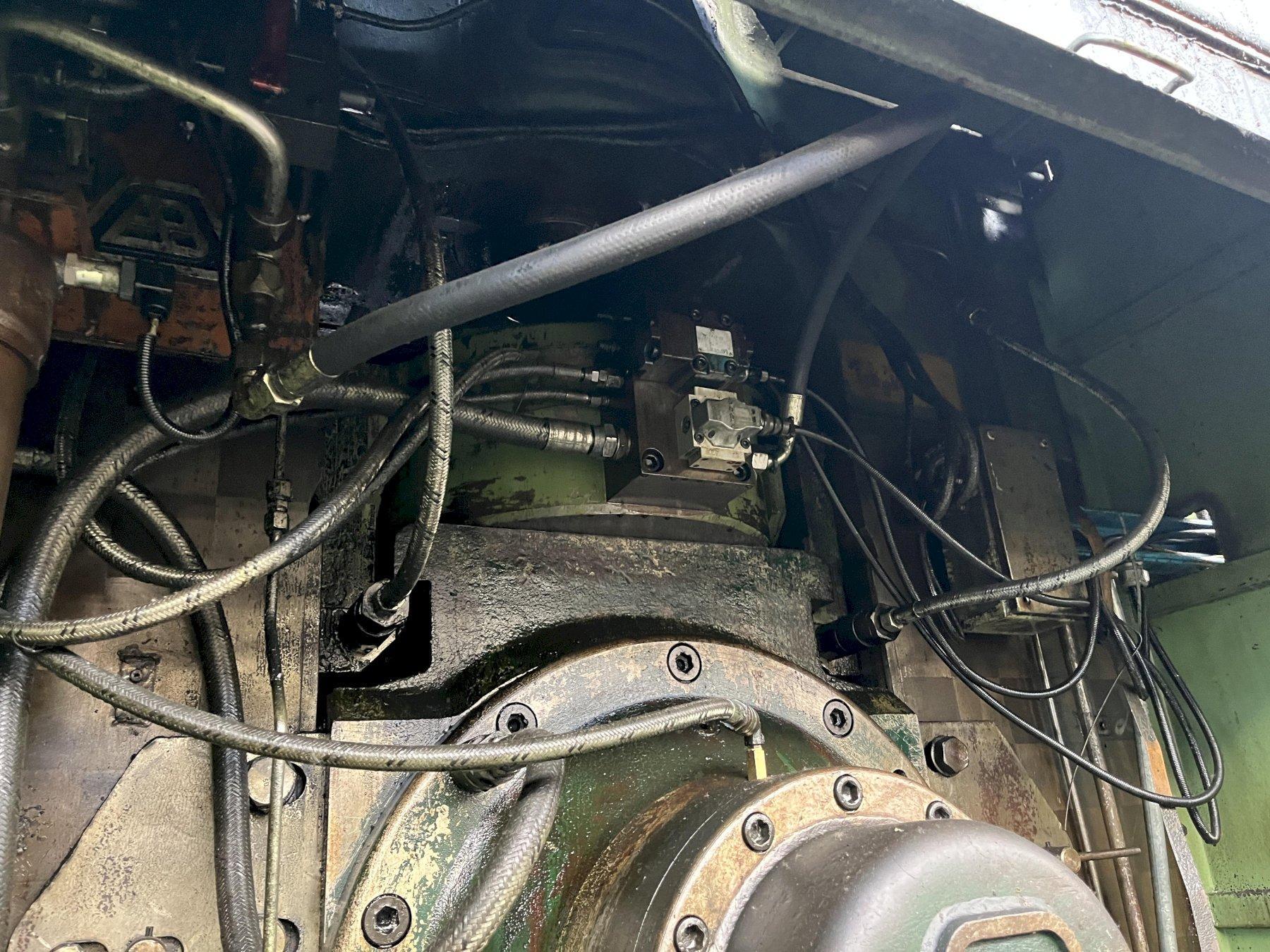

AGC, Roll Bending and Roll Balancing

Motorized screw down + Pancake cylinder

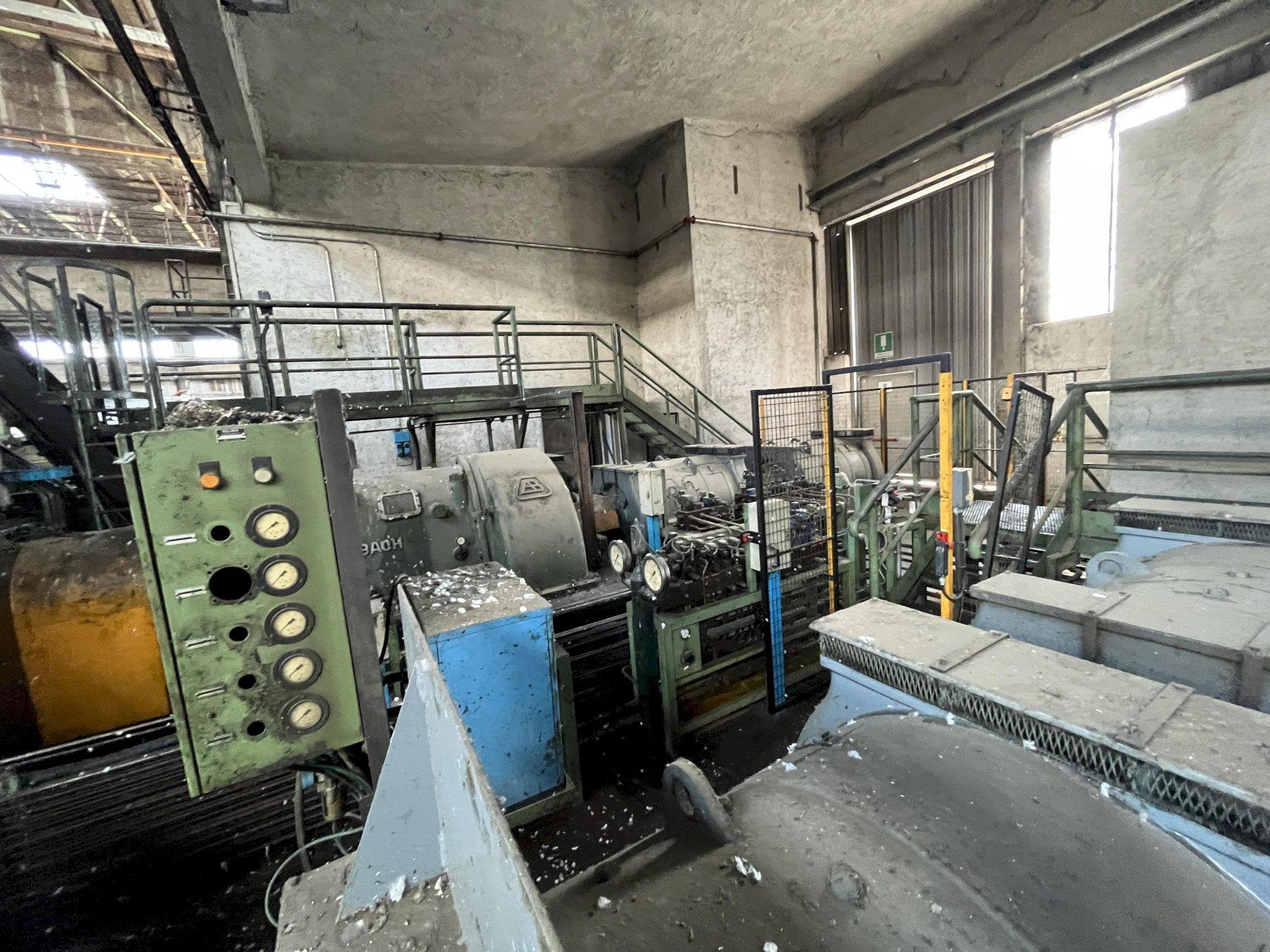

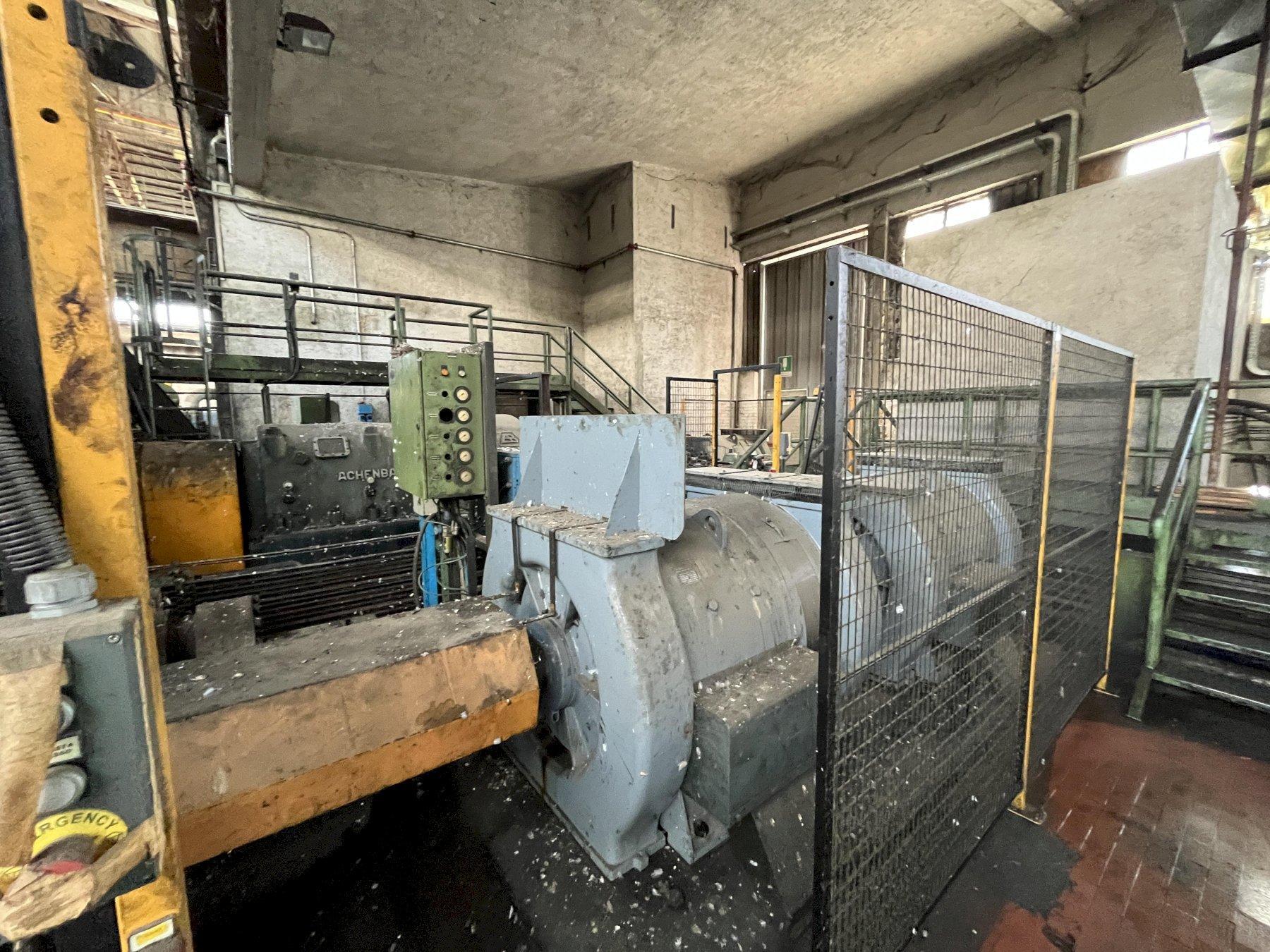

Mill motor: 2 x 450kw - 450V DC

Back-up rolls: 1050mm width x 800mm diameter

Roll Change Sled

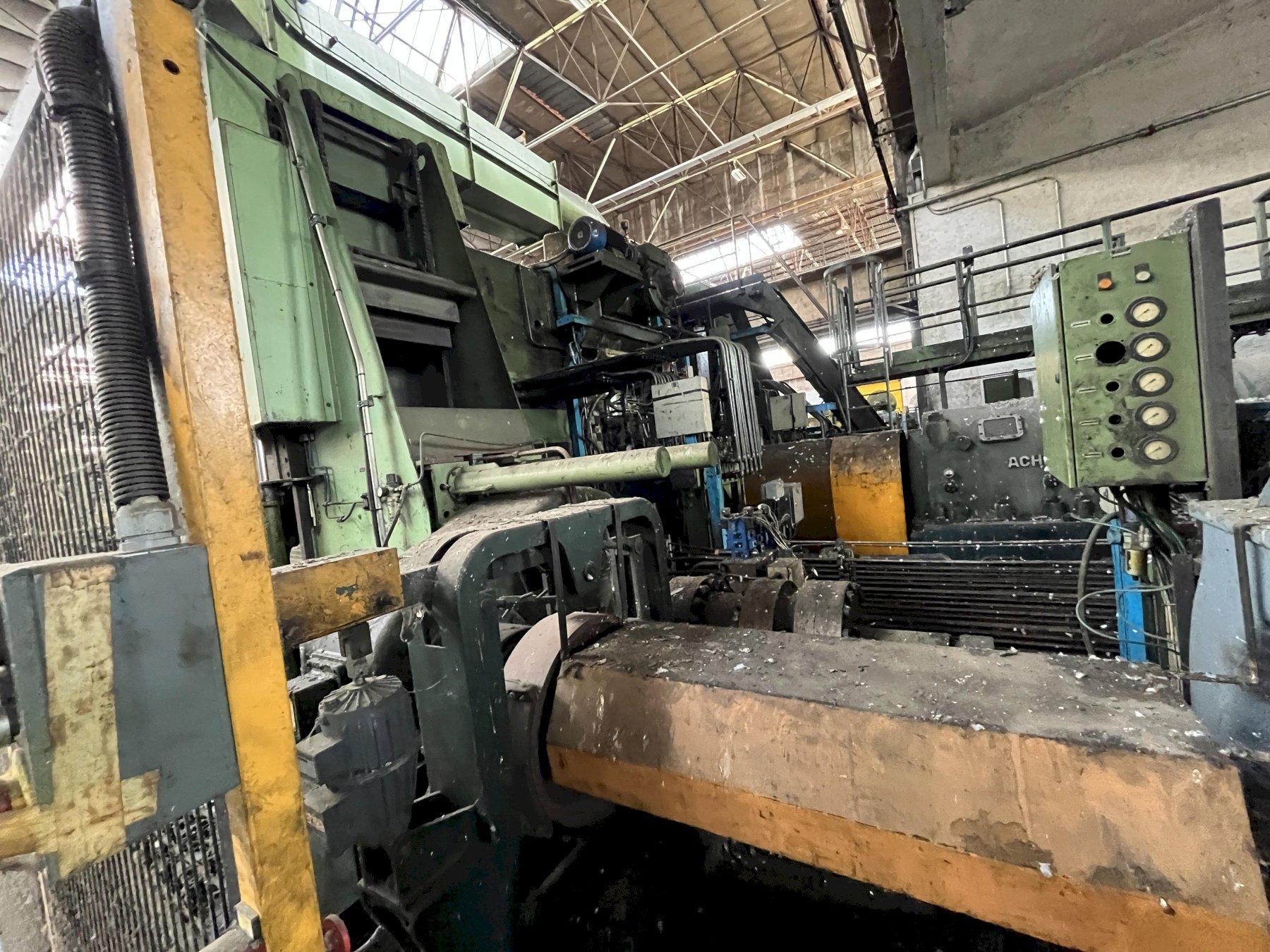

RIGHT SIDE WINDER

          Mandrel OD: 500mm

3 – roll straightener

Edge guides

Crop shear

Pinch rolls

Transport table with hold down roll

Belt wrapper

Motor Drive: 2 x 200kW - 450V
