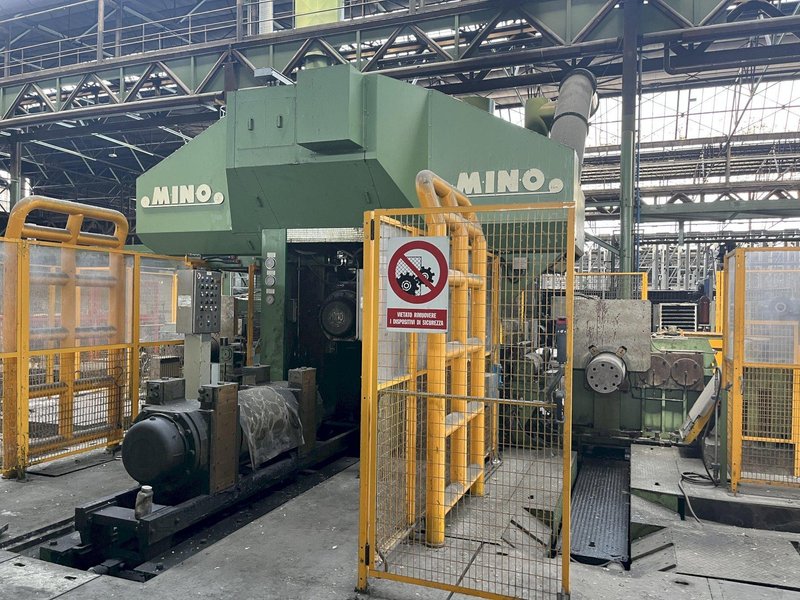

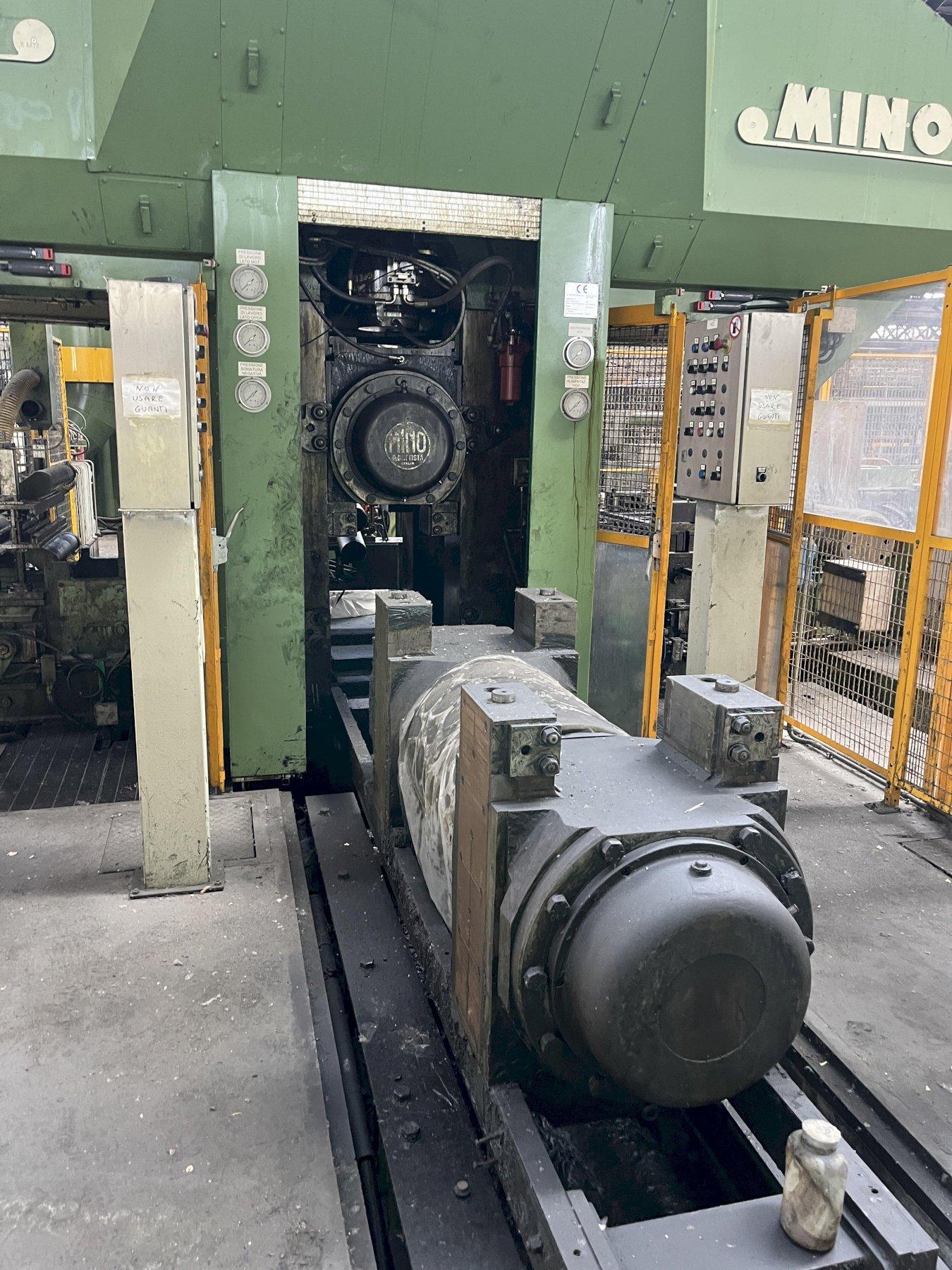

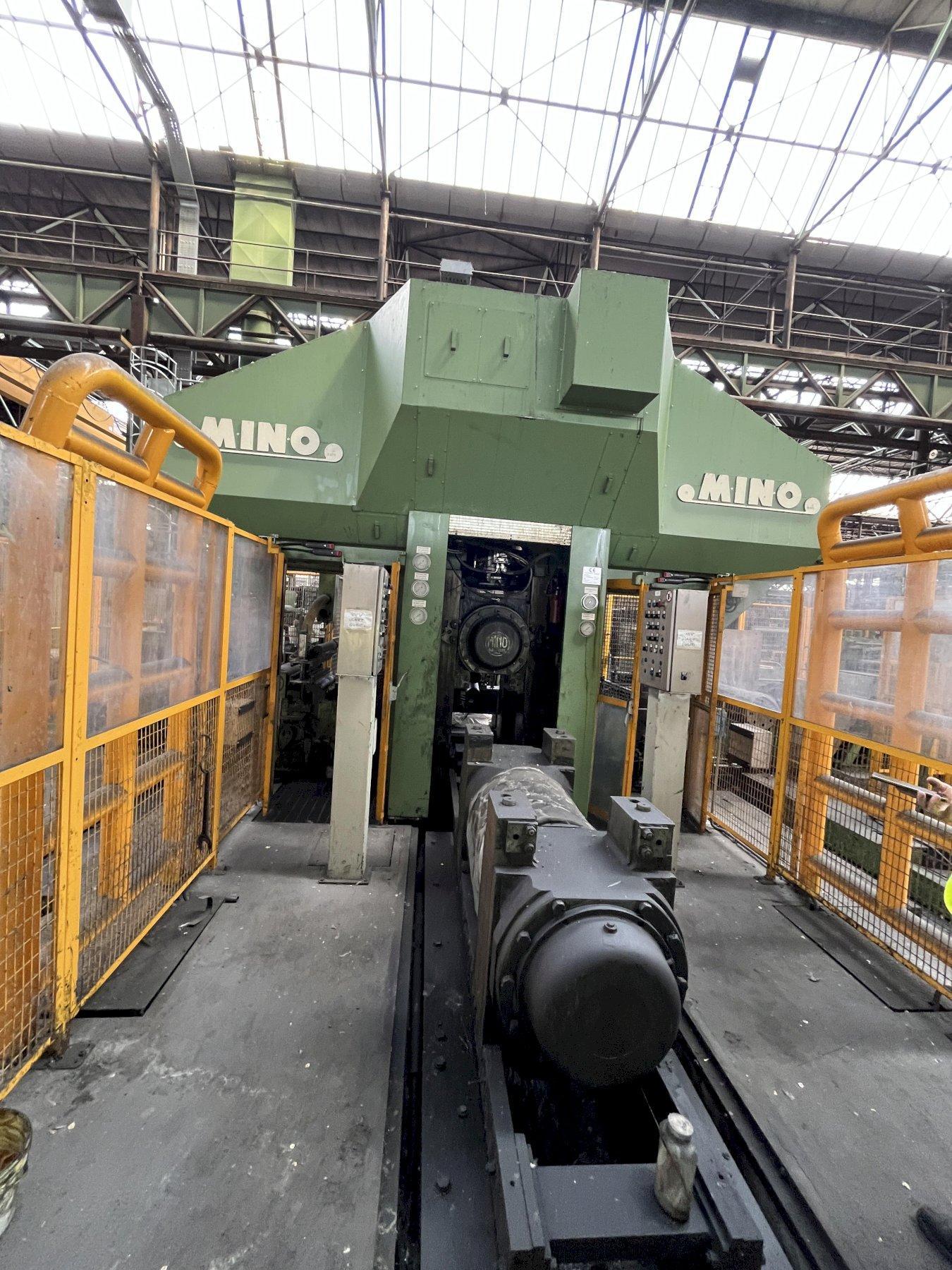

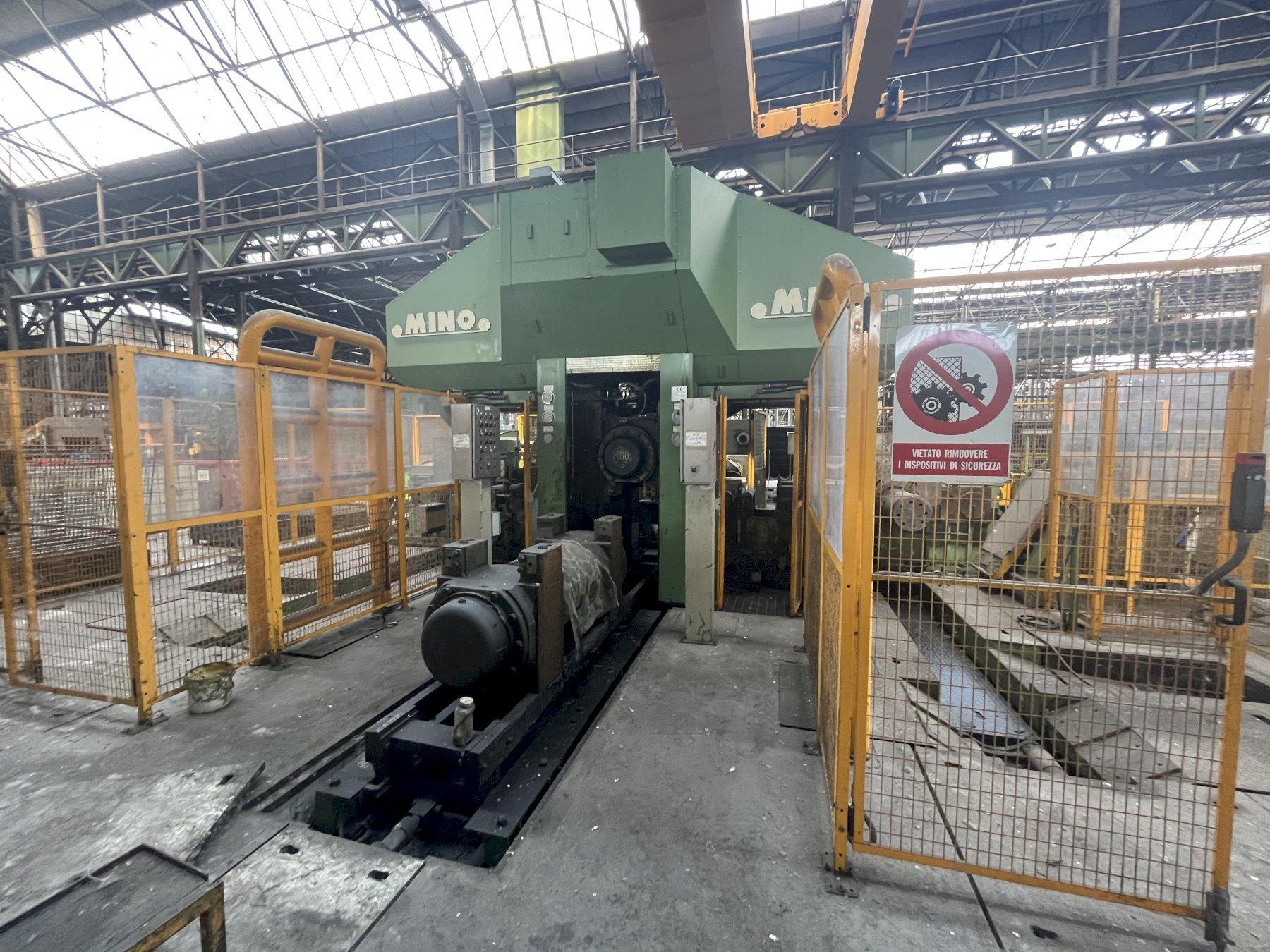

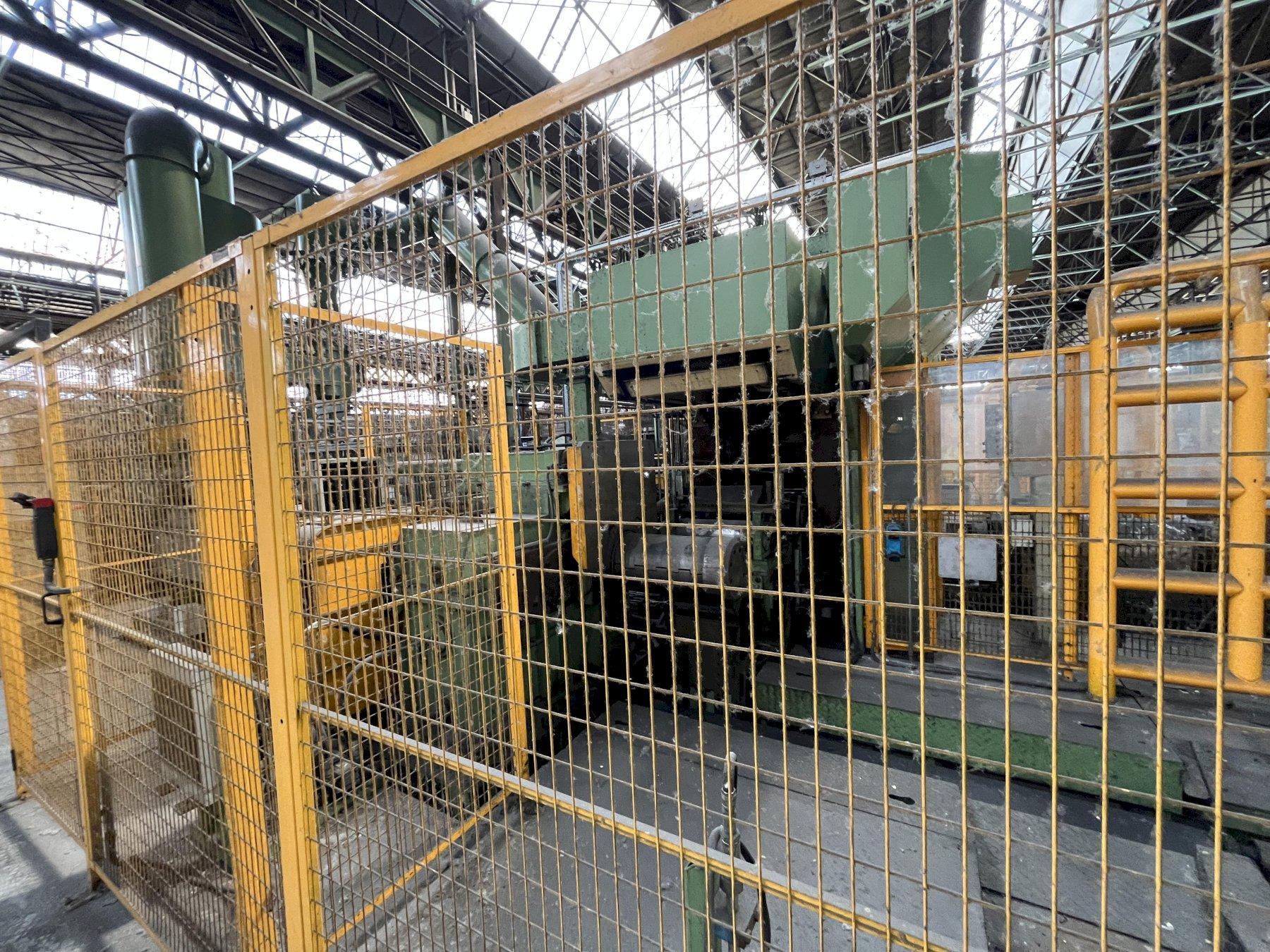

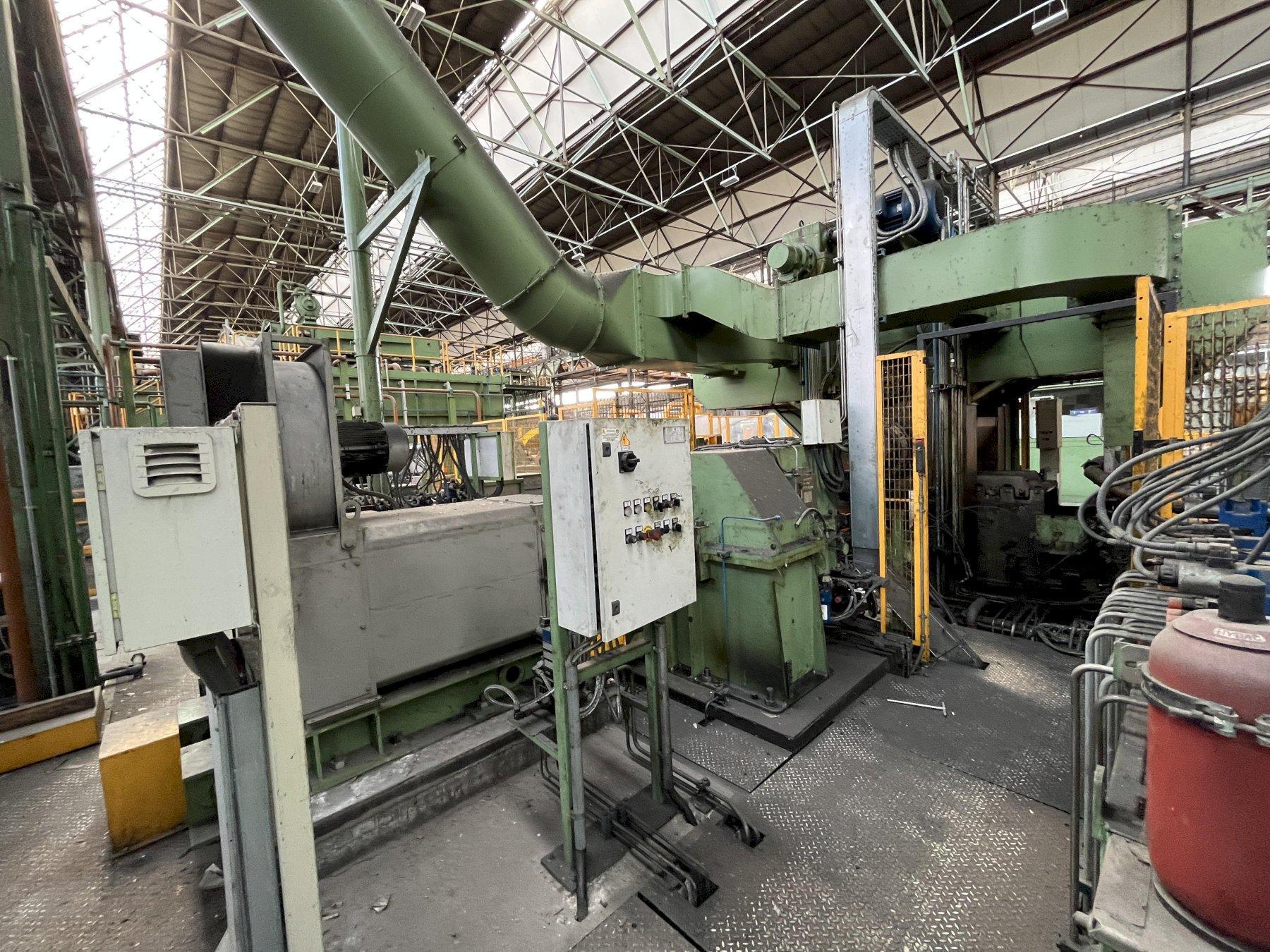

MINO PRE-FINISHING ROLLING MILL

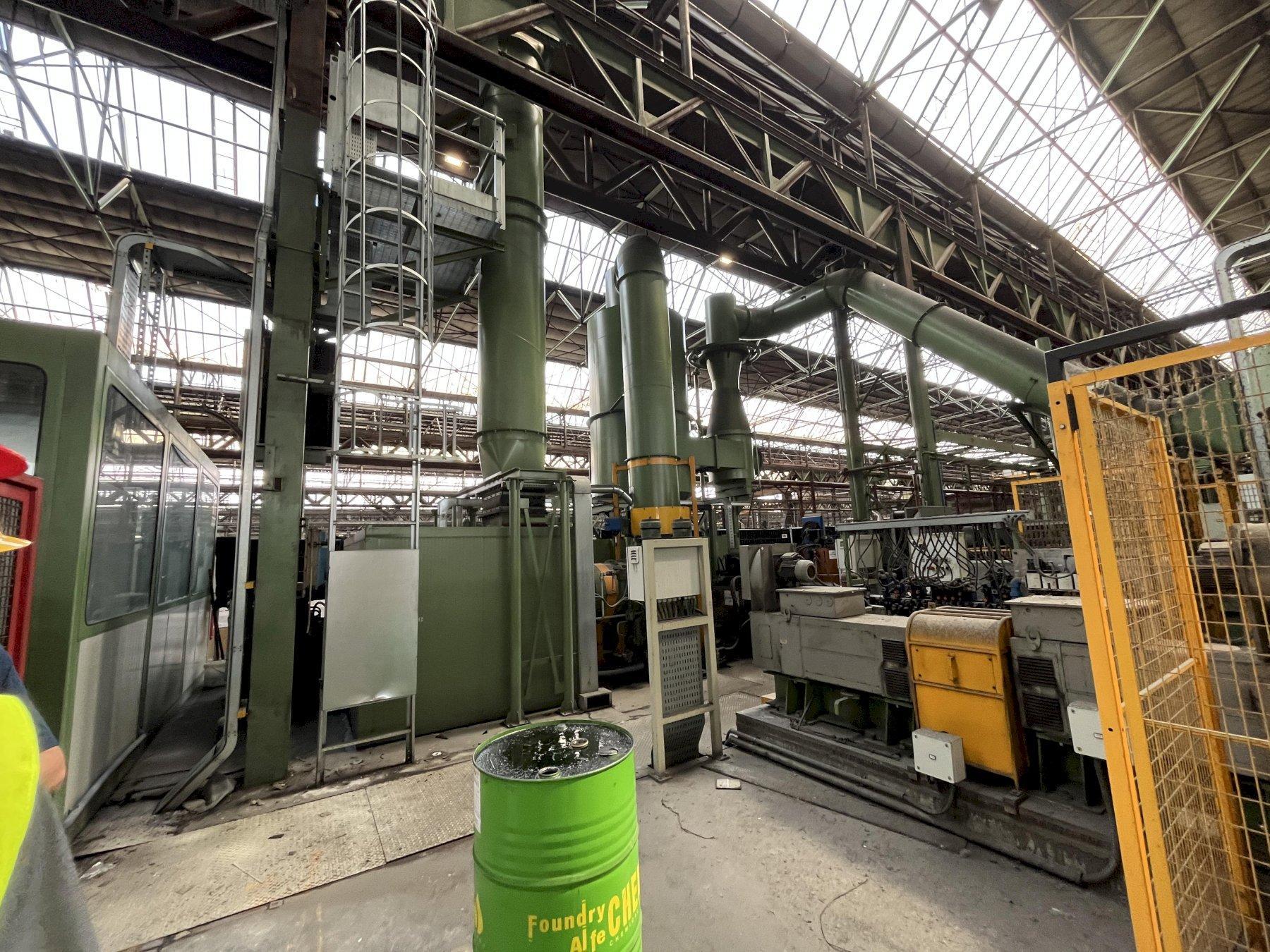

This equipment consists of a MINO-500 Four-High Pre-Finishing Rolling Mill with integrated fume extraction.

The mill utilizes emulsion lubrication together with AGC incorporating screwdowns and HGC.

Operating range:

• Coil diameter: 400 mm
• Strip width: 150–520 mm
• Thickness: 3.0–0.2 mm
• Speed: 200 m/min
• AGC

• Work rolls:  180mm  Dia x  630mm Face length
• Backup rolls:  560mm Dia  x 650mm Face Length

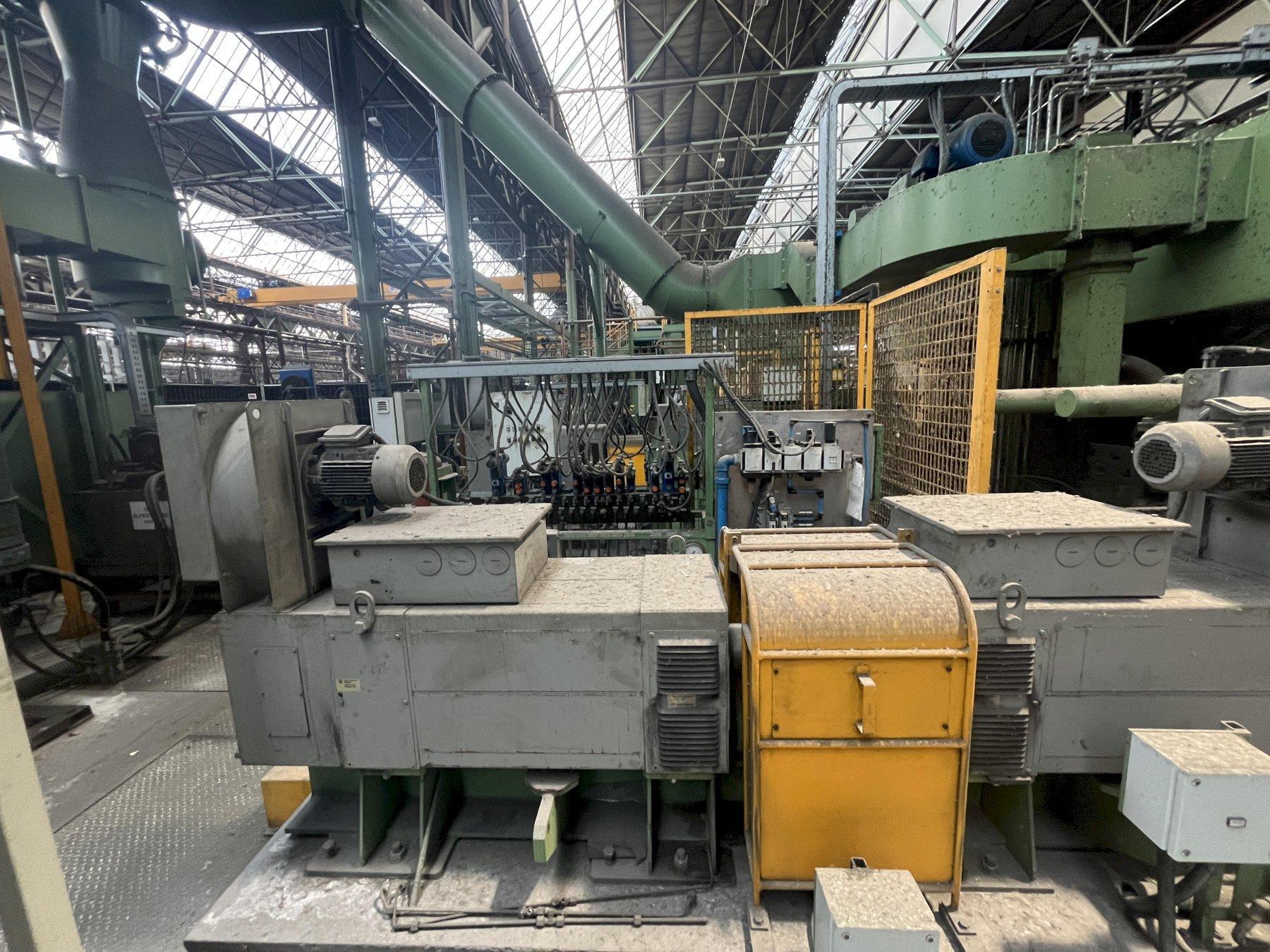

• Main Motor Drives:
• Mill Stand = 367 kW DC?
• Left winder = 368 kW DC?
• Right winder = 366 kW DC?

The original thickness gauge has been removed.

LINE CONFIGURATION

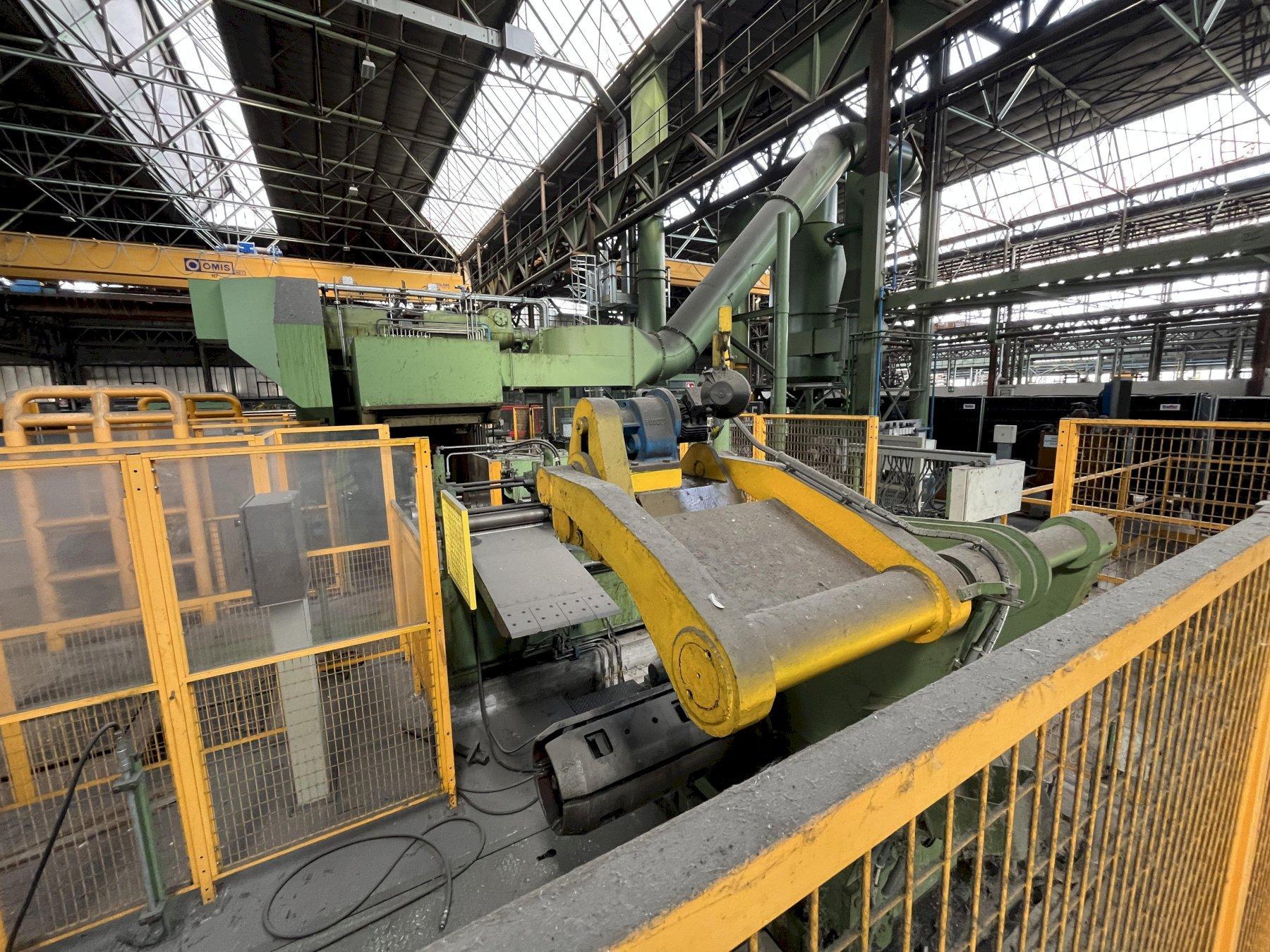

Entry Payoff:

Underground coil car

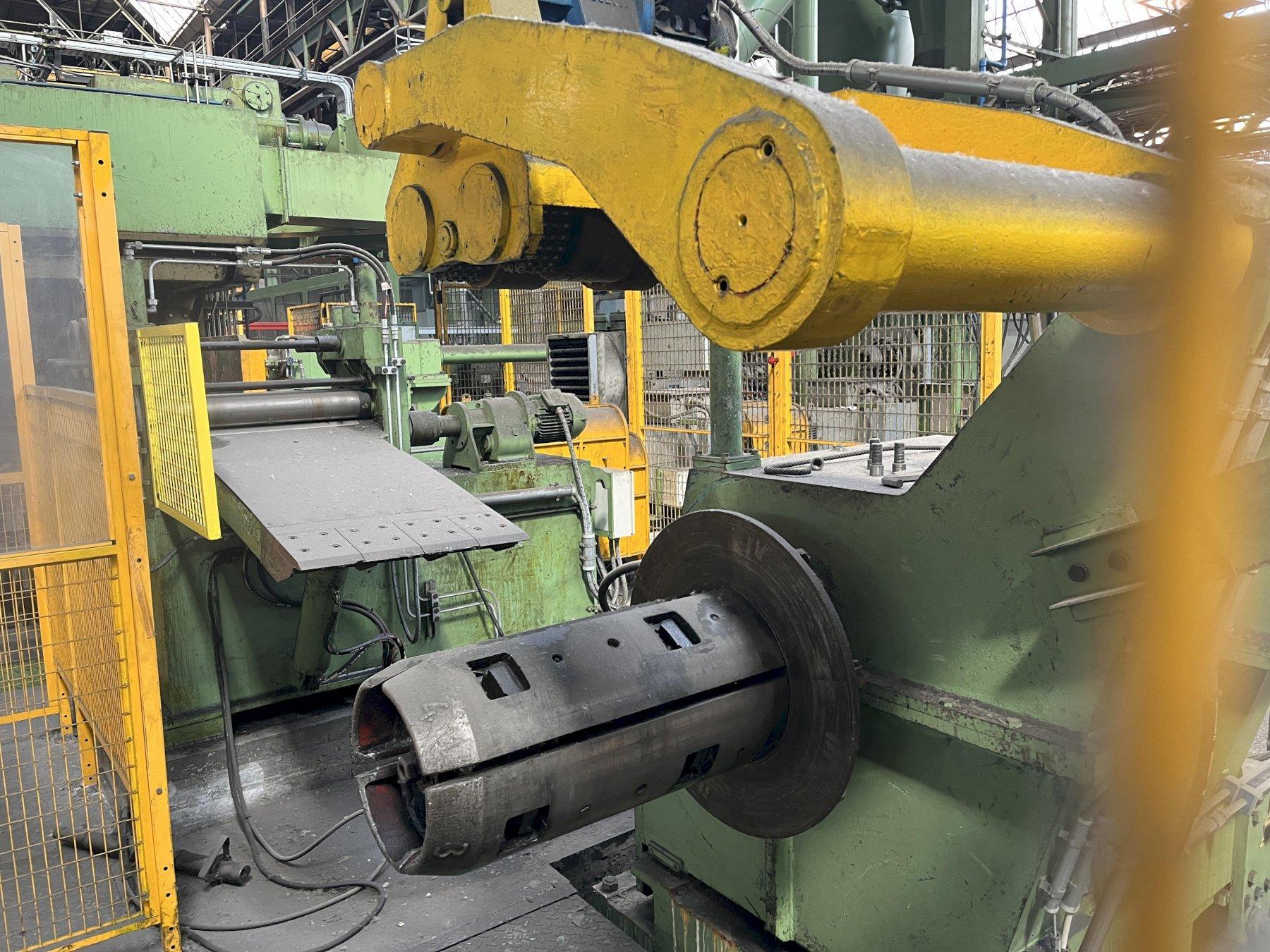

Mandrel type Uncoiler with hydraulic drum expansion

Mandrel OD: 500 – 600mm (LEAFS)

Snubber Roll Control Arm

Edge control system

Motor: No Motor tags

Peeler table

Edge guiding rolls

Pinch roll stand – 15kW Motor

Transport table

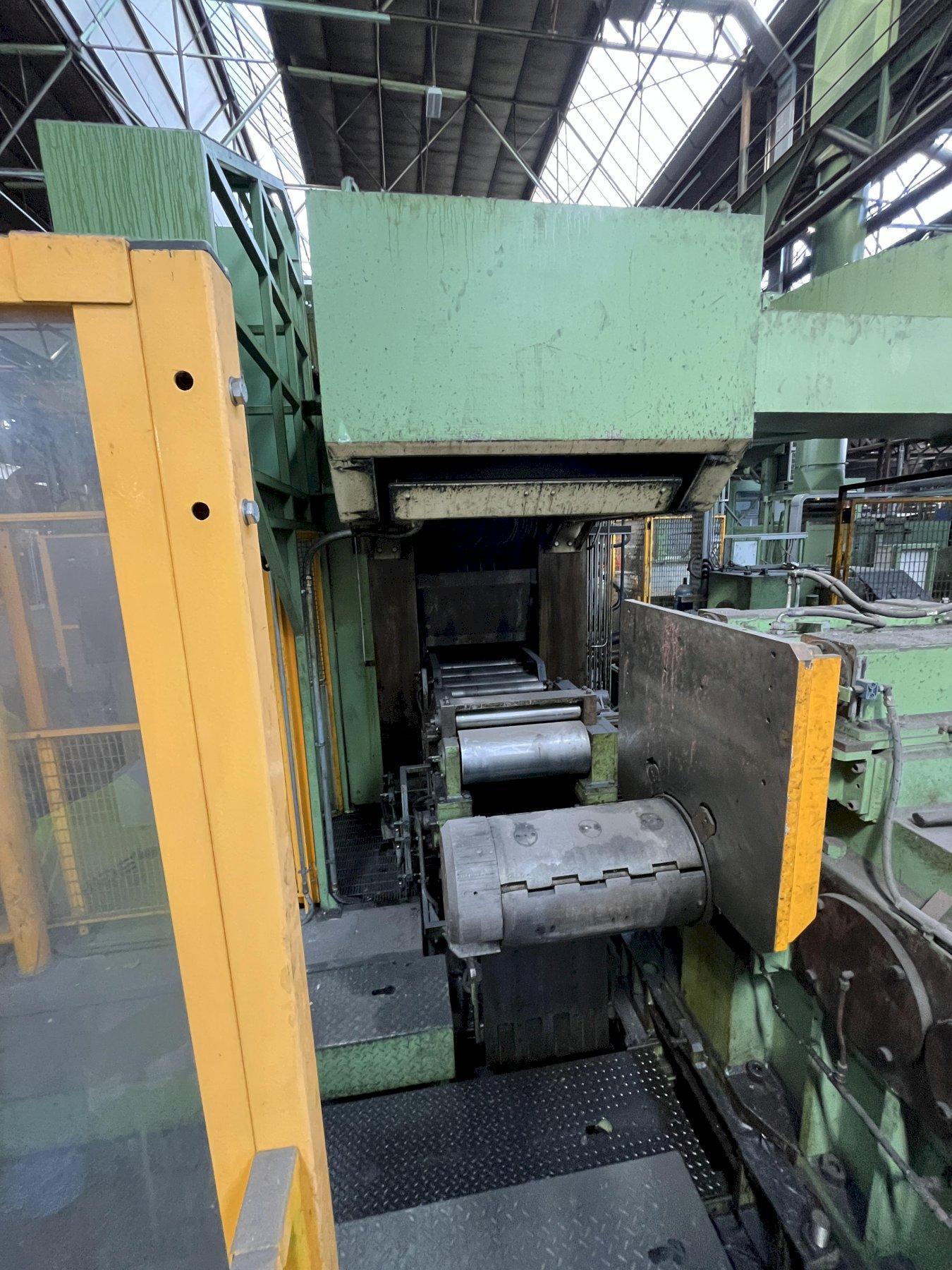

Right Side Winder

2 speed gear box

Motor Drive: 430kW,  520V DC

Winder Outboard Bearing Support

Underground coil car

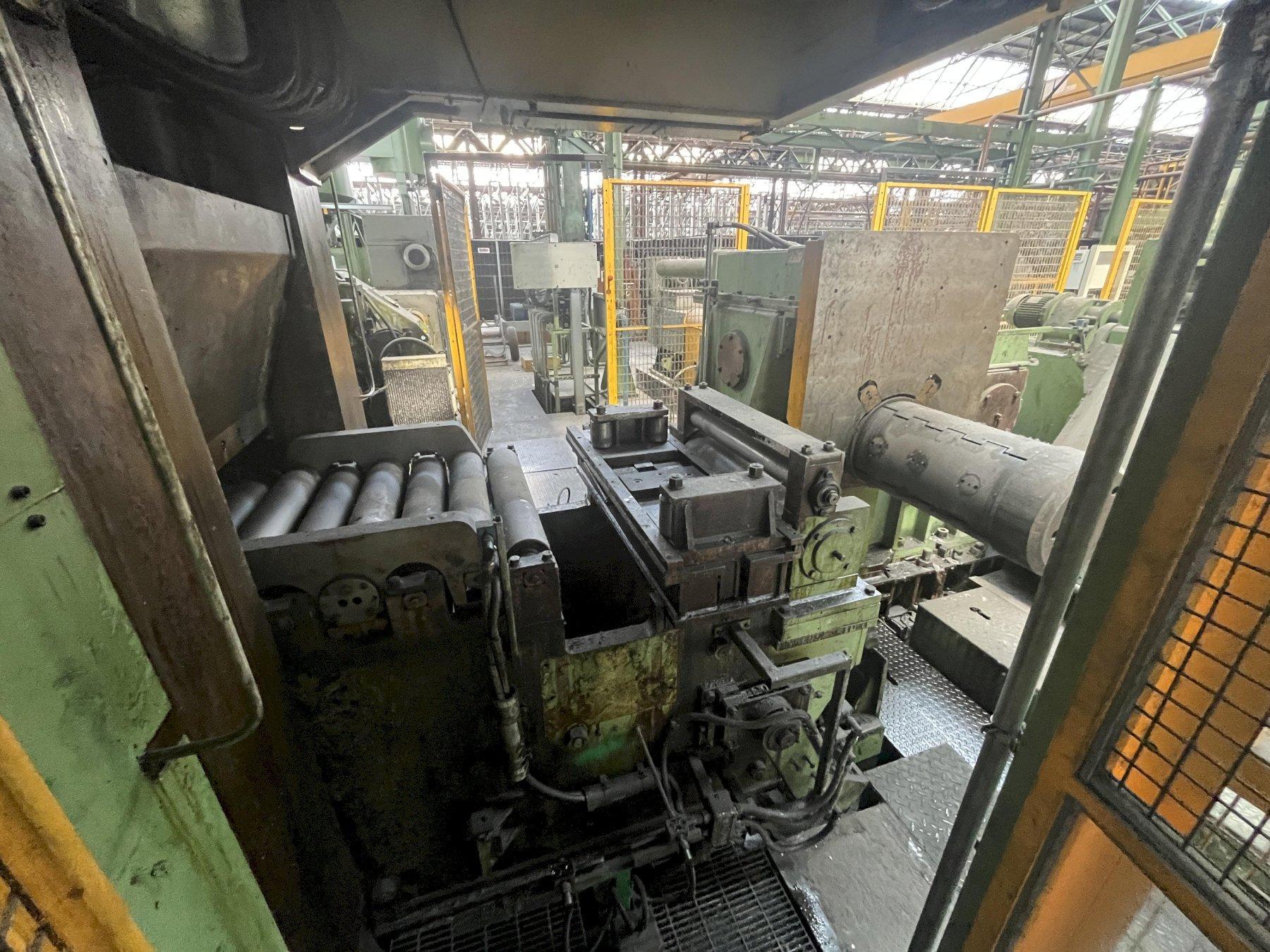

Transport table with hold down roll

Pinch rolls + speed measurement roll

Crop shear

ABB Eddy current thickness gauge

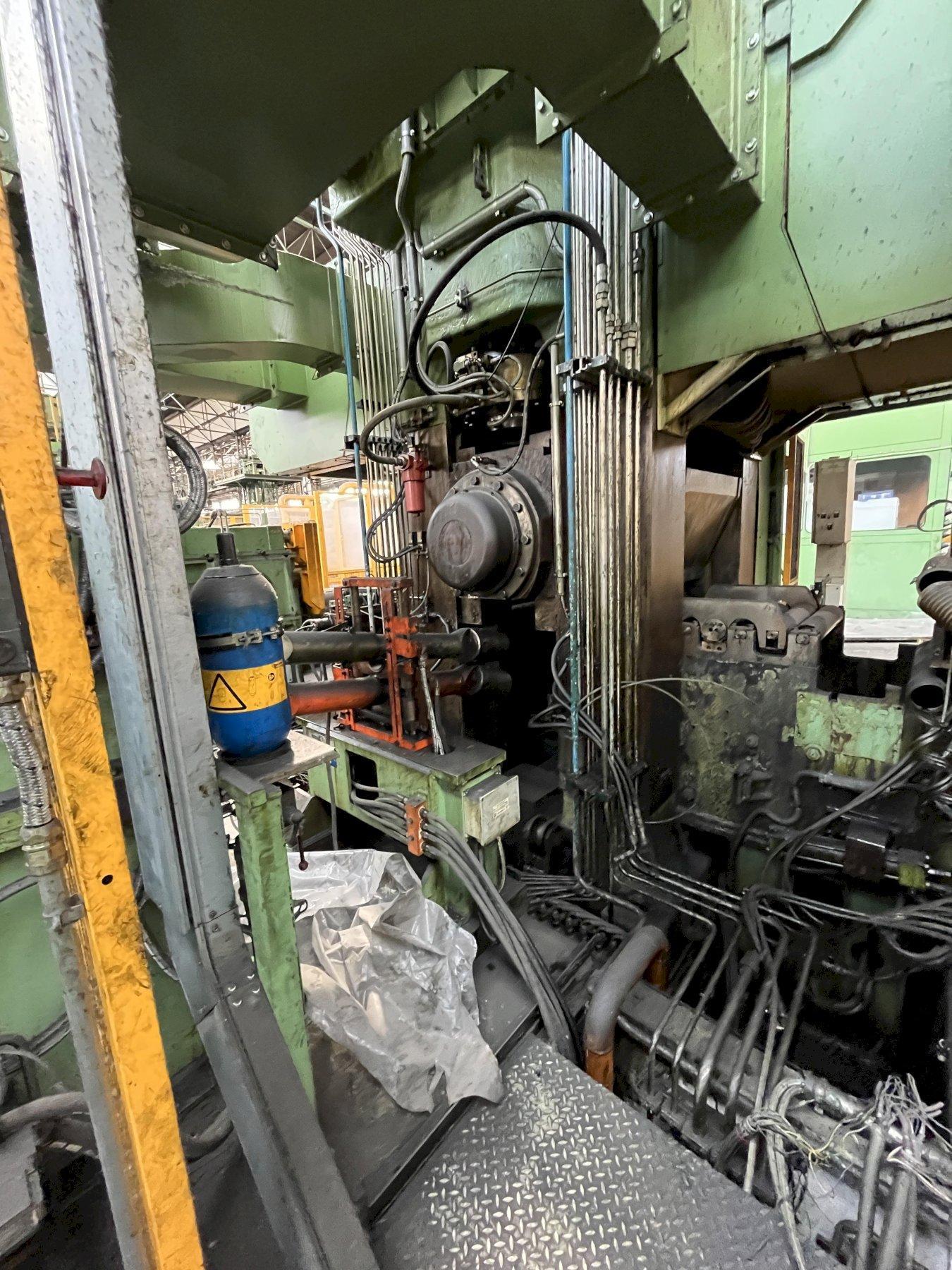

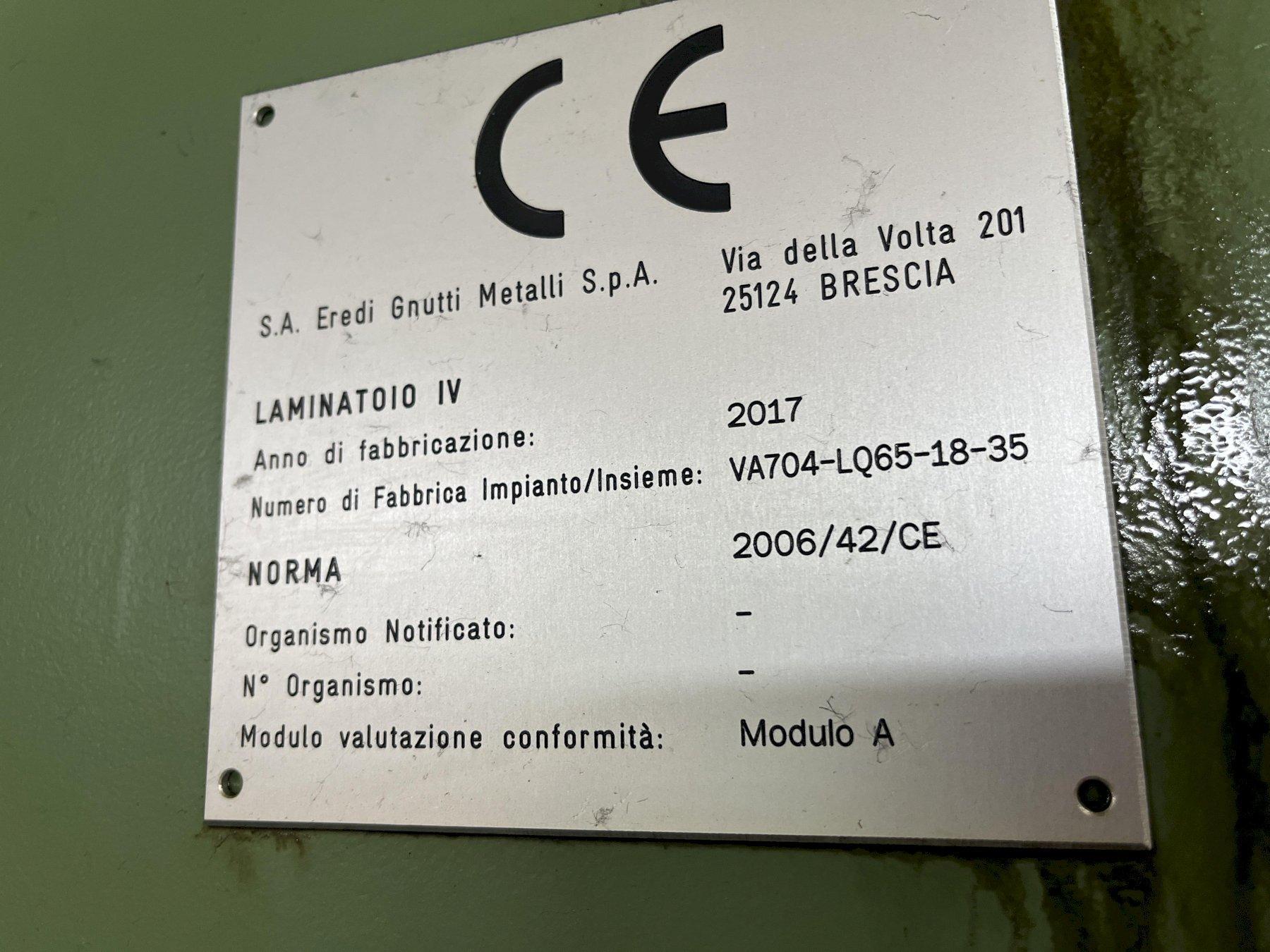

Mino Rolling Mill, Reversing

• Work Roll: 400mm Dia x 1250 Face width
• Back Roll: 960mm Dia x 1170mm Face width
• AGC Roll Bending, Roll Balancing

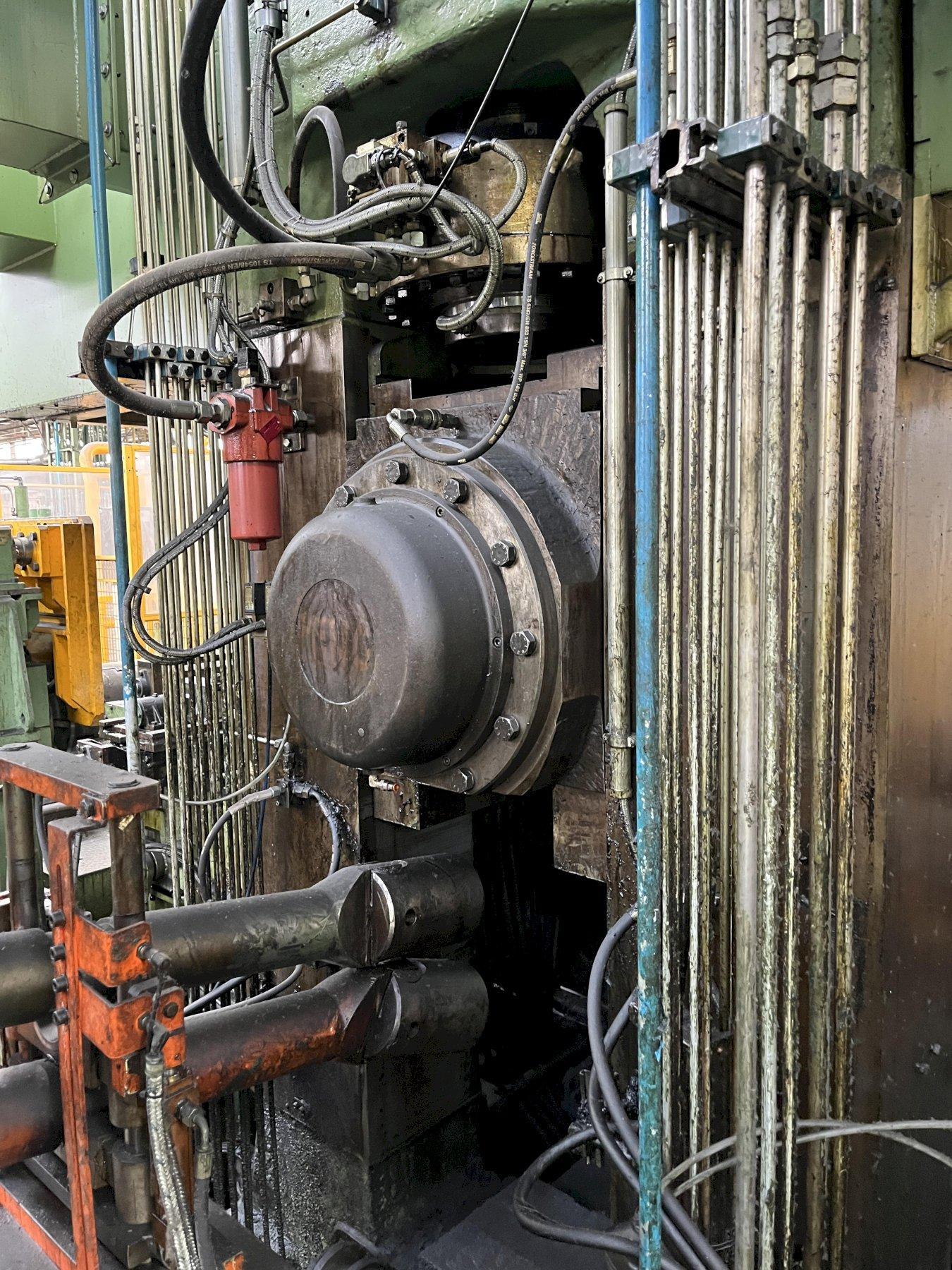

• Hydraulic screw down + Pancake cylinder

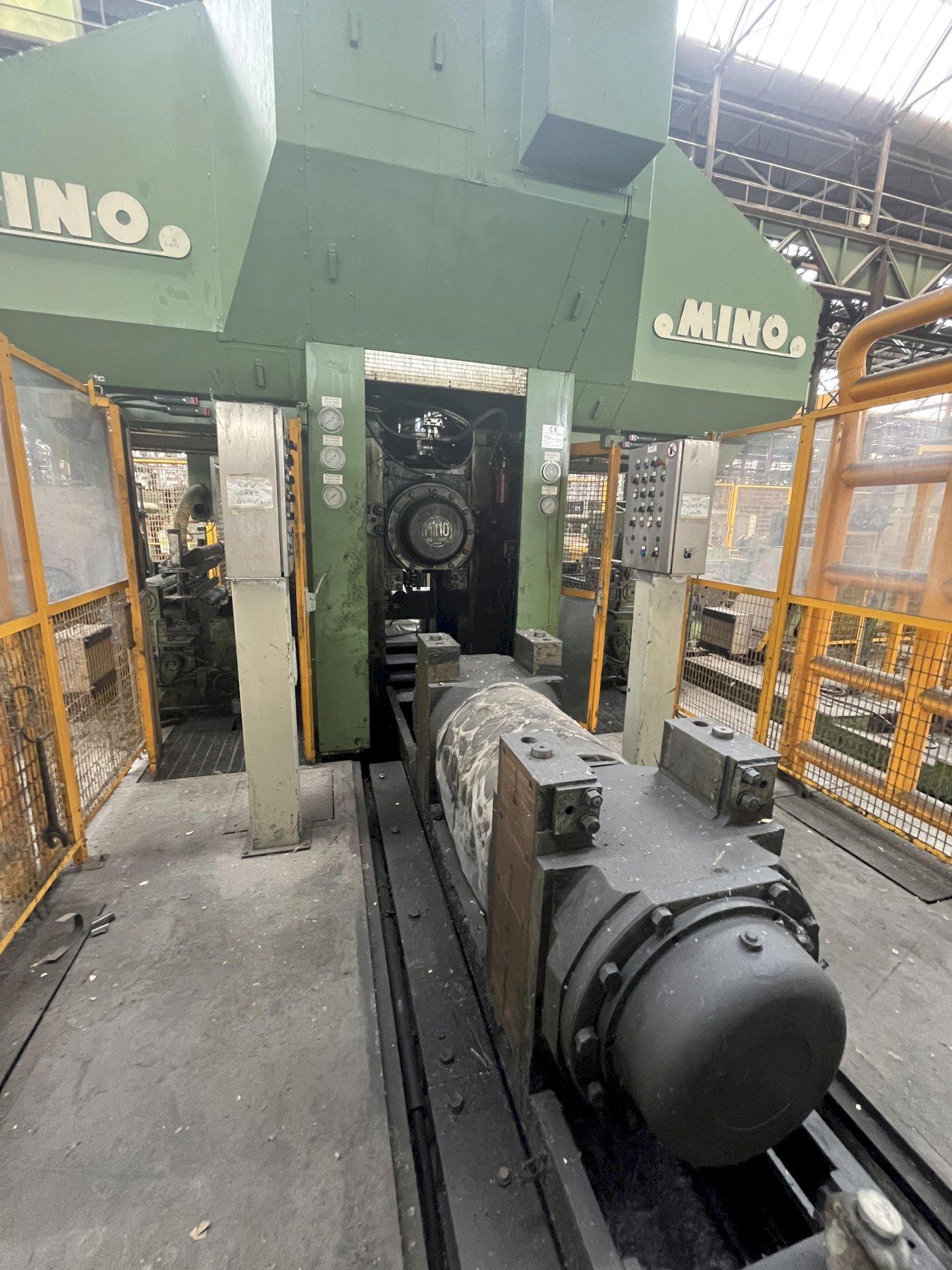

• Roll change sledge

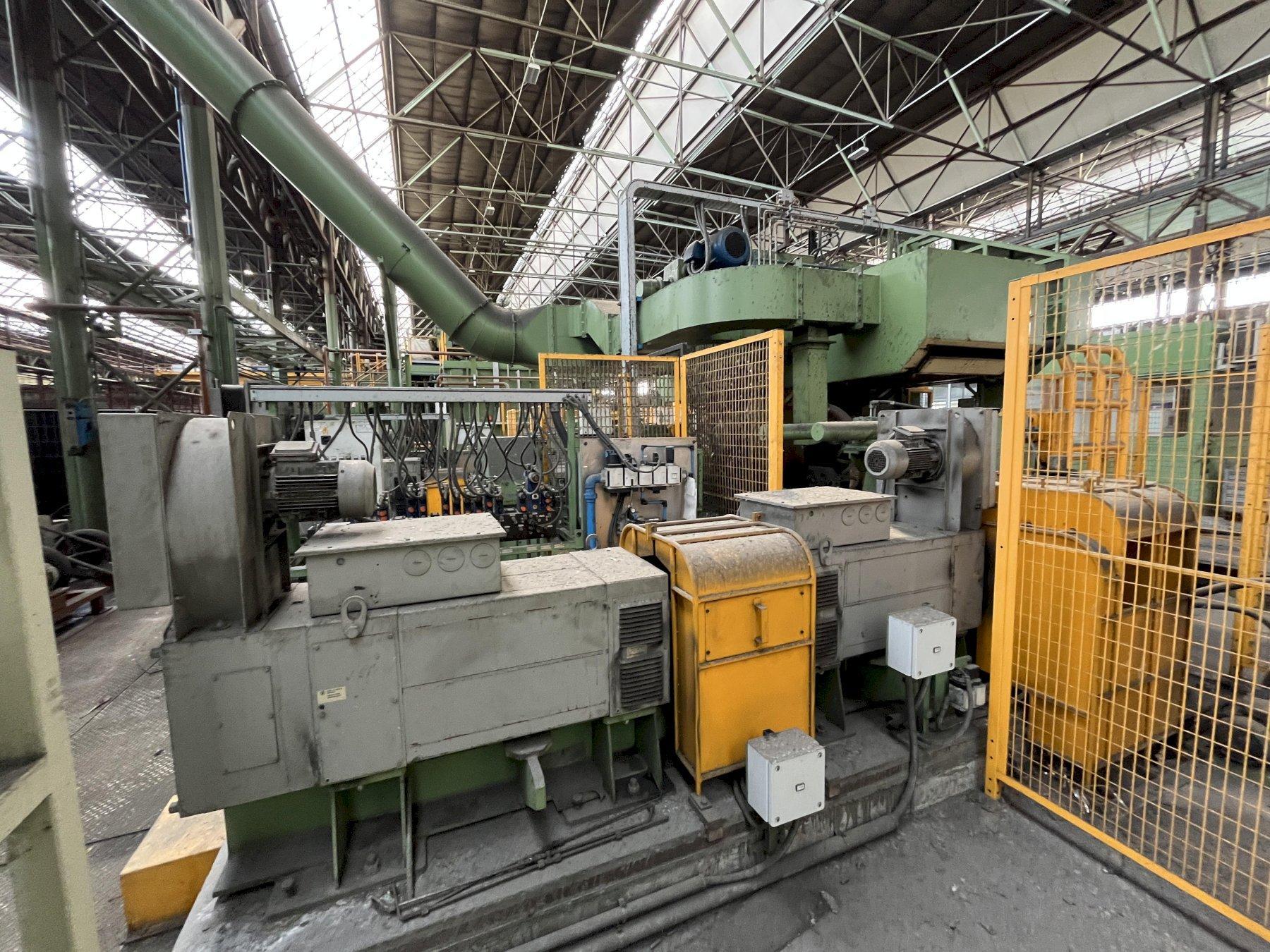

• Mill motor: 1250kw @ 600V DC with 2 speed gearbox
• Back-up rolls: 1170mm width x 850mm diameter

Left Side Winder

 Mandrel OD: 500mm

Winder motor: 430kW @ 445V

Winder Outboard Bearing Support

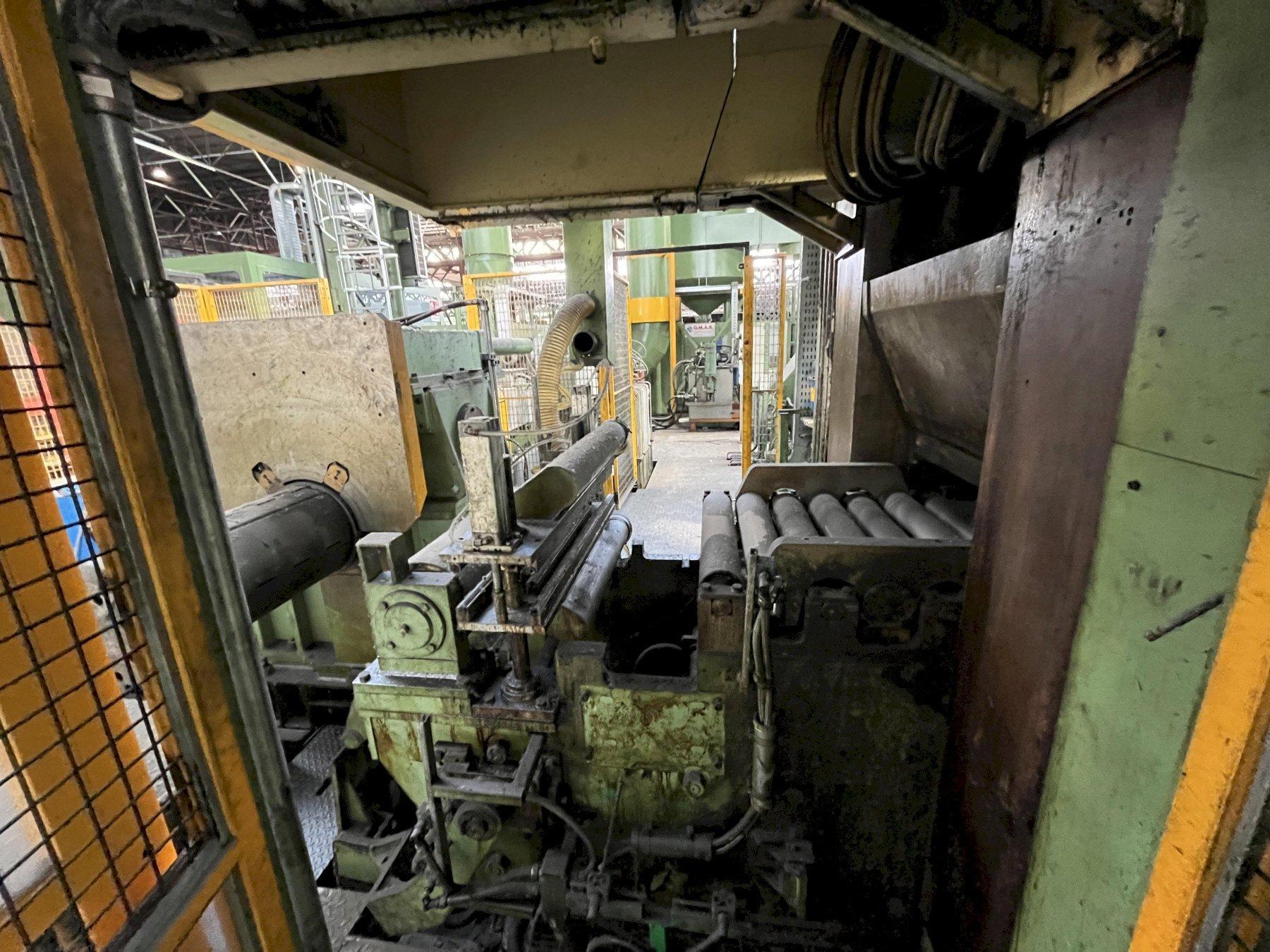

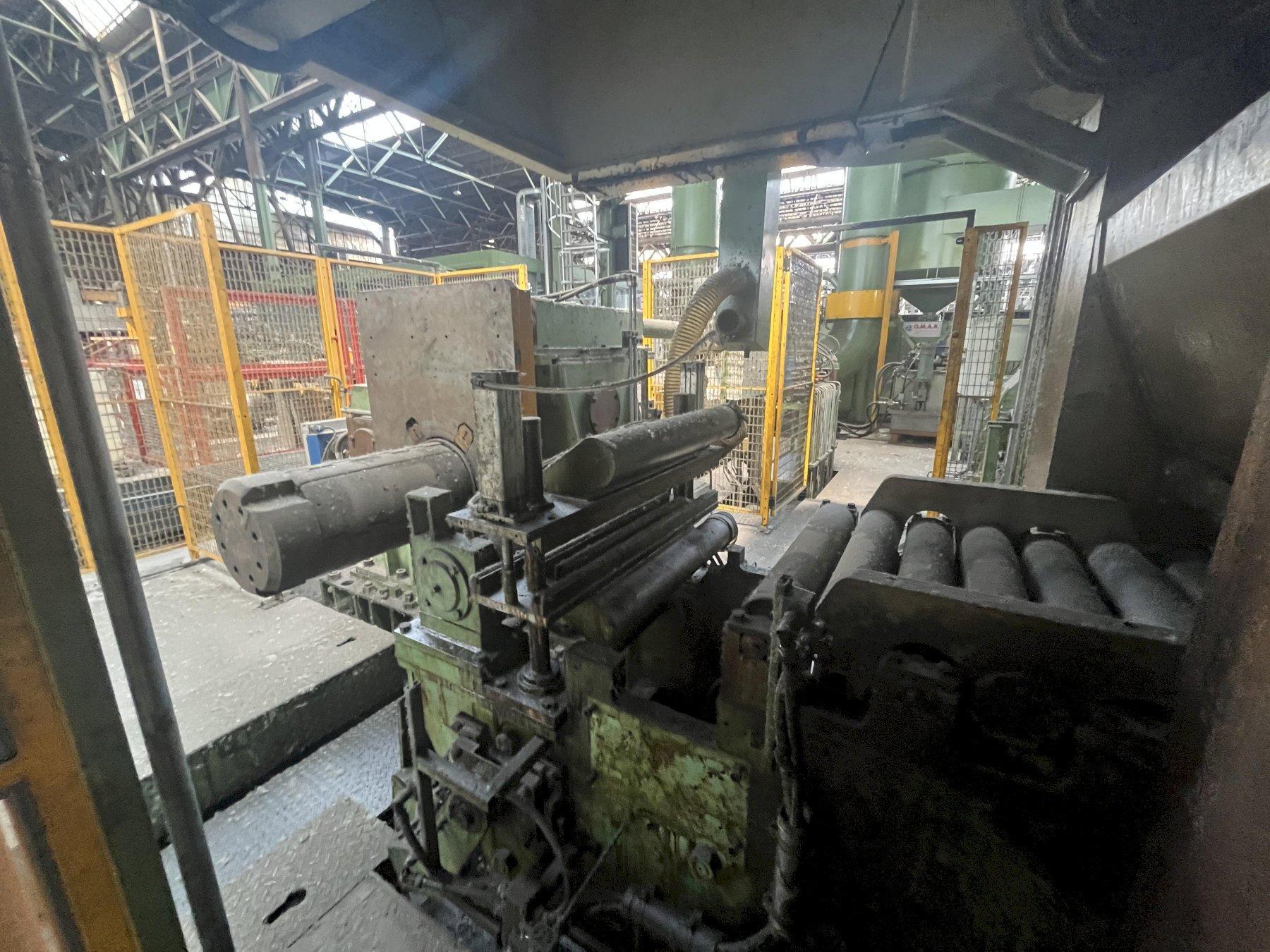

5 – roll straightener

Edge guides

Crop shear

Pinch rolls

ABB Eddy current thickness gauge

Underground coil car
