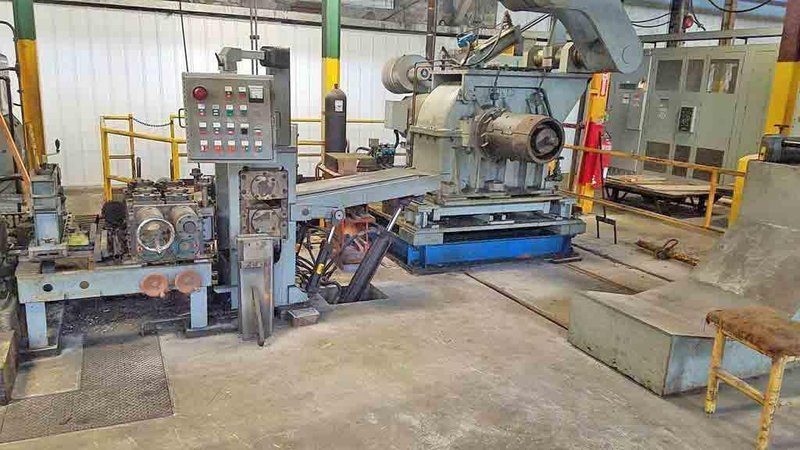

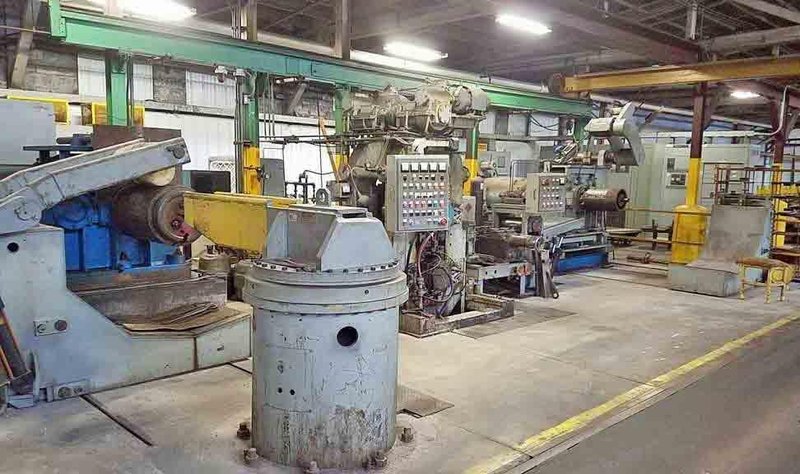

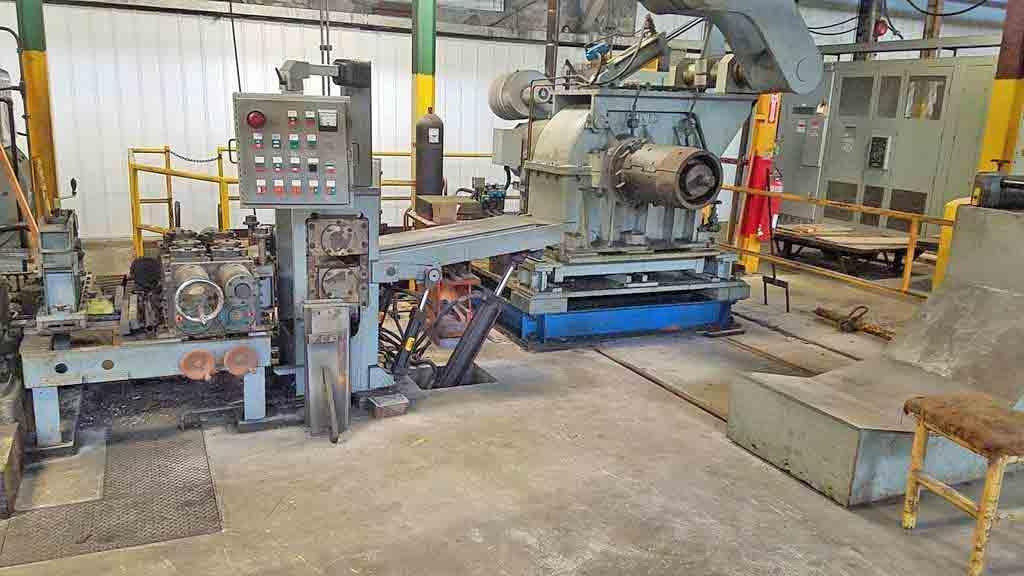

5" x 18" x 14" BLISS/UNITED 4 HIGH NON REVERSING ROLLING MILL (14679)

5" X 18" X 14" BLISS/UNITED 4 HI ROLLING MILL
 STOCK # 14679

-Work Roll Diameter:     5.140" - 4.600"
-Backup Roll Diameter:   18"
-Width Range:            1.5" - 12"
-Entry Gauge Thickness:  0.010" to 0.215"
-Exit Gauge Thickness:   0.010" to 0.205"
-Entry ID:               16"/20"
-Exit ID:                20"
-Entry and Exit OD:      72"
-Mill Direction:         Right to Left

Consisting of the following:

-Entry L-Type Coil Car:
  Self-Contained Hydraulic Power Unit

-Mandrel Uncoiler: Lewis
  Hydraulic Expansion
  100 HP DC Motor Drive
  Overarm Hold Down Roll
  Slide Base

-Entry Peeler Table:
  Hydraulic Lift and Extend

-Entry Pinch Rolls:
  Powered

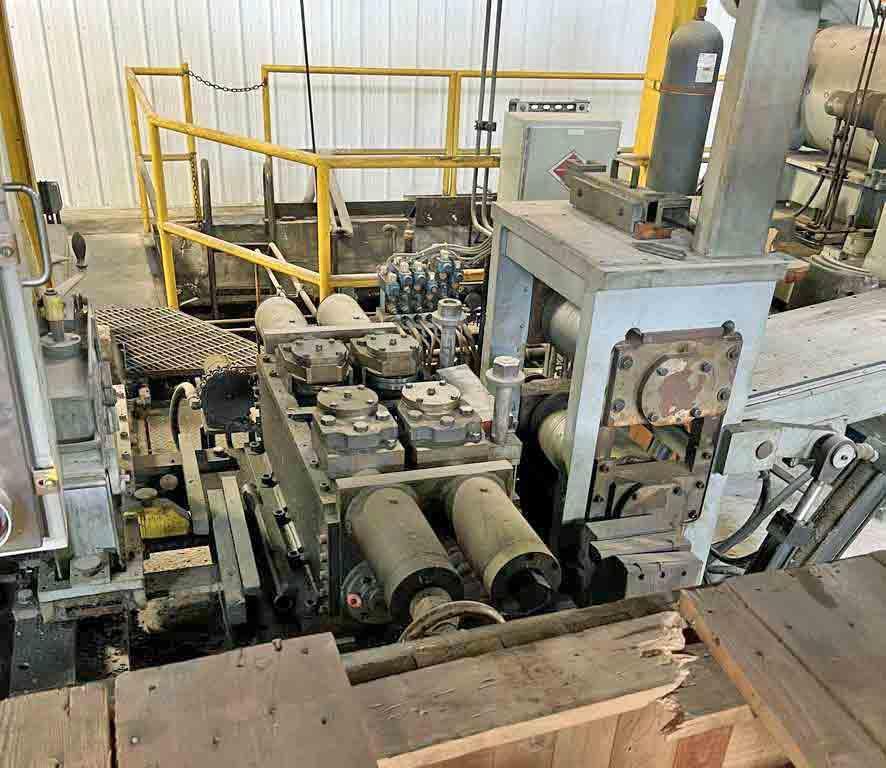

-Edging Roll Assembly:
  2 sets of Rolls
  Manual Side Pressure Adjustment
  Hydraulic Motor Width Adjustment

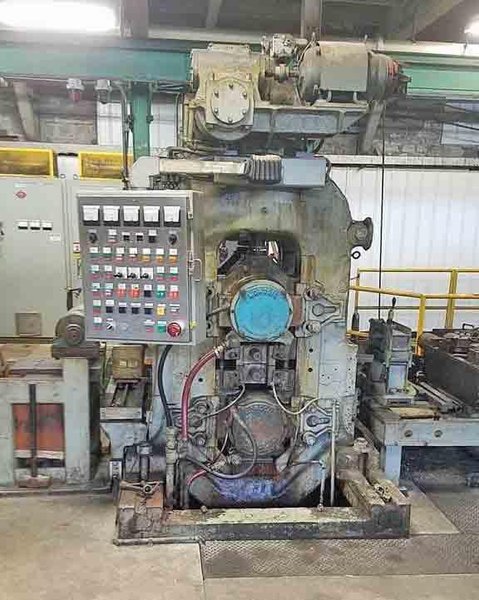

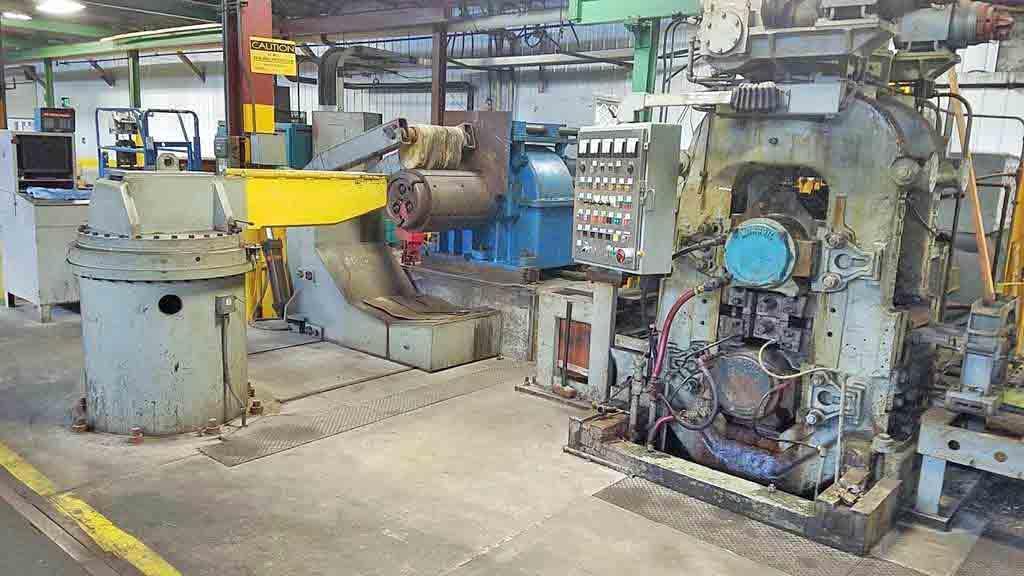

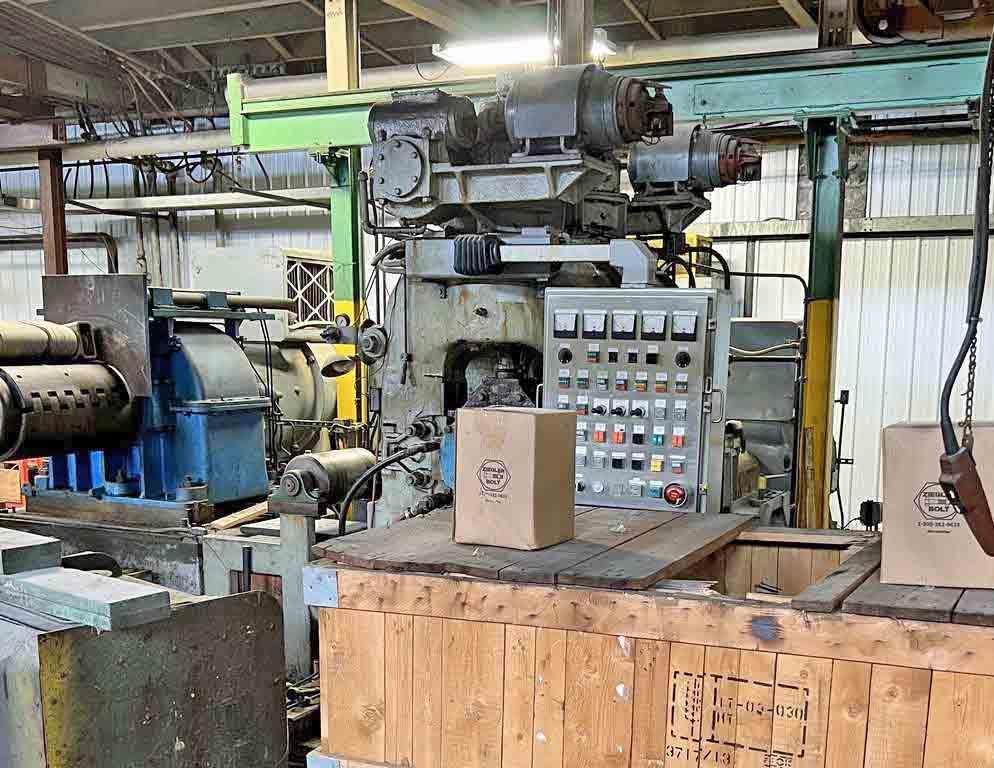

-4 HI Mill Stand:
  5" x 18" x 14"
  Morgoil Backup Bearings
  Non Reversing
  Motorized Screwdowns
  No Coolant
  200 HP DC Main Motor Drive

-Deflector Roll:

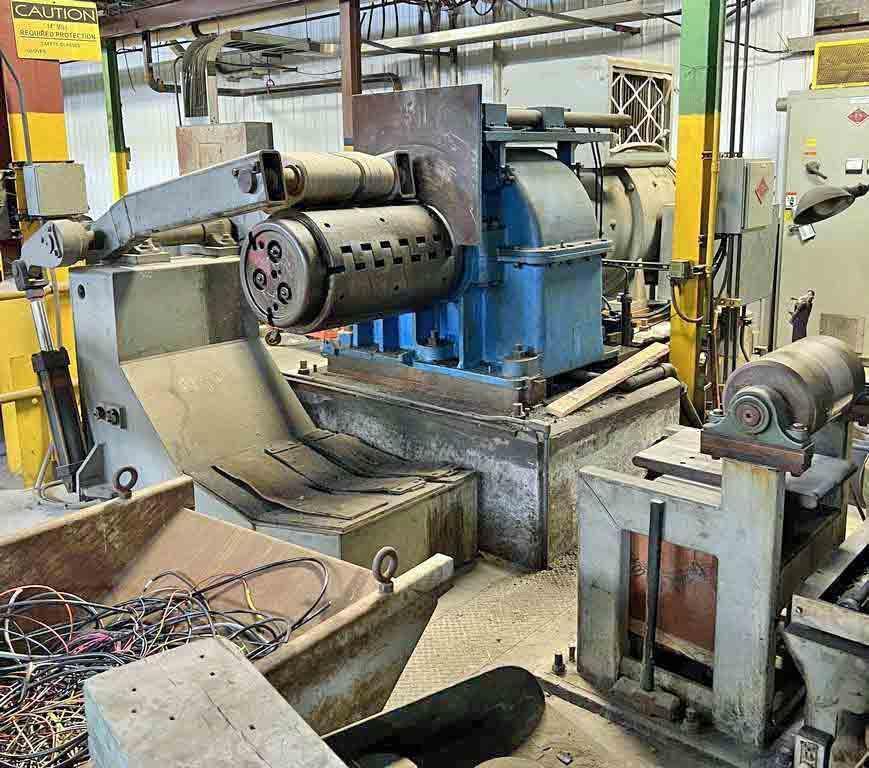

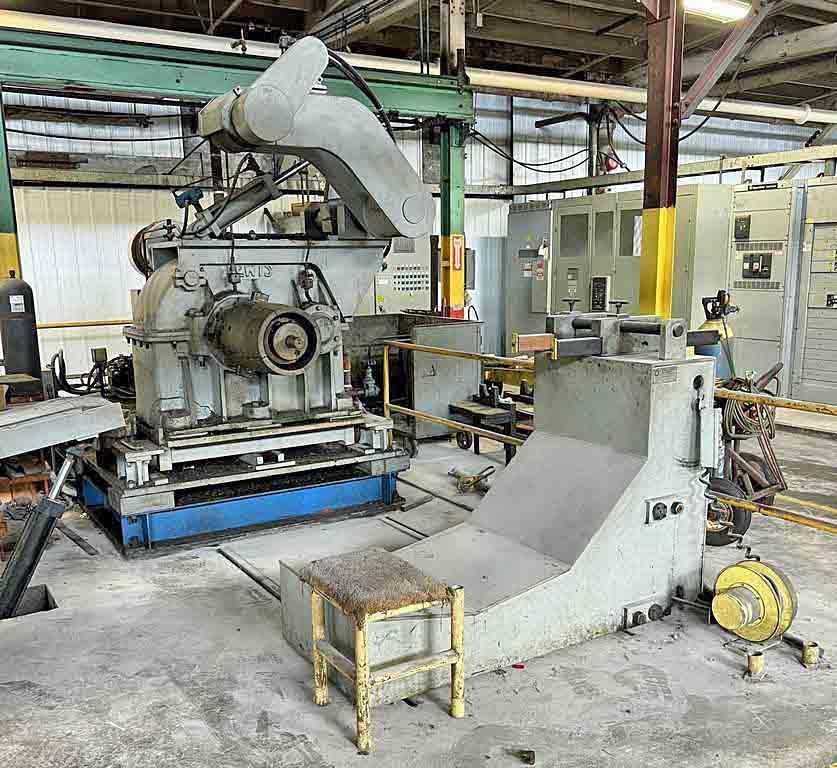

-Mandrel Recoiler:
  Hydraulic Pushoff
  200 HP DC Main Drive Motor

-Exit L-Type Coil Car:
  Self-Contained Hydraulic Power Unit
  Overarm Hold Down Roll

-Exit (1) Arm Turnstile:
  C-Hook Type Arm

-Mill Hydraulics:

-I2S Controls and Electrics:

-Roll Count:     18 Work Rolls
                  4 Back Up Rolls
-Chocks:          4 Sets, Work Roll
                  1 Set Back Up

-Installed

**Temporary Specifications Subject to Revisions**
**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**
**ALL SPECIFICATIONS ARE SUBJECT TO VERIFICATION**
