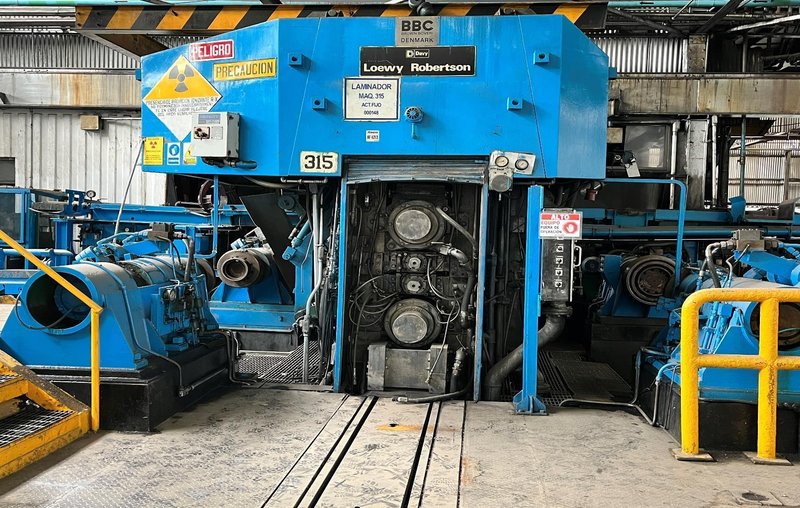

9 ” (228.6 mm) X 22” (559 mm) X 43.3” LOEWY 4 HIGH ROLLING MILL (14531)

Name: Used LOEWY 4 high rolling mill For Sale 14531
Brand: LOEWY
SKU: 14531
Availability: PreOrder

Brand

LOEWY

Not specified

Max Width Workpiece	43 inches
Work Roll Dia.	9 inches
Back Up Roll Diameter	22
Roll Face Width	43.3
9” (228.6 mm) X 22” (559 mm) X 43.3” (1100 mm) Stock # 14531 Type Mill: 4 High Rolling Mill • Manufacturer: Loewy • Thicness measurement: Not Available • Technical Specifications: • Width min-max: 620 – 1100 mm. • Entry Thickness: 0.5 mm Exit Min Thickness: 0.089 mm. • Line Speed: 1440 mpm max • Max Coil weight: 5900 kg. • Mill Data: • Work Roll Face: 1100 mm • Work Rolls Diameter: 280 mm. Back Up Rolls diameter: 559 mm. • 2 x 260 Kw Motor drive • Uncoiler Data: Recoiler Data: • Coil ID: 400/527/600 mm Coil ID: 270/527 mm. • Coil OD: 1710 mm Coil OD: 1710 mm. • 2 x 60 Kw Motor Drive 1 x 60 kw 1 x 75 Kw Motor Drive • Unistalled in Warehouse • Control System Not Available • Shapemeter Vidimon • Control Electric & Hydraulics Not Available • Edge trimmer • Sold "as is, where is" EXW on seller's Warehouse • Available: • Rolls • Steel Cores LOEWY Robertson Foil Rolling Mill Unistalled Temporary Specifications Subject to Revisions PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE ALL SPECIFICATIONS ARE SUBJECT TO VERIFICATION
