75" x 0.375" x 60,000# RBI Leveling Line Components
Line Direction: Right to Left
Line Speed: 150 FPM (46 MPM) Maximum
Material Data:
Type: HRS
Max. Tensile Strength @ Max. Thickness: 80,000 PSI (551.58 N/mm2)
Max. Yield Strength @ Max. Thickness: 60,000 PSI (413.68 N/mm2)
Thickness: 0.043" - 0.375" (1.09mm - 9.53mm)
Coil Specifications:
Max. Weight: 60,000 lbs. (27,216 kg)
Max. Width (Machine Clearance): 75" (1905mm) (72" at Leveler)
Max. Outside Diameter: 84" (2134mm)
Uncoiler Mandrel Diameter: 23" - 31" (635mm - 483mm)
Recoiler Inside Diameter: 20" - 24" (508mm - 610mm)
Consisting of the following:

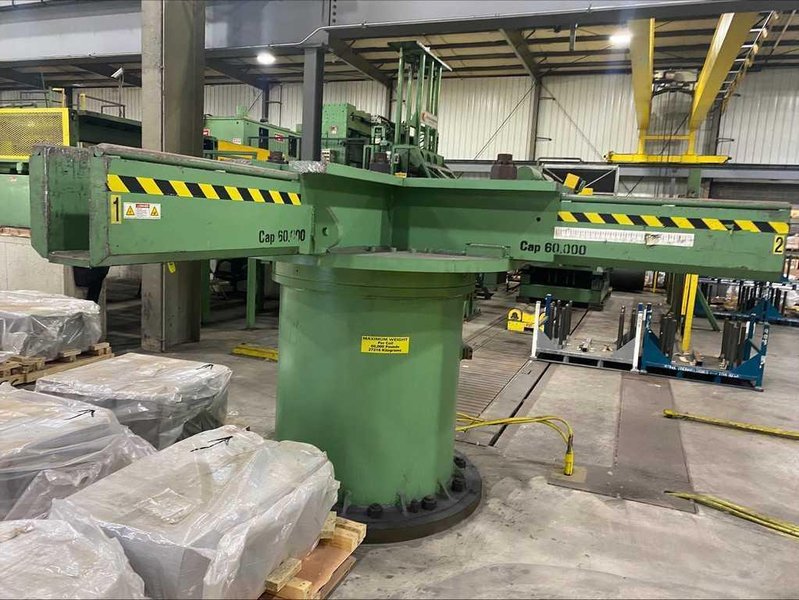

-Entry 4 Arm Turnstile:
60,000 lb. Capacity Each Arm
C-Hook Type Arms
Powered Rotation

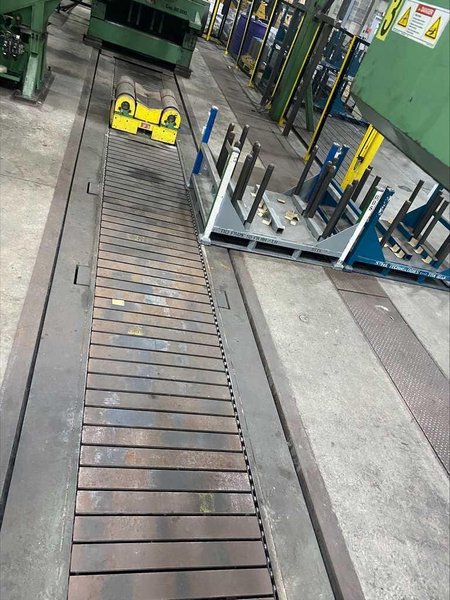

-Entry Coil Car:
Pit Type

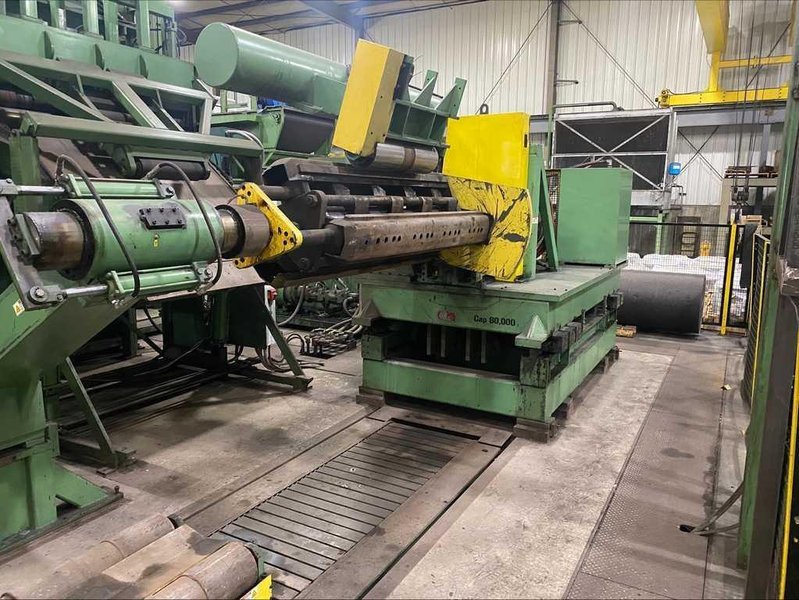

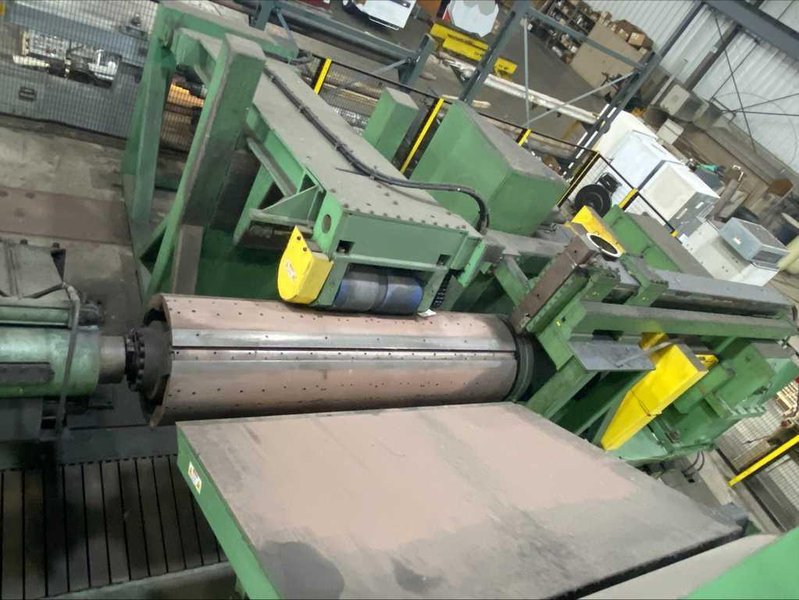

-Uncoiler:
23" - 31" Expansion Range
Hydraulic Expansion
(3) Segment Mandrel
84" O.D. Capacity
Threading Drive
Brake
Sliding Base
Powered Holddown Roll
-Outboard Support Arm:
-Peeler Table:
-Driven Pinch Rolls / Coil Breaker:

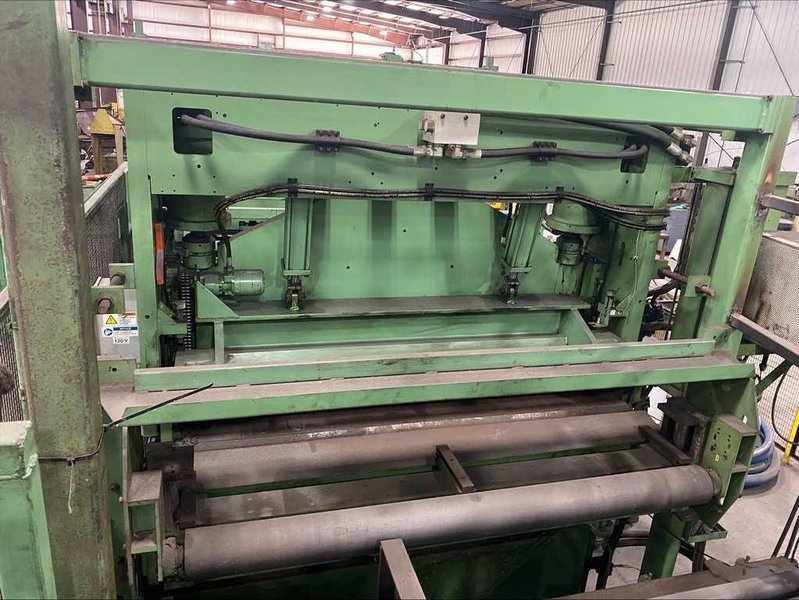

-Entry Hydraulic Crop Shear:

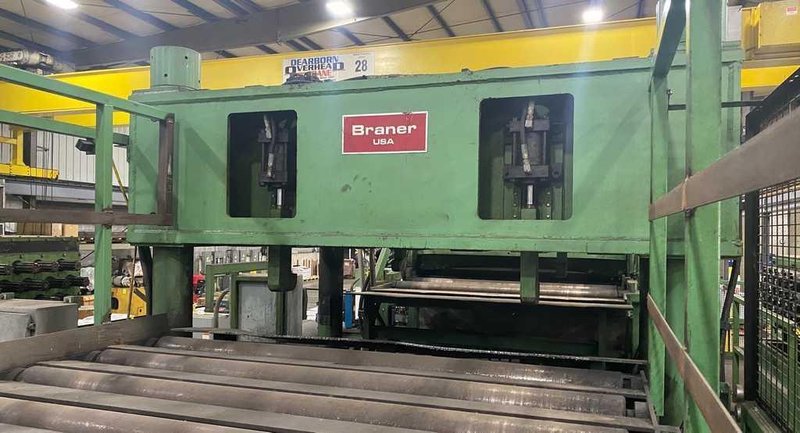

-Braner Precision Leveler: 4 HI
2 Roll Cassettes included
Roll Set #1 - 11 Work Rolls, 4" Dia.
Capacity: 72" x 0.135" - 0.375" @ 60,000 PSI Yield
Roll Set #2 - 17 Work Rolls, 2.50" Dia.
Capacity: 72" x 0.043" - 0.187" @ 60,000 PSI Yield
7 Flights of Motorized Backups
250 HP Motor, 650/1950 RPM
-Exit Hydraulic Crop Shear:
-Recoiler:
20" Dia. Drum with 24" Pads
Hydraulic Clamp & Expansion
Hydraulic Pushoff
Variable Speed Drive
-Outboard Support Arm:
-Free Standing Holddown Roll:

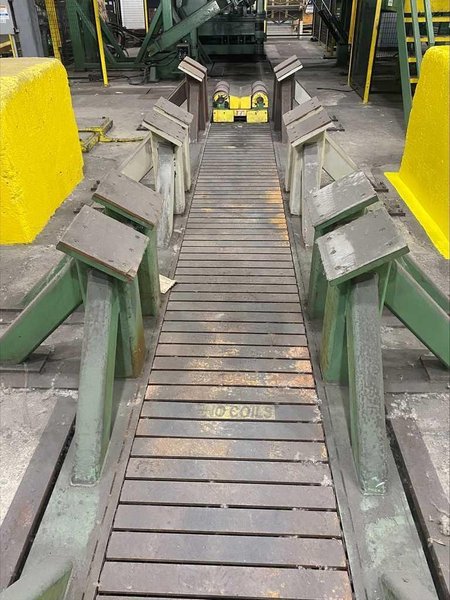

-Exit Coil Car:
Pit Type
-Equipment is Installed |
