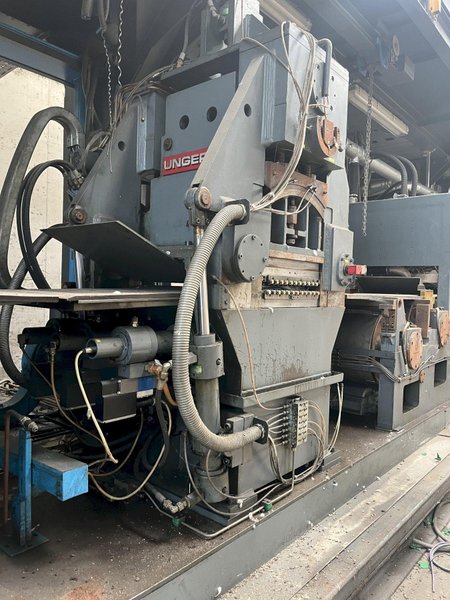

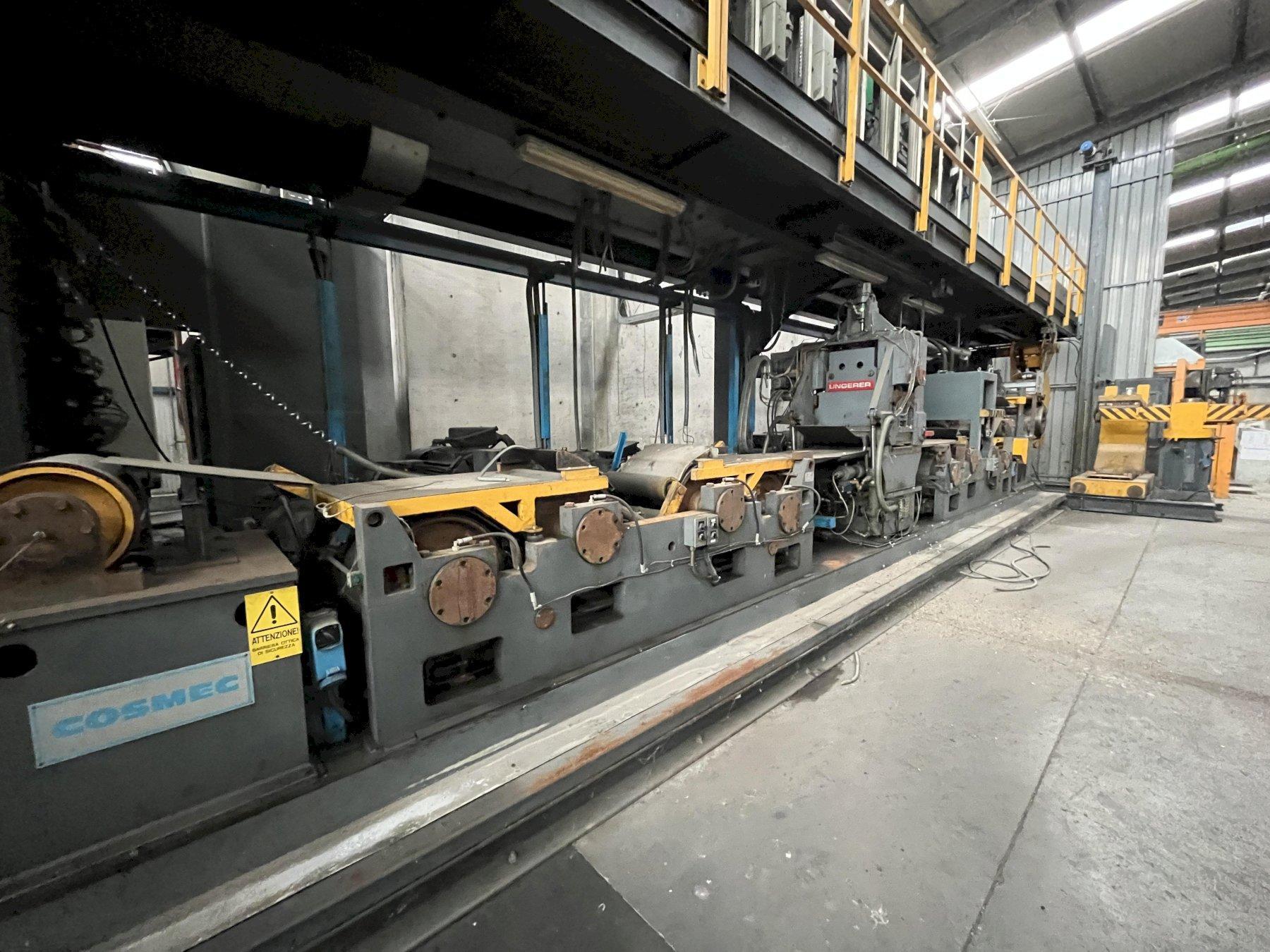

UNGERER/COSMEC STRETCH BEND LEVELING LINE
Brand
Category
Type
Model
Not specified
Stock #
117349
Year
Not specified
Condition
Used
Location
Not specifiedItaly
|
Type: Stretch Bend Leveling Line

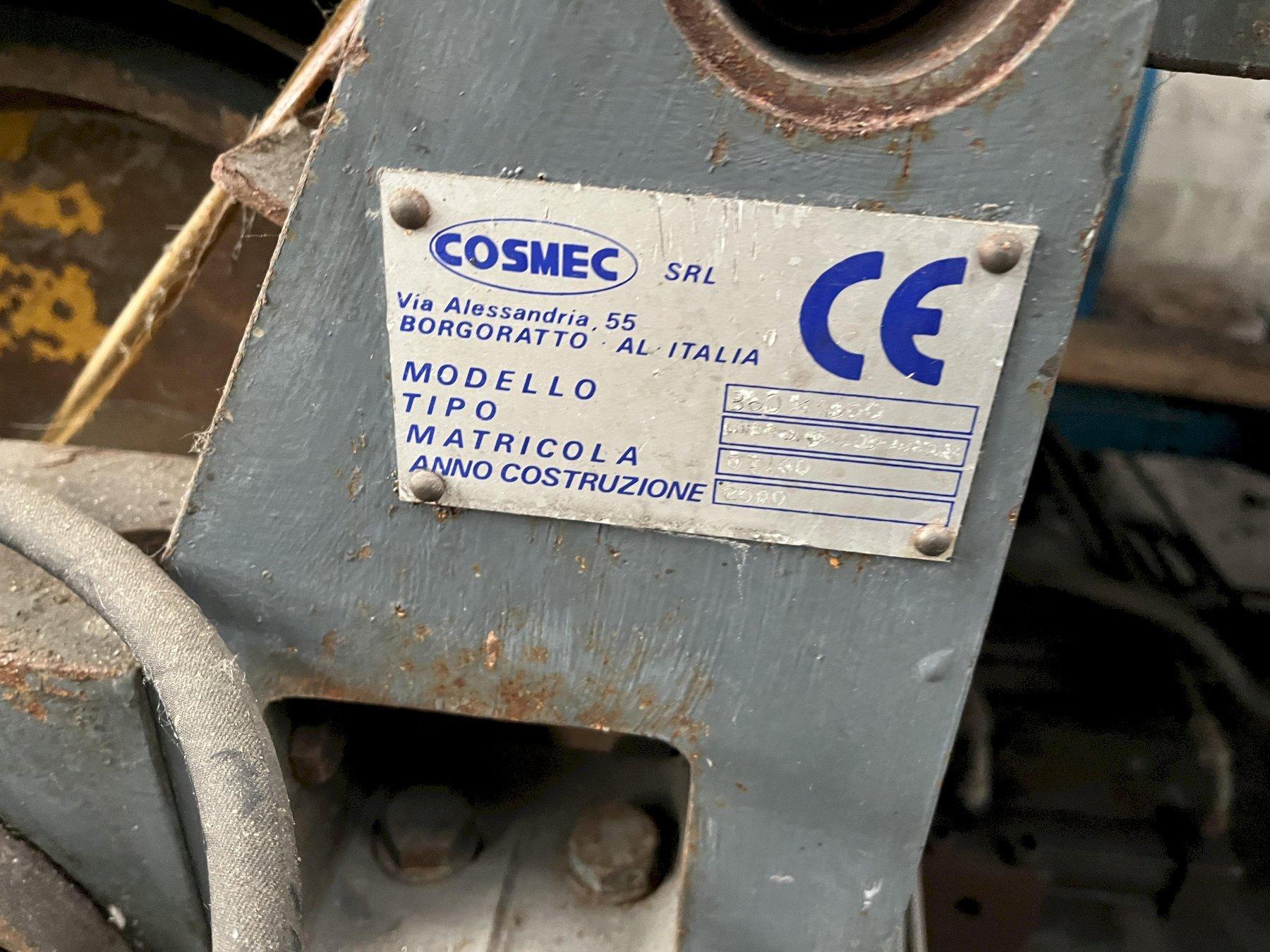

Manufacturer: Ungerer (Leveling system) – COSMEC (Auxiliaries – Winders, rolls etc.)
YOM: ?
Strip width: 500 (Cosmec) 380mm (Leveler)
Strip thickness range: 0.15 – 1.2mm
Line speed: 400m/min
Line direction: Left to right

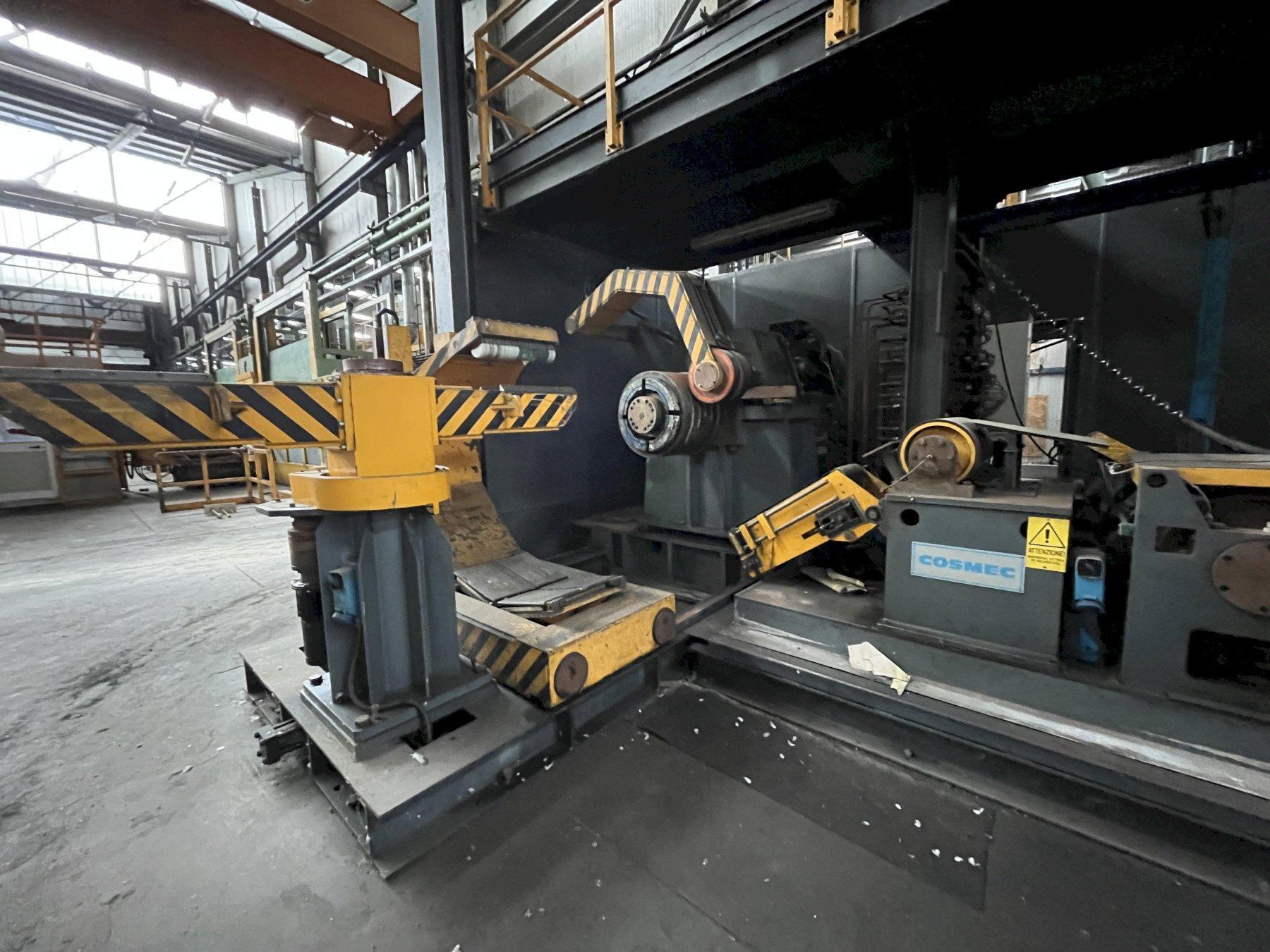

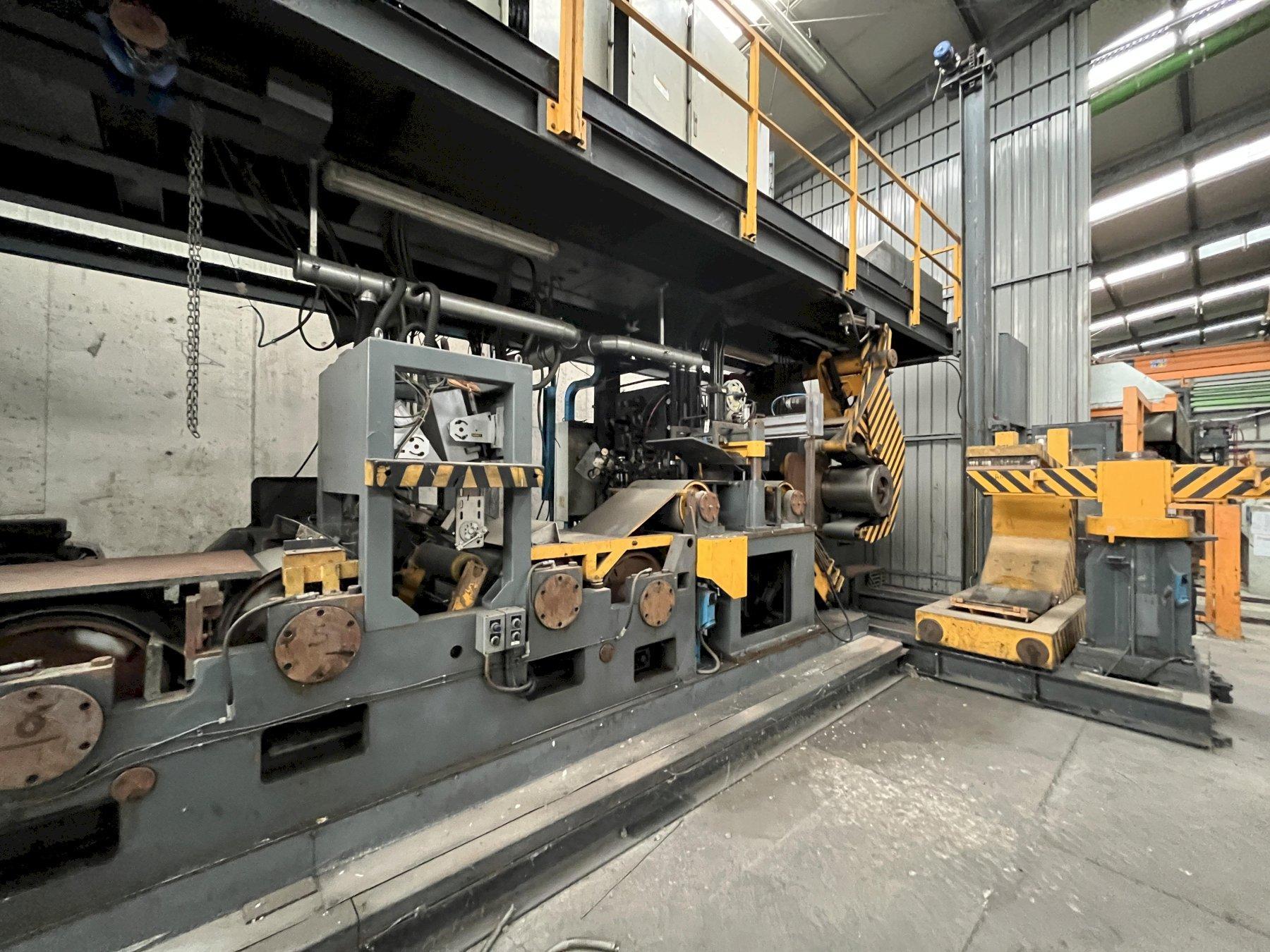

Pay-Off:
2-Arm coil turnstile
L – Type floor level coil car with pneumatic hold down arm
Uncoiler with snubber roll arm

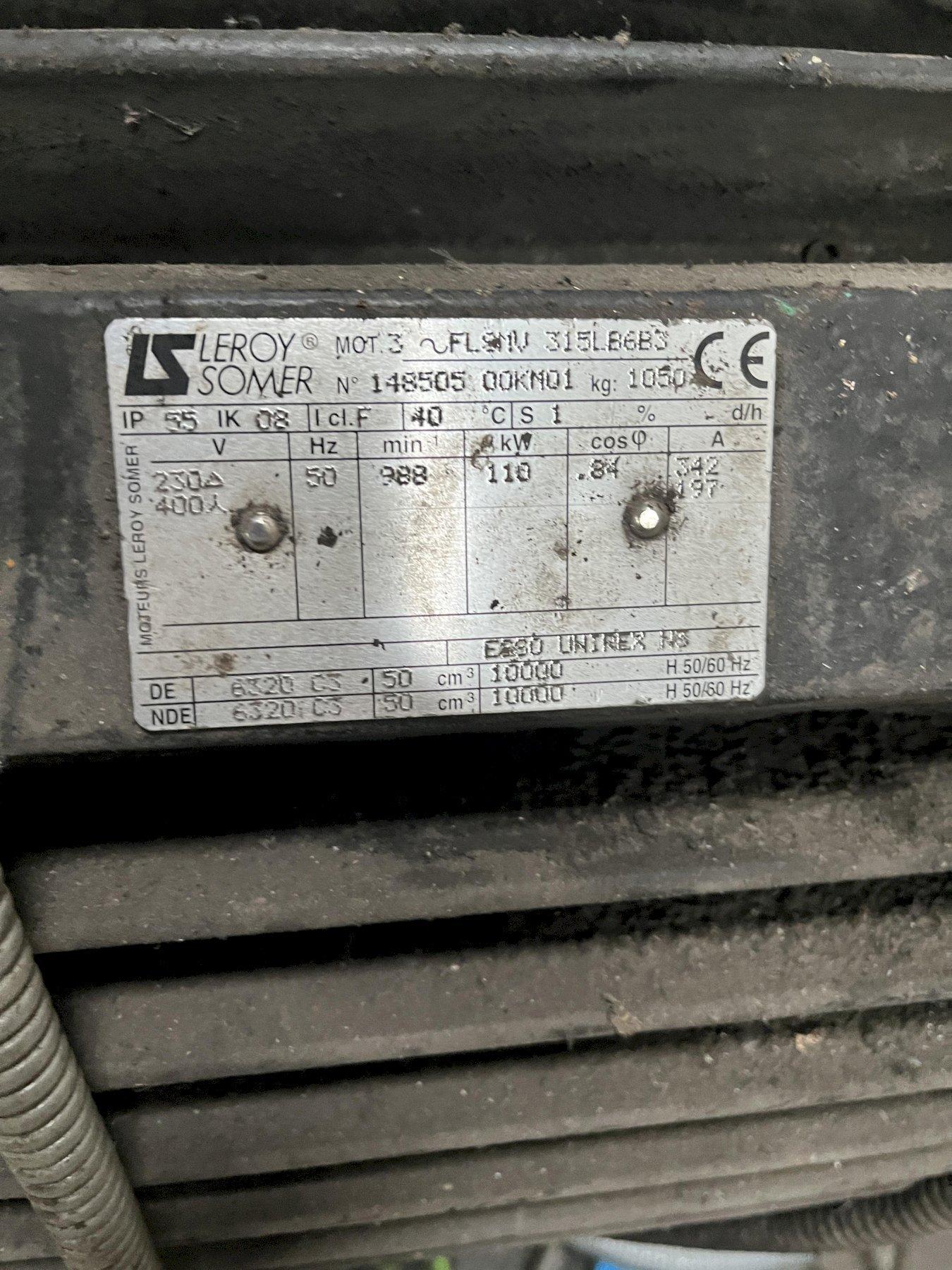

Uncoiler with DC drive – kW ???
Hydraulic mandrel drum – OD 508 – 700mm () LEAFS
Peeler table with conveyor belt
Horizontal guide roll

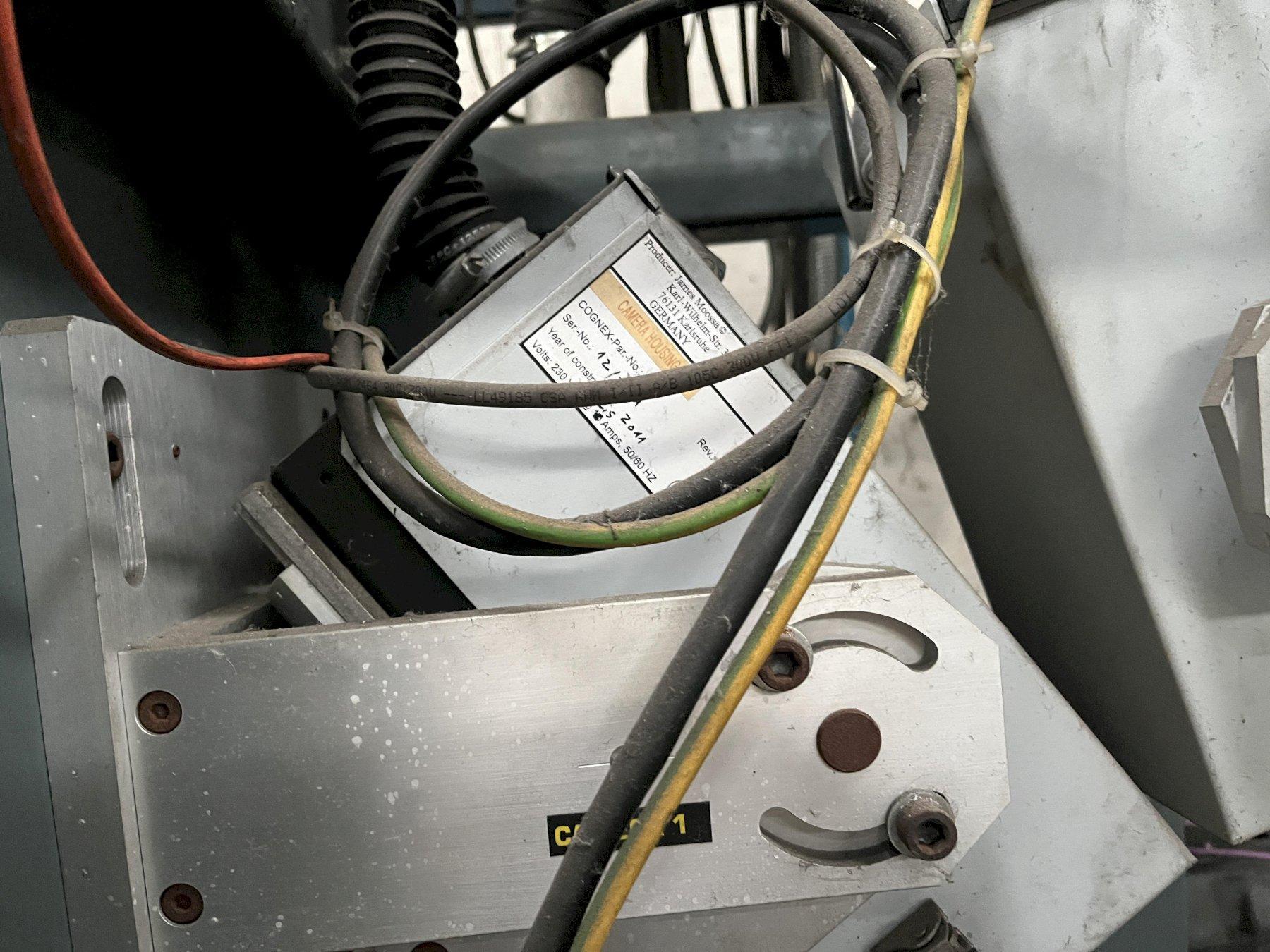

Laser speed measurement system

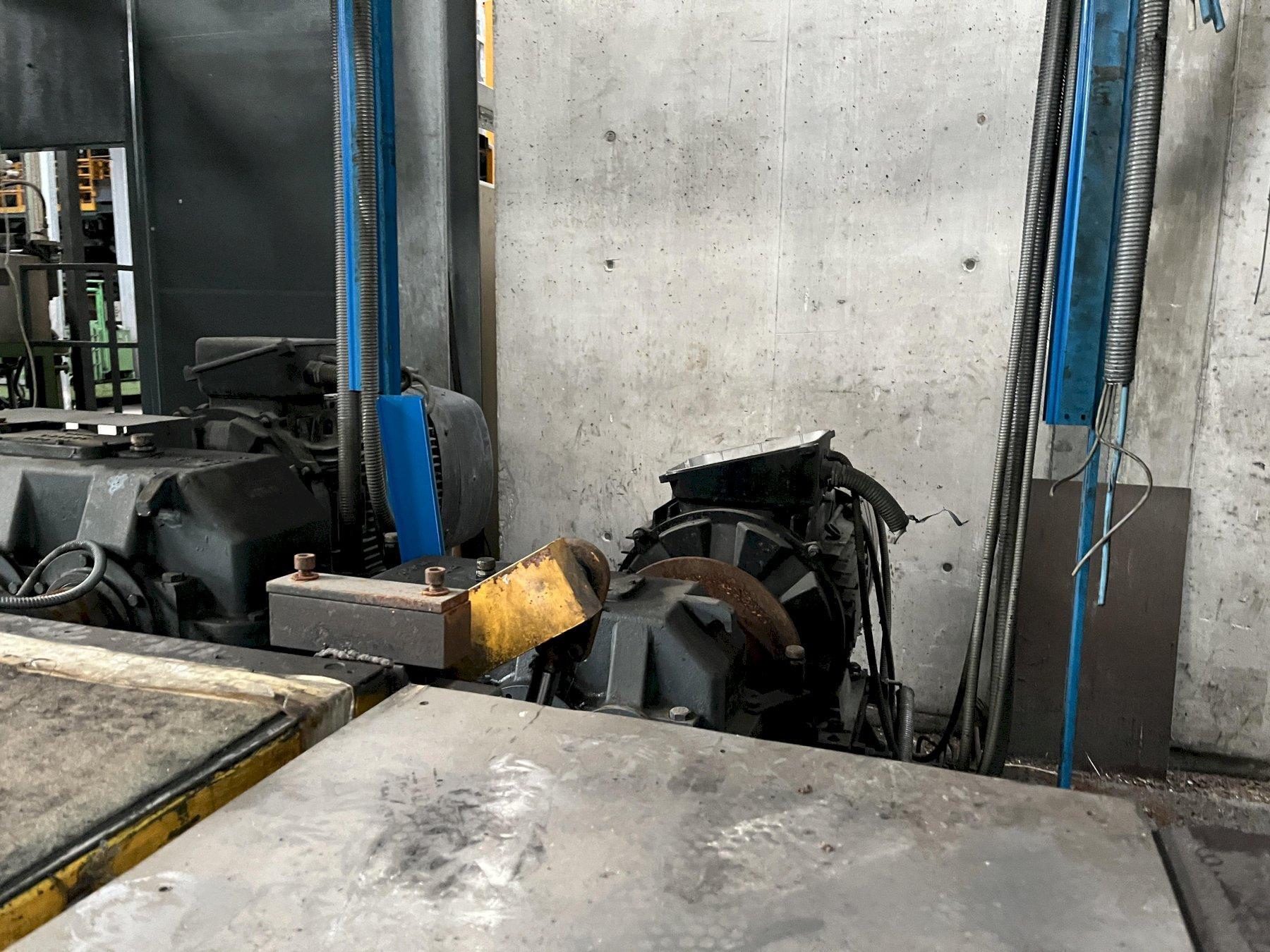

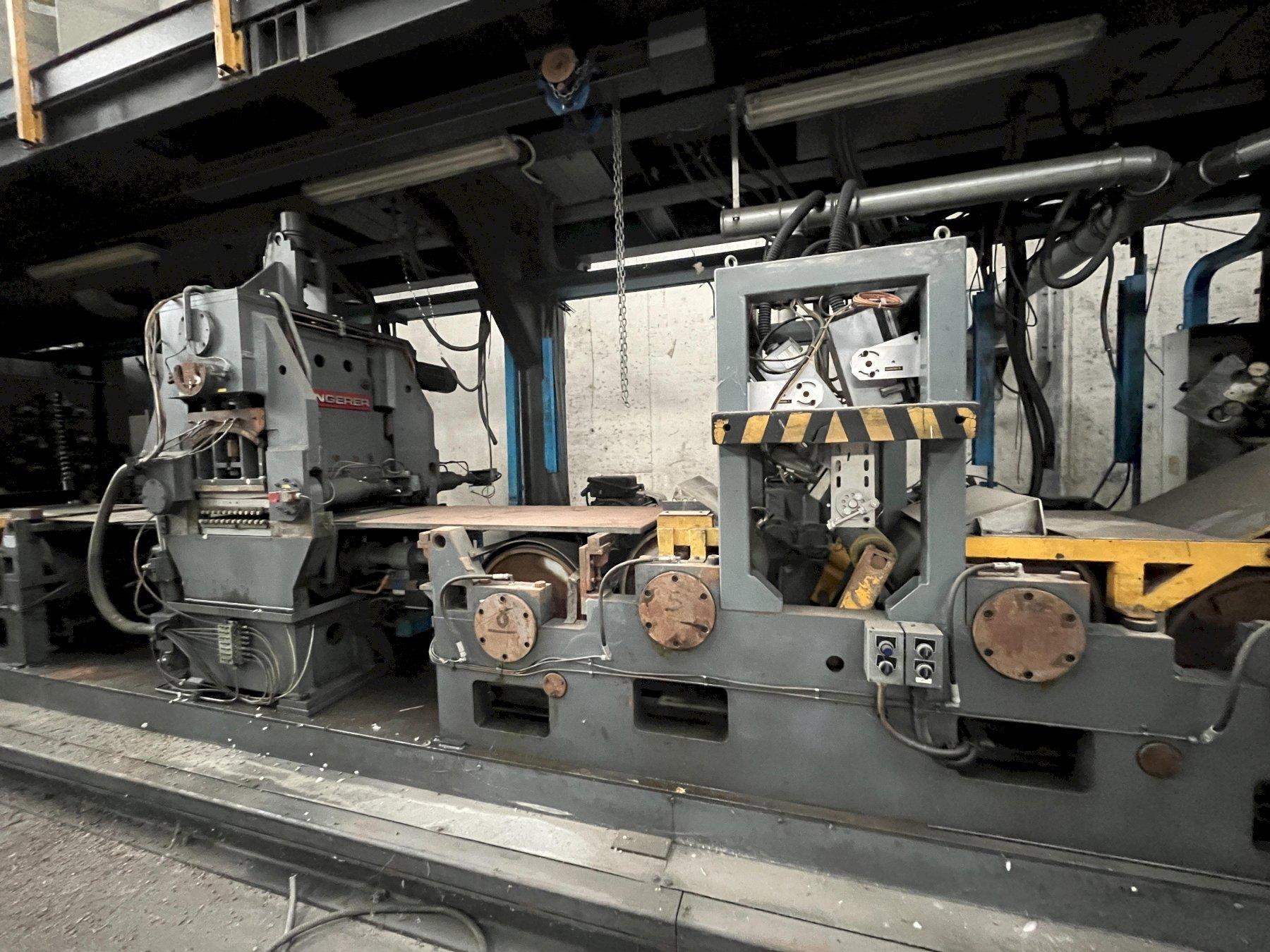

Entry bridle roll set before leveler:

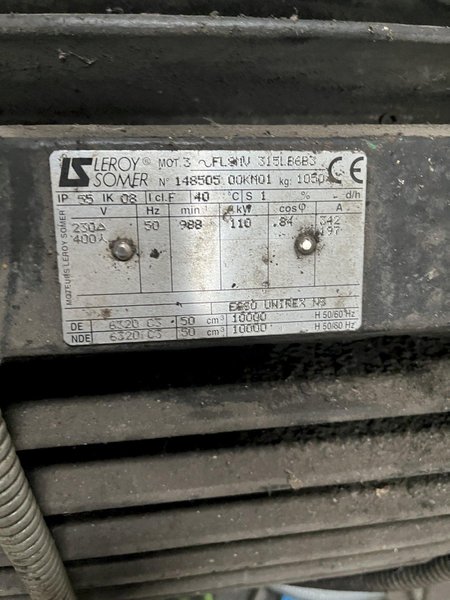

DC drives
Roll #1 kW
Roll #2 kW Roll #3 kW
Roll #4 kW
Conveyor belt strip feeding system below bridle rolls
12

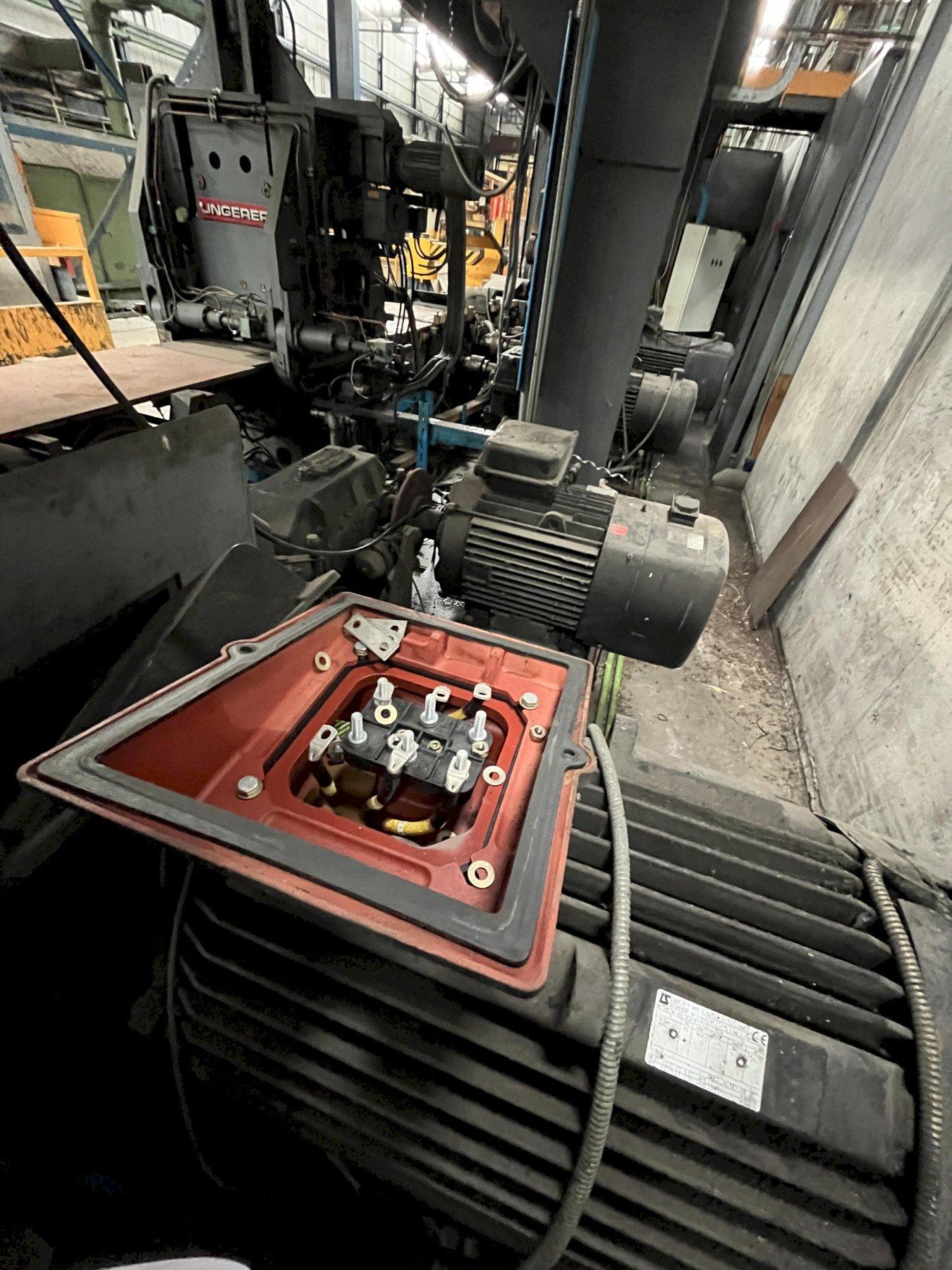

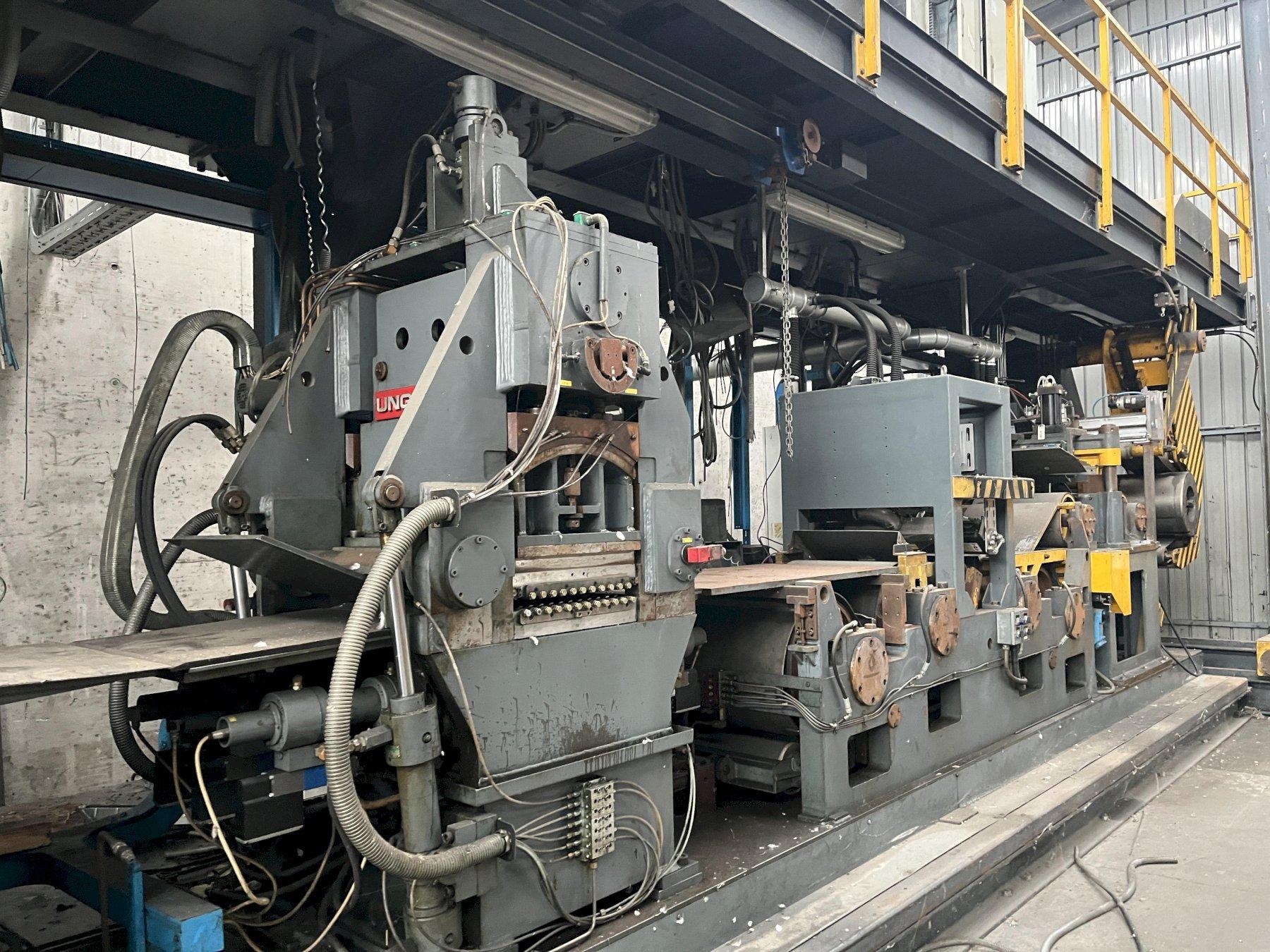

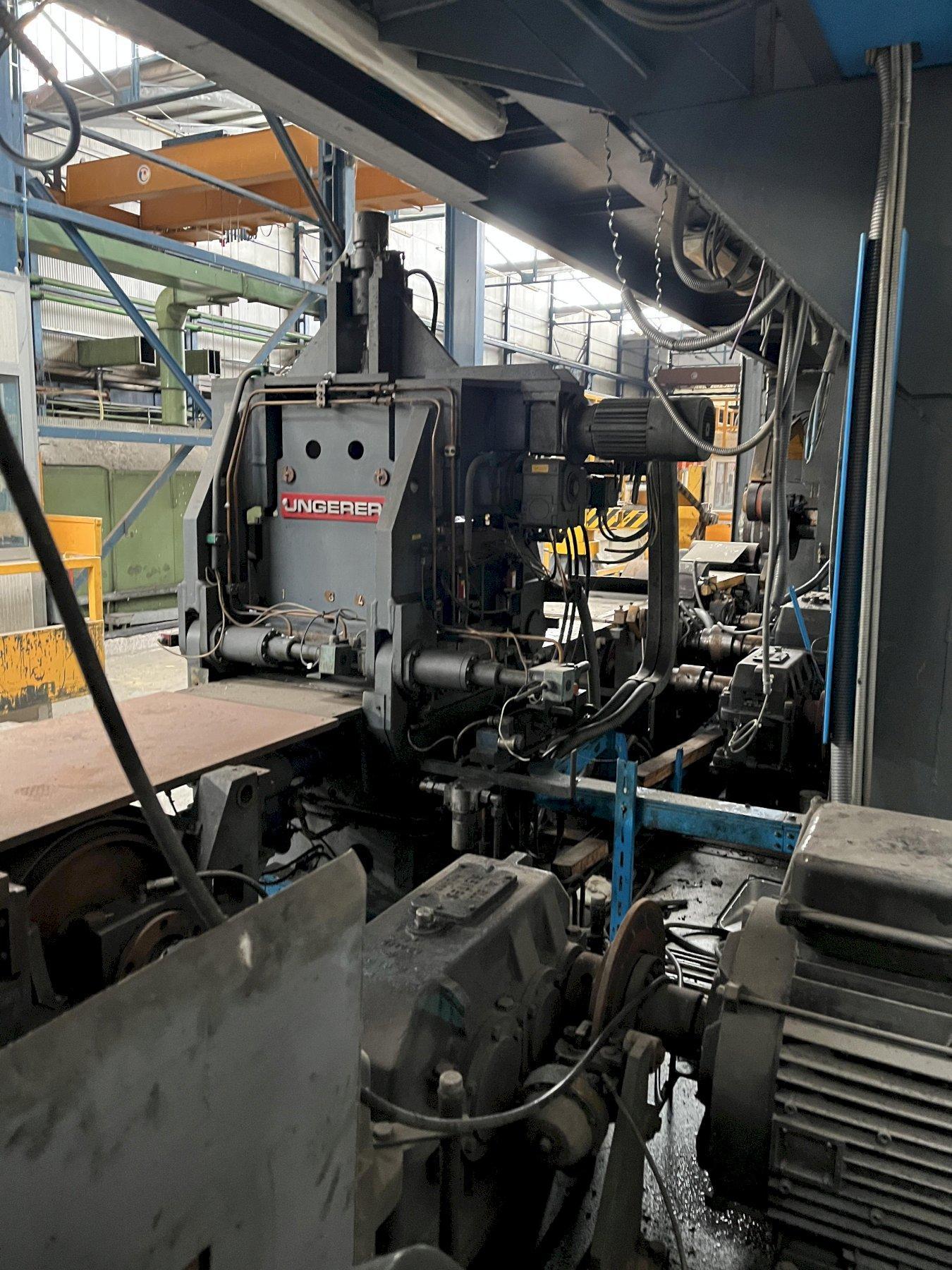

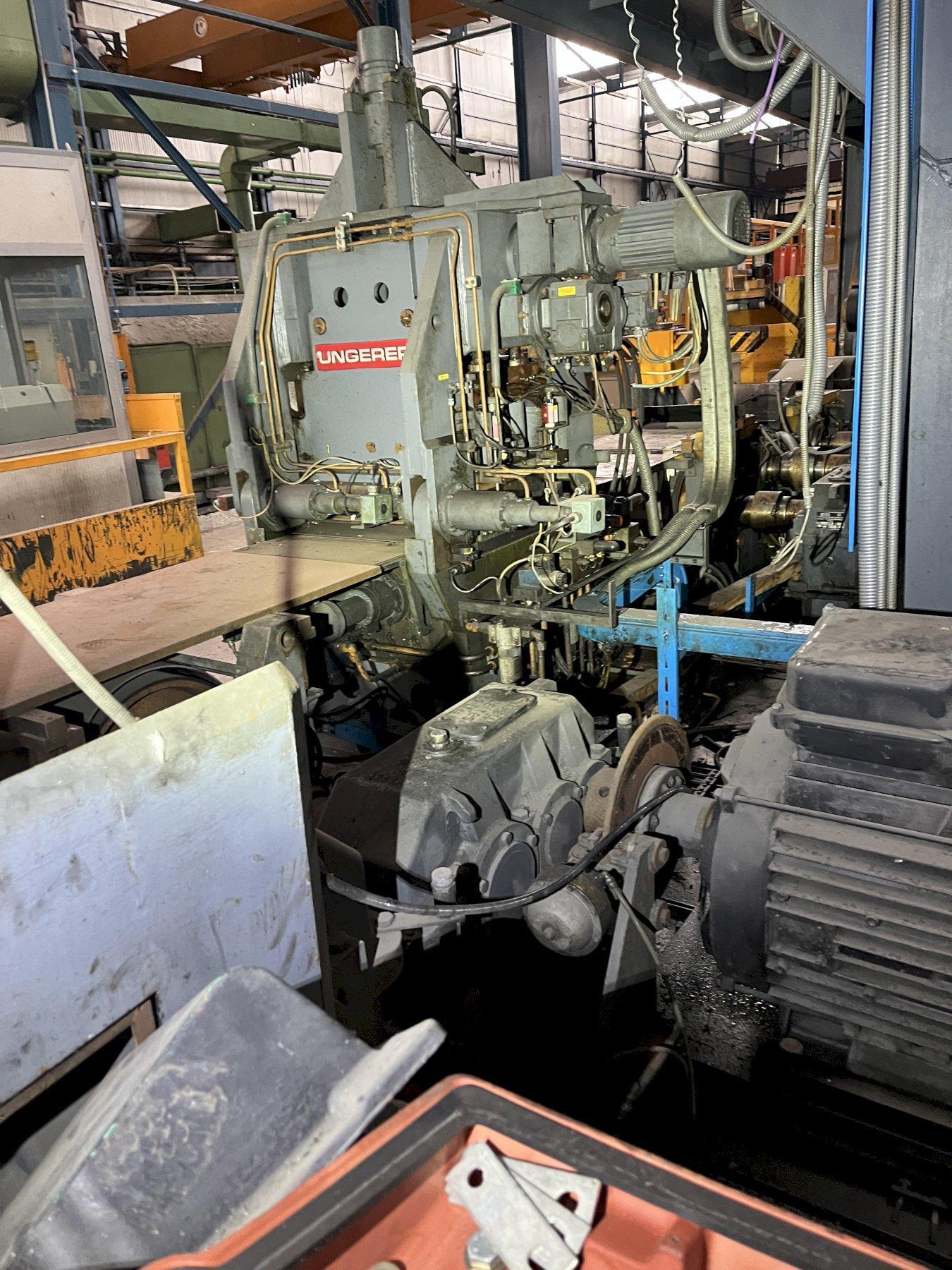

Ungerer leveling system:

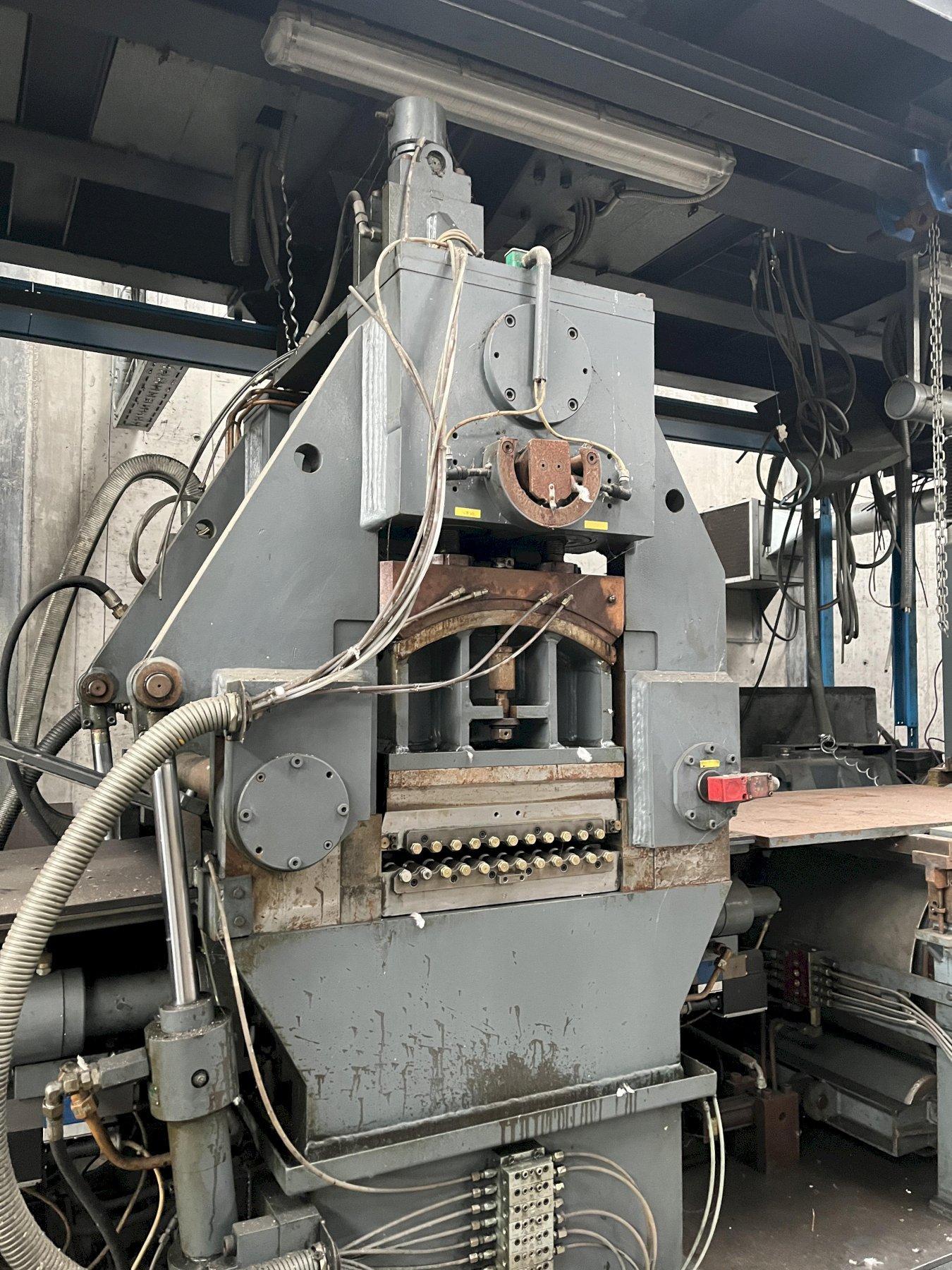

2 – high – 23 work roll cassette
Workroll diameter: 21mm
Spare cassettes ( )

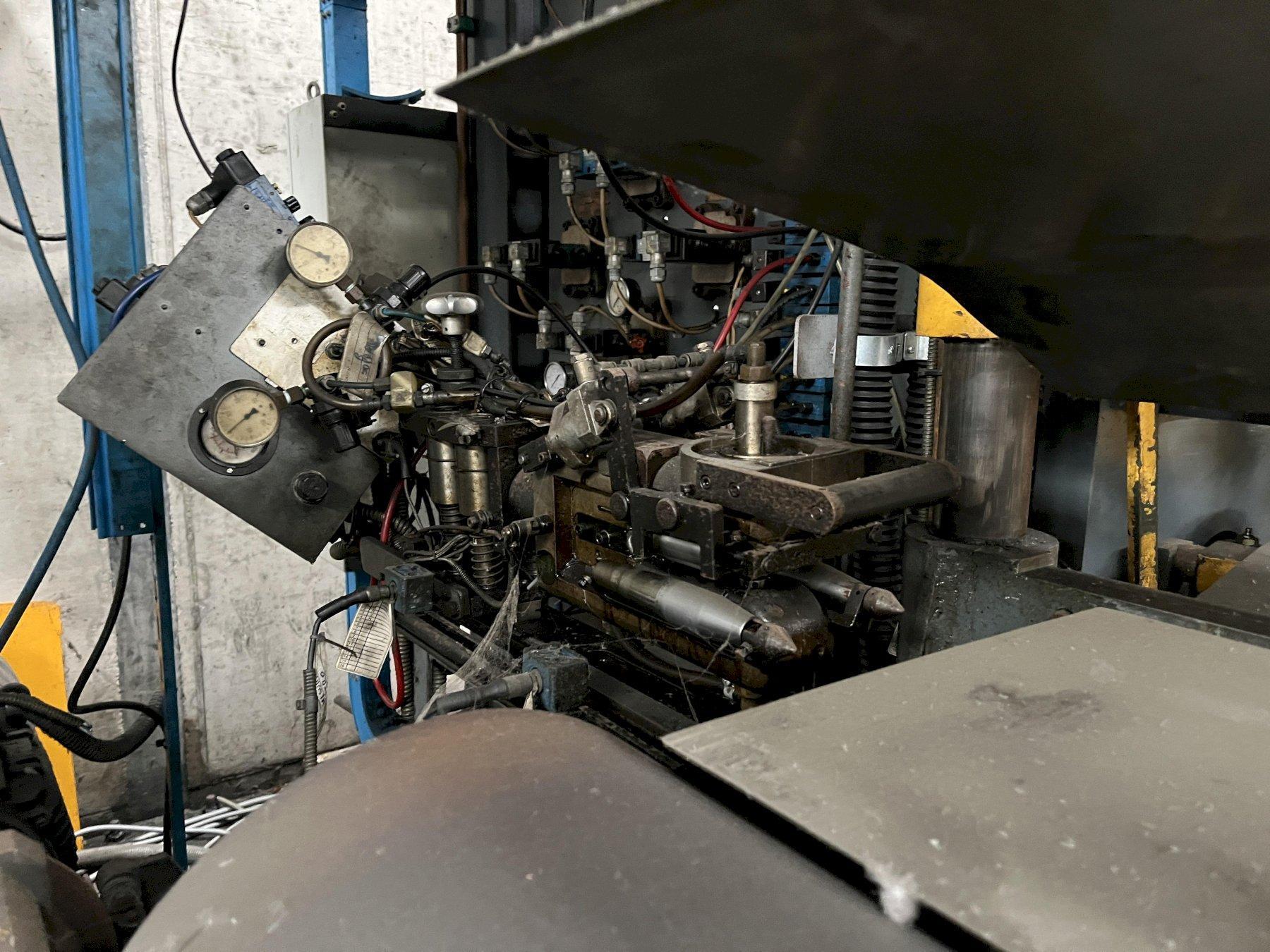

3 – servo hydraulic wedge adjustment cylinders at entry, 2 at exit
Hydraulic screwdown

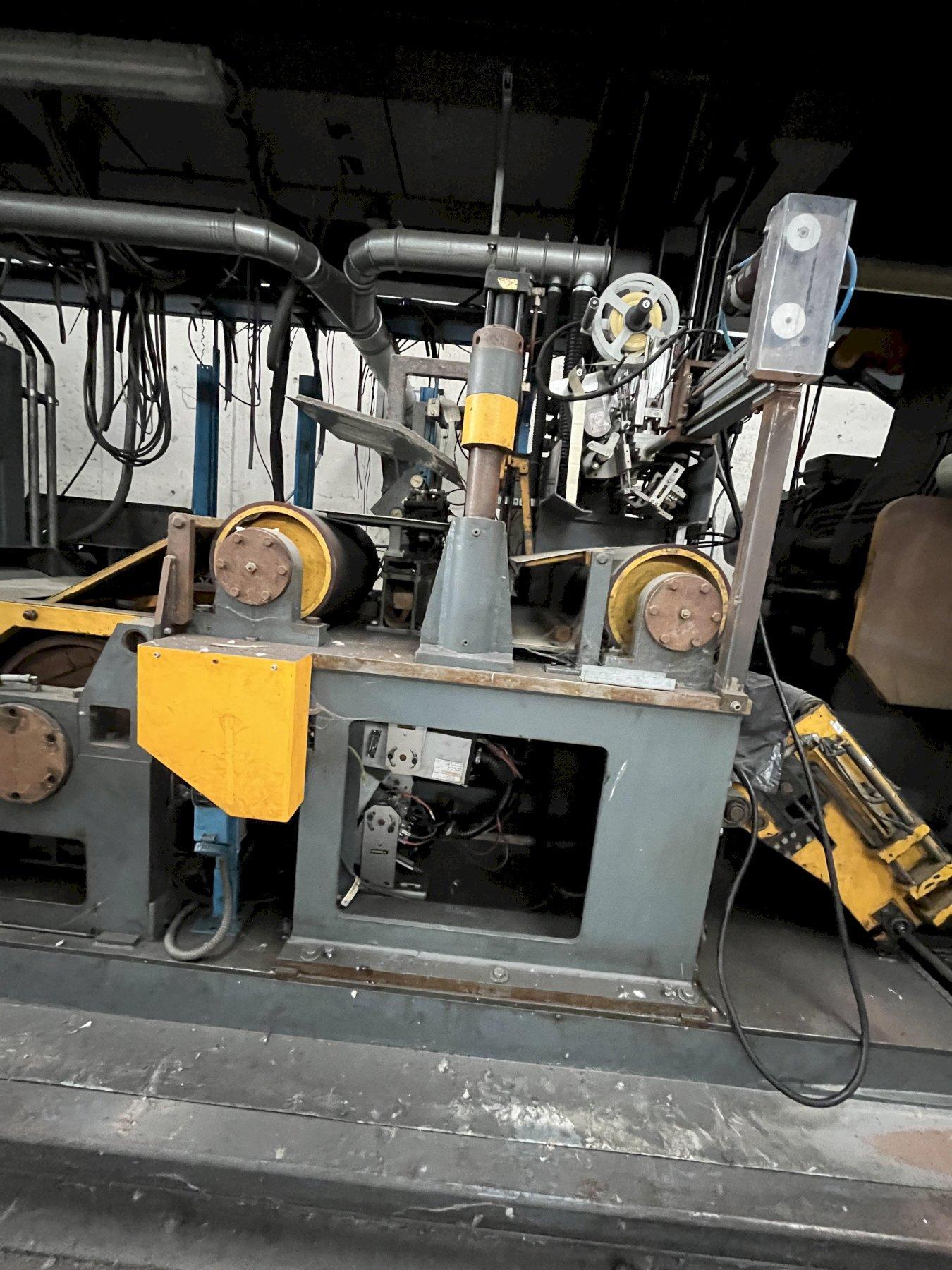

Exit bridle roll set after cassette:
DC drives
Roll #1 kW
Roll #2 kW
Roll #3 kW
Roll #4 kW

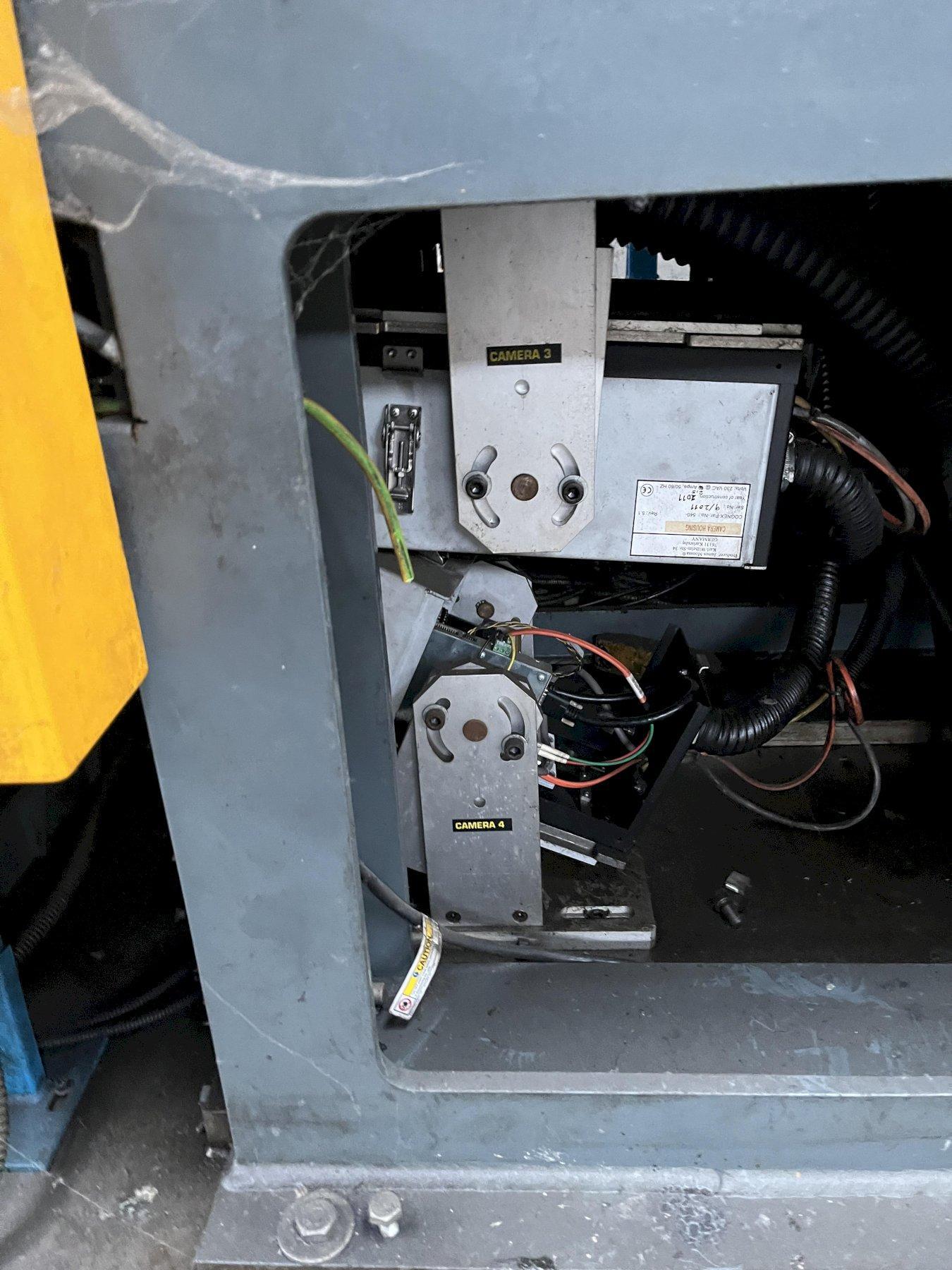

Camera surface control system between roll #2 and #3
Horizontal guide roll after bridle roll #4
Crop shear
Horizontal guide roll before recoiler
Conveyor belt transport table & belt wrapper

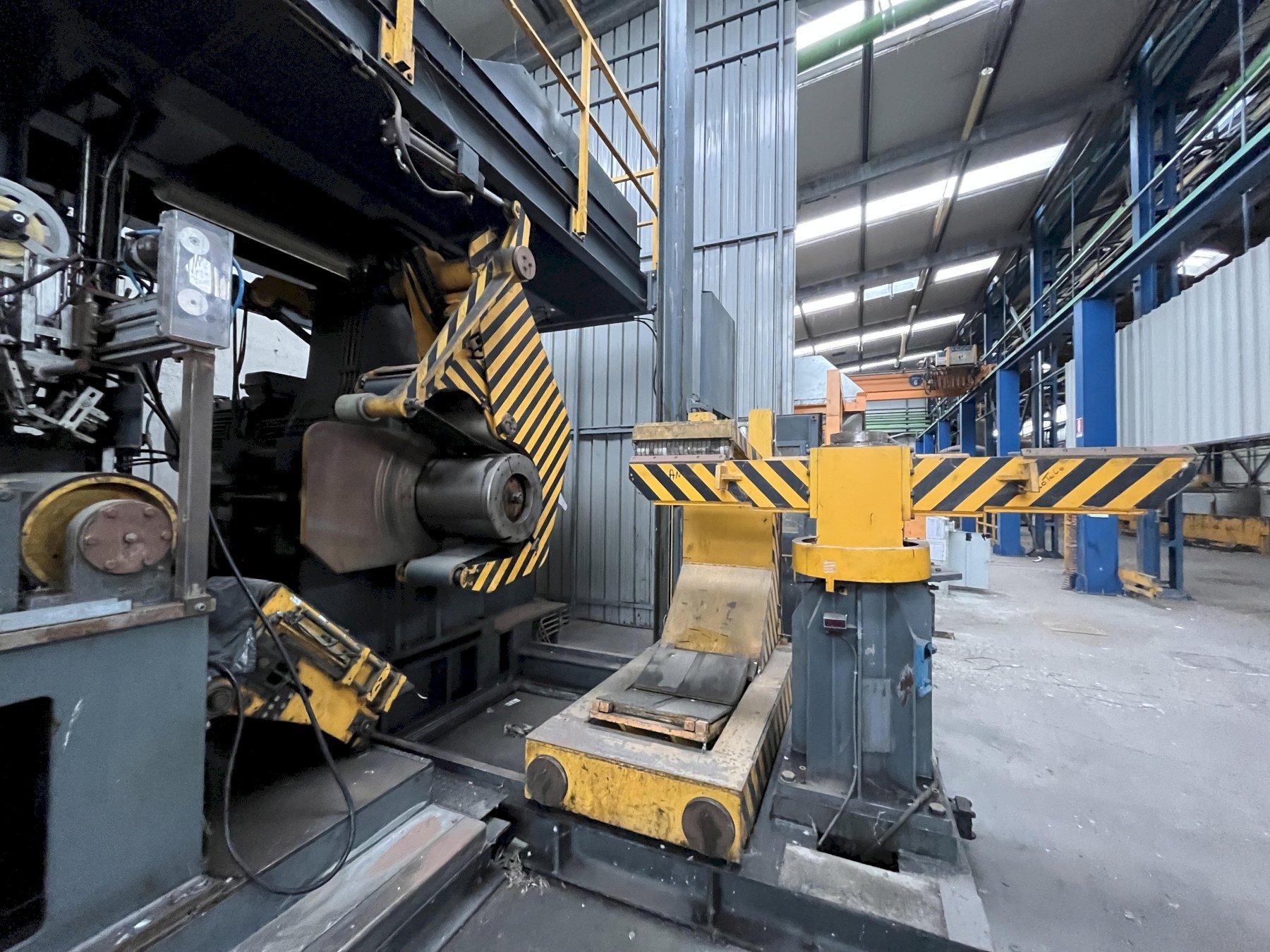

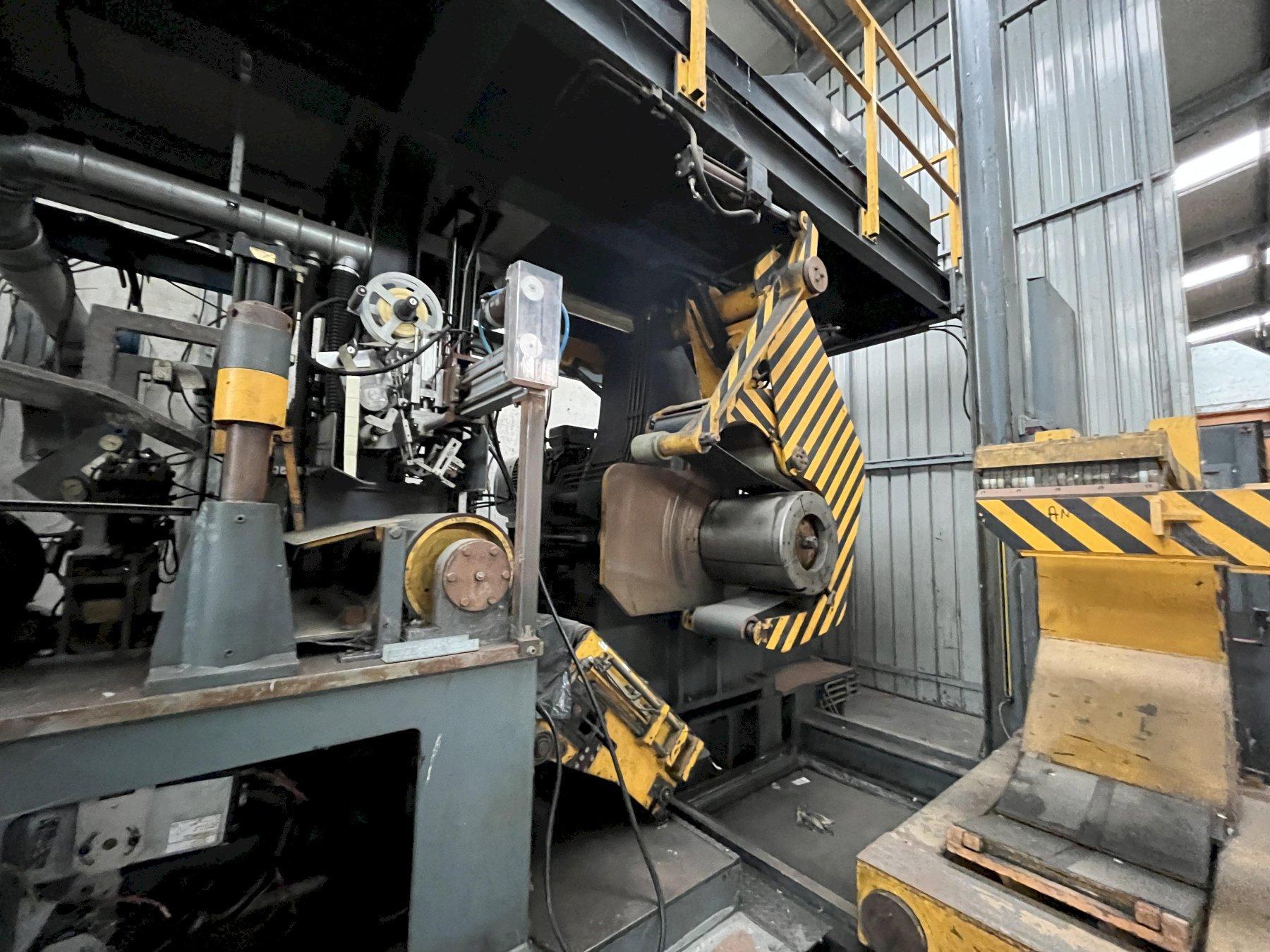

Recoiler with hydraulic drum & push off plate
Mandrel OD 700mm ()
Recoiler drive – DC – kW
L – Type floor level coil car with pneumatic hold down arm

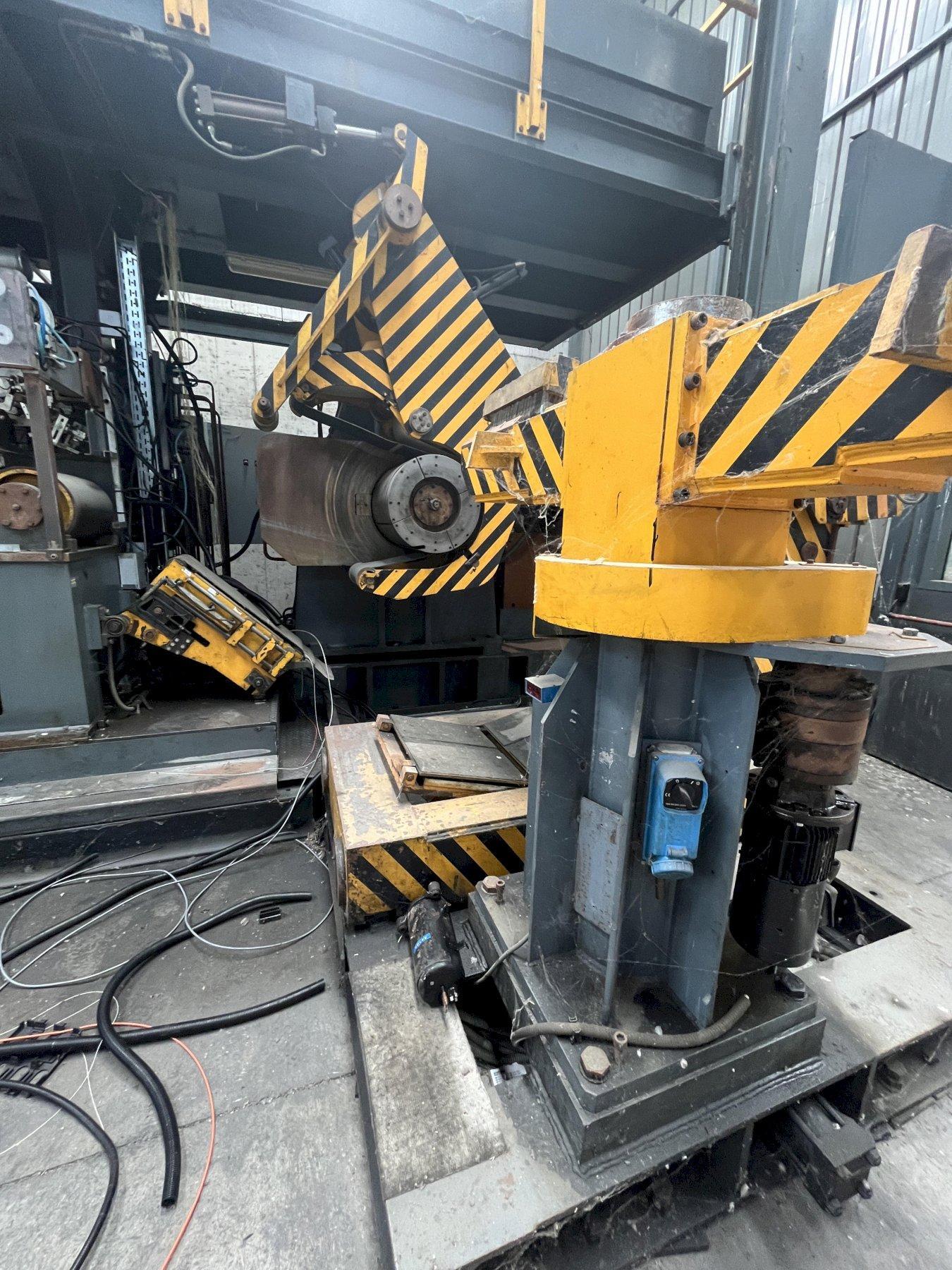

2 – Arm Coil Turnstill |
