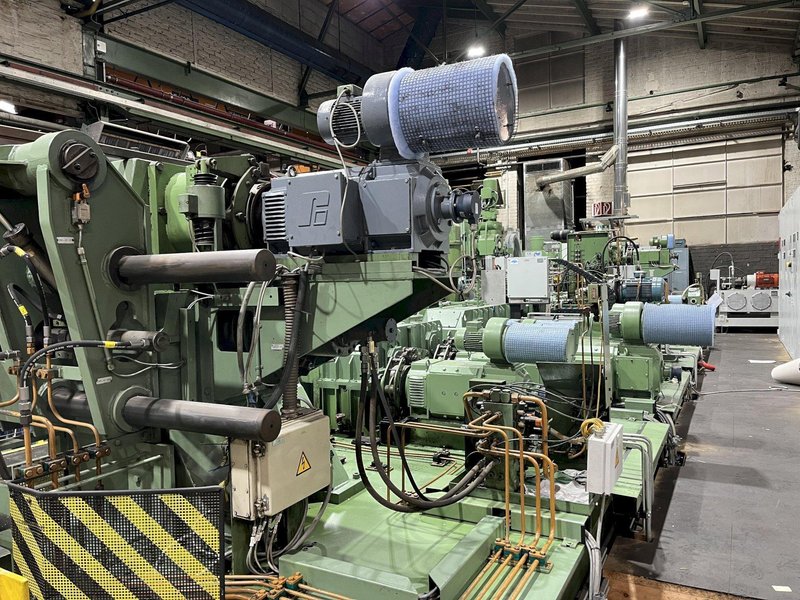

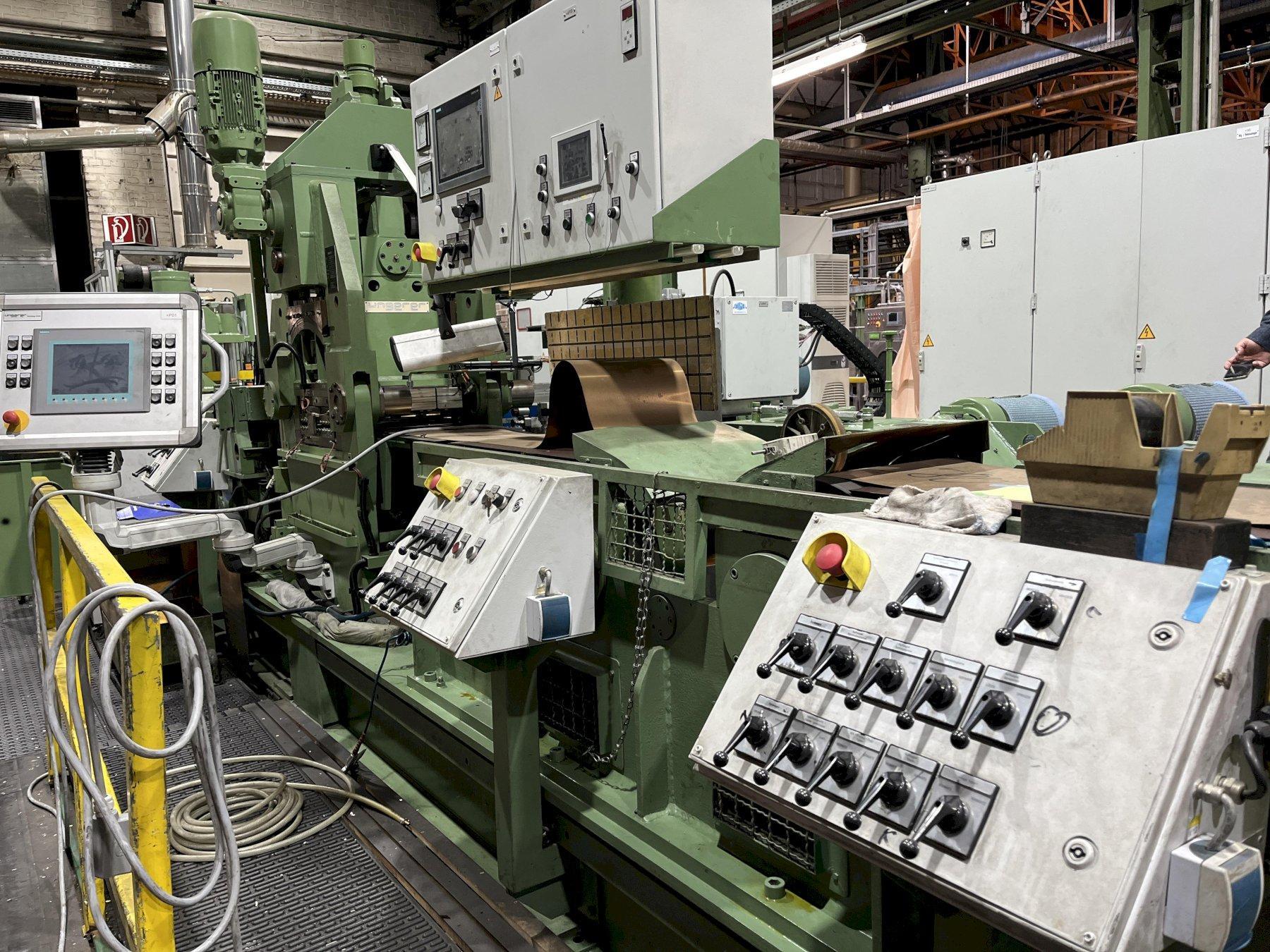

UNGERER STRETCH BEND LEVELING LINE

General specifications:

Type: 2-High – 23 Work rolls

Manufacturer: Ungerer

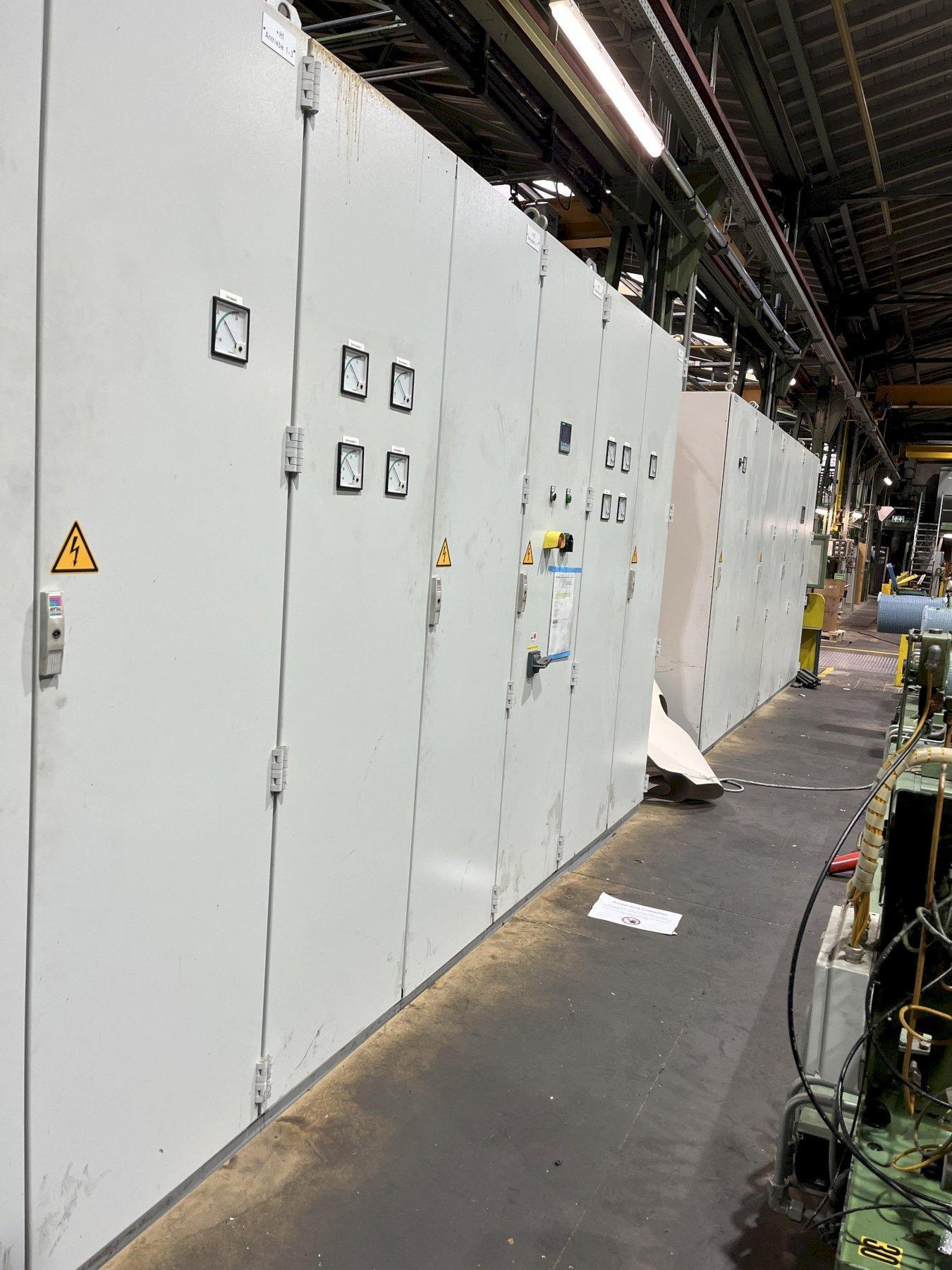

YOM: Originally 1985 – New leveling unit 2017 – New controls 2017 – New thickness measuring 2018

Speed: 120m/min

Max material tensile strength: 800 N/mm² (originally, maybe upgraded?)

Srip thickness: 0.08mm – 1.2mm

Strip width: 250mm – 350mm

Max. coil weight: 5 ton

Max. coil OD: 1400mm(with coil lifter) / 1600mm (without coil lifter)

Coil ID: 400mm / 500mm

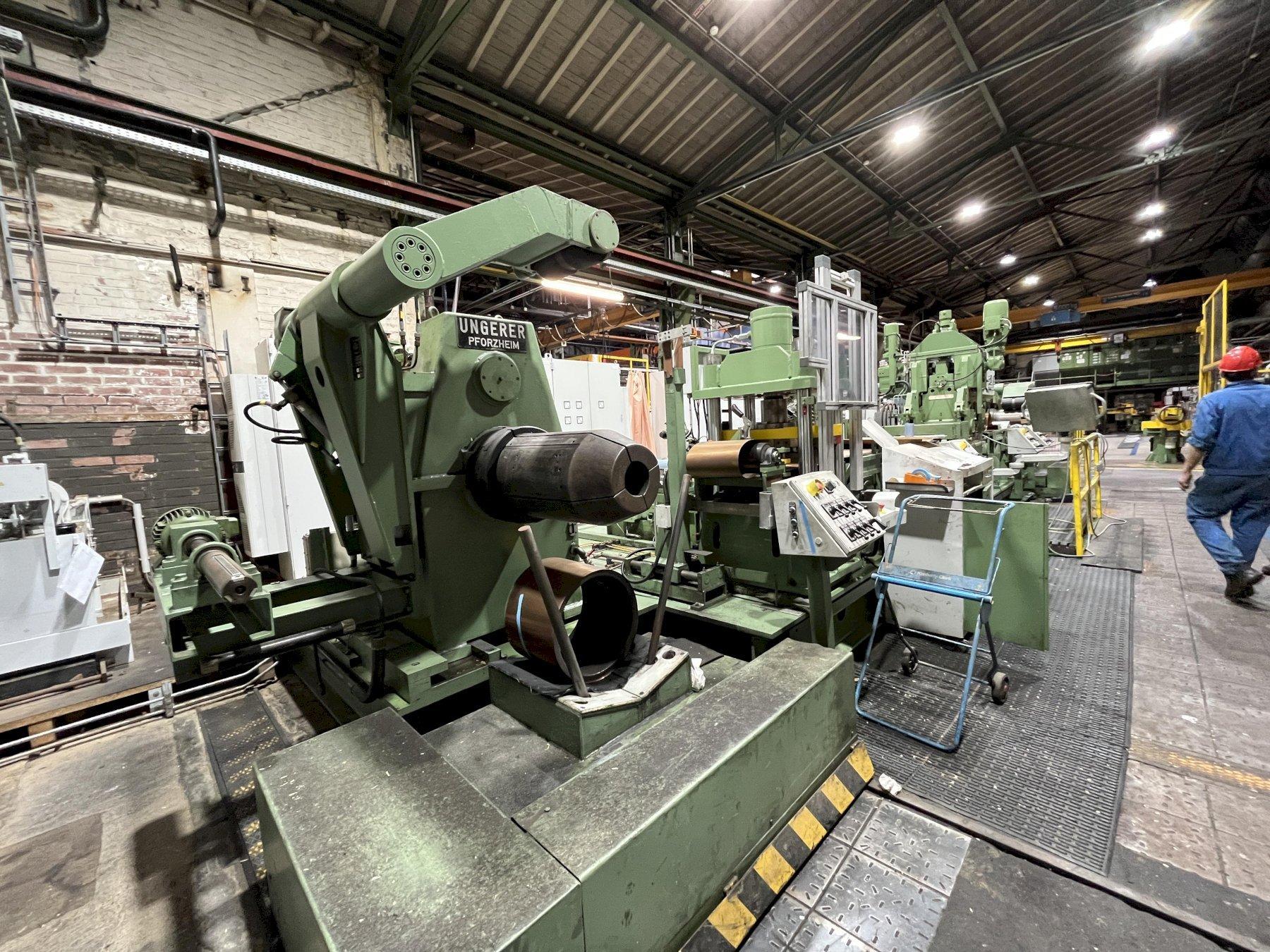

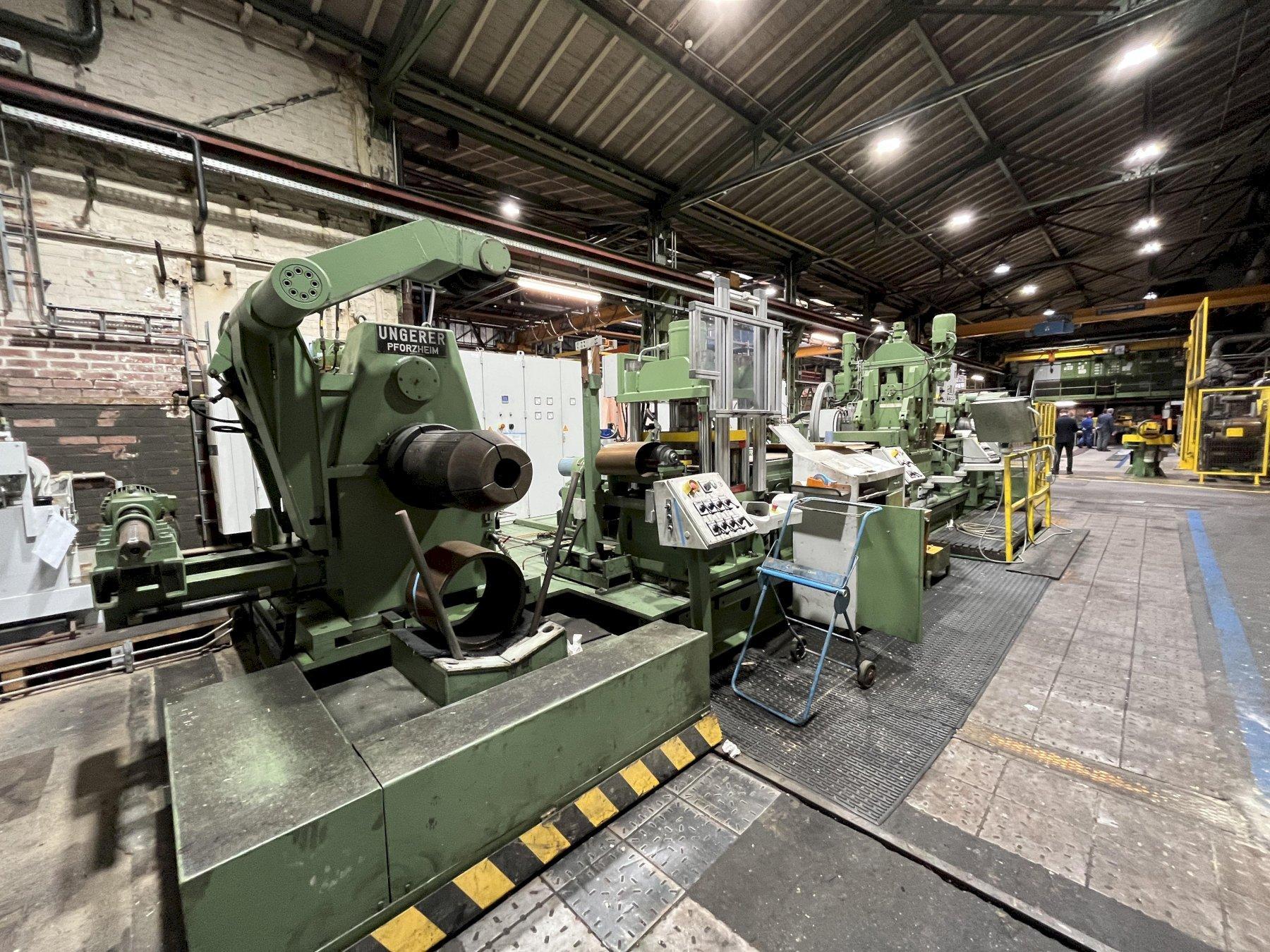

Pay-Off:

5ton overground coil car

Speed measurement roll

2x Manual strip clamp

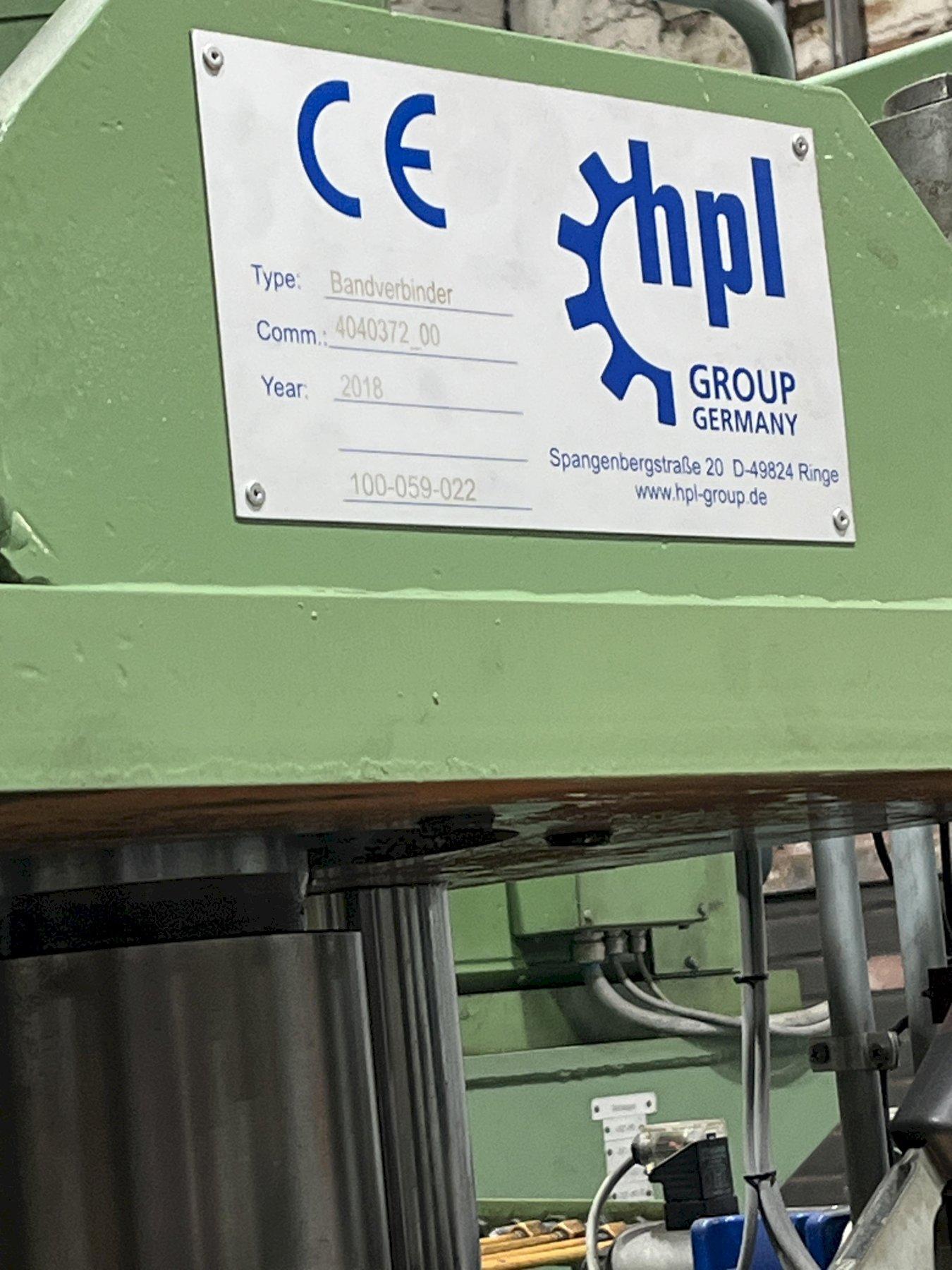

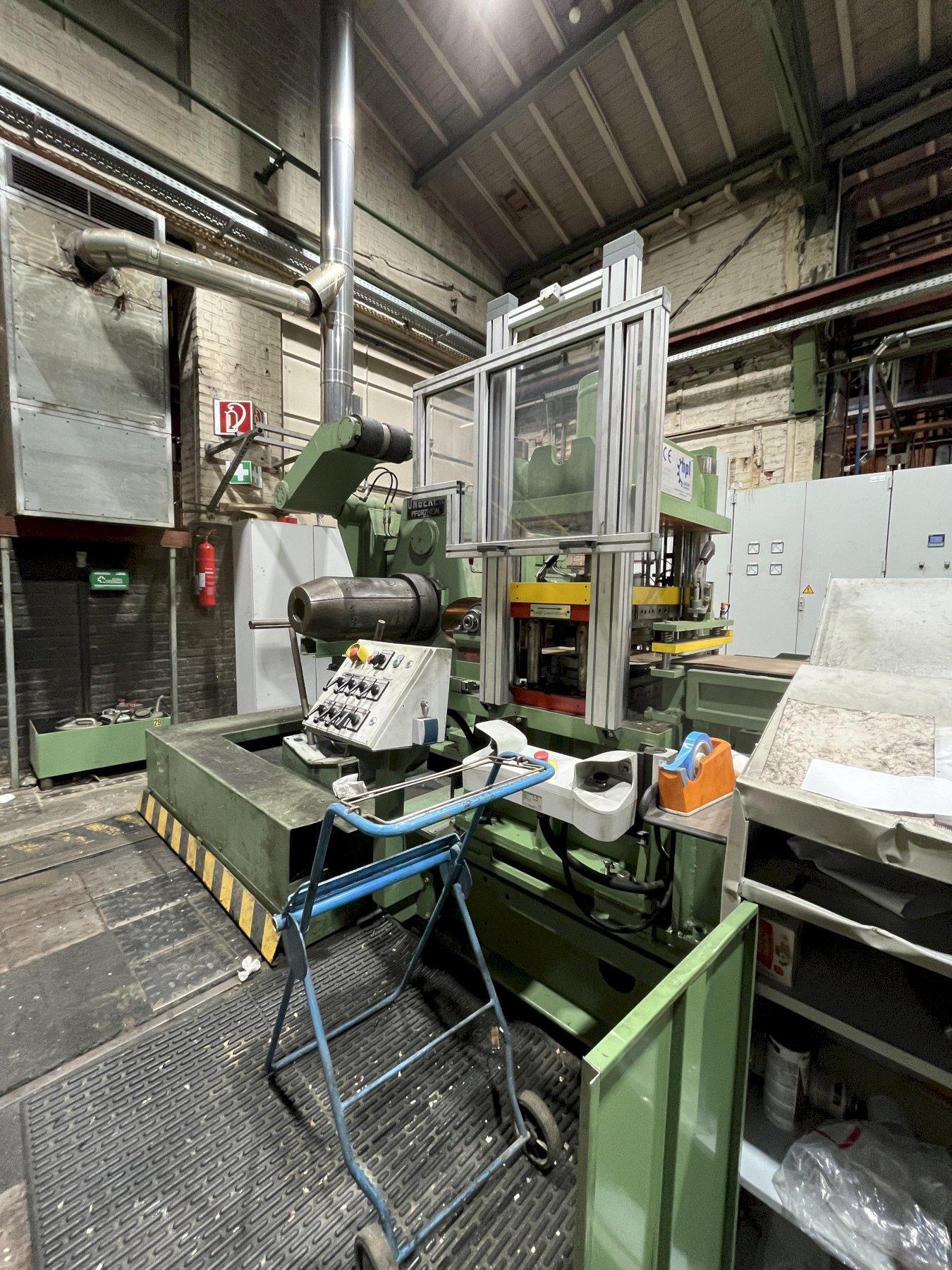

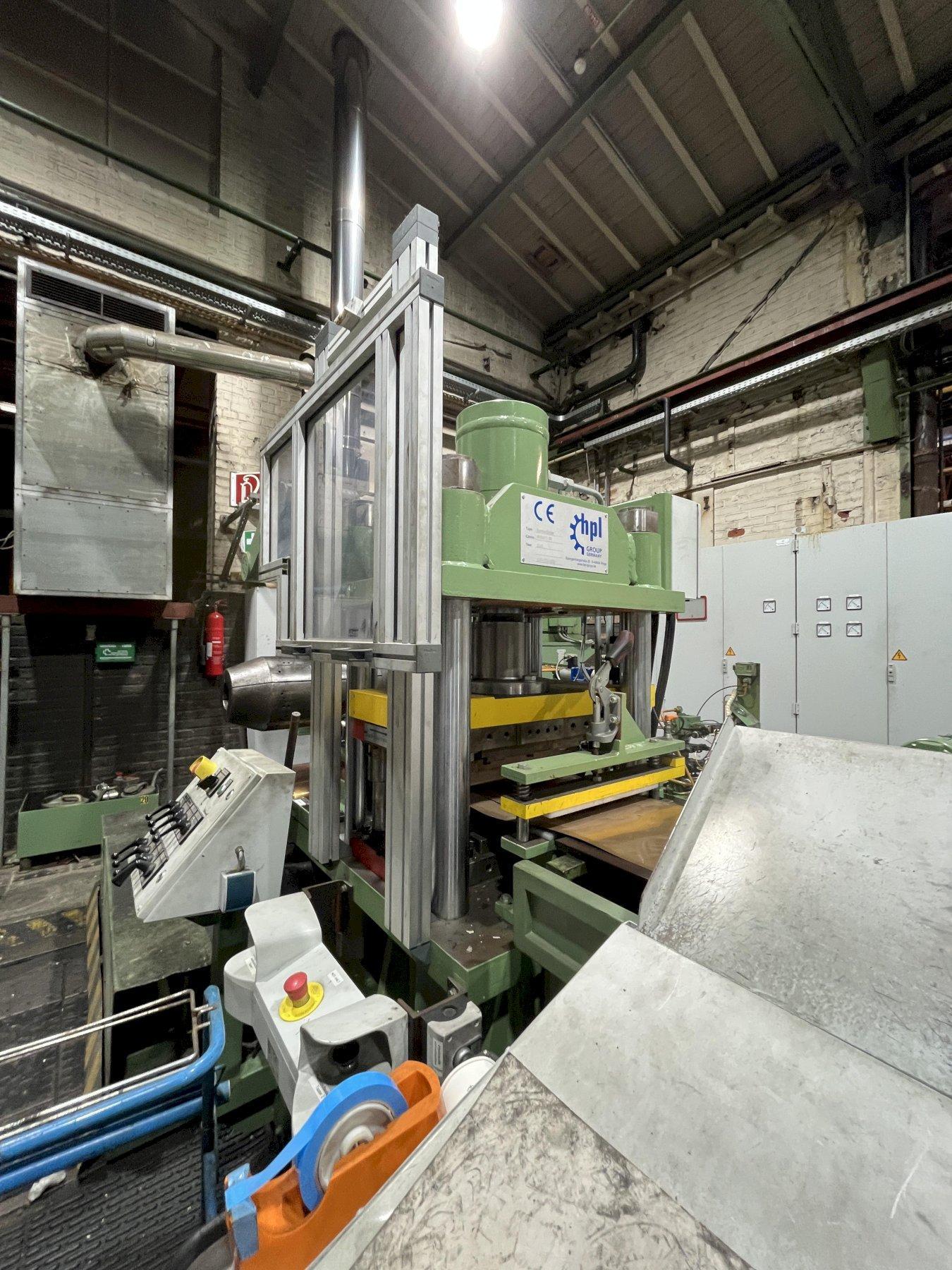

TITAN / HPL Stitcher – New 2018

Winder drive 14Kw DC

Paper winder 4.9Kw

Snubber roll

S-Roll set 1:

S-Roll 1: 4.8Kw DC

S-Roll 2: 2.4Kw DC

S-Roll 3: 19.2Kw DC

S-Roll 4: 9.6Kw DC

Conveyor belt below Roll set

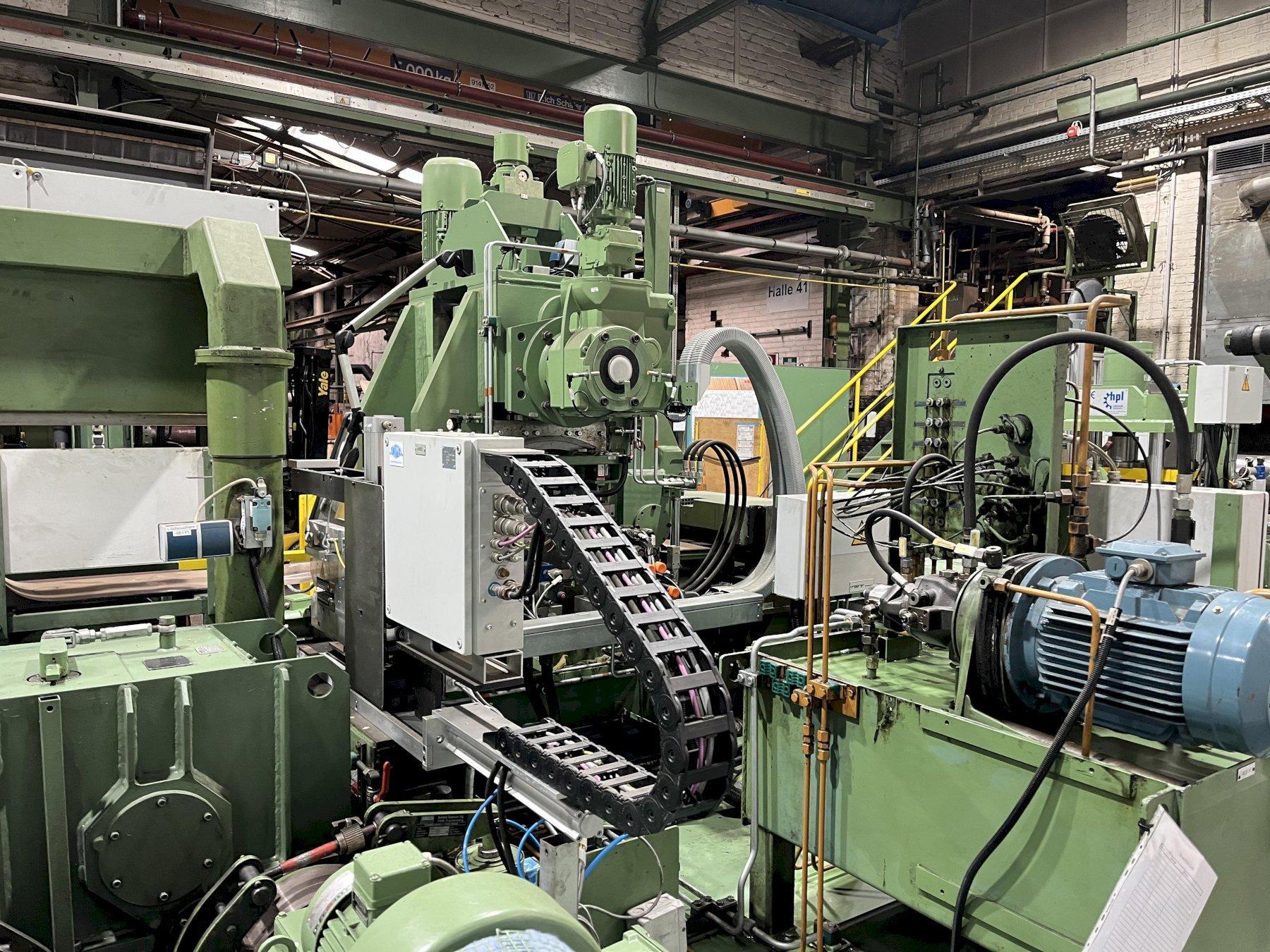

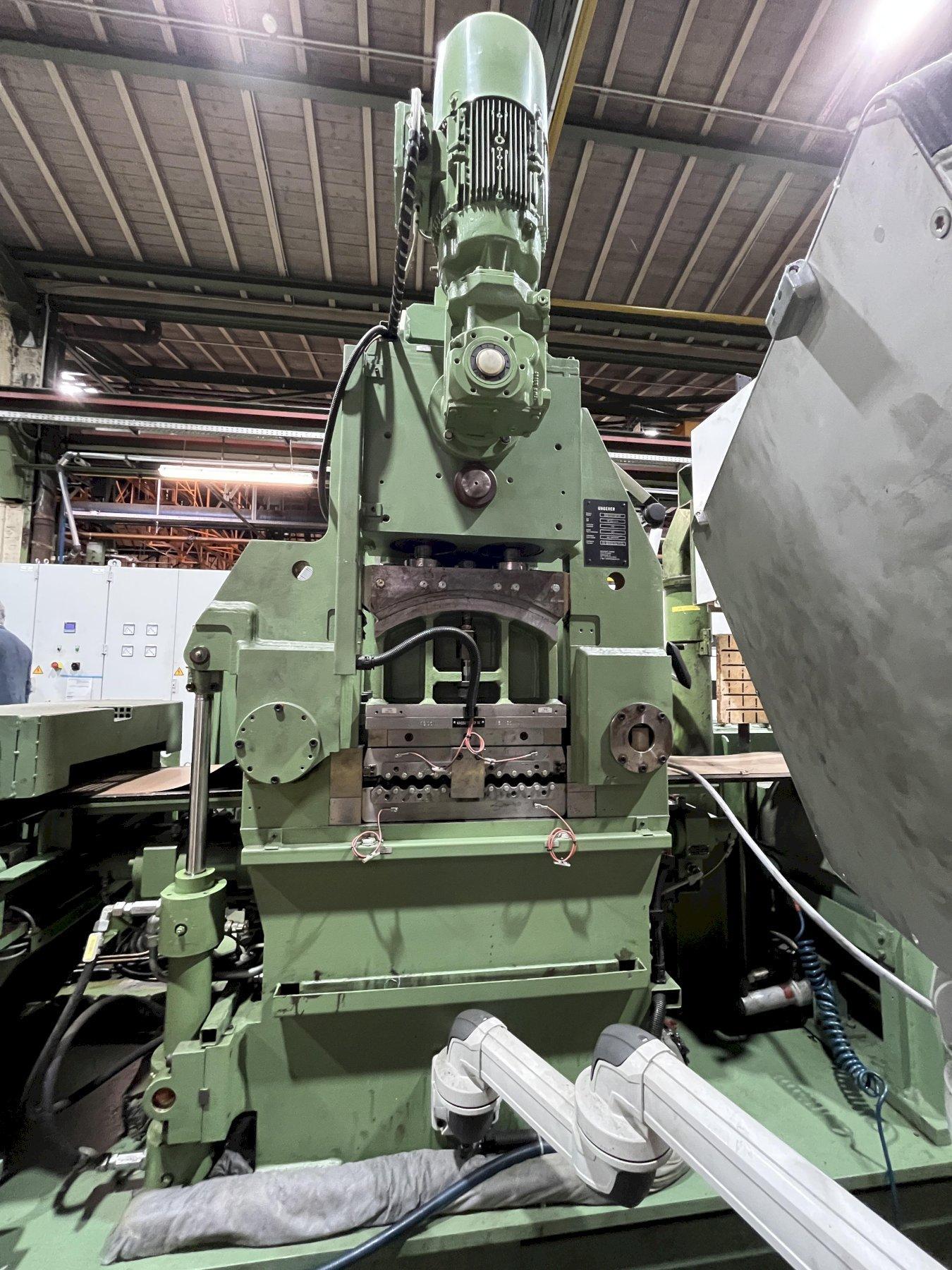

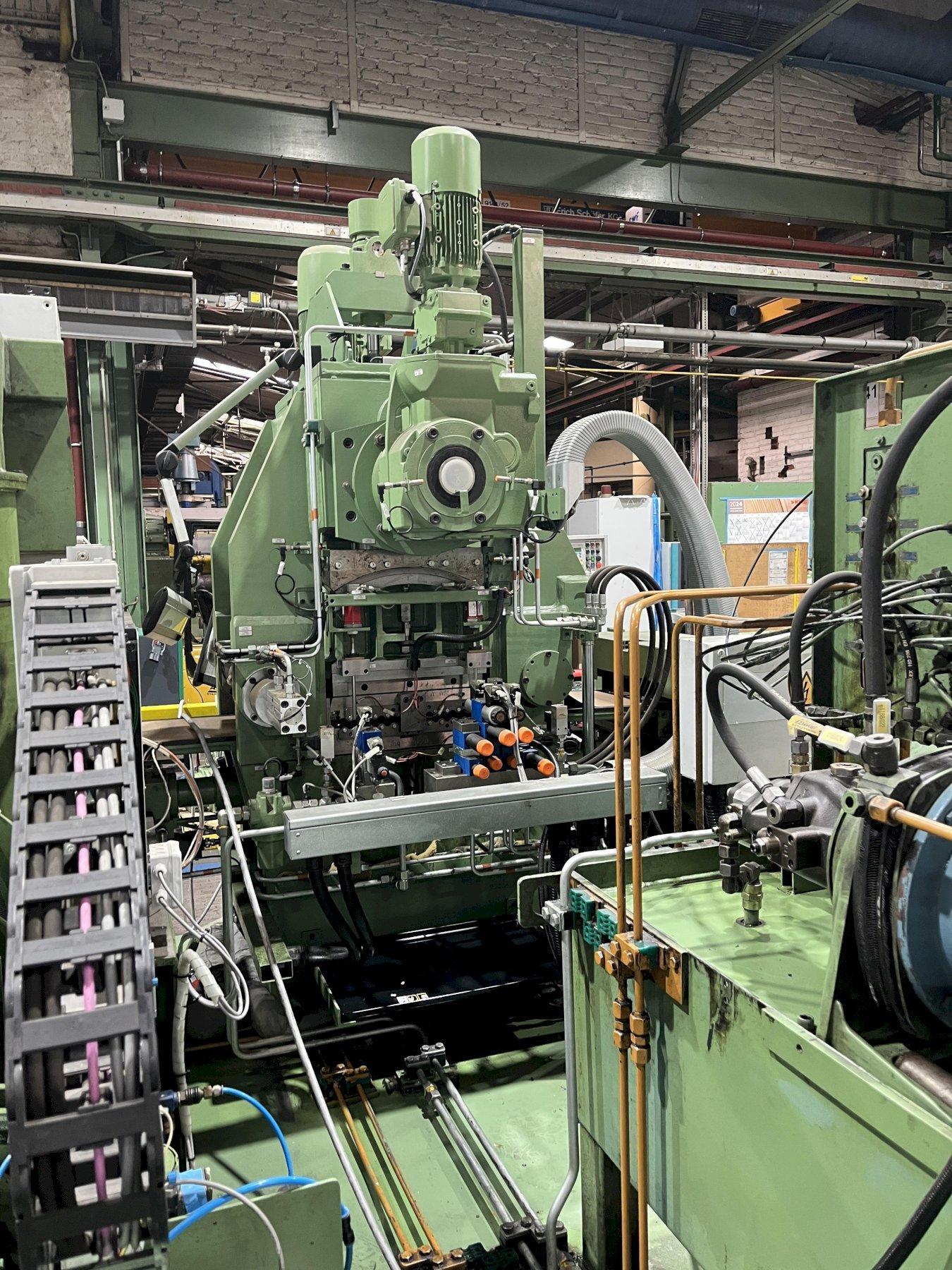

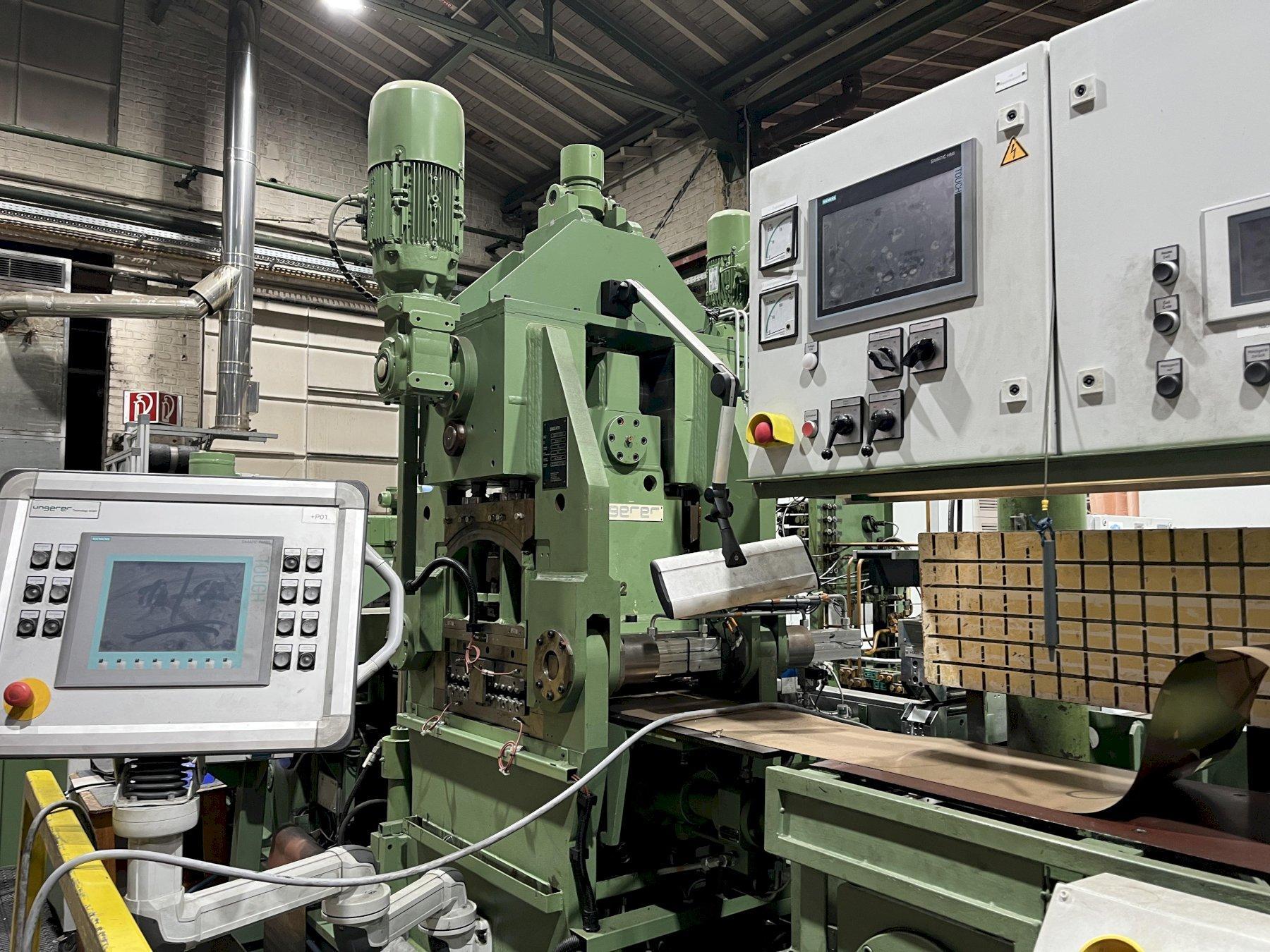

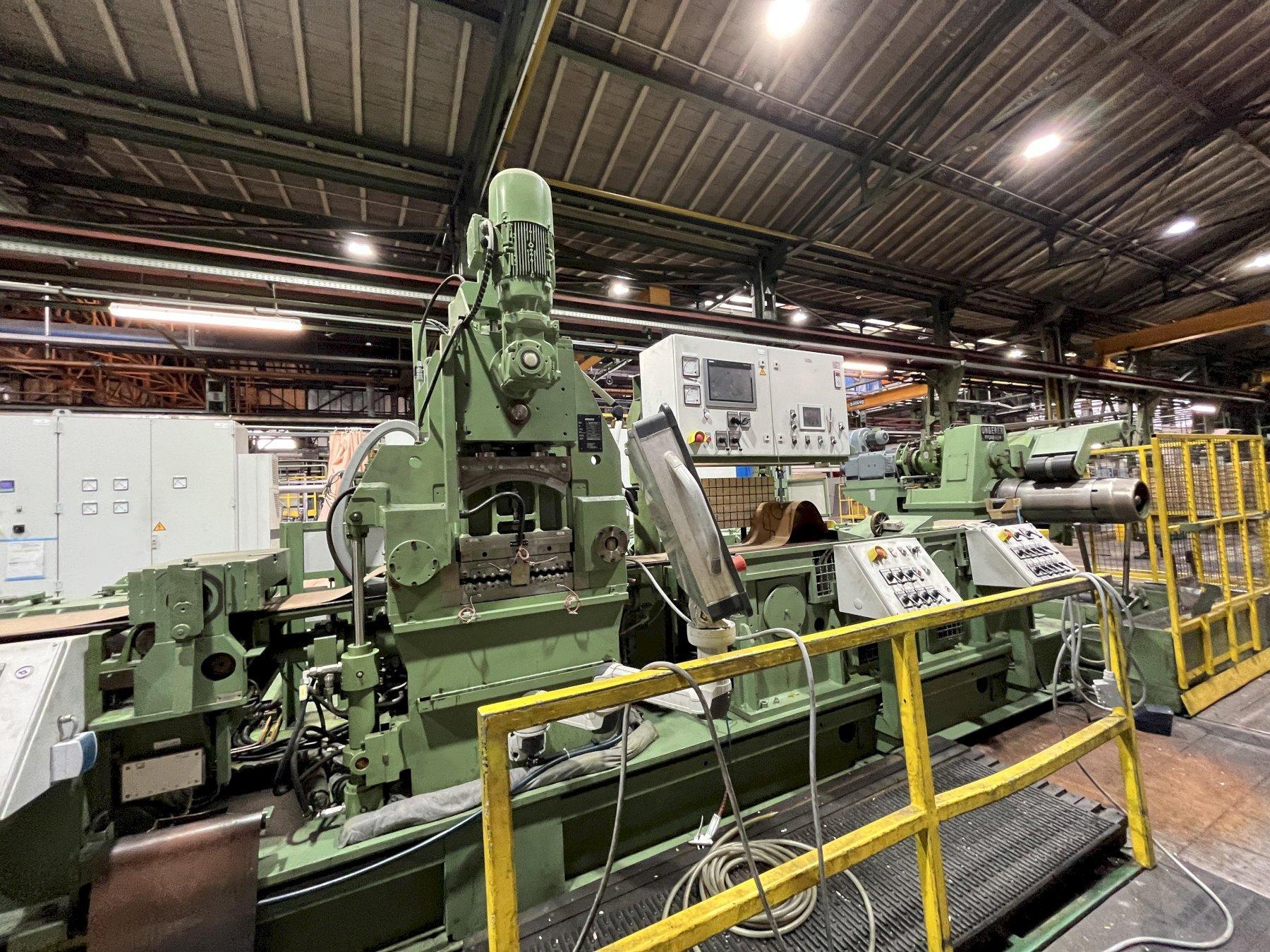

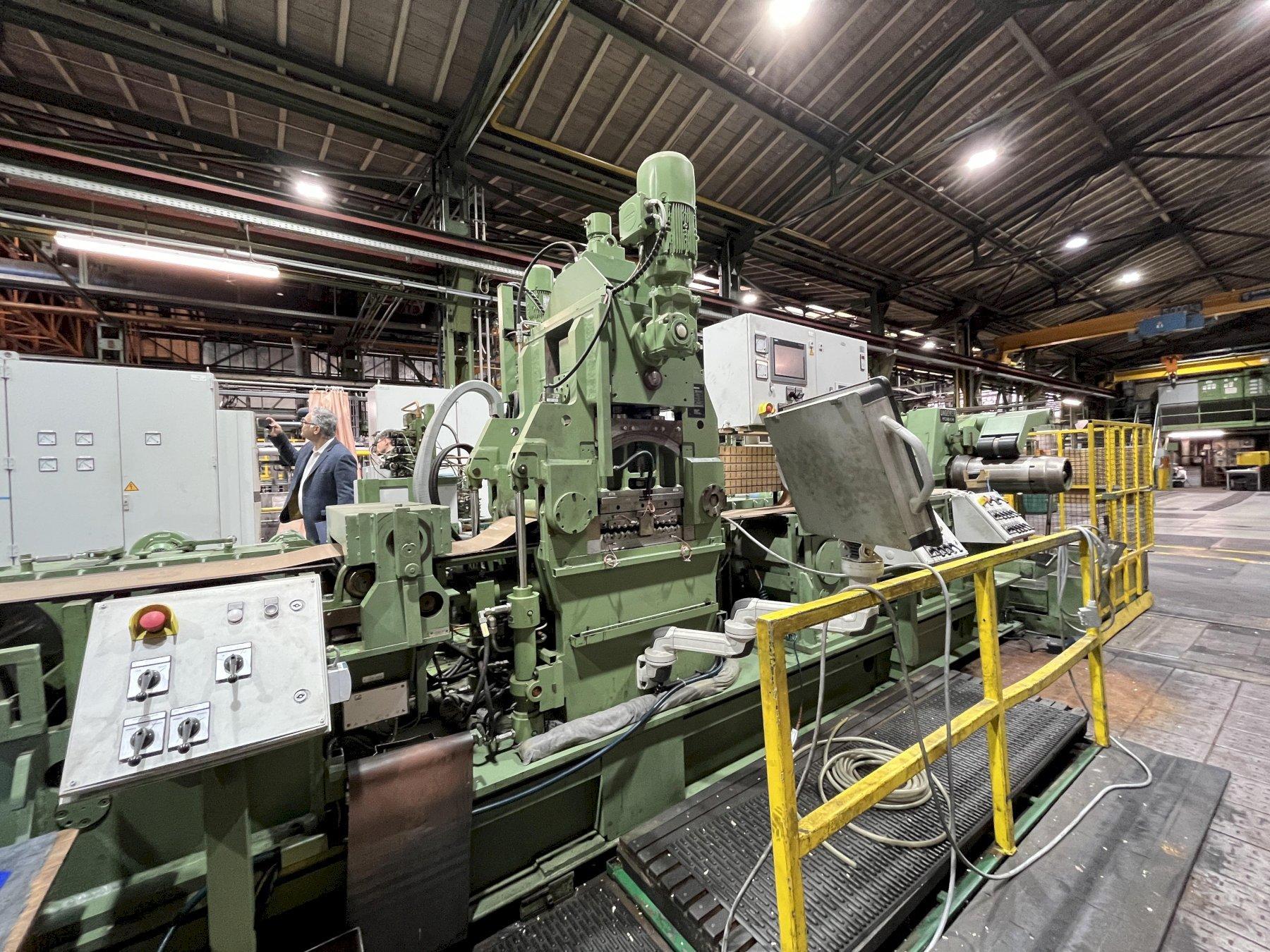

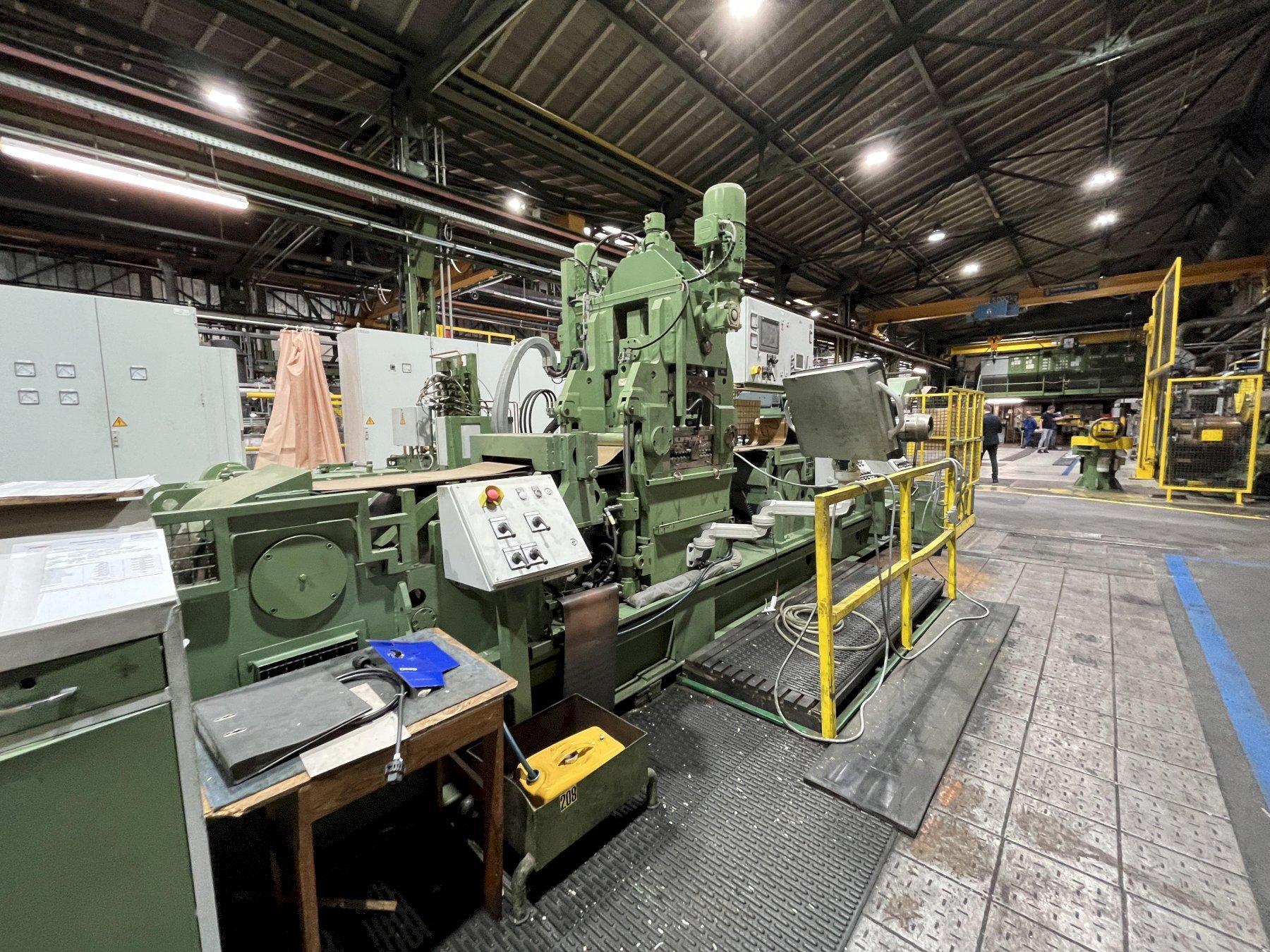

2-High UNGERER LEVELER, 2017

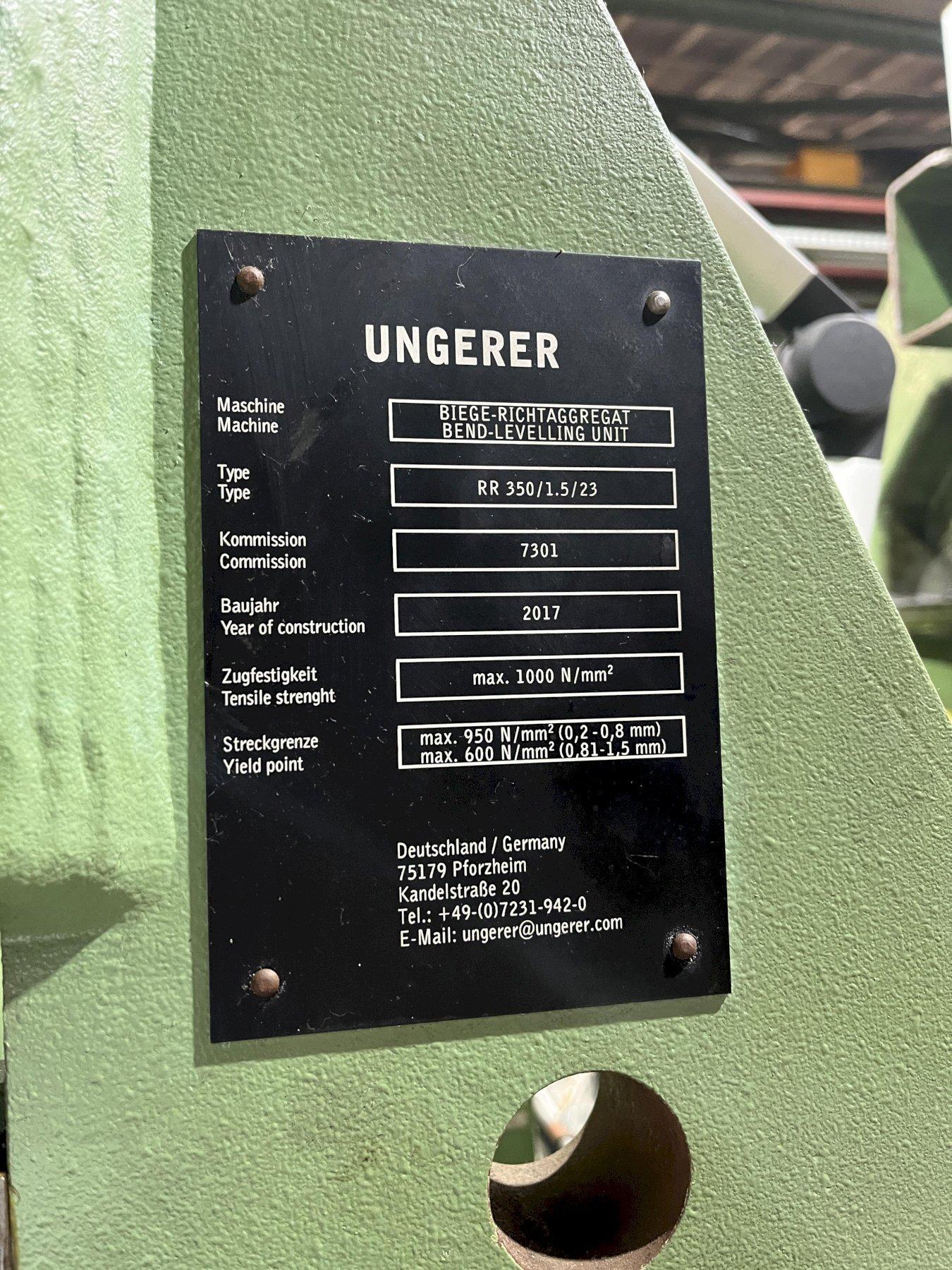

Model RR 350 / 1.5 / 23

Number of work rolls: 23

Capacity

            Tensile Strength …….Max. 1000 N/mm2

            Yield Point :  Max 950mm/Nmm2 (0.2 – 0.8mm)

                                    Max 600 N/mm2 (0.81 0 1.5mm)

Work roll diameter: 16mm

Number of cassettes: 3 cassettes + 1 set of spare rolls

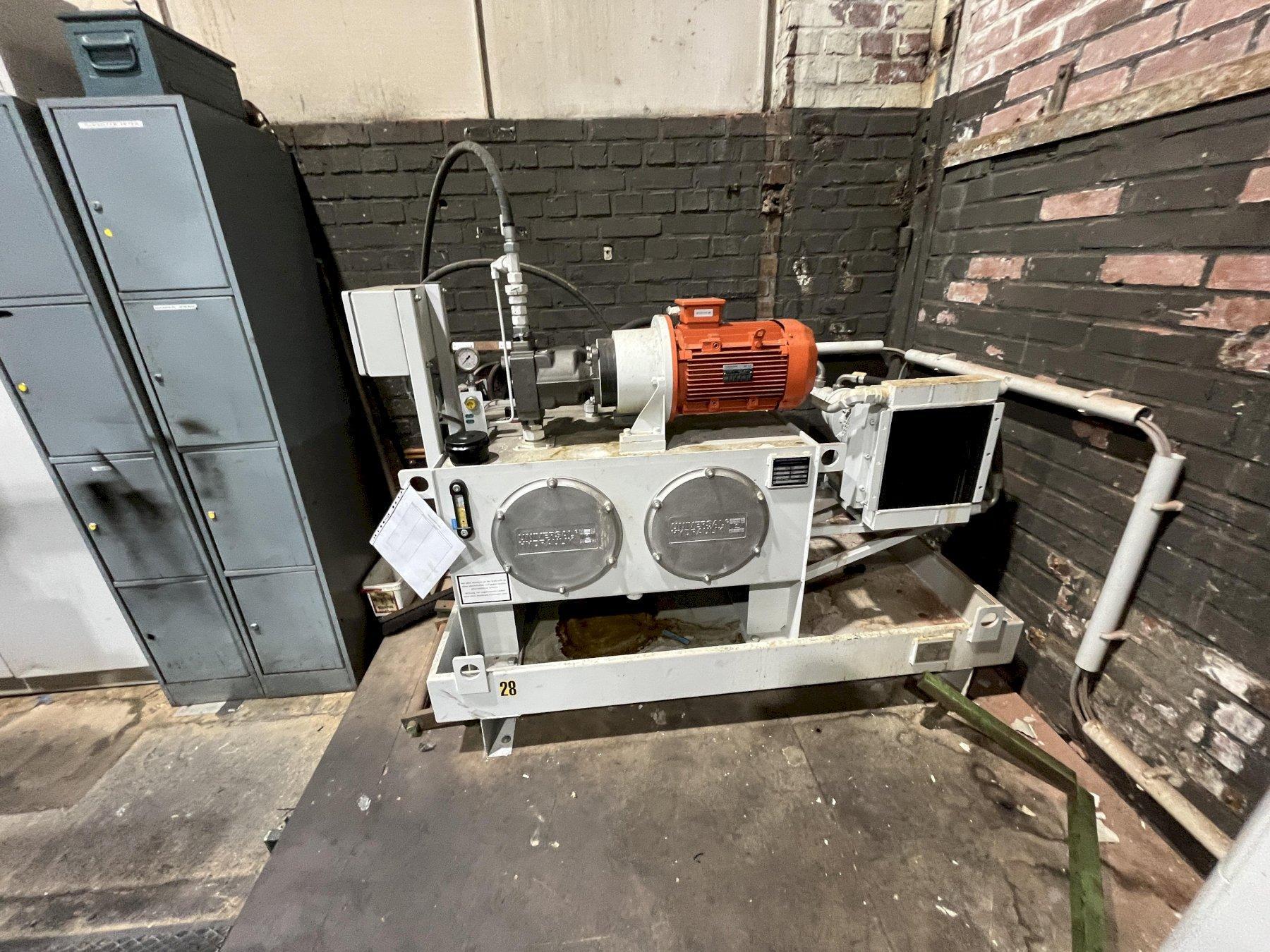

Number of wedge control cylinders per side: 3

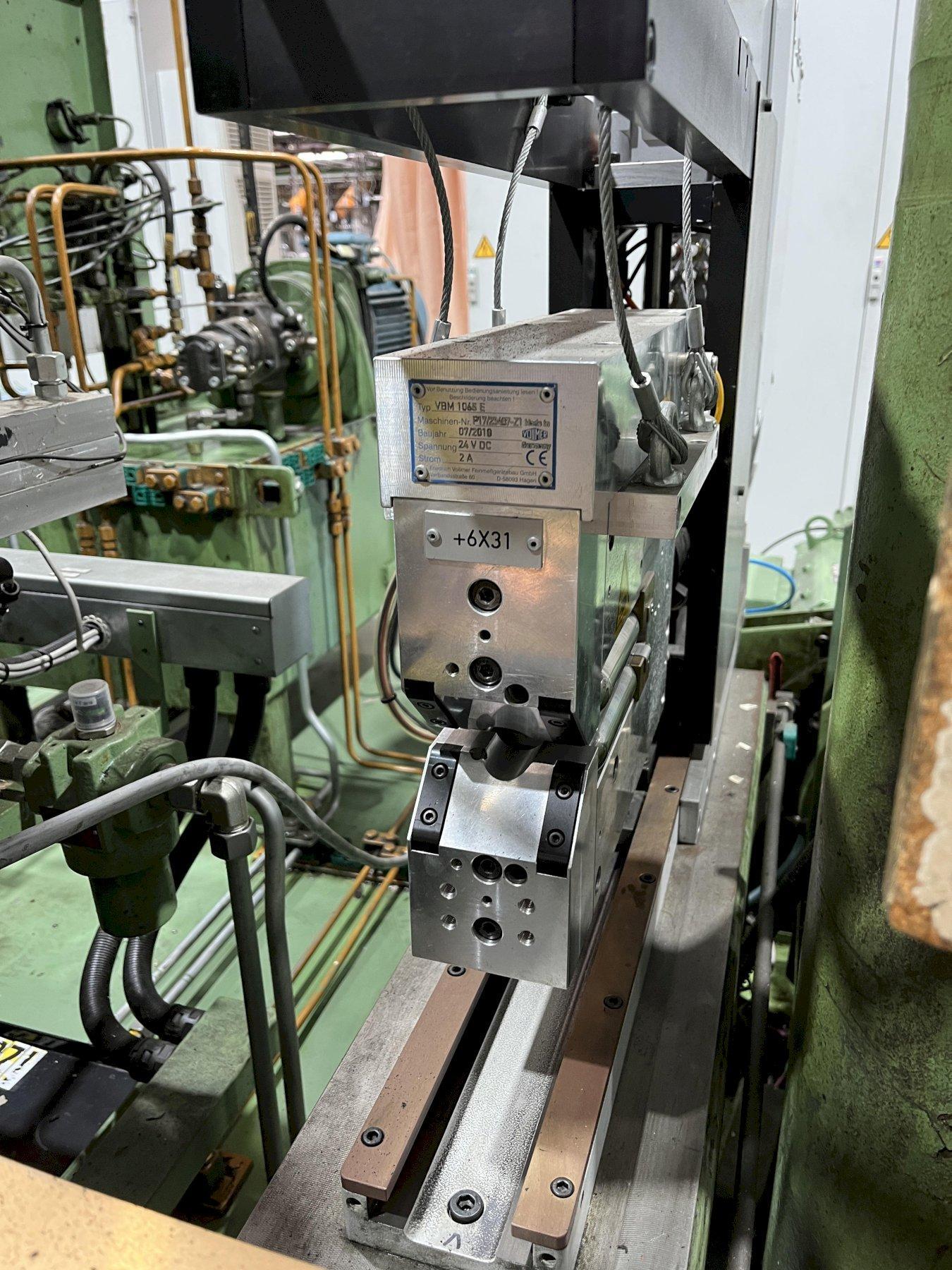

Vollmer VBM 1065 E Thickness Gauge, 2010

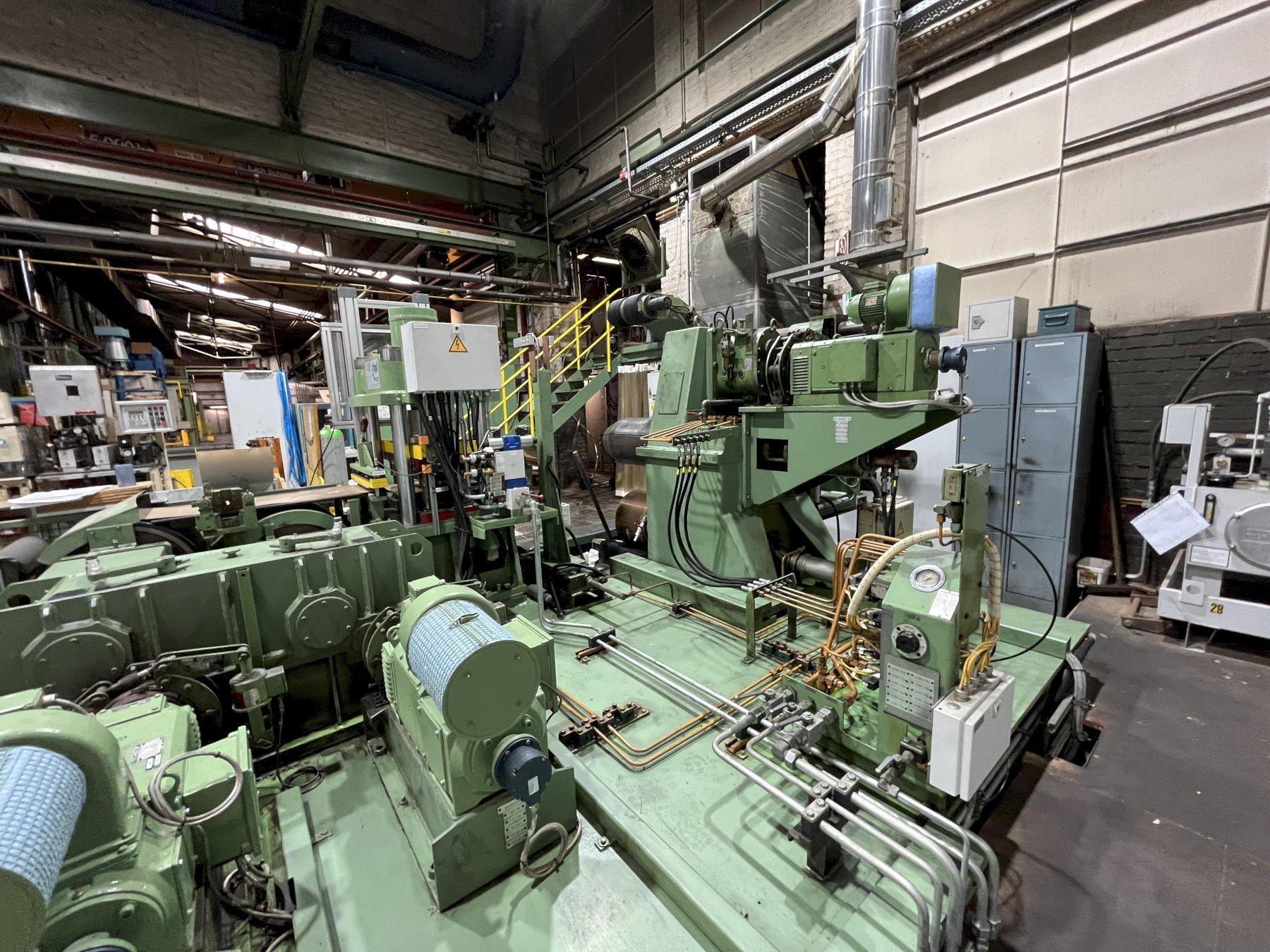

Bridle S-Roll Motors- set 2:

S-Roll 5: 24Kw DC

S-Roll 6: 48Kw DC

S-Roll 7: 6Kw DC

S-Roll 8: 12Kw DC

Conveyor belt below Roll set

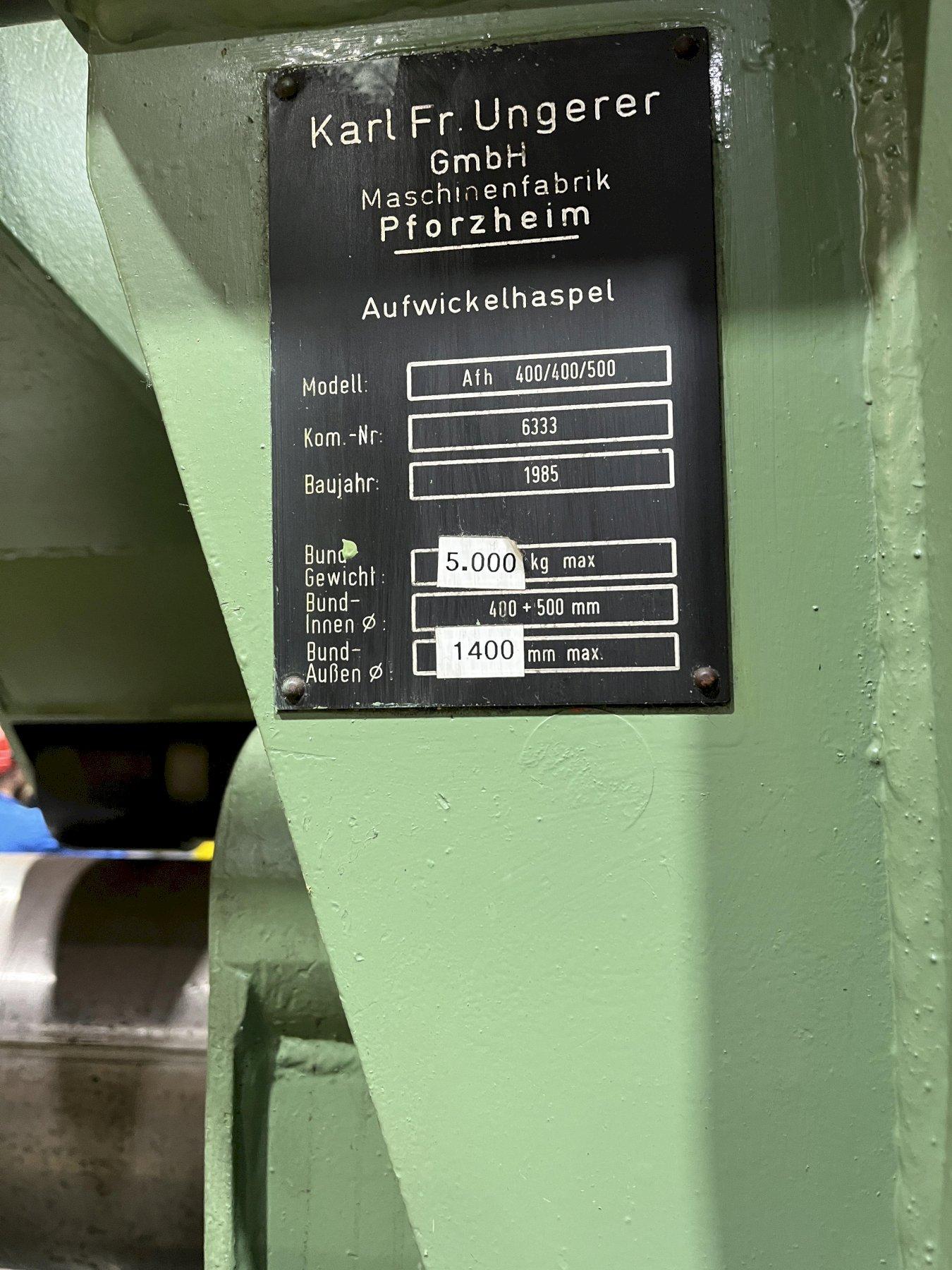

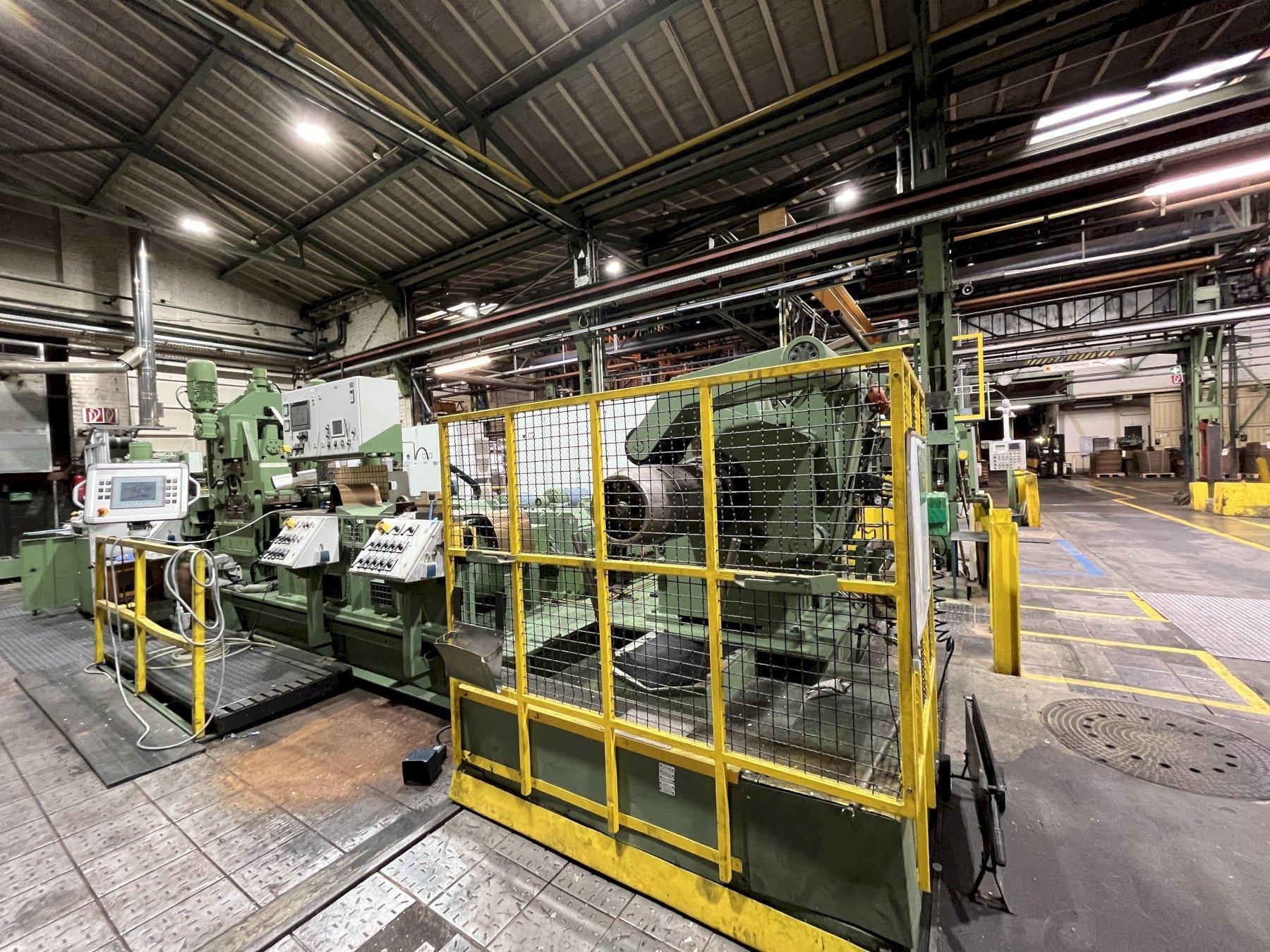

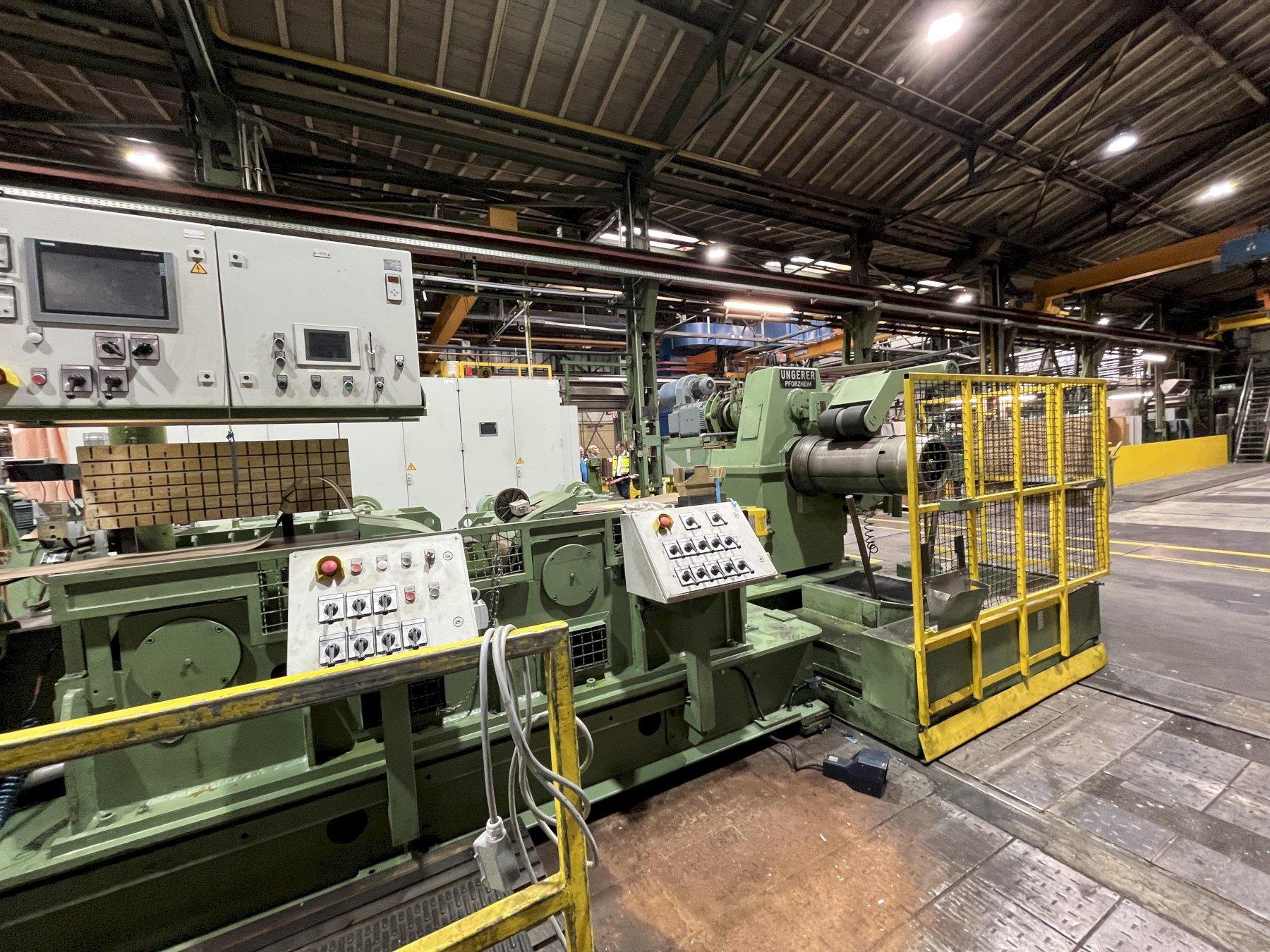

Re-coiling:

Capacity- 5ton with Coil Car

EMG edge control system

Winder drive: 12Kw DC

Snubber roll

Hydraulic push off plate
