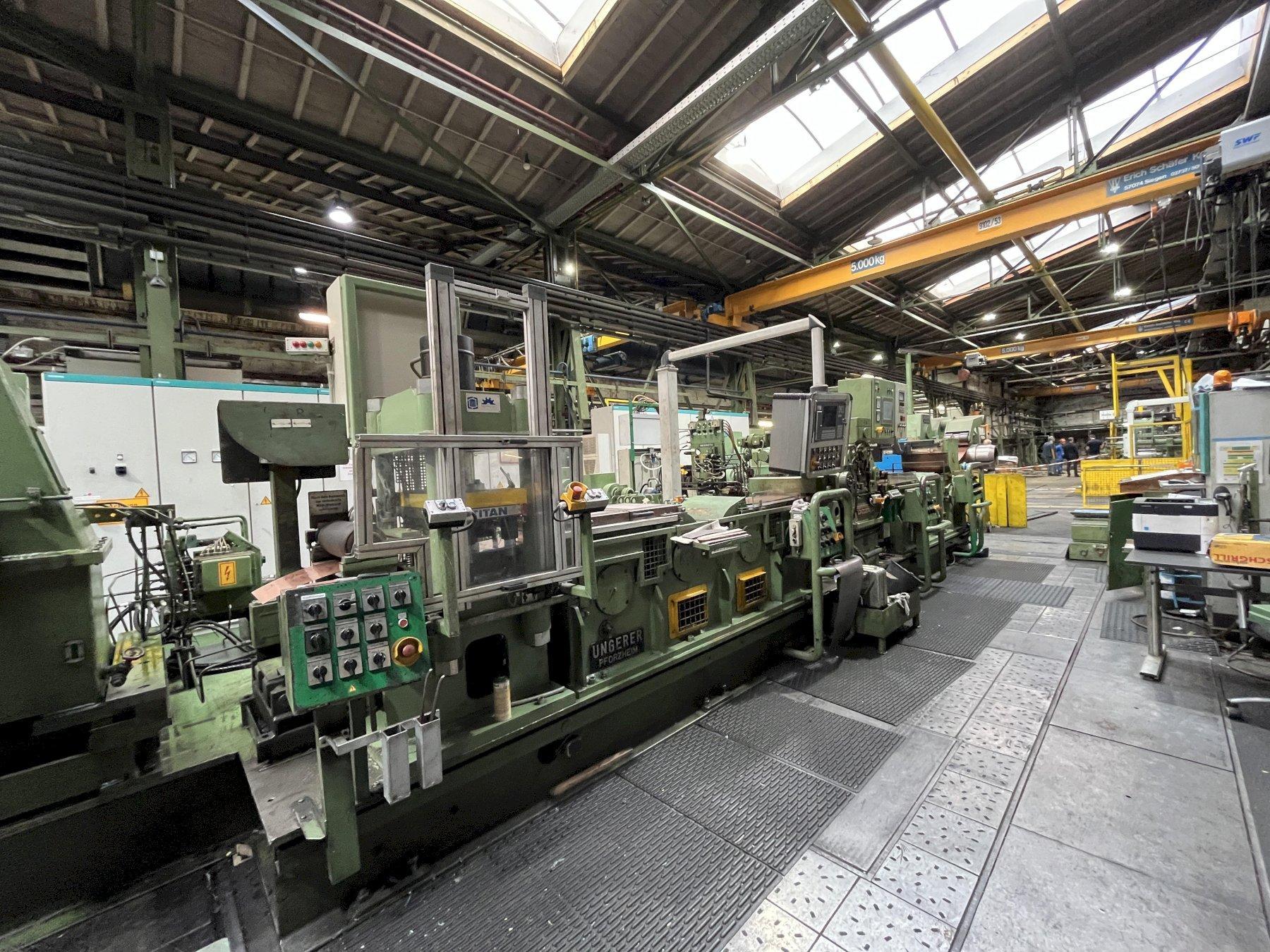

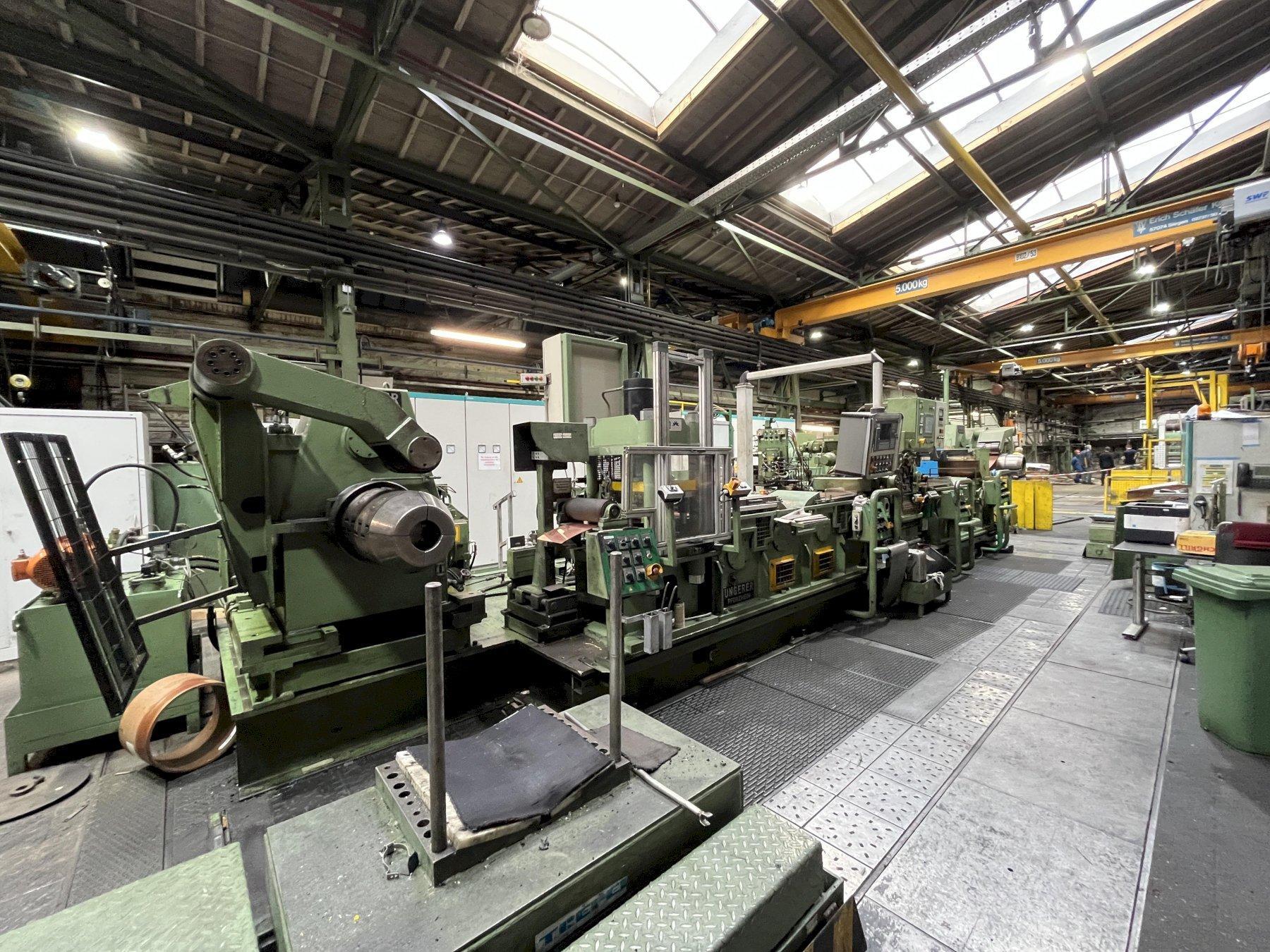

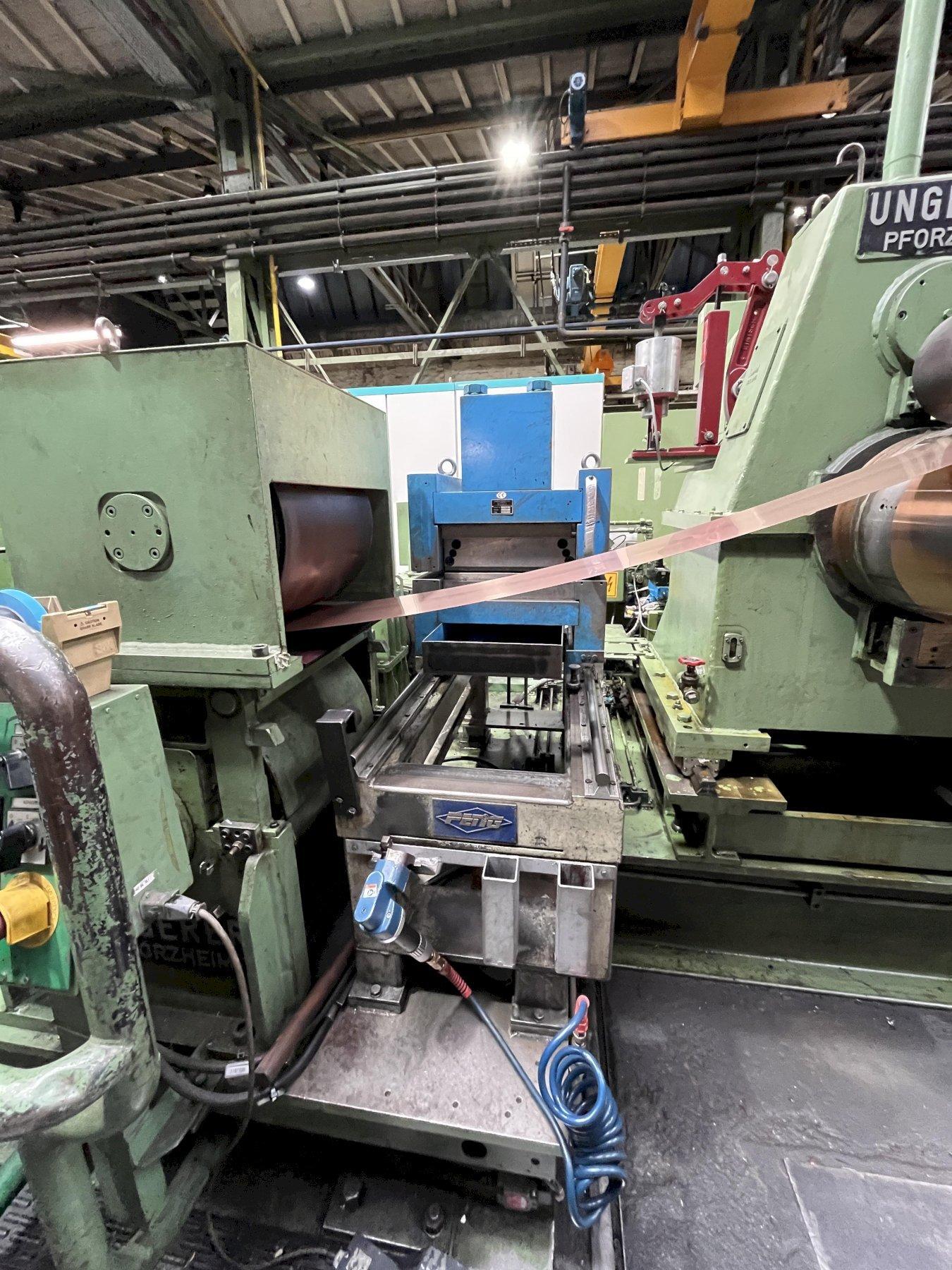

UNGERER STRETCH BEND LEVELING LINE
Brand
Category
Type
Model
Not specified
Stock #
117310
Year
Not specified
Condition
Used
Location
Not specifiedGermany
|
Ungerer Leveler: 2-High – 23 Work rolls
YOM: Originally 1983 – New leveling unit 1992
Direction: Left to right
Speed: 120m/min
Strip width: 250mm – 350mm
Max. coil weight: 5 ton
Max. coil OD: 1400mm (with coil lifter) / 1600mm (without coil lifter)
Coil ID: 400mm

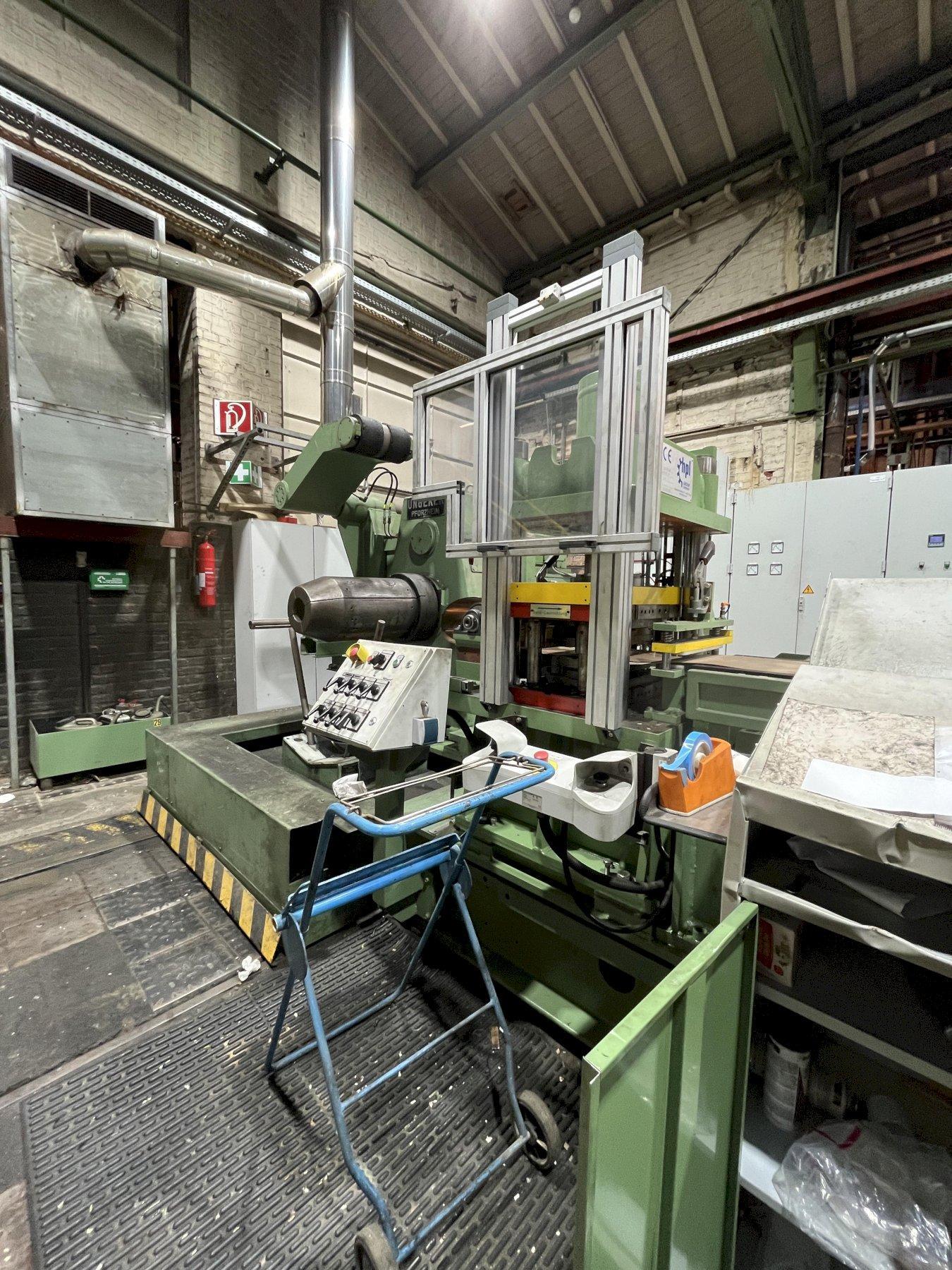

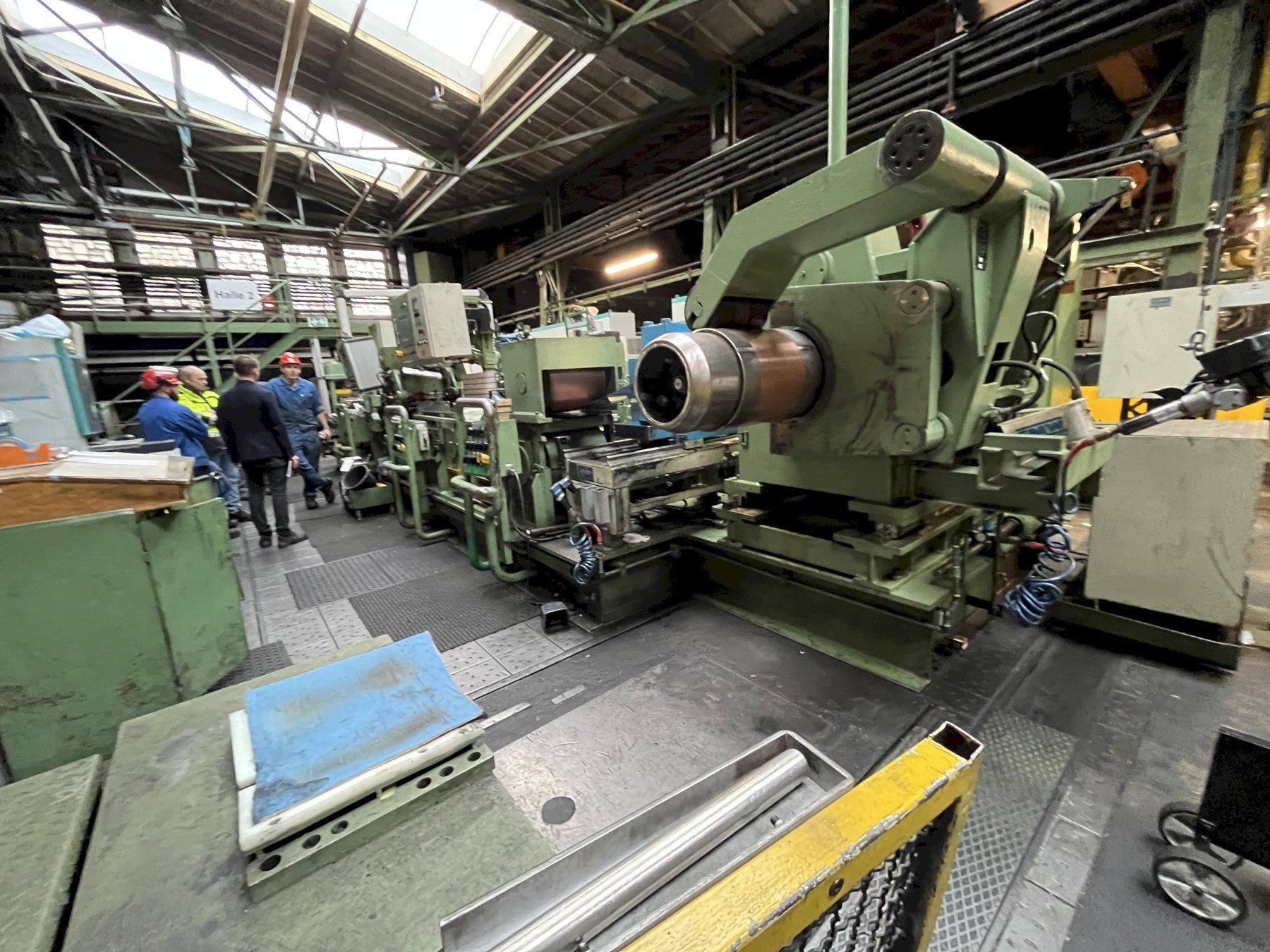

Pay-Off:

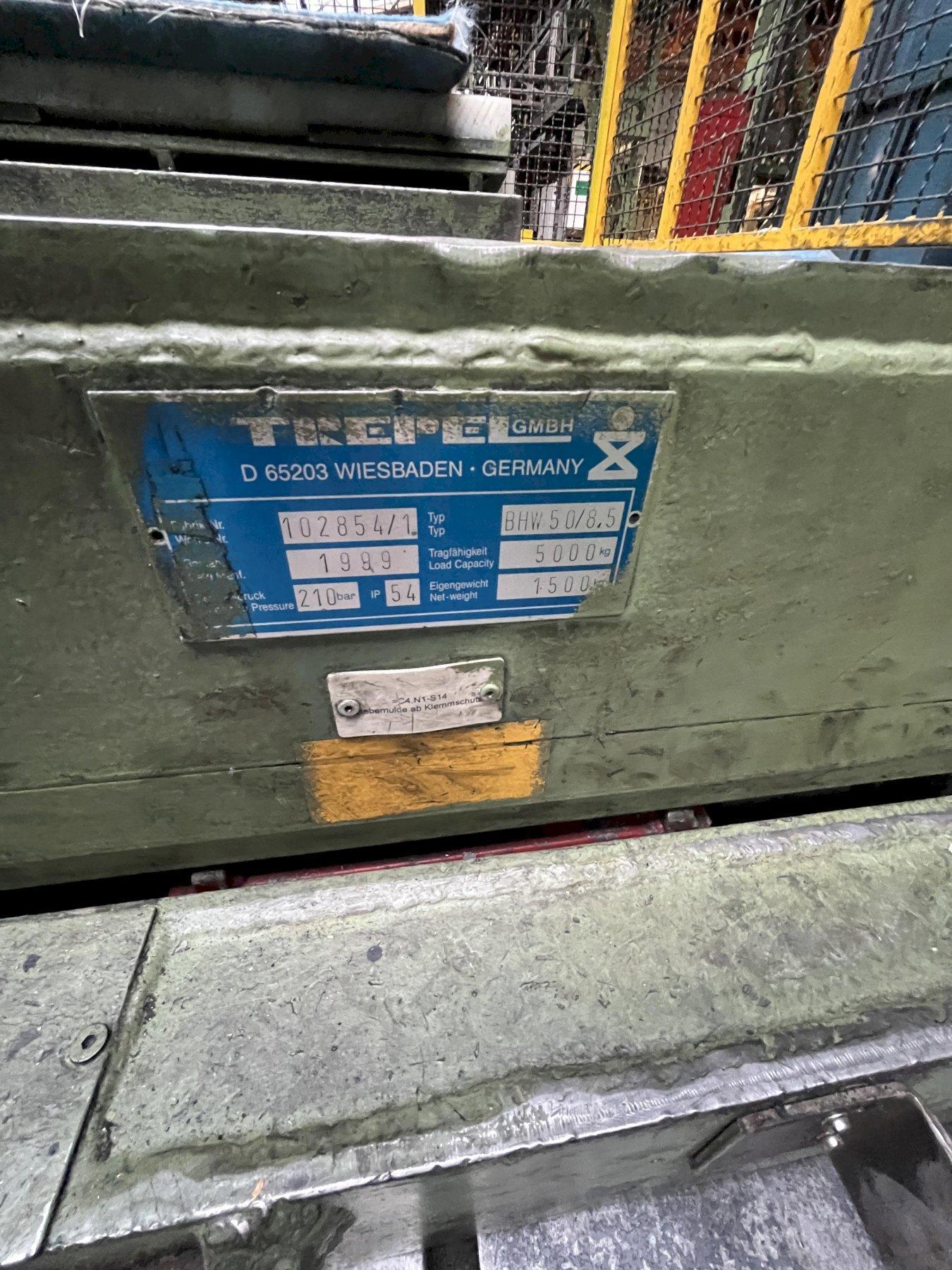

Trepel Germany 5 ton overground coil car – 1999
Speed measurement roll
2x Manual strip clamp

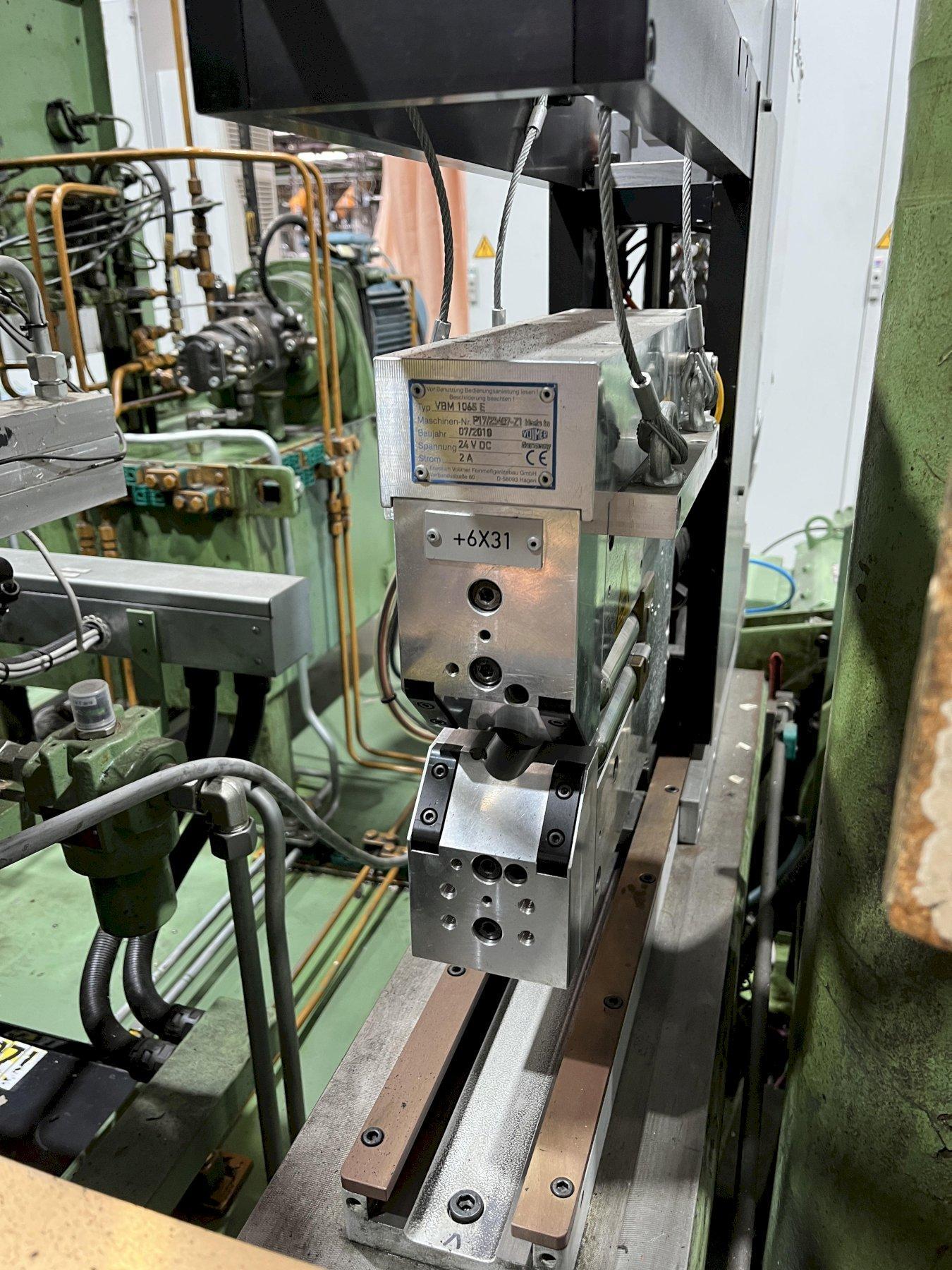

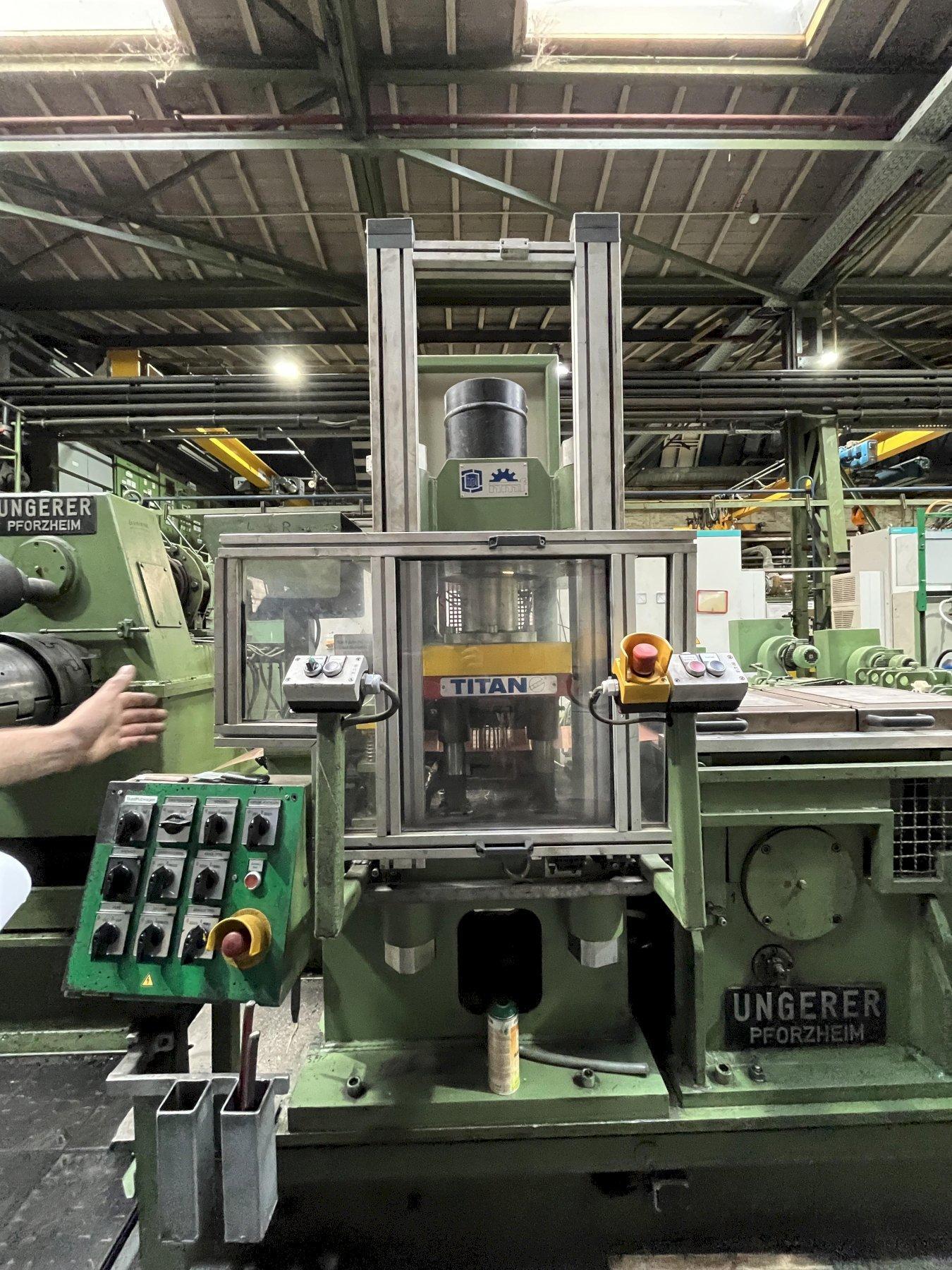

Titan/HPL stitcher
Recoiler drive 14Kw, DC

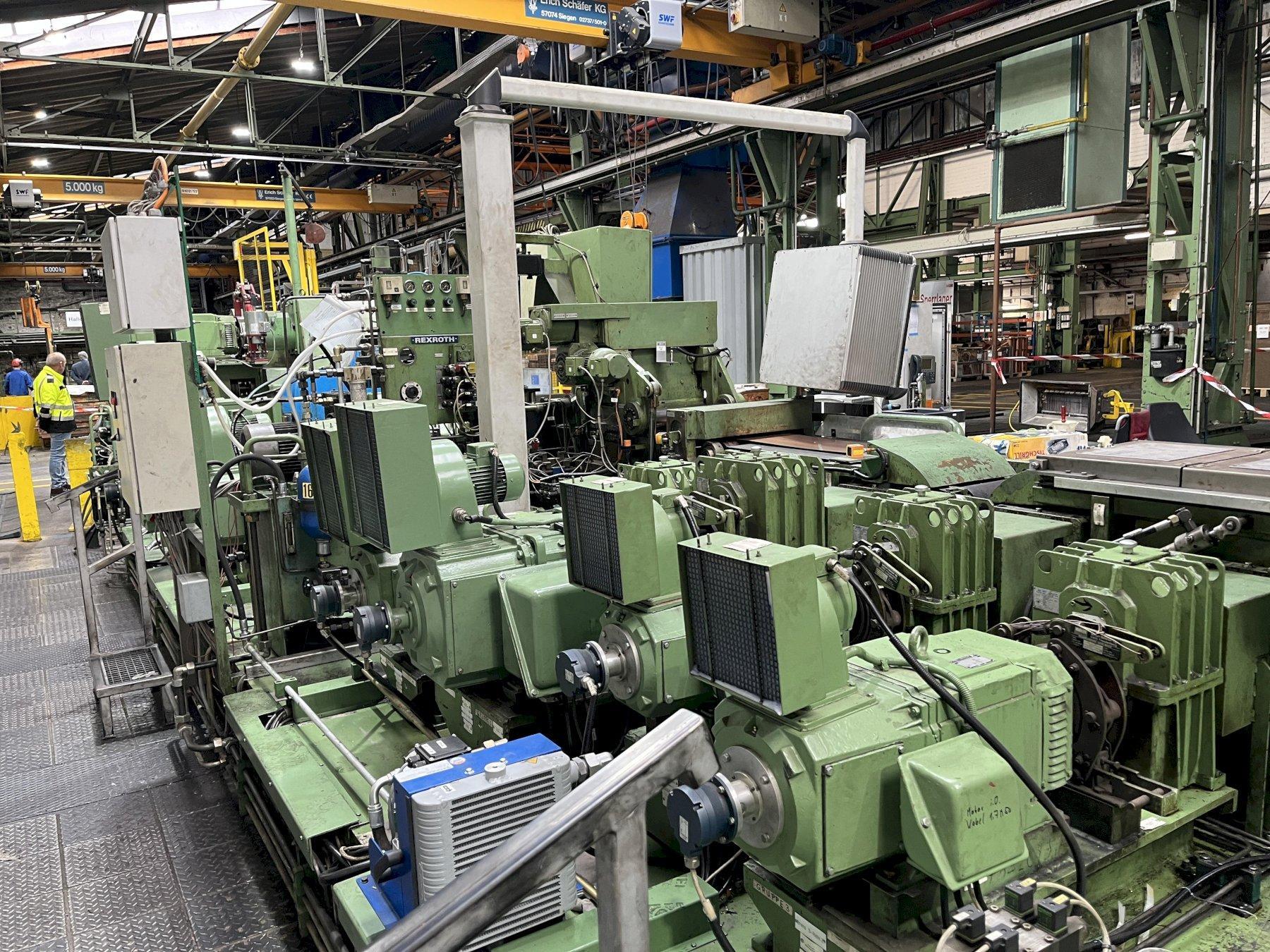

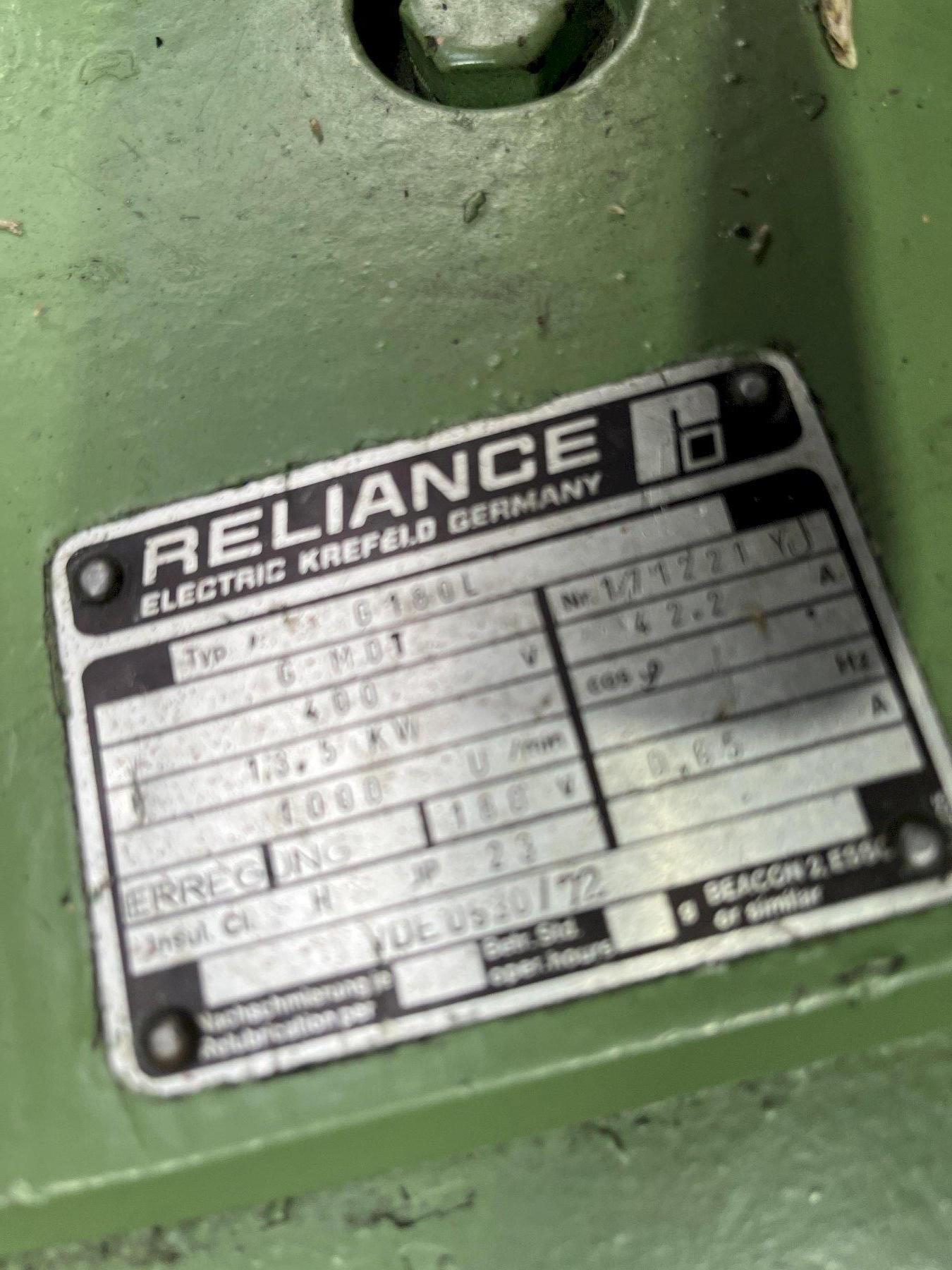

Bridle S Roll #1 Motors:
S-Roll 1: 6.4Kw DC
S-Roll 2: 3Kw DC
S-Roll 3: 27.8Kw DC
S-Roll 4: 13.5Kw DC
Conveyor belt below Roll set

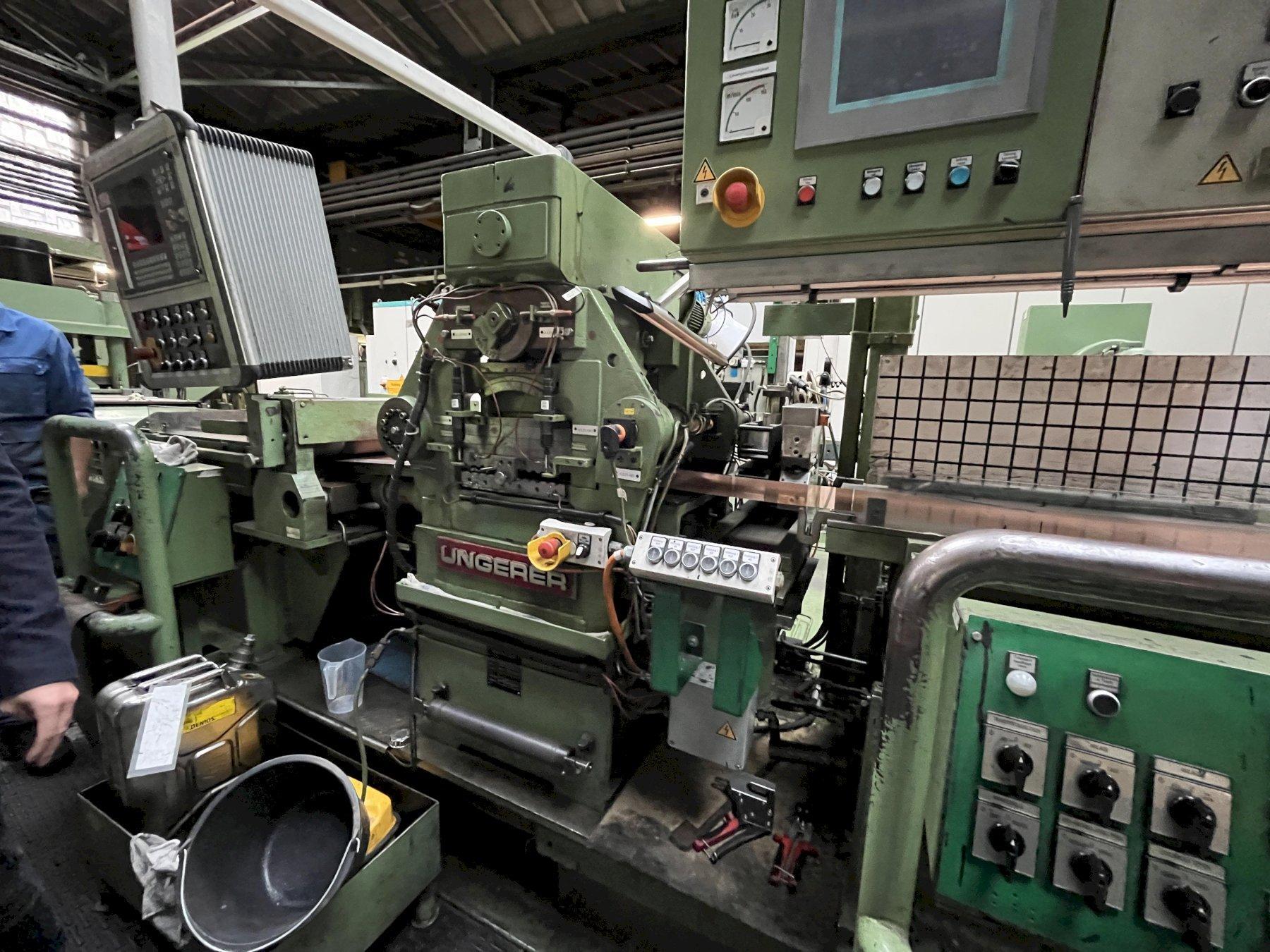

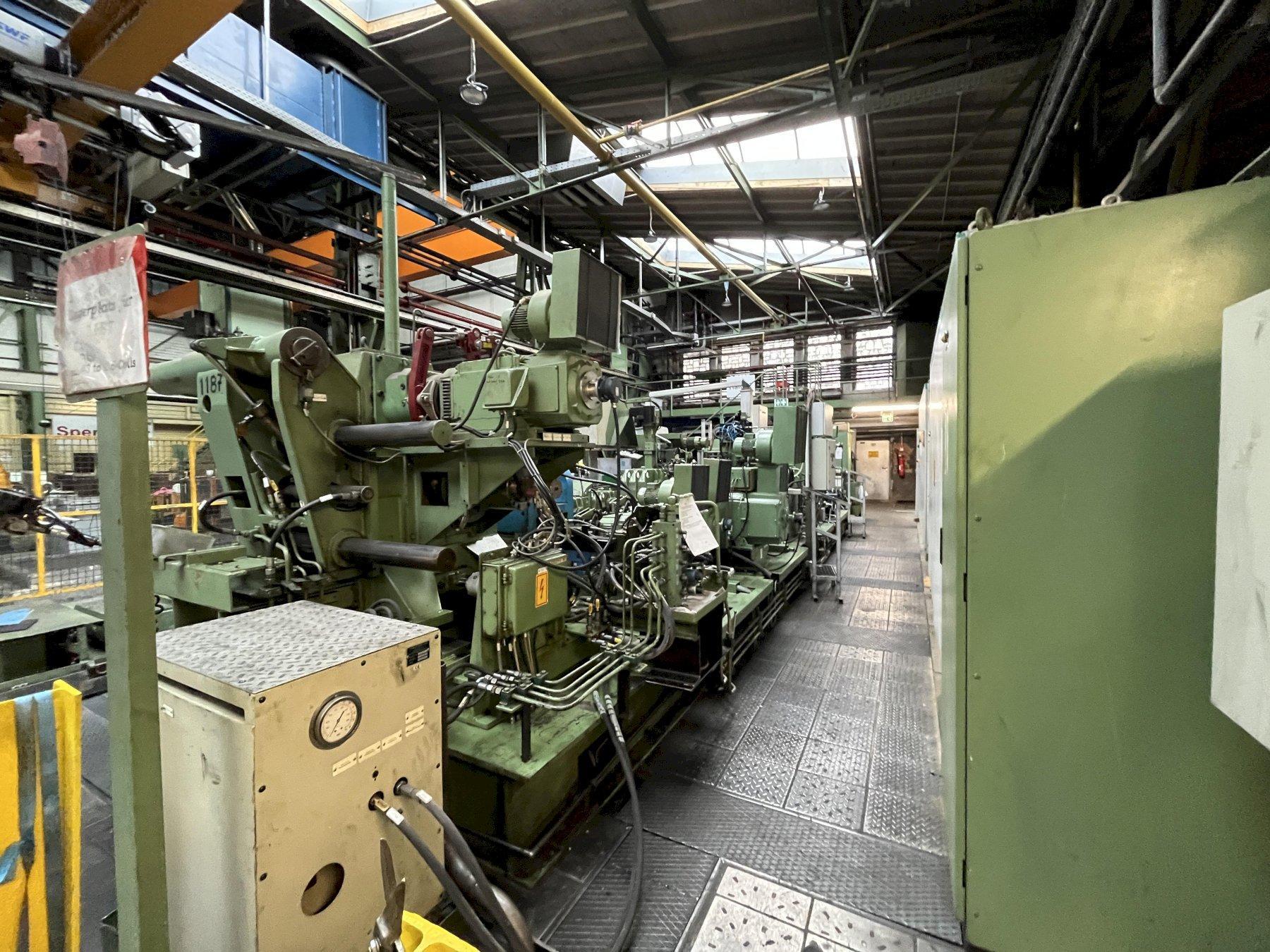

2-High UNGERER LEVELER
Model RR 340: 0 8/23
Number of work rolls: 23
Material tensile strength: 600/750 N/mm² (originally, maybe upgraded?)
Strip thickness: 0.08mm – 1.2mm
Work roll diameter: Cassette type 1: 12mm – type 2: 16mm
Number of cassettes: 16mm: 3 cassettes – 12mm: 2 cassettes
Number of wedge control cylinders per side: 3
Vollmer 1285/P83 measurement device with VMF2000 transducer at exit side

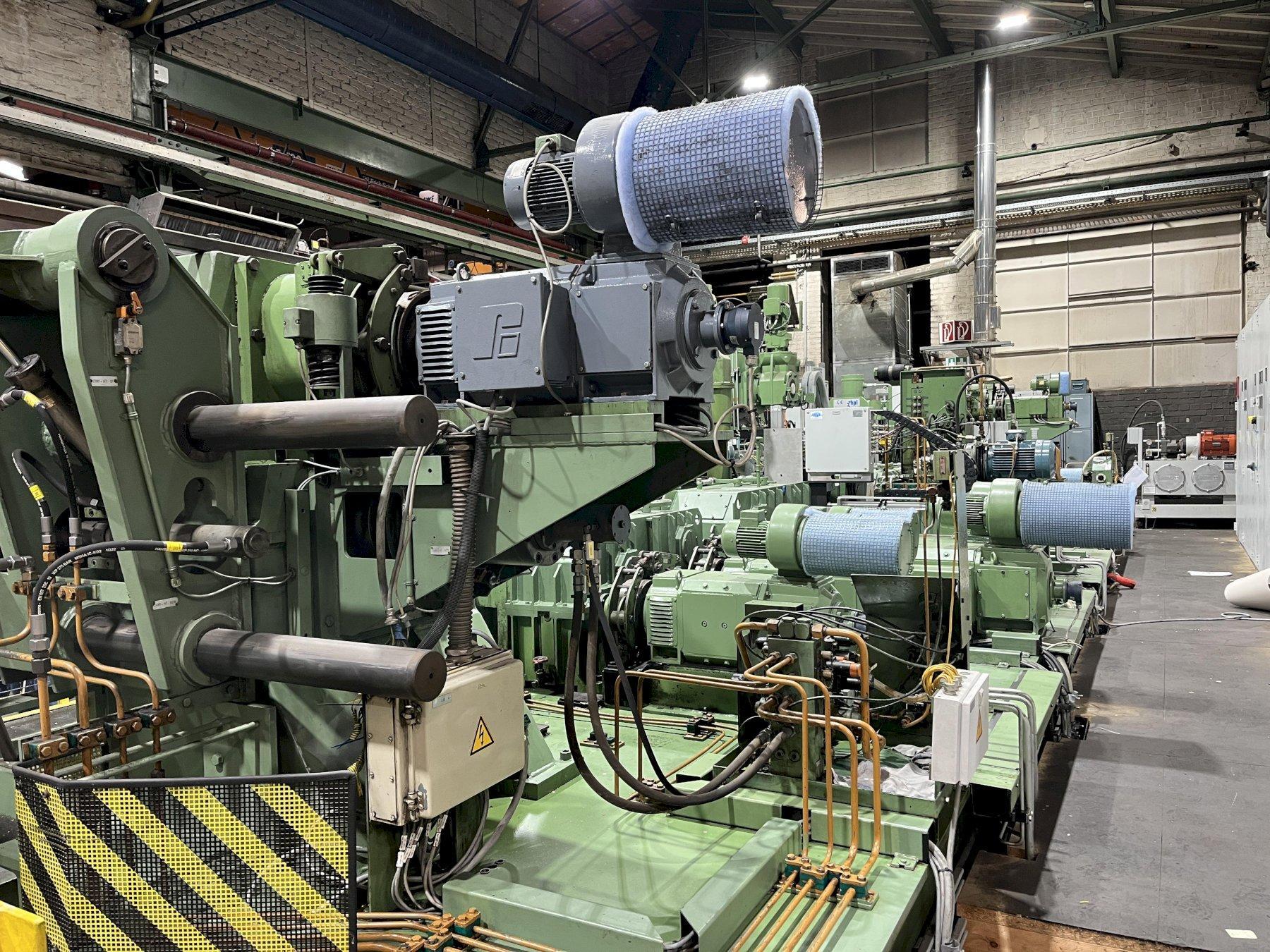

Bridle S-Roll #2 Motors:
S-Roll 5: 38.5Kw DC
S-Roll 6: 74.5Kw DC
S-Roll 7: 9.6Kw DC
S-Roll 8: 19.2Kw DC

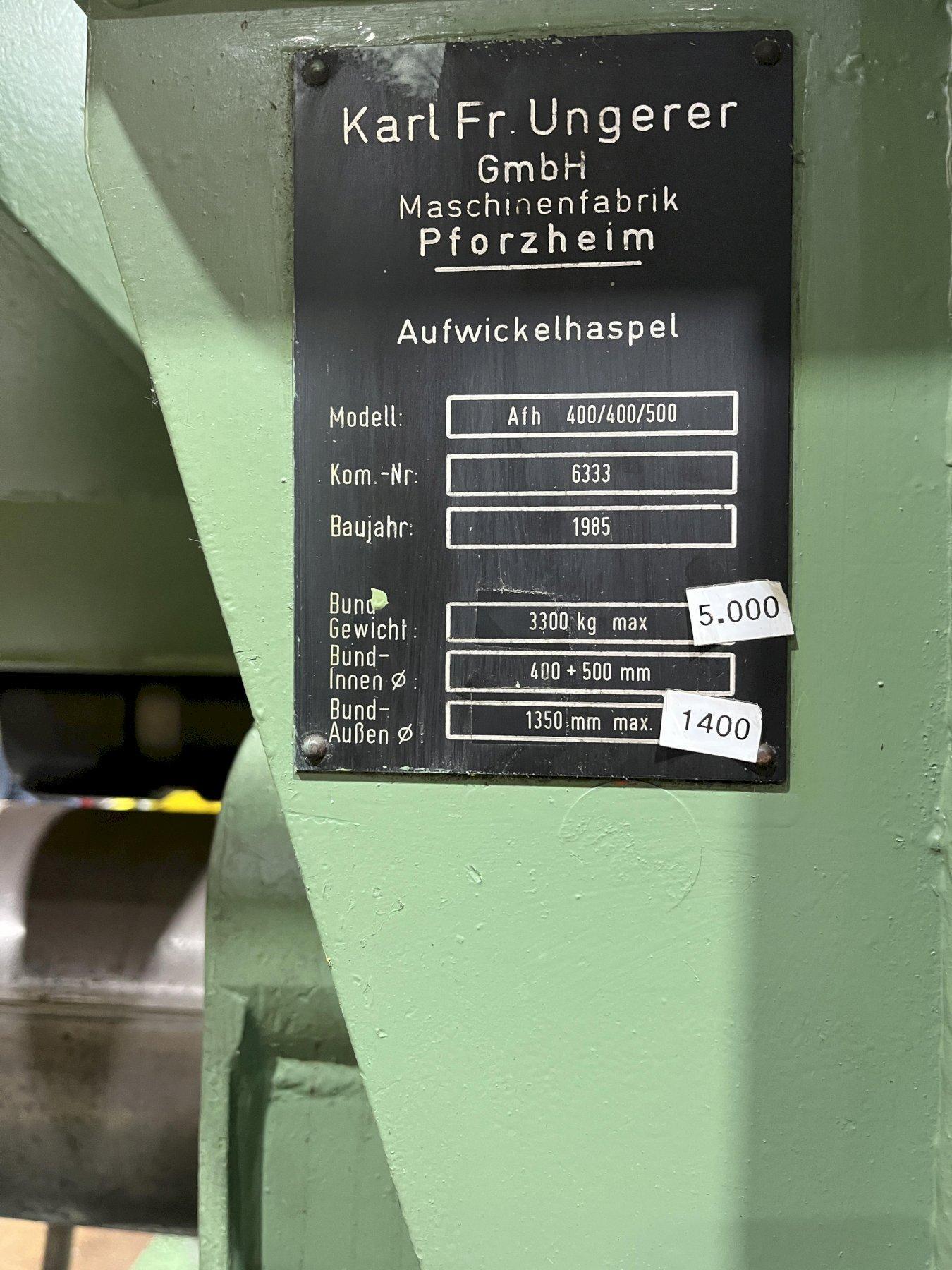

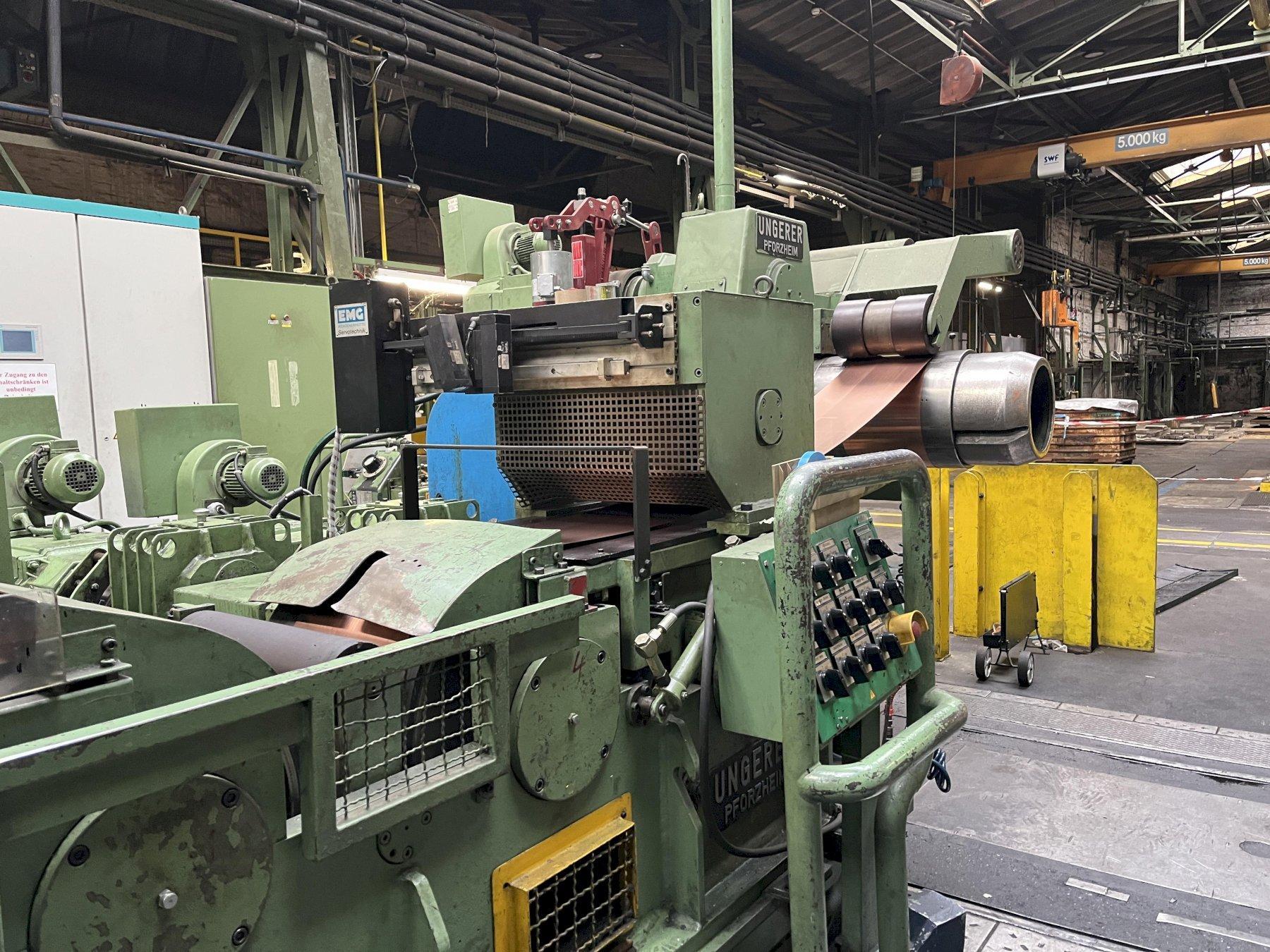

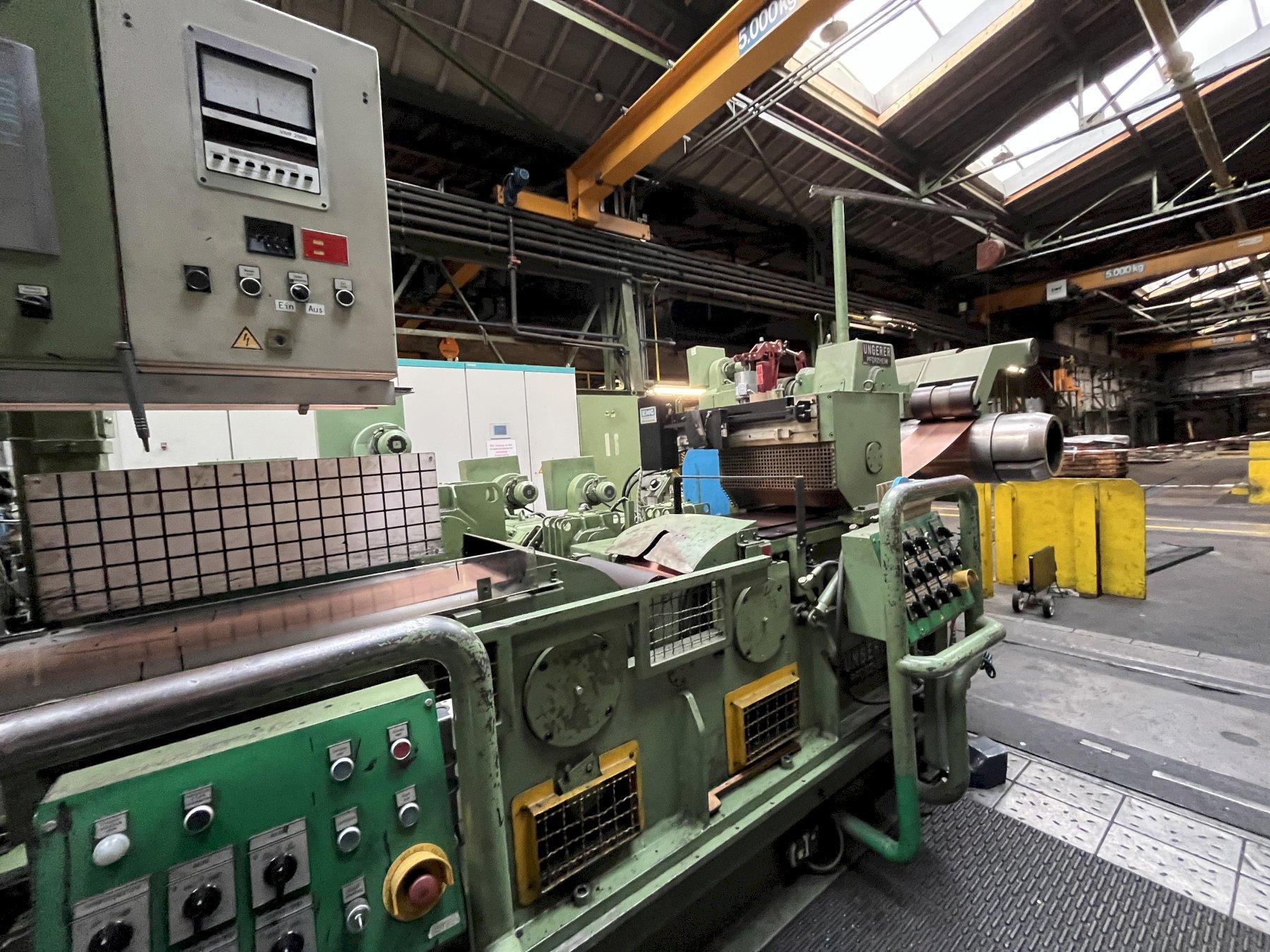

Re-coiling:
TREPEL Germany 5ton
Coil car – 1999
Friedrich Petig probe stamp
EMG edge control system
Recoiler drive: 12Kw DC
Snubber roll
Hydraulic push off plate |
