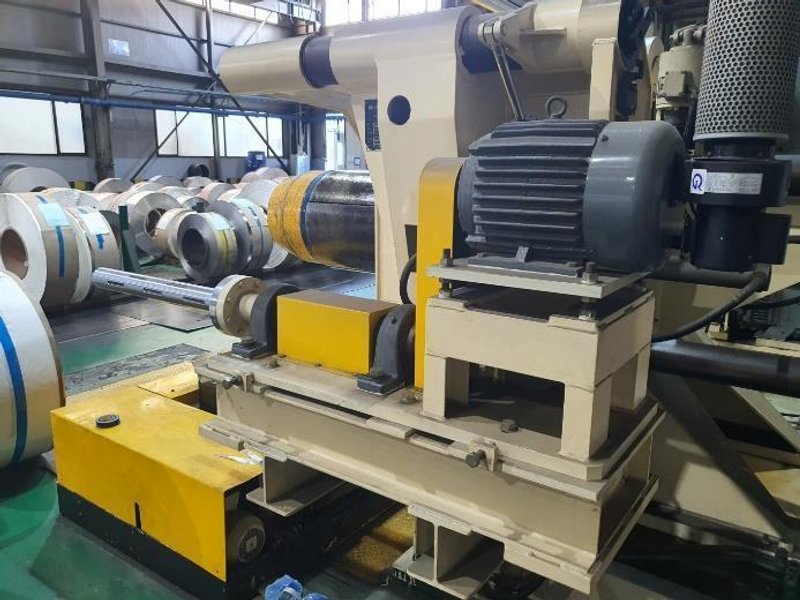

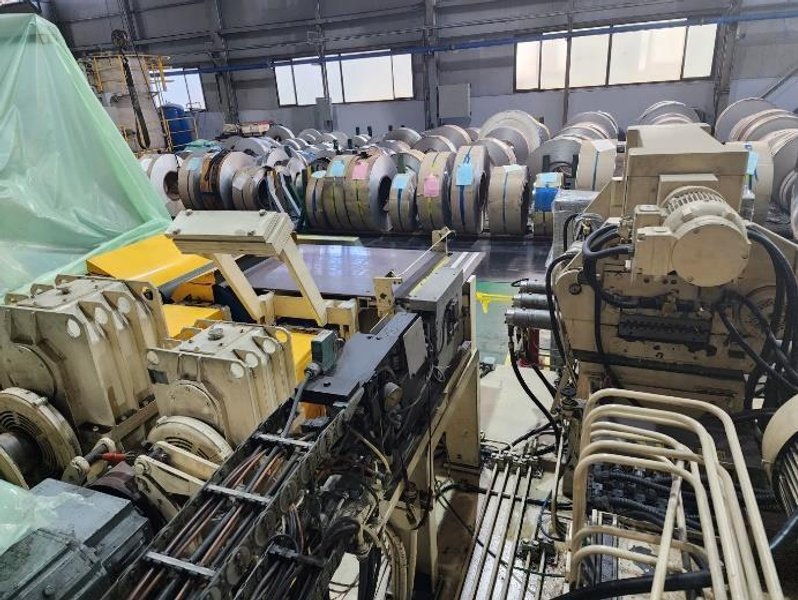

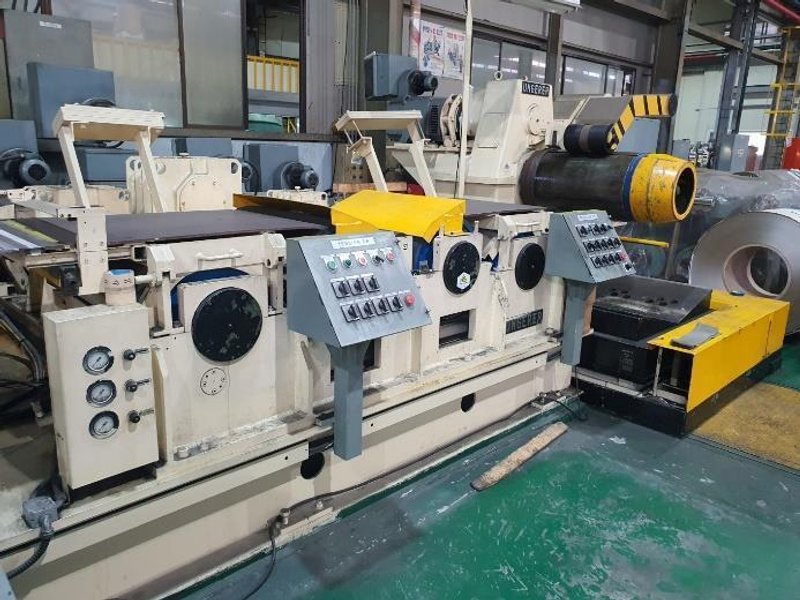

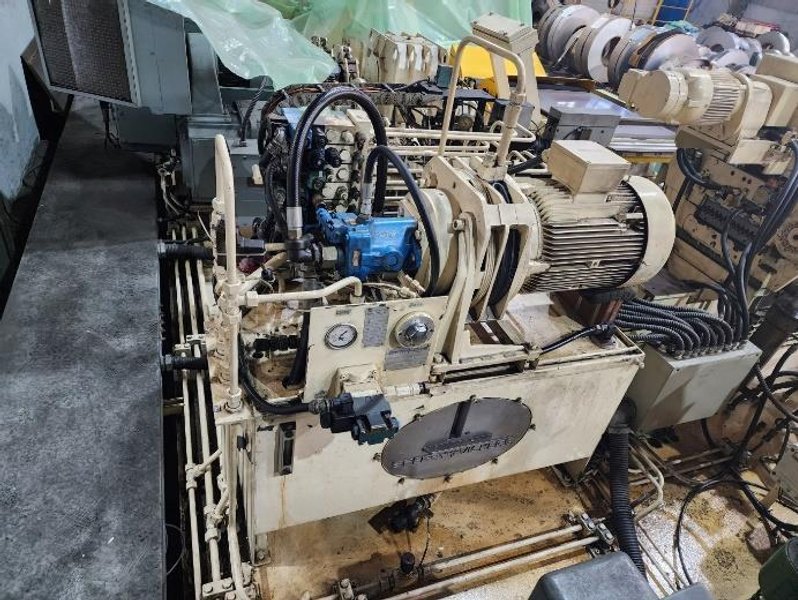

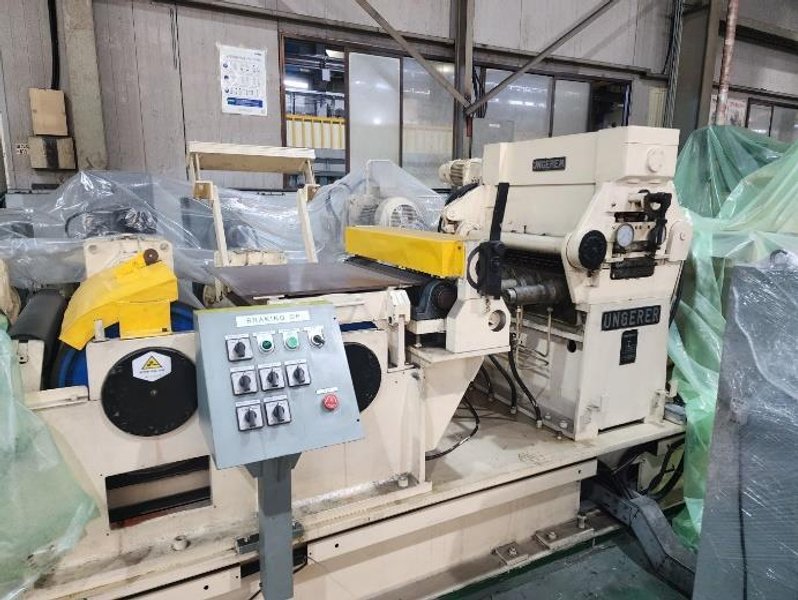

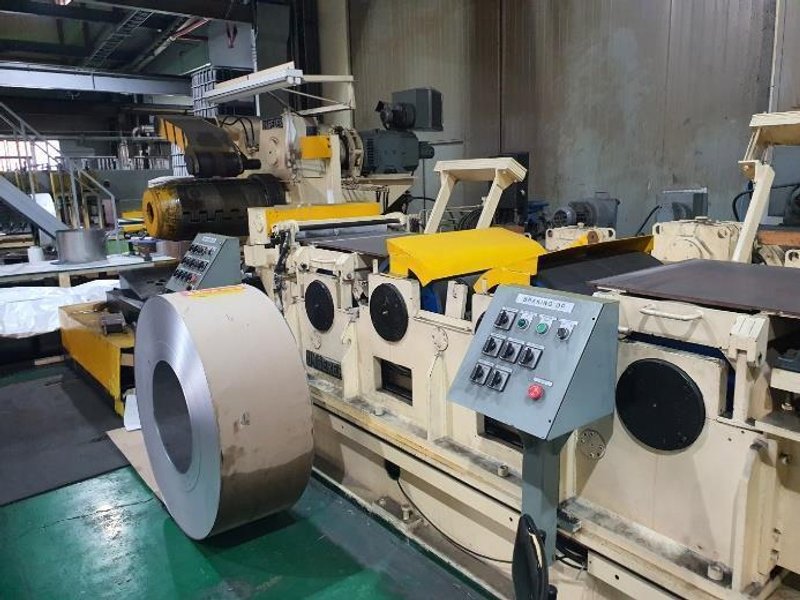

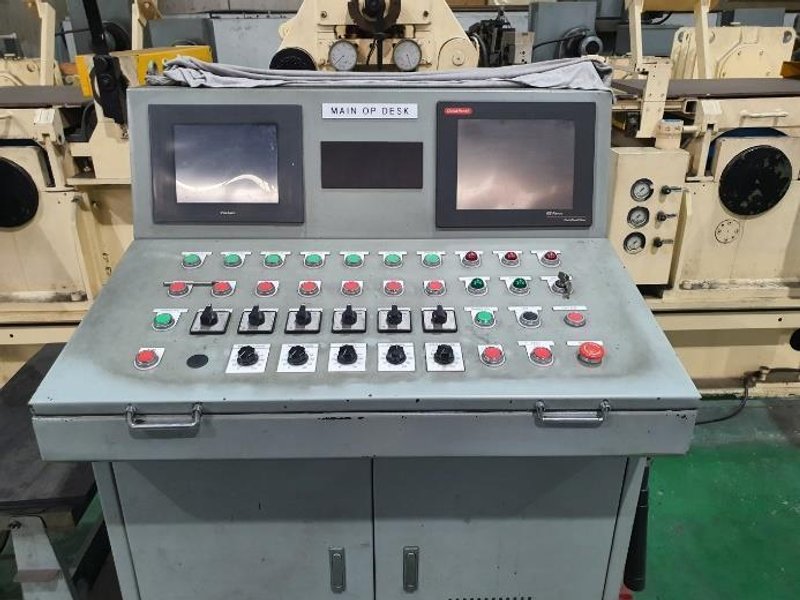

UNGERER 550mm (22") STRETCH/TENSION LEVELING LINE (14337)
Brand
Category
Type
Model
550mm (22") TENSION LEVELER
Stock #
14337
Year
Not specified
Condition
Not specified
Location
Not specified
|
550mm UNGERER STRETCH/TENSION LEVELER

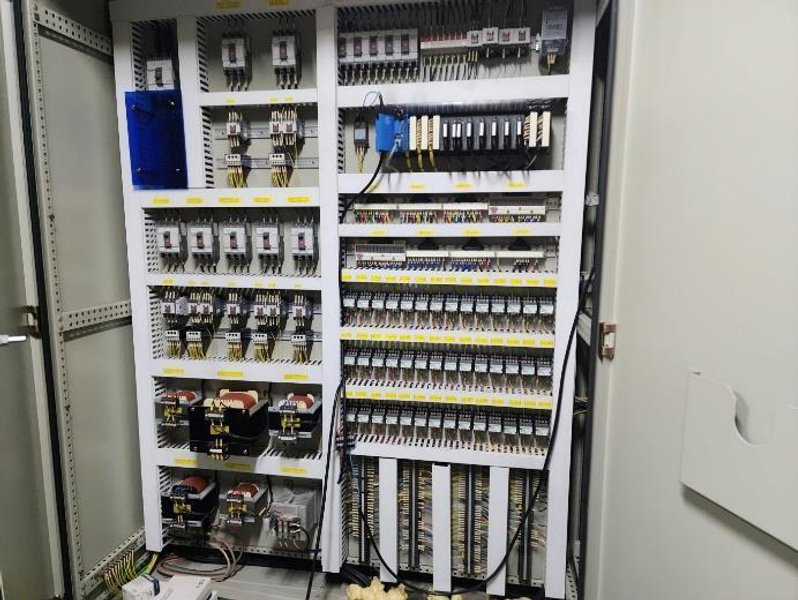

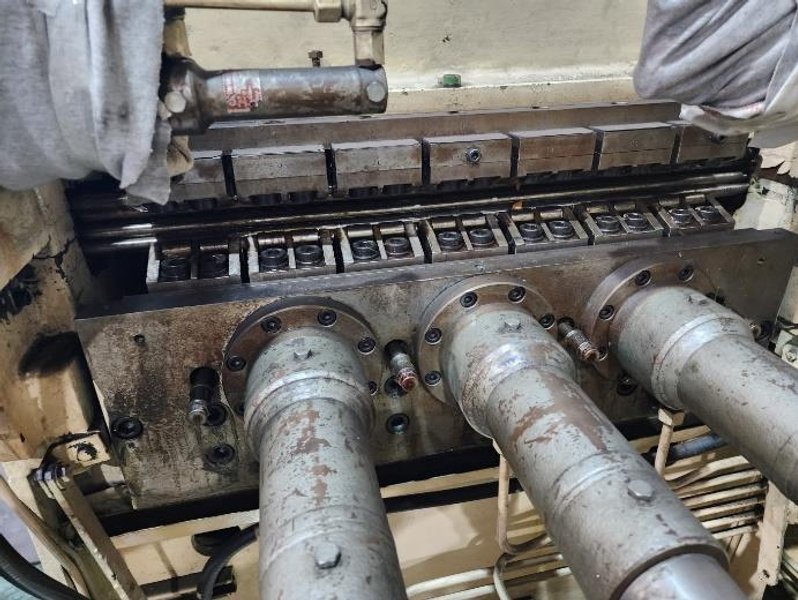

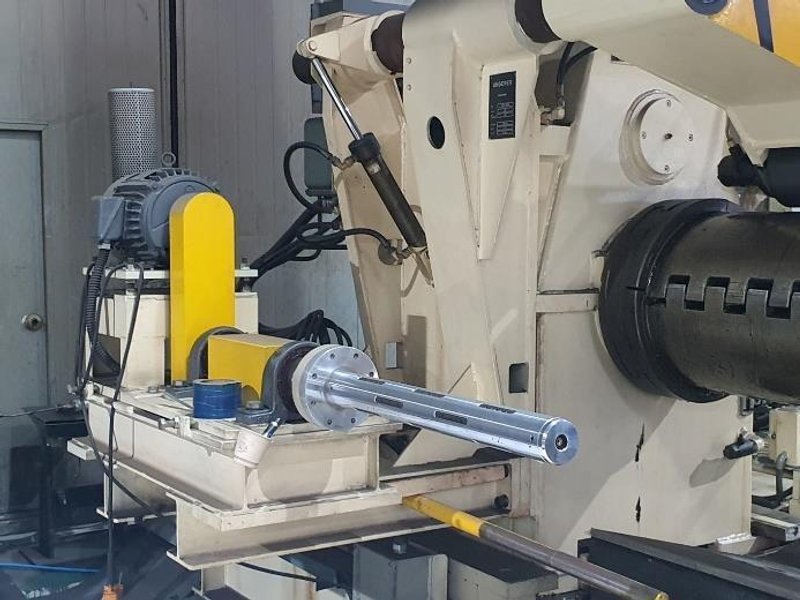

Stock # 14337 Materials : Stainless steel Copper ,Copper alloy and mild steel Maker: Ungerer Built : 1984 Revamped:2013 Last modification :2013 All electricals were replaced with new ones Korean brand Line speed : Max 150m/min, 120 m/min average product speed Material width : Max 550mm,Normal 450mm width actual product for soft stainless steel Gauge range : Max: 0.7mm, Min 0,07mm [ Average actual product: 0,6 0,1 mm] Entry coil ID : 508Φmm Exit coil ID: 508Φmm Exit coil OD :1350Φmm Forward tension: 130,000psi [Product tension: 0,3-0,4 %] Max coil weight : 5 500KG UNGERER Leveller Stretch Work Roller : 20320 mm x 760mmLong x 23 roller Intermediate roller : 15240 mm Back up roller : 20,32 0mmx27Wmmx11 rollx2strand x 14 block Tension Bridle roller Gauge control : 5000 mm x 700Wmm Gauge control :VOLLMER Point contact Power motor : Reliance drive motor, Parker DC drive pack Uncoiler : DC15kw Back ward Tension Bridle: #1 DC14kwz #2 DC7kwz #3 DC56kwz #4 DC28kw/1490RPM Forward Tension Bridle Recoiler : #1 DC32kw, #2 DC16kw, #3 DC130kwz #4 DC65kw/1490RPM Recoiler : DC20kw Line direction : Left to Right Line area : 6,000mm X13,000mm Electric power source : AC440volts x 3Phase x 60Hz And some some spare parts : List of spare parts will be advised upon request Currently on foundation with power off **Temporary Specifications Subject to Revisions** **PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE** **ALL SPECIFICATIONS ARE SUBJECT TO BUYERS VERIFICATION** |
