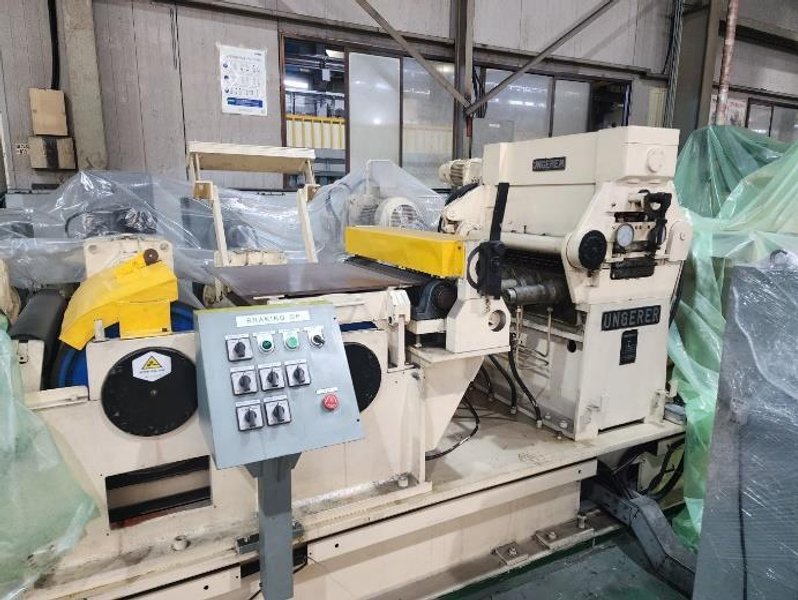

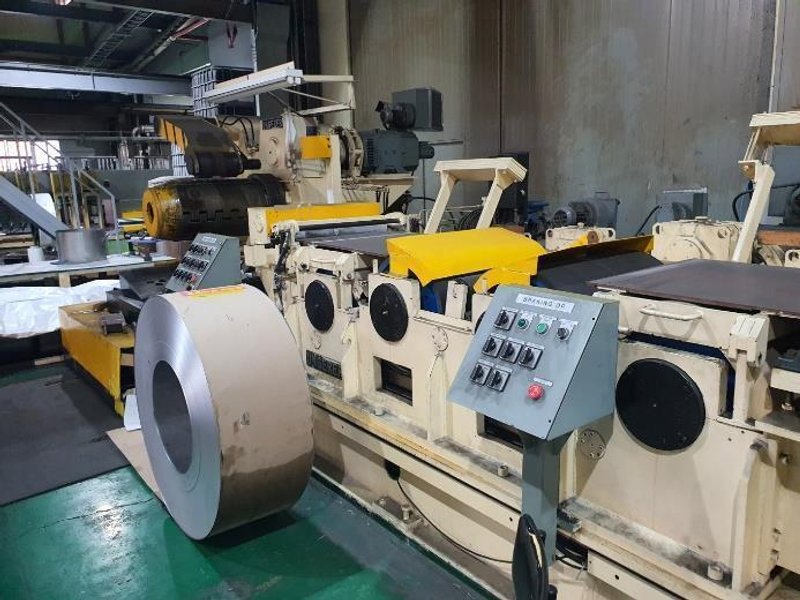

UNGERER 700mm (27.5") TENSION LEVELER (14400)

700mm Ungerer Tension Leveler
Stock # 14400

Maker                               UNGERER
Built                               1984
Reinstalled                         2013

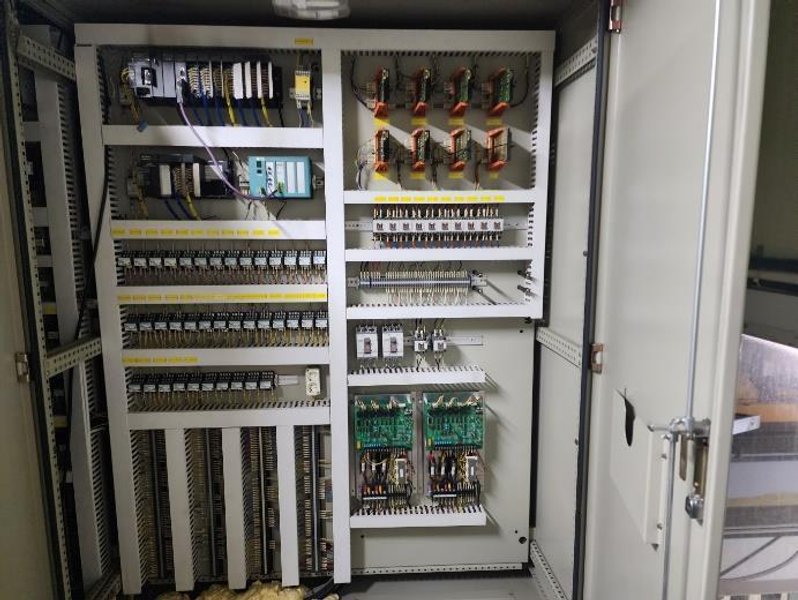

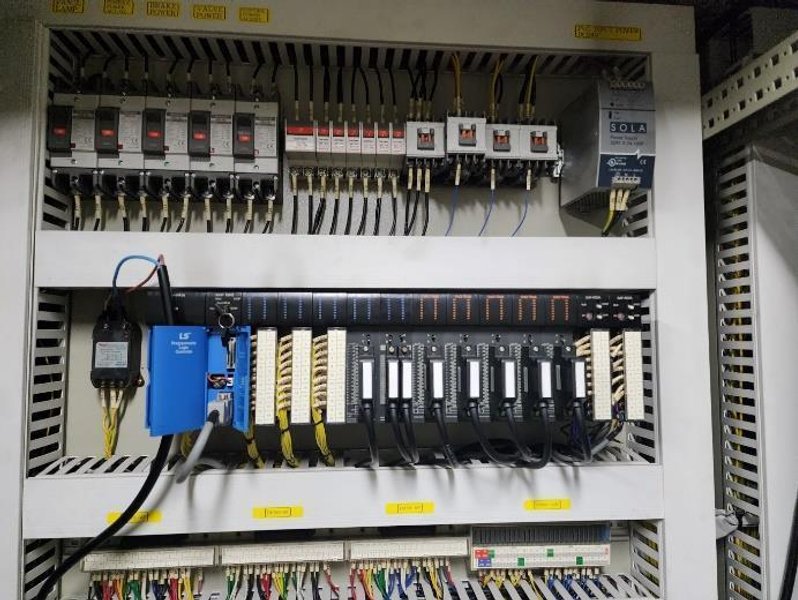

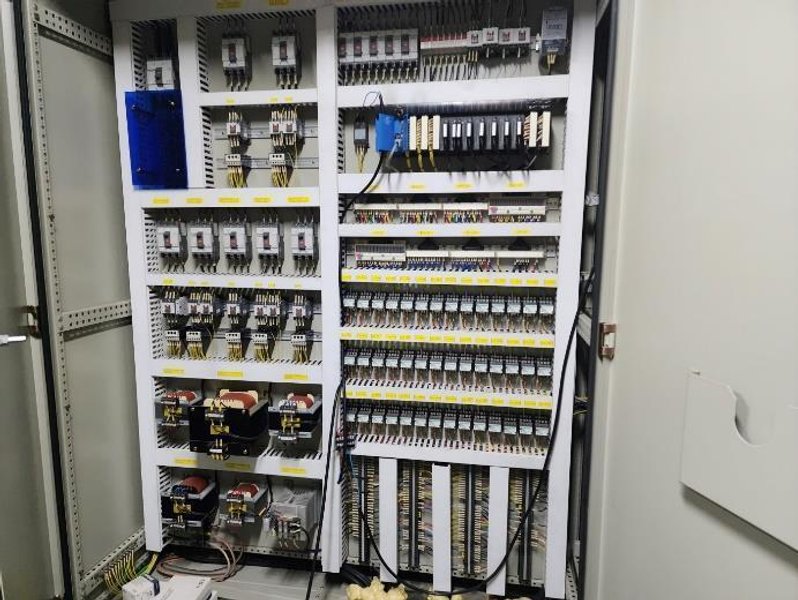

Last modification                   2013 All Electric controller
                                    by New, Korean Brand
Line speed                          Max 150m/min, 120 m/min average
                                   product speed
Material width                     Max 550mm,Normal 450mm width actual
                                   product for soft stainless steel
Gauge range                        Max: 0.7mm, Min 0,07mm [Average
                                   actual product : 0,6 – 0,1mm]

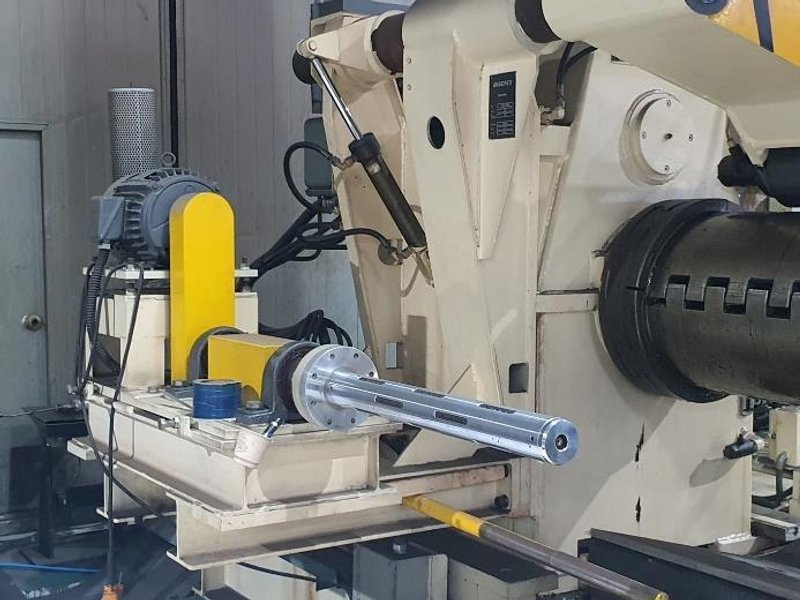

Entry coil ID                      508Ømm
Exit coil  ID                      508Ømm
Exit coil  OD                      1,350Ømm
Forward tension                    130,000psi
                                   [Product tension: 0,3-0,4 %]
Max coil weight                    5,500KG

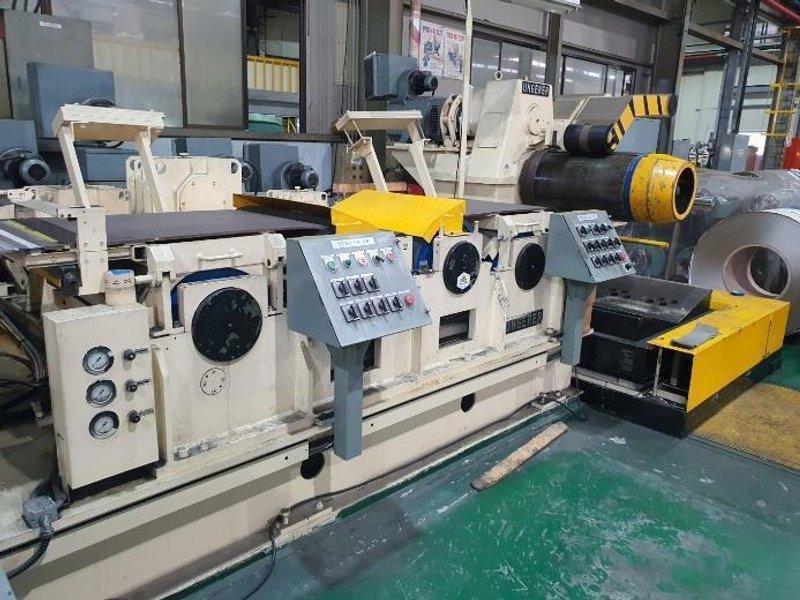

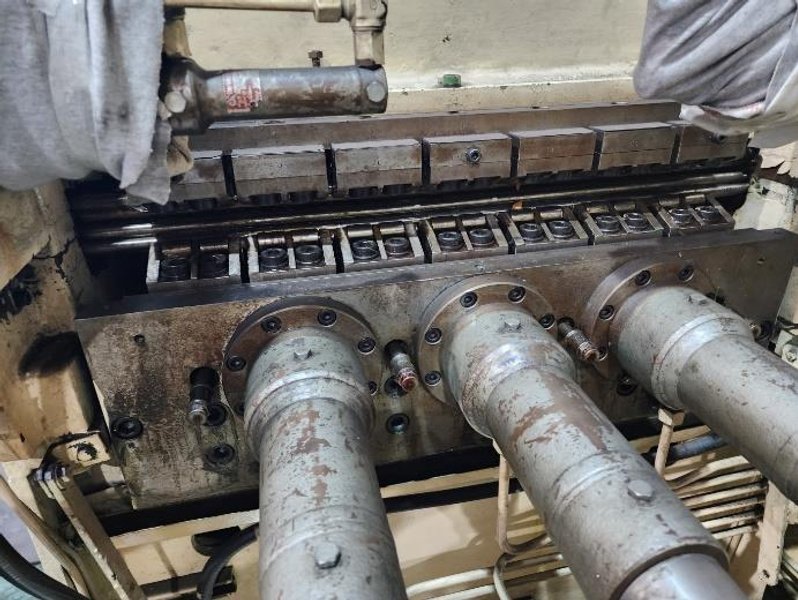

UNGERER Leveller
 Stretch Work Roller               20,32Ømm x 760mmLong x 23 roller
 Intermediate roller               15,24Ømm
 Backup roller                     20, 32Ømm x 27Wmm x 11 roll
                                   x 2 strand x 14 block
Tension Bridle roller              500Ømm x 700Wmm
Gauge control                      VOLLMER Point contact
Power motor                        Reliance drive motor,

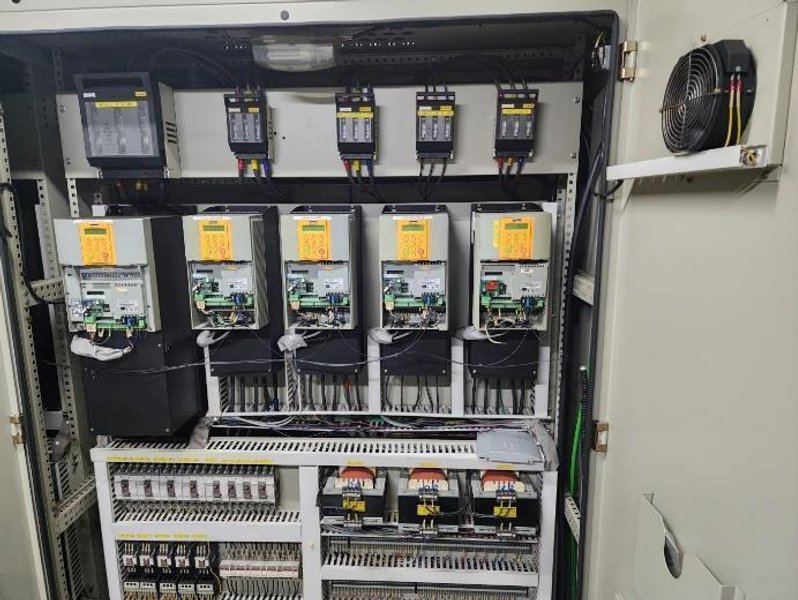

                                   Parker DC drive pack

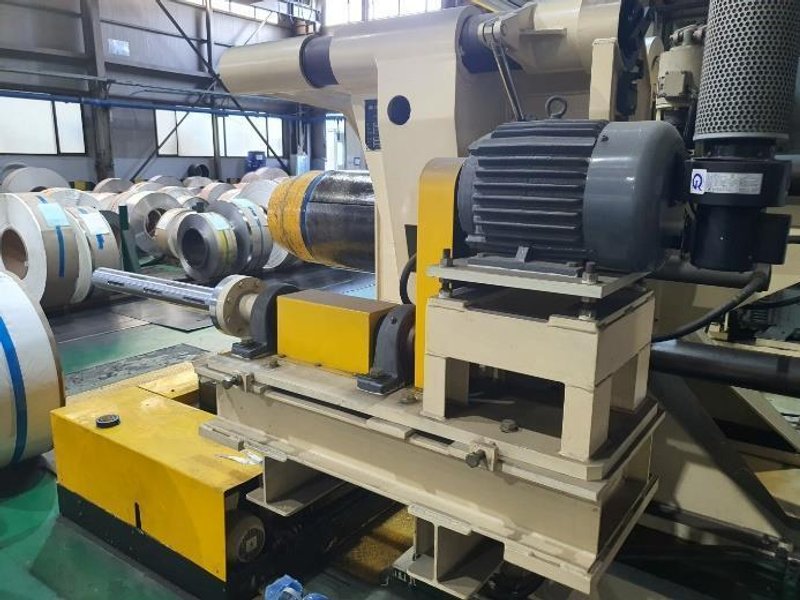

 Uncoiler                          DC 15kw
 Back ward Tension Bridle          #1 DC14kw, #2 DC7kw,
                                   #3 DC56kw, #4 DC28kw/1490RPM
 Forward  Tension Bridle           #1 DC32kw, #2 DC16kw, #3 DC130kw,
                                   #4 DC65kw/1490RPM

 Recoiler                          DC20kw
Line direction                     Left  to Right
Line area                          6,000mm X 13,000mm
Electric power source              AC440volts x 3Phase x 60Hz

**Temporary Specifications Subject to Revisions**
**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**
**ALL SPECIFICATIONS ARE SUBJECT TO BUYERS VERIFICATION**
