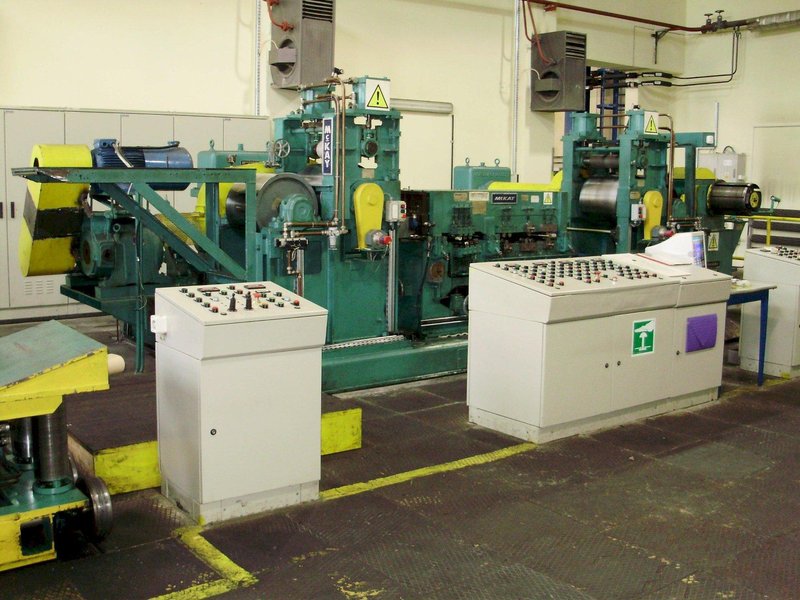

(Used) 20 - 400mm Stretch Straightener/Tension Leveler
Stock # 14215 Straight stretcher Characteristics of straightening and stretching machines: Thickness range of the straightened strips 0.05-1.0 mm (depending on the strength properties of the straightened material) Width range of straightened tapes 20 - 400mm Roller diameter - bending ø 19.0, ø 17.0, ø 9.5 mm Diameter of straightening rollers ø 22, ø 19 mm Diameter of tensioning drums ø 510 mm Diameter of unwinding and winding drums ø 400 mm Maximum elongation ø 3% The maximum weight of straightened coils of tape is 3000 kg Maximum straightening speed 50 m/min. Winder motor 22 kW/DC 22 kW/AC stringing drum motor Power supply 400 V, main fuse 100 A Control system Siemens Simatic S5-95U - main controller Siemens Simatic S7-U22 - belt guiding PC - visualization **Temporary Specifications Subject to Revisions** **PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE** **ALL SPECIFICATIONS ARE SUBJECT TO BUYERS VERIFICATION** |
