PRELIMINARY SPECIFICATIONS

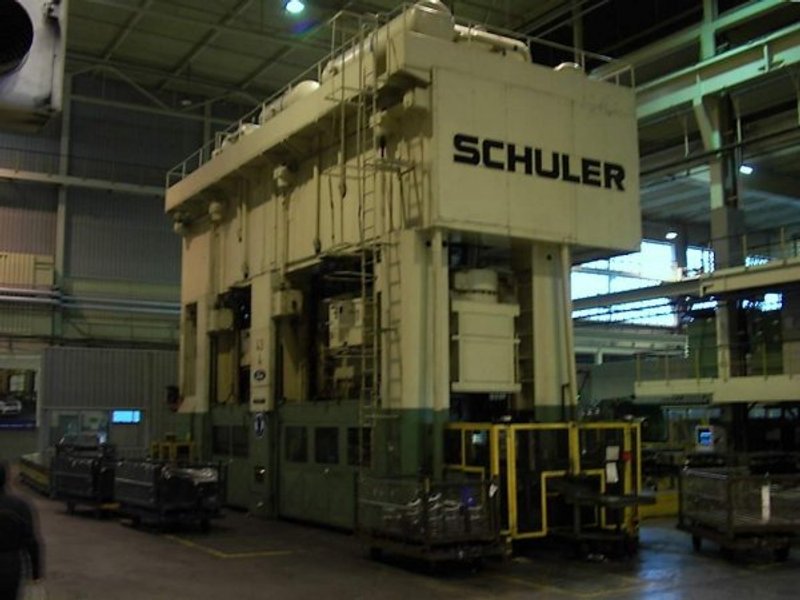

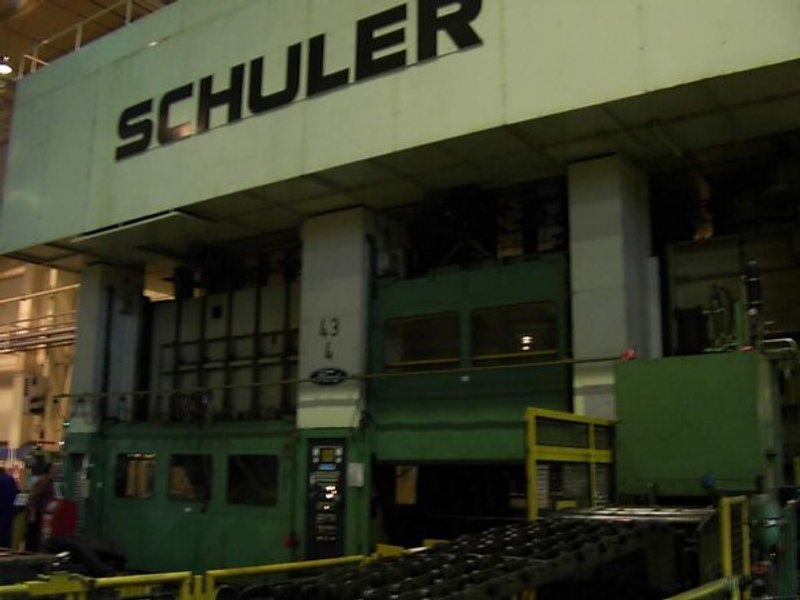

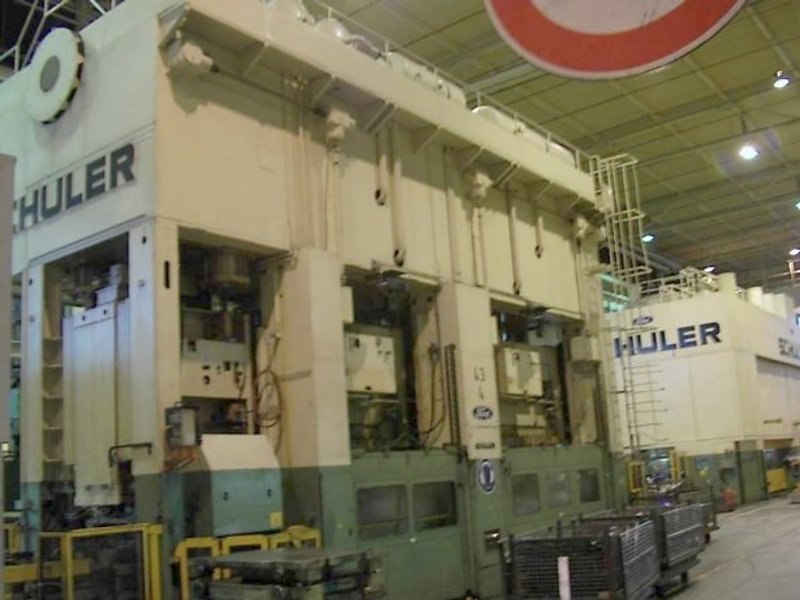

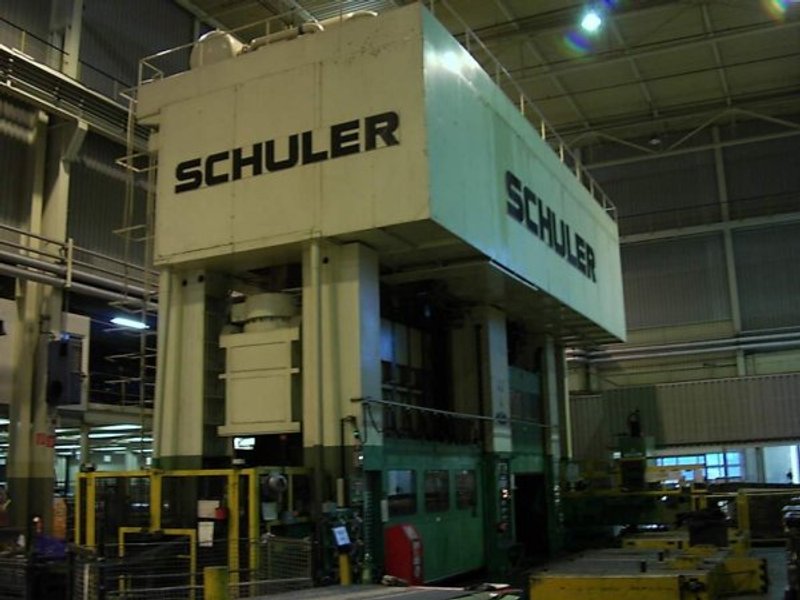

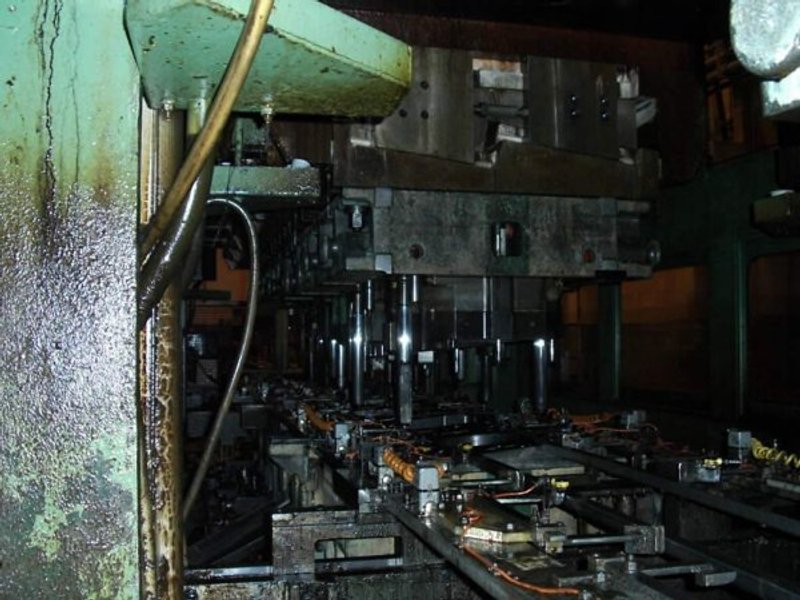

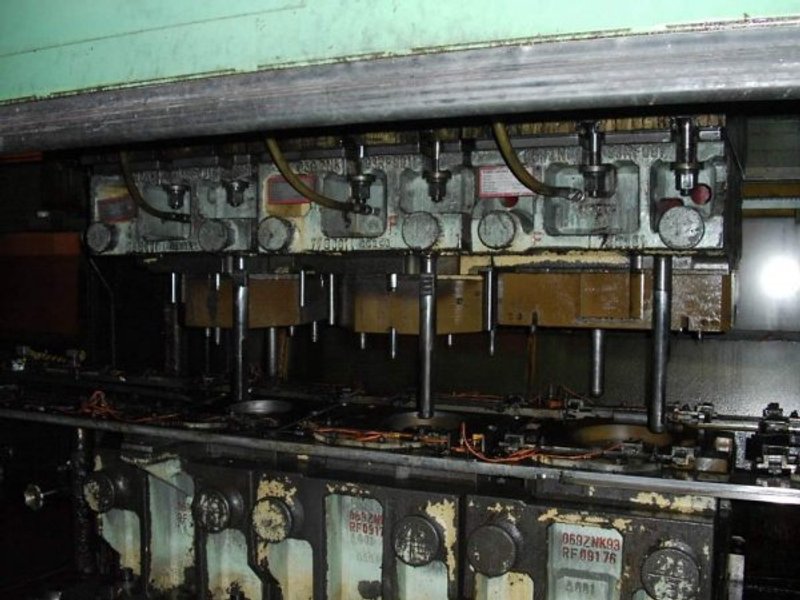

MODEL T3-3500-10-650
TRANSFER PRESS
3 RAMS
10 TOOL STATIONS
3500 TON TOTAL CAPACITY
1050mm MAX DAYLIGHT
1500mm F-B BED & RAM AREA
6500MM L-R BED AREA
500mm FLOOR TO BED
6-18 SPM SPEED

BLANK DIMENSIONS:
320 X 350mm MINIMUM
350 X 1500mm MAXIMUM
.5 - 4mm THICK

RAM 1:
300 TON CUTTING CAPACITY
120mm STROKE
20mm ADJUSTMENT

RAM 2:
1600 TON CAPACITY
800mm STROKE
50mm RAM ADJUSTMENT
EJECTOR
- 250mm STROKE
- 10 TON CAPACITY

RAM 3:
1600 TON CAPACITY
700mm STROKE
50mm ADJUSTMENT
EJECTOR
- 250mm STROKE
- 10 TON CAPACITY

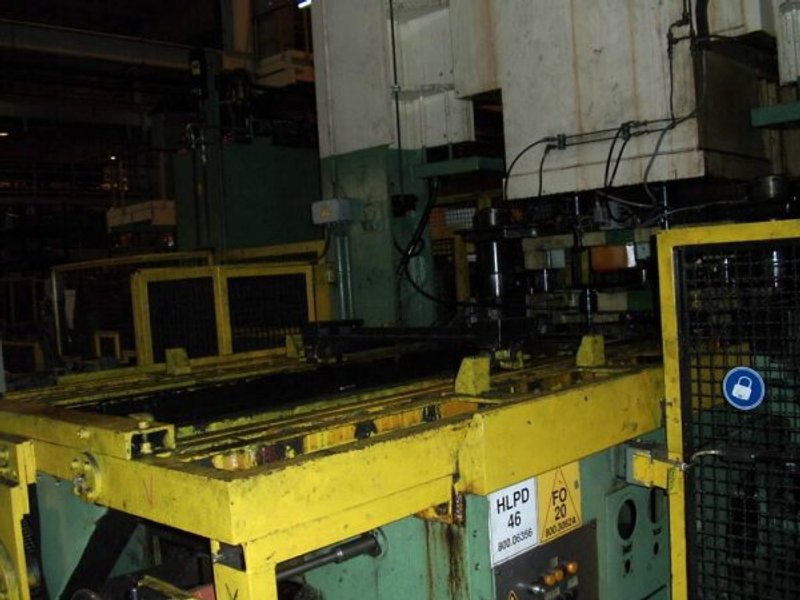

TRANSFER SYSTEM:
10 STATION
650mm DISTANCE BETWEEN TOOLS
600-1200mm INNER WIDTH CLAMPING RAILS CLOSED

ELECTRICAL REQS:
185kW TOTAL POWER CONSUMPTION

EQUIPPED WITH:
MOTOR & CONTROLS
(9) PNEUMATIC DIE CUSHIONS IN BED AREA
HYDRAULIC OVERLOAD PROTECTION
TRANSFER SYSTEM
DECOILER
LEVELLER UNIT
SCHULER STRAIGHTENER
- MODEL RS-8-70-0660
- 300-500mm
- .5 - 4mm THICK

APPROX O.A. DIMENSIONS: 14000 X 3500 X 12000mm
