PRELIMINARY SPECIFICATIONS

NEW IN 1995

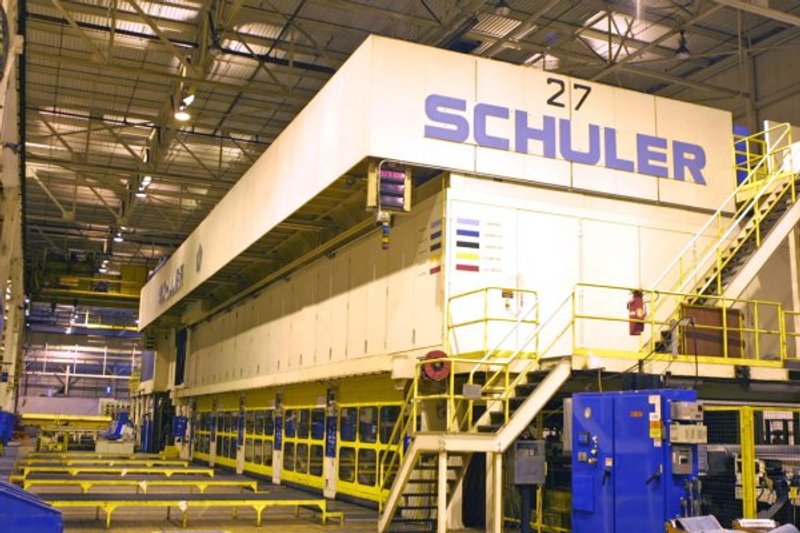

MODEL TBS6-5800-5-2300
LINK DRIVE
5-SLIDE CROSS BAR TRANSFER PRESS
10 MOVING BOLSTERS

CAPACITIES:
2200 TON STATION 1
1000 TON STATION 2
1000 TON STATION 3
800 TON STATION 4
800 TON STATION 5

SLIDE 1: (LINK DRIVE)
2200 TON
43.3 STROKE (1100mm)

SLIDE 2: (ECCENTRIC)
1000 TON
45.7" STROKE (1160mm)

55" SHUT HEIGTH (1400mm)
4" ADJUSTMENT (102mm)
(5) 180" X 96" BED AREA (4500 X 2400mm)
8-14 SPM
90.5" TRANSFER RAIL FEED (EACH PRESS STROKE)
22" X 36" MINIMUM BLANK SIZE
76" X 162" MAXIMUM BLANK SIZE

EQUIPPED WITH:
MOTOR & CONTROLS

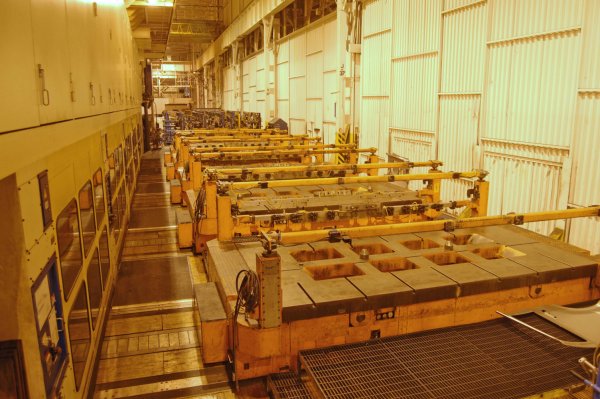

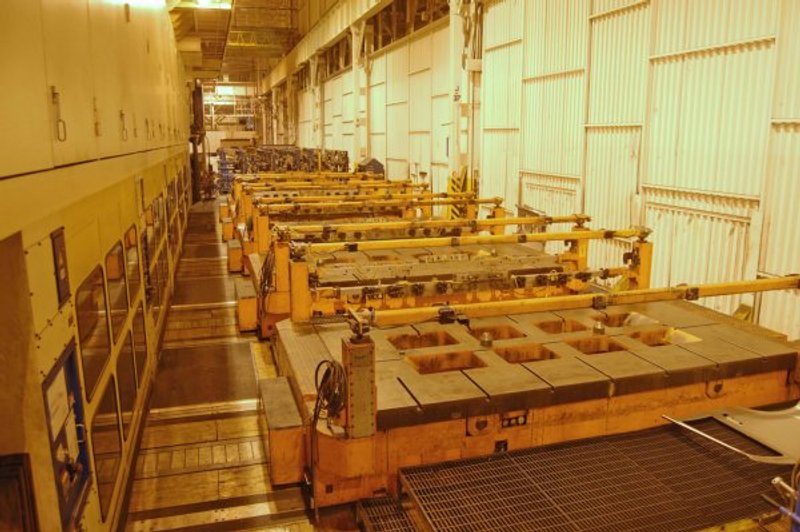

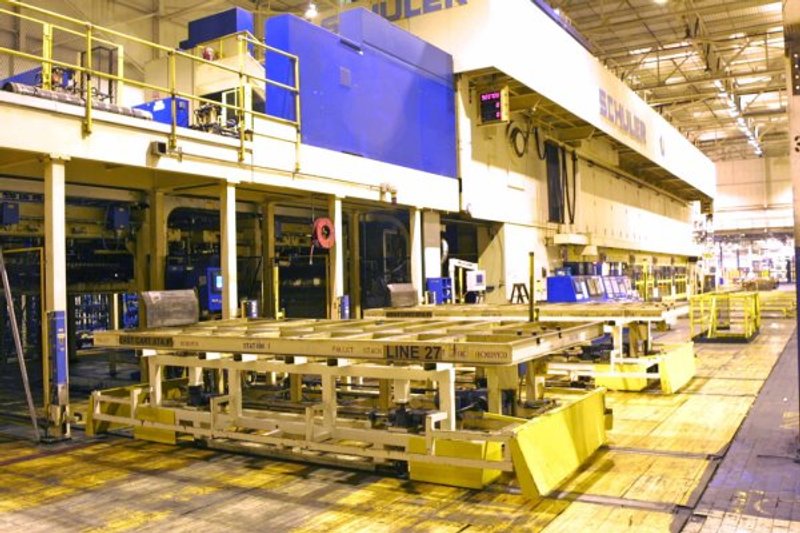

10 MOVING BOLSTERS
- 2 BOLSTERS PER STATION
5 SLIDES
CROSS BAR TRANSFER SYSTEM
SCHULEDR "POGO-STYLE" BLANK DESTACKER
- 186" X 96" MAX
DCT WASHER
UTICA RE-OILERS
- EDF UPGRADE GUNS
DCT DESTACKER

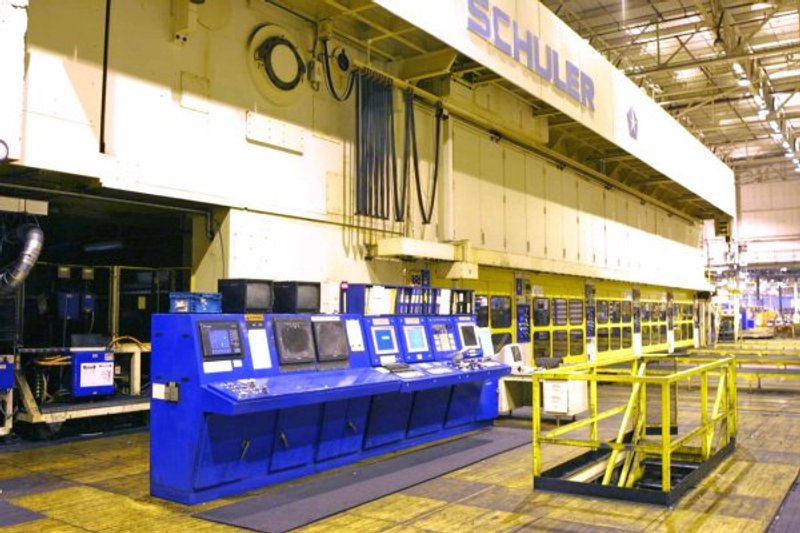

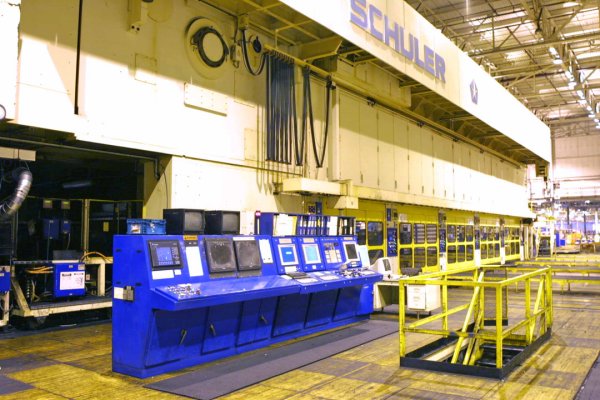

ALLEN BRADLEY PLC PANELVIEW
LOWER CUSHION
- 4 CUSHIONS
- 81 - 400 TON
- 13" STROKE

APPROX O.A. WEIGHT: 2700 TON
APPROX O.A. DIMENSIONS: 156' X 80' X 30'

USED TO PRODUCE AUTOMOBILE HOODS, ROOFS, DOORS, DECKS, FLOORPLANS
AND OTHER LARGE OUTER PANEL PARTS AND LARGE INNER PARTS. BOTH
DOUBLE ATTACHED AND DOUBLE UNATTACHED PARTS.

IN PLANT UNDER POWER
