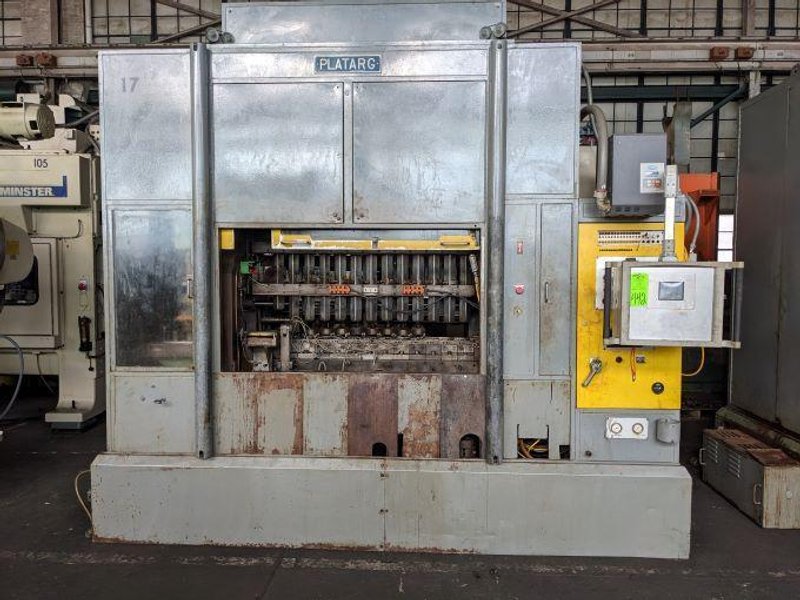

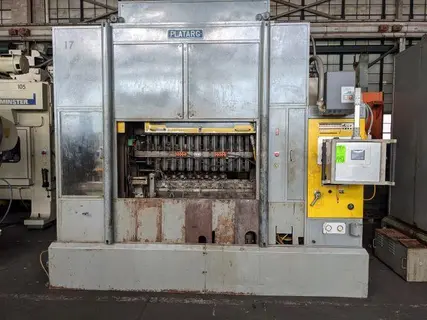

PLATARG #912 EYELET TRANSFER PRESS
Brand
Category
Model
912
Stock #
116179
Year
1978
Condition
Used
Location
Connecticut
|
Standard Flat Plate Lifter Cams
13 Stations, 12 Rams + 1 Slave
6.50" (165 mm) long Stroke - checked and confirmed
3.11" (79mm) depth of draw
Wedge Adjustable Rams with Standard Male Thread Tool Holders

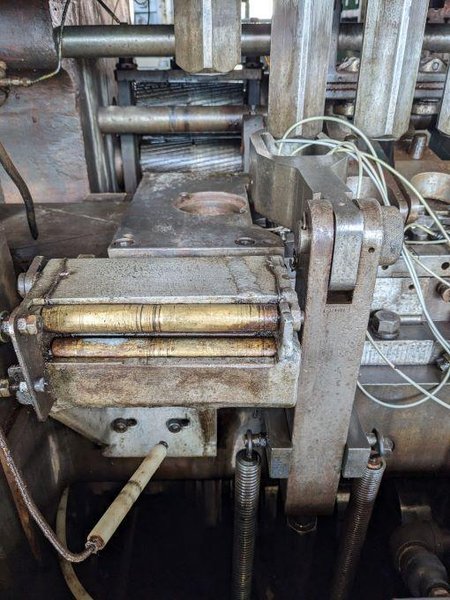

Platarg Single Roll Material Feed and Guillotine

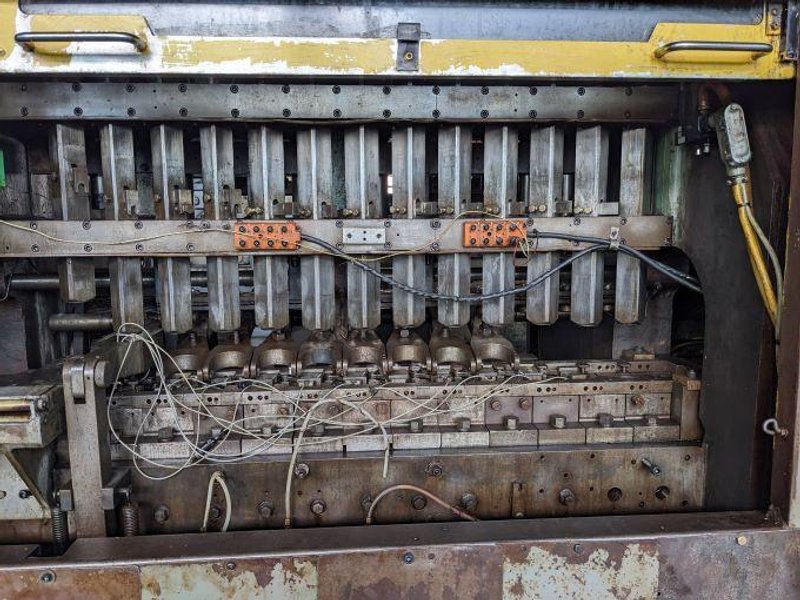

Insert Finger Type Transfer Slide
Pressure Pad Assembly Fitted to Stage 2
5 Standard Stripper Arms Fitted 3,4,5,8,10,
11 Ejector Cams Fitted - 2,3,4,5,6,7,8,9,10 &12
Full set of Die Blocks
Side Shaft Assembly with Dog Clutch
Air Cylinders
Standard motor with Leeson C inverter drive
Taylor/Clutch/Brake Unit
Lumatic Oil Pump System Suds Tank
Sound Proofed Guards
Platarg Electrical Control Panel
Platarg Transprobe Unit Mark 6
*Technical details subject to buyers verification
*Priced in "AS IS" condition, on location Connecticut, USA.
*Inspection report and rebuilt quote available
|
