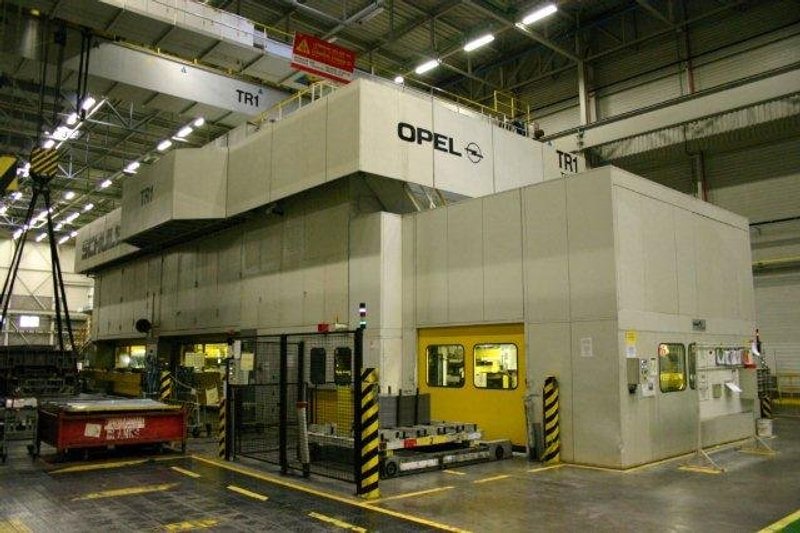

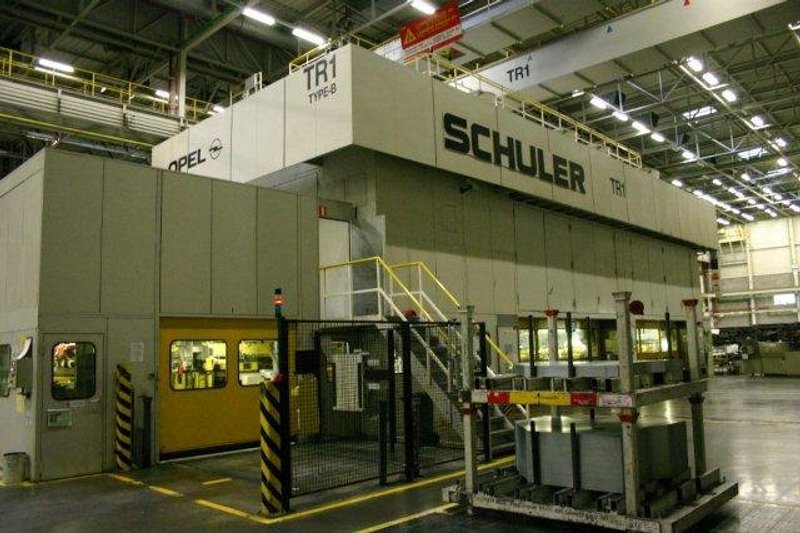

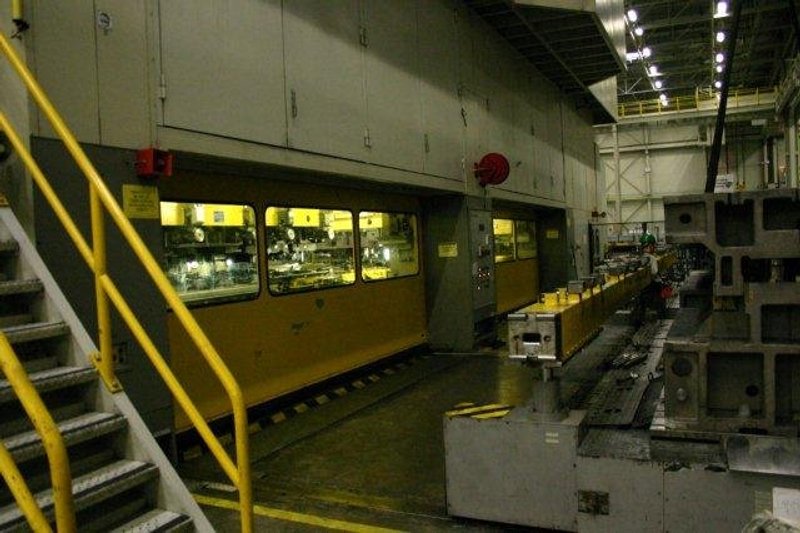

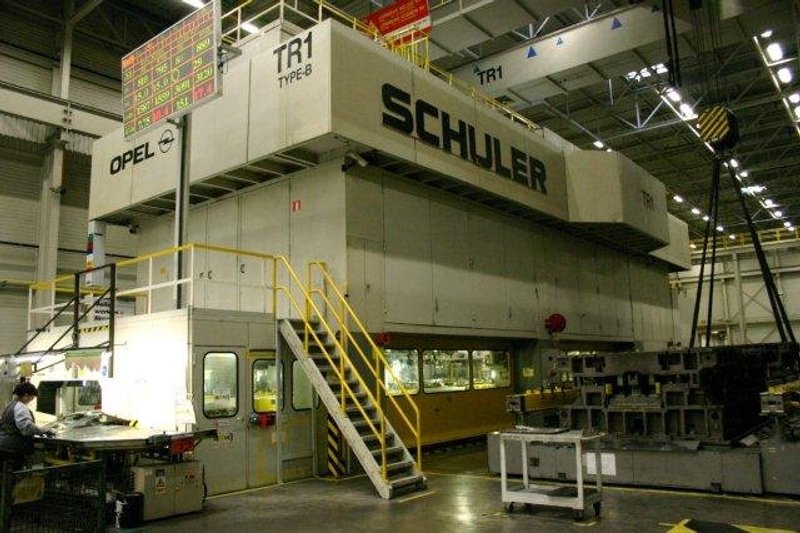

3200 Ton, SCHULER TBS-3200-6-1800, 6-STATION, 8-18SPM, 1160mm SH, CUSHIONS

Brand

SCHULER

Category

Presses (Stamping)

Type

Presses, Eyelet & Transfer

Model

Stock #

5381

Year

Not specified

Condition

Good

Location

Not specified

Specifications
Files & Videos

PRELIMINARY SPECIFICATIONS

MODEL T-3200-6-1800
NEW IN 2007
6-STATION MECHANICAL TRANSFER PRESS

3200 TON CAPACITY
- 15mm BDC
6 DIE STATIONS
8 TOTAL STATIONS (DIE & IDLE)

2000 TON SLIDE 1
1200 TON SLIDE 2
1000 TON SLIDE 3
600 TON SLIDE 4 & 5
800 TON SLIDE 5

8-18 SPM
900 MM STROKE (SLIDE 1 & 2)
1160 MM MAX SHUT HEIGHT
110 MM ADJUSTMENT

CUSHIONS STATIONS 1 & 3:
20-290 TON CAPACITY
150-230MM STROKE
538MM PIN LENGTH

EQUIPPED WITH:
MOTOR & CONTROLS
CUSHIONS
ROLLING BOLSTERS

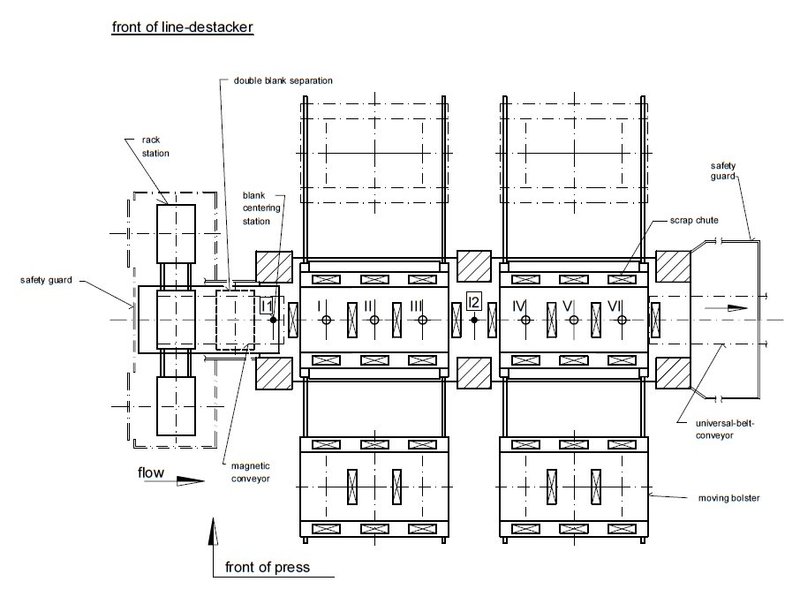

FRONT OF LINE DESTACKER

No files or videos to display
