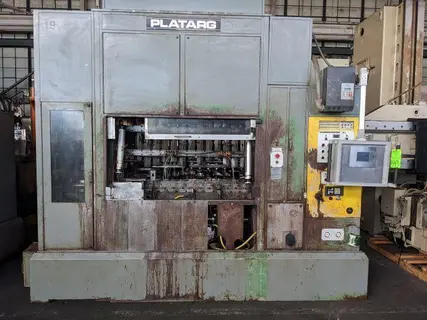

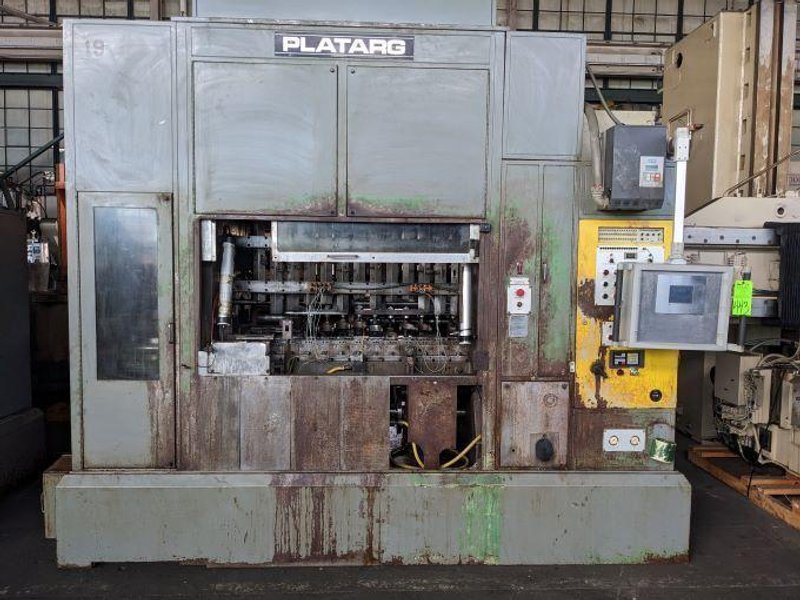

PLATARG #912 EYELET TRANSFER PRESS
Brand
Category
Model
912
Stock #
116180
Year
1987
Condition
Used
Location
Connecticut
|

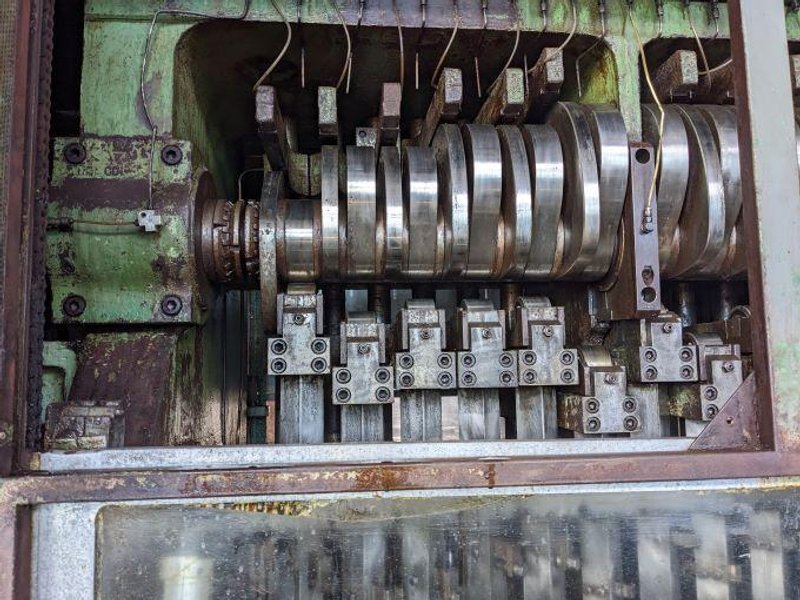

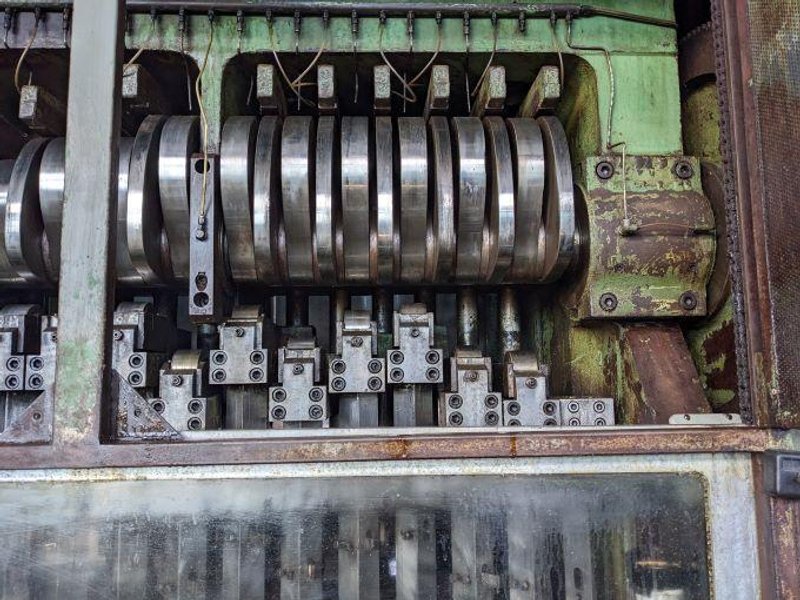

Standard Flat Plate Lifter Cams

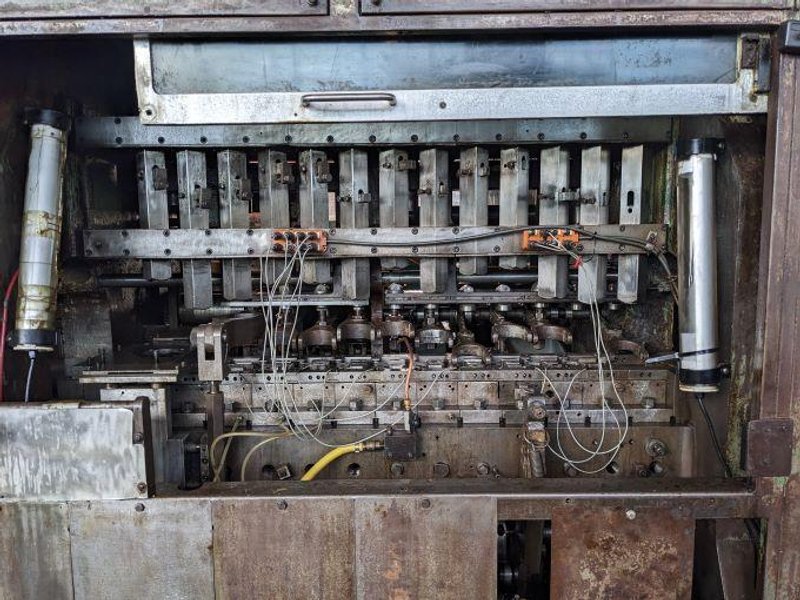

13 Stations, 12 Rams + 1 Slave
6.50" (165 mm) long Stroke - checked and confirmed
3.11" (79mm) depth of draw

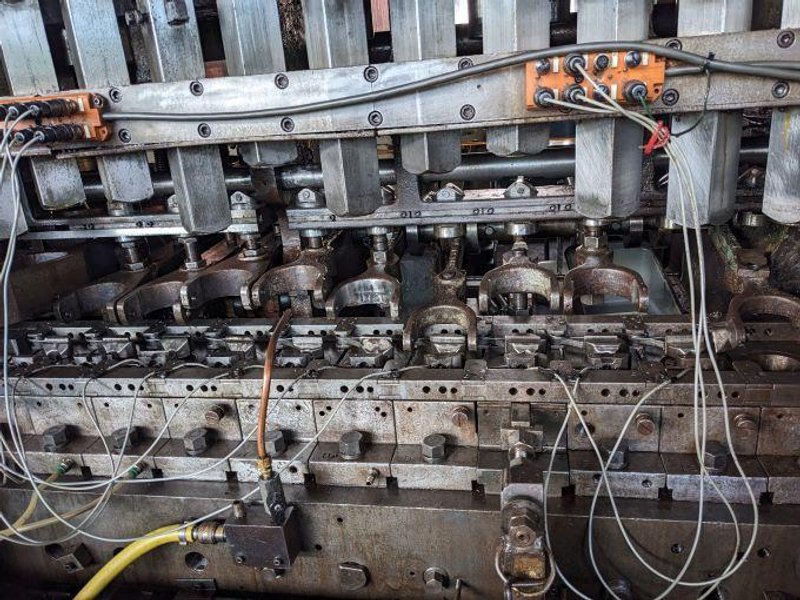

Wedge Adjustable Rams with Standard Male Thread Tool Holders
Platarg stager Roll Material Feed and Guillotine
Insert Finger Type Transfer Slide

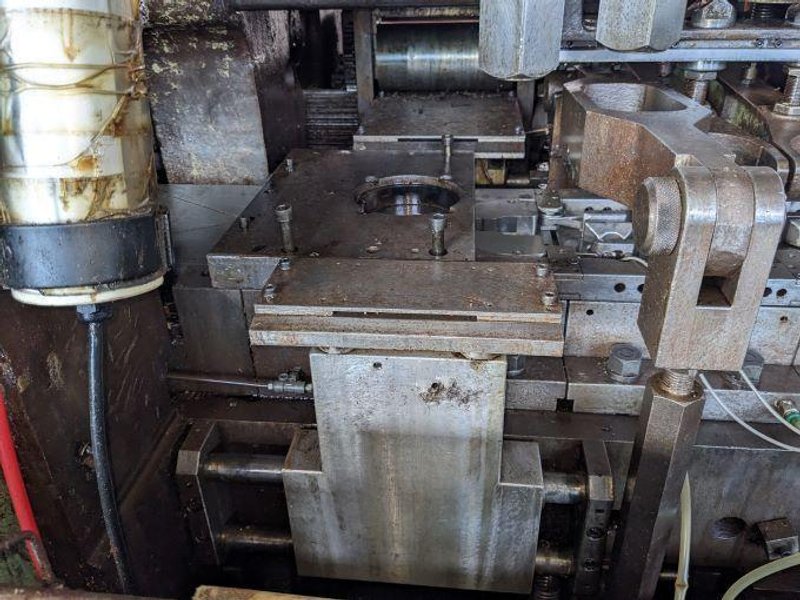

Pressure Pad Assembly Fitted to Stage 2
7 Standard Stripper Arms Fitted 7- 13,- non standard - 7,8,10,11
3 Ejector Cams Fitted -10,11,13
Air Mechanical hold down station 4,5,6
Full set of Die Blocks
Side Shaft Assembly with Dog Clutch
Air Cylinders
Orttech/Clutch/Brake Unit
Lumatic Oil Pump System Suds Tank
Sound Proofed Guards
Platarg Electrical Control Panel
Platarg Trans probe Unit Mark 6
230V Leeson AC inverter drive
40-80 SPM
*Priced in "AS IS" condition, on location Connecticut, USA.
*Inspection report and rebuilt quote available.
|
