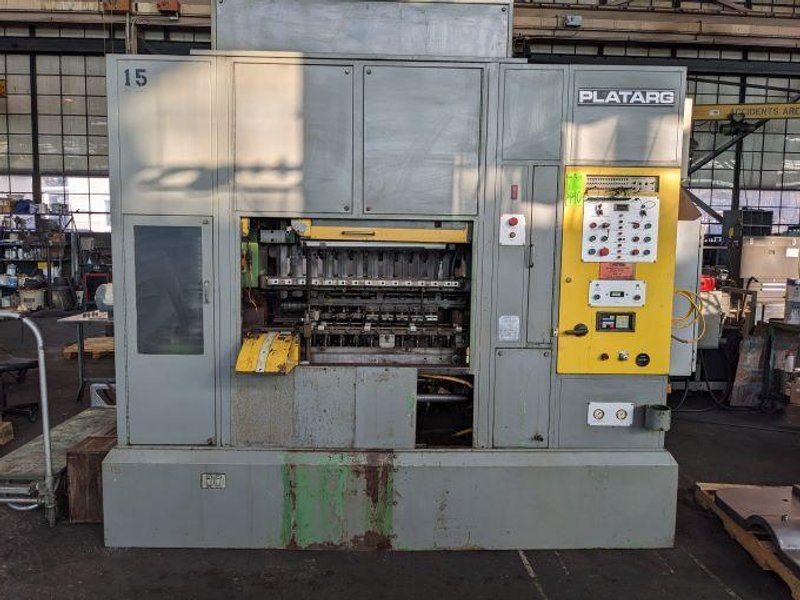

PLATARG 612 HIGH SPEED TRANSFER PRESS

PLATARG 612 HIGH SPEED TRANSFER PRESS

SERIAL #612-F-132

YEAR 1987

12 RAMS AND 1 SLAVE

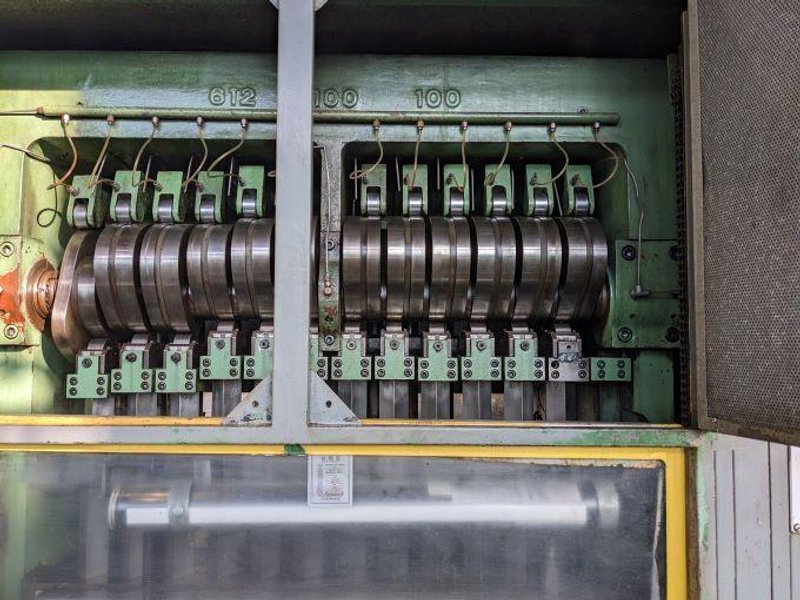

FULL FOLLOW CAMS

WEDGE ADJUSTMENT RAMS 10 DIE BLOCKS MISSING

STROKE OF CAMS:  4.25” OR 107MM

DEPTH OF DRAW (SHELL HEIGHT):  2” OR 50MM

DOUBLE “C “RING SLIDE

 F.O.D. TRANSFER SLIDE

PLATARG TYPE ZIG-ZAG FEEDER – MATERIAL INPUT FROM FRONT

GUILLOTINE SHEAR

SAFETY CLUTCH ON SIDE SHAFT

PRESSURE PAD ASSEMBLY FITTED TO STAGE 3 – STAGE 2 IS A DUMMY

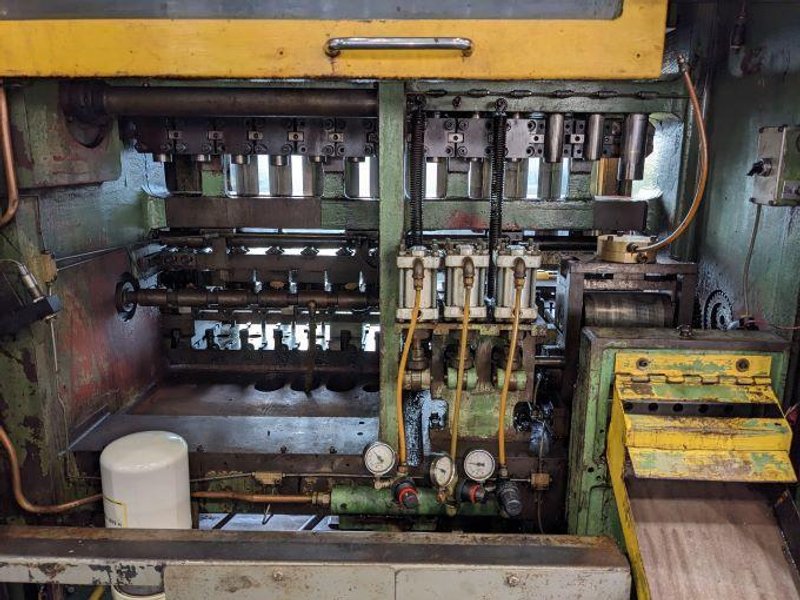

PNEUMATIC/MECHANICAL TRIPLE HOLD DOWN UNIT FITTED ON STAGES 4, 5 & 6

SPRING BOXES STATIONS 2,3,4,5,6

EJECTOR CAM STATION 7

STANDARD MALE THREAD

BALDOR 25 HP/240 V- AC VARIABLE SPEED INVERTER UNIT

STROKES PER MINUTE : 30 – 120 SPM

AIR CLUTCH & BRAKE - ORTLINGHAUS

PLATARG MK6 TRANSPROBE UNIT

4X VERTICAL STRIPPERS FITTED TO STAGE 7 TO 10

DROPSA OIL PUMP SYSTEM

FULL SET OF SOUND PROOFED GUARDS

COOLANT TANK FITTED ON L/H/S OF PRESS

NUT LINK BELTS FITTED TO FLYWHEEL

ELECTRICS:  240 V/3/60

FULL SET OF SOUND ENCLOSURE

FOOTPRINT:  3500MM X 1400MM X 2800MM

WEIGHT:  8 TONS

STROKES STAGE 1- 2.5”

             STAGE 2- 2.5”

             STAGE 3 – 3.5”

             STAGE 4 -3.5”

             STAGE 5-12 – 4.250”

*TECHNICAL DETAILS SUBJECT TO BUYERS VERIFICATION

RECONDITIONED MACHINE

            REBUILT CLUTCH AND BRAKE

            NEW SLAVE RAM INSTALLED

            RAMS CLEANED AND REFIT

            NEW AIR VALVE FOR CLUTCH INSTALLED

            NEW TRAP BLOCKS FOR TRANSFER SLIDE

            NEW CLUTCH KEYS

            CHECKED ALL SHAFTS AND BUSHINGS

            NEW VALVE FOR ROLL LIFTER ON FEED

            ELECTRICS CHECKED AND REPAIRED AS NEEDED

            TRANS PROBE UNIT WAS CHECKED

            RAN AND TESTED THE MACHINE
