PRELIMINARY SPECIFICATIONS

NEW IN 2002

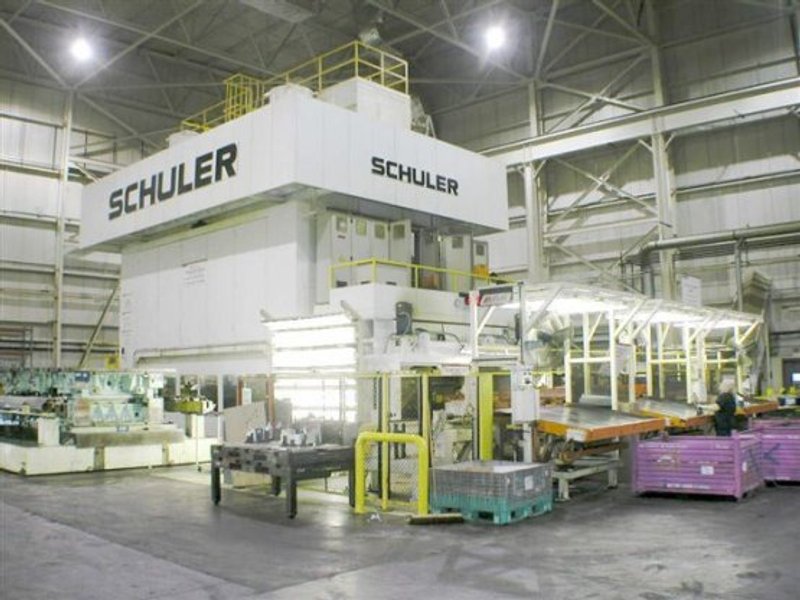

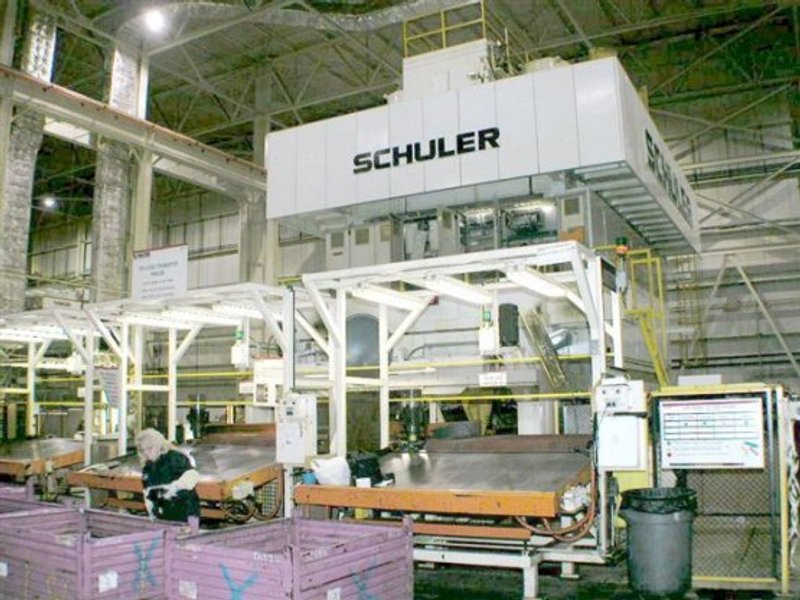

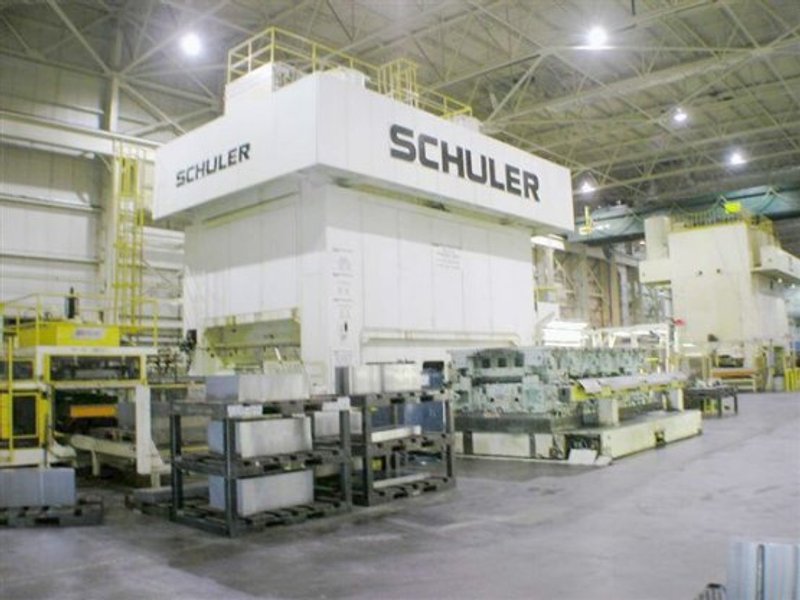

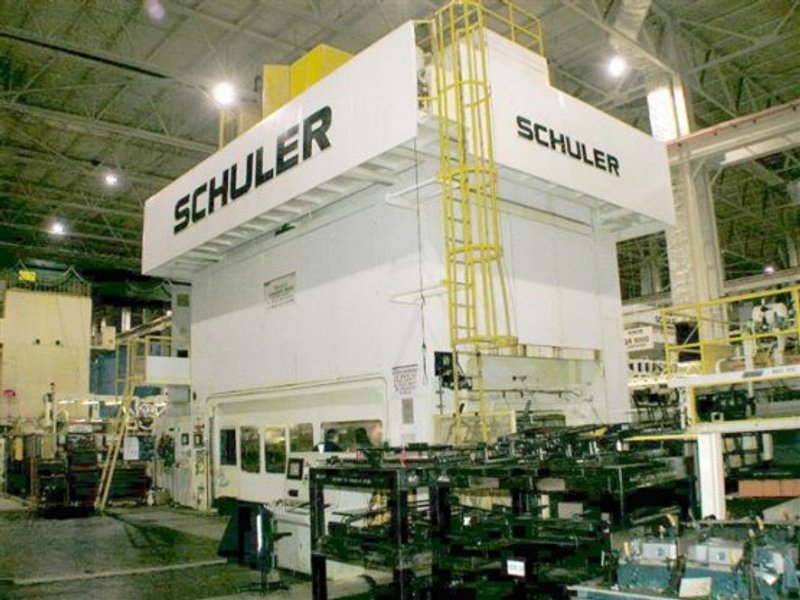

MODEL TBS2-1350-4-1219 (S4-1500-212 X 96")
TRI AXIS 9 STATION ELECTRIC TRANSFER UNIT

36" (914mm) STROKE
54" (1371mm) SHUT HEIGHT (SDAU OVER BOLSTER)
20" (508mm) ADJUSTMENT
212" X 96" BED AREA (5384 X 2438mm)
210" X 96" SLIDE AREA (5334 X2438mm)
10-24 SPM (VARIABLE SPEED)
5 SPM (INCHING MODE MAIN MOTOR)

EQUIPPED & FEATURES:
AIR CLUTCH AND BRAKE
AIR COUNTER BALANCES
HYDRAULIC OVERLOADS
TRI-AXIS 9 STATION ELECTRIC TRANSFER UNIT
(2) ROLLING T-SLOTTED ROLLING BOLSTERS 212"X 96" (5384 X 2438mm)
- 212" X 96" AREA
- FRONT TO BACK
145" WINDOWS APPROX
VARIABLE SPEED
INCHING MODE

TRANSFER UNIT INFORMATION:
TRI-AXIS ELECTRICAL TRANSFER UNIT
MODEL ETE4-1219-305-152
12-23-19SPM
FEED MAX. 10"-10" 12"ADJ
FEED MAX. 6"-6"-8"ADJ
36"-96"(914.4mmx2438mm)DISTANCE BETWEEN TRANSFER RAILS IN
CLOSED POSITION ADJ.
55"(1397mm) FEED LINE ABOVE FLOOR
120 LBS PERMISSIBLE WEIGHT ON GRIPPER
1,080 lbs (5kn) PERMISSIBLE WEIGHT ON GRIPPER RAILS OVERALL

ROLLING BOLSTER INFORMATION:
(2 QTY) FRONT TO BACK ROLLING BOLSTERS
212" X 96") (5384mm X 2438mm) T SLOTTED
12m/mm BOLSTER FEED
29" TOP OF BOLSTER ABOVE FLOOR
270,000 LBS FULL BOLSTER CAPACITY (1000 KN)

ATLAS LOAD AND DESTACK UNITS:

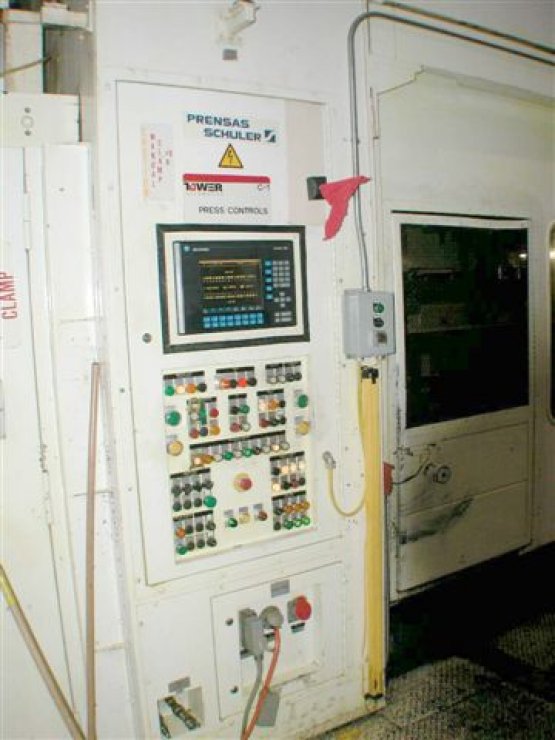

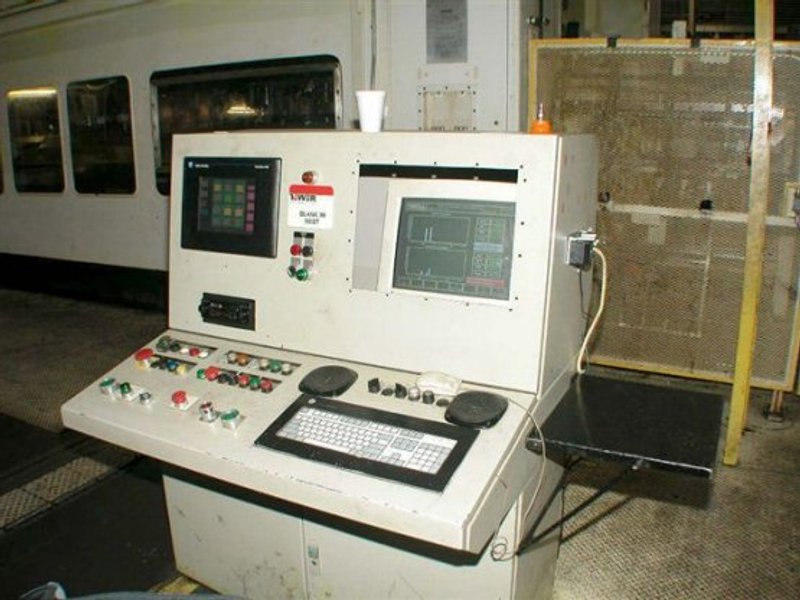

ALLEN BRADLEY PANEL VIEW 1009 WITH VERSAVIEW 15005 CONTROL
CONSOLE

ATLAS PACK OUT STATIONS FOR UNLOAD OF PARTS:
- 3 STATIONS
- 96" WIDE BINS


PRESS IS IN PLANT UNDER POWER IN EXCELLENT WORKING CONDITION .
PLEASE DON'T HESITATE TO CALL FOR YOUR EARLY INSPECTION. VARY



IN PLANT UNDER POWER
