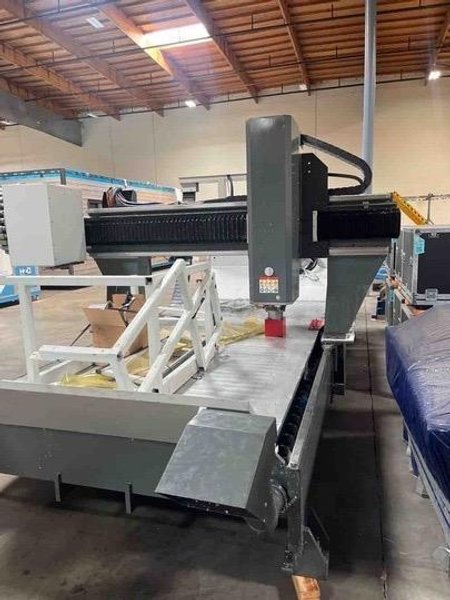

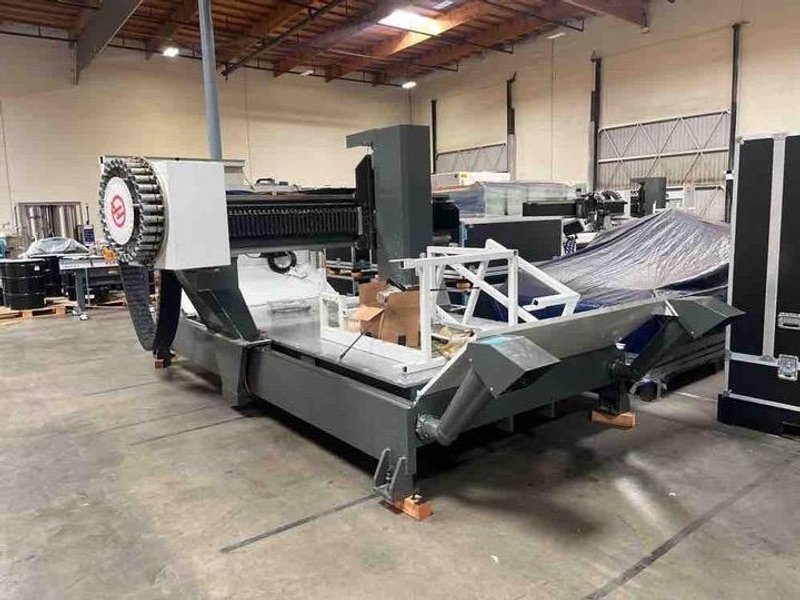

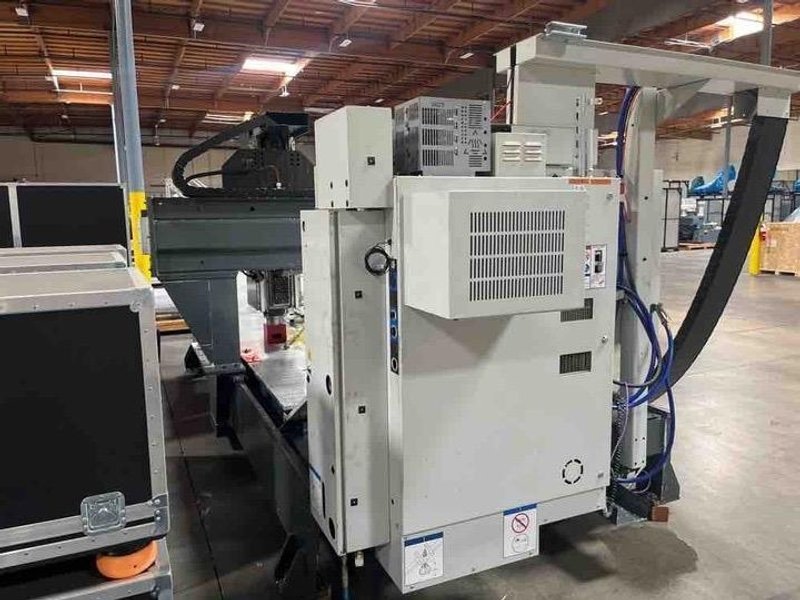

Haas GM‑2 CNC Gantry Mill, 2023 – 15K RPM Spindle, 4th Axis Drive, Probe, TSC
Brand
Category
Model
GM-2
Stock #
950436
Year
2023
Condition
Not specified
Location
Not specified
|
Table Size: 144″ x 72″
Max Weight On Table: 6,000 LBS
X Axis: 145.00″
Y Axis: 87.50″
Z Axis: 22.00″
Spindle Taper: CAT 40
Spindle Motor: 30 HP
Spindle Speed: 15,000 RPM
Rapids on X: 472 ipm
Rapids on Y: 1889 ipm
Rapids on Z: 1181 ipm
ATC: 30 +1
Machine Weight: 21,000 LBS
All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With: All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Haas CNC Control WIPS Probe System 15K RPM Spindle 4th Axis Drive Chip Auger Chip Strainer Through Spindle Coolant Programmable Coolant Nozzle Auxiliary Coolant Filter Variable Flow Coolant Automatic Air Gun Minimum Quantity Lubrication Wifi Camera 32 GB Expanded Memory Ethernet HaasDrop High Speed Machining Media Display Rigid Tapping Power Surge Protection WIFI Early Power-Failure Detection Module Steel Table – Inch 30+1 Side-Mount Tool Changer All specifications are assumed to be correct but must be confirmed by the purchasing entity. |
