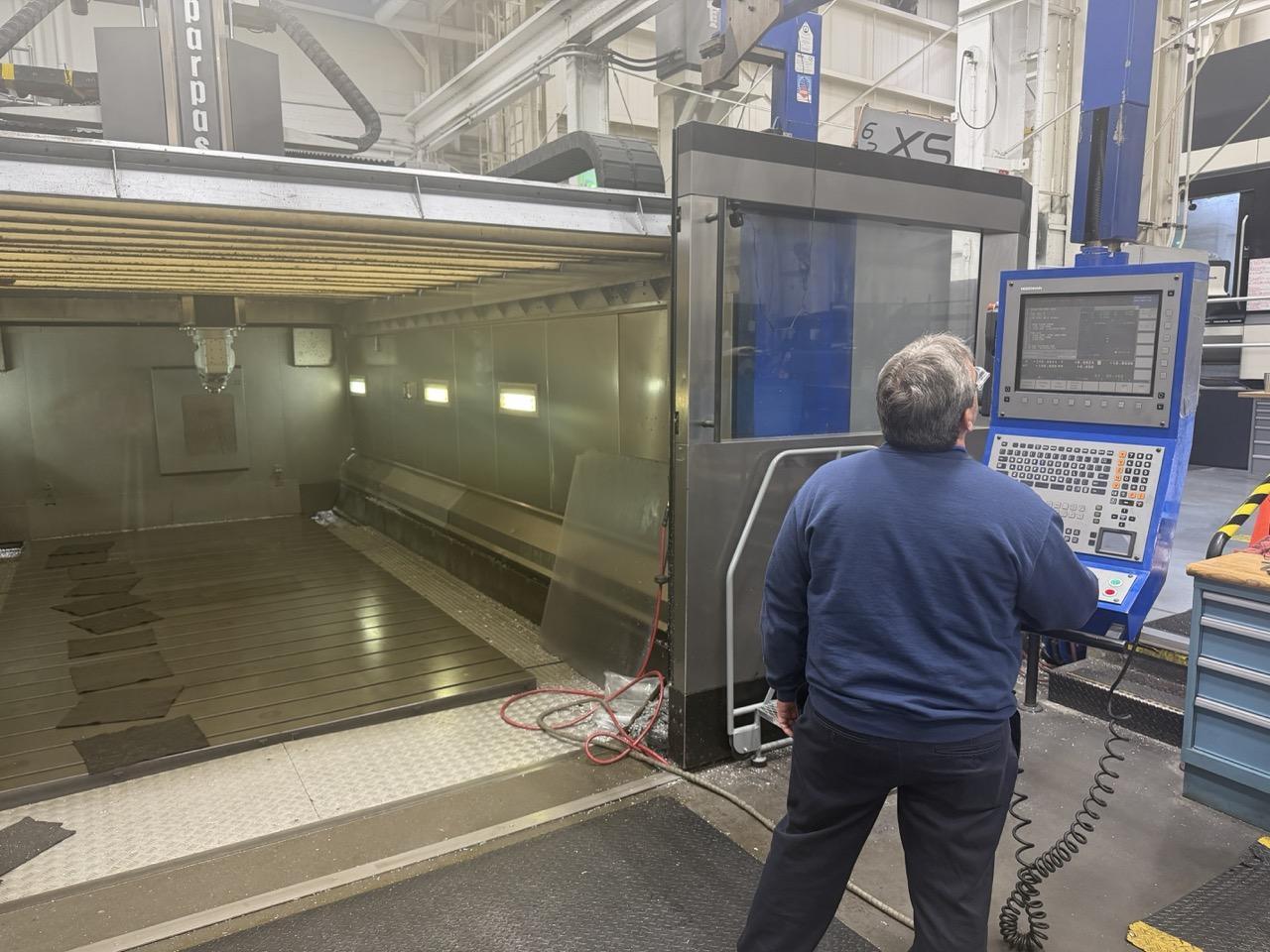

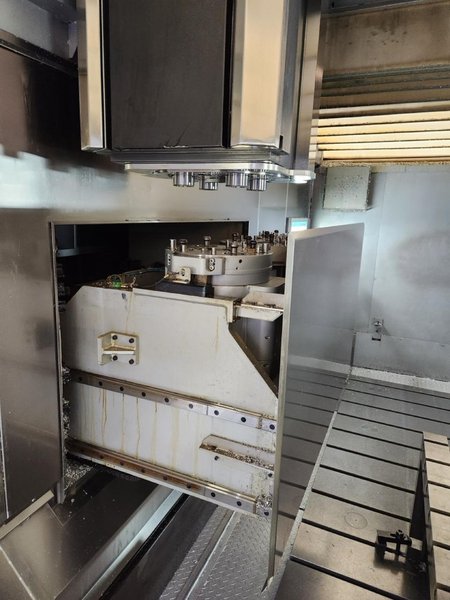

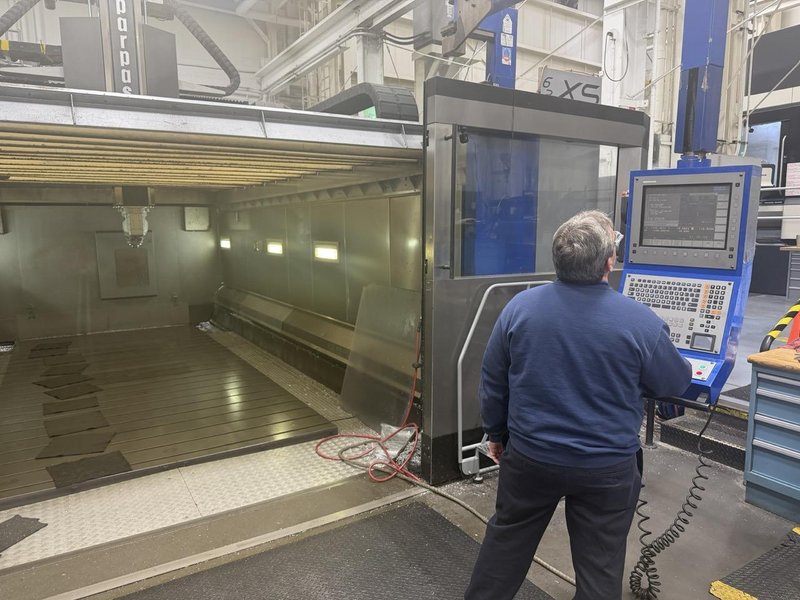

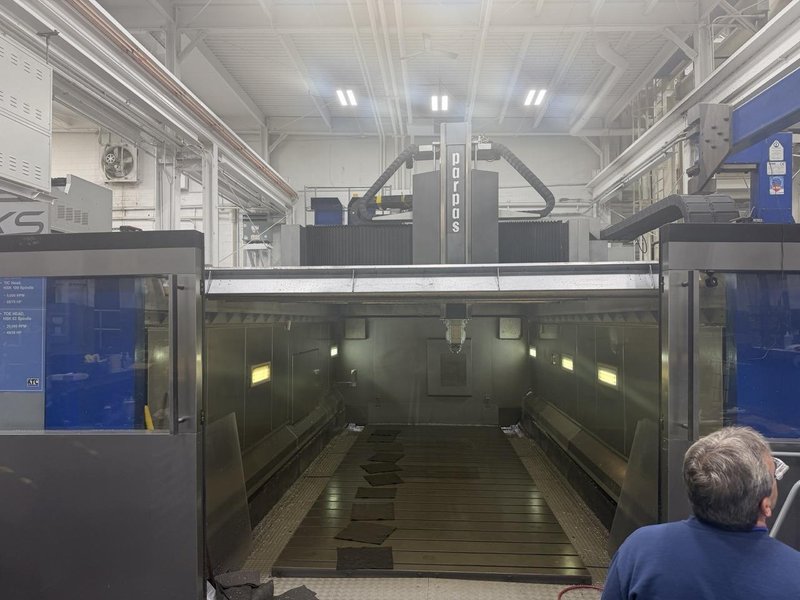

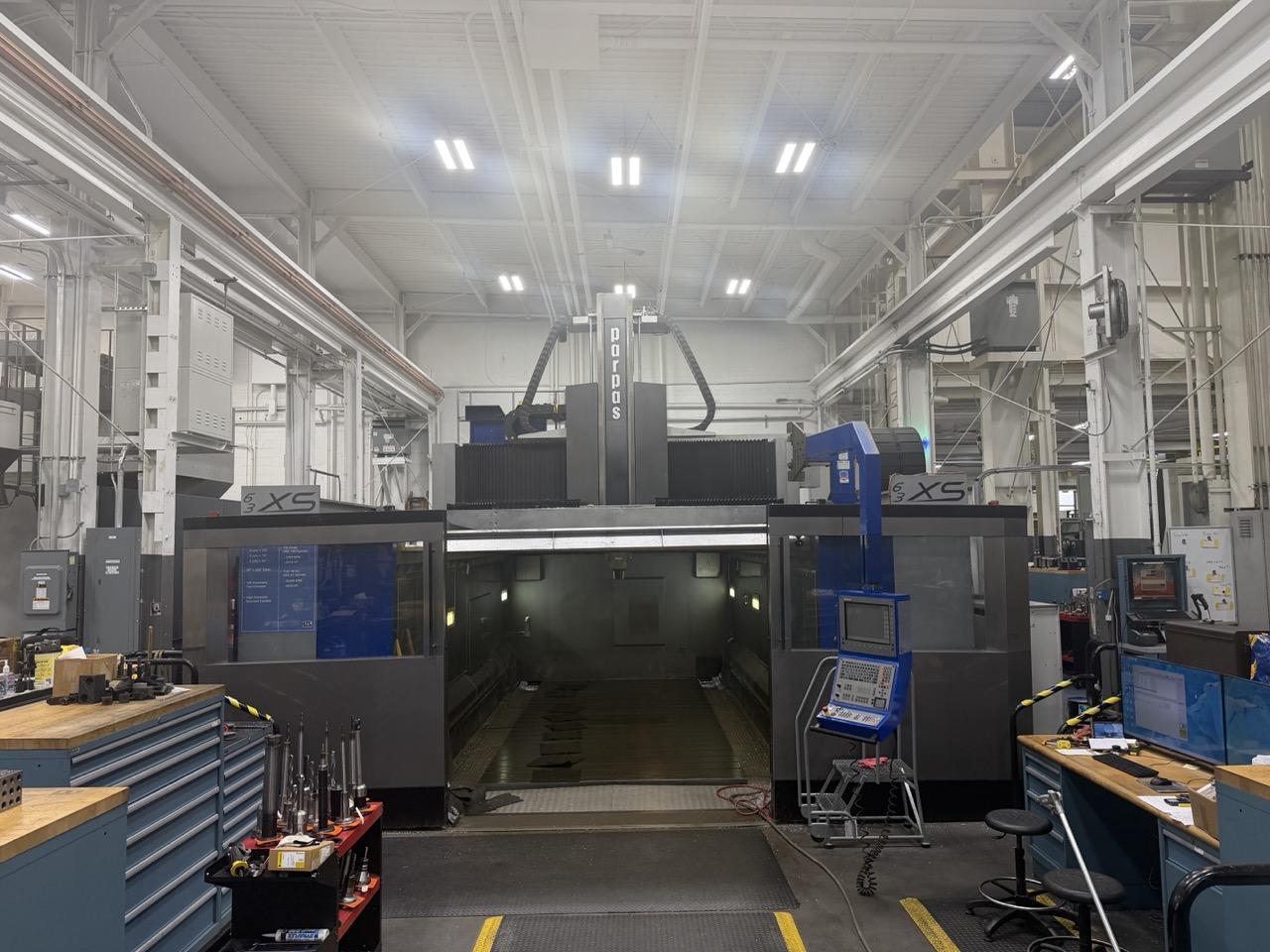

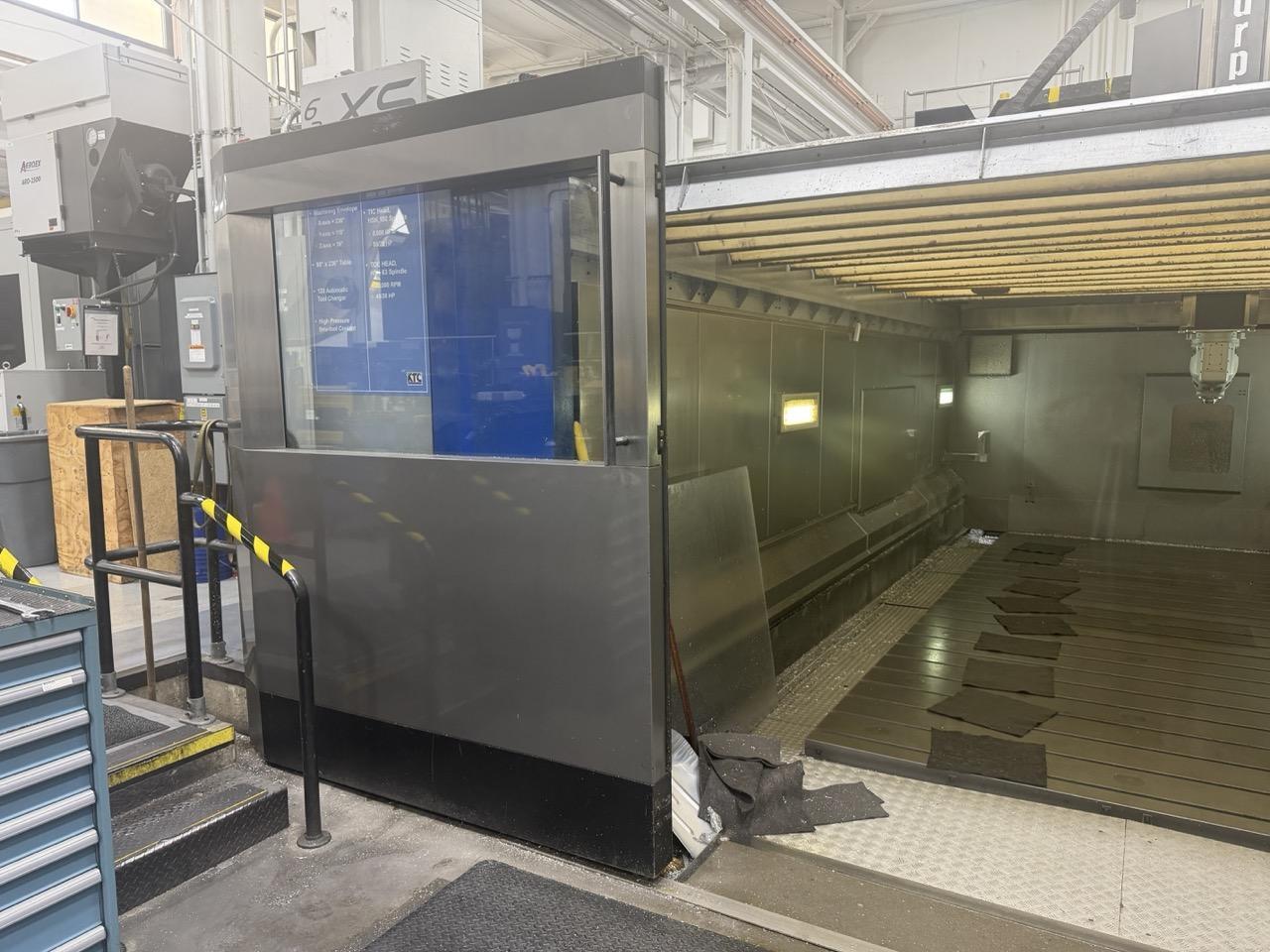

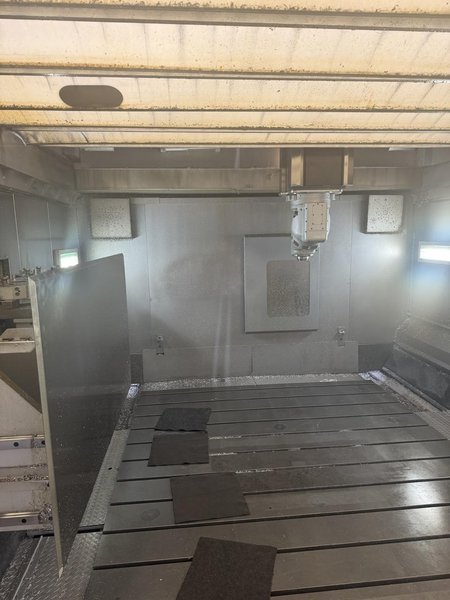

Parpas XS63 5-Axis Gantry Mill, 2011 – TSC, Renishaw Probe, Dual Chip Conveyors, 120 ATC

Travels X-Axis: 236.22″ Y-Axis: 118.11″ Z-Axis: 59.05″

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Distance Between Columns: 145.66″

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Feedrates X-Axis: 2,362 IPM Y/Z-Axis: 1,574 IPM

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Acceleration: 1 M/sec²

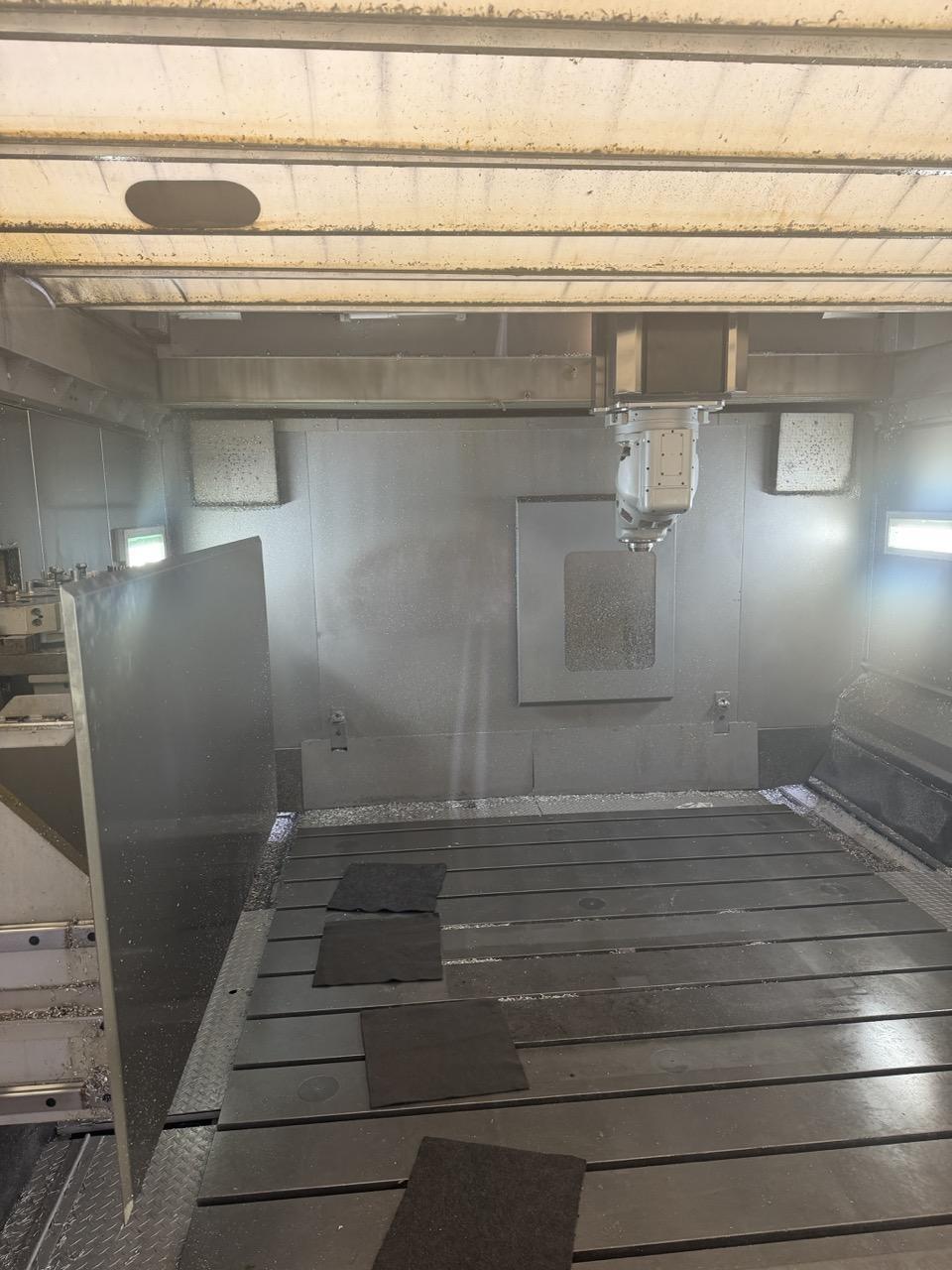

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Table Size: 236″ x 98″ x 11.81″

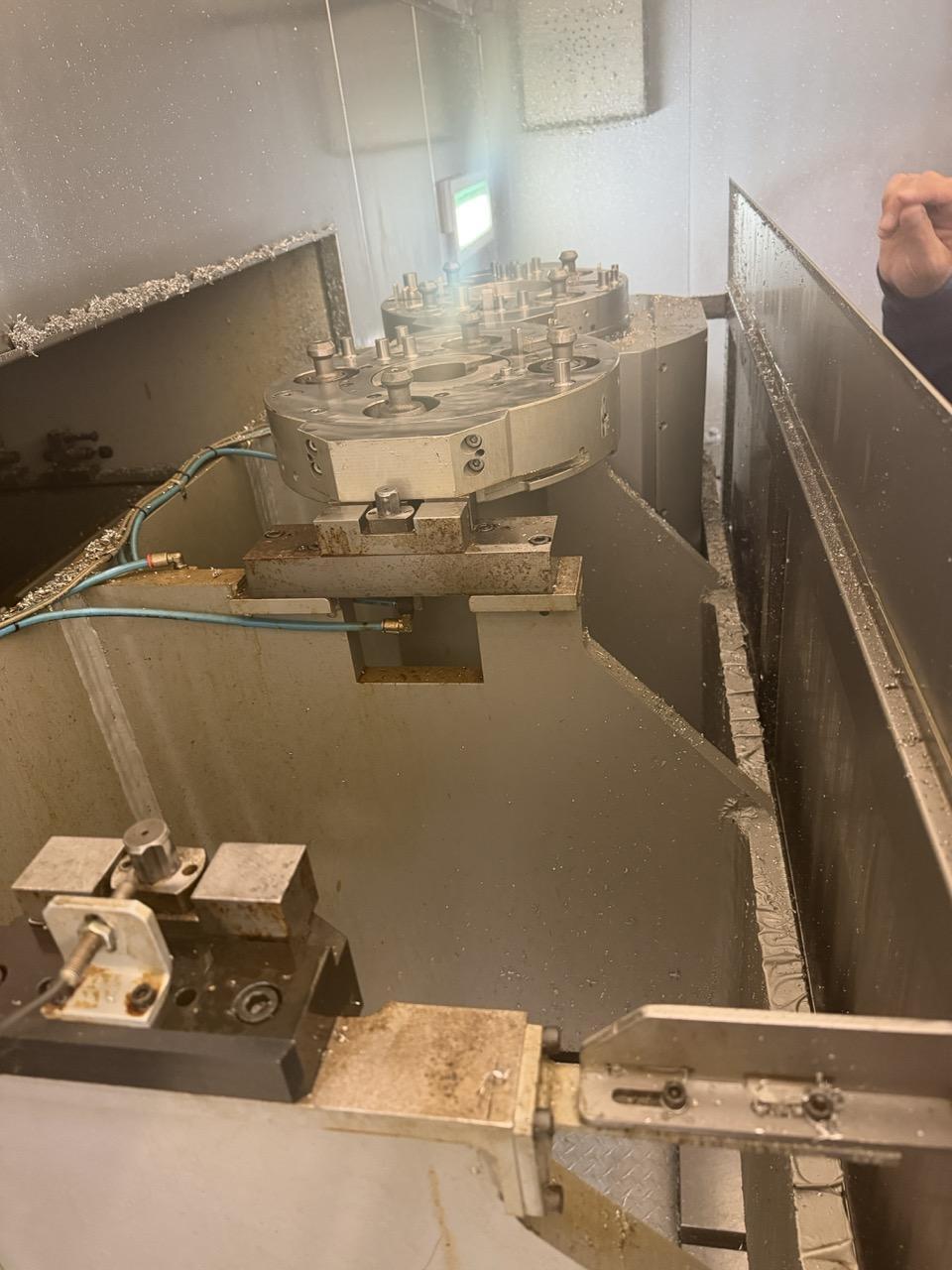

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Continuous Indexing Milling Head “TIC-75”: Continuous Positioning: 0.001º Spindle Speed: 5000 RPM Taper: CAT-50

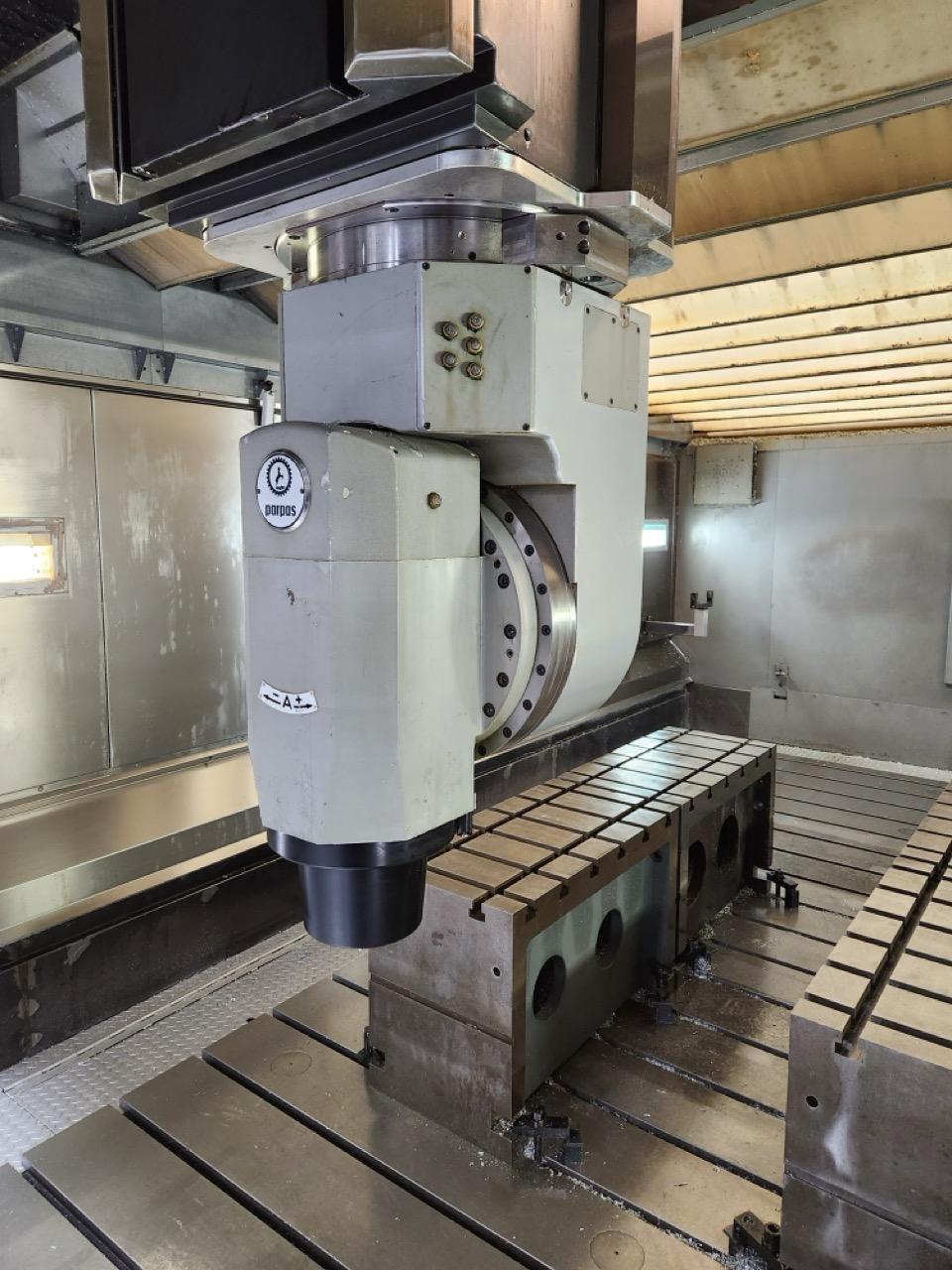

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Orthogonal Milling Head “TOE-29”: Ram C-Axis Range: +/- 370º Head A-Axis Range: +/- 105º A & C Head Positioning Increment 0.001º Each Axis Spindle Speed: 20,000 RPM Power: 50 HP Taper: HSK-63A

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Straight Head “TPM-400”: Spindle Speed: 5000 RPM Spindle Taper: CAT50

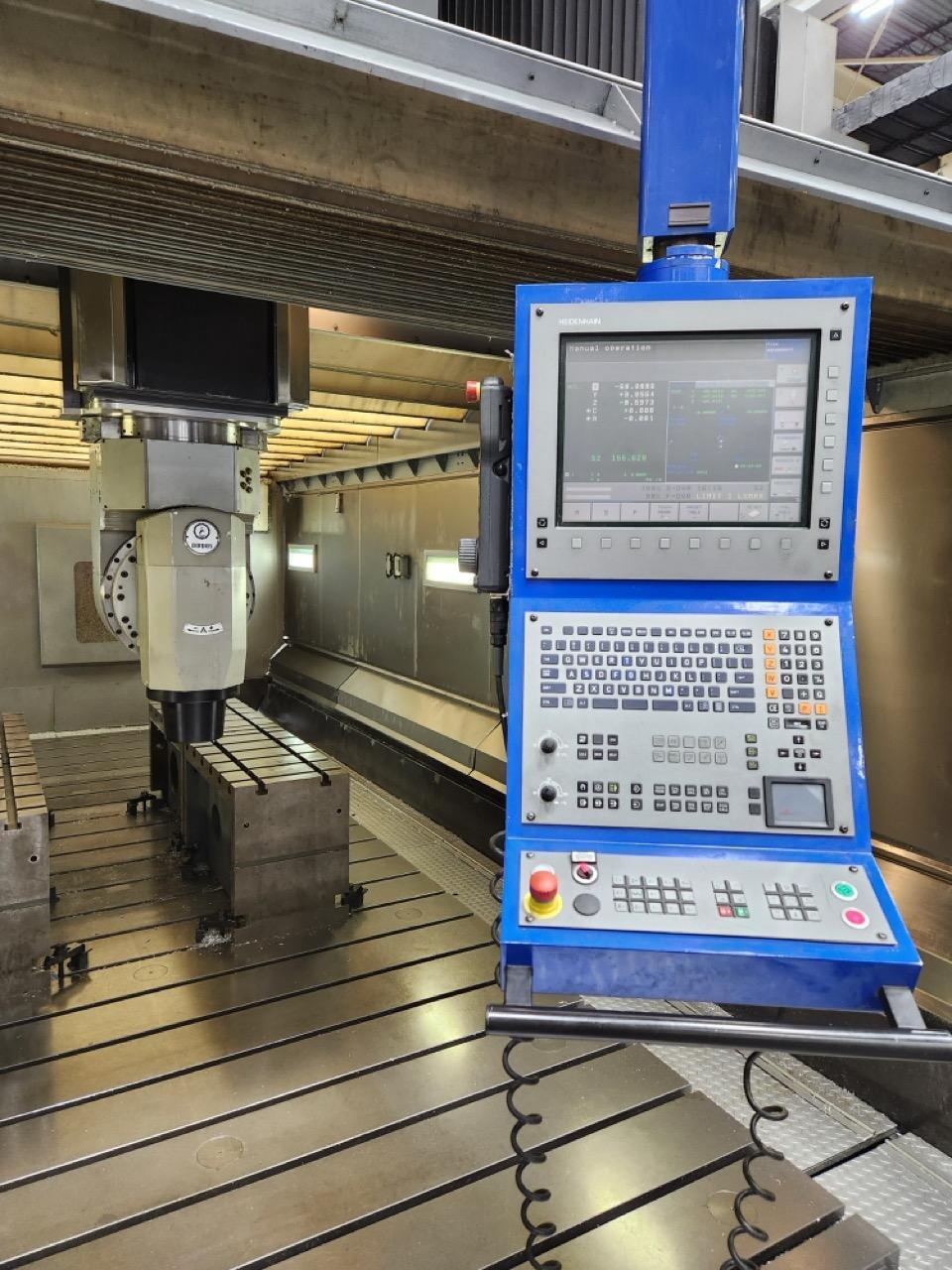

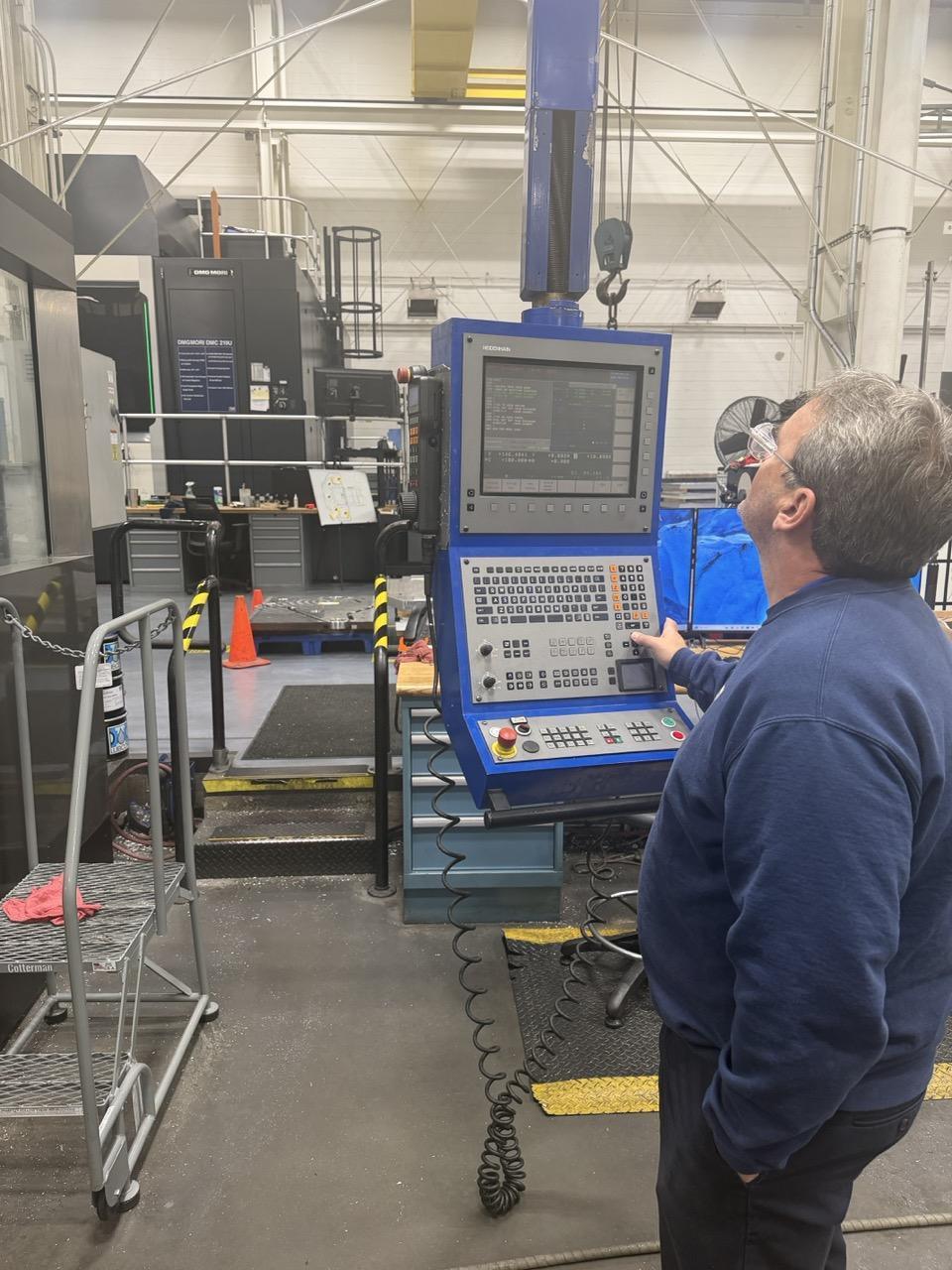

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With: Parpas TIC-75 Head Parpas TOE Head Parpas TPM Head 120 Automatic Tool Changer High Intensity Lighting External Flood Coolant System Through Spindle Coolant Dual Chip Conveyors Renishaw Probe RMP-60 Tool Laser Presetter “Blum” Heidenhain iTNC 530 Control

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
