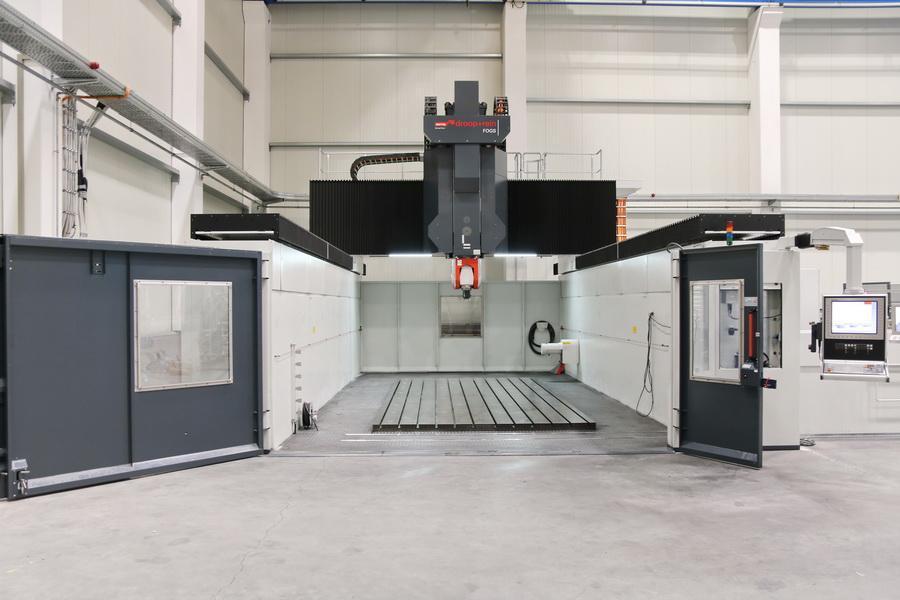

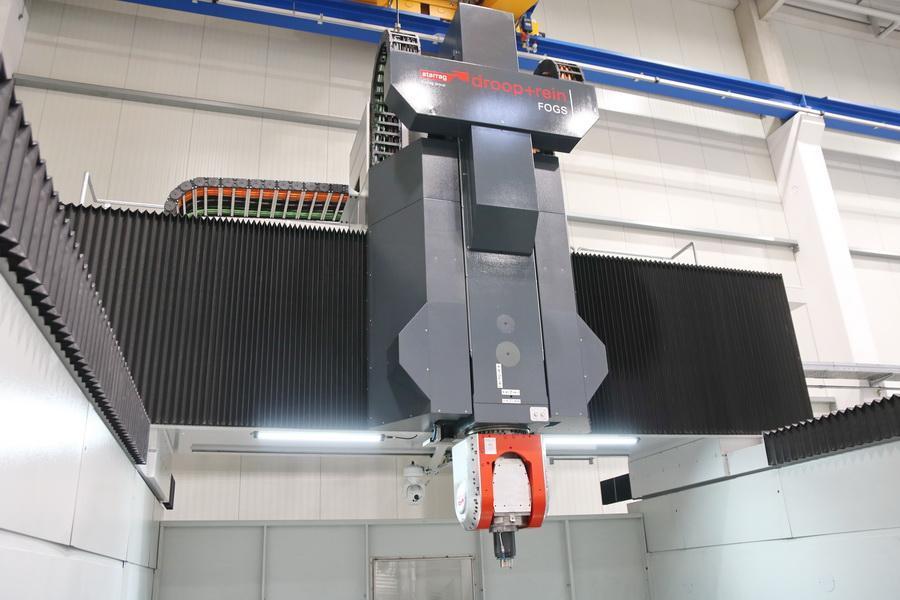

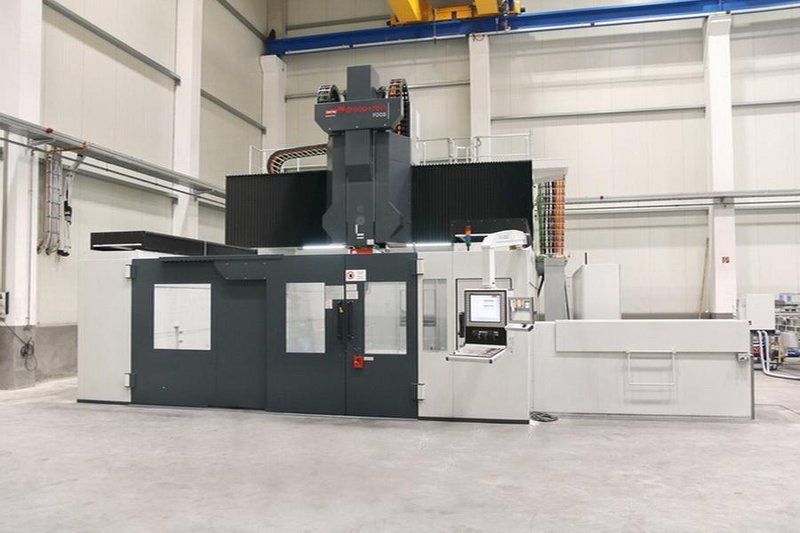

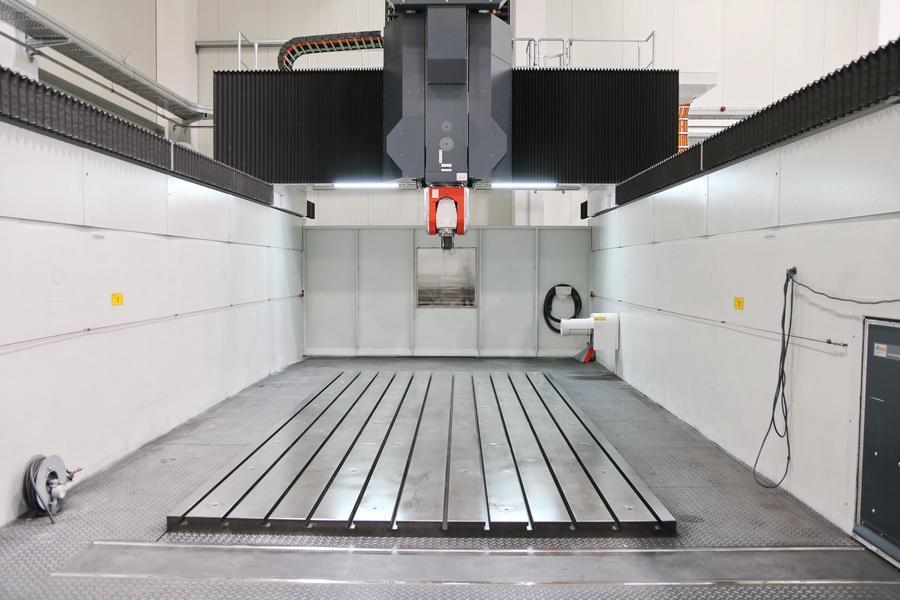

Droop + Rein FOGS 40 60 C CNC 5-Axis High Speed Gantry Type Machining Center, 2016 – Rotary Table, Probe, Blum Tool Measurement System, Extraction System

Travels X-Axis: 267.7″ Y-Axis: 157.5″ Z-Axis: 59.1″ B-Axis: +115º/-115º C-Axis: ±200º

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Distance Between Columns: 200.4″ Spindle Center to Table: 71.9″

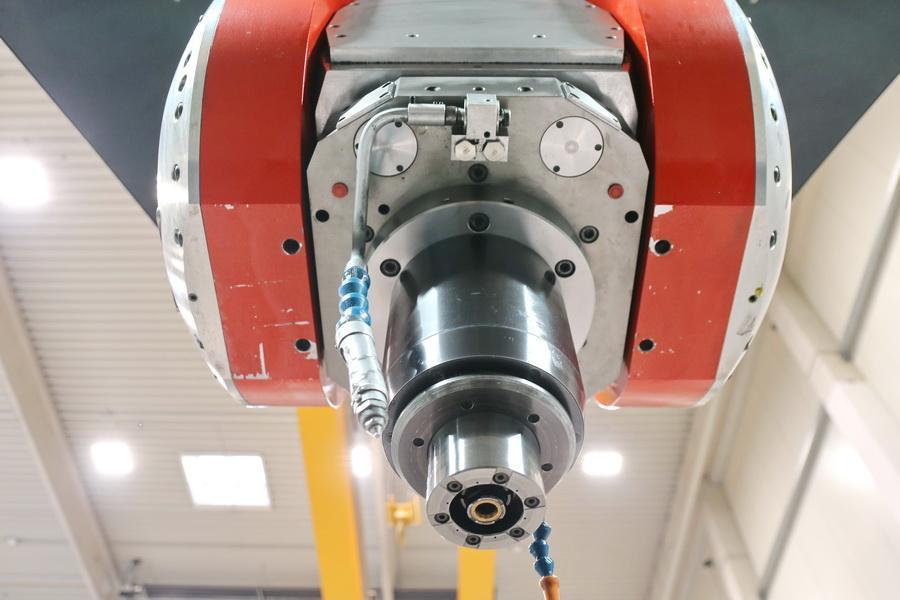

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,High-Speed Spindle Max Speed: 19,800 RPM Power: 26.8 HP Taper: HSK-A63

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Heavy-Duty Spindle Max Speed: 10,020 RPM Power: 26.8 HP Taper: HSK-A100

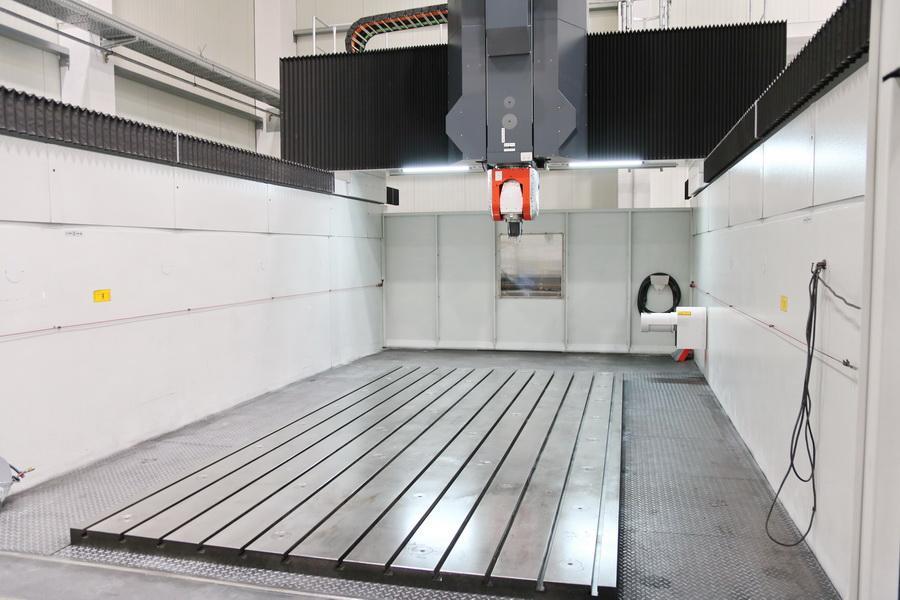

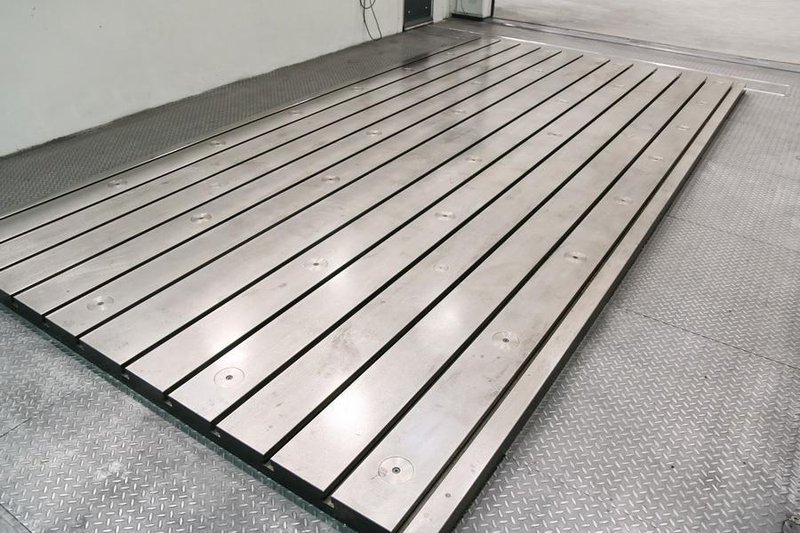

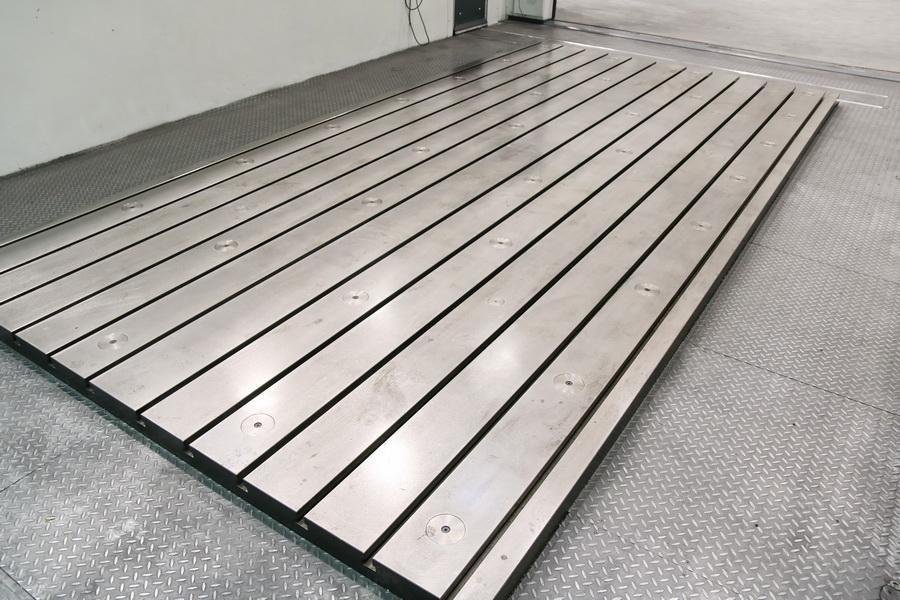

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Work Table Table Size: 236.2″ x 118.1″ Max Load: 110,231 lbs Table Height Above Floor: 3.94″ T-Slots: 12 T-Slot Width: 1.10″ T-Slot Spacing: 9.84″

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Feed Rates Rapid Traverse (X/Y/Z): 1,575 IPM Cutting Feed (X/Y/Z): 1,181 IPM Rapid B/C Rotation: 4,320º/min Feed B/C Rotation: 2,160º/min Acceleration: 10.5 ft/sec sq

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Machine Footprint: 492.1″ x 590.6″ x 275.6″

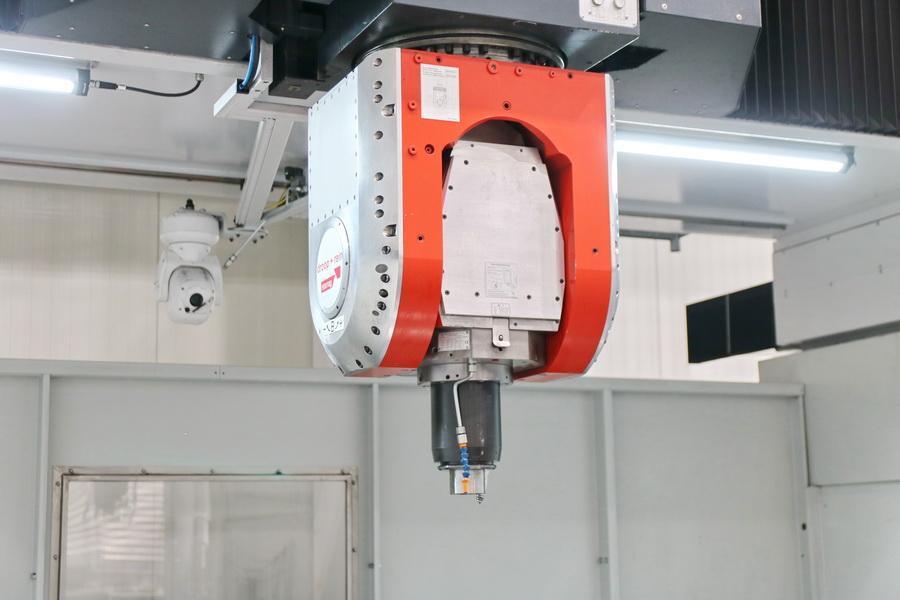

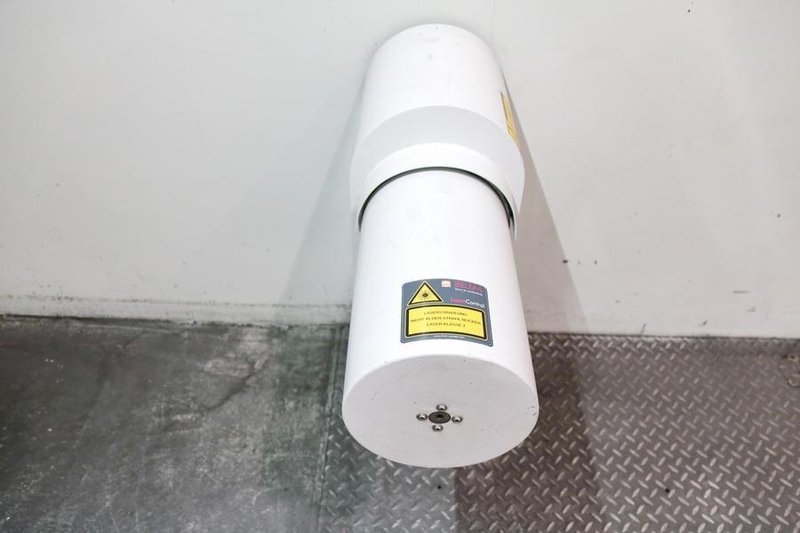

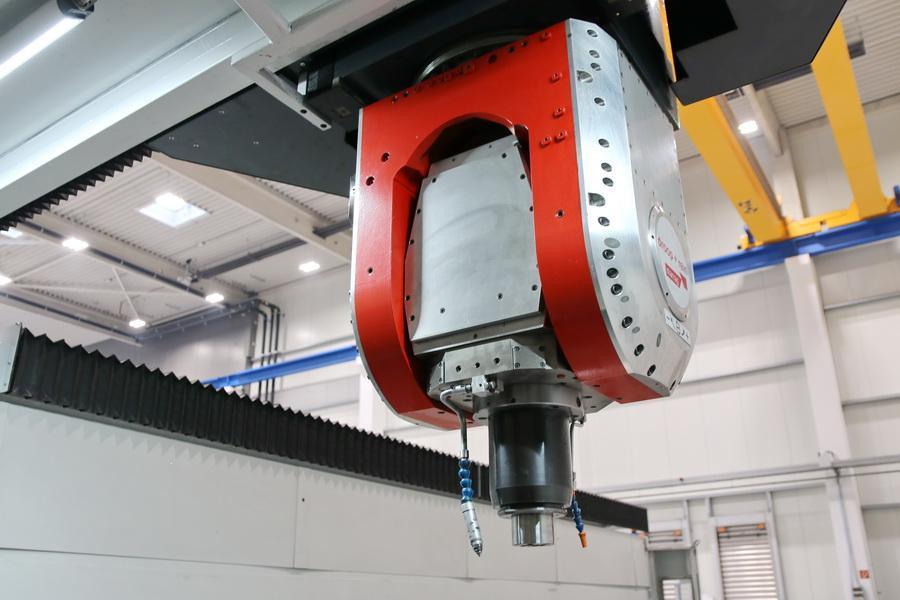

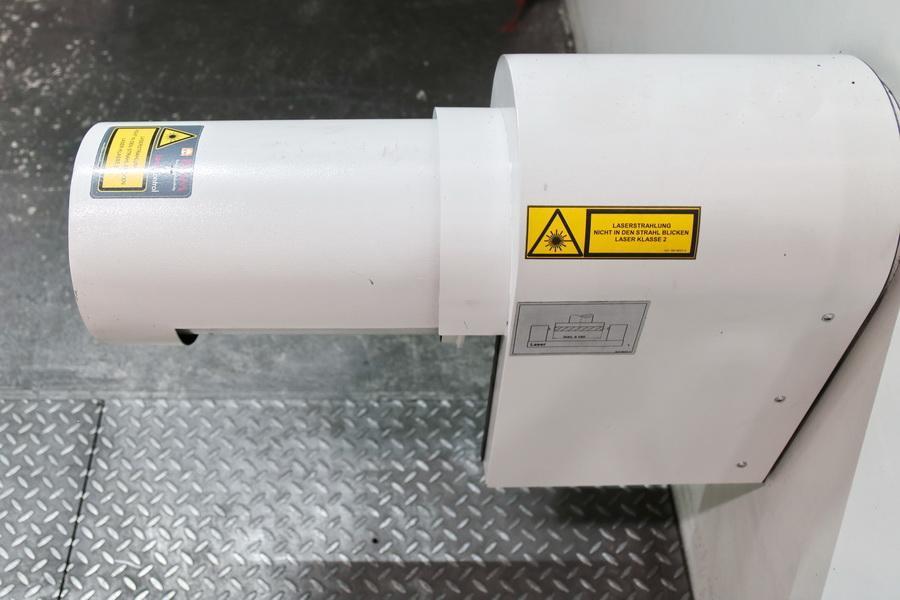

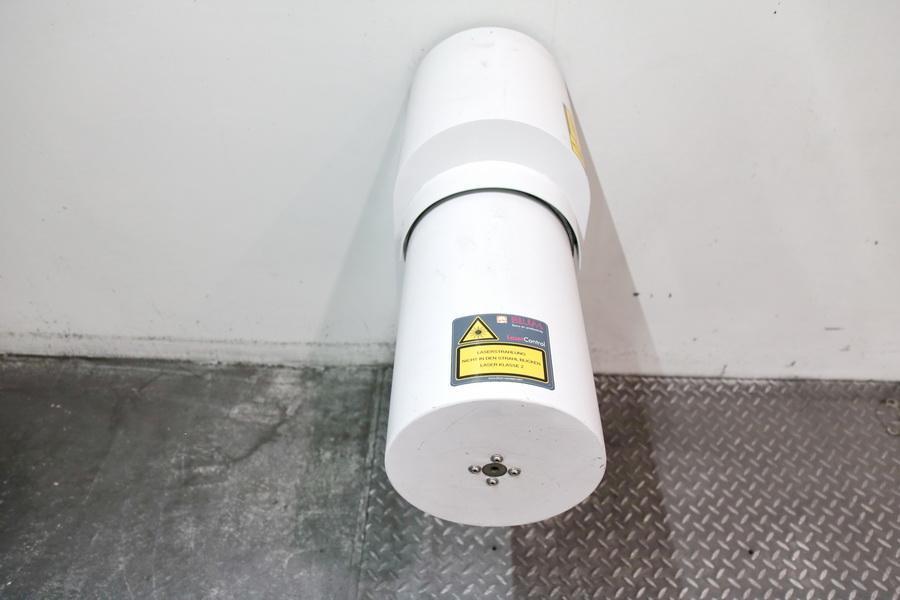

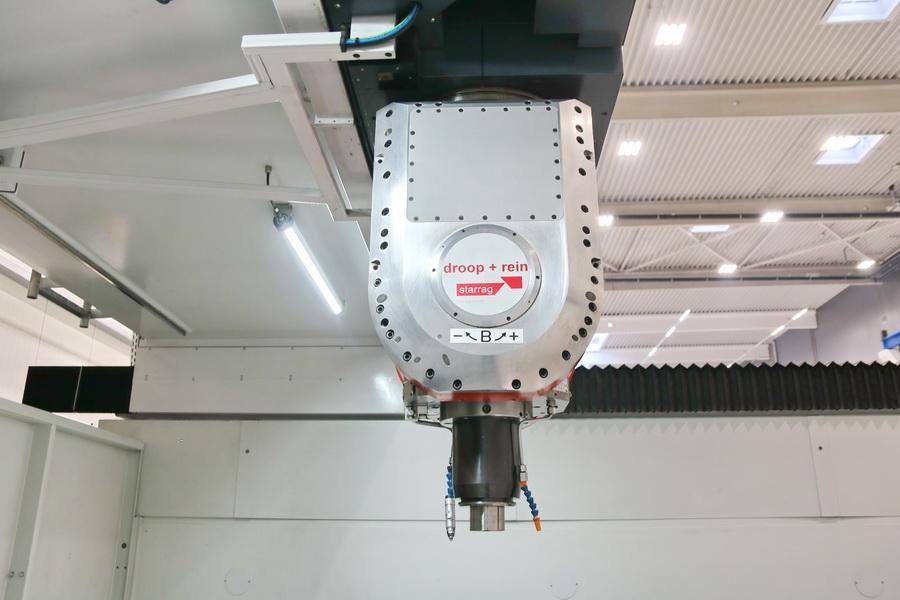

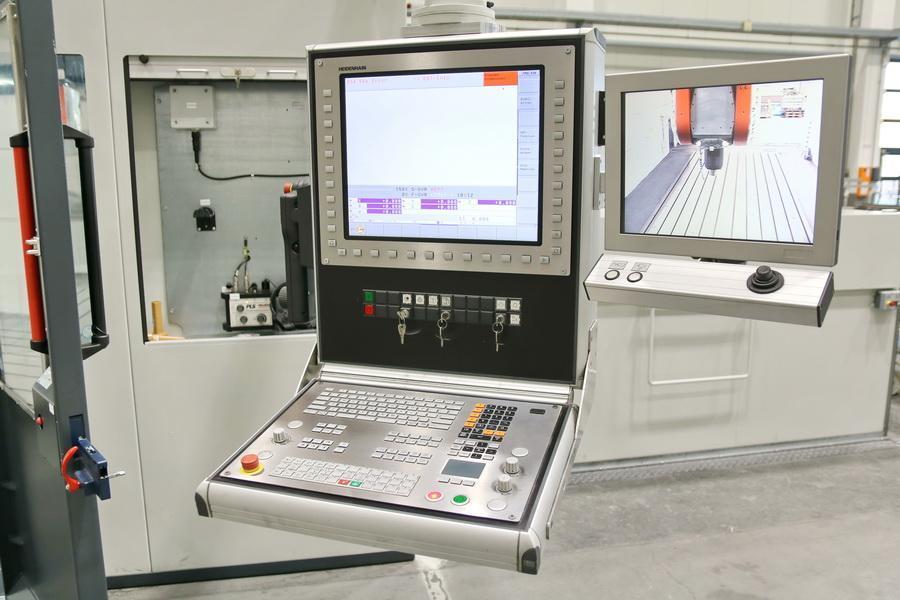

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With Heidenhain iTNC 530 HSCI CNC Control 62 Position ATC Interchangeable Spindle Head System B-Axis Swivel Milling Head C-Axis Rotary Table Blum Tool Measurement System m&h RWP 20.41 Workpiece Probe Extraction System (Ringler RI 333 D4 IE2)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
