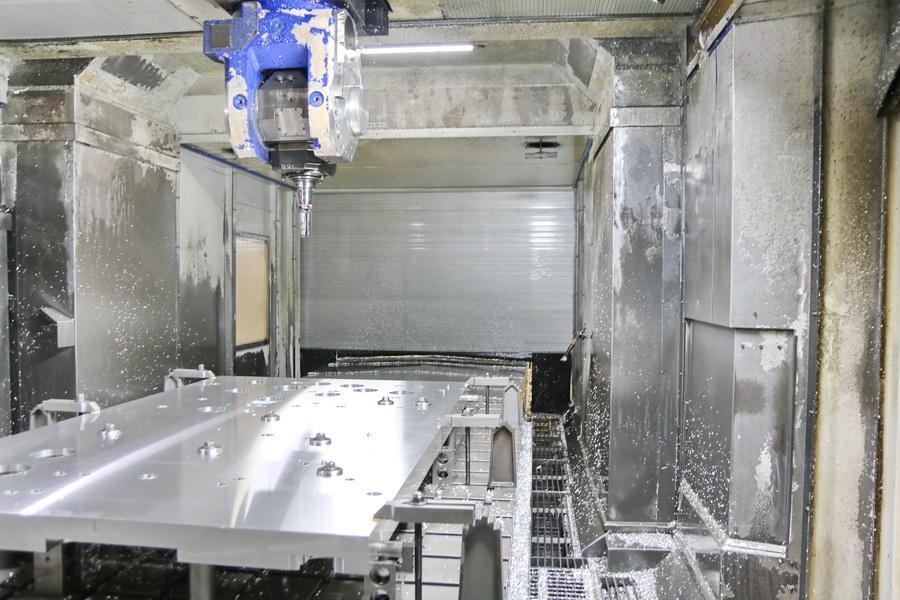

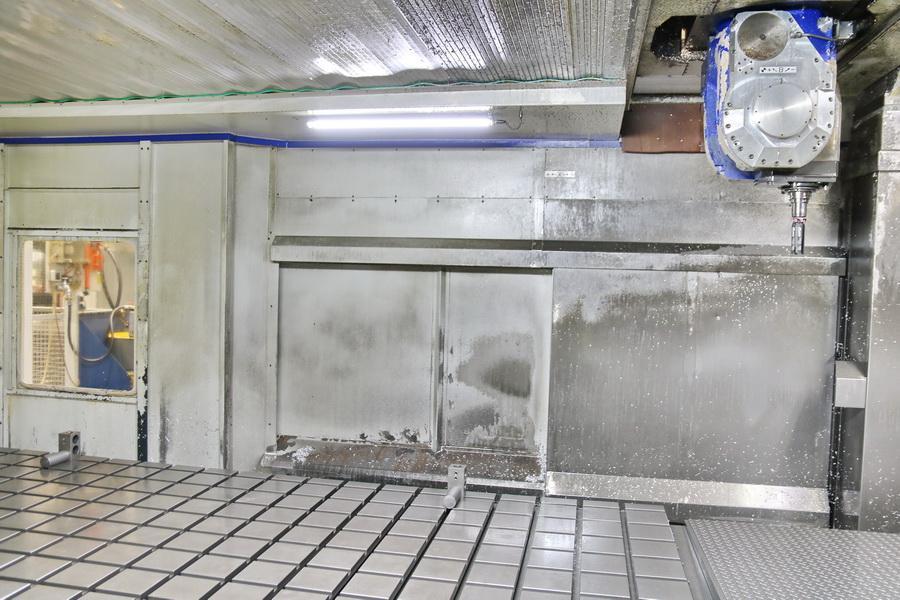

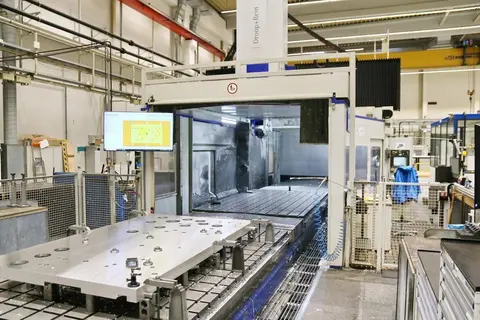

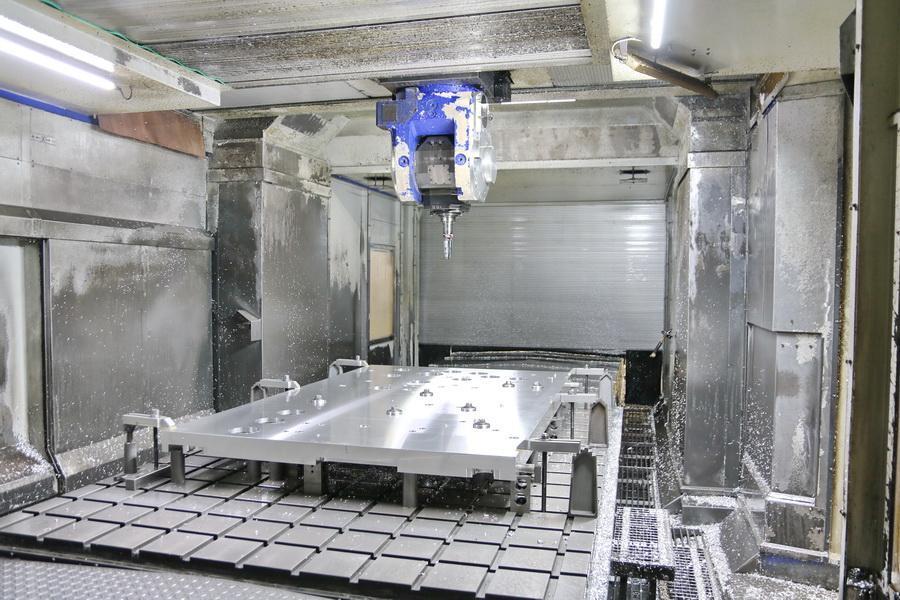

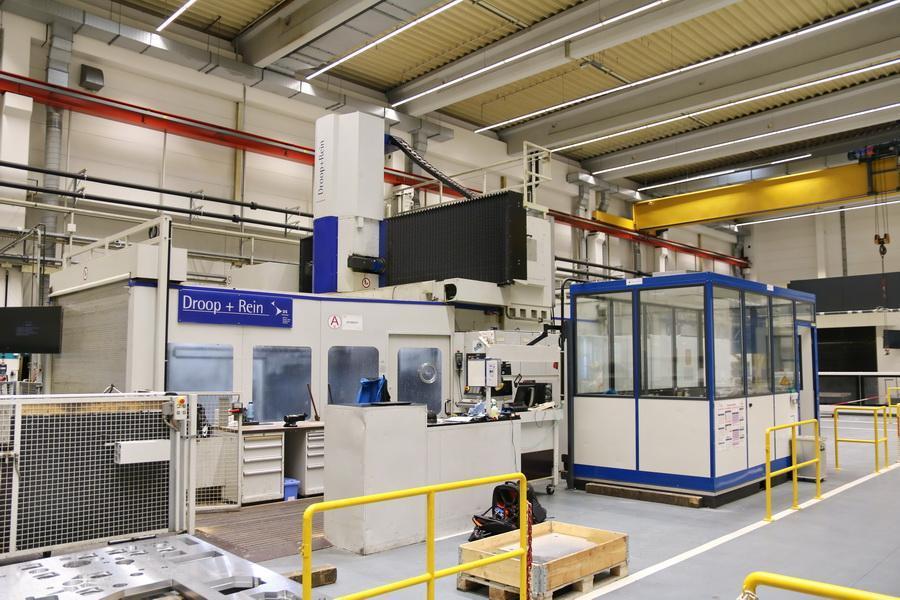

Droop + Rein TFS 22-40 DT D40 P CNC 5-Axis Planer Type Milling Machine, 2007 – Dual Chip Conveyors, Through Spindle Coolant, Probe, Rotary Table

Travels X-Axis: 397.6″ (2 x 196.9″) Y-Axis: 118.1″ Z-Axis: 59.1″ B-Axis: +110º/-10º C-Axis: ±200º

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Distance Between Columns: 118.1″ Passage Height: 76.8″ Spindle Center to Table: 70.9″ Spindle Nose to Table: 53.1″/59.1″

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,High-Speed Spindle Max Speed: 18,000 RPM Power: 26.8 HP Torque: 35.4 ft-lb Taper: HSK-A63 Spindle Extension: 17.7″

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Heavy-Duty Spindle Speed Range: 20-5,000 RPM Power: 53.6 HP Torque: 811 ft-lb Taper: HSK-A100 Spindle Extension: 11.8″

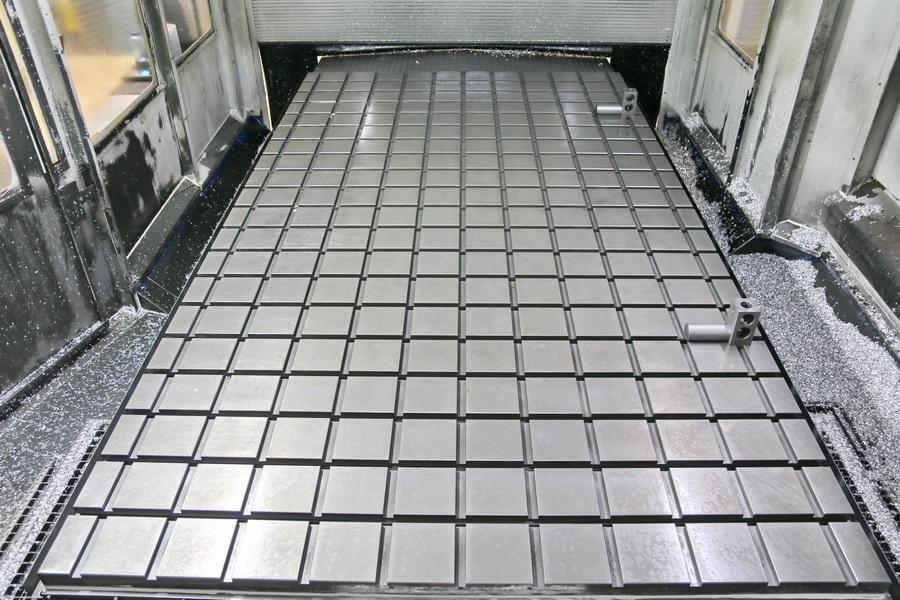

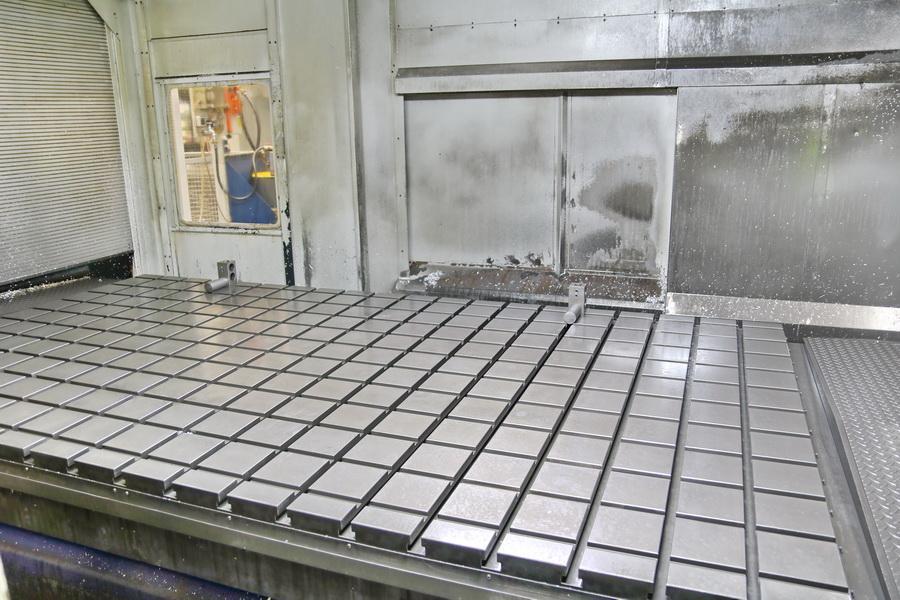

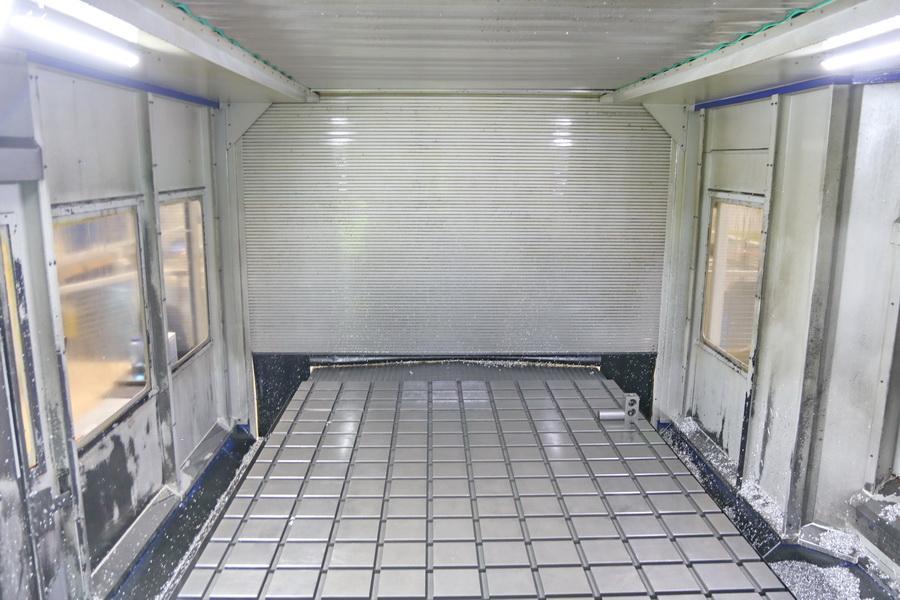

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Work Table Table Size: 157.5″ x 86.6″ (2 tables) Max Table Load: 26,455 lbs/44,092 lbs Table Height: 27.6″ T-Slots: 11 + 19 T-Slot Width: 1.10″ T-Slot Spacing: 7.87″

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Feed Rates X-Axis: 1,181 IPM Y/Z-Axis: 1,575 IPM B-Axis: 3,600º/min C-Axis: 2,160º/min

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Acceleration X-Axis: 4.9 ft/sec sq Y/Z-Axis: 10.5 ft/sec sq

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Dimensions: ~984.3″ x 472.4″ x 275.6″

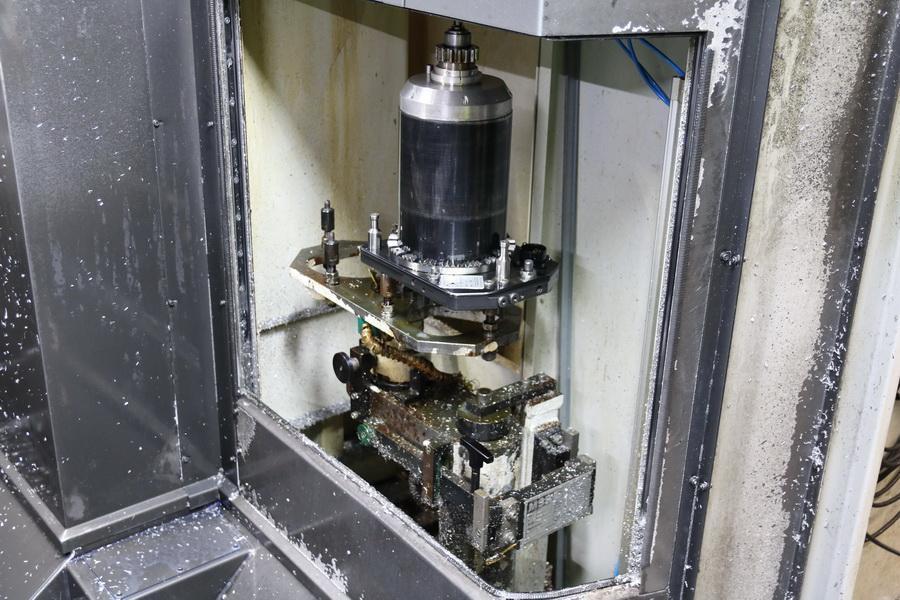

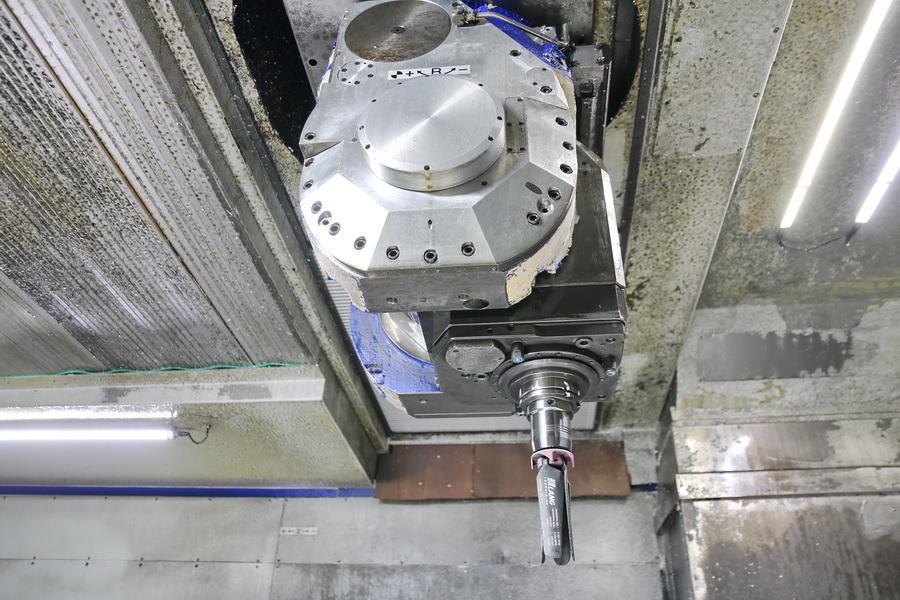

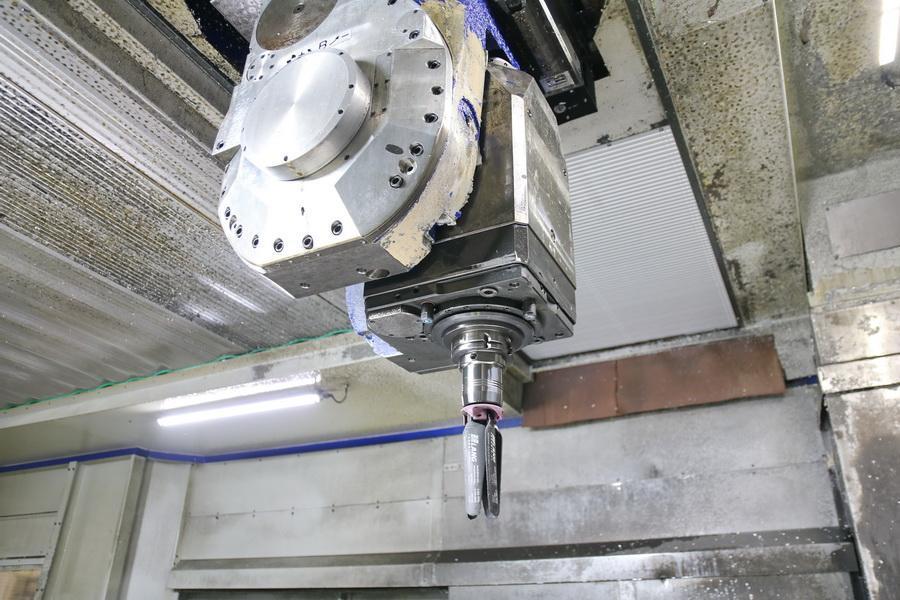

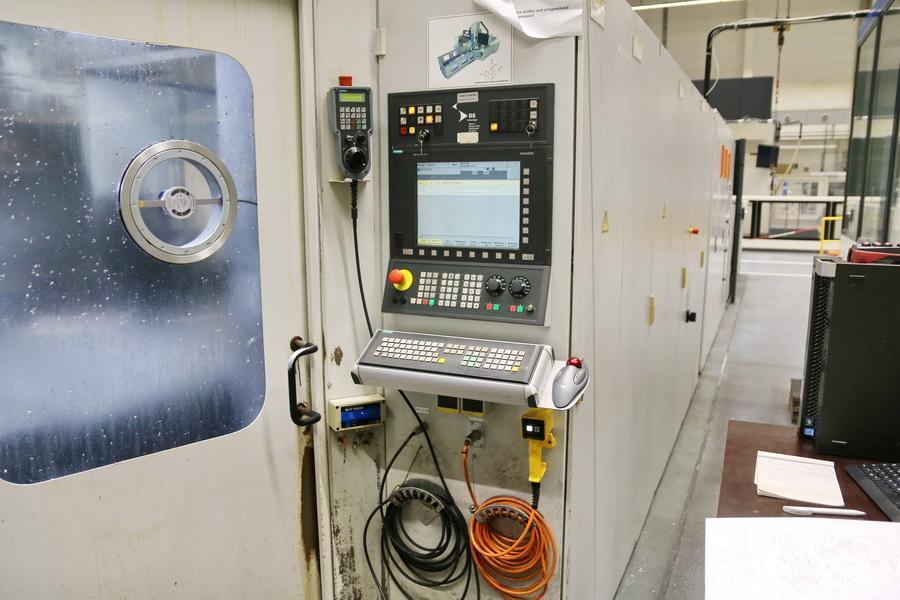

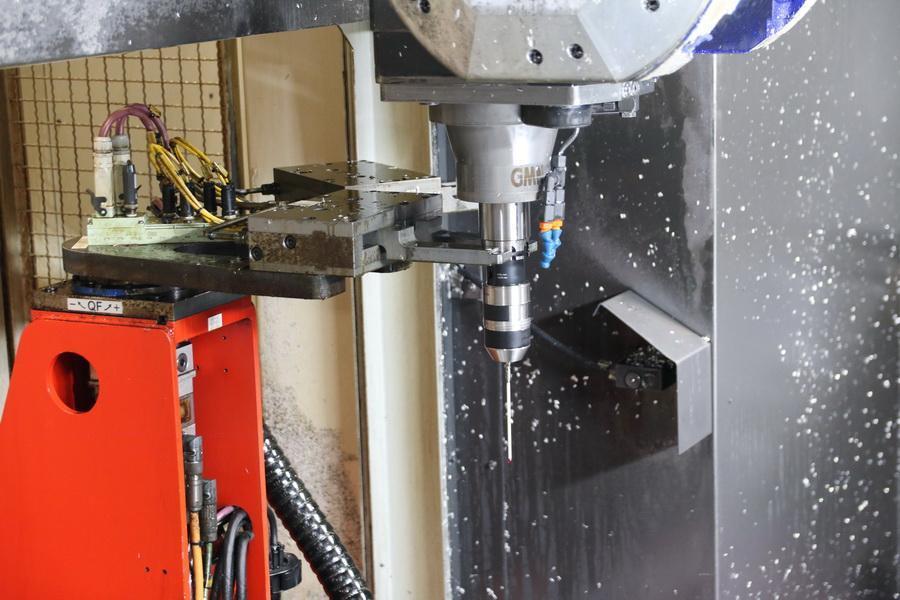

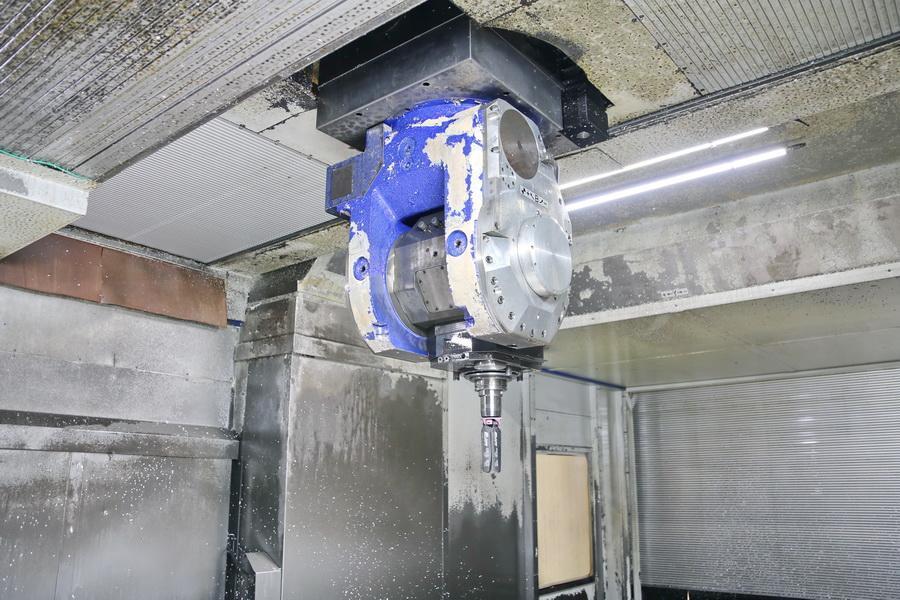

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With: Siemens Sinumerik 840D CNC Control 327 Total ATC Dual Chip Conveyors Through-Spindle Coolant Coolant System Dual Pallet/Work Table Configuration B-Axis Swiveling Head C-Axis Rotary Table m&h RWP 20.10 Workpiece Probe Renishaw Tool Breakage/Tool Measurement System
