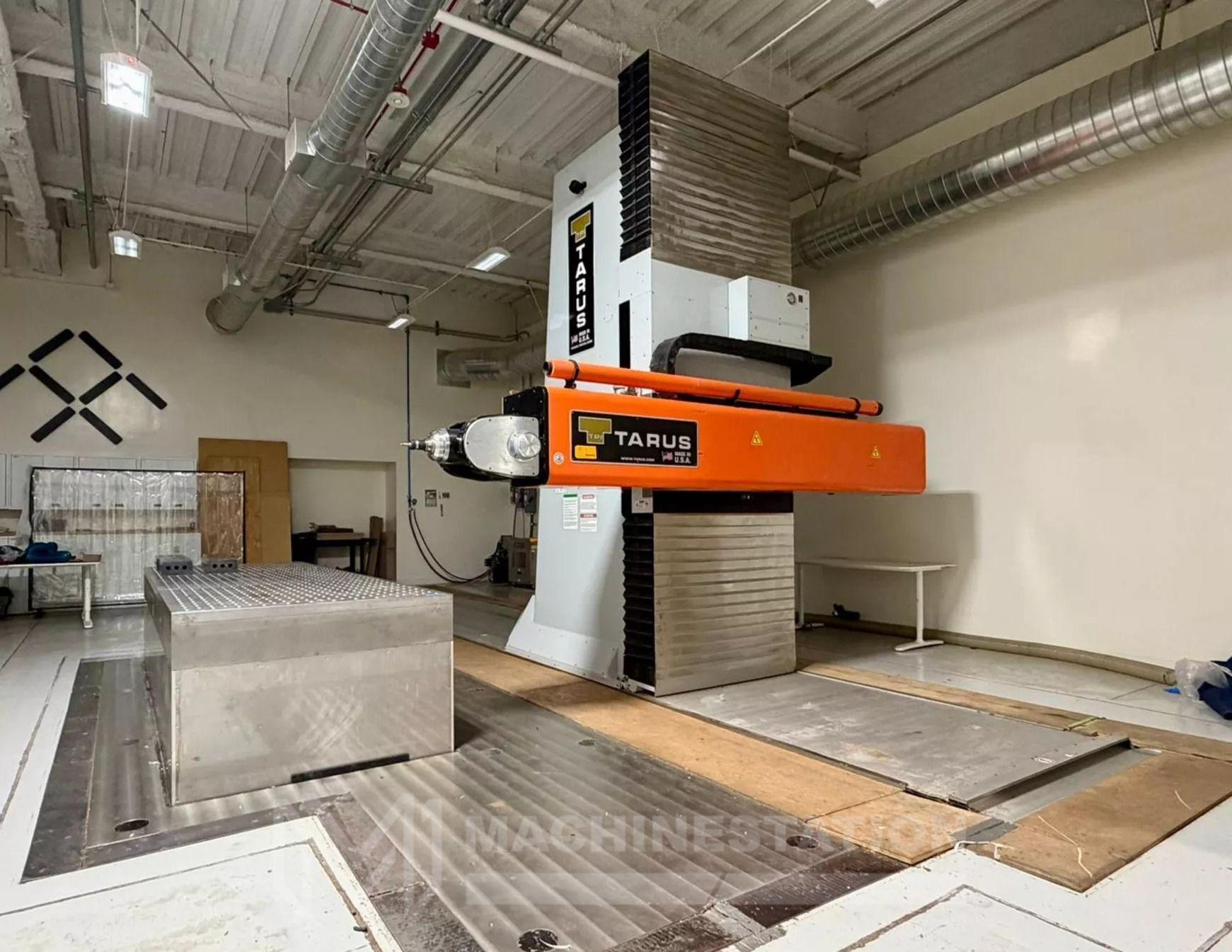

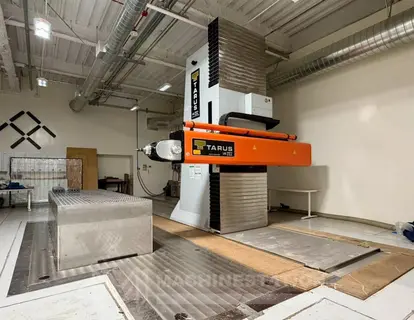

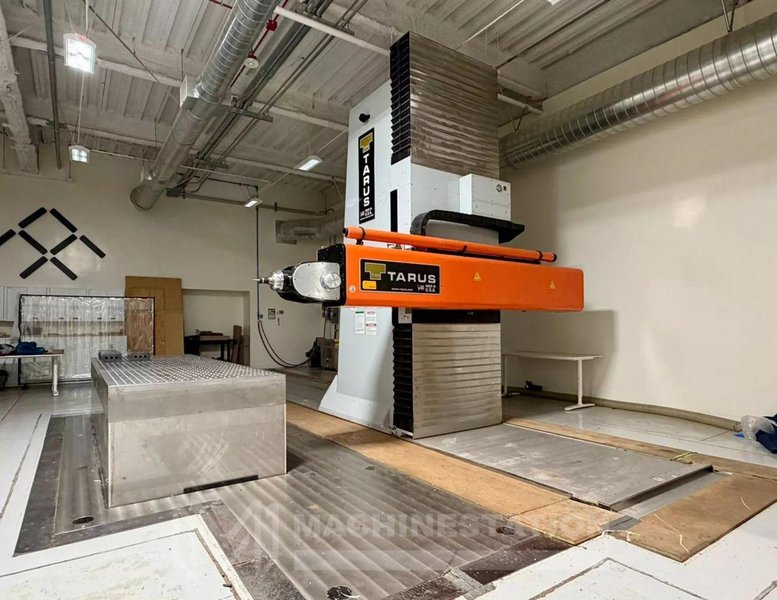

Tarus TPTSCHSM2475 5-Axis High-Speed Single Column Post CNC Mill – Clay Mill

Tarus TPTSCHSM2475 5-Axis High-Speed Single Column Post CNC Mill – Clay Mill

Name: Tarus TPTSCHSM2475 5-Axis High-Speed Single Column Post CNC Mill – Clay Mill
Brand: TARUS
SKU: 113567
Availability: InStock

Brand

TARUS

Location

Not specified

Specifications
Files & Videos

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Make:	TARUS
Model:	TPT SCHSM2475
Year:	2016

Features:
TPSCHSM 5-Axis CNC Control
Continuous 5-Axis Machining Capability
HSK-63 Spindle Taper
15,000 RPM High-Speed Spindle

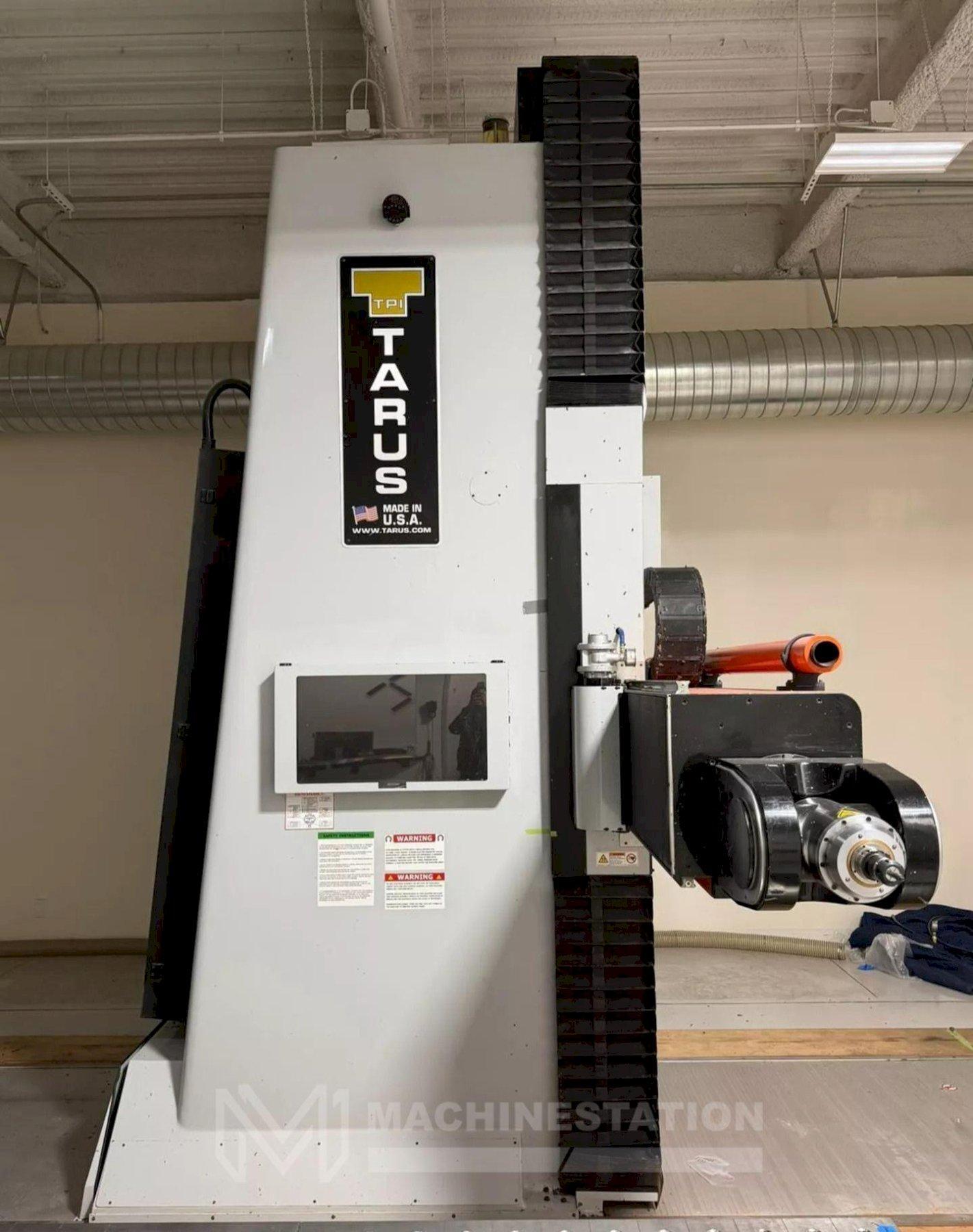

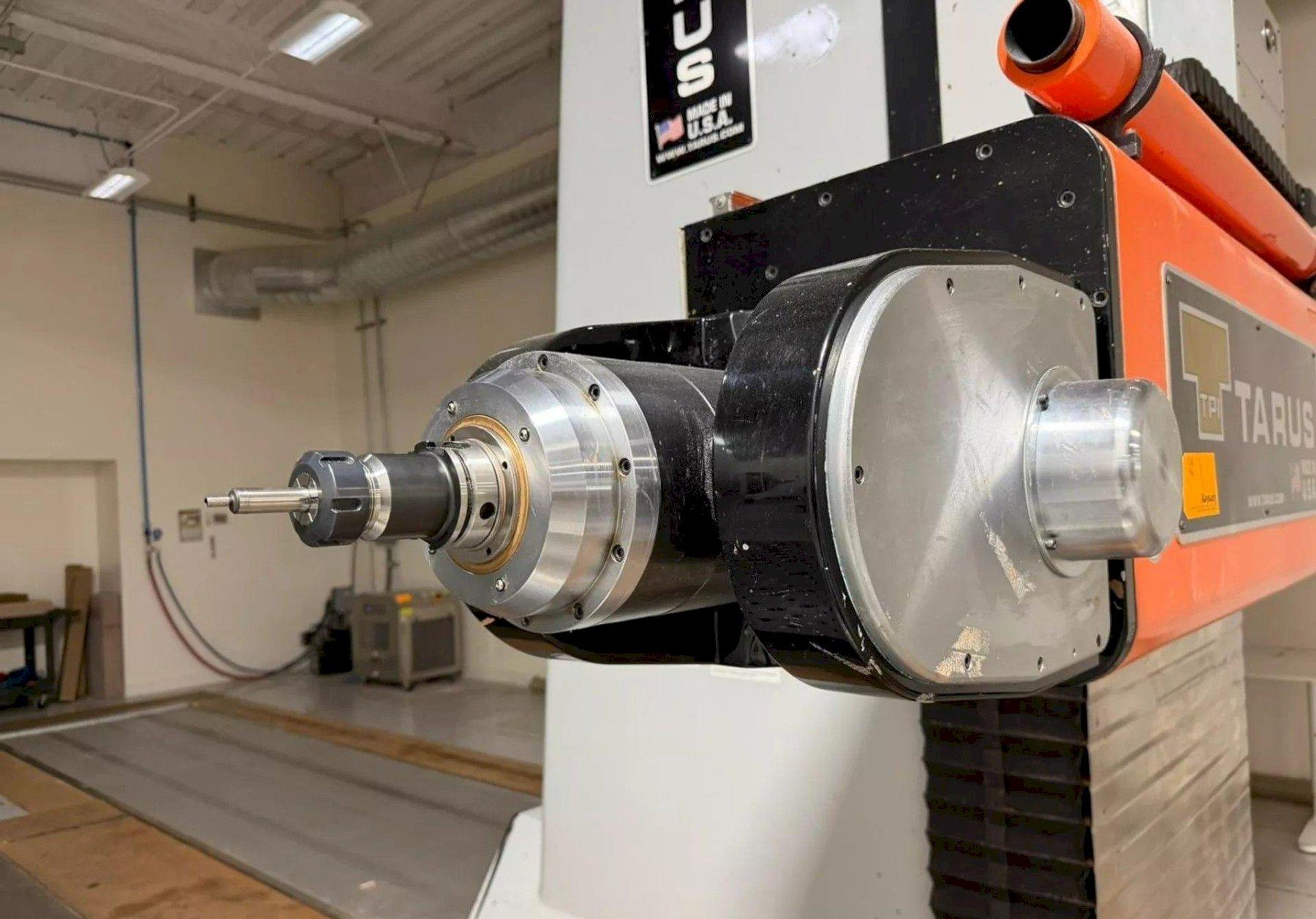

Tilting Milling Head

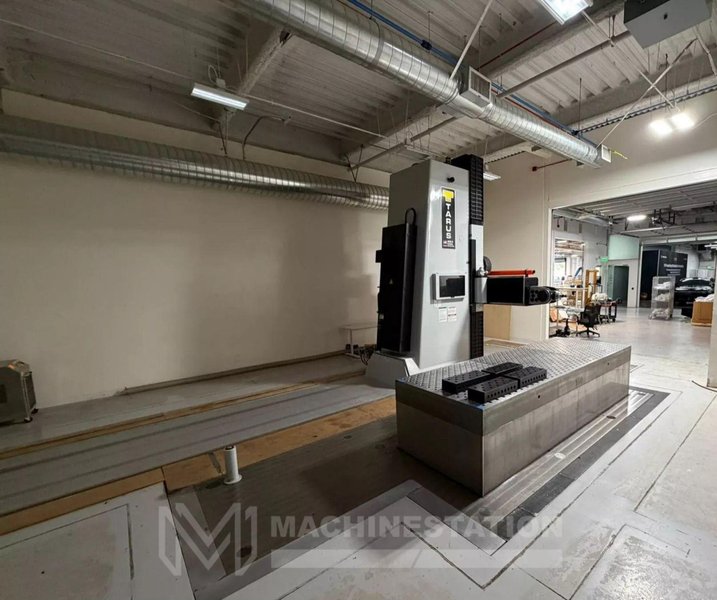

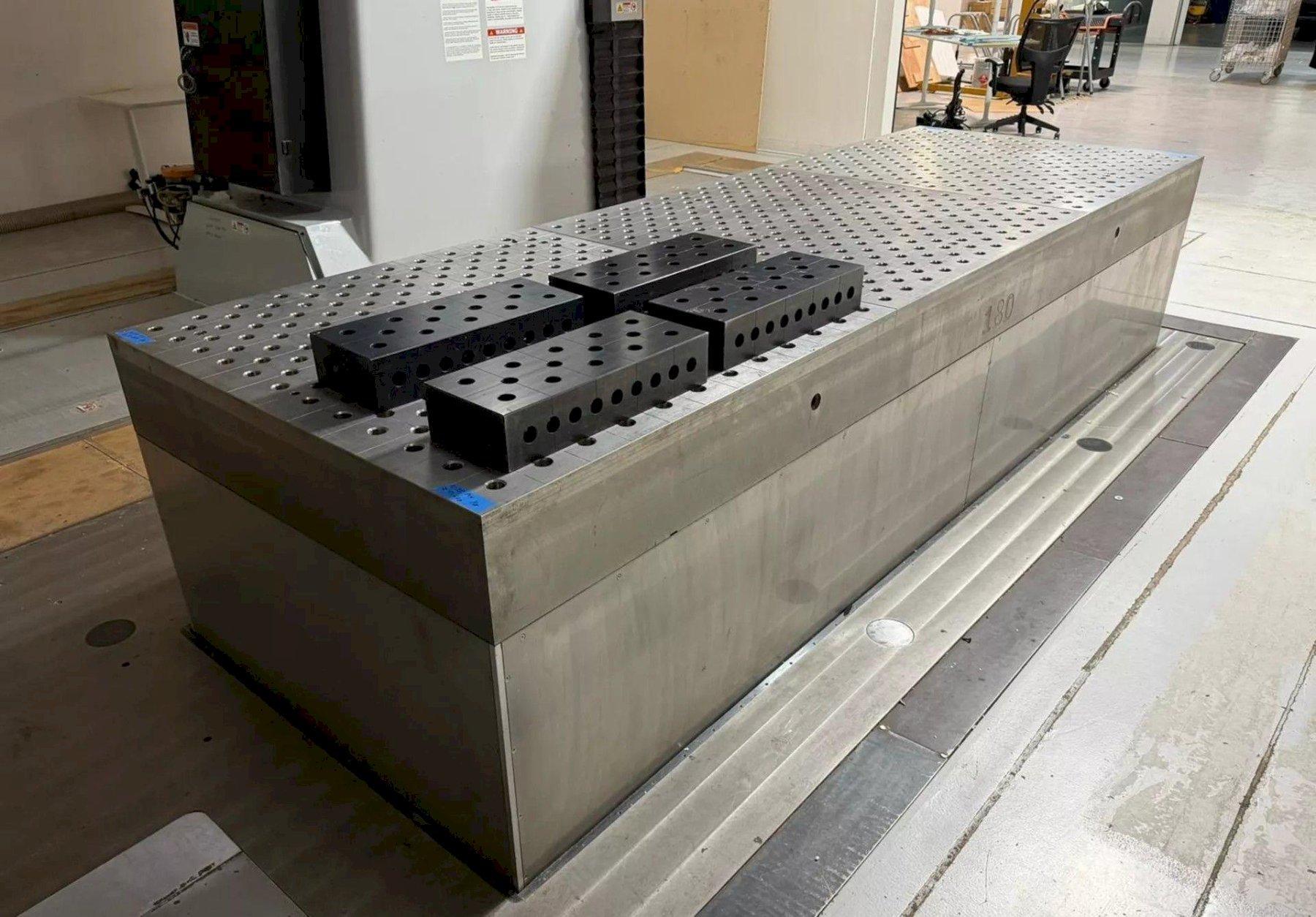

Large In-Ground Work Table

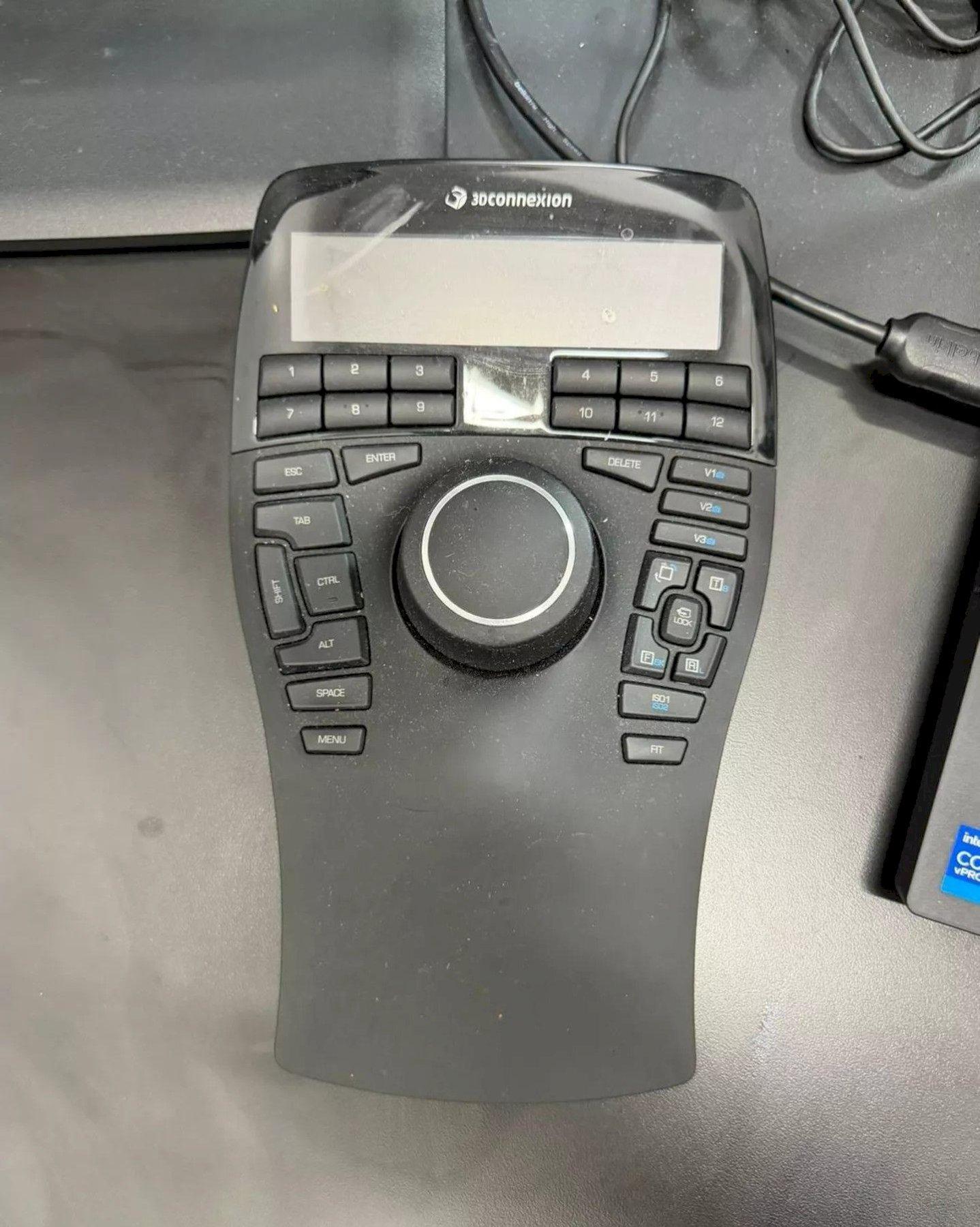

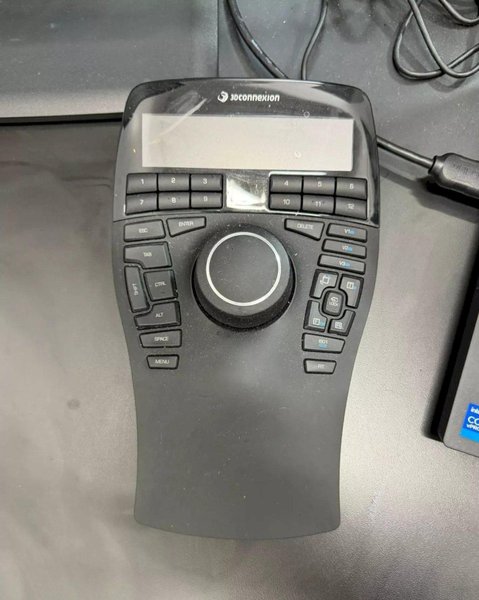

3Dconnexion SpaceMouse 3D Navigation Controller

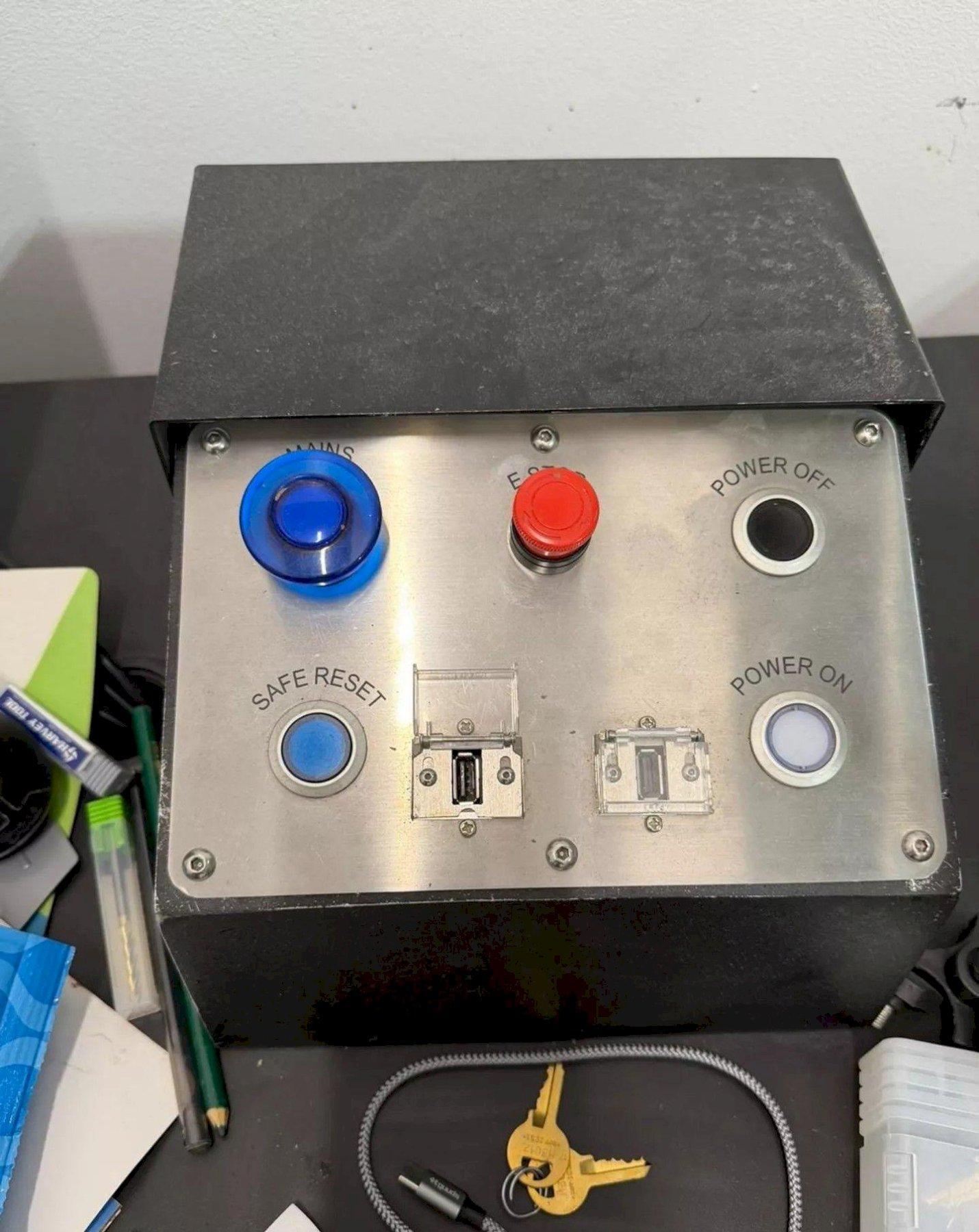

Remote Machine Power & Safety Control Station
USB Ports

Travels:
X-Axis Travel: 298.5 inch
Y-Axis Travel: 79.0 inch
Z-Axis Travel: 64.2 inch
A-Axis Rotation: ±109°
B-Axis Rotation: ±180°

Table:

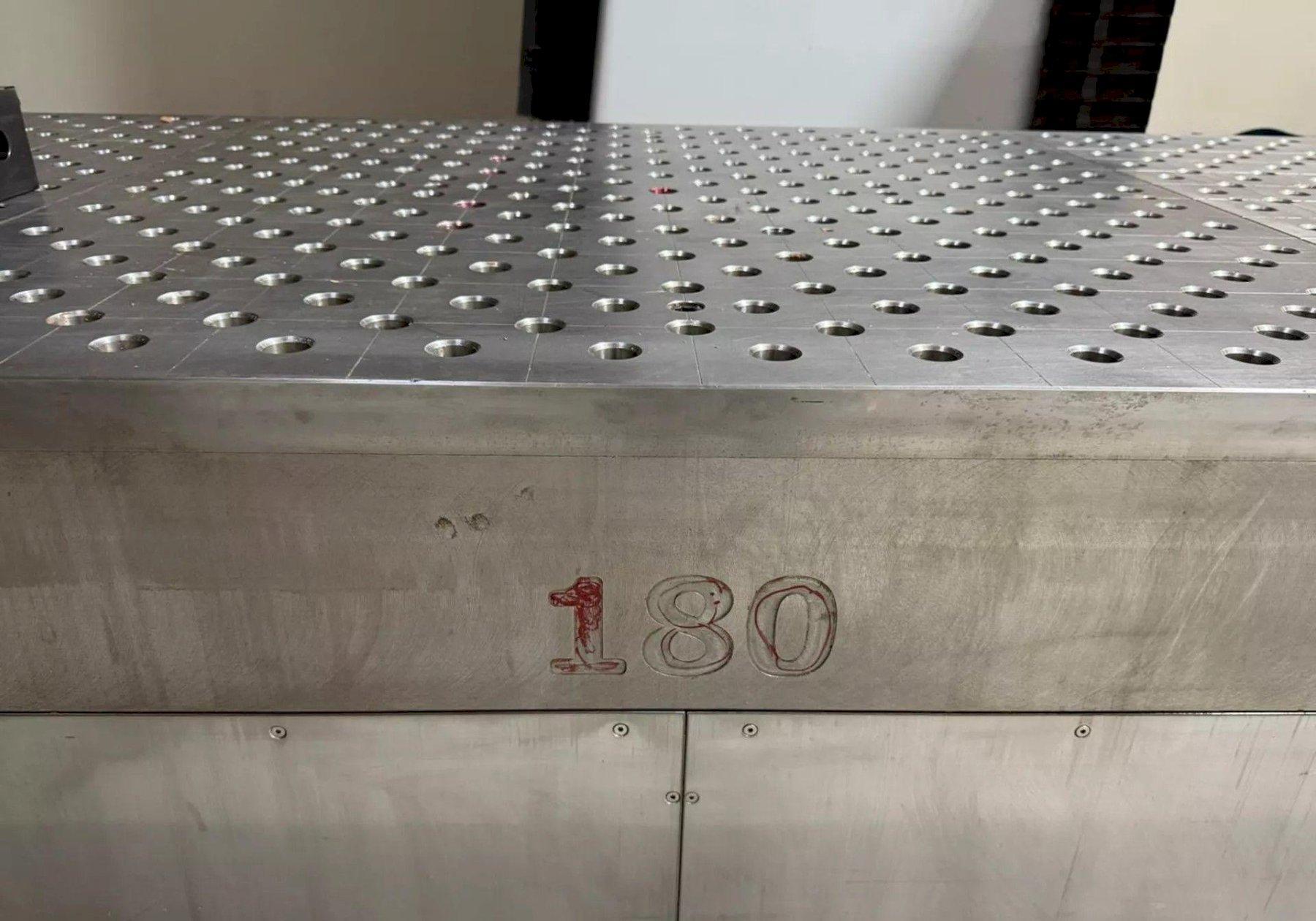

Table Size: 48 inch × 144 inch
Table Type: In-Ground Machine Table

Spindle:
Spindle Speed: 15,000 RPM
Spindle Taper: HSK-63

General:

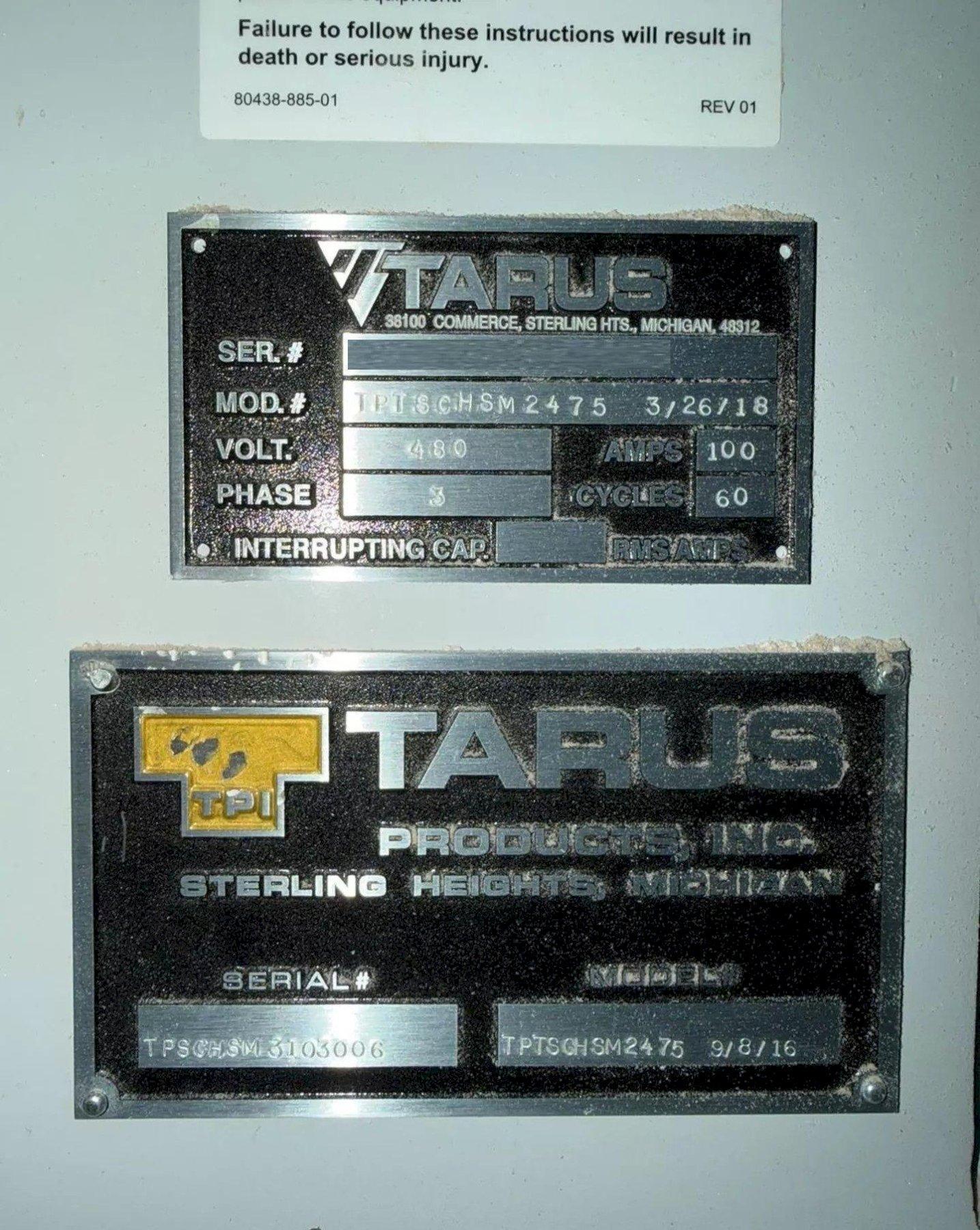

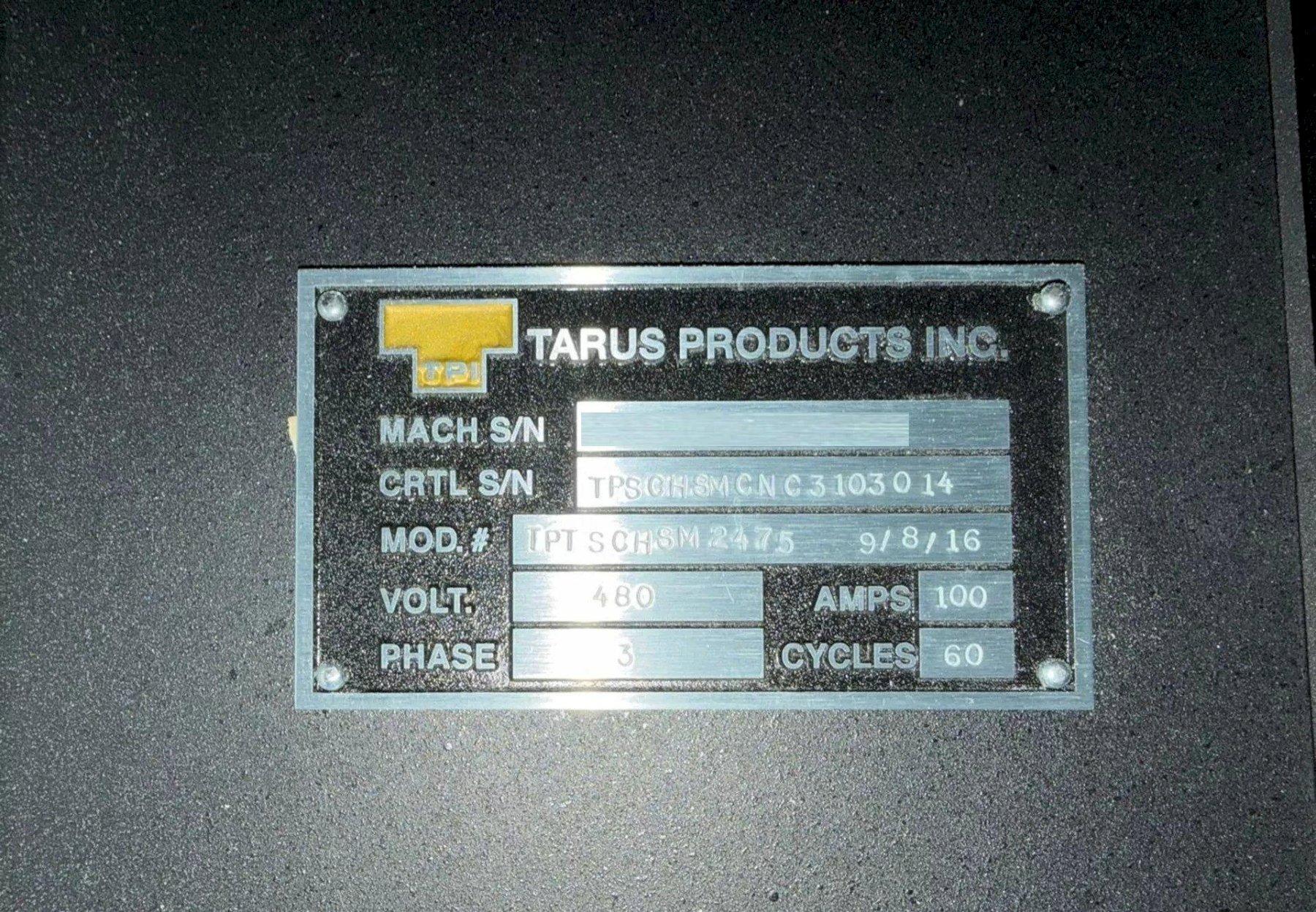

Power Requirement: 480 Volt / 3-Phase / 60 Hz / 100 Amps
Overall Floor Space Required: 190 inch W × 437.25 inch L Approx.
Column Height: 166.5 inch Approx.
Designed to Provide 5-Axis Milling Capability for Modeling and Prototyping Clay and Low Density Foam Components in Product Development in Automotive, Aircraft, and Defense Related Industries.
