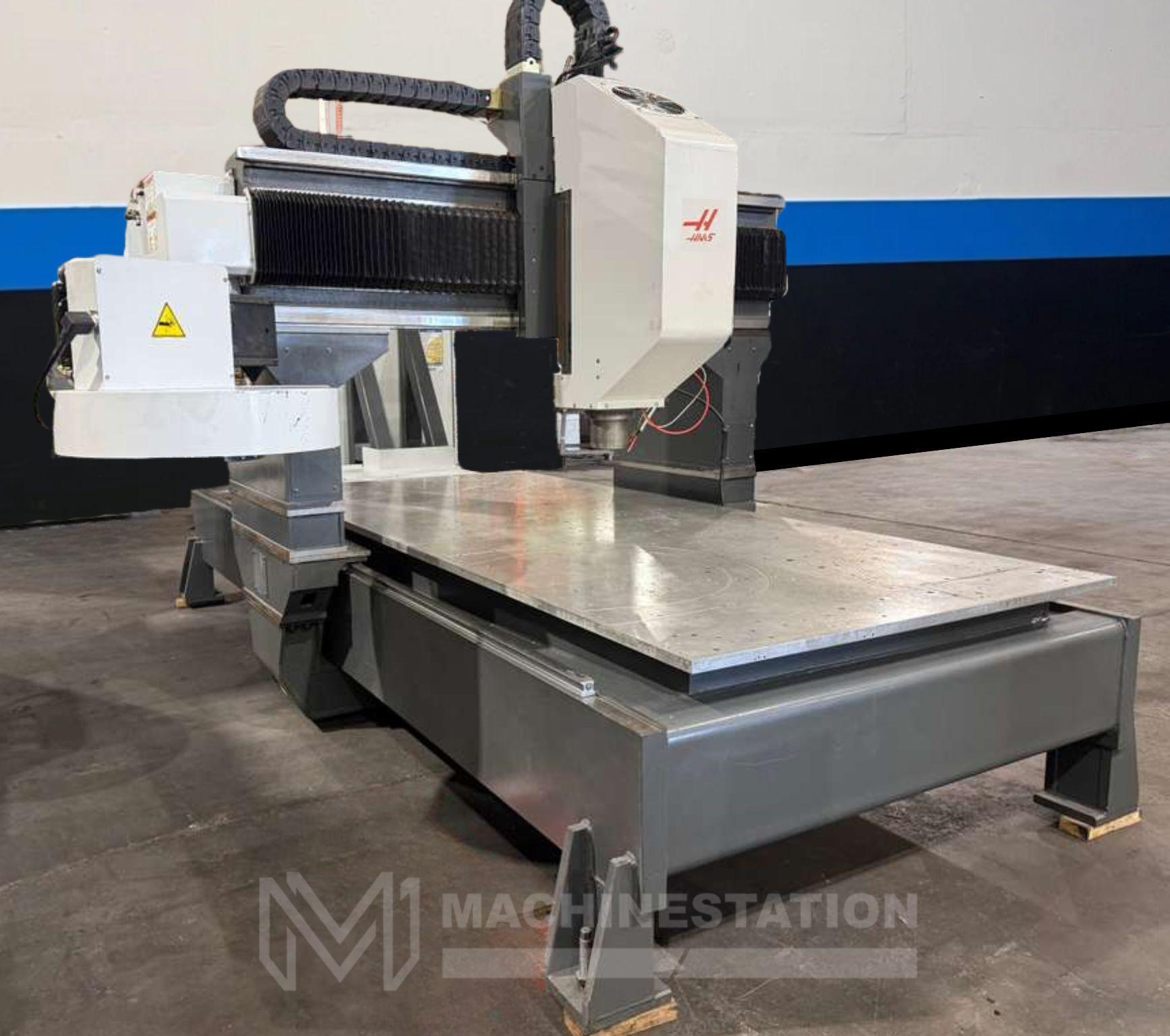

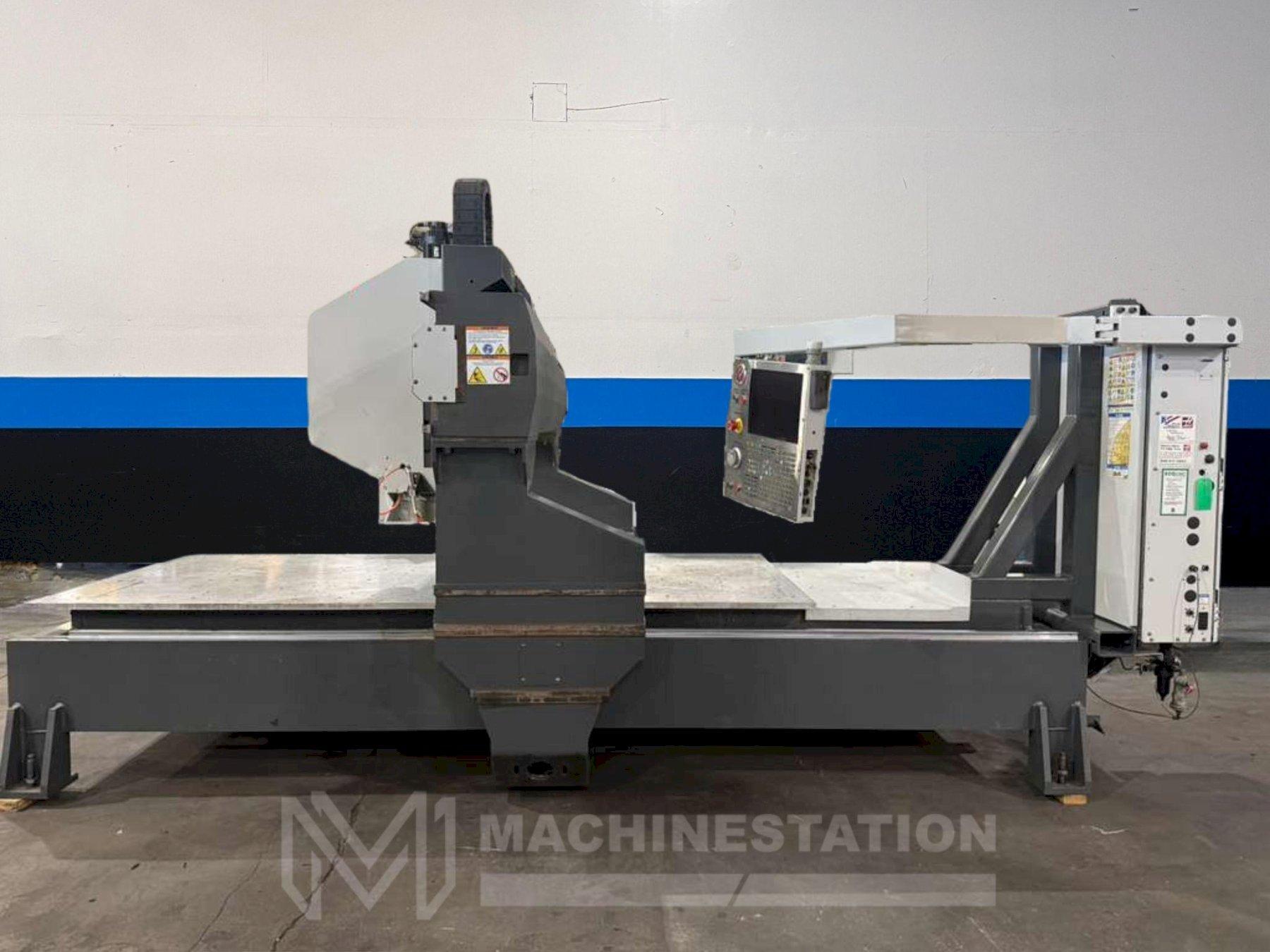

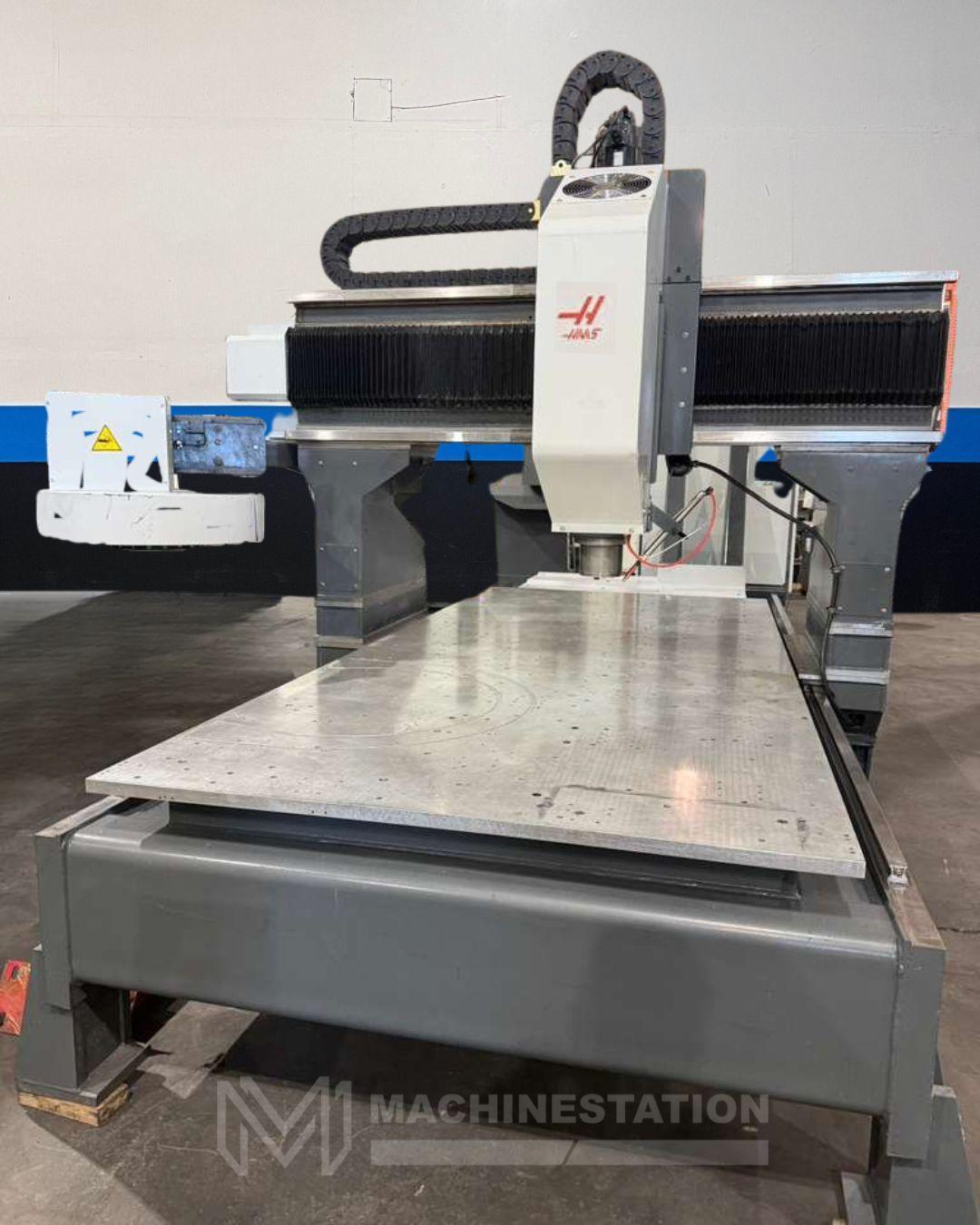

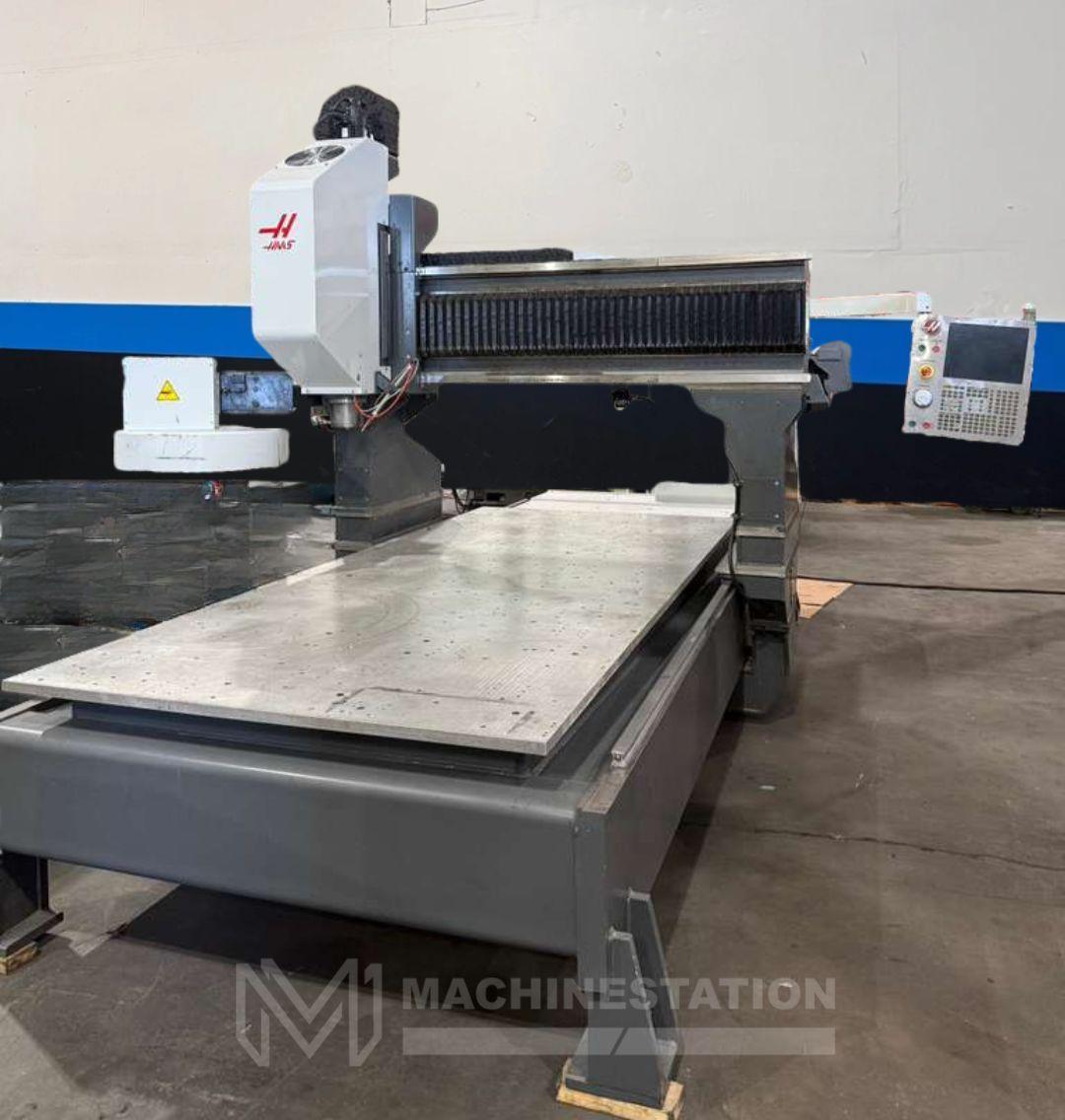

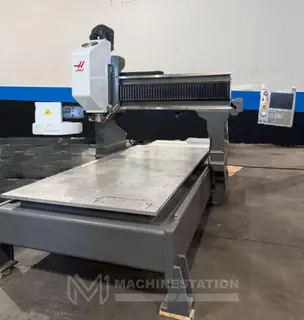

Haas GR-510 CNC Gantry Router – 10,000 RPM, 20 ATC, Extended Z Axis Clearance Mill

Brand
HAAS
Category
Milling Machines
Type
Millers, Gantry/Bridge
Model
Haas GR-510
Stock #
112996
Year
2011
Condition
Not specified

Location

Not specified
REQUEST FINANCING

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Make: Haas
Model: GR-510
Year: 2011
Condition: Used -Good
Features:
Haas CNC Control
10,000 RPM Spindle (Upgraded $6,195 value Included)
6″ Extended Z-Axis Clearance (Upgraded $8,195 value Included)
20 Station Automatic Tool Changer (Upgraded $5,395 value Included)

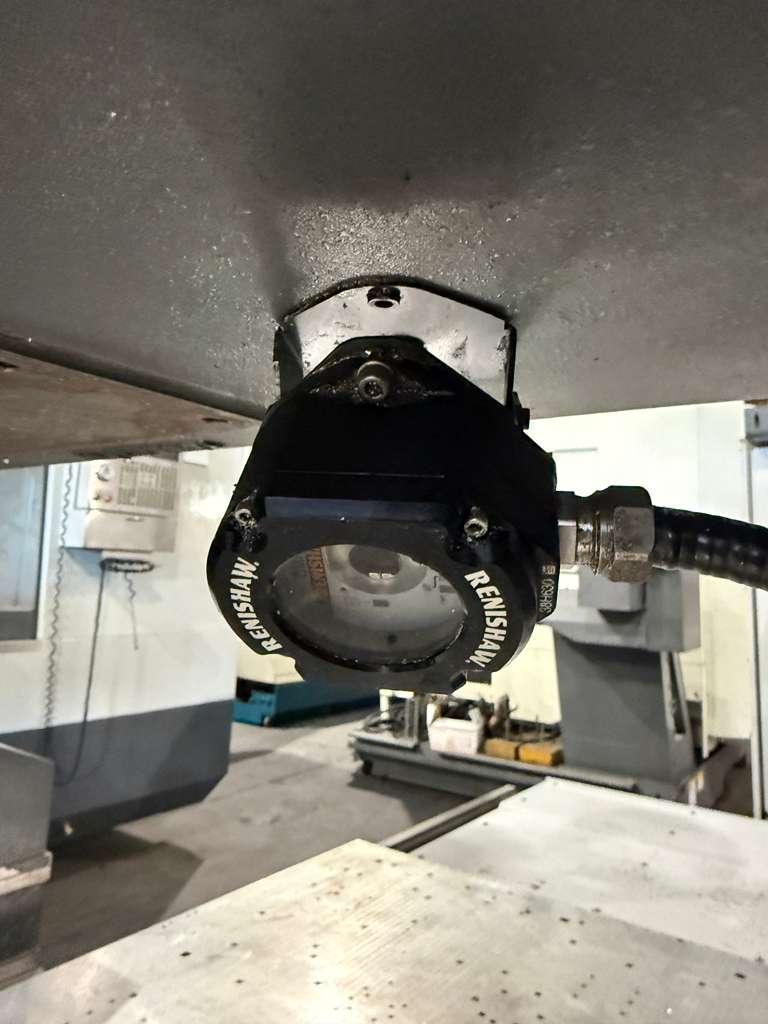

Wireless Intuitive Probing System (Probe Needed) (Upgraded $6,795 value Included)
Remote Jog Handle
Coolant System
Travels:
X-Axis: 121″
Y-Axis: 61″
Z-Axis: 11″
Spindle Nose to Table (Min.- Max.): 2.5″ – 13.5″
Feed Rates:
Cutting Feed Rates: 800 Inch per Minute
X Axis Rapid Traverse Rates: 800 Inch Per Minute
Y Axis Rapid Traverse Rates: 2100 Inch Per Minute
Z Axis Rapid Traverse Rates: 1100 Inch Per Minute
Table:

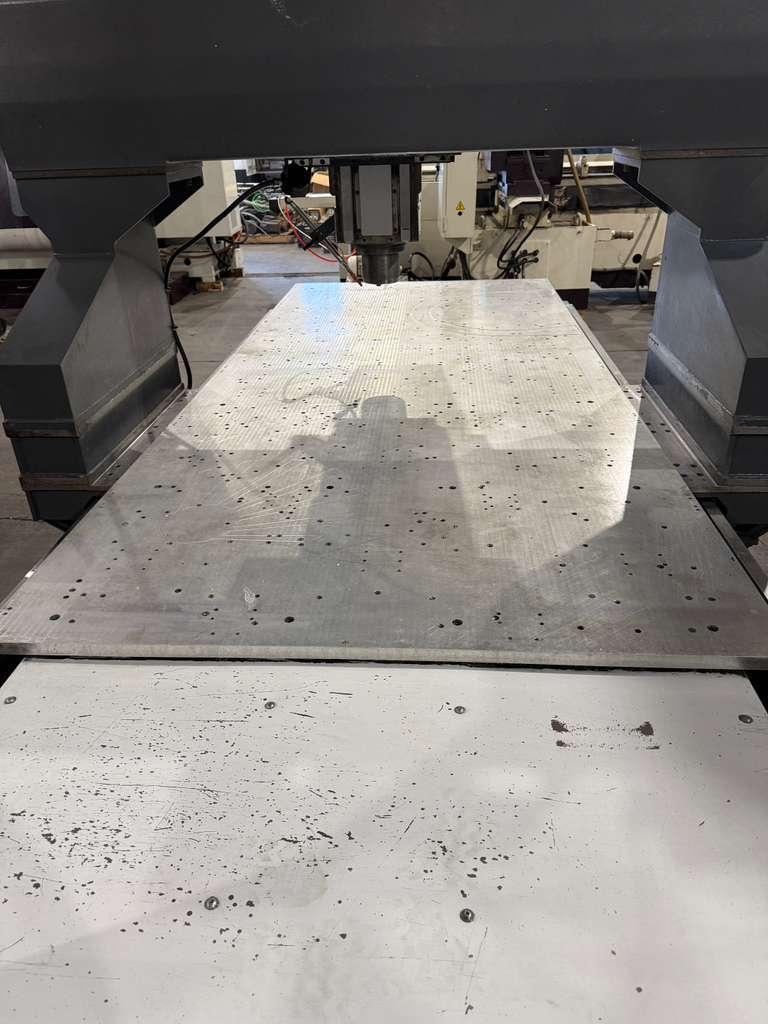

Length: 122″
Width: 53″
Max Weight on Table: 6,000 lbs
Between Columns: 62″
Spindle:
Taper Size: 40
Speed Range: 10,000 RPM
Spindle Power: 15 HP

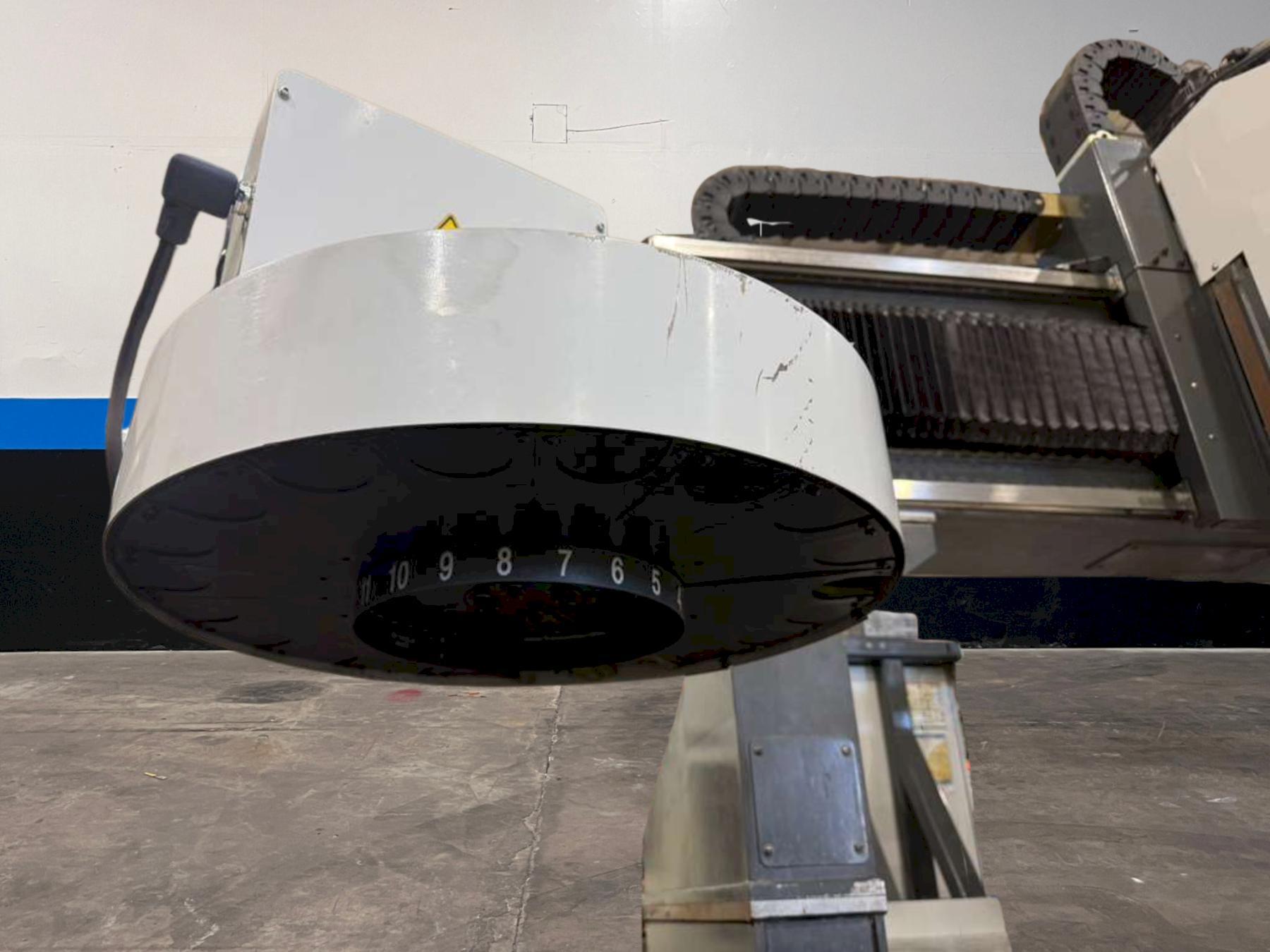

Automatic Tool Changer:
Capacity: 20 Tools
Max Tool Weight: 12 lbs
Max Tool Dia: 3.5″
General:
Air Required: 100 psi, 4 scfm

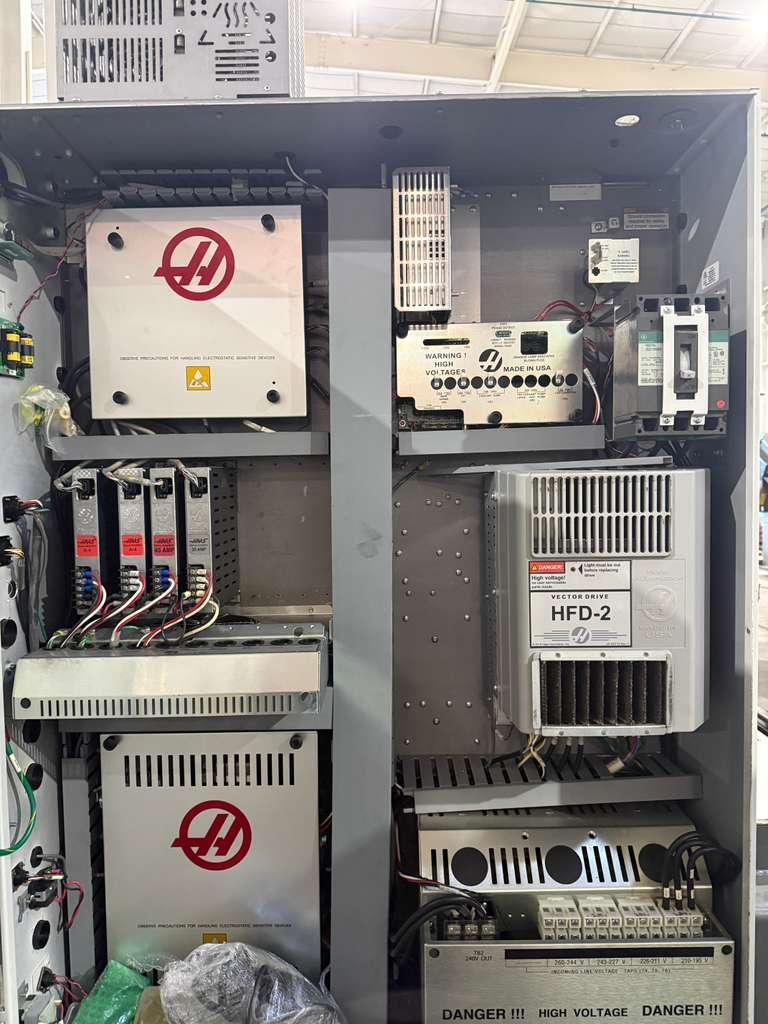

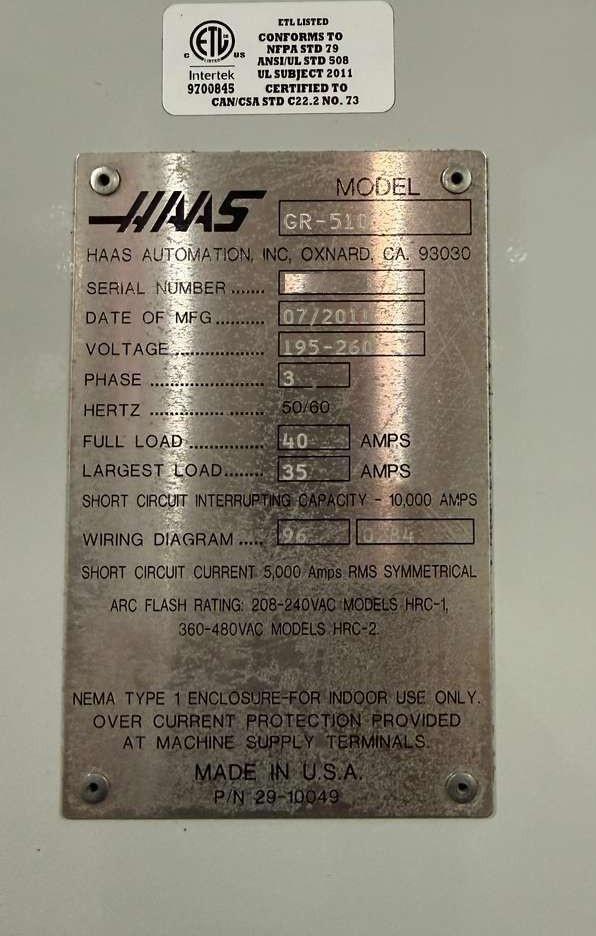

Power: 220v / 66FLA / 3-Phase
Overall Dimensions: 206″ x 111″ x 108″ High
Weight: 19,400 lbs
