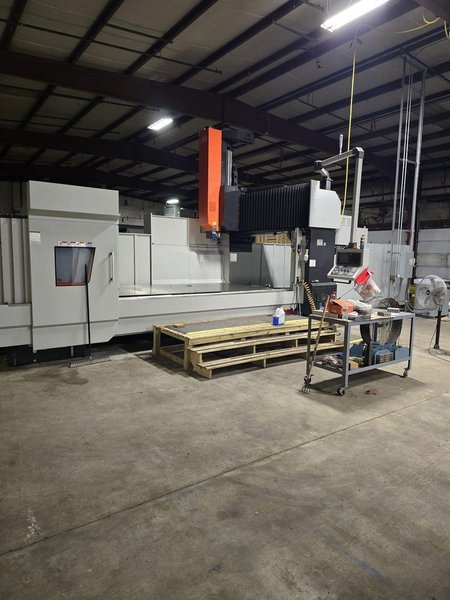

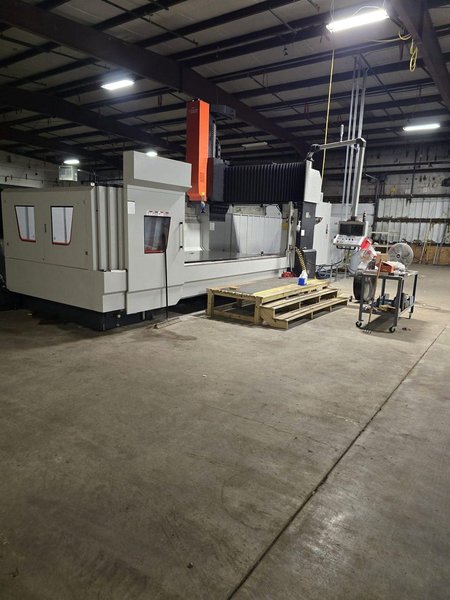

Vision Wide SF-4122 Bridge Mill, 87″ x 161″ Table, 2023 – “NEW” Condition Never Used

Brand
UNKNOWN
Category
Milling Machines
Type
Gantry/bridge Millers
Model
Not specified
Stock #
Not specified
Year
Not specified
Condition
Not specified

Location

Not specified
Y Axis Travel: 86.7″ X Axis Travel: 161.4″ Z Axis Travel: 40″ Spindle Motor: 35 HP Spindle Speed: 6,000 RPM Spindle Taper: CAT 50 Tool Changer: 40 ATC Rapid Rate X Axis: 787 IPM Rapid Rate Y Axis: 787 IPM Rapid Rate Z Axis: 590 IPM Dimensions: 455″ x 205″ x 170″ Weight: 70,400 LBS Max Table Load: 28,600 LBS Options: Fanuc OiMF Probe = Renishaw RTS/RMP40 Probing System Chip Conveyor Coolant Thru Spindle 300 PSI Coolant Thru Spindle Thru Spindle Air Blast Dual Augers and Chip Conveyor Box Ways In Z Axis Never Used

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
No files or videos to display

Want to request a quote or ask the owner of this listing a question?
