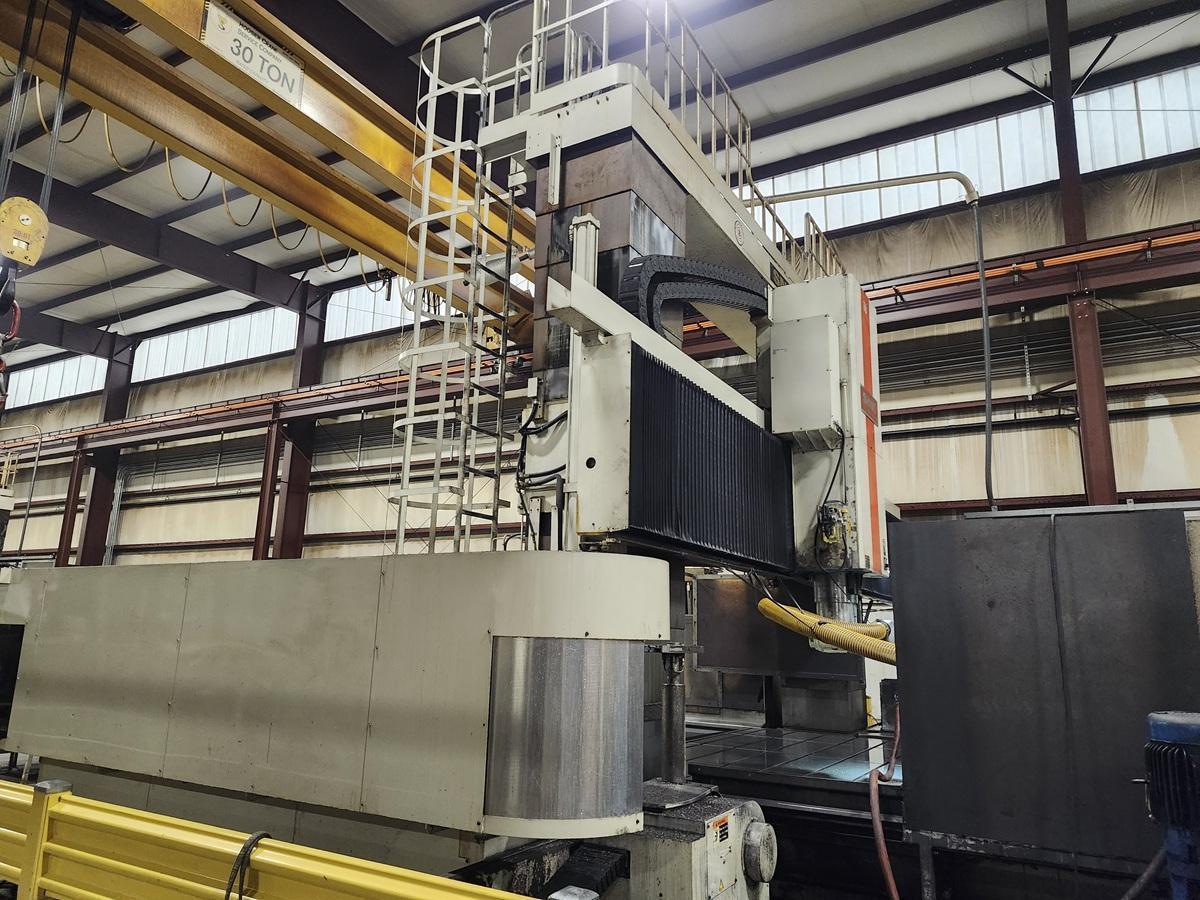

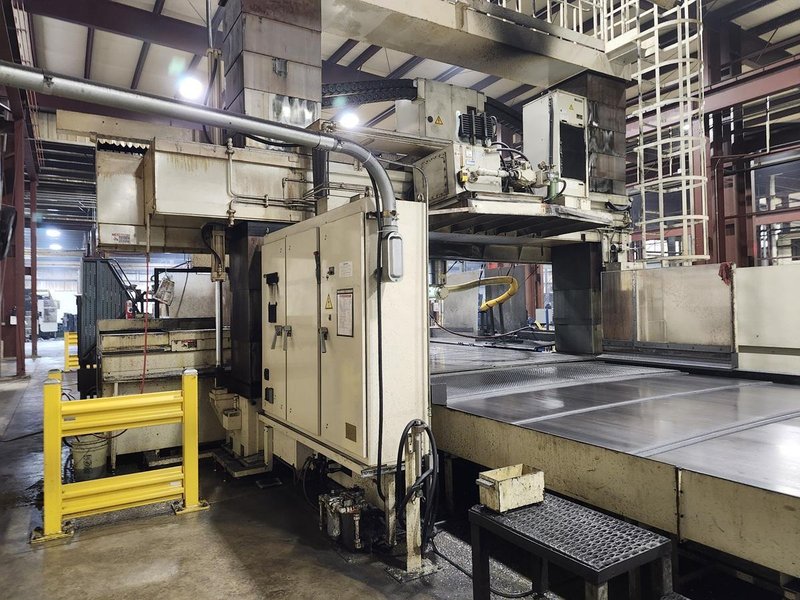

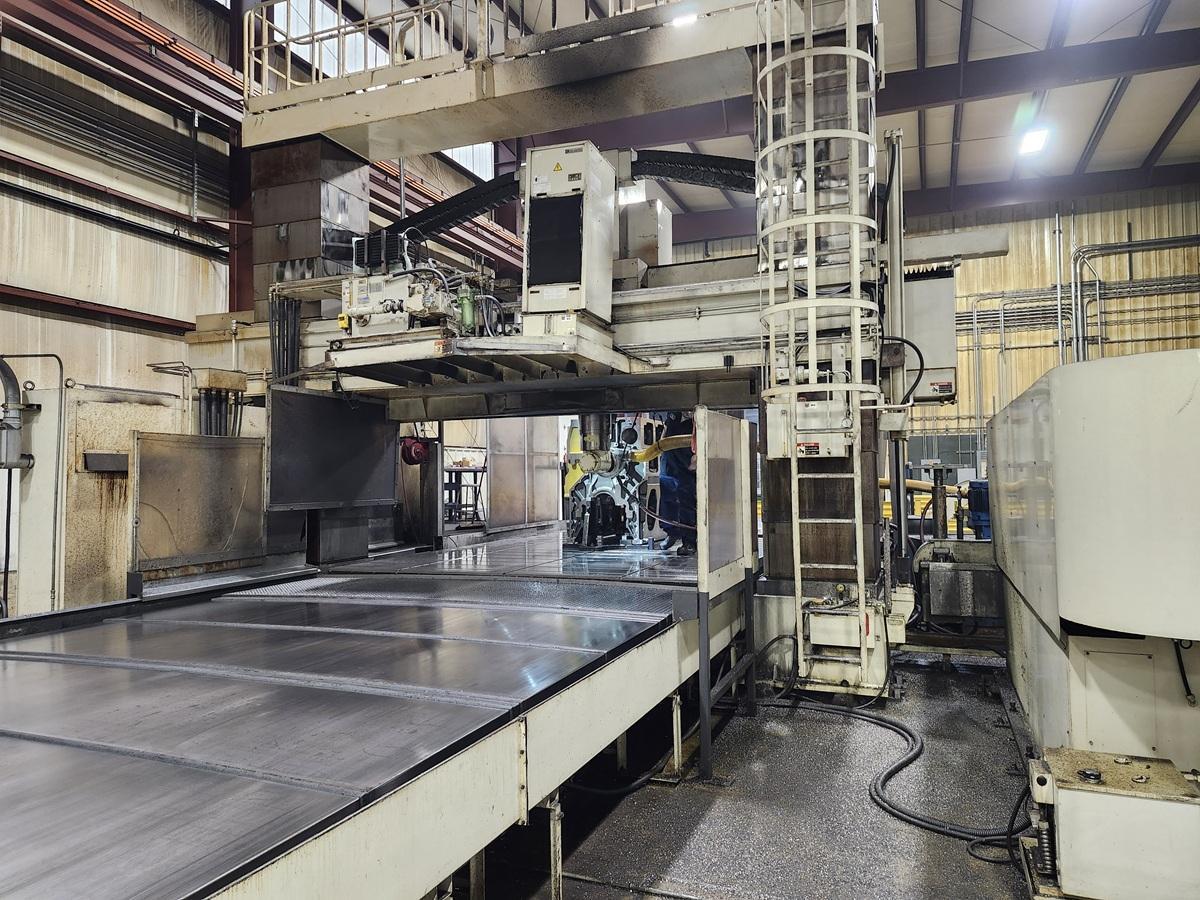

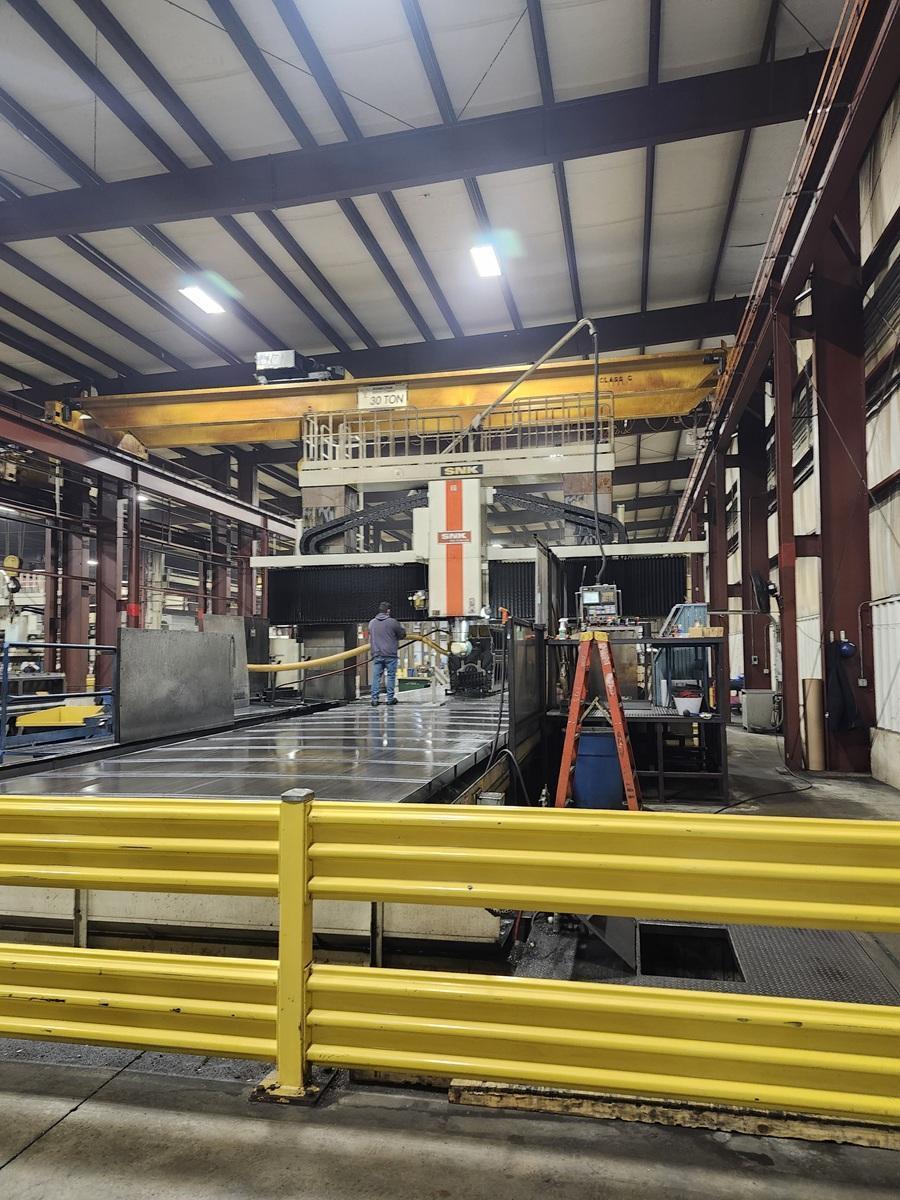

SNK RB-7VM CNC 5-Axis Bridge Mill, 2006 – Coolant Through Spindle

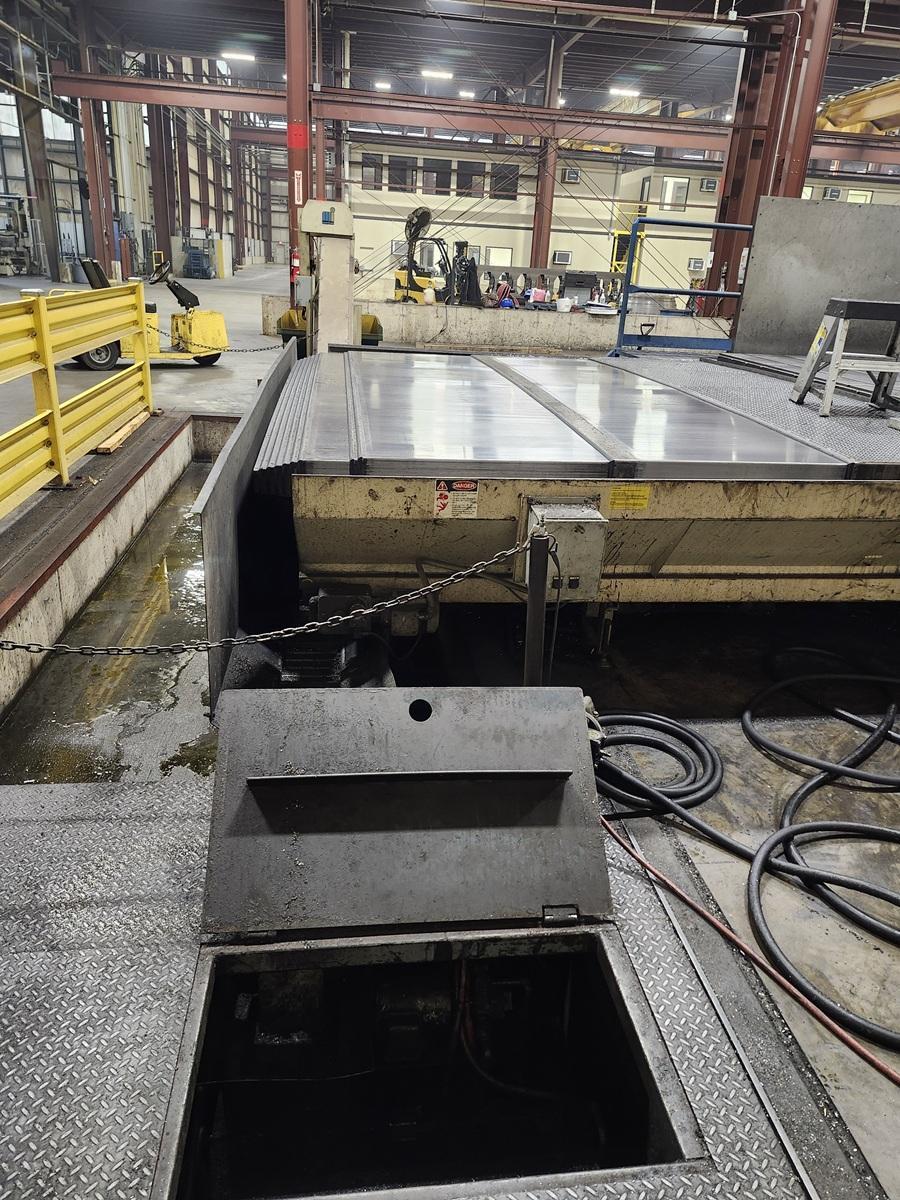

Table Size: 138″ x 314″ X-Axis Travels: 324″ Y-Axis Travels: 177.1″ Z-Axis Travels: 23.6″ W-Axis Travels: 82.6″ Automatic Tool Changer: 60 Positions Spindle Motor: 30 HP Spindle Speed: 4,500 RPM Taper: Cat 50 Distance Between Columns: 161.41″ Table to Spindle Face: 98.42″

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Right Angle Head Attachment Allowable Output: 30 HP Allowable Torque: 600 N-m Tool Retention Drawing Power: 24,500 N

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Universal Head/Swivel Head Attachment Allowable Output: 20 HP Allowable Torque: 294 N-m B-Axis Indeing Angle: 0° – 110° C-Axis Indexing Angle: -180° – 179°

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Electrical: 220V, 3-Phase

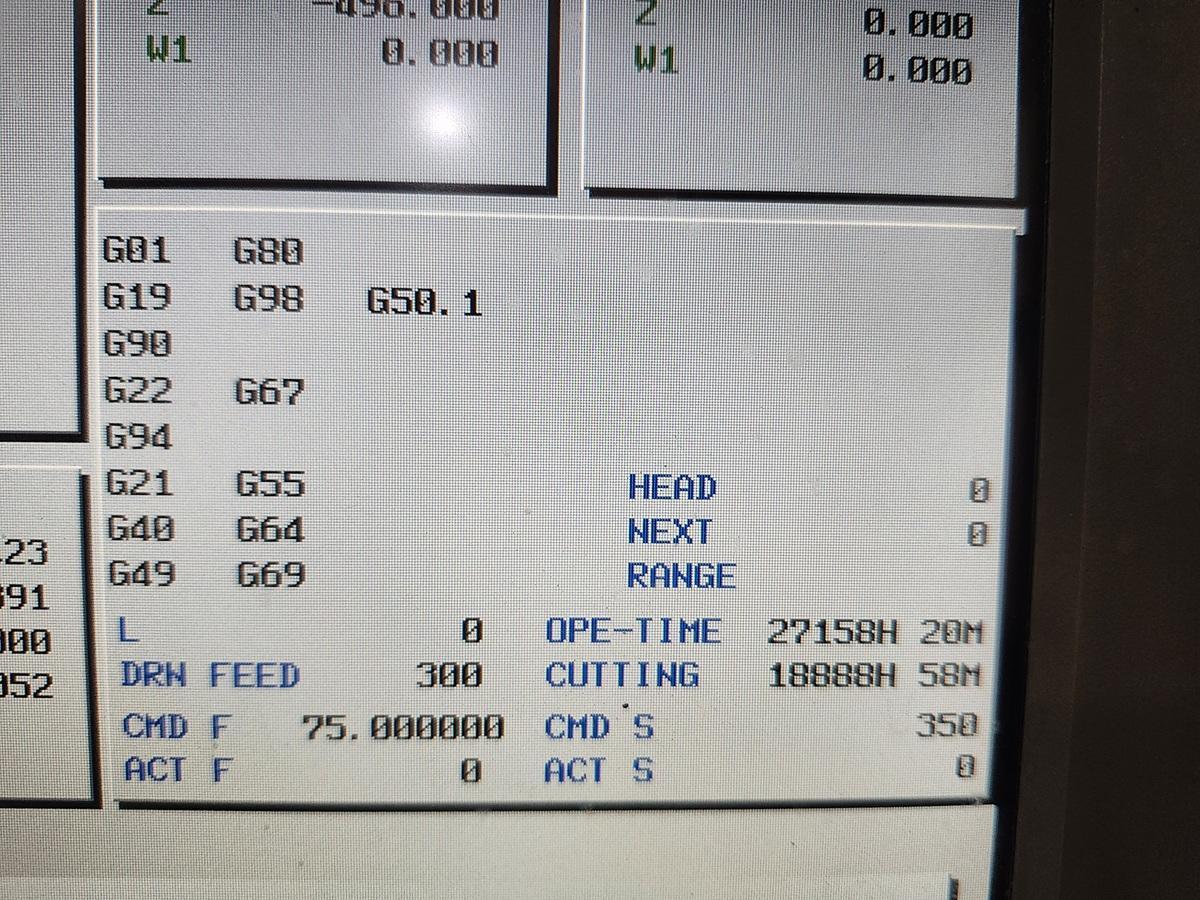

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With Fanuc 15i-A/B Controller 5-Sided Machining Renishaw Probing Through Spindle Coolant 3-Station Head Changer Right Angle Head Attachment Universal Head Attachment Heidenhain Scales 60- Position Auto Tool Changer 2x Chip Conveyors

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
