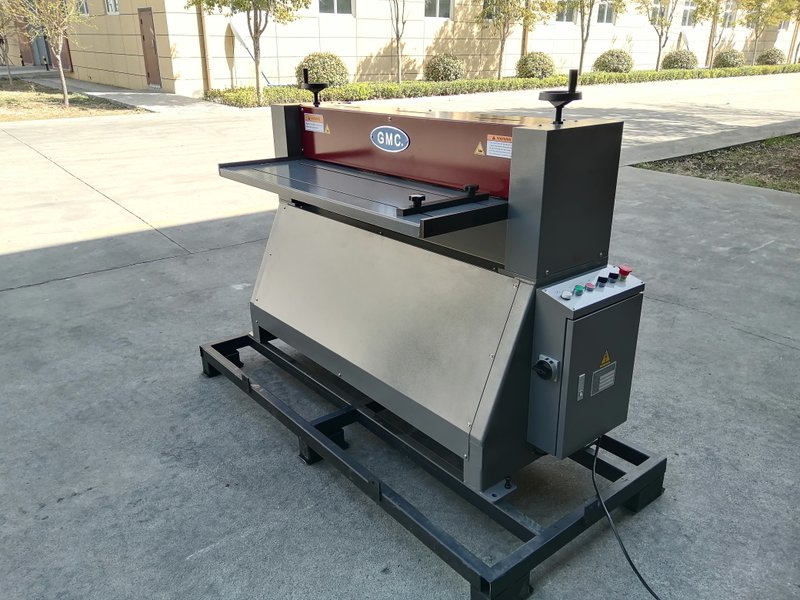

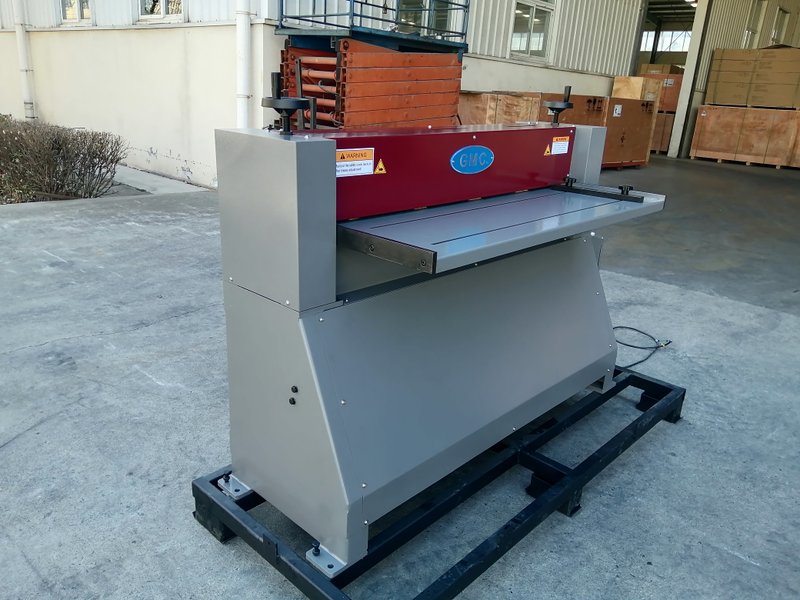

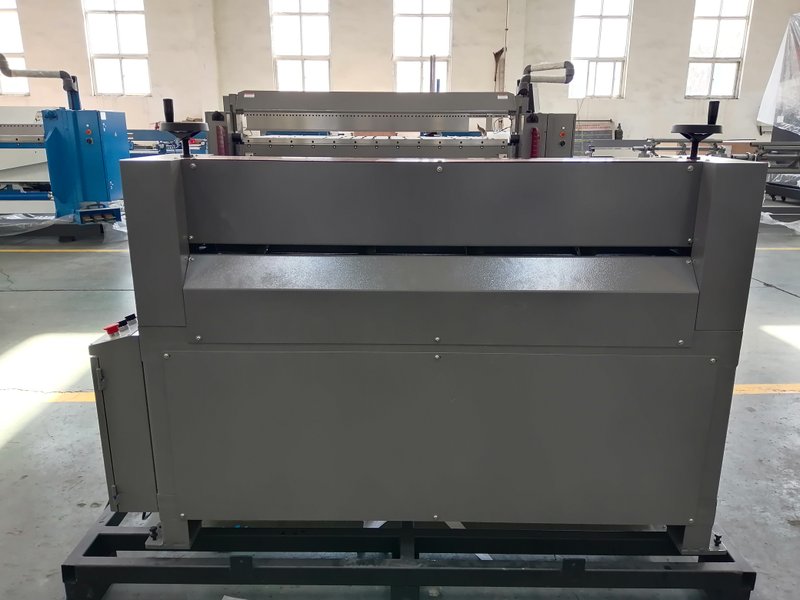

Gang Type Sheet Metal Powered Slitter

Specifications:

                               PS-4816D

Slitting and shearing capacity: width x thickness

mild steel(hot roll) Tensile 60,000PSI

stainless steel & cold roll, tensile 85,000PSI

soft aluminum, tensile 28,000PSI

min. thickness

Max. slitting length

Min. slitting Width

 48”x16Ga

48”x20Ga

48”x12Ga

30Ga

20ft

2"

Max sheet matel width

49”

Shaft for slit blades

3”

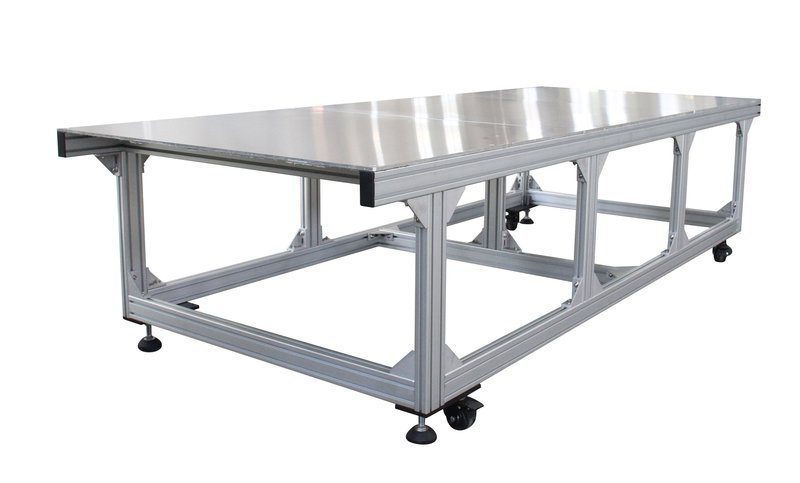

Infeed/outfeed table height

33-1/2”

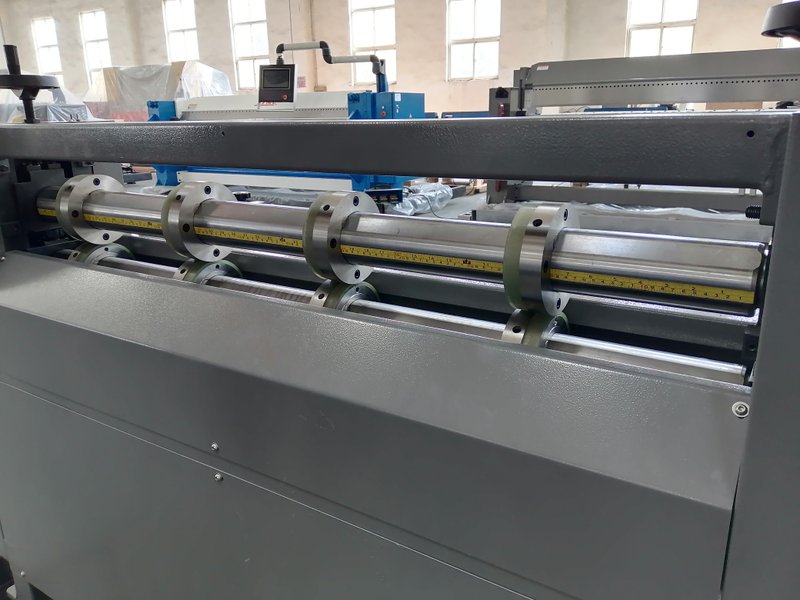

Slitting blades

 4 pairs

Slitting feed speed

57 FPM

Slitting capacity: Number of cuts / strips

16Ga mild steel

18Ga mild steel

20Ga mild steel

22Ga-24Ga mild steel

26Ga-30Ga  mild steel

1 cut / 2 strips

1 cuts / 2 strips

2 cuts / 3 strips

3 cuts / 4 strips

4 cuts / 5 strips

Slitting motor

1-1/2HP, 110V

 Amperage draw 18A

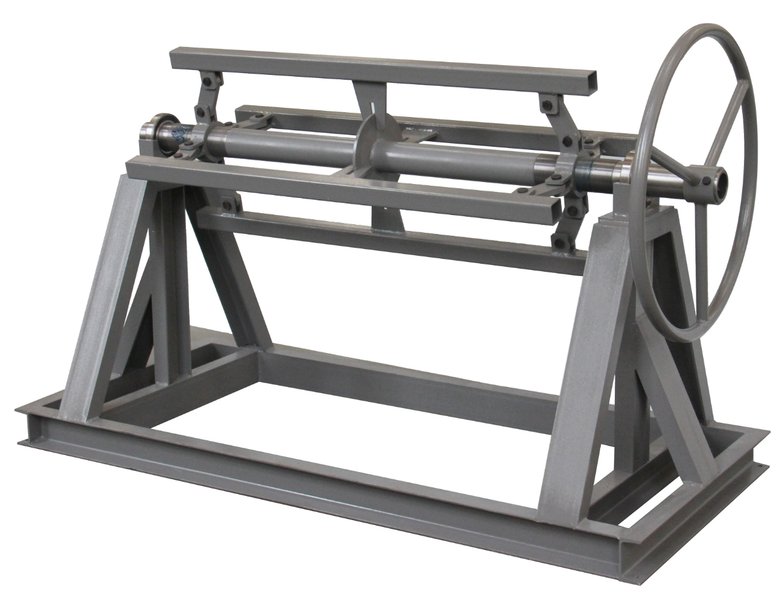

 Decoiler specifications

 manually operated

For coil size 48” width, 20” coil ID,

Max coil weight 2T = 4,500LBS

Dimensions: 71”x32”x39-1/2”

Machine weight

Shipping weight

1012 LBS

1145 LBS

Machine dimensions LWH

Shipping dimensions LWH

68” x 27” x 47”

75” x 34” x 49”
